NISSAN MURANO 2006 1.G Owners Manual

dynamic control (VDC) system” in the “5. Start-
ing and driving” section.The power outlet is for powering electrical ac-
cessories such as cellular telephones.
1Located beside the glove box (if so
equipped):
Pull down the cover to open.
2Located inside the console box:
Pull to remove the cover to open.
3Located the side of the luggage room (if so
equipped):
Pull up the cover to open.
CAUTION

The outlet and plug may be hot dur-
ing or immediately after use.

This power outlet is not designed for
use with a cigarette lighter unit.

Do not use with accessories that ex-
ceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.

Use only one power outlet at a time.

Use power outlet with the engine
running to avoid discharging the ve-
SIC3071
POWER OUTLET
2-30
Instruments and controls


05.8.26/Z50-D/V5.0


hicle battery.

Avoid using power outlets when the
air conditioner, headlights or rear
window defroster is on.

Before inserting or disconnecting a
plug, be sure to turn off the power
switch of electrical accessory being
used or the ACC power of the vehicle.

Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.

When not in use, be sure to close the
cap/cover. Do not allow water to con-
tact the outlet.
COIN BOX
WARNING
The coin box should not be used while
driving so full attention may be given to
vehicle operation.
To open, push the coin box lid
1
as illustrated.
The inner tray can be removed
2
as illustrated.
Do not place valuable items in the box.
Do not use the coin box as an ashtray.
CELLULAR PHONE HOLDER
WARNING

A cellular telephone should not be
used while driving so full attention
may be given to vehicle operation.
Some jurisdictions prohibit the use
of cellular telephones while driving.

If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
SIC2057
SIC2058
STORAGE
Instruments and controls
2-31


05.8.26/Z50-D/V5.0


your vehicle before doing so.
To open, push the cellular phone holder lid
1
as illustrated.
The inner tray can be removed
2
as illustrated.
Do not place valuable items in the holder.
Do not use the cellular phone holder as an
ashtray.
CUP HOLDERS
WARNING
The cup holder should not be used while
driving so full attention may be given to
vehicle operation.
CAUTION

Avoid abrupt starting and brakingwhen the cup holder is being used to
prevent spilling the drink. If the liquid
is hot, it can scald you or your pas-
senger.

Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
Front:
Push the cup holder opener button
A
to open.
The flap
Bwill be folded down when inserting a
bigger container.
Pull up the inner tray as illustrated
Cto remove
for cleaning.
SIC3039
2-32
Instruments and controls


05.8.26/Z50-D/V5.0


Rear:
Pull the armrest forward until it is horizontal.
GLOVE BOXTo open the glove box, pull the handle
A.
To close, push the lid in until the lock latches.
To lock
2
or unlock
1
the glove box, use the
master key, mechanical key (Intelligent Key sys-
tem) or wallet key.
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
SIC3042
SIC2669
Instruments and controls
2-33


05.8.26/Z50-D/V5.0


CONSOLE BOX
WARNING
The center console box should not beused while driving so full attention may
be given to vehicle operation.
Push the button
A
to open the upper console
box lid.The partition
C
can be removed.
Pull up the buttonBto open the lower console
box lid.
Push the button
Dand adjust the armrest to the
desired position.
SIC3043
2-34
Instruments and controls


05.8.26/Z50-D/V5.0


CARGO NET (if so equipped)The cargo net helps keep packages in the cargo
area from moving around while your vehicle is
driven.
To install the cargo net, attach the hooks to the
retainers
A
on both sides.
To remove the cargo net, detach the hooks from
the cargo net retainers.
For more retainers, refer to “Vehicle loading
information” in the “9. Technical and consumer
information” section.

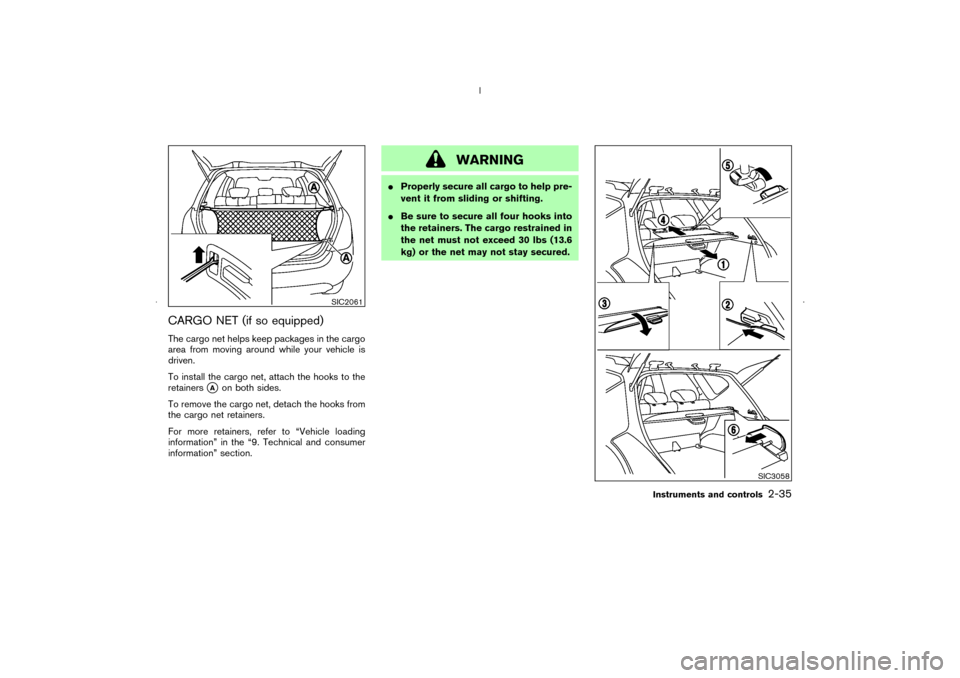

WARNING

Properly secure all cargo to help pre-
vent it from sliding or shifting.

Be sure to secure all four hooks into
the retainers. The cargo restrained in
the net must not exceed 30 lbs (13.6
kg) or the net may not stay secured.
SIC2061
SIC3058
Instruments and controls
2-35


05.8.26/Z50-D/V5.0


TONNEAU COVER (if so equipped)The tonneau cover keeps the luggage compart-
ment contents hidden from the outside.
To use the tonneau cover, pull it out
1, hang
both sides on the hooks
2
and open the flap
3.
To use the subcover, pull out
4and hang both
sides on the hooks behind the rear seat head
restraint
5.
To stow the tonneau cover and the subcover,
remove them from the hooks and hold until they
are retracted.
To remove the tonneau cover, stow the cover
and pull the holder to the opposite side
6.

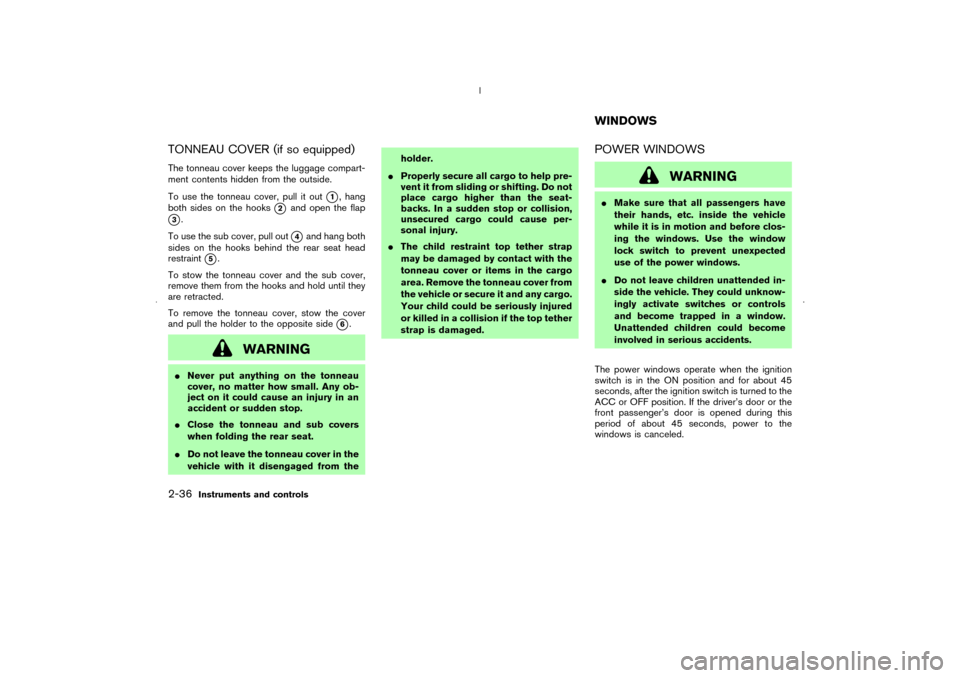

WARNING

Never put anything on the tonneau
cover, no matter how small. Any ob-
ject on it could cause an injury in an
accident or sudden stop.

Close the tonneau and sub covers
when folding the rear seat.

Do not leave the tonneau cover in the
vehicle with it disengaged from theholder.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.

The child restraint top tether strap
may be damaged by contact with the
tonneau cover or items in the cargo
area. Remove the tonneau cover from
the vehicle or secure it and any cargo.
Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.
POWER WINDOWS
WARNING

Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before clos-
ing the windows. Use the window
lock switch to prevent unexpected
use of the power windows.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls
and become trapped in a window.
Unattended children could become
involved in serious accidents.
The power windows operate when the ignition
switch is in the ON position and for about 45
seconds, after the ignition switch is turned to the
ACC or OFF position. If the driver’s door or the
front passenger’s door is opened during this
period of about 45 seconds, power to the
windows is canceled.WINDOWS
2-36
Instruments and controls


05.8.26/Z50-D/V5.0


Main power window switch (driver’s
side)1. Rear left passenger’s side window
2. Driver’s side window
3. Window lock button
4. Rear right passenger’s side window
5. Front passenger’s side window
To open or close the window, push down
A
or
pull up
B
the switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Locking passenger’s windowsWhen the lock button
C
is pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
Passenger side power window switchThe passenger side switch will open or close
only the corresponding window. To open or
close the window, hold the switch down
A
or
up
B.
SIC2630
SIC1892F
Instruments and controls
2-37


05.8.26/Z50-D/V5.0


Automatic operationTo fully open or close the driver’s or front
passenger’s side window, completely push
down
Aor pull up
Bthe switch and release it;
it need not be held. The window will automati-
cally open or close all the way. To stop the
window, just push or lift the switch on the
opposite side.
Auto reverse function (if so equipped)If the control unit detects something caught in a
front window as it moves up, the window will be
immediately lowered.
The auto reverse function can be activated whena front window is closed by automatic operation
when the ignition switch is in the ON position or
for about 45 seconds after the ignition switch is
turned to the ACC, OFF or LOCK position. The
doors remain closed.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.

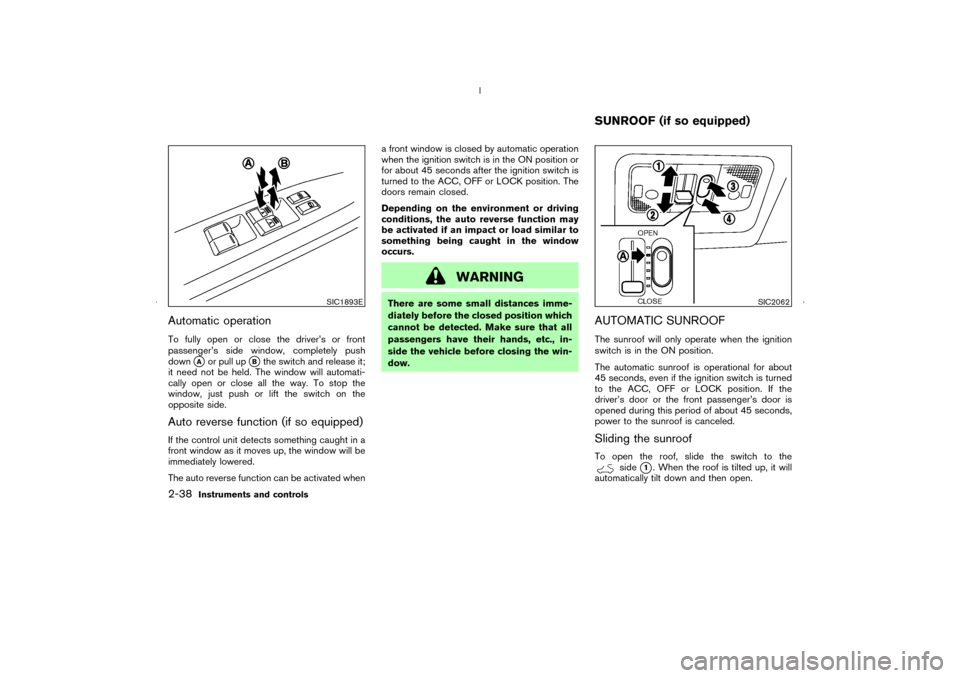

WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the win-
dow.
AUTOMATIC SUNROOFThe sunroof will only operate when the ignition
switch is in the ON position.
The automatic sunroof is operational for about
45 seconds, even if the ignition switch is turned
to the ACC, OFF or LOCK position. If the
driver’s door or the front passenger’s door is
opened during this period of about 45 seconds,
power to the sunroof is canceled.Sliding the sunroofTo open the roof, slide the switch to the
side
1. When the roof is tilted up, it will
automatically tilt down and then open.
SIC1893E
SIC2062
SUNROOF (if so equipped)
2-38
Instruments and controls


05.8.26/Z50-D/V5.0


To close the roof, slide the switch to the
side
2.
Sliding position of lid can be chosen according
to sliding amount of switch.
To fully open or close the roof, completely move
the switch to the
1
or
2
side.
Tilting the sunroofTo tilt up, push the
side
3
of the tilt
switch. When the roof is open, it will automati-
cally close and then tilt up. To tilt down the
sunroof, push the
side
4. When the roof
is open, it will automatically close.
Restarting the sunroof sliding switchThe sliding switch will become inoperable after
the battery terminal is disconnected, the electri-
cal supply interrupted and/or some abnormality
detected. Use the following re-set procedure to
return sunroof operation to normal.
1. Keep pushing the tilting switch toward tilt UP.
2. After the lid has tilted up gradually, it will
automatically close all the way, then return to
normal operation.Auto reverse function (When closing
the sunroof)If the control unit detects something caught inthe sunroof as it moves to the front or tilts down,
the sunroof will immediately open backward or
tilt up.
The auto reverse function can be activated when
the sunroof is closed by automatic operation
when the ignition switch is in the ON position or
for about 45 seconds after the ignition switch is
turned to the ACC, OFF or LOCK position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the sunroof
occurs.
If the auto reverse function malfunctions and
repeats opening or tilting up the sunroof, keep
pushing toward the close position or keep push-
ing the tilt down switch within 5 seconds after it
happens, then the sunroof will fully close gradu-
ally. In this case, make sure nothing is caught in
the sunroof.

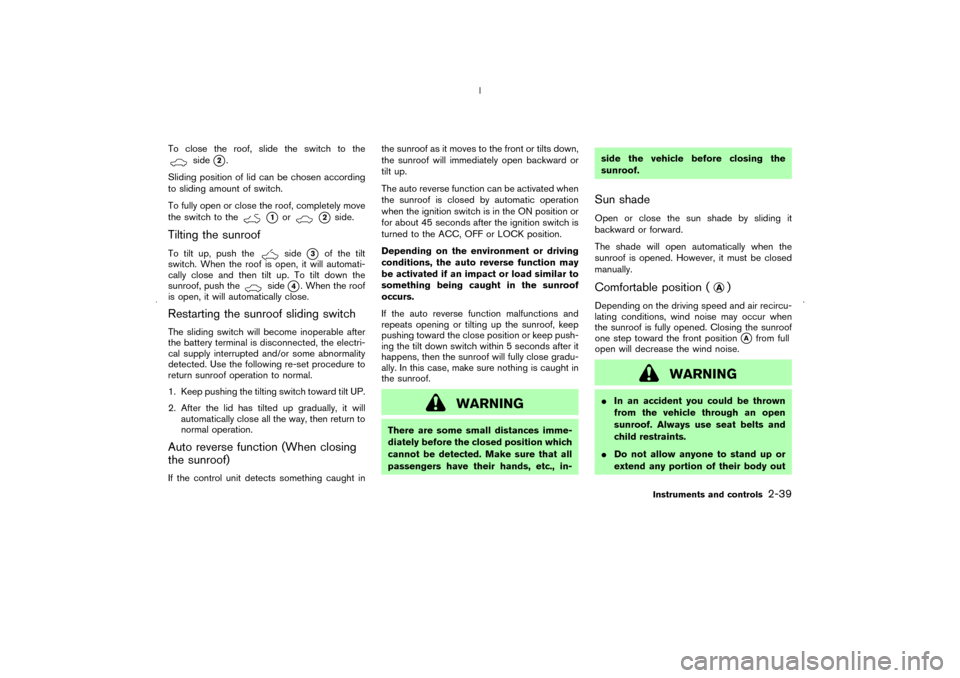

WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-side the vehicle before closing the
sunroof.
Sun shadeOpen or close the sun shade by sliding it
backward or forward.
The shade will open automatically when the
sunroof is opened. However, it must be closed
manually.Comfortable position (
A)
Depending on the driving speed and air recircu-
lating conditions, wind noise may occur when
the sunroof is fully opened. Closing the sunroof
one step toward the front position
A
from full
open will decrease the wind noise.
WARNING

In an accident you could be thrown
from the vehicle through an open
sunroof. Always use seat belts and
child restraints.

Do not allow anyone to stand up or
extend any portion of their body out
Instruments and controls
2-39


05.8.26/Z50-D/V5.0
