Page 71 of 341
2 Instruments and controlsInstrument panel ..................................................................... 2-2
Meters and gauges ............................................................... 2-3
Speedometer and odometer ......................................... 2-4
Tachometer ........................................................................ 2-4
Engine coolant temperature gauge ............................. 2-5
Fuel gauge ......................................................................... 2-5
Compass display (if so equipped) .................................... 2-6
Warning/indicator lights and audible reminders ............ 2-9
Checking bulbs................................................................. 2-9
Warning lights ................................................................... 2-9
Indicator lights ................................................................ 2-14
Audible reminders.......................................................... 2-16
Security systems.................................................................. 2-17
Vehicle security system (if so equipped) ................ 2-17
NISSAN Vehicle Immobilizer System ....................... 2-18
Windshield wiper and washer switch ........................... 2-20
Rear window wiper and washer switch ....................... 2-21
Rear window and outside mirror defroster switch...... 2-22
Headlight and turn signal switch ................................... 2-22
Xenon headlights (if so equipped) .......................... 2-22
Headlight switch ........................................................... 2-23
Daytime running light system (Canada only) ........ 2-25
Instrument brightness control ..................................... 2-26
Turn signal switch ........................................................ 2-27Fog light switch (if so equipped) .............................. 2-27
Hazard warning flasher switch ......................................... 2-27
Horn ........................................................................................ 2-28
Heated seats (if so equipped) ......................................... 2-28
Vehicle dynamic control (VDC) off switch (if so
equipped) .............................................................................. 2-29
Power outlet.......................................................................... 2-30
Storage .................................................................................. 2-31
Coin box........................................................................... 2-31
Cellular phone holder ................................................... 2-31
Cup holders .................................................................... 2-32
Glove box ........................................................................ 2-33
Console box .................................................................... 2-34
Cargo net (if so equipped) ......................................... 2-35
Tonneau cover (if so equipped)................................. 2-36
Windows................................................................................ 2-36
Power windows.............................................................. 2-36
Sunroof (if so equipped) ................................................... 2-38
Automatic sunroof ......................................................... 2-38
Interior lights ......................................................................... 2-40
Ceiling light ..................................................................... 2-40
Map light .......................................................................... 2-41
Rear personal light ........................................................ 2-41
Luggage light .................................................................. 2-42
05.8.26/Z50-D/V5.0
Page 72 of 341
Vanity mirror light (if so equipped) ................................. 2-42
HomeLink
Universal Transceiver (if so equipped) .... 2-43
Programming HomeLink
............................................ 2-44
Programming HomeLinkfor Canadian
customers ........................................................................ 2-45
Operating the HomeLinkUniversal
Transceiver ...................................................................... 2-45Programming trouble diagnosis ................................. 2-45
Clearing the programmed information...................... 2-46
Reprogramming a single HomeLink
button .......... 2-46
If your vehicle is stolen................................................. 2-46
05.8.26/Z50-D/V5.0
Page 73 of 341
1. Headlight, fog light* and turn signal switch
2. Trip odometer reset button
3. Instrument brightness control switch
4. Meters/gauges
5. Windshield/rear window wiper and washer
switch
6. Hazard warning flasher switch
7. Center ventilator
8. Audio control
9. Display/clock
10. Rear window defroster and Heated outside
mirror* switch
11. Display screen control and/or Navigation
system*1
12. Passenger supplemental air bag
13. Side ventilator
14. Headlight aiming control switch*
15. VDC (Vehicle dynamic control) off switch*
or Headlight aiming control*
16. Steering switch for audio control*
17. Fuse box cover
18. Tilting steering wheel lock lever
19. Driver supplemental air bag/Horn
20. Cruise control main/set switch
21. Ignition switch/steering lock
22. Heater/air conditioner control
23. Coin box
24. Outside mirror remote control
25. Cellular phone holder
26. AWD lock switch (AWD models)
27. Heated seat switch*
28. Power outlet cover
29. Glove box
*: if so equipped
SSI0176
INSTRUMENT PANEL2-2
Instruments and controls
05.8.26/Z50-D/V5.0
Page 74 of 341
*1: Refer to the separate Navigation System
Owner’s Manual.
1. Tachometer
2. Turn signal indicator/Hazard indicator
3. Speedometer
4. Engine coolant temperature gauge
5. Fuel gauge6. Reset button for trip odometer
7. Warning/Indicator lights
8. Odometer (Total/Twin trip)
9. CVT shift position indicator
SIC3031
METERS AND GAUGES
Instruments and controls
2-3
05.8.26/Z50-D/V5.0
Page 75 of 341
SPEEDOMETER AND ODOMETER
SpeedometerThe speedometer indicates vehicle speed.Odometer/Twin trip odometerThe odometer
1/twin trip odometer
2
are
displayed when the ignition switch is in the ON
position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.Changing the display:
Pushing the reset button
3
located on the left
side of the meter panel changes the display as
follows:
TRIP A→TRIP B→TRIP A
Resetting the trip odometer:
Pushing the reset button for more than 1 second
resets the trip odometer to zero.
Elapsed time, driving distance and average
speed information is also available. Refer to
“How to use the TRIP button” in the “4. Display
screen, heater, air conditioner and audio sys-
tems” section later in this manual.
TACHOMETERThe tachometer indicates engine speed in revo-
lutions per minute (rpm).
Do not rev engine into red zone
A.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear. Operating
the engine in the red zone may cause
serious engine damage.
SIC3032
SIC3033
2-4
Instruments and controls
05.8.26/Z50-D/V5.0
Page 76 of 341
ENGINE COOLANT TEMPERATURE
GAUGEThe gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range
A
when the gauge needle points
within the zone shown in the illustration.
The engine coolant temperature will vary with the
outside air temperature and driving conditions.

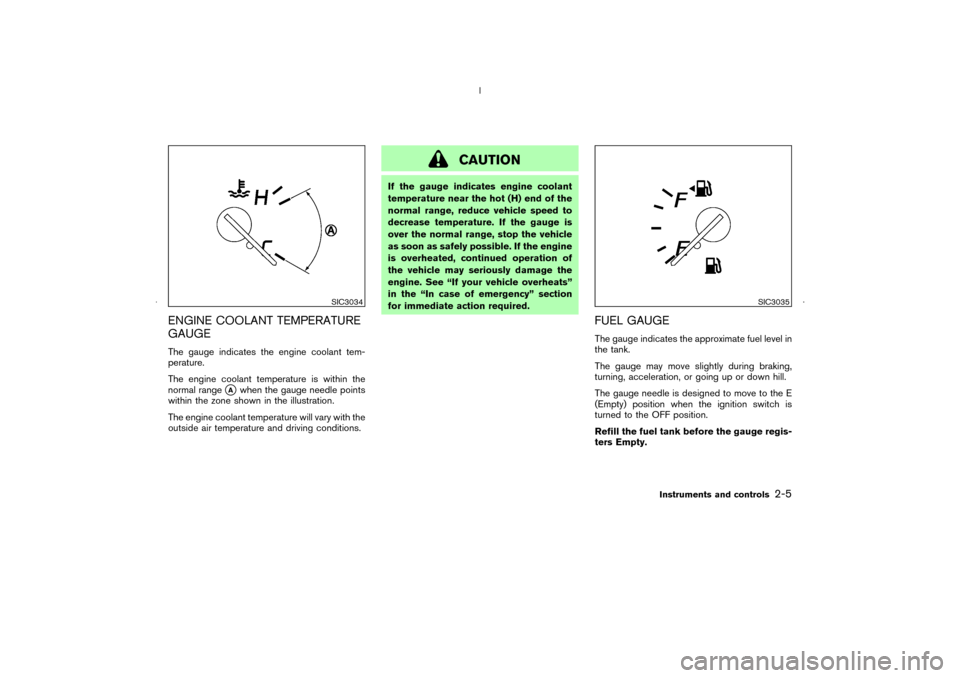

CAUTION
If the gauge indicates engine coolant
temperature near the hot (H) end of the
normal range, reduce vehicle speed to
decrease temperature. If the gauge is
over the normal range, stop the vehicle
as soon as safely possible. If the engine
is overheated, continued operation of
the vehicle may seriously damage the
engine. See “If your vehicle overheats”
in the “In case of emergency” section
for immediate action required.
FUEL GAUGEThe gauge indicates the approximate fuel level in
the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hill.
The gauge needle is designed to move to the E
(Empty) position when the ignition switch is
turned to the OFF position.
Refill the fuel tank before the gauge regis-
ters Empty.
SIC3034
SIC3035
Instruments and controls
2-5
05.8.26/Z50-D/V5.0
Page 77 of 341
The low fuel warning light comes on when
the fuel tank is getting low. Refuel as soon
as it is convenient, preferably before the
gauge reaches E. There will be a small
reserve of fuel in the tank when the fuel
gauge needle reaches E.
The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.

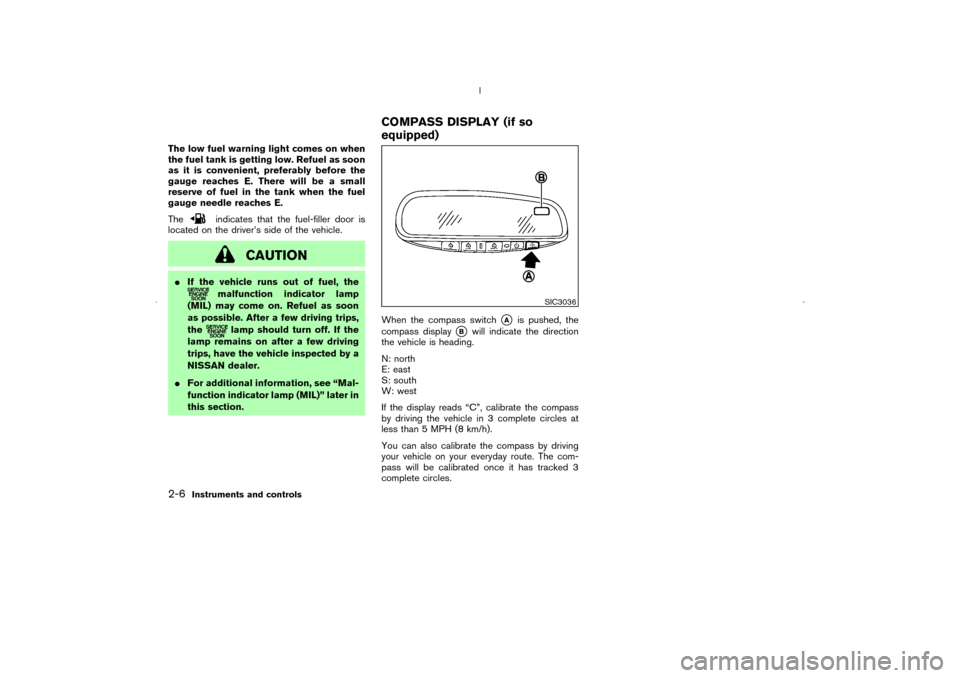

CAUTION
If the vehicle runs out of fuel, the
malfunction indicator lamp
(MIL) may come on. Refuel as soon
as possible. After a few driving trips,
the
lamp should turn off. If the
lamp remains on after a few driving
trips, have the vehicle inspected by a
NISSAN dealer.
For additional information, see “Mal-
function indicator lamp (MIL)” later in
this section.When the compass switch
A
is pushed, the
compass display
B
will indicate the direction
the vehicle is heading.
N: north
E: east
S: south
W: west
If the display reads “C”, calibrate the compass
by driving the vehicle in 3 complete circles at
less than 5 MPH (8 km/h).
You can also calibrate the compass by driving
your vehicle on your everyday route. The com-
pass will be calibrated once it has tracked 3
complete circles.
SIC3036
COMPASS DISPLAY (if so
equipped)
2-6
Instruments and controls
05.8.26/Z50-D/V5.0
Page 78 of 341
Zone variation change procedureThe difference between magnetic north and
geographical north is known as variance. In
some areas, this difference can sometimes be
great enough to cause false compass readings.
Follow these instructions to set the variance for
your particular location if this happens:
1. Push the compass switch for more than 3
seconds. The current zone number will ap-
pear in the display.
2. Find your current location and variance one
number on the zone map.
3. Push the compass switch until the new zone
number appears in the display. After you stop
pushing the switch in, the display will show a
compass direction within a few seconds.
Inaccurate compass direction:
1. With the display turned on, push the com-
pass switch for 3 seconds, until the zone
selection comes up (a number will be dis-
played in the mirror compass window).
2. Toggle until correct zone is found and release
switch.
3. It returns to the normal compass mode within
10 seconds of no switch activity.
SIC0611D
Instruments and controls
2-7
05.8.26/Z50-D/V5.0
Page 79 of 341
4. If the vehicle changes zone, repeat steps 1
thru 3. See map.
If the compass deviates from the correct
indication soon after repeated adjustment,
have the compass checked at an authorized
dealer.
The compass may not indicate the correct
compass point in tunnels or while driving up
or down a steep hill.
(The compass returns to the correct com-
pass point when the vehicle moves to an area
where the geomagnetism is stabilized.)
CAUTION
Do not install a ski rack, antenna,
etc., which are attached to the vehicle
by means of a magnet. They affect
the operation of the compass.
When cleaning the mirror, use a pa-
per towel or similar material damp-
ened with glass cleaner. Do not spray
glass cleaner directly on the mirror as
it may cause the liquid cleaner to
enter the mirror housing.2-8
Instruments and controls
05.8.26/Z50-D/V5.0
Page 80 of 341
All-Wheel Drive (AWD) warning light
(AWD models)
Low tire pressure warning light (if so
equipped)
Cruise set indicator light
or
Anti-lock Brake System (ABS)
warning light
Low washer fluid warning light
Front passenger air bag status light
or
Brake warning light
P position selecting warning light (if so
equipped)
High beam indicator light (Blue)
Charge warning light
Seat belt warning light
Malfunction indicator lamp (MIL)
Door open warning light
Supplemental air bag warning light
Security indicator light
Engine oil pressure warning light
All-Wheel Drive (AWD) LOCK indicator
light (AWD models)
Slip indicator light (if so equipped)
Intelligent Key warning light (if so
equipped)
Continuously Variable Transmission (CVT)
indicator light
Turn signal/hazard indicator lights
Low fuel warning light
Cruise main switch indicator light
Vehicle Dynamic Control (VDC) off indi-
cator light (if so equipped)
CHECKING BULBSApply the parking brake and turn the ignition
switch to ON without starting the engine. The
following lights will come on:
,
or
,
,
,
The following lights come on briefly and then go
off:
,
or
,
,
,
,
,
,
,
If any light fails to come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system repaired
promptly.
WARNING LIGHTS
All-wheel drive (AWD) warning
light (AWD models)
The
warning light comes on when the
ignition switch is turned to ON. It turns off soon
after the engine is started.
If the AWD system malfunctions or the revolu-
tion, or radius of the front and the rear wheel
WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS
Instruments and controls
2-9
05.8.26/Z50-D/V5.0
