restraint mode). Based on the weight on the seat
detected by the occupant classification sensor
and the belt tension detected on the seat belt,
the advanced air bag system determines
whether the front passenger air bag should be
automatically turned OFF as required by the
regulations.
Front passenger seat adult occupants who are
properly seated and using the seat belt as
outlined in this manual should not cause the
passenger air bag to be automatically turned
OFF. For small adults it may be turned OFF.
However, if the occupant takes his/her weight
off the seat cushion (for example, by not sitting
upright, by sitting on an edge of the seat, or by
otherwise being out of position), this could
cause the sensor to turn the air bag OFF. In
addition, if the occupant improperly uses the
seat belt in the automatic locking mode (child
restraint mode), this could cause the air bag to
be turned OFF. Always be sure to be seated and
wearing the seat belt properly for the most
effective protection by the seat belt and supple-
mental air bag.
NISSAN recommends that pre-teens and chil-
dren be properly restrained in a rear seat.
NISSAN also recommends that appropriate
child restraints and booster seats be properly
installed in a rear seat. If this is not possible, the
occupant classification sensor and seat beltsensors are designed to operate as described
above to turn the front passenger air bag OFF
for specified child restraints as required by the
regulations. Failing to properly secure child re-
strains and to use the automatic locking mode
(child restraint mode) may allow the restraint to
tip or move in an accident or sudden stop. This
can also result in the passenger air bag inflating
in a crash instead of being OFF. See “Child
restraints” earlier in this section for proper use
and installation.
If the front passenger seat is not occupied, the
passenger air bag is designed not to inflate in a
crash. However, heavy objects placed on the
seat could result in air bag inflation, because of
the object’s weight detected by the occupant
classification sensor. Other conditions could
also result in air bag inflation, such as if a child is
standing on the seat, or if two children are on the
seat, contrary to the instructions in this manual.
Always be sure that you and all vehicle occu-
pants are seated and restrained properly.
Using the passenger air bag status light, you can
monitor when the front passenger air bag is
automatically turned OFF with the seat occu-
pied. The light will not illuminate when the front
passenger seat is unoccupied.
If an adult occupant is in the seat but the
passenger air bag status light is illuminated(indicating that the air bag is OFF), it could be
that the person is a small adult, or is not sitting
on the seat properly or is not using the seat belt
properly.
If a child restraint must be used in the front seat,
the passenger air bag status light may or may not
be illuminated, depending on the size of the child
and the type of child restraint being used. If the
passenger air bag status light is not illuminated
(indicating that the air bag might inflate in a
crash), it could be that the child restraint or seat
belt is not being used properly. In rare cases, the
passenger air bag status light will not illuminate
even though the air bag is OFF.
If such situations happen, properly position and
restrain the occupant or child restraint. Other-
wise reposition the occupant or child restraint in
a rear seat. If you have any questions about
whether your passenger air bag is working as
designed, your NISSAN dealer can confirm that
it is working properly by using a special tool.
The air bag system and passenger air bag status
light will take a few seconds to register a change
in the passenger seat status. For example, if a
large adult who is sitting in the front passenger
seat exits the vehicle, the passenger air bag
status light will change from OFF to ON for a few
seconds and then to OFF. This is normal system
operation and does not indicate a malfunction.1-48
Safety — seats, seat belts and supplemental restraint system
05.8.26/Z50-D/V5.0
Page 62 of 341
If a malfunction occurs in the front passenger air
bag system, the supplemental air bag warning
light
, located in the meter and gauges
area, will blink. Have the system checked by a
NISSAN dealer.
Other supplemental front air bag
precautions

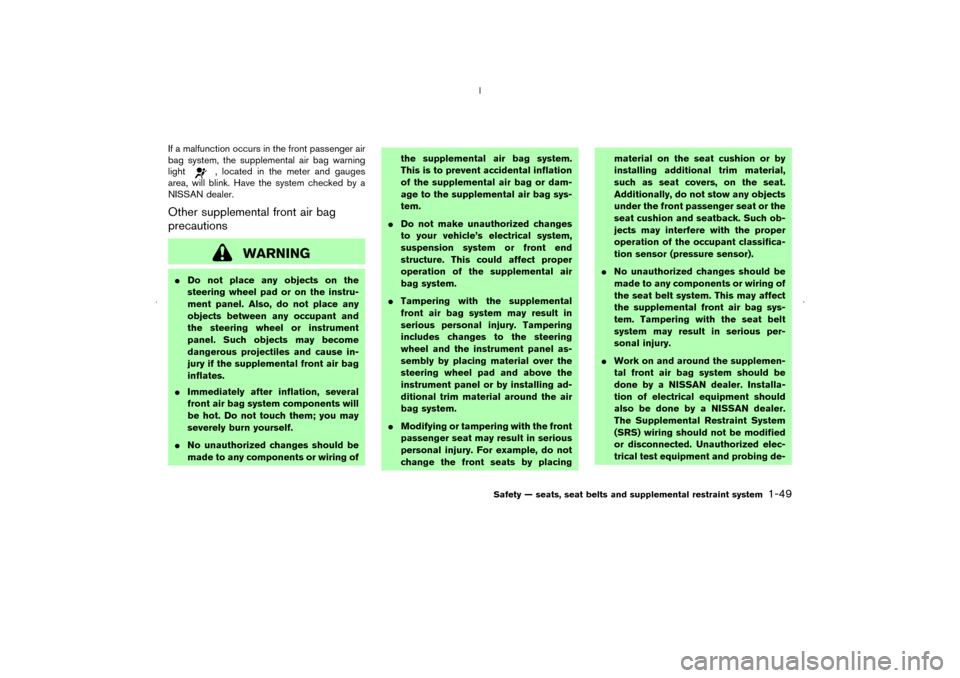

WARNING
Do not place any objects on the
steering wheel pad or on the instru-
ment panel. Also, do not place any
objects between any occupant and
the steering wheel or instrument
panel. Such objects may become
dangerous projectiles and cause in-
jury if the supplemental front air bag
inflates.
Immediately after inflation, several
front air bag system components will
be hot. Do not touch them; you may
severely burn yourself.
No unauthorized changes should be
made to any components or wiring ofthe supplemental air bag system.
This is to prevent accidental inflation
of the supplemental air bag or dam-
age to the supplemental air bag sys-
tem.
Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or front end
structure. This could affect proper
operation of the supplemental air
bag system.
Tampering with the supplemental
front air bag system may result in
serious personal injury. Tampering
includes changes to the steering
wheel and the instrument panel as-
sembly by placing material over the
steering wheel pad and above the
instrument panel or by installing ad-
ditional trim material around the air
bag system.
Modifying or tampering with the front
passenger seat may result in serious
personal injury. For example, do not
change the front seats by placingmaterial on the seat cushion or by
installing additional trim material,
such as seat covers, on the seat.
Additionally, do not stow any objects
under the front passenger seat or the
seat cushion and seatback. Such ob-
jects may interfere with the proper
operation of the occupant classifica-
tion sensor (pressure sensor).
No unauthorized changes should be
made to any components or wiring of
the seat belt system. This may affect
the supplemental front air bag sys-
tem. Tampering with the seat belt
system may result in serious per-
sonal injury.
Work on and around the supplemen-
tal front air bag system should be
done by a NISSAN dealer. Installa-
tion of electrical equipment should
also be done by a NISSAN dealer.
The Supplemental Restraint System
(SRS) wiring should not be modified
or disconnected. Unauthorized elec-
trical test equipment and probing de-
Safety — seats, seat belts and supplemental restraint system
1-49
05.8.26/Z50-D/V5.0
Page 63 of 341
vices should not be used on the air
bag system.
A cracked windshield should be re-
placed immediately by a qualified re-
pair facility. A cracked windshield
could affect the function of the
supplemental air bag system.
The SRS wiring harness connectors
are yellow and orange for easy iden-
tification.
When selling your vehicle, we request that you
inform the buyer about the supplemental front air
bag system and guide the buyer to the appro-
priate sections in this Owner’s Manual.
Supplemental side air bag and curtain
side-impact and rollover air bag
systemsThe supplemental side air bags are located in
the outside of the seatback of the front seats.
The supplemental curtain side-impact and roll-
over air bags are located in the side roof rails.
These systems are designed to meet voluntary
guidelines to help reduce the risk of injury to
out-of-position occupants.However, all of the
information, cautions and warnings in this
manual still apply and must be followed.
The supplemental side air bags and curtain
side-impact and rollover air bags are designed
to inflate in higher severity side collisions, al-though they may inflate if the forces in another
type of collision are similar to those of a higher
severity side impact. They are designed to inflate
on the side where the vehicle is impacted. They
may not inflate in certain side collisions.
Curtain side-impact and rollover air bags are
also designed to inflate in certain types of roll-
over collisions or near rollovers.
Vehicle damage (or lack of it) is not always an
indication of proper supplemental side air bag
and curtain side-impact and rollover air bag
operation.
When the supplemental side air bag and curtain
side-impact/rollover air bag inflate, a fairly loud
noise may be heard, followed by release of
smoke. This smoke is not harmful and does not
indicate a fire. Care should be taken not to inhale
it, as it may cause irritation and choking. Those
with a history of a breathing condition should get
fresh air promptly.
Supplemental side air bags, along with the use
of seat belts, help to cushion the impact force on
the chest of the front occupants. Curtain side-
impact and rollover air bags help to cushion the
impact force to the head of occupants in the
front and rear outboard seating positions. They
can help save lives and reduce serious injuries.
However, an inflating side air bag and curtain
side-impact/rollover air bag may cause abra-
sions or other injuries. Supplemental side air
bags and curtain side-impact and rollover air
SSS0190
1-50
Safety — seats, seat belts and supplemental restraint system
05.8.26/Z50-D/V5.0
Page 64 of 341
bags do not provide restraint to the lower body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the supplemental side air
bag. Rear seat passengers should be seated as
far away as practical from the door finishers and
side roof rails. The side air bags and curtain
side-impact and rollover air bags inflate quickly
in order to help protect the front and rear
outboard occupants. Because of this, the force
of the side air bag and curtain side-
impact/rollover air bag inflating can increase the
risk of injury if the occupant is too close to, or is
against, these air bag modules during inflation.
The side air bag will deflate quickly after the
collision is over.
The curtain side-impact and rollover air bags will
remain inflated for a while.
The supplemental side air bags and curtain
side-impact and rollover air bags operate
only when the ignition switch is in the ON
or START position.
After turning the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.

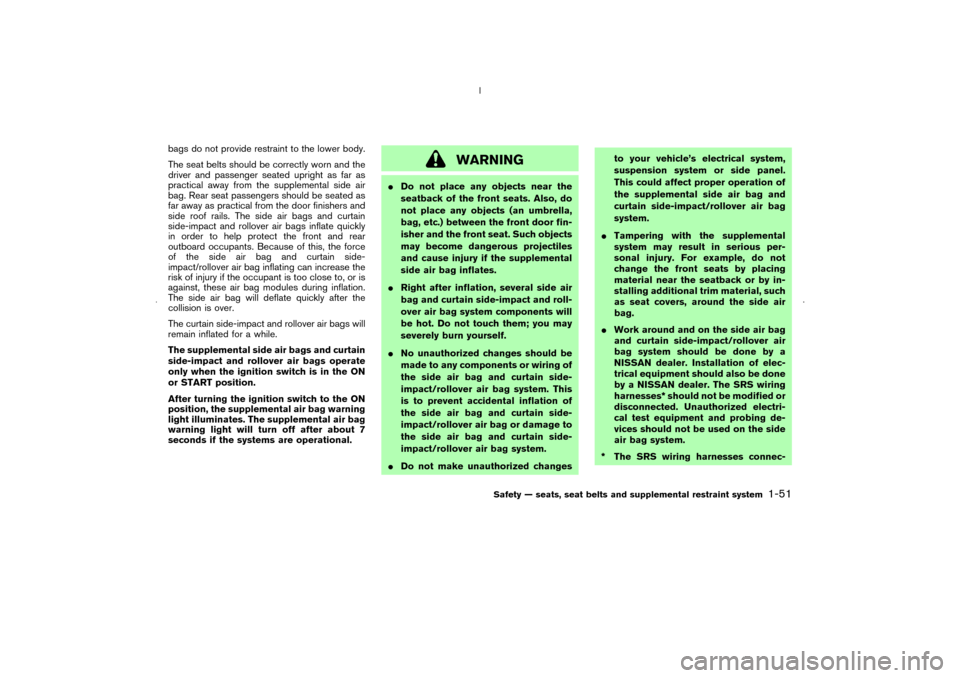

WARNING
Do not place any objects near the
seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door fin-
isher and the front seat. Such objects
may become dangerous projectiles
and cause injury if the supplemental
side air bag inflates.
Right after inflation, several side air
bag and curtain side-impact and roll-
over air bag system components will
be hot. Do not touch them; you may
severely burn yourself.
No unauthorized changes should be
made to any components or wiring of
the side air bag and curtain side-
impact/rollover air bag system. This
is to prevent accidental inflation of
the side air bag and curtain side-
impact/rollover air bag or damage to
the side air bag and curtain side-
impact/rollover air bag system.
Do not make unauthorized changesto your vehicle’s electrical system,
suspension system or side panel.
This could affect proper operation of
the supplemental side air bag and
curtain side-impact/rollover air bag
system.
Tampering with the supplemental
system may result in serious per-
sonal injury. For example, do not
change the front seats by placing
material near the seatback or by in-
stalling additional trim material, such
as seat covers, around the side air
bag.
Work around and on the side air bag
and curtain side-impact/rollover air
bag system should be done by a
NISSAN dealer. Installation of elec-
trical equipment should also be done
by a NISSAN dealer. The SRS wiring
harnesses* should not be modified or
disconnected. Unauthorized electri-
cal test equipment and probing de-
vices should not be used on the side
air bag system.
* The SRS wiring harnesses connec-
Safety — seats, seat belts and supplemental restraint system
1-51
05.8.26/Z50-D/V5.0
Page 65 of 341

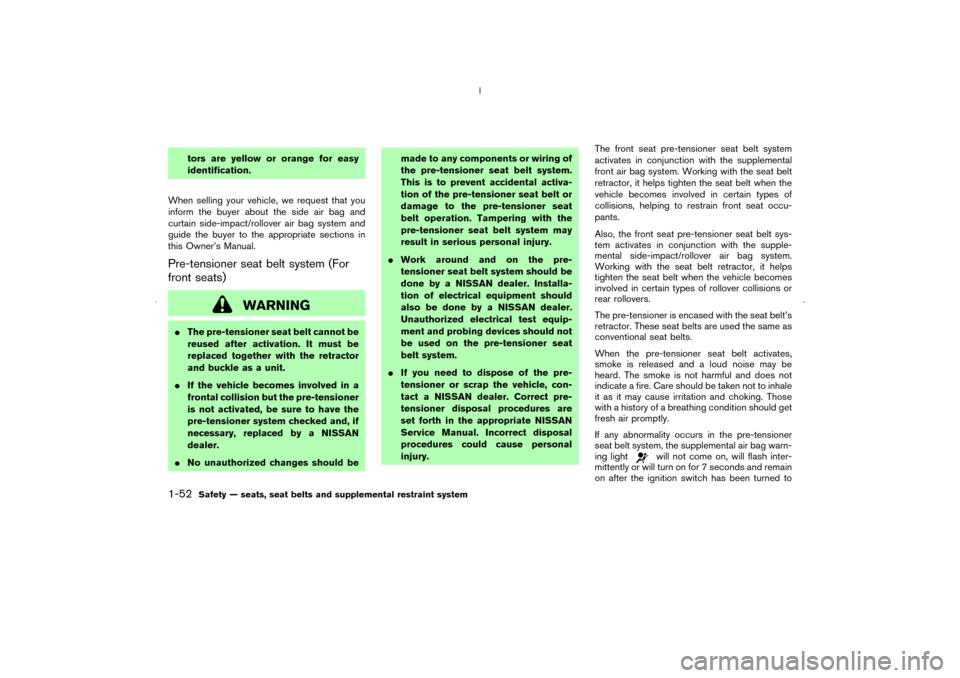

tors are yellow or orange for easy
identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain side-impact/rollover air bag system and
guide the buyer to the appropriate sections in
this Owner’s Manual.
Pre-tensioner seat belt system (For
front seats)
WARNING
The pre-tensioner seat belt cannot be
reused after activation. It must be
replaced together with the retractor
and buckle as a unit.
If the vehicle becomes involved in a
frontal collision but the pre-tensioner
is not activated, be sure to have the
pre-tensioner system checked and, if
necessary, replaced by a NISSAN
dealer.
No unauthorized changes should bemade to any components or wiring of
the pre-tensioner seat belt system.
This is to prevent accidental activa-
tion of the pre-tensioner seat belt or
damage to the pre-tensioner seat
belt operation. Tampering with the
pre-tensioner seat belt system may
result in serious personal injury.
Work around and on the pre-
tensioner seat belt system should be
done by a NISSAN dealer. Installa-
tion of electrical equipment should
also be done by a NISSAN dealer.
Unauthorized electrical test equip-
ment and probing devices should not
be used on the pre-tensioner seat
belt system.
If you need to dispose of the pre-
tensioner or scrap the vehicle, con-
tact a NISSAN dealer. Correct pre-
tensioner disposal procedures are
set forth in the appropriate NISSAN
Service Manual. Incorrect disposal
procedures could cause personal
injury.The front seat pre-tensioner seat belt system
activates in conjunction with the supplemental
front air bag system. Working with the seat belt
retractor, it helps tighten the seat belt when the
vehicle becomes involved in certain types of
collisions, helping to restrain front seat occu-
pants.
Also, the front seat pre-tensioner seat belt sys-
tem activates in conjunction with the supple-
mental side-impact/rollover air bag system.
Working with the seat belt retractor, it helps
tighten the seat belt when the vehicle becomes
involved in certain types of rollover collisions or
rear rollovers.
The pre-tensioner is encased with the seat belt’s
retractor. These seat belts are used the same as
conventional seat belts.
When the pre-tensioner seat belt activates,
smoke is released and a loud noise may be
heard. The smoke is not harmful and does not
indicate a fire. Care should be taken not to inhale
it as it may cause irritation and choking. Those
with a history of a breathing condition should get
fresh air promptly.
If any abnormality occurs in the pre-tensioner
seat belt system, the supplemental air bag warn-
ing light
will not come on, will flash inter-
mittently or will turn on for 7 seconds and remain
on after the ignition switch has been turned to
1-52
Safety — seats, seat belts and supplemental restraint system
05.8.26/Z50-D/V5.0
Page 66 of 341
the ON or START position. In this case, the
pre-tensioner seat belt may not function prop-
erly. They must be checked and repaired. Take
your vehicle to a NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the pre-tensioner seat
belt system and guide the buyer to the appro-
priate sections in this Owner’s Manual.
1
SRS air bag warning labels
The warning labels are located on the surface of
the sun visors.2
SRS side-impact air bag warning
label
The warning label is located on the side of the
passenger’s side center pillar.SUPPLEMENTAL AIR BAG
WARNING LABELSWarning labels about the supplemental front air
bag and supplemental side-impact air bag sys-
tems are placed in the vehicle as shown in theillustration.
SSS0330
Safety — seats, seat belts and supplemental restraint system
1-53
05.8.26/Z50-D/V5.0
Page 67 of 341
SUPPLEMENTAL AIR BAG
WARNING LIGHTThe supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits of the supplemental front air bag,
supplemental side air bag and curtain side-
impact and rollover air bag systems, and pre-
tensioner seat belt systems. The circuits moni-
tored by the supplemental air bag warning light
are the diagnosis sensor unit, satellite sensors,
crash zone sensors, rollover sensors, front air
bag modules, side air bag modules, curtain
side-impact/rollover air bag modules, and pre-
tensioner seat belts and all related wiring.After turning the ignition switch to the ON or
START position, the supplemental air bag warn-
ing light illuminates. The supplemental air bag
warning light will turn off after about 7 seconds
if the system is operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side air
bag and curtain side-impact/rollover air bag
systems, and pre-tensioner seat belt systems
need servicing:
The supplemental air bag warning light re-
mains on after approximately 7 seconds.
The supplemental air bag warning light
flashes intermittently.
The supplemental air bag warning light does
not come on at all.
Under these conditions, the supplemental front
air bags, supplemental side air bags, curtain
side-impact/rollover air bags and/or pre-
tensioner seat belt may not operate properly. It
must be checked and repaired. Take your vehicle
to a NISSAN dealer.

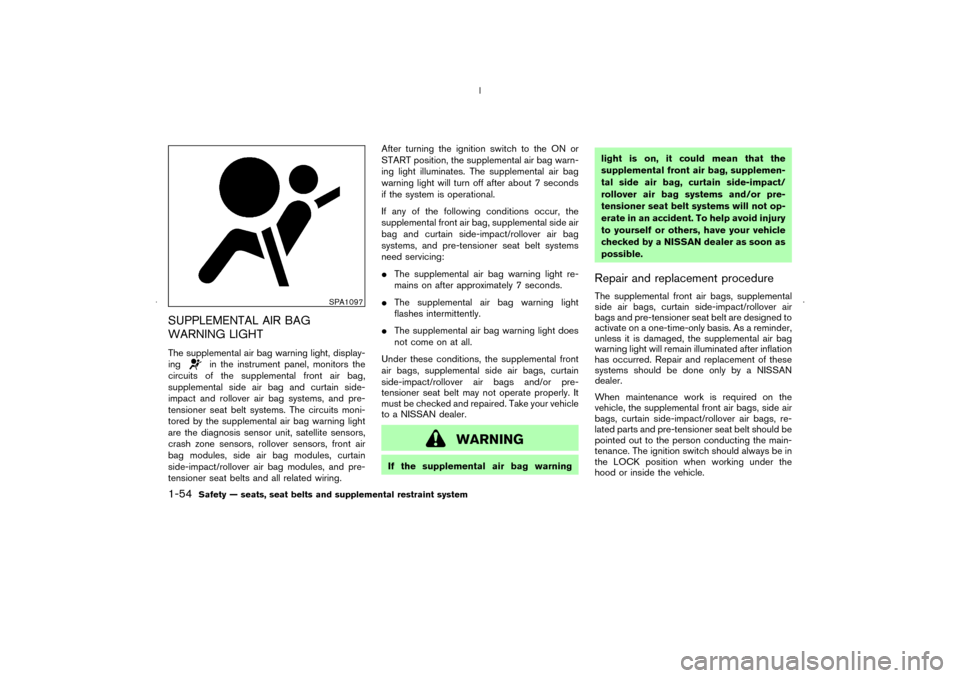

WARNING
If the supplemental air bag warninglight is on, it could mean that the
supplemental front air bag, supplemen-
tal side air bag, curtain side-impact/
rollover air bag systems and/or pre-
tensioner seat belt systems will not op-
erate in an accident. To help avoid injury
to yourself or others, have your vehicle
checked by a NISSAN dealer as soon as
possible.
Repair and replacement procedureThe supplemental front air bags, supplemental
side air bags, curtain side-impact/rollover air
bags and pre-tensioner seat belt are designed to
activate on a one-time-only basis. As a reminder,
unless it is damaged, the supplemental air bag
warning light will remain illuminated after inflation
has occurred. Repair and replacement of these
systems should be done only by a NISSAN
dealer.
When maintenance work is required on the
vehicle, the supplemental front air bags, side air
bags, curtain side-impact/rollover air bags, re-
lated parts and pre-tensioner seat belt should be
pointed out to the person conducting the main-
tenance. The ignition switch should always be in
the LOCK position when working under the
hood or inside the vehicle.
SPA1097
1-54
Safety — seats, seat belts and supplemental restraint system
05.8.26/Z50-D/V5.0
Page 68 of 341

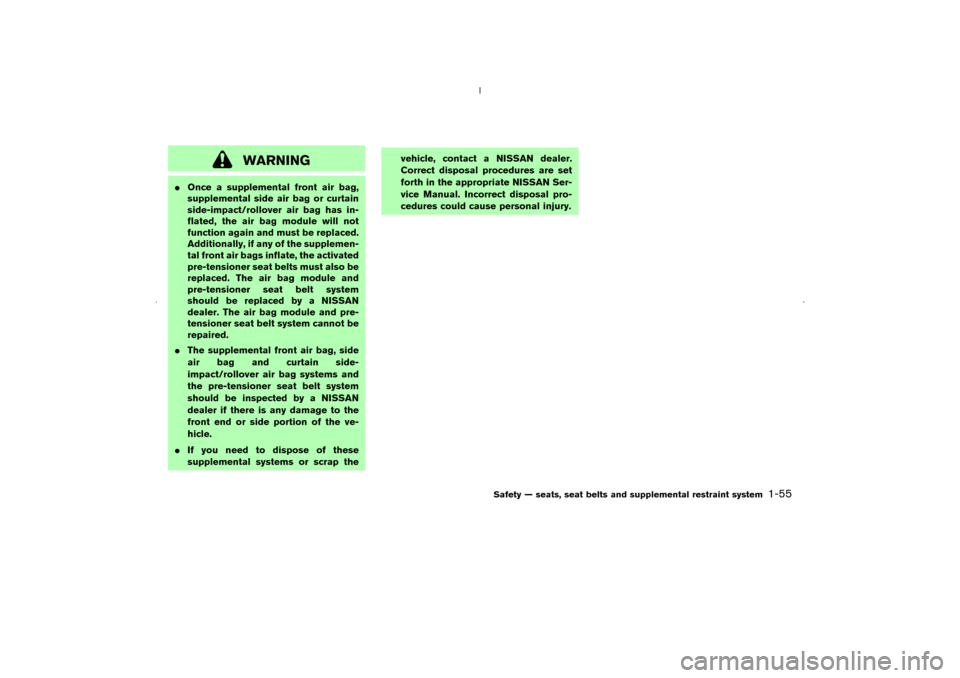

WARNING
Once a supplemental front air bag,
supplemental side air bag or curtain
side-impact/rollover air bag has in-
flated, the air bag module will not
function again and must be replaced.
Additionally, if any of the supplemen-
tal front air bags inflate, the activated
pre-tensioner seat belts must also be
replaced. The air bag module and
pre-tensioner seat belt system
should be replaced by a NISSAN
dealer. The air bag module and pre-
tensioner seat belt system cannot be
repaired.
The supplemental front air bag, side
air bag and curtain side-
impact/rollover air bag systems and
the pre-tensioner seat belt system
should be inspected by a NISSAN
dealer if there is any damage to the
front end or side portion of the ve-
hicle.
If you need to dispose of these
supplemental systems or scrap thevehicle, contact a NISSAN dealer.
Correct disposal procedures are set
forth in the appropriate NISSAN Ser-
vice Manual. Incorrect disposal pro-
cedures could cause personal injury.
Safety — seats, seat belts and supplemental restraint system
1-55
05.8.26/Z50-D/V5.0
Page 69 of 341
MEMO1-56
Safety — seats, seat belts and supplemental restraint system
05.8.26/Z50-D/V5.0
Page 70 of 341
MEMO
Safety — seats, seat belts and supplemental restraint system
1-57
05.8.26/Z50-D/V5.0
