differs, the warning light will either remain illumi-
nated or blink. See “Using all-wheel drive
(AWD)” in the “5. Starting and driving” section.
CAUTION
If the warning light comes on while
driving, AWD mode will change to
2WD mode. Reduce the vehicle speed
and have your vehicle checked by a
NISSAN dealer as soon as possible.
Do not drive on dry hard surface
roads in the LOCK mode.
If the AWD warning light blinks when
you are driving:
•blinks rapidly (about twice a sec-
ond):
Pull off the road in a safe area, and
idle the engine. The driving mode
will change to 2WD to prevent the
AWD system from malfunctioning.
If the warning light turns off, you
can drive again.
•blinks slowly (about once every 2
seconds):Pull off the road in a safe area, and
idle the engine. Check that all tire
sizes are the same, tire pressure is
correct and tires are not worn.
If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon as
possible.
or
Anti-lock brake
system (ABS)
warning light
After turning the ignition switch to the ON
position, the light will illuminate. The light will turn
off after about 2 seconds if the system is
operational.
If the light comes on while the engine is running,
it may indicate that the anti-lock brake system is
not functioning properly. Have the system
checked by a NISSAN dealer.
If a malfunction occurs in the system, the anti-
lock function of the brake will cease operation
but the ordinary brakes will continue to operate
normally. See “Anti-lock brake system (ABS)” in
the “5. Starting and driving” section for further
details.If the light comes on while you are driving,
contact a NISSAN dealer for repair.
or
Brake warning light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light:
The light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid as
necessary. See “Brake fluid” in the “8. Main-
tenance and do-it-yourself” section.
2. If the brake fluid level is correct, have the
warning system checked by a NISSAN
dealer.
WARNING
Your brake system may not be work-
ing properly if the warning light is on.
2-10
Instruments and controls
05.8.26/Z50-D/V5.0
Page 82 of 341
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for re-
pairs. Otherwise, have your vehicle
towed because driving it could be
dangerous.
Pressing the brake pedal with the
engine stopped and/or a low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
If the brake fluid level is below the
MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.
Anti-lock brake system warning indicator:
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the anti-lock brake warning
light illuminate, it may indicate the anti-lock brake
system is not functioning properly. Have the
brake system checked by a NISSAN dealer. See“Anti-lock brake warning light” earlier in this
section.
Charge warning light
If the light comes on while the engine is running,
it may indicate that the charging system is not
functioning properly. Turn the engine off and
check the generator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.
CAUTION
Do not continue driving if the generator
belt is loose, broken or missing.
Door open warning light
This light comes on when any of the doors are
not closed securely while the ignition switch is
ON.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If the
light blinks or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediatelyand call a NISSAN dealer or other
authorized repair shop.The oil pressure warning light is not de-
signed to indicate a low oil level. Use the
dipstick to check the oil level.See “Engine
oil” in the “8. Maintenance and do-it-yourself”
section.
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning light
(for Intelligent Key system) (if
so equipped)
This light comes on in green when it is possible
to turn the ignition switch.
When the light comes on in red, it is not possible
to turn the ignition switch.
The warning light blinks in red when the
Intelligent Key is outside the vehicle with the
ignition switch in the ACC or ON position.
Confirm the location of the key as soon as
possible when the warning light blinks in red.
Be sure to carry the Intelligent Key with you
Instruments and controls
2-11
05.8.26/Z50-D/V5.0
Page 83 of 341
while driving the vehicle.
The warning light goes off about 10 seconds
after the Intelligent Key is brought inside the
vehicle.
Low fuel warning light
This light comes on when the fuel in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches E.
There will be a small reserve of fuel re-
maining in the tank when the fuel gauge
needle reaches E.
Low tire pressure warning light
(if so equipped)
Your vehicle is equipped with a tire pressure
monitoring system (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is turned ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning:
If the vehicle is being driven with low tire pres-
sure, the warning light will illuminate. If you select
the tire pressure information (if so equipped) inthe display, the FLAT TIRE warning message will
be displayed. The tire pressure for each tire will
also be displayed.
When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire pres-
sure to the recommended COLD tire pressure
shown on the Tire and Loading Information label
to turn the light OFF.
For additional information, see “Tire pressure
monitoring system (TPMS)” in the “5. Starting
and driving” section and the “6. In case of
emergency” section.
TPMS malfunction:
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
turned ON. The light will remain on after the 1
minute. Have the system checked by a NISSAN
dealer.
For additional information, see “Tire pressure
monitoring system (TPMS)” in the “5. Starting
and driving” section.

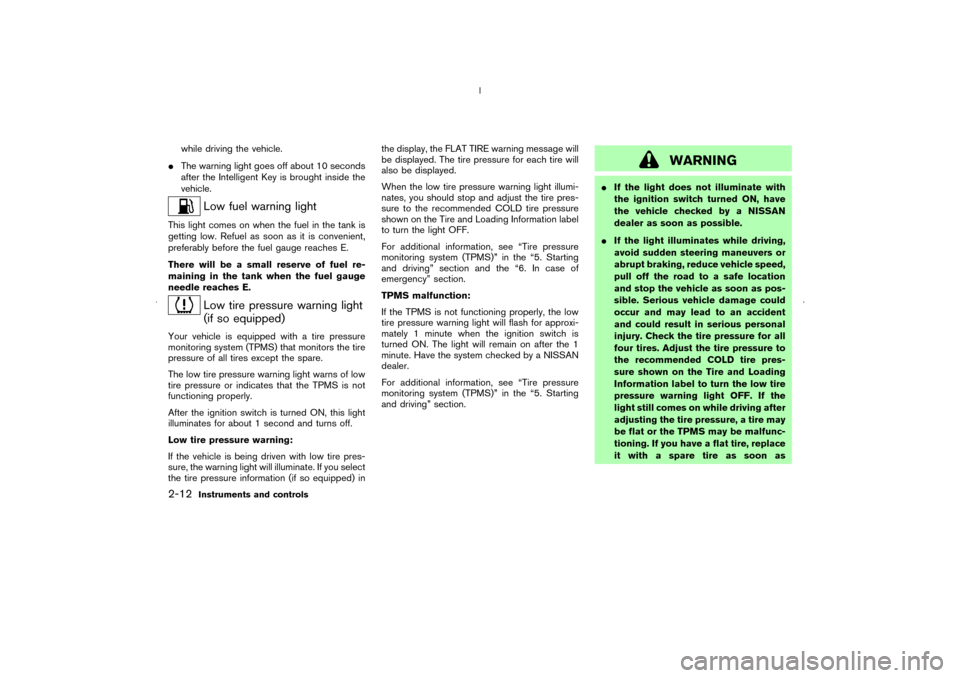

WARNING
If the light does not illuminate with
the ignition switch turned ON, have
the vehicle checked by a NISSAN
dealer as soon as possible.
If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location
and stop the vehicle as soon as pos-
sible. Serious vehicle damage could
occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still comes on while driving after
adjusting the tire pressure, a tire may
be flat or the TPMS may be malfunc-
tioning. If you have a flat tire, replace
it with a spare tire as soon as
2-12
Instruments and controls
05.8.26/Z50-D/V5.0
Page 84 of 341

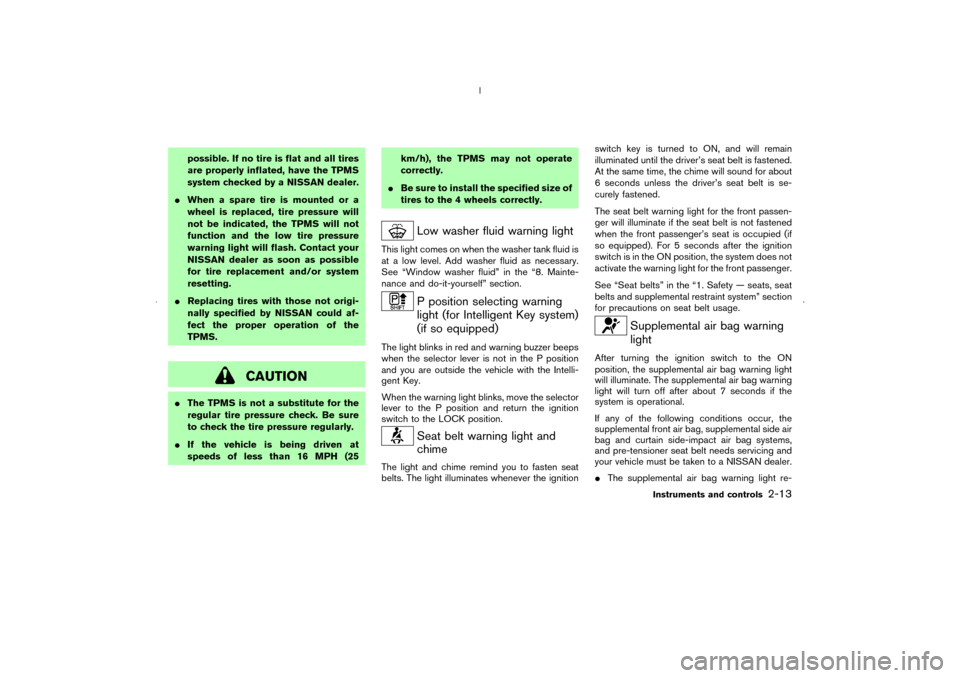

possible. If no tire is flat and all tires
are properly inflated, have the TPMS
system checked by a NISSAN dealer.
When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure
warning light will flash. Contact your
NISSAN dealer as soon as possible
for tire replacement and/or system
resetting.
Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.
CAUTION
The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.
If the vehicle is being driven at
speeds of less than 16 MPH (25km/h), the TPMS may not operate
correctly.
Be sure to install the specified size of
tires to the 4 wheels correctly.
Low washer fluid warning light
This light comes on when the washer tank fluid is
at a low level. Add washer fluid as necessary.
See “Window washer fluid” in the “8. Mainte-
nance and do-it-yourself” section.
P position selecting warning
light (for Intelligent Key system)
(if so equipped)
The light blinks in red and warning buzzer beeps
when the selector lever is not in the P position
and you are outside the vehicle with the Intelli-
gent Key.
When the warning light blinks, move the selector
lever to the P position and return the ignition
switch to the LOCK position.
Seat belt warning light and
chime
The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignitionswitch key is turned to ON, and will remain
illuminated until the driver’s seat belt is fastened.
At the same time, the chime will sound for about
6 seconds unless the driver’s seat belt is se-
curely fastened.
The seat belt warning light for the front passen-
ger will illuminate if the seat belt is not fastened
when the front passenger’s seat is occupied (if
so equipped). For 5 seconds after the ignition
switch is in the ON position, the system does not
activate the warning light for the front passenger.
See “Seat belts” in the “1. Safety — seats, seat
belts and supplemental restraint system” section
for precautions on seat belt usage.

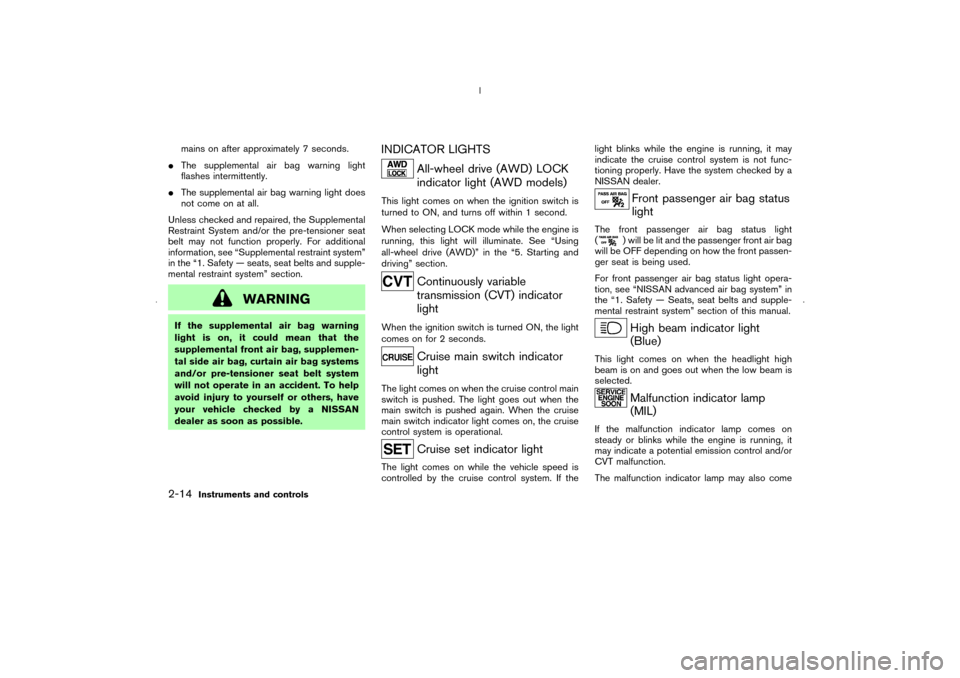

Supplemental air bag warning
light
After turning the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate. The supplemental air bag warning
light will turn off after about 7 seconds if the
system is operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side air
bag and curtain side-impact air bag systems,
and pre-tensioner seat belt needs servicing and
your vehicle must be taken to a NISSAN dealer.
The supplemental air bag warning light re-
Instruments and controls
2-13
05.8.26/Z50-D/V5.0
Page 85 of 341
mains on after approximately 7 seconds.
The supplemental air bag warning light
flashes intermittently.
The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the Supplemental
Restraint System and/or the pre-tensioner seat
belt may not function properly. For additional
information, see “Supplemental restraint system”
in the “1. Safety — seats, seat belts and supple-
mental restraint system” section.
WARNING
If the supplemental air bag warning
light is on, it could mean that the
supplemental front air bag, supplemen-
tal side air bag, curtain air bag systems
and/or pre-tensioner seat belt system
will not operate in an accident. To help
avoid injury to yourself or others, have
your vehicle checked by a NISSAN
dealer as soon as possible.
INDICATOR LIGHTS
All-wheel drive (AWD) LOCK
indicator light (AWD models)
This light comes on when the ignition switch is
turned to ON, and turns off within 1 second.
When selecting LOCK mode while the engine is
running, this light will illuminate. See “Using
all-wheel drive (AWD)” in the “5. Starting and
driving” section.
Continuously variable
transmission (CVT) indicator
light
When the ignition switch is turned ON, the light
comes on for 2 seconds.
Cruise main switch indicator
light
The light comes on when the cruise control main
switch is pushed. The light goes out when the
main switch is pushed again. When the cruise
main switch indicator light comes on, the cruise
control system is operational.
Cruise set indicator light
The light comes on while the vehicle speed is
controlled by the cruise control system. If thelight blinks while the engine is running, it may
indicate the cruise control system is not func-
tioning properly. Have the system checked by a
NISSAN dealer.
Front passenger air bag status
light
The front passenger air bag status light
(
) will be lit and the passenger front air bag
will be OFF depending on how the front passen-
ger seat is being used.
For front passenger air bag status light opera-
tion, see “NISSAN advanced air bag system” in
the “1. Safety — Seats, seat belts and supple-
mental restraint system” section of this manual.High beam indicator light
(Blue)
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction indicator lamp
(MIL)
If the malfunction indicator lamp comes on
steady or blinks while the engine is running, it
may indicate a potential emission control and/or
CVT malfunction.
The malfunction indicator lamp may also come
2-14
Instruments and controls
05.8.26/Z50-D/V5.0
Page 86 of 341
on steady if the fuel-filler cap is loose or missing,
or if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least three
gallons of fuel in the fuel tank.
After a few driving trips, the
lamp should
turn off if no other potential emission control
system malfunction exists.
If this indicator lamp comes on continuously for
20 seconds and then blinks for 10 seconds
when the engine is not running, it indicates that
the vehicle is not ready for an emission control
system inspection/maintenance test. See
“Readiness for inspection/maintenance (I/M)
test” in the “9. Technical and consumer informa-
tion” section of this manual.
Operation:
The malfunction indicator lamp will come on in
one of two ways:
Malfunction indicator lamp on steady — An
emission control system and/or CVT mal-
function has been detected. Turn the ignition
switch to OFF and check the fuel-filler cap. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
lamp should turn off after a
few driving trips. If the
lamp does not
turn off after a few driving trips, have thevehicle inspected by a NISSAN dealer. You
do not need to have your vehicle towed to the
dealer.
Malfunction indicator lamp blinking — An
engine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
a) Do not drive at speeds above 45 MPH
(72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo
being hauled or towed.
The malfunction indicator lamp may stop
blinking and come on steady.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.

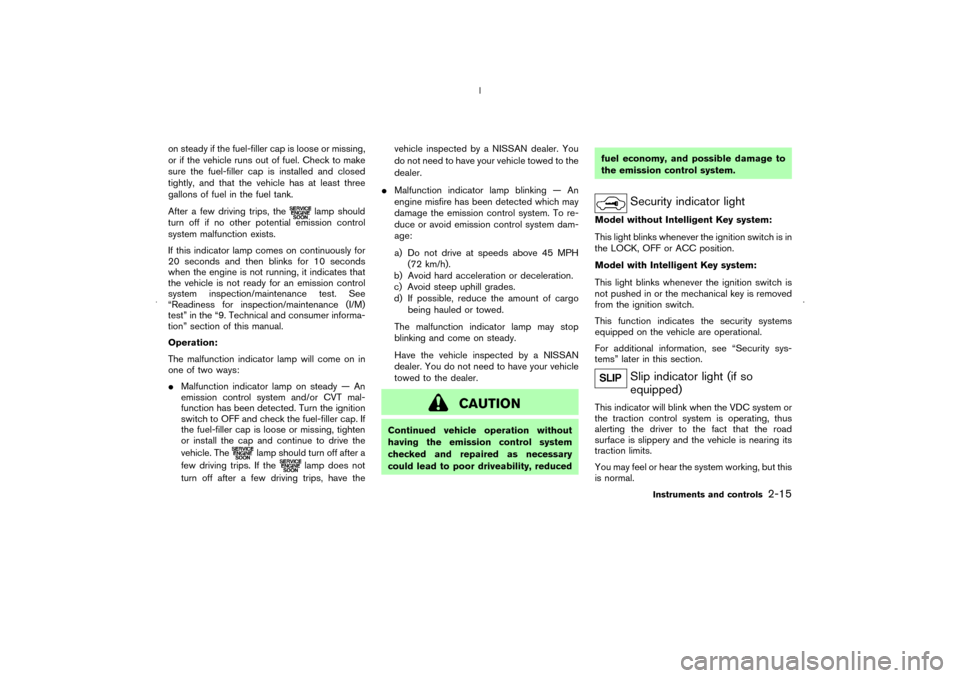

CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reducedfuel economy, and possible damage to
the emission control system.
Security indicator light
Model without Intelligent Key system:
This light blinks whenever the ignition switch is in
the LOCK, OFF or ACC position.
Model with Intelligent Key system:
This light blinks whenever the ignition switch is
not pushed in or the mechanical key is removed
from the ignition switch.
This function indicates the security systems
equipped on the vehicle are operational.
For additional information, see “Security sys-
tems” later in this section.
Slip indicator light (if so
equipped)
This indicator will blink when the VDC system or
the traction control system is operating, thus
alerting the driver to the fact that the road
surface is slippery and the vehicle is nearing its
traction limits.
You may feel or hear the system working, but this
is normal.
Instruments and controls
2-15
05.8.26/Z50-D/V5.0
Page 87 of 341
The light will blink on for a few seconds after the
VDC system stops limiting wheel spin.
The slip indicator light also comes on when you
turn the ignition switch to ON. The light will turn
off after about 2 seconds if the system is
operational. If the light does not come on or go
off, have the traction control system checked by
a NISSAN dealer.
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control
(VDC) off indicator light (if so
equipped)
After turning the ignition switch to the ON
position, the light will illuminate. The light will turn
off in about 2 seconds if the vehicle dynamic
control (VDC) system is operational.
The light comes on when the vehicle dynamic
control (VDC) off switch is pushed to OFF. This
indicates the vehicle dynamic control system
and traction control system are not operating.
When the vehicle dynamic control off indicator
light and slip indicator light come on with the
vehicle dynamic control system turned on, this
light alerts the driver to the fact that the vehicledynamic control system’s fail-safe mode is op-
erating, that is the system may not be functioning
properly. Have the system checked by a
NISSAN dealer. If a malfunction occurs in the
system, the vehicle dynamic control system
function will be canceled but the vehicle is still
driveable. For additional information, see “Ve-
hicle dynamic control (VDC) system” in the “5.
Starting and driving” section of this manual.
AUDIBLE REMINDERS
Key reminder chimeThe key reminder chime sounds if the driver’s
side door is opened while the key is left in the
ignition switch and the ignition switch is in the
“ACC”, “OFF” or “LOCK” position. Remove the
key and take it with you when leaving the vehicle.Light reminder chimeThe light reminder chime sounds if the driver’s
side door is opened while the headlight switch is
at either the
or
position and the
ignition switch is in the ACC, OFF or LOCK
position.
Make sure to turn the light switch to the “OFF” or
“AUTO” position when you leave the vehicle.
Seat belt warning chimeThe chime will sound for about 6 seconds unlessthe driver’s seat belt is securely fastened.
Brake pad wear warningThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.Intelligent Key door buzzerWhen the chime or buzzer sounds from inside
and outside the vehicle, check for the following:
The ignition switch is turned to the LOCK
position.
The Intelligent Key is not left inside the
vehicle.
Doors are closed securely.
The selector lever is in the P position.
When the buzzer sounds, be sure to check both
the vehicle and the Intelligent Key.
See “INTELLIGENT KEY SYSTEM” in the “3.
Pre-driving checks and adjustments” section.
2-16
Instruments and controls
05.8.26/Z50-D/V5.0
Page 88 of 341
Your vehicle has one or both types of security
systems, as follows:
Vehicle Security System (if so equipped)
NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light in the meter panel.VEHICLE SECURITY SYSTEM (if so
equipped)The vehicle security system provides visual and
audible alarm signals if someone opens the
doors when the system is armed. It is not,
however, a motion detection type system thatactivates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock the vehicle when unattended.
Be aware of your surroundings, and park in
secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto sup-
ply stores and specialty shops. A NISSAN dealer
may also offer such equipment. Check with your
insurance company to see if you may be eligible
for discounts for various theft protection fea-
tures.
The vehicle security system provides visual and
audio alarm signals if parts of the vehicle are
disturbed.
How to activate the vehicle security
system1. Close all windows.
The system can be activated even if the
windows are open.
2.•Remove the key from the ignition switch.
•Turn the ignition switch to the LOCK
position or remove the mechanical key
from the ignition switch (Intelligent Key
equipped model)
3. Close and lock all doors.
Lock all doors by pushing the LOCK button
SIC2133
SIC2045
SECURITY SYSTEMS
Instruments and controls
2-17
05.8.26/Z50-D/V5.0
Page 89 of 341
on the remote keyless entry, pushing the
request switch (Intelligent Key equipped
model) or using the key.
When using the remote keyless entry system
or the request switch, the hazard indicators
will operate as shown in “Remote keyless
entry system” or “Intelligent Key system” in
the “3. Pre-driving checks and adjustments”
section.
4. Confirm that the SECURITY indicator light in
the meter comes on. The SECURITY indica-
tor light glows for about 30 seconds and then
blinks. The system is now activated. If, during
this 30 second time period, the door is
unlocked by the key, the remote keyless
entry, request switch or the ignition switch is
turned to ACC or ON, the system will not
activate.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors locked and ignition switch
off. Turn the ignition switch to ACC to turn
the system off.
Vehicle security system operationThe security system will give the following alarm:
The headlights blink and the horn sounds
intermittently.The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm can be stopped by unlock-
ing a door with the key, by pushing the
UNLOCK button on the remote keyless entry
or pushing the request switch.
The alarm is activated by:
Opening the door (including the lift gate)
without using the key, remote keyless entry or
pushing the request switch.
How to stop alarmThe alarm will stop only by unlocking a door with
the key, by pushing the UNLOCK button on
remote keyless entry, or pushing the request
switch (when carrying the Intelligent Key with
you). The alarm will not stop if the ignition switch
is turned to ACC or ON.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.NISSAN VEHICLE IMMOBILIZER
SYSTEMThe NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered NISSAN Vehicle Immobilizer System
key.If the engine fails to start using the registered
NISSAN Vehicle Immobilizer System key, it may
be due to interference caused by another
NISSAN Vehicle Immobilizer System key, an
automated toll road device or automated pay-
ment device on the key ring. Restart the engine
using the following procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered NISSAN Vehicle
Immobilizer System key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
NISSAN Vehicle Immobilizer System key on a
separate key ring to avoid interference from
other devices.
Statement related to section 15 of FCC
rules for NISSAN Vehicle Immobilizer Sys-
tem (CONT ASSY-BCM, ANT ASSY-
IMMOBILIZER)
This device complies with part 15 of the
FCC Rules and RSS-210 of Industry
2-18
Instruments and controls
05.8.26/Z50-D/V5.0
Page 90 of 341
Canada. Operation is subject to the follow-
ing two conditions;
(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion of the device.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE PARTY RE-
SPONSIBLE FOR COMPLIANCE COULD
VOID THE USER’S AUTHORITY TO OPER-
ATE THE EQUIPMENT.
Security indicator lightThis light blinks whenever the registered
NISSAN Vehicle Immobilizer System key or me-
chanical key (Intelligent Key) is removed or
turned to the OFF, ACC or LOCK position, or
the ignition switch is turned to the LOCK posi-
tion (Intelligent Key). This function indicates the
security systems equipped on the vehicle are
operational.
If NISSAN Vehicle Immobilizer System is mal-
functioning, this light will remain on while the
registered NISSAN Vehicle Immobilizer System
Key is in the ON position.If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer System or
Intelligent Key system service as soon as
possible. Bring all NISSAN Vehicle Immo-
bilizer System keys or Intelligent Key that
you have when visiting a NISSAN dealer for
service.
SIC2045
Instruments and controls
2-19
05.8.26/Z50-D/V5.0
