on the remote keyless entry, pushing the
request switch (Intelligent Key equipped
model) or using the key.
When using the remote keyless entry system
or the request switch, the hazard indicators
will operate as shown in “Remote keyless
entry system” or “Intelligent Key system” in
the “3. Pre-driving checks and adjustments”
section.
4. Confirm that the SECURITY indicator light in
the meter comes on. The SECURITY indica-
tor light glows for about 30 seconds and then
blinks. The system is now activated. If, during
this 30 second time period, the door is
unlocked by the key, the remote keyless
entry, request switch or the ignition switch is
turned to ACC or ON, the system will not
activate.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors locked and ignition switch
off. Turn the ignition switch to ACC to turn
the system off.
Vehicle security system operationThe security system will give the following alarm:
The headlights blink and the horn sounds
intermittently.The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm can be stopped by unlock-
ing a door with the key, by pushing the
UNLOCK button on the remote keyless entry
or pushing the request switch.
The alarm is activated by:
Opening the door (including the lift gate)
without using the key, remote keyless entry or
pushing the request switch.
How to stop alarmThe alarm will stop only by unlocking a door with
the key, by pushing the UNLOCK button on
remote keyless entry, or pushing the request
switch (when carrying the Intelligent Key with
you). The alarm will not stop if the ignition switch
is turned to ACC or ON.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.NISSAN VEHICLE IMMOBILIZER
SYSTEMThe NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered NISSAN Vehicle Immobilizer System
key.If the engine fails to start using the registered
NISSAN Vehicle Immobilizer System key, it may
be due to interference caused by another
NISSAN Vehicle Immobilizer System key, an
automated toll road device or automated pay-
ment device on the key ring. Restart the engine
using the following procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered NISSAN Vehicle
Immobilizer System key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
NISSAN Vehicle Immobilizer System key on a
separate key ring to avoid interference from
other devices.
Statement related to section 15 of FCC
rules for NISSAN Vehicle Immobilizer Sys-
tem (CONT ASSY-BCM, ANT ASSY-
IMMOBILIZER)
This device complies with part 15 of the
FCC Rules and RSS-210 of Industry
2-18
Instruments and controls
06.7.5/Z50-D/V5.0
Page 92 of 345
Canada. Operation is subject to the follow-
ing two conditions;
(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion of the device.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE PARTY RE-
SPONSIBLE FOR COMPLIANCE COULD
VOID THE USER’S AUTHORITY TO OPER-
ATE THE EQUIPMENT.
Security indicator lightThis light blinks whenever the registered
NISSAN Vehicle Immobilizer System key or me-
chanical key (Intelligent Key) is removed or
turned to the OFF, ACC or LOCK position, or
the ignition switch is turned to the LOCK posi-
tion (Intelligent Key). This function indicates the
security systems equipped on the vehicle are
operational.
If NISSAN Vehicle Immobilizer System is mal-
functioning, this light will remain on while the
registered NISSAN Vehicle Immobilizer System
Key is in the ON position.If the light still remains on and/or the
engine will not start, see a NISSAN dealer
for NISSAN Vehicle Immobilizer System or
Intelligent Key system service as soon as
possible. Bring all NISSAN Vehicle Immo-
bilizer System keys or Intelligent Key that
you have when visiting a NISSAN dealer for
service.
SIC2045
Instruments and controls
2-19
06.7.5/Z50-D/V5.0
Page 93 of 345
The windshield wiper and washer operates
when the ignition switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:1Intermittent (INT) — intermittent operation
can be adjusted by turning the knob towardA
(Slower) or
B
(Faster).
2Low (LO) — continuous low speed operation
3High (HI) — continuous high speed operation
Push the lever up
4
to have one sweep
operation (MIST) of the wiper.
Pull the lever toward you5
to operate thewasher. Then the wiper will also operate several
times.
WARNING
In freezing temperatures the washer so-
lution may freeze on the windshield and
obscure your vision which may lead to
an accident. Warm the windshield with
the defroster before you wash the wind-
shield.
CAUTION
Do not operate the washer continu-
ously for more than 30 seconds.
Do not operate the washer if the
reservoir tank is empty.
Do not fill the window washer reser-
voir tank with washer fluid concen-
trates at full strength. Some methyl
alcohol based washer fluid concen-
trates may permanently stain the
grille if spilled while filling the win-
dow washer reservoir tank.Pre-mix washer fluid concentrates
with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the window washer reser-
voir tank. Do not use the window
washer reservoir tank to mix the
washer fluid concentrate and water.
SIC3296
WINDSHIELD WIPER AND
WASHER SWITCH2-20
Instruments and controls
06.7.5/Z50-D/V5.0
Page 94 of 345
The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.1Intermittent (INT) — intermittent operation
(not adjustable)
2Low (ON) — continuous low speed operation
Push the switch forward
3
to operate the
washer. Then the wiper will also operate several
times.

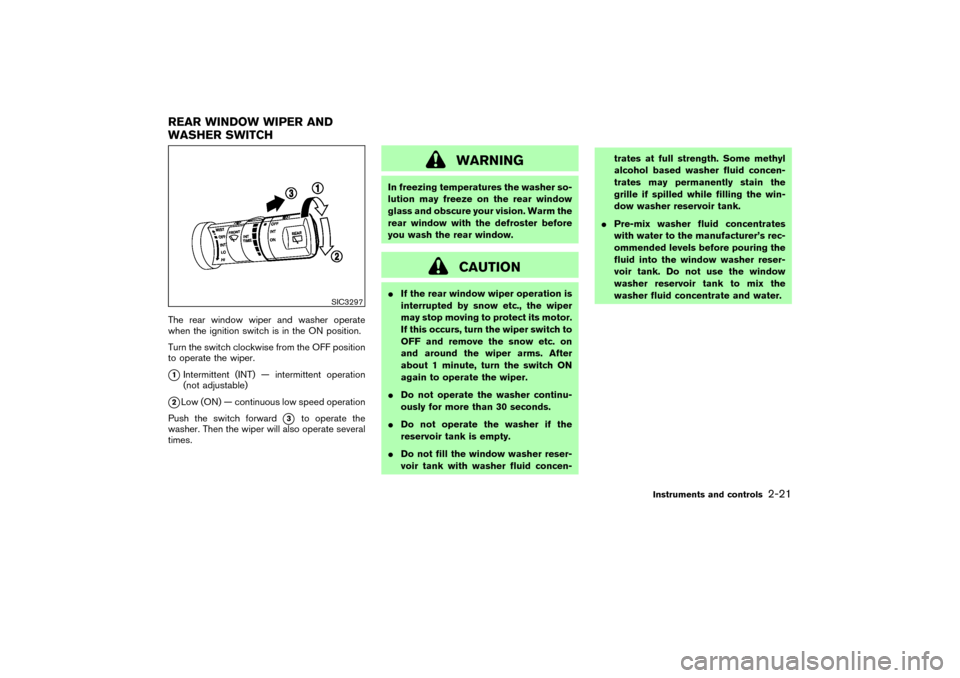

WARNING
In freezing temperatures the washer so-
lution may freeze on the rear window
glass and obscure your vision. Warm the
rear window with the defroster before
you wash the rear window.
CAUTION
If the rear window wiper operation is
interrupted by snow etc., the wiper
may stop moving to protect its motor.
If this occurs, turn the wiper switch to
OFF and remove the snow etc. on
and around the wiper arms. After
about 1 minute, turn the switch ON
again to operate the wiper.
Do not operate the washer continu-
ously for more than 30 seconds.
Do not operate the washer if the
reservoir tank is empty.
Do not fill the window washer reser-
voir tank with washer fluid concen-trates at full strength. Some methyl
alcohol based washer fluid concen-
trates may permanently stain the
grille if spilled while filling the win-
dow washer reservoir tank.
Pre-mix washer fluid concentrates
with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the window washer reser-
voir tank. Do not use the window
washer reservoir tank to mix the
washer fluid concentrate and water.
SIC3297
REAR WINDOW WIPER AND
WASHER SWITCH
Instruments and controls
2-21
06.7.5/Z50-D/V5.0
Page 95 of 345
To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the engine
and push the switch on
1. The indicator light
A
will come on. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.

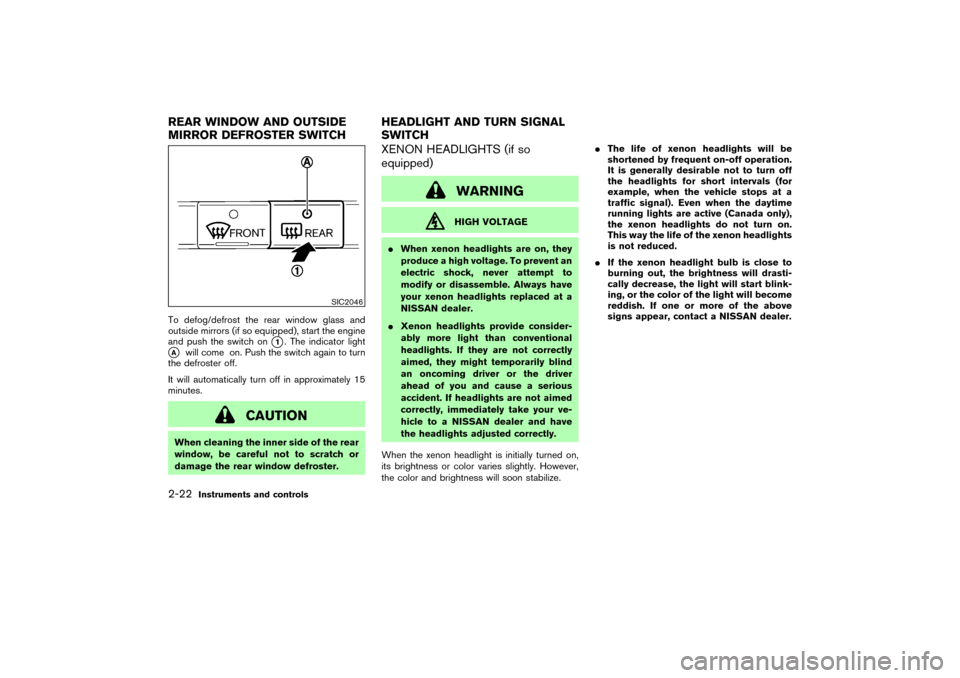

CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
XENON HEADLIGHTS (if so
equipped)
WARNINGHIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to
modify or disassemble. Always have
your xenon headlights replaced at a
NISSAN dealer.
Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your ve-
hicle to a NISSAN dealer and have
the headlights adjusted correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.The life of xenon headlights will be
shortened by frequent on-off operation.
It is generally desirable not to turn off
the headlights for short intervals (for
example, when the vehicle stops at a
traffic signal). Even when the daytime
running lights are active (Canada only),
the xenon headlights do not turn on.
This way the life of the xenon headlights
is not reduced.
If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start blink-
ing, or the color of the light will become
reddish. If one or more of the above
signs appear, contact a NISSAN dealer.
SIC2046
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCHHEADLIGHT AND TURN SIGNAL
SWITCH2-22
Instruments and controls
06.7.5/Z50-D/V5.0
Page 96 of 345
HEADLIGHT SWITCH
Lighting
1Turn the switch to the
position:
The front park, side marker, tail, license plate
and instrument lights will come on.
2Turn the switch to the
position:
Headlights will come on and all the other
lights remain on.

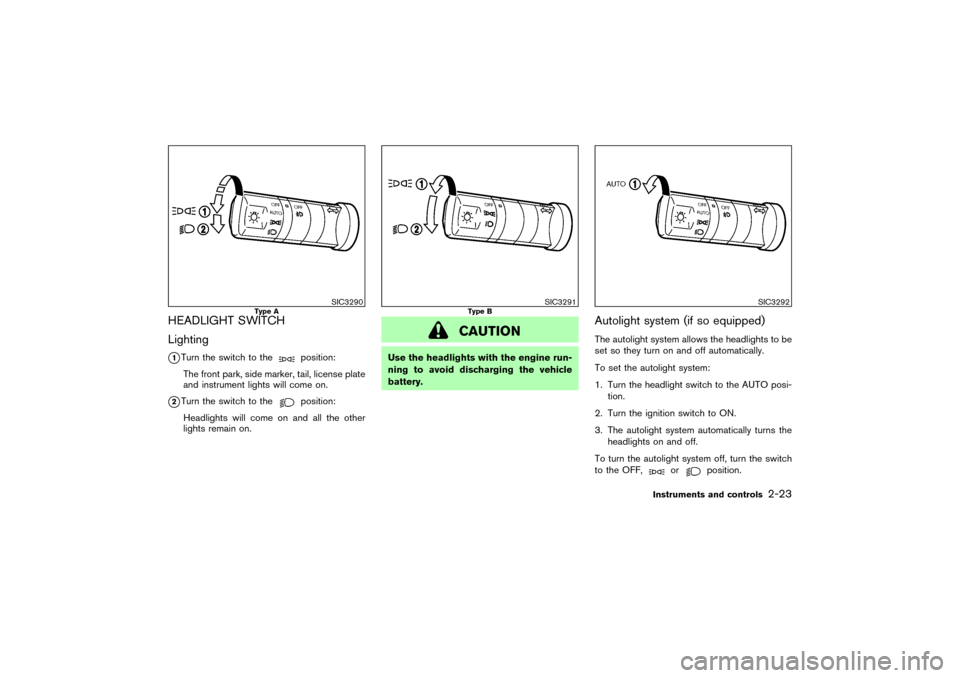

CAUTION
Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.
Autolight system (if so equipped)The autolight system allows the headlights to be
set so they turn on and off automatically.
To set the autolight system:
1. Turn the headlight switch to the AUTO posi-
tion.
2. Turn the ignition switch to ON.
3. The autolight system automatically turns the
headlights on and off.
To turn the autolight system off, turn the switch
to the OFF,
or
position.
SIC3290
Type A
SIC3291
Type B
SIC3292
Instruments and controls
2-23
06.7.5/Z50-D/V5.0
Page 97 of 345
The autolight system can turn on the headlights
automatically when it is dark and turn off the
headlights when it is light, and keep the head-
lights on for up to 45 seconds after you turn the
ignition switch to the OFF position and open any
door then close all the doors. The headlight off
time can be adjusted on the system setting
display. See the “4. Display screen, heater, air
conditioner and audio system” section.
If the ignition switch is turned OFF and one of
the doors is opened and this condition is con-
tinued, the headlights remain ON for 5 minutes.
Be sure not to put anything on top of the
photo sensor
A
located on the top left-
hand side of the instrument panel. The
photo sensor controls the autolight; if it is
covered, the photo sensor reacts as if it is
dark and the headlights will illuminate.
Headlight beam select
1To select the low beam, put the lever in the
neutral position as shown.
2To select the high beam, push the lever
forward while the switch is in the
po-
sition. Pull it back to select the low beam.
3Pulling the lever toward you will flash the
headlight high beam.
SIC2052
SIC3293
2-24
Instruments and controls
06.7.5/Z50-D/V5.0
Page 98 of 345
Battery saver systemWhen the headlight switch is in the
or
position while the ignition switch is in
the ON position, the lights will automatically
turn off 5 minutes after the ignition switch has
been turned to the OFF position.
When the headlight switch remains in theor
position after the lights auto-
matically turn off, the lights will turn on for 5
minutes when the headlight switch is turned
to the OFF position and then turned to the
or

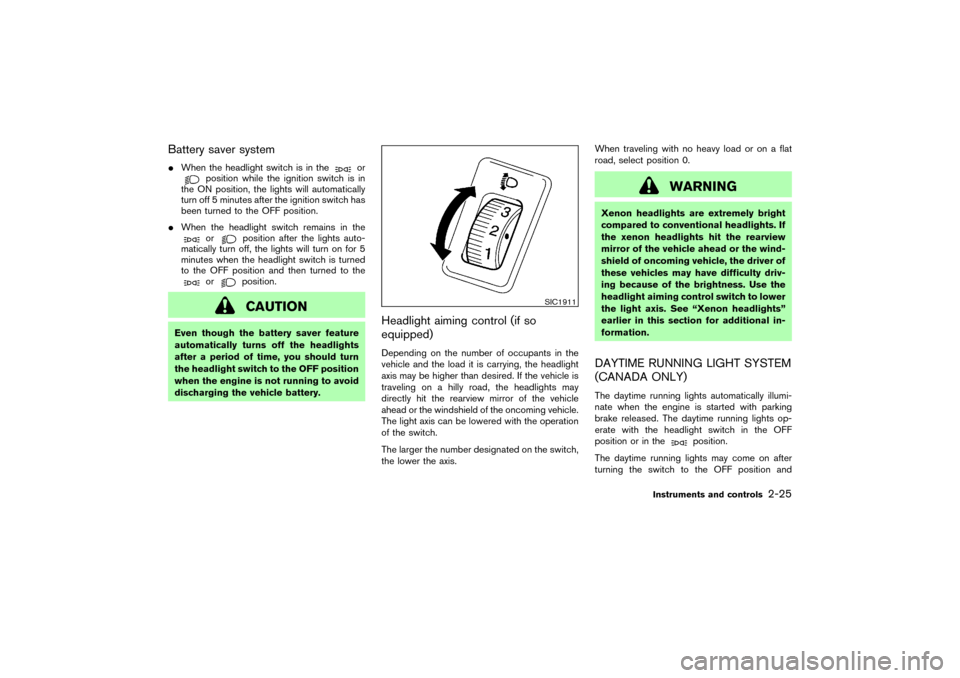

position.CAUTION
Even though the battery saver feature
automatically turns off the headlights
after a period of time, you should turn
the headlight switch to the OFF position
when the engine is not running to avoid
discharging the vehicle battery.
Headlight aiming control (if so
equipped)Depending on the number of occupants in the
vehicle and the load it is carrying, the headlight
axis may be higher than desired. If the vehicle is
traveling on a hilly road, the headlights may
directly hit the rearview mirror of the vehicle
ahead or the windshield of the oncoming vehicle.
The light axis can be lowered with the operation
of the switch.
The larger the number designated on the switch,
the lower the axis.When traveling with no heavy load or on a flat
road, select position 0.
WARNING
Xenon headlights are extremely bright
compared to conventional headlights. If
the xenon headlights hit the rearview
mirror of the vehicle ahead or the wind-
shield of oncoming vehicle, the driver of
these vehicles may have difficulty driv-
ing because of the brightness. Use the
headlight aiming control switch to lower
the light axis. See “Xenon headlights”
earlier in this section for additional in-
formation.DAYTIME RUNNING LIGHT SYSTEM
(CANADA ONLY)The daytime running lights automatically illumi-
nate when the engine is started with parking
brake released. The daytime running lights op-
erate with the headlight switch in the OFF
position or in the
position.
The daytime running lights may come on after
turning the switch to the OFF position and
SIC1911
Instruments and controls
2-25
06.7.5/Z50-D/V5.0
Page 99 of 345
immediately turning it to the ON position. This is
not a malfunction.
The daytime running lights will be turned off
when the headlight switch is turned to the AUTO
(only when the headlights are lit) or
posi-
tion or when the fog light is turned on.
The daytime running lights will remain on until
the ignition switch is turned to the ACC or OFF
position.
WARNING
When the daytime running light system
is active, tail lights on your vehicle are
not on. It is necessary at dusk to turn on
your headlights. Failure to do so could
cause an accident injuring yourself and
others.
INSTRUMENT BRIGHTNESS
CONTROLThe instrument brightness control operates
when the light switch is in the
or
position and the ignition switch is in the
ON position.
Pushing the control switch
A
once will change
the brightness to the night mode.
Pushing the control switch
B
once will change
the brightness to the day mode.
To adjust the brightness of instrument panel
lights, push the control switches. Pushing the
upper switch
A
will brighten the lights. Thelower switch
B
dims the lights. Repeatedly
pushing the lower switch will turn the lights off.
SIC2053
2-26
Instruments and controls
06.7.5/Z50-D/V5.0
Page 100 of 345
TURN SIGNAL SWITCH1
Turn signal
Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.2
Lane change signal
To indicate a lane change, move the lever up or
down to the point where lights begin flashing.
FOG LIGHT SWITCH (if so
equipped)To turn the fog lights on, turn the headlight
switch to the
position, then turn the switch
to the
position. To turn them off, turn the
switch to the OFF position.
The headlights must be on for the fog lights to
operate (except for the daytime running light).Push the switch (located on the right side of the
meter panel) on to warn other drivers when you
must stop or park under emergency conditions.
All turn signal lights will flash.
Some state laws may prohibit the use of
the hazard warning flasher switch while
driving.

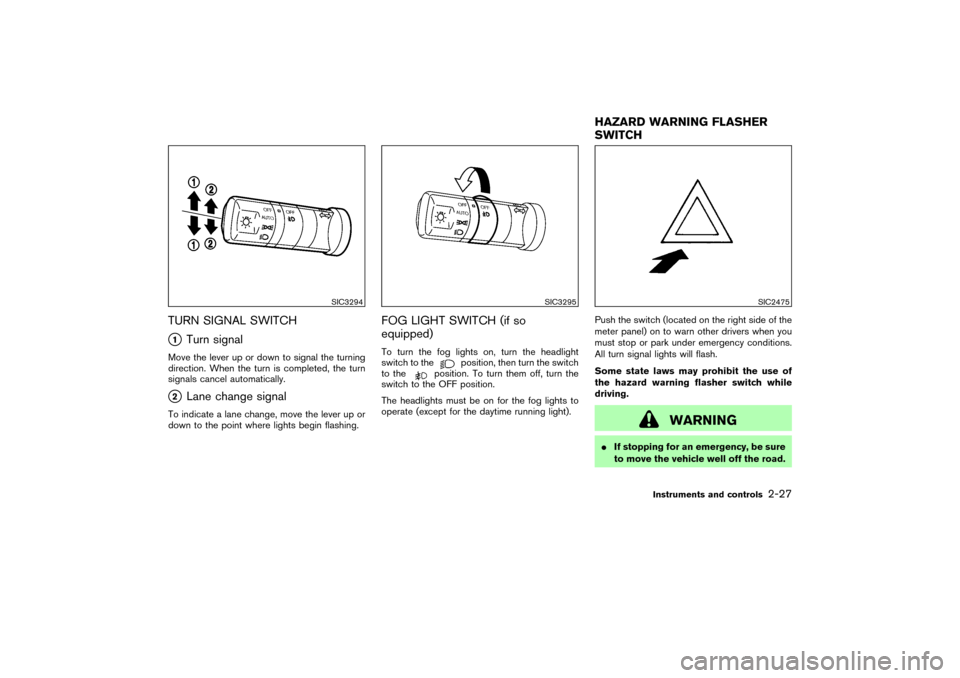

WARNING
If stopping for an emergency, be sure
to move the vehicle well off the road.
SIC3294
SIC3295
SIC2475
HAZARD WARNING FLASHER
SWITCH
Instruments and controls
2-27
06.7.5/Z50-D/V5.0
