4. If the vehicle changes zone, repeat steps 1
thru 3. See map.
If the compass deviates from the correct
indication soon after repeated adjustment,
have the compass checked at an authorized
dealer.
The compass may not indicate the correct
compass point in tunnels or while driving up
or down a steep hill.
(The compass returns to the correct com-
pass point when the vehicle moves to an area
where the geomagnetism is stabilized.)
CAUTION
Do not install a ski rack, antenna,
etc., which are attached to the vehicle
by means of a magnet. They affect
the operation of the compass.
When cleaning the mirror, use a pa-
per towel or similar material damp-
ened with glass cleaner. Do not spray
glass cleaner directly on the mirror as
it may cause the liquid cleaner to
enter the mirror housing.2-8
Instruments and controls
06.7.5/Z50-D/V5.0
Page 82 of 345
All-Wheel Drive (AWD) warning light
(AWD models)
Low tire pressure warning light
Cruise set indicator light
or
Anti-lock Braking System
(ABS) warning light
Low washer fluid warning light
Front passenger air bag status light
or
Brake warning light
P position selecting warning light (if so
equipped)
High beam indicator light (Blue)
Charge warning light
Seat belt warning light
Malfunction indicator light (MIL)
Door open warning light
Supplemental air bag warning light
Security indicator light
Engine oil pressure warning light
All-Wheel Drive (AWD) LOCK indicator
light (AWD models)
Slip indicator light (if so equipped)
Intelligent Key warning light (if so
equipped)
Continuously Variable Transmission (CVT)
indicator light
Turn signal/hazard indicator lights
Low fuel warning light
Cruise main switch indicator light
Vehicle Dynamic Control (VDC) OFF indi-
cator light (if so equipped)
CHECKING BULBSApply the parking brake and turn the ignition
switch to ON without starting the engine. The
following lights will come on:
,
or
,
,
,
The following lights come on briefly and then go
off:
,
or
,
,
,
,
,
,
,
If any light fails to come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system repaired
promptly.
WARNING LIGHTS
All-wheel drive (AWD) warning
light (AWD models)
The
warning light comes on when the
ignition switch is turned to ON. It turns off soon
after the engine is started.
If the AWD system malfunctions or the revolu-
tion, or radius of the front and the rear wheel
WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS
Instruments and controls
2-9
06.7.5/Z50-D/V5.0
Page 83 of 345
differs, the warning light will either remain illumi-
nated or blink. See “Using all-wheel drive
(AWD)” in the “5. Starting and driving” section.
CAUTION
If the warning light comes on while
driving, AWD mode will change to
2WD mode. Reduce the vehicle speed
and have your vehicle checked by a
NISSAN dealer as soon as possible.
Do not drive on dry hard surface
roads in the LOCK mode.
If the AWD warning light blinks when
you are driving:
•blinks rapidly (about twice a sec-
ond):
Pull off the road in a safe area, and
idle the engine. The driving mode
will change to 2WD to prevent the
AWD system from malfunctioning.
If the warning light turns off, you
can drive again.
•blinks slowly (about once every 2
seconds):Pull off the road in a safe area, and
idle the engine. Check that all tire
sizes are the same, tire pressure is
correct and tires are not worn.
If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon as
possible.
or
Anti-lock Braking
System (ABS)
warning light
When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may indicate
the ABS is not functioning properly. Have the
system checked by a NISSAN dealer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. See “Brake system” in the “5. Starting
and driving” section.
or
Brake warning light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light:
The light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid as
necessary. See “Brake fluid” in the “8. Main-
tenance and do-it-yourself” section.
2. If the brake fluid level is correct, have the
warning system checked by a NISSAN
dealer.
WARNING
Your brake system may not be work-
ing properly if the warning light is on.
2-10
Instruments and controls
06.7.5/Z50-D/V5.0
Page 84 of 345

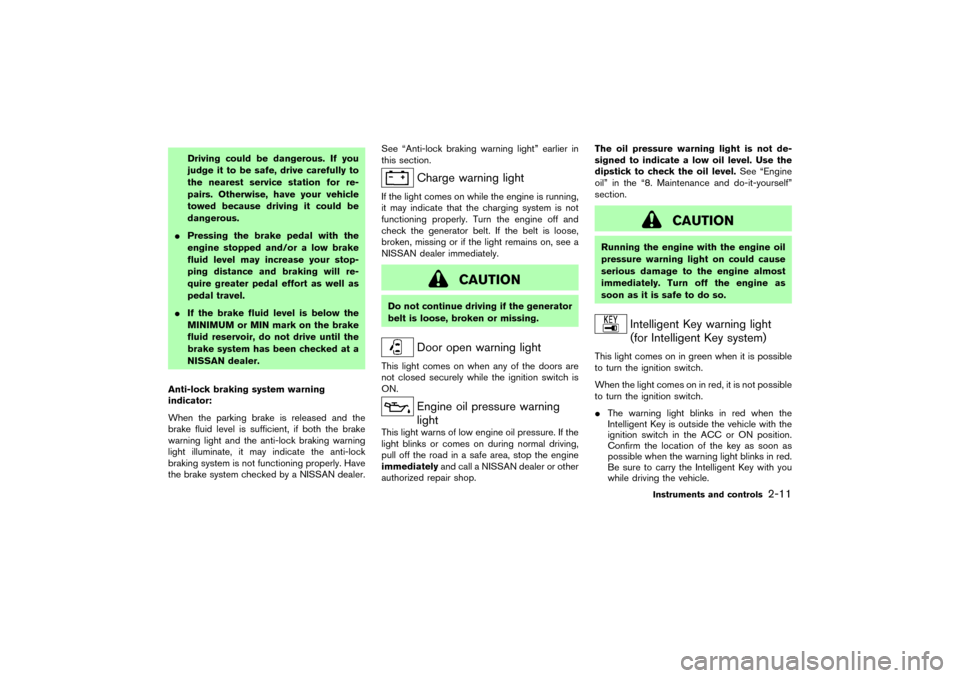

Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for re-
pairs. Otherwise, have your vehicle
towed because driving it could be
dangerous.
Pressing the brake pedal with the
engine stopped and/or a low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
If the brake fluid level is below the
MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.
Anti-lock braking system warning
indicator:
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the anti-lock braking warning
light illuminate, it may indicate the anti-lock
braking system is not functioning properly. Have
the brake system checked by a NISSAN dealer.See “Anti-lock braking warning light” earlier in
this section.
Charge warning light
If the light comes on while the engine is running,
it may indicate that the charging system is not
functioning properly. Turn the engine off and
check the generator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.
CAUTION
Do not continue driving if the generator
belt is loose, broken or missing.
Door open warning light
This light comes on when any of the doors are
not closed securely while the ignition switch is
ON.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If the
light blinks or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediatelyand call a NISSAN dealer or other
authorized repair shop.The oil pressure warning light is not de-
signed to indicate a low oil level. Use the
dipstick to check the oil level.See “Engine
oil” in the “8. Maintenance and do-it-yourself”
section.
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning light
(for Intelligent Key system)
This light comes on in green when it is possible
to turn the ignition switch.
When the light comes on in red, it is not possible
to turn the ignition switch.
The warning light blinks in red when the
Intelligent Key is outside the vehicle with the
ignition switch in the ACC or ON position.
Confirm the location of the key as soon as
possible when the warning light blinks in red.
Be sure to carry the Intelligent Key with you
while driving the vehicle.
Instruments and controls
2-11
06.7.5/Z50-D/V5.0
Page 85 of 345
The warning light goes off about 10 seconds
after the Intelligent Key is brought inside the
vehicle.
Low fuel warning light
This light comes on when the fuel in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches E.
There will be a small reserve of fuel re-
maining in the tank when the fuel gauge
needle reaches E.
Low tire pressure warning light
Your vehicle is equipped with a tire pressure
monitoring system (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is turned ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning:
If the vehicle is being driven with low tire pres-
sure, the warning light will illuminate. If you select
the tire pressure information (if so equipped) in
the display, the FLAT TIRE warning message will
be displayed. The tire pressure for each tire will
also be displayed.When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire pres-
sure to the recommended COLD tire pressure
shown on the Tire and Loading Information label.
The low tire pressure warning light does not
automatically turn off when the tire pressure is
adjusted. After the tire is inflated to the recom-
mended pressure, the vehicle must be driven at
speeds above 16 MPH (25 km/h) to activate the
TPMS and turn off the low tire pressure warning
light. Use a tire pressure gauge to check the tire
pressure.
For additional information, see “Tire pressure
monitoring system (TPMS)” in the “5. Starting
and driving” section and the “6. In case of
emergency” section.
TPMS malfunction:
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
turned ON. The light will remain on after the 1
minute. Have the system checked by a NISSAN
dealer.
For additional information, see “Tire pressure
monitoring system (TPMS)” in the “5. Starting
and driving” section.

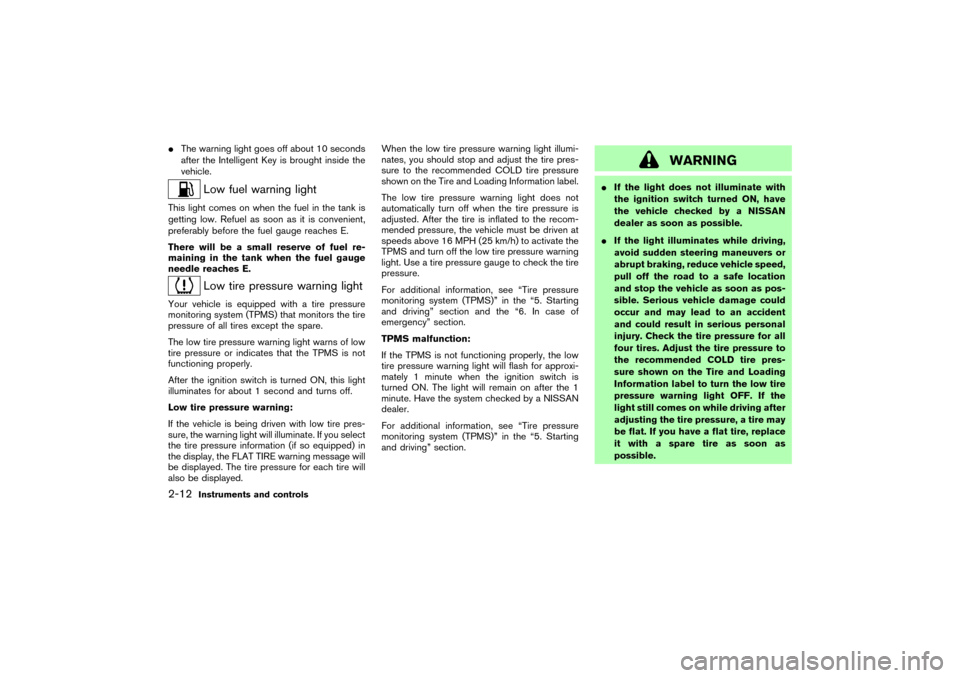

WARNING
If the light does not illuminate with
the ignition switch turned ON, have
the vehicle checked by a NISSAN
dealer as soon as possible.
If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location
and stop the vehicle as soon as pos-
sible. Serious vehicle damage could
occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still comes on while driving after
adjusting the tire pressure, a tire may
be flat. If you have a flat tire, replace
it with a spare tire as soon as
possible.
2-12
Instruments and controls
06.7.5/Z50-D/V5.0
Page 86 of 345

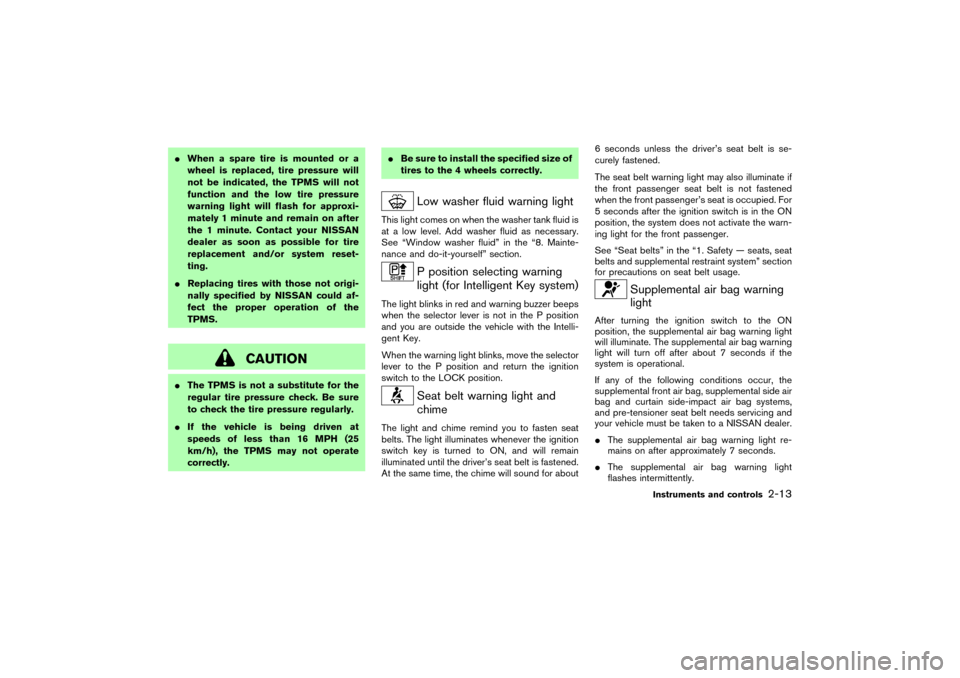

When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute and remain on after
the 1 minute. Contact your NISSAN
dealer as soon as possible for tire
replacement and/or system reset-
ting.
Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.
CAUTION
The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.
If the vehicle is being driven at
speeds of less than 16 MPH (25
km/h), the TPMS may not operate
correctly.Be sure to install the specified size of
tires to the 4 wheels correctly.
Low washer fluid warning light
This light comes on when the washer tank fluid is
at a low level. Add washer fluid as necessary.
See “Window washer fluid” in the “8. Mainte-
nance and do-it-yourself” section.
P position selecting warning
light (for Intelligent Key system)
The light blinks in red and warning buzzer beeps
when the selector lever is not in the P position
and you are outside the vehicle with the Intelli-
gent Key.
When the warning light blinks, move the selector
lever to the P position and return the ignition
switch to the LOCK position.
Seat belt warning light and
chime
The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch key is turned to ON, and will remain
illuminated until the driver’s seat belt is fastened.
At the same time, the chime will sound for about6 seconds unless the driver’s seat belt is se-
curely fastened.
The seat belt warning light may also illuminate if
the front passenger seat belt is not fastened
when the front passenger’s seat is occupied. For
5 seconds after the ignition switch is in the ON
position, the system does not activate the warn-
ing light for the front passenger.
See “Seat belts” in the “1. Safety — seats, seat
belts and supplemental restraint system” section
for precautions on seat belt usage.
Supplemental air bag warning
light
After turning the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate. The supplemental air bag warning
light will turn off after about 7 seconds if the
system is operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side air
bag and curtain side-impact air bag systems,
and pre-tensioner seat belt needs servicing and
your vehicle must be taken to a NISSAN dealer.
The supplemental air bag warning light re-
mains on after approximately 7 seconds.
The supplemental air bag warning light
flashes intermittently.
Instruments and controls
2-13
06.7.5/Z50-D/V5.0
Page 87 of 345
The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the Supplemental
Restraint System and/or the pre-tensioner seat
belt may not function properly. For additional
information, see “Supplemental restraint system”
in the “1. Safety — seats, seat belts and supple-
mental restraint system” section.
WARNING
If the supplemental air bag warning
light is on, it could mean that the
supplemental front air bag, supplemen-
tal side air bag, curtain air bag systems
and/or pre-tensioner seat belt system
will not operate in an accident. To help
avoid injury to yourself or others, have
your vehicle checked by a NISSAN
dealer as soon as possible.INDICATOR LIGHTS
All-wheel drive (AWD) LOCK
indicator light (AWD models)
This light comes on when the ignition switch is
turned to ON, and turns off within 1 second.When selecting LOCK mode while the engine is
running, this light will illuminate. See “Using
all-wheel drive (AWD)” in the “5. Starting and
driving” section.
Continuously variable
transmission (CVT) indicator
light
When the ignition switch is turned ON, the light
comes on for 2 seconds.
Cruise main switch indicator
light
The light comes on when the cruise control main
switch is pushed. The light goes out when the
main switch is pushed again. When the cruise
main switch indicator light comes on, the cruise
control system is operational.
Cruise set indicator light
The light comes on while the vehicle speed is
controlled by the cruise control system. If the
light blinks while the engine is running, it may
indicate the cruise control system is not func-
tioning properly. Have the system checked by a
NISSAN dealer.
Front passenger air bag status
light
The front passenger air bag status light
(
) will be lit and the passenger front air bag
will be OFF depending on how the front passen-
ger seat is being used.
For front passenger air bag status light opera-
tion, see “NISSAN advanced air bag system” in
the “1. Safety — Seats, seat belts and supple-
mental restraint system” section of this manual.High beam indicator light
(Blue)
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction indicator light
(MIL)
If the malfunction indicator light comes on steady
or blinks while the engine is running, it may
indicate a potential emission control and/or CVT
malfunction.
The malfunction indicator light may also come on
steady if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel. Check to make sure
the fuel-filler cap is installed and closed tightly,
2-14
Instruments and controls
06.7.5/Z50-D/V5.0
Page 88 of 345
and that the vehicle has at least three gallons of
fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light comes on continuously for
20 seconds and then blinks for 10 seconds
when the engine is not running, it indicates that
the vehicle is not ready for an emission control
system inspection/maintenance test. See
“Readiness for inspection/maintenance (I/M)
test” in the “9. Technical and consumer informa-
tion” section of this manual.
Operation:
The malfunction indicator light will come on in
one of two ways:
Malfunction indicator light on steady — An
emission control system and/or CVT mal-
function has been detected. Turn the ignition
switch to OFF and check the fuel-filler cap. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
light should turn off after a
few driving trips. If the
light does not
turn off after a few driving trips, have the
vehicle inspected by a NISSAN dealer. You
do not need to have your vehicle towed to the
dealer.Malfunction indicator light blinking — An en-
gine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
a) Do not drive at speeds above 45 MPH
(72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo
being hauled or towed.
The malfunction indicator light may stop
blinking and come on steady.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Security indicator light
Model without Intelligent Key system:
This light blinks whenever the ignition switch is in
the LOCK, OFF or ACC position.
Model with Intelligent Key system:
This light blinks whenever the ignition switch is
not pushed in or the mechanical key is removed
from the ignition switch.
This function indicates the security systems
equipped on the vehicle are operational.
For additional information, see “Security sys-
tems” later in this section.
Slip indicator light (if so
equipped)
When the ignition switch is in the “ON” position,
the slip indicator light illuminates and then turns
off. This indicates the Vehicle Dynamic Control
(VDC) system is operational.
This indicator will blink when the VDC system or
the traction control system is operating, thus
alerting the driver to the fact that the road
surface is slippery and the vehicle is nearing its
traction limits.
If the VDC off indicator light and slip indicator
light illuminate while the engine is running or
Instruments and controls
2-15
06.7.5/Z50-D/V5.0
Page 89 of 345
while driving, it may indicate the VDC system is
not functioning properly and may need servicing.
Have the system checked, and if necessary
repaired, by a NISSAN dealer promptly. (See
“VEHICLE DYNAMIC CONTROL (VDC) SYS-
TEM” in the “5. Starting and driving” section.)
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control
(VDC) OFF indicator light (if so
equipped)
After turning the ignition switch to the ON
position, the light will illuminate. The light will turn
off in about 2 seconds if the Vehicle Dynamic
Control (VDC) system is operational.
The light comes on when the Vehicle Dynamic
Control (VDC) OFF switch is pushed to OFF.
This indicates the Vehicle Dynamic Control sys-
tem and traction control system are not operat-
ing. When the Vehicle Dynamic Control OFF
indicator light and slip indicator light come on
with the Vehicle Dynamic Control system turned
on, this light alerts the driver to the fact that the
Vehicle Dynamic Control system’s fail-safe
mode is operating, that is the system may not befunctioning properly. Have the system checked
by a NISSAN dealer. If a malfunction occurs in
the system, the Vehicle Dynamic Control system
function will be canceled but the vehicle is still
driveable. For additional information, see “Ve-
hicle Dynamic Control (VDC) system” in the “5.
Starting and driving” section of this manual.
AUDIBLE REMINDERS
Key reminder chimeThe key reminder chime sounds if the driver’s
side door is opened while the key is left in the
ignition switch and the ignition switch is in the
“ACC”, “OFF” or “LOCK” position. Remove the
key and take it with you when leaving the vehicle.Light reminder chimeThe light reminder chime sounds if the driver’s
side door is opened while the headlight switch is
at either the
or
position and the
ignition switch is in the ACC, OFF or LOCK
position.
Make sure to turn the light switch to the “OFF” or
“AUTO” position when you leave the vehicle.
Seat belt warning chimeThe chime will sound for about 6 seconds unless
the driver’s seat belt is securely fastened.
Brake pad wear warningThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.Intelligent Key door buzzerWhen the chime or buzzer sounds from inside
and outside the vehicle, check for the following:
The ignition switch is turned to the LOCK
position.
The Intelligent Key is not left inside the
vehicle.
Doors are closed securely.
The selector lever is in the P position.
When the buzzer sounds, be sure to check both
the vehicle and the Intelligent Key.
See “INTELLIGENT KEY SYSTEM” in the “3.
Pre-driving checks and adjustments” section.
2-16
Instruments and controls
06.7.5/Z50-D/V5.0
Page 90 of 345
Your vehicle has one or both types of security
systems, as follows:
Vehicle Security System (if so equipped)
NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light in the meter panel.VEHICLE SECURITY SYSTEM (if so
equipped)The vehicle security system provides visual and
audible alarm signals if someone opens the
doors when the system is armed. It is not,
however, a motion detection type system thatactivates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock the vehicle when unattended.
Be aware of your surroundings, and park in
secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto sup-
ply stores and specialty shops. A NISSAN dealer
may also offer such equipment. Check with your
insurance company to see if you may be eligible
for discounts for various theft protection fea-
tures.
The vehicle security system provides visual and
audio alarm signals if parts of the vehicle are
disturbed.
How to activate the vehicle security
system1. Close all windows.
The system can be activated even if the
windows are open.
2.•Remove the key from the ignition switch.
•Turn the ignition switch to the LOCK
position or remove the mechanical key
from the ignition switch (Intelligent Key
equipped model)
3. Close and lock all doors.
Lock all doors by pushing the LOCK button
SIC2133
SIC2045
SECURITY SYSTEMS
Instruments and controls
2-17
06.7.5/Z50-D/V5.0
