Page 221 of 345
Shift lock releaseIf the battery charge is low or discharged, the
selector lever may not be moved from the P
(Park) position even with the brake pedal de-
pressed.
To move the selector lever, depress the brake
pedal, remove the cover (if so equipped) using a
suitable tool and push the shift lock release
button. The selector lever can be moved to N
(Neutral). This allows the vehicle to be moved if
the battery is discharged.
If the selector lever cannot be moved out of P
(Park), have a NISSAN dealer check the CVTsystem as soon as possible.
Accelerator downshift
— In D position —For rapid passing or hill climbing, fully depress
the accelerator pedal to the floor. This shifts the
transmission down into lower range, depending
on the vehicle speed.High fluid temperature protection
modeThis transmission has a high fluid temperature
protection mode. If the fluid temperature be-
comes too high (for example, when climbing
steep grades in high temperature with heavy
loads, such as when towing a trailer), engine
power and, under some conditions, vehicle
speed will be decreased automatically to reduce
the chance of transmission damage. Vehicle
speed can be controlled with the accelerator
pedal, but the vehicle may not accelerate above
approximately 40 to 50 MPH (65 to 80 km/h).Fail-safeIf the vehicle is driven under extreme con-
ditions, such as excessive wheel spinning
and subsequent hard braking, the fail-safe
system may be activated. The MIL may
come on to indicate the fail-safe mode is
activated, see “Malfunction indicator light(MIL)” in the “2. Instrument and controls”
section. This will occur even if all electrical
circuits are functioning properly. In this
case, turn the ignition switch to the OFF
position and wait for 10 seconds. Then turn
the switch back to the ONposition. The
vehicle should return to its normal operat-
ing condition. If it does not return to its
normal operating condition, have a
NISSAN dealer check the transmission and
repair if necessary.

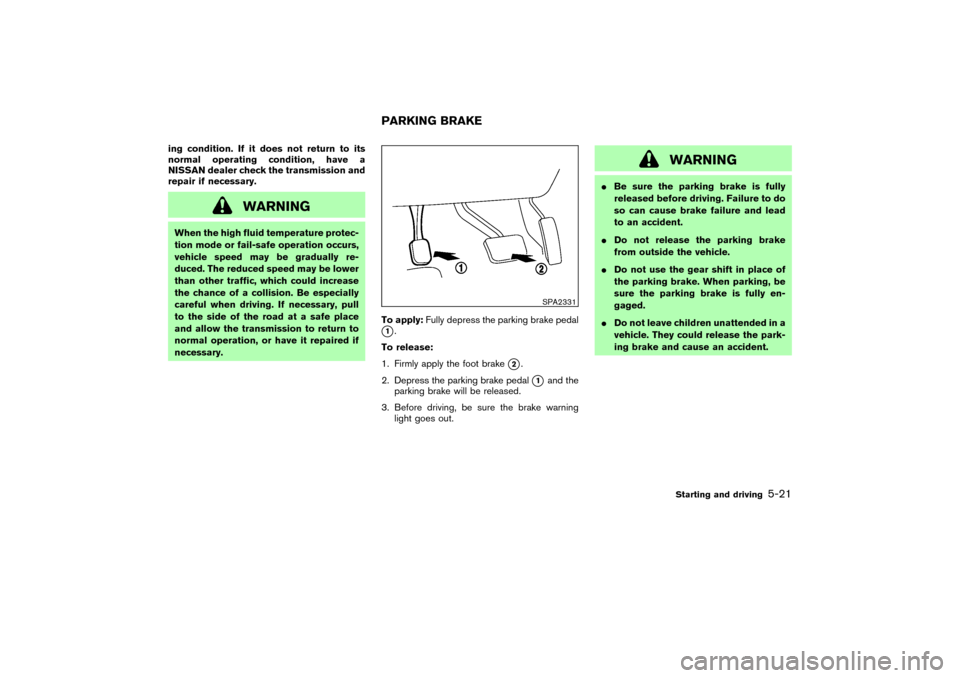

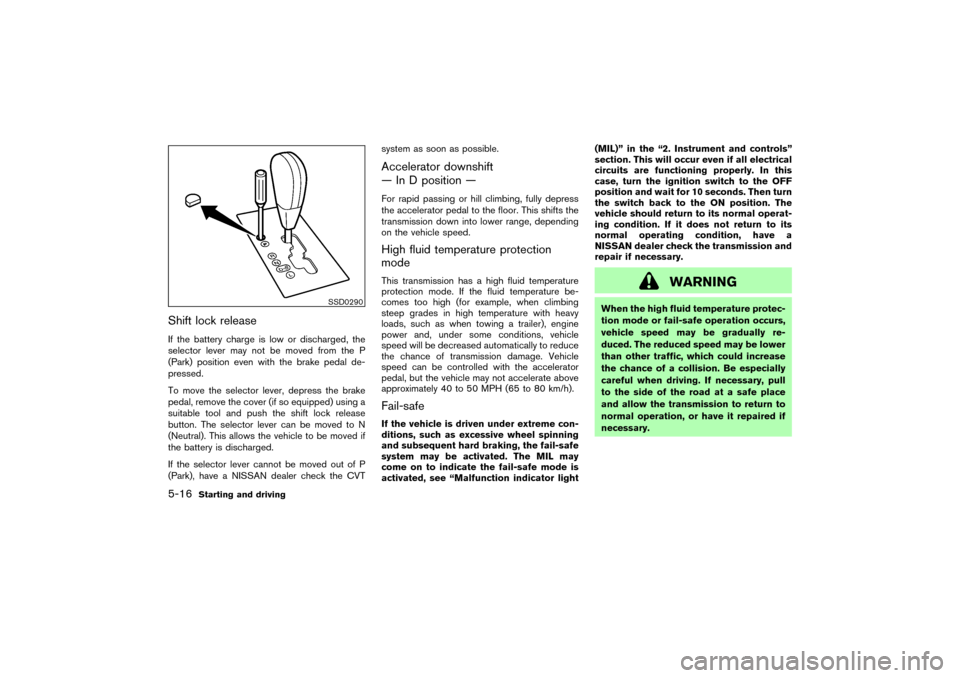

WARNING
When the high fluid temperature protec-
tion mode or fail-safe operation occurs,
vehicle speed may be gradually re-
duced. The reduced speed may be lower
than other traffic, which could increase
the chance of a collision. Be especially
careful when driving. If necessary, pull
to the side of the road at a safe place
and allow the transmission to return to
normal operation, or have it repaired if
necessary.
SSD0290
5-16
Starting and driving
06.7.5/Z50-D/V5.0
Page 222 of 345
M-CVT (CVT with Manual shift mode)
Gate type shift with manual modeThe M-CVT in your vehicle is electronically con-
trolled by a transmission control module to pro-
duce maximum power and smooth operation.
Shown on the following pages are the recom-
mended operating procedures for this transmis-
sion. Follow these procedures for maximum ve-
hicle performance and driving enjoyment.Starting the vehicleAfter starting the engine, fully depress the foot
brake pedal before shifting the selector lever to
the R (Reverse), N (Neutral), D (Drive) or manual
shift mode position. Be sure the vehicle is fully
stopped before attempting to shift the selector
lever.
This M-CVT is designed so that the foot
brake pedal MUST be depressed before
shifting from P (Park) to any drive position
while the ignition switch is ON.
The selector lever cannot be moved out of
P (Park) and into any of the other gear
positions if the ignition switch is turned to
the LOCK, OFF or ACC position or if the
key is removed from the ignition switch.
1. Keep the foot brake pedal depressed andshift the selector lever into a driving gear.
2. Release the parking brake and foot brake,
then gradually start the vehicle in motion.

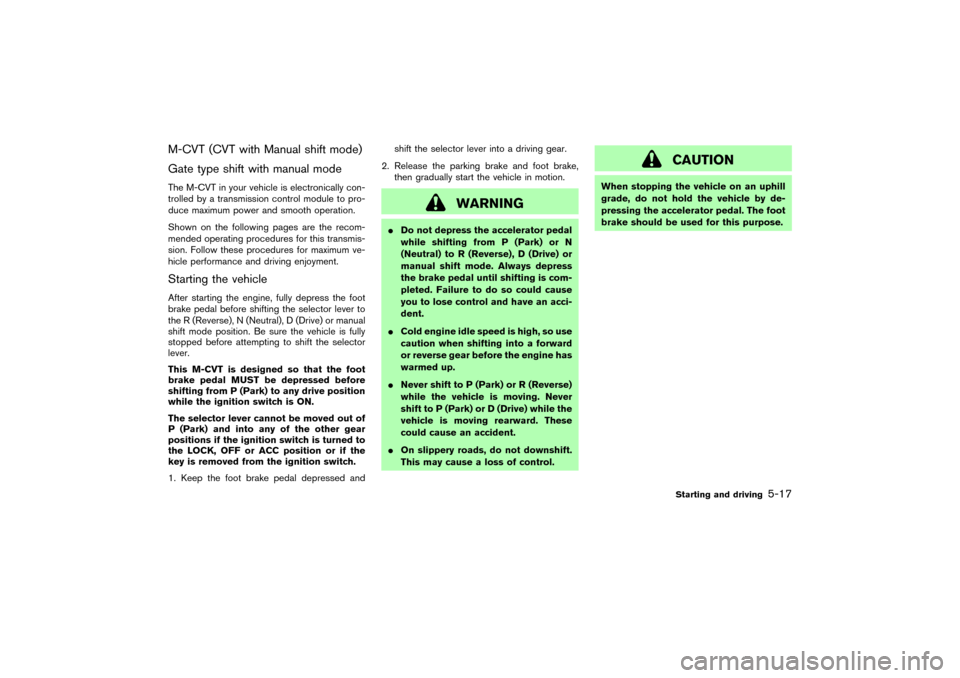

WARNING
Do not depress the accelerator pedal
while shifting from P (Park) or N
(Neutral) to R (Reverse), D (Drive) or
manual shift mode. Always depress
the brake pedal until shifting is com-
pleted. Failure to do so could cause
you to lose control and have an acci-
dent.
Cold engine idle speed is high, so use
caution when shifting into a forward
or reverse gear before the engine has
warmed up.
Never shift to P (Park) or R (Reverse)
while the vehicle is moving. Never
shift to P (Park) or D (Drive) while the
vehicle is moving rearward. These
could cause an accident.
On slippery roads, do not downshift.
This may cause a loss of control.
CAUTION
When stopping the vehicle on an uphill
grade, do not hold the vehicle by de-
pressing the accelerator pedal. The foot
brake should be used for this purpose.
Starting and driving
5-17
06.7.5/Z50-D/V5.0
Page 223 of 345
ShiftingAfter starting the engine, fully depress the brake
pedal and shift the selector lever from P (Park) to
R (Reverse), N (Neutral), D (Drive), Manual shift
mode or any of the desired shift positions.

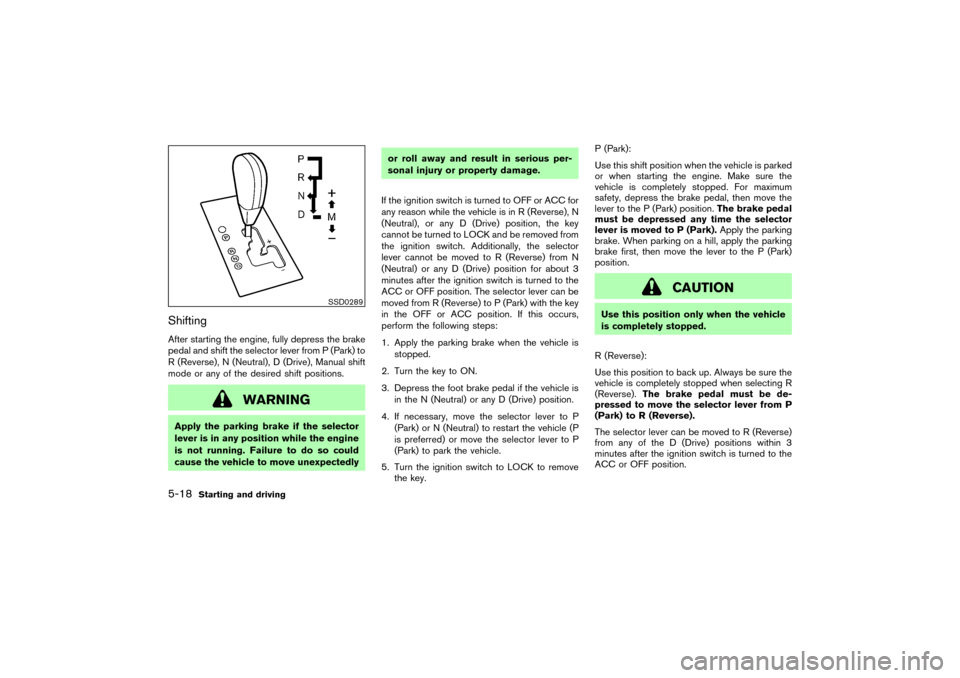

WARNING
Apply the parking brake if the selector
lever is in any position while the engine
is not running. Failure to do so could
cause the vehicle to move unexpectedlyor roll away and result in serious per-
sonal injury or property damage.
If the ignition switch is turned to OFF or ACC for
any reason while the vehicle is in R (Reverse), N
(Neutral), or any D (Drive) position, the key
cannot be turned to LOCK and be removed from
the ignition switch. Additionally, the selector
lever cannot be moved to R (Reverse) from N
(Neutral) or any D (Drive) position for about 3
minutes after the ignition switch is turned to the
ACC or OFF position. The selector lever can be
moved from R (Reverse) to P (Park) with the key
in the OFF or ACC position. If this occurs,
perform the following steps:
1. Apply the parking brake when the vehicle is
stopped.
2. Turn the key to ON.
3. Depress the foot brake pedal if the vehicle is
in the N (Neutral) or any D (Drive) position.
4. If necessary, move the selector lever to P
(Park) or N (Neutral) to restart the vehicle (P
is preferred) or move the selector lever to P
(Park) to park the vehicle.
5. Turn the ignition switch to LOCK to remove
the key.P (Park):
Use this shift position when the vehicle is parked
or when starting the engine. Make sure the
vehicle is completely stopped. For maximum
safety, depress the brake pedal, then move the
lever to the P (Park) position.The brake pedal
must be depressed any time the selector
lever is moved to P (Park).Apply the parking
brake. When parking on a hill, apply the parking
brake first, then move the lever to the P (Park)
position.
CAUTION
Use this position only when the vehicle
is completely stopped.
R (Reverse):
Use this position to back up. Always be sure the
vehicle is completely stopped when selecting R
(Reverse).The brake pedal must be de-
pressed to move the selector lever from P
(Park) to R (Reverse).
The selector lever can be moved to R (Reverse)
from any of the D (Drive) positions within 3
minutes after the ignition switch is turned to the
ACC or OFF position.
SSD0289
5-18
Starting and driving
06.7.5/Z50-D/V5.0
Page 224 of 345
N (Neutral):
Neither forward or reverse gear is engaged. The
engine can be started in this position. You may
shift to N (Neutral) and restart a stalled engine
while the vehicle is moving.
D (Drive):
Use this position for all normal forward driving.Manual shift modeWhen the selector lever is shifted from D to the
manual shift gate with the vehicle stopped or
while driving, the transmission enters the manual
shift mode. Shift ranges can be selected manu-
ally.
In the manual shift mode, the shift range is
displayed on the position indicator in the meter.
Shift ranges up or down one by one as follows:M1→
←M2→
←M3→
←M4→
←M5→
←M6M6 (Sixth):
Use this position for all normal forward driving.
M5 (Fifth):
For driving up or down long slopes where engine
braking would be advantageous.M4 (Fourth), M3 (Third) and M2 (Second):
Use for hill climbing or engine braking on down-
hill grades.
M1 (First):
Use this position when climbing steep hills
slowly or driving slowly through deep snow, or
for maximum engine braking on steep downhill
grades.
Remember not to drive at high speeds for
extended periods of time in lower than M6
range. This reduces fuel economy.
When shifting up, move the selector lever to
the + (up) side. (Shifts to higher range.)
When shifting down, move the selector lever
to the − (down) side. (Shifts to lower range.)
Moving the selector lever to the same side
twice will shift the ranges in succession.
However, if this motion is rapidly done, the
second shifting may not be completed prop-
erly.
In the manual shift mode, the transmis-
sion automatically shifts down to M1
(First) before the vehicle comes to a
stop. When accelerating again, it is nec-
essary to shift up to the desired range.
When canceling the manual shift mode, re-
turn the selector lever to the D position. Thetransmission returns to the normal driving
mode.
In the manual shift mode, the transmis-
sion may not shift to the selected gear.
This helps maintain driving performance
and reduces the chance of vehicle dam-
age or loss of control.
When the CVT fluid temperature is extremely
low, the manual shift mode may not work and
automatically shift as a drive mode. This is not
a malfunction. In this case, return the selector
lever to D range and drive for a while and then
shift to the manual shift mode.
When the CVT fluid temperature is high, the
shift range may upshift in lower rpm than
usual. This is not a malfunction.
Starting and driving
5-19
06.7.5/Z50-D/V5.0
Page 225 of 345
Shift lock releaseIf the battery is discharged, the selector lever
may not be moved from the P (Park) position
even with the brake pedal depressed.
To move the selector lever, push the shift lock
release button while depressing the foot brake
and applying the parking brake. The selector
lever can be moved to N (Neutral). This allows
the vehicle to be moved if the battery is dis-
charged, after releasing the parking brake.
If the battery is discharged in N (Neutral), D
(Drive) or Manual shift mode, the selector lever
may not be moved to the P (Park) position.If it is necessary to park the vehicle, push the
shift lock release button, then move the selector
lever to the P (Park).
To push the shift lock release button, follow the
procedure as illustrated.
If the lever cannot be moved out of P (Park), have
a NISSAN dealer check the CVT system as soon
as possible.

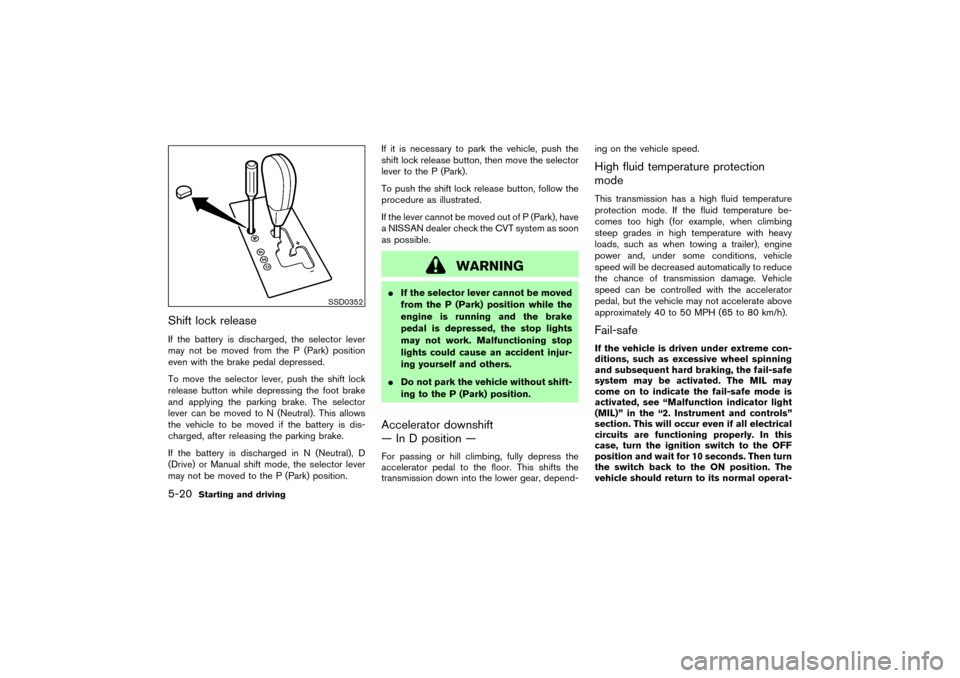

WARNING
If the selector lever cannot be moved
from the P (Park) position while the
engine is running and the brake
pedal is depressed, the stop lights
may not work. Malfunctioning stop
lights could cause an accident injur-
ing yourself and others.
Do not park the vehicle without shift-
ing to the P (Park) position.Accelerator downshift
— In D position —For passing or hill climbing, fully depress the
accelerator pedal to the floor. This shifts the
transmission down into the lower gear, depend-ing on the vehicle speed.
High fluid temperature protection
modeThis transmission has a high fluid temperature
protection mode. If the fluid temperature be-
comes too high (for example, when climbing
steep grades in high temperature with heavy
loads, such as when towing a trailer), engine
power and, under some conditions, vehicle
speed will be decreased automatically to reduce
the chance of transmission damage. Vehicle
speed can be controlled with the accelerator
pedal, but the vehicle may not accelerate above
approximately 40 to 50 MPH (65 to 80 km/h).Fail-safeIf the vehicle is driven under extreme con-
ditions, such as excessive wheel spinning
and subsequent hard braking, the fail-safe
system may be activated. The MIL may
come on to indicate the fail-safe mode is
activated, see “Malfunction indicator light
(MIL)” in the “2. Instrument and controls”
section. This will occur even if all electrical
circuits are functioning properly. In this
case, turn the ignition switch to the OFF
position and wait for 10 seconds. Then turn
the switch back to the ONposition. The
vehicle should return to its normal operat-
SSD0352
5-20
Starting and driving
06.7.5/Z50-D/V5.0
Page 226 of 345
ing condition. If it does not return to its
normal operating condition, have a
NISSAN dealer check the transmission and
repair if necessary.
WARNING
When the high fluid temperature protec-
tion mode or fail-safe operation occurs,
vehicle speed may be gradually re-
duced. The reduced speed may be lower
than other traffic, which could increase
the chance of a collision. Be especially
careful when driving. If necessary, pull
to the side of the road at a safe place
and allow the transmission to return to
normal operation, or have it repaired if
necessary.To apply:Fully depress the parking brake pedal
1.
To release:
1. Firmly apply the foot brake
2.
2. Depress the parking brake pedal1
and the
parking brake will be released.
3. Before driving, be sure the brake warning
light goes out.
WARNING
Be sure the parking brake is fully
released before driving. Failure to do
so can cause brake failure and lead
to an accident.
Do not release the parking brake
from outside the vehicle.
Do not use the gear shift in place of
the parking brake. When parking, be
sure the parking brake is fully en-
gaged.
Do not leave children unattended in a
vehicle. They could release the park-
ing brake and cause an accident.
SPA2331
PARKING BRAKE
Starting and driving
5-21
06.7.5/Z50-D/V5.0
Page 227 of 345

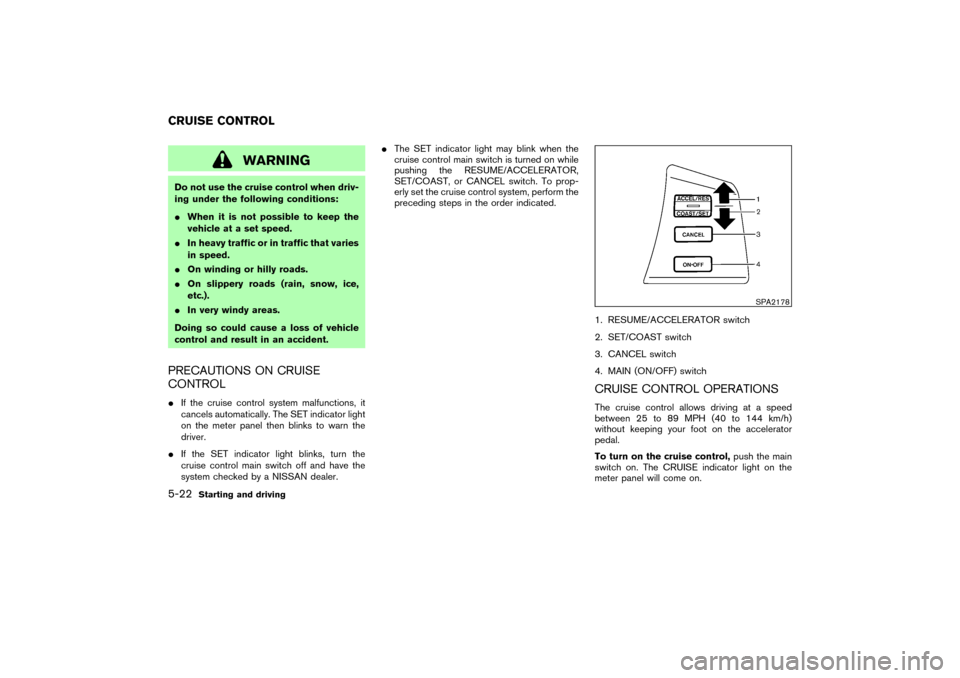

WARNING
Do not use the cruise control when driv-
ing under the following conditions:
When it is not possible to keep the
vehicle at a set speed.
In heavy traffic or in traffic that varies
in speed.
On winding or hilly roads.
On slippery roads (rain, snow, ice,
etc.).
In very windy areas.
Doing so could cause a loss of vehicle
control and result in an accident.PRECAUTIONS ON CRUISE
CONTROLIf the cruise control system malfunctions, it
cancels automatically. The SET indicator light
on the meter panel then blinks to warn the
driver.
If the SET indicator light blinks, turn the
cruise control main switch off and have the
system checked by a NISSAN dealer.The SET indicator light may blink when the
cruise control main switch is turned on while
pushing the RESUME/ACCELERATOR,
SET/COAST, or CANCEL switch. To prop-
erly set the cruise control system, perform the
preceding steps in the order indicated.
1. RESUME/ACCELERATOR switch
2. SET/COAST switch
3. CANCEL switch
4. MAIN (ON/OFF) switch
CRUISE CONTROL OPERATIONSThe cruise control allows driving at a speed
between 25 to 89 MPH (40 to 144 km/h)
without keeping your foot on the accelerator
pedal.
To turn on the cruise control,push the main
switch on. The CRUISE indicator light on the
meter panel will come on.
SPA2178
CRUISE CONTROL5-22
Starting and driving
06.7.5/Z50-D/V5.0
Page 228 of 345
To set cruising speed,accelerate your vehicle
to the desired speed, push the SET/COAST
switch and release it. (The SET indicator light
will come on.) Take your foot off the accelerator
pedal. Your vehicle will maintain the set speed.
To pass another vehicle,depress the ac-
celerator pedal. When you release the pedal,
the vehicle will return to the previously set
speed.
The vehicle may not maintain the set speed
on winding or hilly roads. If this happens,
drive without the cruise control.
To cancel the preset speed,follow any of
these methods:
a) Push the CANCEL switch. The SET indicator
light will go out.
b) Tap the brake pedal. The SET indicator light
will go out.
c) Turn the main switch off. Both the CRUISE
indicator and SET indicator lights will go out.
If you depress the brake pedal while pushing
the RESUME/ACCELERATOR set switch
and reset at the cruising speed, turn the main
switch off once and then turn it on again.
The cruise control will automatically be can-
celled if the vehicle slows down below ap-
proximately 8 MPH (13 km/h).Move the selector lever to N (Neutral) posi-
tion. The SET indicator light will go out.
To reset at a faster cruising speed,use one
of the following three methods:
a) Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the SET/COAST switch.
b) Push and hold the RESUME/
ACCELERATOR set switch. When the ve-
hicle attains the speed you desire, release the
switch.
c) Push, then quickly release the RESUME/
ACCELERATOR set switch. Each time you
do this, the set speed will increase by about
1 MPH (1.6 km/h).
To reset at a slower cruising speed,use one
of the following three methods:
a) Lightly tap the brake pedal. When the vehicle
attains the desired speed, push the SET/
COAST switch and release it.
b) Push and hold the SET/COAST switch. Re-
lease the switch when the vehicle slows
down to the desired speed.
c) Push, then quickly release the SET/COAST
switch. Each time you do this, the set speed
will decrease by about 1 MPH (1.6 km/h).To resume the preset speed,push and re-
lease the RESUME/ACCELERATOR set switch.
The vehicle will resume the last set cruising
speed when the vehicle speed is over 25 MPH
(40 km/h).
Starting and driving
5-23
06.7.5/Z50-D/V5.0
Page 229 of 345
CAUTION
During the first 1,200 miles (2,000 km),
follow these recommendations to ob-
tain maximum engine performance and
ensure the future reliability and
economy of your new vehicle. Failure to
follow these recommendations may re-
sult in shortened engine life and re-
duced engine performance.
Avoid driving for long periods at constant
speed, either fast or slow. Do not run the
engine over 4,000 rpm.
Do not accelerate at full throttle in any gear.
Avoid quick starts.
Avoid hard braking as much as possible.
Do not tow a trailer for the first 500 miles
(800 km).Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.
Drive at moderate speeds on the highway.
Driving at high speed will lower fuel economy.
Avoid unnecessary stopping and braking.
Maintain a safe distance behind other ve-
hicles.
Use a proper gear range which suits road
conditions. On level roads, shift into high gear
as soon as possible.
Avoid unnecessary engine idling.
Keep your engine tuned up.
Follow the recommended periodic mainte-
nance schedule.
Keep the tires inflated at the correct pres-
sure. Low pressure will increase tire wear and
waste fuel.
Keep the front wheels in correct alignment.
Improper alignment will cause not only tire
wear but also lower fuel economy.
Air conditioner operation lowers fuel
economy. Use the air conditioner only when
necessary.
When cruising at highway speeds, it is more
economical to use the air conditioner andleave the windows closed to reduce drag.BREAK-IN SCHEDULE INCREASING FUEL ECONOMY5-24
Starting and driving
06.7.5/Z50-D/V5.0
Page 230 of 345

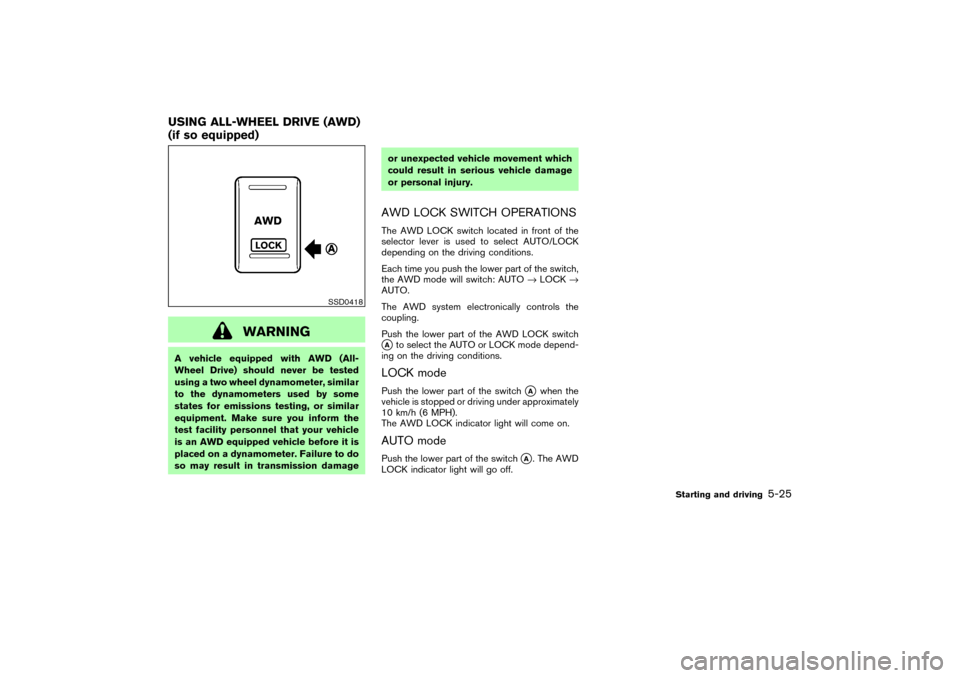

WARNING
A vehicle equipped with AWD (All-
Wheel Drive) should never be tested
using a two wheel dynamometer, similar
to the dynamometers used by some
states for emissions testing, or similar
equipment. Make sure you inform the
test facility personnel that your vehicle
is an AWD equipped vehicle before it is
placed on a dynamometer. Failure to do
so may result in transmission damageor unexpected vehicle movement which
could result in serious vehicle damage
or personal injury.
AWD LOCK SWITCH OPERATIONSThe AWD LOCK switch located in front of the
selector lever is used to select AUTO/LOCK
depending on the driving conditions.
Each time you push the lower part of the switch,
the AWD mode will switch: AUTO→LOCK→
AUTO.
The AWD system electronically controls the
coupling.
Push the lower part of the AWD LOCK switchAto select the AUTO or LOCK mode depend-
ing on the driving conditions.
LOCK modePush the lower part of the switch
A
when the
vehicle is stopped or driving under approximately
10 km/h (6 MPH).
The AWD LOCK indicator light will come on.
AUTO modePush the lower part of the switch
A. The AWD
LOCK indicator light will go off.
SSD0418
USING ALL-WHEEL DRIVE (AWD)
(if so equipped)
Starting and driving
5-25
06.7.5/Z50-D/V5.0
