NISSAN MURANO 2007 1.G Owners Manual
Manufacturer: NISSAN, Model Year: 2007, Model line: MURANO, Model: NISSAN MURANO 2007 1.GPages: 345, PDF Size: 3.57 MB
Page 231 of 345
AWD
modeWheel drivenAWD LOCK
indicator
lightUse conditions
AUTODistribution of torque to the front and rear
wheels changes automatically, depending
on road conditions encountered
[100:0]↔[50:50].
This results in improved driving stability.*1Goes off.For driving on paved or slippery
roads
LOCK All-wheel drive*2, *3 AWD LOCK For driving on rough roads
*1: When the rotation difference between the front and rear wheels is large, the AWD mode may change from
AUTO to LOCK for a while, however, this is not a malfunction.
*2: LOCK mode will change to AUTO mode automatically when the vehicle is accelerated or the vehicle speed is
over approximately 10 km/h (6 MPH). The AWD LOCK indicator light does not go off.
LOCK mode will change to AUTO mode automatically when the vehicle has been driven for a high speed. The
AWD LOCK indicator light goes off.
*3: LOCK mode will automatically be cancelled when the ignition switch is turned to the OFF position.If the AWD LOCK switch is operated while accelerating or decelerating, or if the ignition switch
is turned off, you may feel a jerk. This is normal.
The oil temperature of power train parts will increase if the vehicle is continuously operated under
conditions where the difference in rotation between the front and rear wheels is large (wheel slip),
such as when driving the vehicle on rough roads through sand, mud or freeing a stuck vehicle. In
these cases, the AWD warning light blinks rapidly and the AWD mode changes to 2WD condition
to protect the power train parts. If you stop driving with the engine idling and wait until the warning
light stops blinking, the AWD returns to the AUTO mode.
WARNING
Do not place an AWD equipped ve-
hicle on a two wheel dynamometer or
raise two wheels off the ground and
shift the transmission to any D (drive)
or R (reverse) position. Doing so may
result in transmission damage or un-
expected vehicle movement which
could result in serious vehicle dam-
age or personal injury.
When driving straight, shift the AWD
lock switch to AUTO. Do not operate
the AWD lock switch when making a
turn or backing up.
Do not operate the AWD lock switch
with the front wheel spinning.
Engine idling speed is high while
warming up the engine. Be especially
careful when starting or driving on
slippery surfaces with the AWD lock
switch set in AUTO or LOCK.
When turning the vehicle in LOCK
mode on paved roads, you may feel
5-26
Starting and driving
06.7.5/Z50-D/V5.0
Page 232 of 345
a braking effect. This is a normal
condition of the AWD model.
AWD WARNING LIGHTThe AWD warning light is located in the meter.
The AWD warning light comes on when the
ignition switch is turned to ON. It turns off soon
after the engine is started.If any malfunction occurs in the AWD system
when the ignition switch is ON, the warning light
will remain illuminated.
High-temperature power-train oil due to continu-
ous operation of the vehicle to free a stuck
vehicle makes the warning light blink rapidly
(about twice per second). The driving mode may
change to 2 wheel drive condition. AUTO mode
may change to LOCK mode before the warning
light blinks. This is normal. If the warning light
blinks rapidly during operation, stop the vehicle
with the engine idling in a safe place immedi-
ately. Then if the light goes off after a while, you
can continue driving.
A large difference between the diameters of
front and rear wheels will make the warning light
blink slowly (about once per two seconds). Pull
off the road in a safe area, and idle the engine.
Check that all tire sizes are the same, tire
pressure is correct and tires are not worn.
WARNING
Do not attempt to test an AWD
equipped vehicle with two wheels on a
two wheel dynamometer and the other
two wheels raised. Doing so may result
SSD0314A
Starting and driving
5-27
06.7.5/Z50-D/V5.0
Page 233 of 345
in transmission damage or unexpected
vehicle movement which could result in
serious vehicle damage or personal in-
jury.
CAUTION
If the warning light comes on while
driving, AUTO or LOCK mode will be
changed to 2 wheel drive condition.
Reduce the vehicle speed and have
your vehicle checked by a NISSAN
dealer as soon as possible.
When the warning light comes on,
the 2 wheel condition may be en-
gaged even if the driving mode is in
AUTO or LOCK. Be especially careful
when driving.
Never drive on dry hard surface roads
in the LOCK mode, as this will over-
load the power-train and may cause a
serious malfunction.
The power-train may be damaged if
you continue driving with the warninglight blinking rapidly.5-28
Starting and driving
06.7.5/Z50-D/V5.0
Page 234 of 345
WARNING
Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.
Never leave the engine running while
the vehicle is unattended.
Do not leave children unattended in-
side the vehicle.1. Firmly apply the parking brake.
2. Move the selector lever to the P (Park) posi-
tion.
WARNING
Safe parking procedures require that
both the parking brake be set and the
transmission placed into P (Park).
Failure to do so could cause the ve-
hicle to move unexpectedly or roll
away and result in an accident.
Make sure the selector lever has
been pushed as far forward as it can
go and cannot be moved without de-
pressing the button at the end of the
lever.
3. To help prevent the vehicle from rolling into
the street when parked on a sloping drive
way, it is a good practice to turn the wheels
as illustrated.
HEADED DOWNHILL WITH CURB:
1
Turn the wheels into the curband move the
vehicle forward until the curbside wheel
gently touches the curb.
SD1006MA
PARKING/PARKING ON HILLS
Starting and driving
5-29
06.7.5/Z50-D/V5.0
Page 235 of 345
HEADED UPHILL WITH CURB:
2
Turn the wheels away from the curband
move the vehicle back until the curb side
wheel gently touches the curb.
HEADED UPHILL OR DOWNHILL, NO
CURB:
3
Turn the wheels toward the side of the road
so the vehicle will move away from the center
of the road if it moves.
4. Turn the ignition switch to the LOCK position
and remove the key.The power assisted steering is designed to use
a hydraulic pump, driven by the engine, to assist
steering.
If the engine stops or drive belt breaks, you will
still have control of the vehicle. However, much
greater steering effort is needed, especially in
sharp turns or at low speeds.

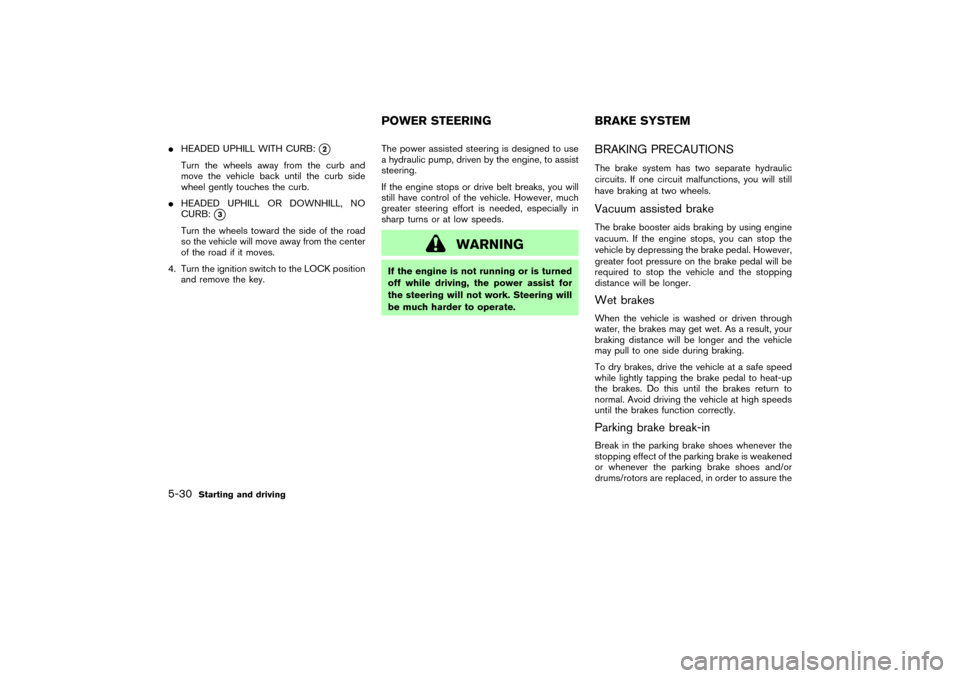

WARNING
If the engine is not running or is turned
off while driving, the power assist for
the steering will not work. Steering will
be much harder to operate.
BRAKING PRECAUTIONSThe brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will still
have braking at two wheels.Vacuum assisted brakeThe brake booster aids braking by using engine
vacuum. If the engine stops, you can stop the
vehicle by depressing the brake pedal. However,
greater foot pressure on the brake pedal will be
required to stop the vehicle and the stopping
distance will be longer.Wet brakesWhen the vehicle is washed or driven through
water, the brakes may get wet. As a result, your
braking distance will be longer and the vehicle
may pull to one side during braking.
To dry brakes, drive the vehicle at a safe speed
while lightly tapping the brake pedal to heat-up
the brakes. Do this until the brakes return to
normal. Avoid driving the vehicle at high speeds
until the brakes function correctly.Parking brake break-inBreak in the parking brake shoes whenever the
stopping effect of the parking brake is weakened
or whenever the parking brake shoes and/or
drums/rotors are replaced, in order to assure the
POWER STEERING BRAKE SYSTEM
5-30
Starting and driving
06.7.5/Z50-D/V5.0
Page 236 of 345
best braking performance.
This procedure is described in the vehicle ser-
vice manual and can be performed by a NISSAN
dealer.Using the brakesAvoid resting your foot on the brake pedal while
driving. This will cause overheating of the brakes,
increases wear on the brake linings and pads,
and reduces gas mileage.
To help save the brakes and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going down a
slope or long grade. Overheated brakes may
reduce braking performance and could result in
loss of vehicle control.

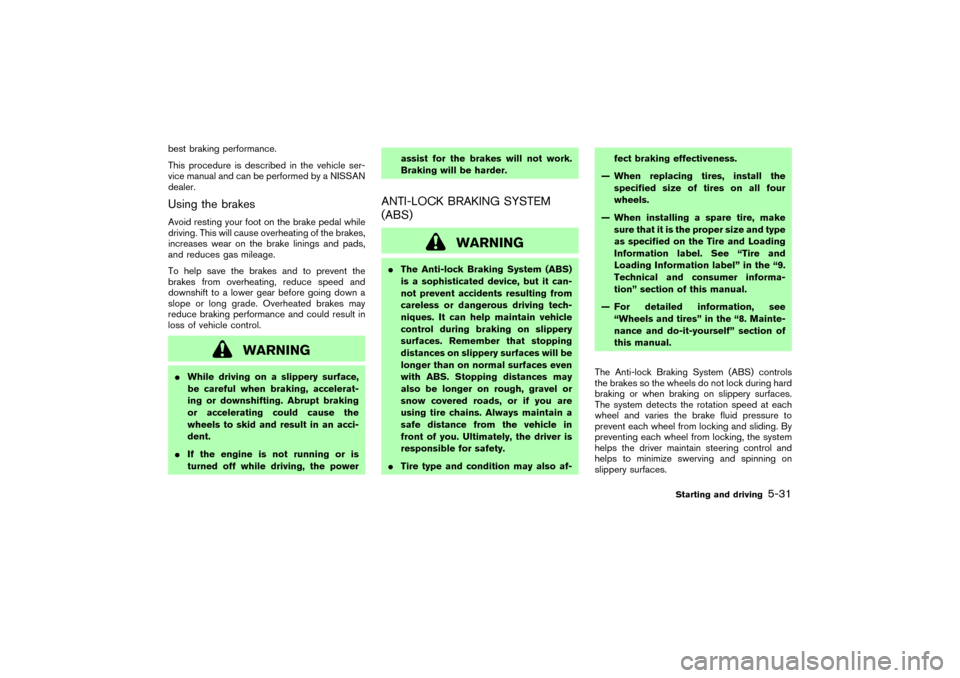

WARNING
While driving on a slippery surface,
be careful when braking, accelerat-
ing or downshifting. Abrupt braking
or accelerating could cause the
wheels to skid and result in an acci-
dent.
If the engine is not running or is
turned off while driving, the powerassist for the brakes will not work.
Braking will be harder.
ANTI-LOCK BRAKING SYSTEM
(ABS)
WARNING
The Anti-lock Braking System (ABS)
is a sophisticated device, but it can-
not prevent accidents resulting from
careless or dangerous driving tech-
niques. It can help maintain vehicle
control during braking on slippery
surfaces. Remember that stopping
distances on slippery surfaces will be
longer than on normal surfaces even
with ABS. Stopping distances may
also be longer on rough, gravel or
snow covered roads, or if you are
using tire chains. Always maintain a
safe distance from the vehicle in
front of you. Ultimately, the driver is
responsible for safety.
Tire type and condition may also af-fect braking effectiveness.
— When replacing tires, install the
specified size of tires on all four
wheels.
— When installing a spare tire, make
sure that it is the proper size and type
as specified on the Tire and Loading
Information label. See “Tire and
Loading Information label” in the “9.
Technical and consumer informa-
tion” section of this manual.
— For detailed information, see
“Wheels and tires” in the “8. Mainte-
nance and do-it-yourself” section of
this manual.
The Anti-lock Braking System (ABS) controls
the brakes so the wheels do not lock during hard
braking or when braking on slippery surfaces.
The system detects the rotation speed at each
wheel and varies the brake fluid pressure to
prevent each wheel from locking and sliding. By
preventing each wheel from locking, the system
helps the driver maintain steering control and
helps to minimize swerving and spinning on
slippery surfaces.
Starting and driving
5-31
06.7.5/Z50-D/V5.0
Page 237 of 345
Using the systemDepress the brake pedal and hold it down.
Depress the brake pedal with firm steady pres-
sure, but do not pump the brakes. The ABS will
operate to prevent the wheels from locking up.
Steer the vehicle to avoid obstacles.

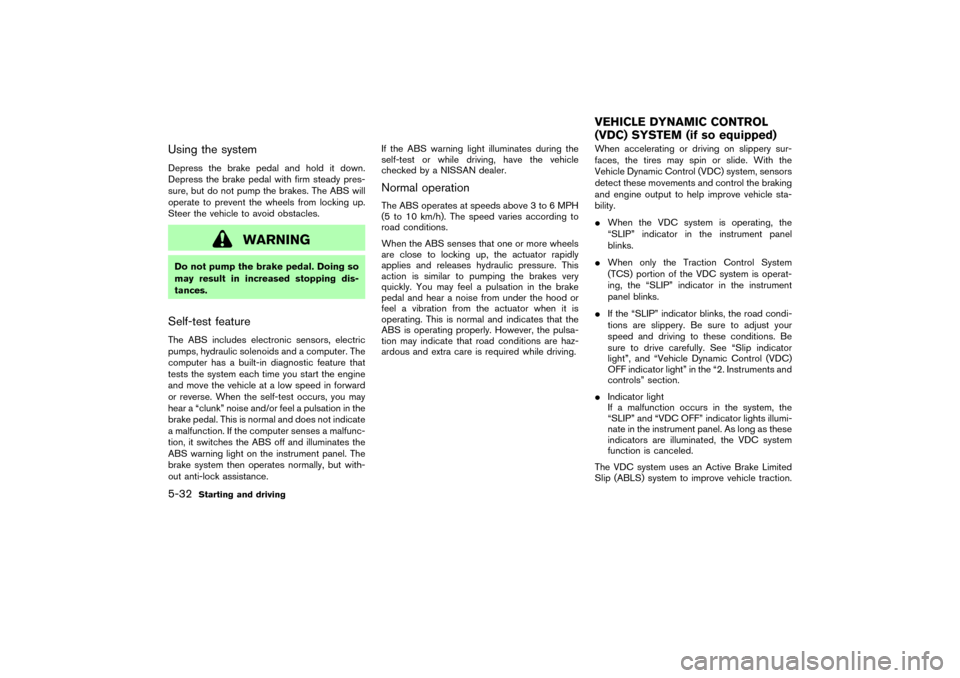

WARNING
Do not pump the brake pedal. Doing so
may result in increased stopping dis-
tances.Self-test featureThe ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer. The
computer has a built-in diagnostic feature that
tests the system each time you start the engine
and move the vehicle at a low speed in forward
or reverse. When the self-test occurs, you may
hear a “clunk” noise and/or feel a pulsation in the
brake pedal. This is normal and does not indicate
a malfunction. If the computer senses a malfunc-
tion, it switches the ABS off and illuminates the
ABS warning light on the instrument panel. The
brake system then operates normally, but with-
out anti-lock assistance.If the ABS warning light illuminates during the
self-test or while driving, have the vehicle
checked by a NISSAN dealer.
Normal operationThe ABS operates at speeds above 3 to 6 MPH
(5 to 10 km/h). The speed varies according to
road conditions.
When the ABS senses that one or more wheels
are close to locking up, the actuator rapidly
applies and releases hydraulic pressure. This
action is similar to pumping the brakes very
quickly. You may feel a pulsation in the brake
pedal and hear a noise from under the hood or
feel a vibration from the actuator when it is
operating. This is normal and indicates that the
ABS is operating properly. However, the pulsa-
tion may indicate that road conditions are haz-
ardous and extra care is required while driving.When accelerating or driving on slippery sur-
faces, the tires may spin or slide. With the
Vehicle Dynamic Control (VDC) system, sensors
detect these movements and control the braking
and engine output to help improve vehicle sta-
bility.
When the VDC system is operating, the
“SLIP” indicator in the instrument panel
blinks.
When only the Traction Control System
(TCS) portion of the VDC system is operat-
ing, the “SLIP” indicator in the instrument
panel blinks.
If the “SLIP” indicator blinks, the road condi-
tions are slippery. Be sure to adjust your
speed and driving to these conditions. Be
sure to drive carefully. See “Slip indicator
light”, and “Vehicle Dynamic Control (VDC)
OFF indicator light” in the “2. Instruments and
controls” section.
Indicator light
If a malfunction occurs in the system, the
“SLIP” and “VDC OFF” indicator lights illumi-
nate in the instrument panel. As long as these
indicators are illuminated, the VDC system
function is canceled.
The VDC system uses an Active Brake Limited
Slip (ABLS) system to improve vehicle traction.
VEHICLE DYNAMIC CONTROL
(VDC) SYSTEM (if so equipped)
5-32
Starting and driving
06.7.5/Z50-D/V5.0
Page 238 of 345
The ABLS system works when one of the driving
wheels is spinning on a slippery surface. The
ABLS system brakes the spinning wheel, which
distributes the driving power to the other driving
wheel. If the vehicle is operated with the VDC
system turned off, all VDC system functions and
TCS functions will be turned off. The ABLS
system and ABS will still operate with the VDC
system off. When the ABLS system is activated,
the “SLIP” indicator light will blink and you may
hear a clunk noise and/or feel a pulsation in the
brake pedal. This is normal and is not an indica-
tion of a malfunction.
While the VDC system is operating, you may feel
a pulsation in the brake pedal and hear a noise or
feel a vibration from under the hood. This is
normal and indicates that the VDC system is
working properly.
The VDC system computer has a built-in diag-
nostic feature that tests the system each time
you start the engine and move the vehicle at a
low speed forward or backward. When the
self-test occurs, you may hear a clunk noise
and/or feel a pulsation in the brake pedal. This is
normal and is not an indication of a malfunction.
WARNING
The VDC system is designed to help
improve driving stability but does not
prevent accidents due to abrupt
steering operation at high speeds or
due to careless or dangerous driving
techniques. Reduce vehicle speed
and be especially careful when driv-
ing and cornering on slippery sur-
faces and always drive carefully.
If engine related parts such as a muf-
fler are not standard equipment or
are extremely deteriorated, the “VDC
OFF” indicator or “SLIP” indicator or
both indicator lights may illuminate.
Do not modify the vehicle’s suspen-
sion. If suspension parts such as
shock absorbers, struts, springs, sta-
bilizer bars and bushings are not
NISSAN-approved or are extremely
deteriorated the VDC system may not
operate properly. This could ad-
versely affect vehicle handling per-
formance, and the “VDC OFF” indica-tor or “SLIP” indicator or both indica-
tor lights may illuminate.
If brake related parts such as brake
pads, rotors and calipers are not
standard equipment or are extremely
deteriorated, the “VDC OFF” indica-
tor or “SLIP” indicator or both indica-
tor lights may illuminate.
When driving on extremely inclined
surfaces such as higher banked cor-
ners, the VDC system may not oper-
ate properly and the “VDC OFF” indi-
cator or “SLIP” indicator or both
indicator lights may illuminate. Do
not drive on these types of roads.
When driving on an unstable surface
such as a turntable, ferry, elevator or
ramp, the “VDC OFF” indicator or
“SLIP” indicator or both indicator
lights may illuminate. This is not a
malfunction. Restart the engine after
driving onto a stable surface.
If wheels or tires other than those
recommended are used, the VDC sys-
Starting and driving
5-33
06.7.5/Z50-D/V5.0
Page 239 of 345

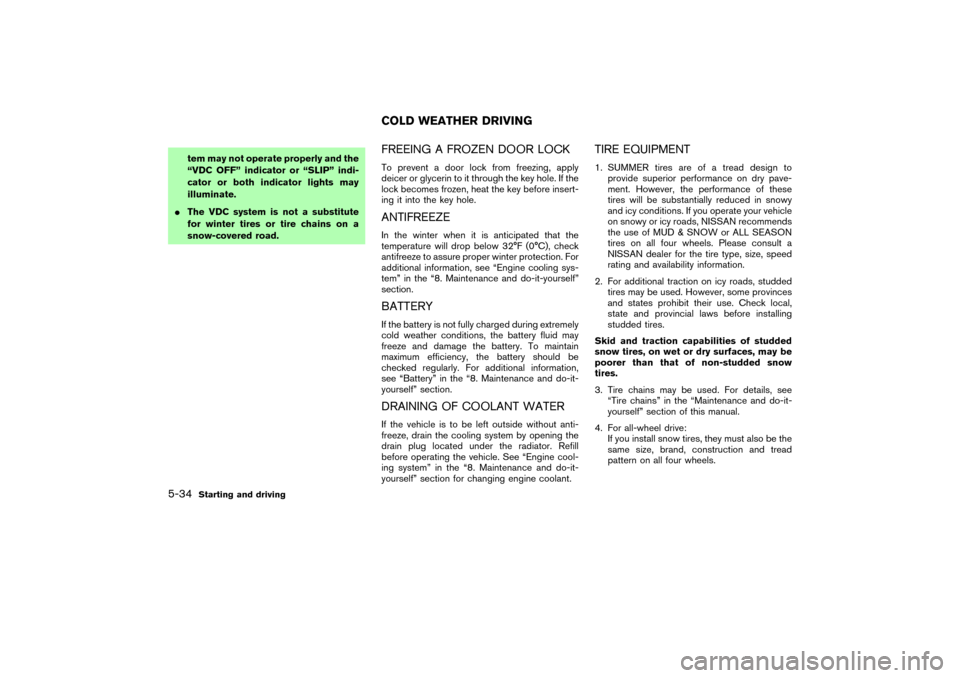

tem may not operate properly and the
“VDC OFF” indicator or “SLIP” indi-
cator or both indicator lights may
illuminate.
The VDC system is not a substitute
for winter tires or tire chains on a
snow-covered road.
FREEING A FROZEN DOOR LOCKTo prevent a door lock from freezing, apply
deicer or glycerin to it through the key hole. If the
lock becomes frozen, heat the key before insert-
ing it into the key hole.ANTIFREEZEIn the winter when it is anticipated that the
temperature will drop below 32°F (0°C), check
antifreeze to assure proper winter protection. For
additional information, see “Engine cooling sys-
tem” in the “8. Maintenance and do-it-yourself”
section.BATTERYIf the battery is not fully charged during extremely
cold weather conditions, the battery fluid may
freeze and damage the battery. To maintain
maximum efficiency, the battery should be
checked regularly. For additional information,
see “Battery” in the “8. Maintenance and do-it-
yourself” section.DRAINING OF COOLANT WATERIf the vehicle is to be left outside without anti-
freeze, drain the cooling system by opening the
drain plug located under the radiator. Refill
before operating the vehicle. See “Engine cool-
ing system” in the “8. Maintenance and do-it-
yourself” section for changing engine coolant.
TIRE EQUIPMENT1. SUMMER tires are of a tread design to
provide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your vehicle
on snowy or icy roads, NISSAN recommends
the use of MUD & SNOW or ALL SEASON
tires on all four wheels. Please consult a
NISSAN dealer for the tire type, size, speed
rating and availability information.
2. For additional traction on icy roads, studded
tires may be used. However, some provinces
and states prohibit their use. Check local,
state and provincial laws before installing
studded tires.
Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.
3. Tire chains may be used. For details, see
“Tire chains” in the “Maintenance and do-it-
yourself” section of this manual.
4. For all-wheel drive:
If you install snow tires, they must also be the
same size, brand, construction and tread
pattern on all four wheels.
COLD WEATHER DRIVING
5-34
Starting and driving
06.7.5/Z50-D/V5.0
Page 240 of 345
SPECIAL WINTER EQUIPMENTIt is recommended that the following items be
carried in the vehicle during winter:
a scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades.
a sturdy, flat board to be placed under the
jack to give it firm support.
a shovel to dig the vehicle out of snow-drifts.
extra window washer fluid to refill the reser-
voir tank.DRIVING ON SNOW OR ICE

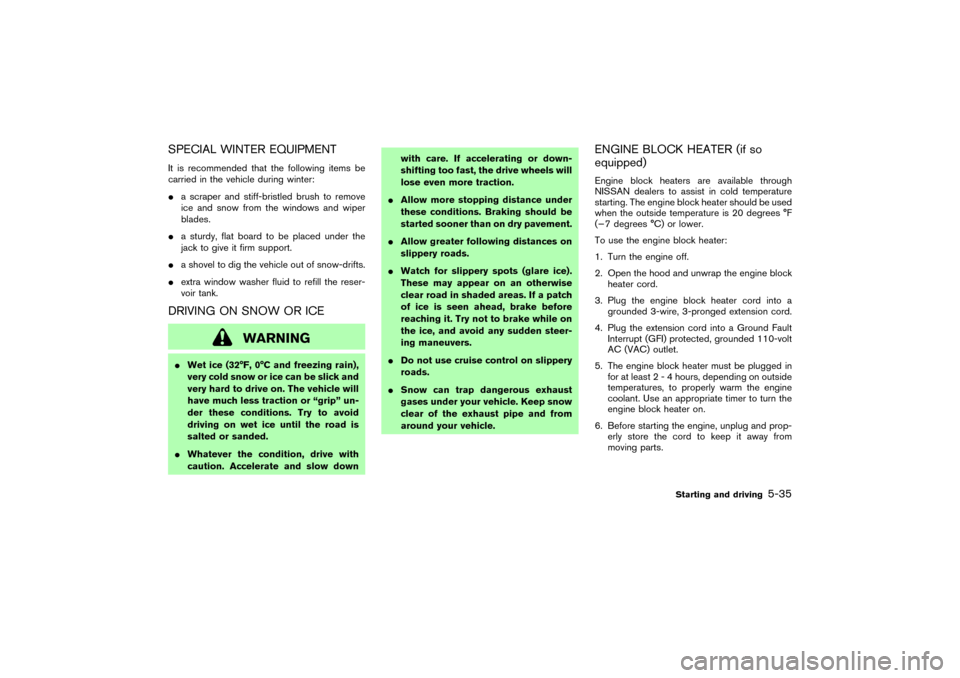

WARNING
Wet ice (32°F, 0°C and freezing rain),
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip” un-
der these conditions. Try to avoid
driving on wet ice until the road is
salted or sanded.
Whatever the condition, drive with
caution. Accelerate and slow downwith care. If accelerating or down-
shifting too fast, the drive wheels will
lose even more traction.
Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.
Allow greater following distances on
slippery roads.
Watch for slippery spots (glare ice).
These may appear on an otherwise
clear road in shaded areas. If a patch
of ice is seen ahead, brake before
reaching it. Try not to brake while on
the ice, and avoid any sudden steer-
ing maneuvers.
Do not use cruise control on slippery
roads.
Snow can trap dangerous exhaust
gases under your vehicle. Keep snow
clear of the exhaust pipe and from
around your vehicle.
ENGINE BLOCK HEATER (if so
equipped)Engine block heaters are available through
NISSAN dealers to assist in cold temperature
starting. The engine block heater should be used
when the outside temperature is 20 degrees °F
(−7 degrees °C) or lower.
To use the engine block heater:
1. Turn the engine off.
2. Open the hood and unwrap the engine block
heater cord.
3. Plug the engine block heater cord into a
grounded 3-wire, 3-pronged extension cord.
4. Plug the extension cord into a Ground Fault
Interrupt (GFI) protected, grounded 110-volt
AC (VAC) outlet.
5. The engine block heater must be plugged in
for at least2-4hours, depending on outside
temperatures, to properly warm the engine
coolant. Use an appropriate timer to turn the
engine block heater on.
6. Before starting the engine, unplug and prop-
erly store the cord to keep it away from
moving parts.
Starting and driving
5-35
06.7.5/Z50-D/V5.0
