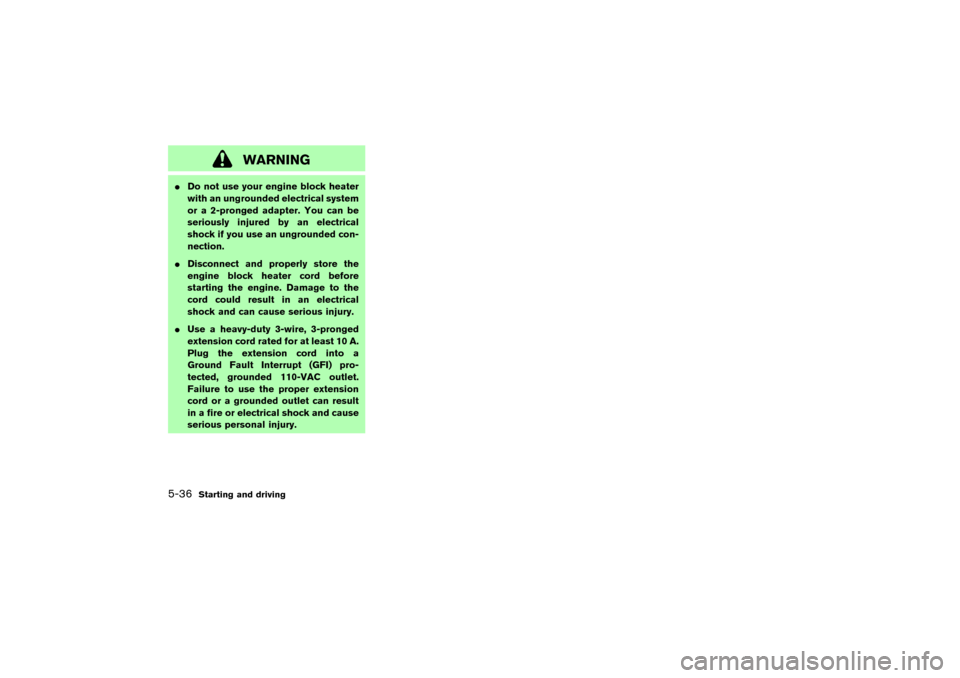

WARNING

Do not use your engine block heater
with an ungrounded electrical system
or a 2-pronged adapter. You can be
seriously injured by an electrical
shock if you use an ungrounded con-
nection.

Disconnect and properly store the
engine block heater cord before
starting the engine. Damage to the
cord could result in an electrical
shock and can cause serious injury.

Use a heavy-duty 3-wire, 3-pronged
extension cord rated for at least 10 A.
Plug the extension cord into a
Ground Fault Interrupt (GFI) pro-
tected, grounded 110-VAC outlet.
Failure to use the proper extension
cord or a grounded outlet can result
in a fire or electrical shock and cause
serious personal injury.5-36
Starting and driving


06.7.5/Z50-D/V5.0


MEMO
Starting and driving
5-37


06.7.5/Z50-D/V5.0


MEMO5-38
Starting and driving


06.7.5/Z50-D/V5.0


6 In case of emergencyFlat tire ...................................................................................... 6-2
Tire pressure monitoring system .................................. 6-2
Changing a flat tire .......................................................... 6-2
Jump starting ........................................................................... 6-9
Push starting......................................................................... 6-11If your vehicle overheats .................................................... 6-11
Towing your vehicle ............................................................ 6-12
Towing recommended by NISSAN........................... 6-13
Vehicle recovery (Freeing a stuck vehicle) ............. 6-15


06.7.5/Z50-D/V5.0


TIRE PRESSURE MONITORING
SYSTEMThis vehicle is equipped with the tire pressure
monitoring system (TPMS). It monitors tire pres-
sure of all tires except the spare. When the low
tire pressure warning light is lit, one or more of
your tires is significantly under-inflated. If
equipped, the system also displays pressure of
all tires (except the spare tire) on the display
screen by sending a signal from a sensor that is
installed in each wheel. If the vehicle is being
driven with low tire pressure, the TPMS will
activate and warn you of it by the low tire
pressure warning light. This system will activate
only when the vehicle is driven at speeds above
16 MPH (25 km/h). For more details, refer to
“Warning/indicator lights and audible remind-
ers” in the “2. Instruments and controls” section,
“Tire pressure information” in the “4. Display
screen, heater, air conditioner and audio sys-
tems” section and “Tire pressure monitoring
system (TPMS)” in the “5. Starting and driving”
section.

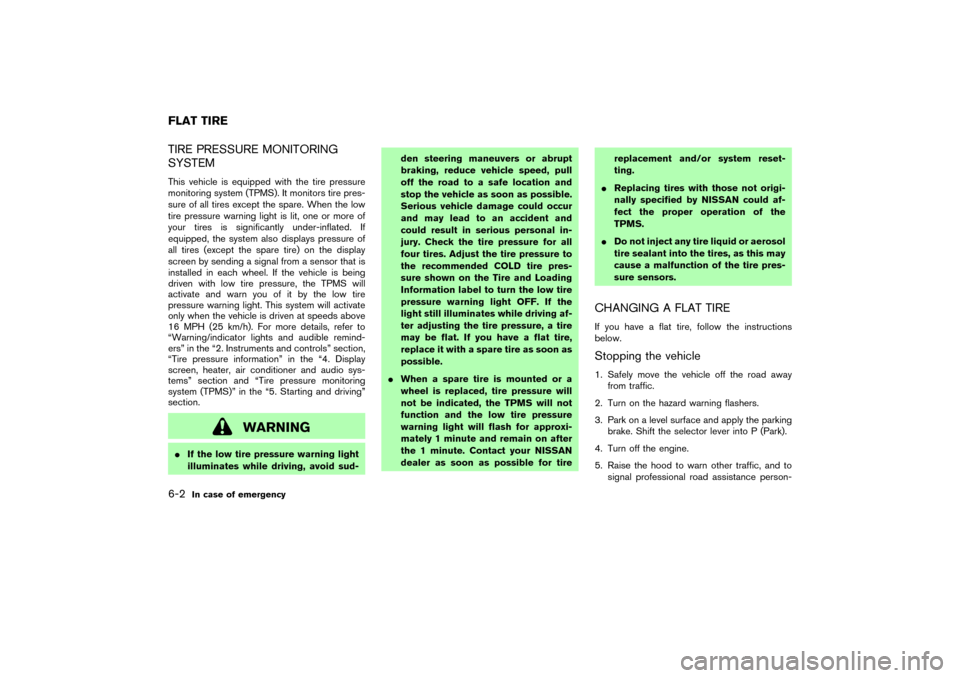

WARNING

If the low tire pressure warning light
illuminates while driving, avoid sud-den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal in-
jury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still illuminates while driving af-
ter adjusting the tire pressure, a tire
may be flat. If you have a flat tire,
replace it with a spare tire as soon as
possible.

When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute and remain on after
the 1 minute. Contact your NISSAN
dealer as soon as possible for tirereplacement and/or system reset-
ting.

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CHANGING A FLAT TIREIf you have a flat tire, follow the instructions
below.Stopping the vehicle1. Safely move the vehicle off the road away
from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking
brake. Shift the selector lever into P (Park).
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to
signal professional road assistance person-
FLAT TIRE6-2
In case of emergency


06.7.5/Z50-D/V5.0


nel that you need assistance.
6. Have all passengers get out of the vehicle
and stand in a safe place, away from traffic
and clear of the vehicle.

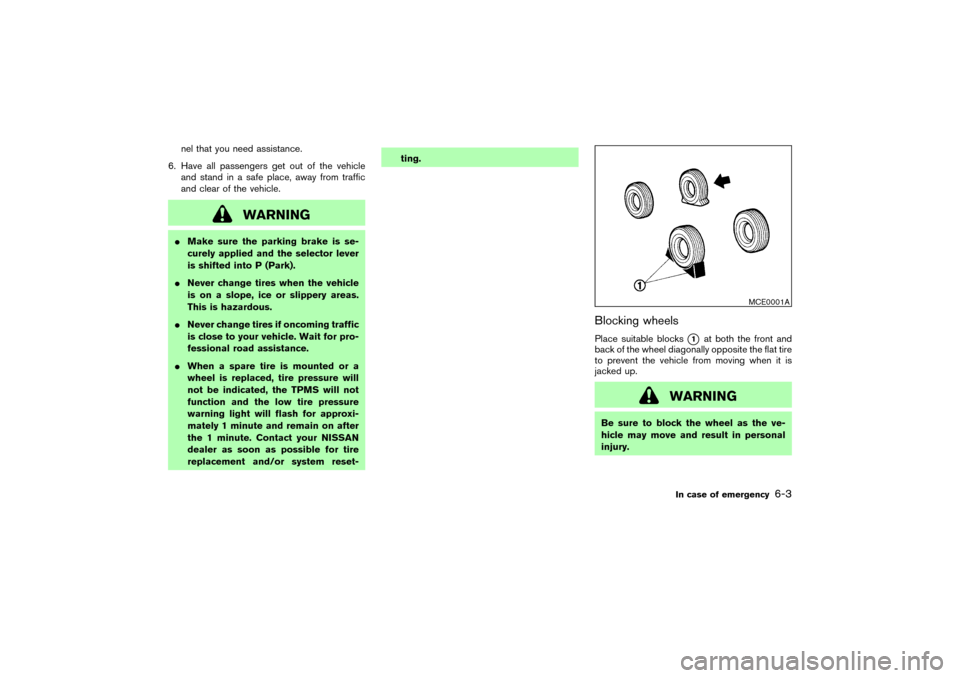

WARNING

Make sure the parking brake is se-
curely applied and the selector lever
is shifted into P (Park).

Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.

Never change tires if oncoming traffic
is close to your vehicle. Wait for pro-
fessional road assistance.

When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute and remain on after
the 1 minute. Contact your NISSAN
dealer as soon as possible for tire
replacement and/or system reset-ting.
Blocking wheelsPlace suitable blocks
1
at both the front and
back of the wheel diagonally opposite the flat tire
to prevent the vehicle from moving when it is
jacked up.
WARNING
Be sure to block the wheel as the ve-
hicle may move and result in personal
injury.
MCE0001A
In case of emergency
6-3


06.7.5/Z50-D/V5.0


Getting the spare tire and toolsPull up the floor cover and hang the strap
A
to
upper body
B
as illustrated. Remove the under
tray
C
(if so equipped).
Remove the jacking tools and spare tire from the
storage area located under the floor cover as
illustrated.Type A:
Turn the retainer counterclockwise
1
and re-
move the spare tire.Type B:
Turn the retainer counterclockwise
1, remove
the subwoofer
2
and remove the spare tire.
SCE0528
SCE0529
Type A
SCE0530
Type B
6-4
In case of emergency


06.7.5/Z50-D/V5.0


Pull up the floor cover
1
as illustrated and
remove
2
the jack and tools.
Removing wheel cap (if so equipped)To remove the wheel cap, use the jack rod
1as
illustrated.
Apply the cloth
2
between the wheel cap and

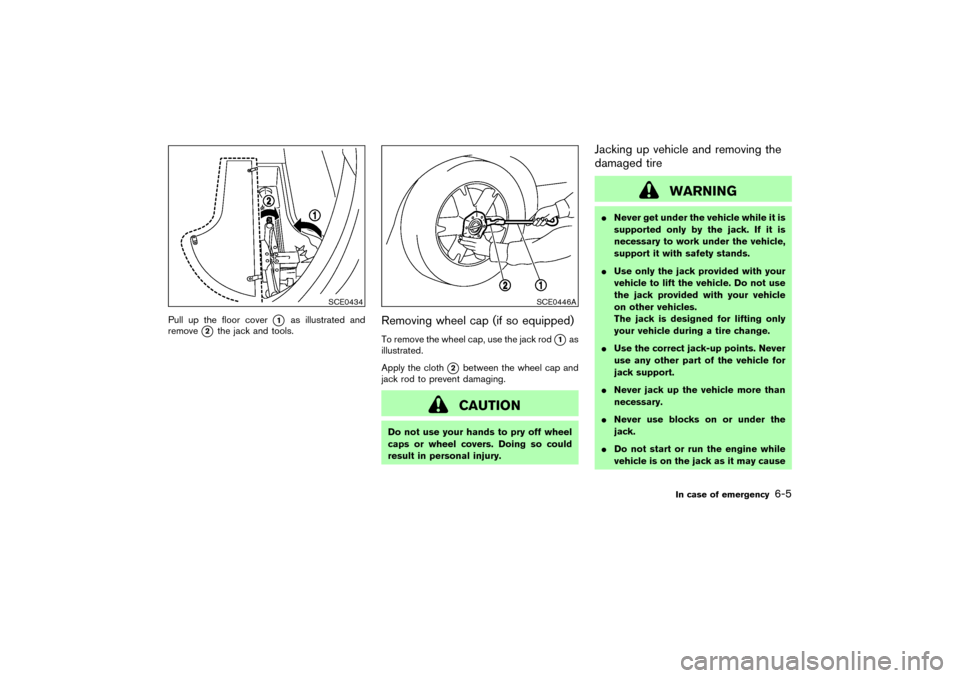

jack rod to prevent damaging.CAUTION
Do not use your hands to pry off wheel
caps or wheel covers. Doing so could
result in personal injury.
Jacking up vehicle and removing the
damaged tire
WARNING

Never get under the vehicle while it is
supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.

Use only the jack provided with your
vehicle to lift the vehicle. Do not use
the jack provided with your vehicle
on other vehicles.
The jack is designed for lifting only
your vehicle during a tire change.

Use the correct jack-up points. Never
use any other part of the vehicle for
jack support.

Never jack up the vehicle more than
necessary.

Never use blocks on or under the
jack.

Do not start or run the engine while
vehicle is on the jack as it may cause
SCE0434
SCE0446A
In case of emergency
6-5


06.7.5/Z50-D/V5.0

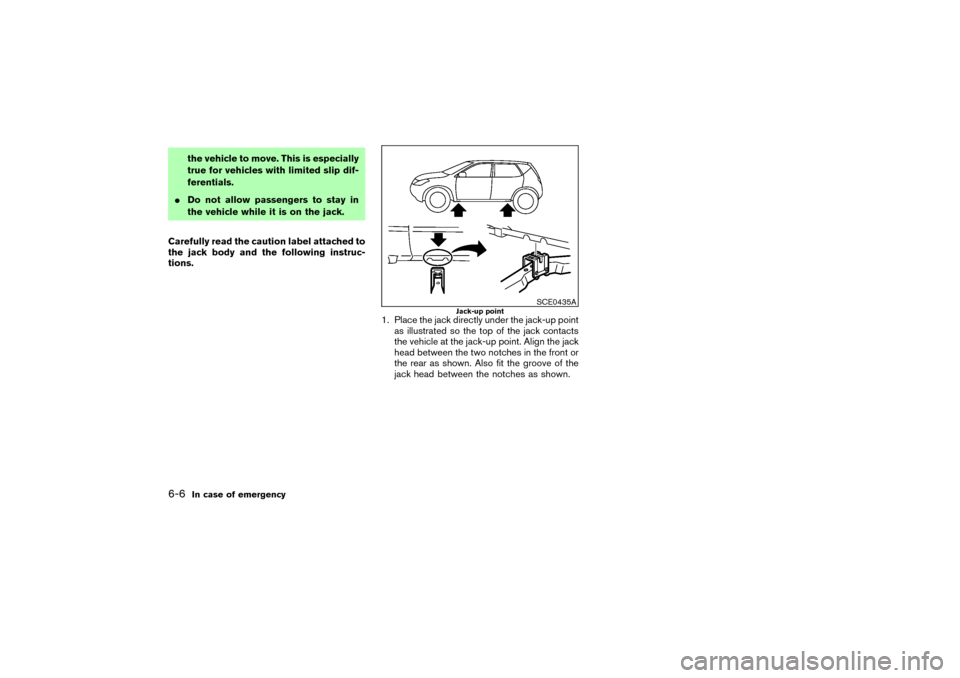

the vehicle to move. This is especially
true for vehicles with limited slip dif-
ferentials.

Do not allow passengers to stay in
the vehicle while it is on the jack.
Carefully read the caution label attached to
the jack body and the following instruc-
tions.
1. Place the jack directly under the jack-up point
as illustrated so the top of the jack contacts
the vehicle at the jack-up point. Align the jack
head between the two notches in the front or
the rear as shown. Also fit the groove of the
jack head between the notches as shown.
SCE0435A
Jack-up point
6-6
In case of emergency


06.7.5/Z50-D/V5.0


The jack should be used on level firm
ground.
2. Loosen each wheel nut one or two turns by
turning counterclockwise with the wheel nut
wrench.Do not remove the wheel nuts
until the tire is off the ground.
3. Carefully raise the vehicle until the tire clears
the ground. To lift the vehicle, securely hold
the jack lever and rod with both hands as
shown above. Remove the wheel nuts, and
then remove the tire.
Installing the spare tireThe spare tire is designed for emergency
use. See specific instructions under the
heading “Wheels and tires” in the “Main-
tenance and do-it-yourself ” section of this
manual.
1. Clean any mud or dirt from the surface
between the wheel and hub.
2. Carefully put the spare tire on and tighten the
wheel nuts finger tight.
3. With the wheel nut wrench, tighten wheel
nuts alternately and evenly in the sequence
SCE0751
SCE0039
