NISSAN MURANO 2013 2.G Owners Manual
Manufacturer: NISSAN, Model Year: 2013, Model line: MURANO, Model: NISSAN MURANO 2013 2.GPages: 507, PDF Size: 4.61 MB
Page 321 of 507
Black plate (319,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

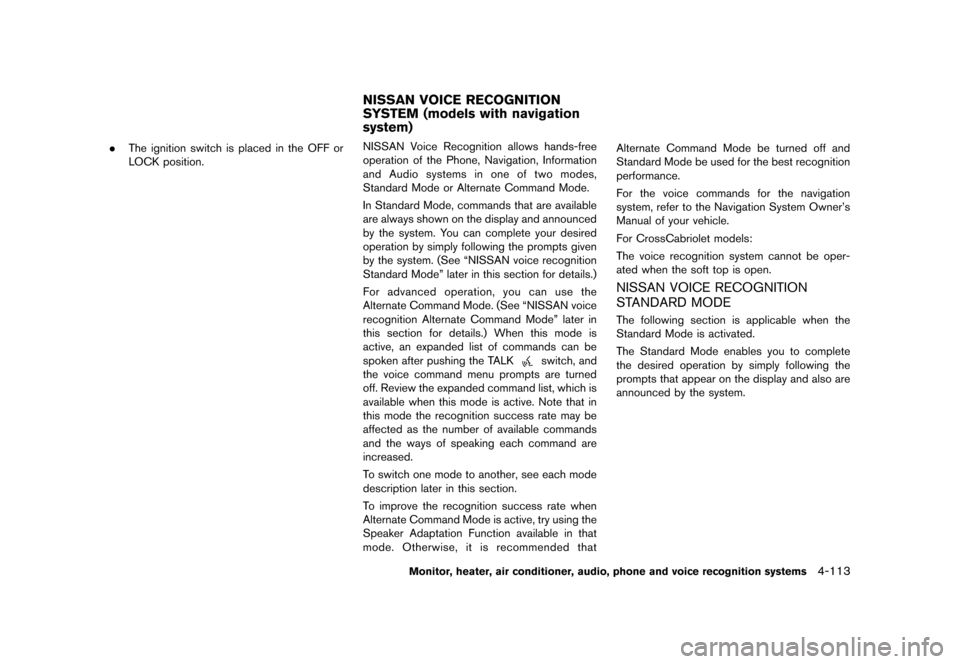

.The ignition switch is placed in the OFF or
LOCK position.
GUID-A30474D6-0723-412B-94D9-B6E7FA3EE8EFNISSAN Voice Recognition allows hands-free
operation of the Phone, Navigation, Information
and Audio systems in one of two modes,
Standard Mode or Alternate Command Mode.
In Standard Mode, commands that are available
are always shown on the display and announced
by the system. You can complete your desired
operation by simply following the prompts given
by the system. (See “NISSAN voice recognition
Standard Mode” later in this section for details.)
For advanced operation, you can use the
Alternate Command Mode. (See “NISSAN voice
recognition Alternate Command Mode” later in
this section for details.) When this mode is
active, an expanded list of commands can be
spoken after pushing the TALK
switch, and
the voice command menu prompts are turned
off. Review the expanded command list, which is
available when this mode is active. Note that in
this mode the recognition success rate may be
affected as the number of available commands
and the ways of speaking each command are
increased.
To switch one mode to another, see each mode
description later in this section.
To improve the recognition success rate when
Alternate Command Mode is active, try using the
Speaker Adaptation Function available in that
mode. Otherwise, it is recommended that Alternate Command Mode be turned off and
Standard Mode be used for the best recognition
performance.
For the voice commands for the navigation
system, refer to the Navigation System Owner’s
Manual of your vehicle.
For CrossCabriolet models:
The voice recognition system cannot be oper-
ated when the soft top is open.
NISSAN VOICE RECOGNITION
STANDARD MODE
GUID-E030B25F-1CD2-4F18-B605-1529B5C7136EThe following section is applicable when the
Standard Mode is activated.
The Standard Mode enables you to complete
the desired operation by simply following the
prompts that appear on the display and also are
announced by the system.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-113
NISSAN VOICE RECOGNITION
SYSTEM (models with navigation
system)
Condition:
Page 322 of 507
Black plate (320,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-114Monitor, heater, air conditioner, audio, phone and voice recognition systems

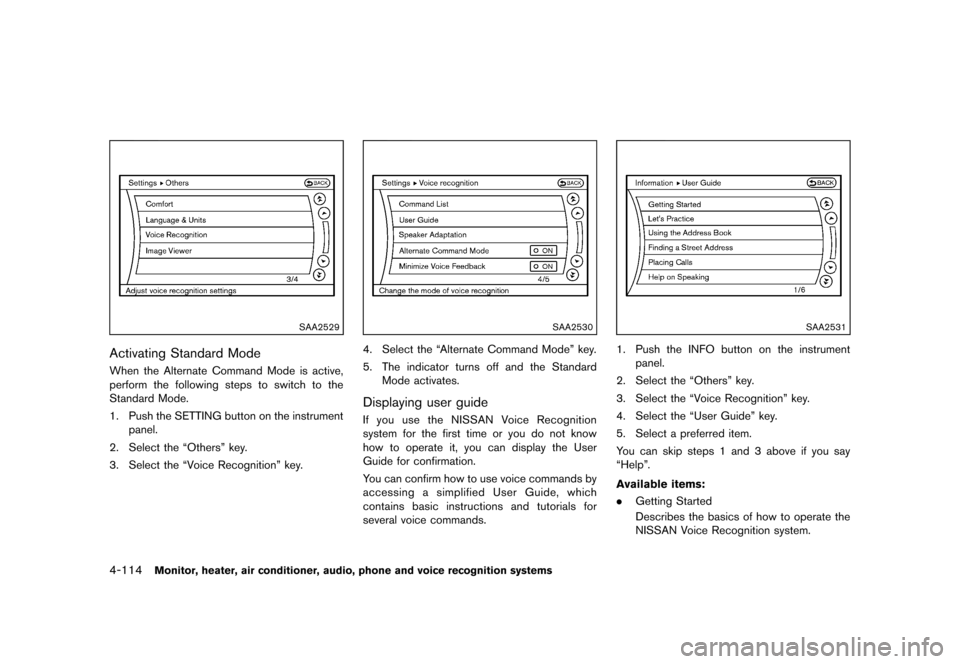

SAA2529
Activating Standard ModeGUID-F2E6660F-8E80-4F5D-AA44-9B414198AED8When the Alternate Command Mode is active,
perform the following steps to switch to the
Standard Mode.
1. Push the SETTING button on the instrumentpanel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
SAA2530
4. Select the “Alternate Command Mode” key.
5. The indicator turns off and the Standard Mode activates.
Displaying user guideGUID-DA284EE5-C938-46FB-900A-D8F2EF4AC93CIf you use the NISSAN Voice Recognition
system for the first time or you do not know
how to operate it, you can display the User
Guide for confirmation.
You can confirm how to use voice commands by
accessing a simplified User Guide, which
contains basic instructions and tutorials for
several voice commands.
SAA2531
1. Push the INFO button on the instrument
panel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “User Guide” key.
5. Select a preferred item.
You can skip steps 1 and 3 above if you say
“Help”.
Available items:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Getting Started
Describes the basics of how to operate the
NISSAN Voice Recognition system.
Condition:
Page 323 of 507
Black plate (321,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

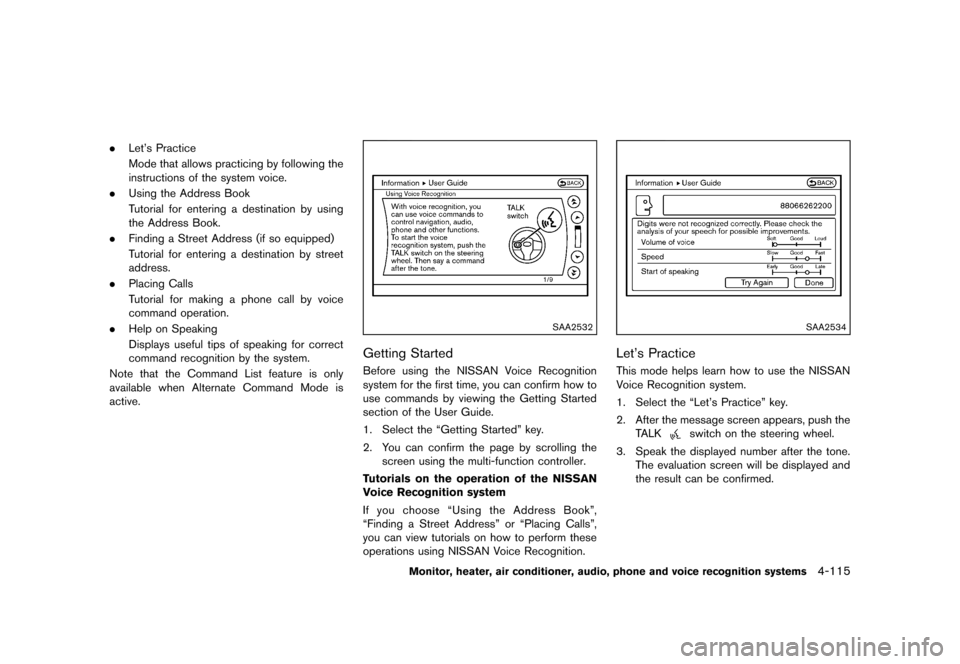

.Let’s Practice
Mode that allows practicing by following the
instructions of the system voice.
. Using the Address Book
Tutorial for entering a destination by using
the Address Book.
. Finding a Street Address (if so equipped)
Tutorial for entering a destination by street
address.
. Placing Calls
Tutorial for making a phone call by voice
command operation.
. Help on Speaking
Displays useful tips of speaking for correct
command recognition by the system.
Note that the Command List feature is only
available when Alternate Command Mode is
active.
SAA2532
Getting StartedGUID-8E74C2FA-8232-4120-A73B-E30247A3D6D7Before using the NISSAN Voice Recognition
system for the first time, you can confirm how to
use commands by viewing the Getting Started
section of the User Guide.
1. Select the “Getting Started” key.
2. You can confirm the page by scrolling the screen using the multi-function controller.
Tutorials on the operation of the NISSAN
Voice Recognition system
If you choose “Using the Address Book”,
“Finding a Street Address” or “Placing Calls”,
you can view tutorials on how to perform these
operations using NISSAN Voice Recognition.
SAA2534
Let’s PracticeGUID-D2C5D3E8-9A20-4A0A-93D2-F896102A95EDThis mode helps learn how to use the NISSAN
Voice Recognition system.
1. Select the “Let’s Practice” key.
2. After the message screen appears, push the TALK
switch on the steering wheel.
3. Speak the displayed number after the tone. The evaluation screen will be displayed and
the result can be confirmed.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-115
Condition:
Page 324 of 507
Black plate (322,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-116Monitor, heater, air conditioner, audio, phone and voice recognition systems

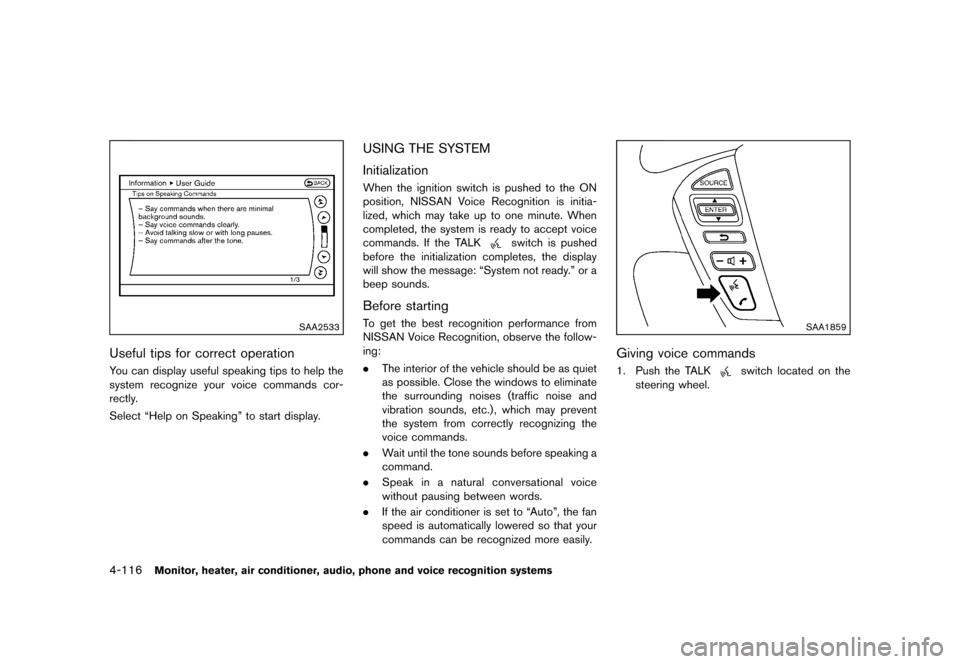

SAA2533
Useful tips for correct operationGUID-7AA64467-DF64-4A7C-A31E-3D889D7A6ABAYou can display useful speaking tips to help the
system recognize your voice commands cor-
rectly.
Select “Help on Speaking” to start display.
USING THE SYSTEMGUID-D457AF70-51D5-4946-BD37-9D7533EDCB6C
InitializationGUID-C2A9686F-0E3D-46D4-96FD-D5DD636B0F5AWhen the ignition switch is pushed to the ON
position, NISSAN Voice Recognition is initia-
lized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If the TALK
switch is pushed
before the initialization completes, the display
will show the message: “System not ready.” or a
beep sounds.
Before startingGUID-2B709626-C03F-42EC-8B91-8C2505F1D85FTo get the best recognition performance from
NISSAN Voice Recognition, observe the follow-
ing:
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.), which may prevent
the system from correctly recognizing the
voice commands.
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
. If the air conditioner is set to “Auto”, the fan
speed is automatically lowered so that your
commands can be recognized more easily.SAA1859
Giving voice commandsGUID-55B167F3-ABFF-4B24-A008-00CCA24B7C2C1. Push the TALKswitch located on the
steering wheel.
Condition:
Page 325 of 507
Black plate (323,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

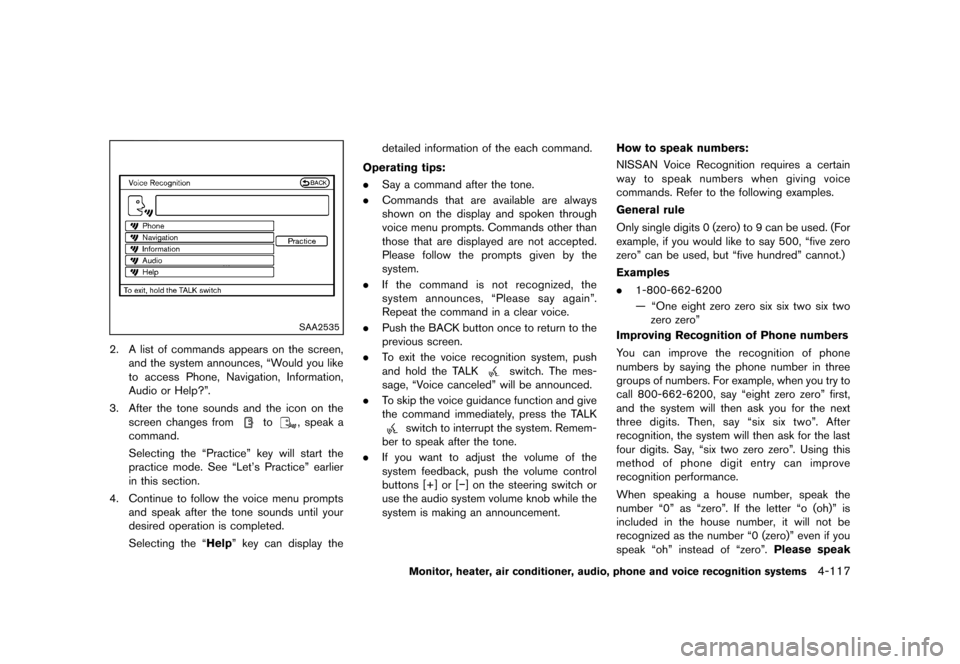

SAA2535
2. A list of commands appears on the screen,and the system announces, “Would you like
to access Phone, Navigation, Information,
Audio or Help?”.
3. After the tone sounds and the icon on the screen changes from
to, speak a
command.
Selecting the “Practice” key will start the
practice mode. See “Let’s Practice” earlier
in this section.
4. Continue to follow the voice menu prompts and speak after the tone sounds until your
desired operation is completed.
Selecting the “Help” key can display the detailed information of the each command.
Operating tips:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Say a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
. If the command is not recognized, the
system announces, “Please say again”.
Repeat the command in a clear voice.
. Push the BACK button once to return to the
previous screen.
. To exit the voice recognition system, push
and hold the TALK
switch. The mes-
sage, “Voice canceled” will be announced.
. To skip the voice guidance function and give
the command immediately, press the TALK
switch to interrupt the system. Remem-
ber to speak after the tone.
. If you want to adjust the volume of the
system feedback, push the volume control
buttons [+] or [−] on the steering switch or
use the audio system volume knob while the
system is making an announcement. How to speak numbers:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407NISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples.
General rule
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, “five zero
zero” can be used, but “five hundred” cannot.)
Examples
.
1-800-662-6200
— “One eight zero zero six six two six two
zero zero”
Improving Recognition of Phone numbers
You can improve the recognition of phone
numbers by saying the phone number in three
groups of numbers. For example, when you try to
call 800-662-6200, say “eight zero zero” first,
and the system will then ask you for the next
three digits. Then, say “six six two”. After
recognition, the system will then ask for the last
four digits. Say, “six two zero zero”. Using this
method of phone digit entry can improve
recognition performance.
When speaking a house number, speak the
number “0” as “zero”. If the letter “o (oh)” is
included in the house number, it will not be
recognized as the number “0 (zero)” even if you
speak “oh” instead of “zero”. Please speak
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-117
Condition:
Page 326 of 507
Black plate (324,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-118Monitor, heater, air conditioner, audio, phone and voice recognition systems

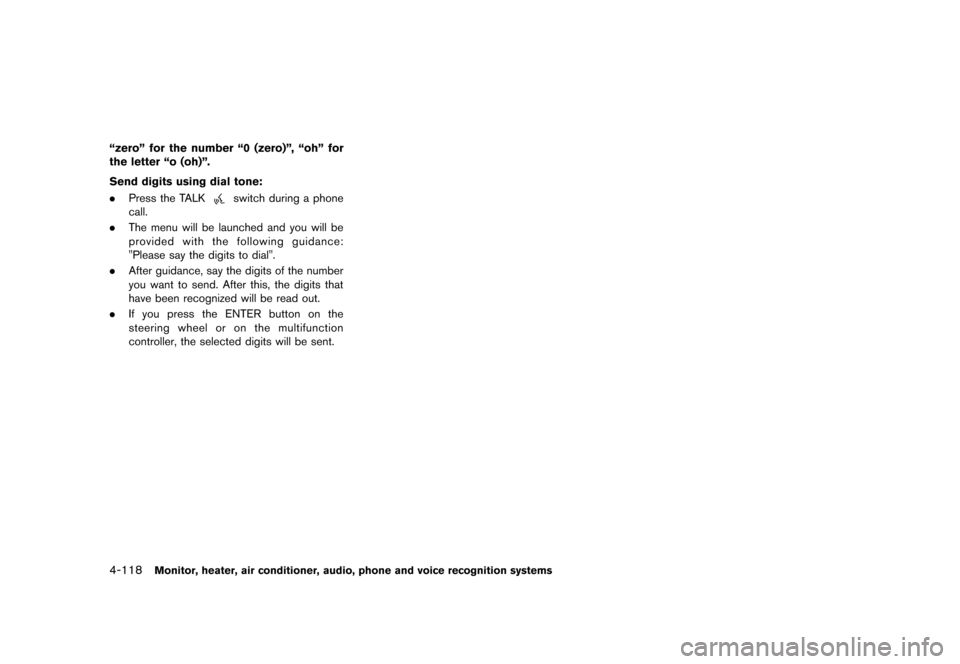

“zero” for the number “0 (zero)”, “oh” for
the letter “o (oh)”.
Send digits using dial tone:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.Press the TALKswitch during a phone
call.
. The menu will be launched and you will be
provided with the following guidance:
"Please say the digits to dial".
. After guidance, say the digits of the number
you want to send. After this, the digits that
have been recognized will be read out.
. If you press the ENTER button on the
steering wheel or on the multifunction
controller, the selected digits will be sent.
Condition:
Page 327 of 507
Black plate (325,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

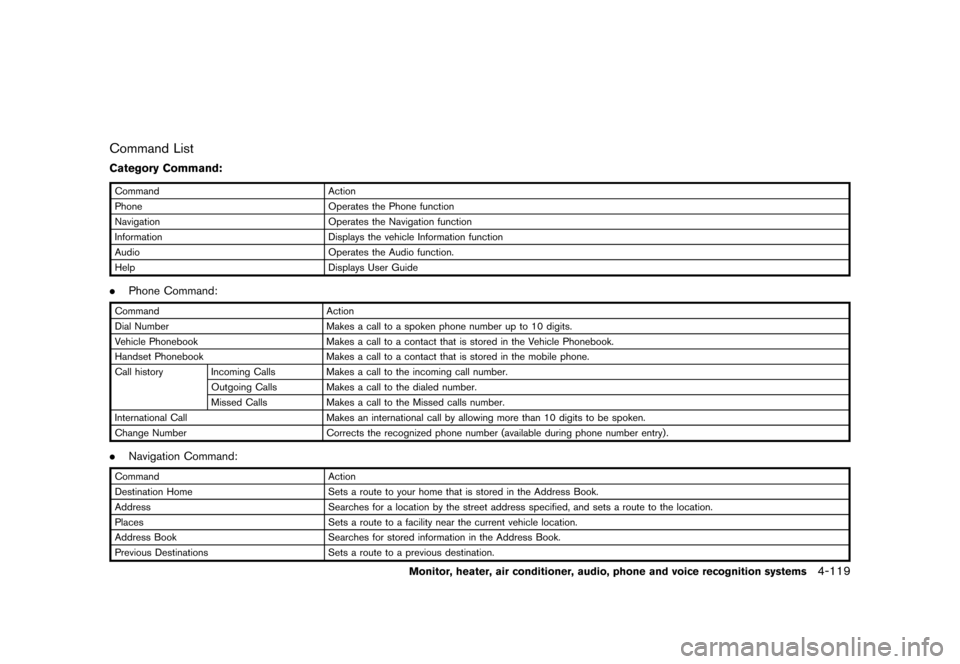

Command ListGUID-E9D7C198-8137-4532-AE88-5276F85967A5
Category Command:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Phone Operates the Phone function
Navigation Operates the Navigation function
Information Displays the vehicle Information function
Audio Operates the Audio function.
Help Displays User Guide
. Phone Command:
Command Action
Dial Number Makes a call to a spoken phone number up to 10 digits.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call history Incoming Calls Makes a call to the incoming call number. Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Change Number Corrects the recognized phone number (available during phone number entry) .
. Navigation Command:
Command Action
Destination Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-119
Condition:
Page 328 of 507
Black plate (326,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

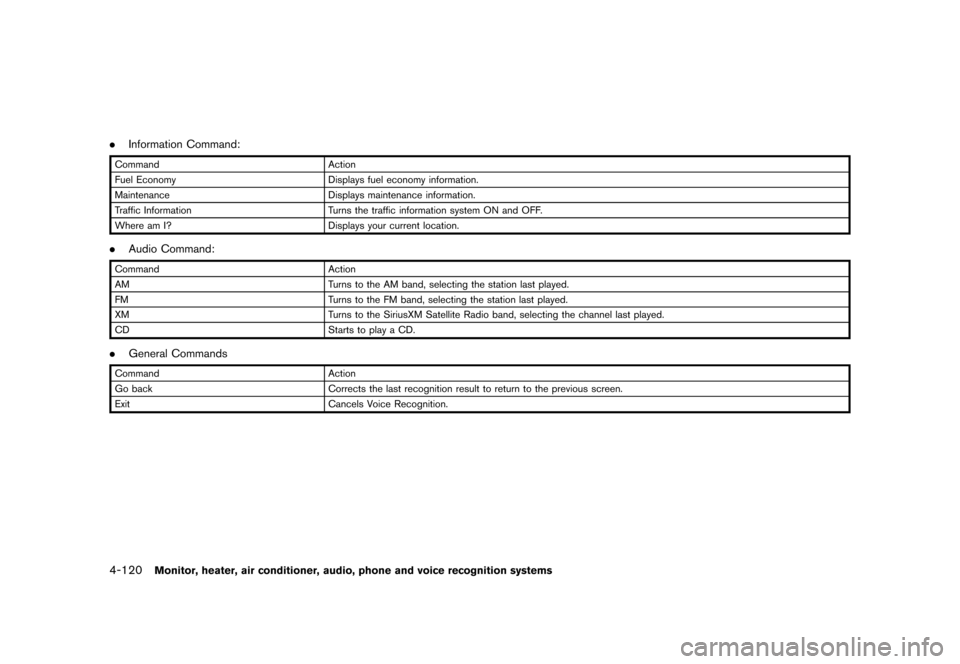

4-120Monitor, heater, air conditioner, audio, phone and voice recognition systems
.Information Command:
Command Action
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system ON and OFF.
Where am I? Displays your current location.
. Audio Command:
Command Action
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the SiriusXM Satellite Radio band, selecting the channel last played.
CD Starts to play a CD.
. General Commands
Command Action
Go back Corrects the last recognition result to return to the previous screen.
Exit Cancels Voice Recognition.
Condition:
Page 329 of 507
Black plate (327,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
Voice command examplesGUID-7B0490C2-B46C-4581-AAF2-FB79E0B6A735To use the NISSAN Voice Recognition function,
speaking one command is sometimes sufficient,
but at other times it is necessary to speak two or
more commands. As examples, some additional
basic operations by voice commands are
described here.
For navigation system commands, see the
separate Navigation System Owner’s Manual.
SAA1859
Example 1 - Placing a call to the phone
number 800-662-6200:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the TALKswitch located on the
steering wheel.
SAA2535
2. The system announces, “Would you like to
access Phone, Navigation, Information,
Audio or Help?”
3. Speak “Phone”.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-121
Condition:
Page 330 of 507
Black plate (328,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

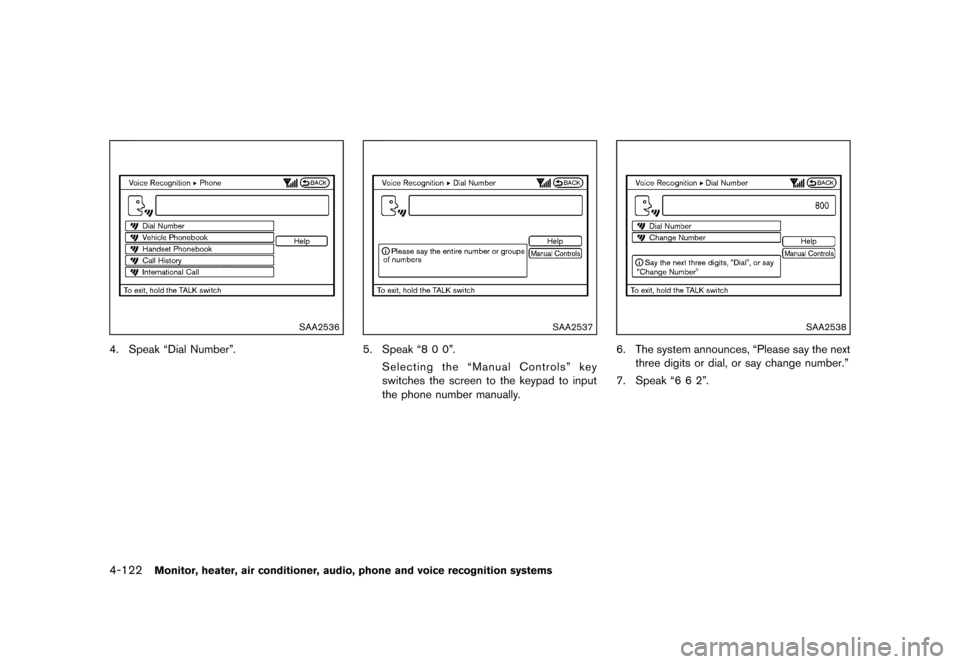

4-122Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2536
4. Speak “Dial Number”.
SAA2537
5. Speak “8 0 0”.Selecting the “Manual Controls” key
switches the screen to the keypad to input
the phone number manually.
SAA2538
6. The system announces, “Please say the nextthree digits or dial, or say change number.”
7. Speak “6 6 2”.
Condition:
