Page 331 of 507
Black plate (329,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

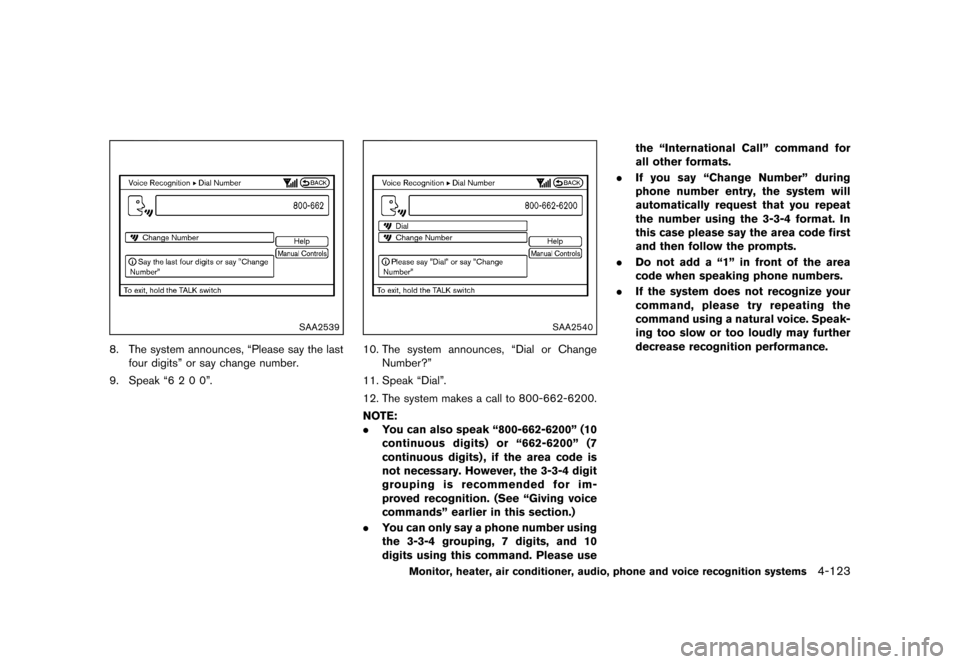

SAA2539
8. The system announces, “Please say the lastfour digits” or say change number.
9. Speak “6 2 0 0”.
SAA2540
10. The system announces, “Dial or Change Number?”
11. Speak “Dial”.
12. The system makes a call to 800-662-6200.
NOTE:
. You can also speak “800-662-6200” (10
continuous digits) or “662-6200” (7
continuous digits) , if the area code is
not necessary. However, the 3-3-4 digit
grouping is recommended for im-
proved recognition. (See “Giving voice
commands” earlier in this section.)
. You can only say a phone number using
the 3-3-4 grouping, 7 digits, and 10
digits using this command. Please use the “International Call” command for
all other formats.
. If you say “Change Number” during
phone number entry, the system will
automatically request that you repeat
the number using the 3-3-4 format. In
this case please say the area code first
and then follow the prompts.
. Do not add a “1” in front of the area
code when speaking phone numbers.
. If the system does not recognize your
command, please try repeating the
command using a natural voice. Speak-
ing too slow or too loudly may further
decrease recognition performance.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-123
Condition:
Page 332 of 507
Black plate (330,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
4-124Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA1859
Example 2 - Placing an international call to
the phone number 011-81-111-222-3333:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the TALKswitch located on the
steering wheel.
SAA2535
2. The system announces, “Would you like to
access Phone, Navigation, Information or
Help?”
3. Speak “Phone”.
SAA2536
4. Speak “International Call”.
Condition:
Page 333 of 507
Black plate (331,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

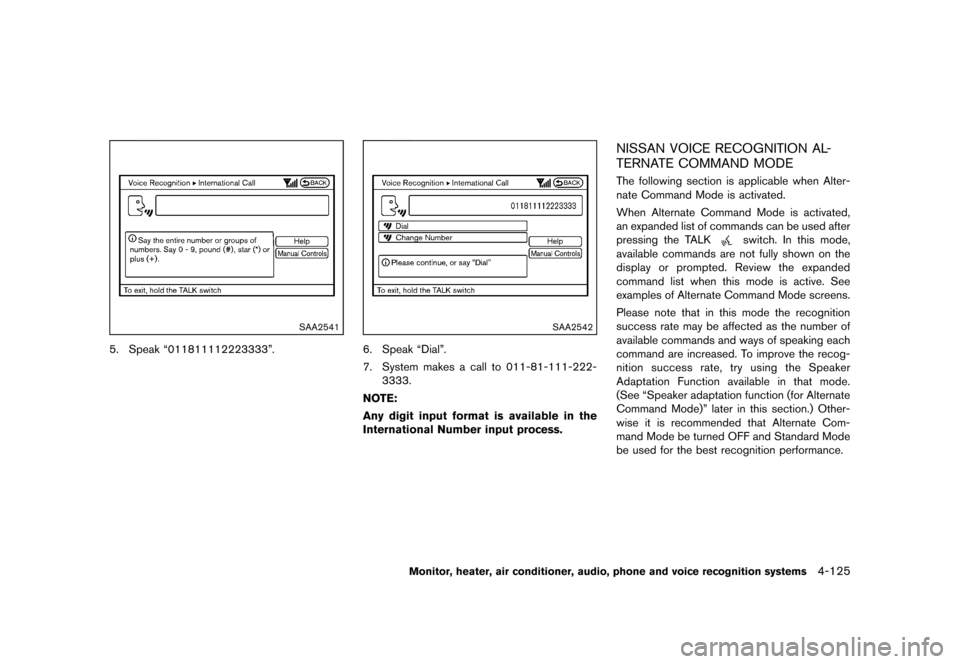

SAA2541
5. Speak “011811112223333”.
SAA2542
6. Speak “Dial”.
7. System makes a call to 011-81-111-222-3333.
NOTE:
Any digit input format is available in the
International Number input process.
NISSAN VOICE RECOGNITION AL-
TERNATE COMMAND MODE
GUID-1328AAFB-92F2-46A9-B122-C4BD736FFF7DThe following section is applicable when Alter-
nate Command Mode is activated.
When Alternate Command Mode is activated,
an expanded list of commands can be used after
pressing the TALK
switch. In this mode,
available commands are not fully shown on the
display or prompted. Review the expanded
command list when this mode is active. See
examples of Alternate Command Mode screens.
Please note that in this mode the recognition
success rate may be affected as the number of
available commands and ways of speaking each
command are increased. To improve the recog-
nition success rate, try using the Speaker
Adaptation Function available in that mode.
(See “Speaker adaptation function (for Alternate
Command Mode)” later in this section.) Other-
wise it is recommended that Alternate Com-
mand Mode be turned OFF and Standard Mode
be used for the best recognition performance.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-125
Condition:
Page 334 of 507
Black plate (332,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

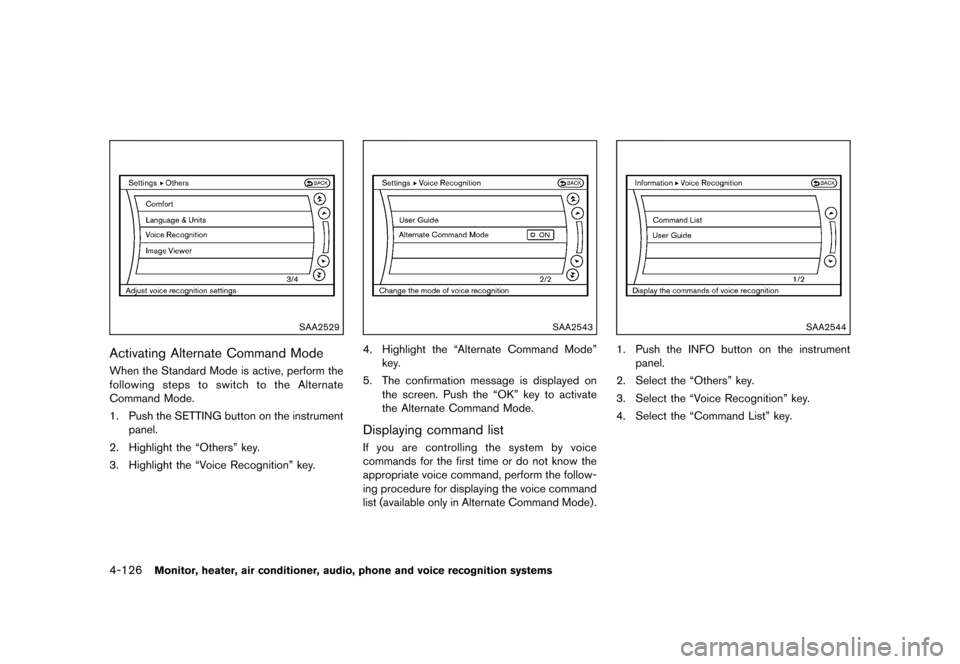

4-126Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2529
Activating Alternate Command ModeGUID-DADB4F72-1642-4515-AC01-1734D9750ECCWhen the Standard Mode is active, perform the
following steps to switch to the Alternate
Command Mode.
1. Push the SETTING button on the instrumentpanel.
2. Highlight the “Others” key.
3. Highlight the “Voice Recognition” key.
SAA2543
4. Highlight the “Alternate Command Mode” key.
5. The confirmation message is displayed on the screen. Push the “OK” key to activate
the Alternate Command Mode.
Displaying command listGUID-314E1779-ABDB-4085-B1E2-655357365354If you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the follow-
ing procedure for displaying the voice command
list (available only in Alternate Command Mode) .
SAA2544
1. Push the INFO button on the instrument
panel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Command List” key.
Condition:
Page 335 of 507
Black plate (333,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

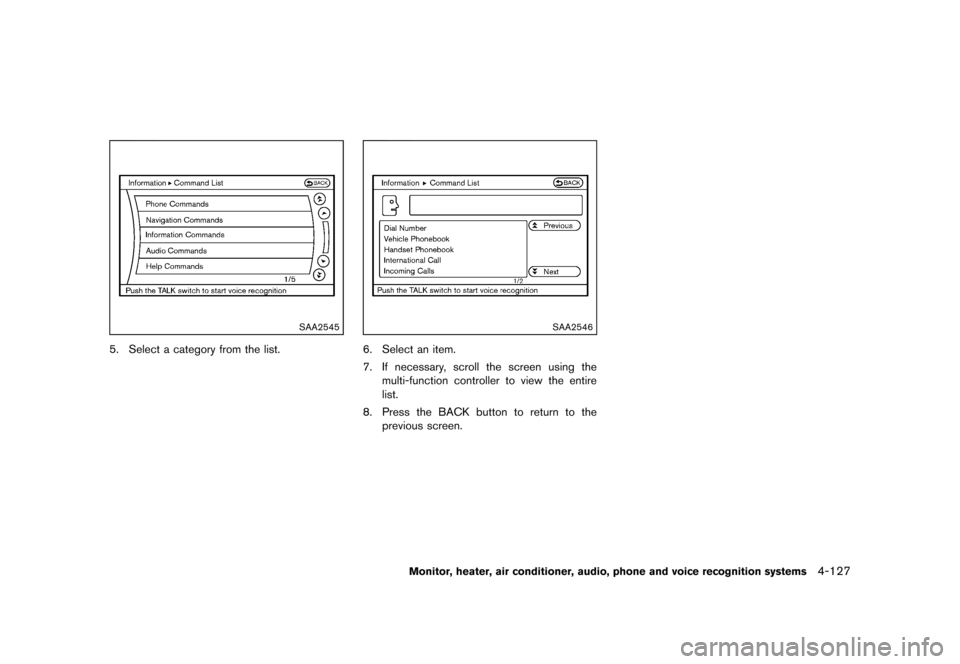

SAA2545
5. Select a category from the list.
SAA2546
6. Select an item.
7. If necessary, scroll the screen using themulti-function controller to view the entire
list.
8. Press the BACK button to return to the previous screen.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-127
Condition:
Page 336 of 507
Black plate (334,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

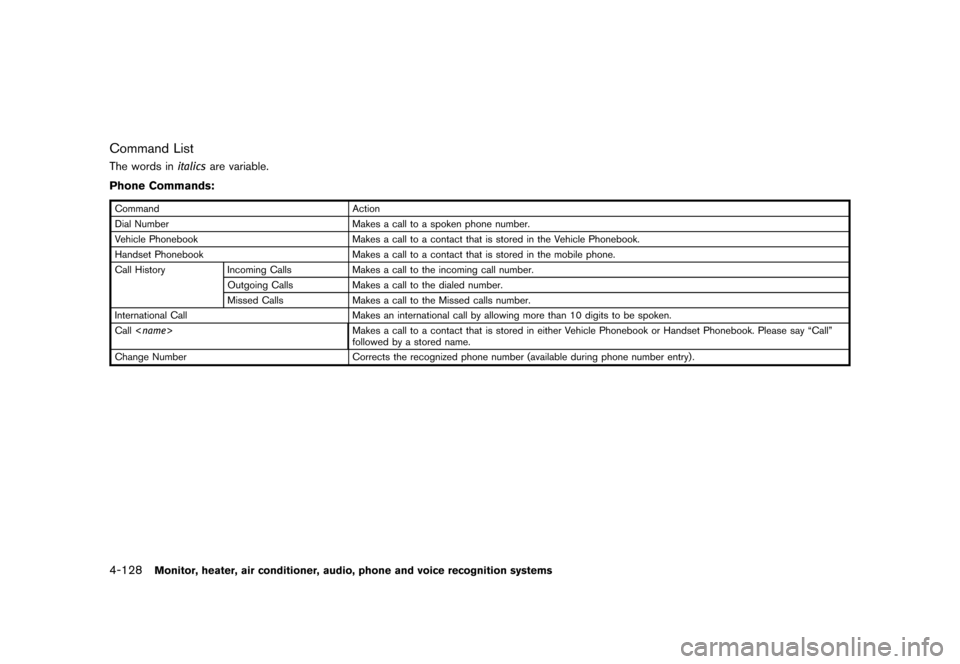

4-128Monitor, heater, air conditioner, audio, phone and voice recognition systems
Command ListGUID-DFC31FE2-061C-4D53-BCB4-D2B85CC4F2C9The words initalicsare variable.
Phone Commands:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Command Action
Dial Number Makes a call to a spoken phone number.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call History Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Call
followed by a stored name.
Change Number Corrects the recognized phone number (available during phone number entry) .
Condition:
Page 337 of 507
Black plate (335,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

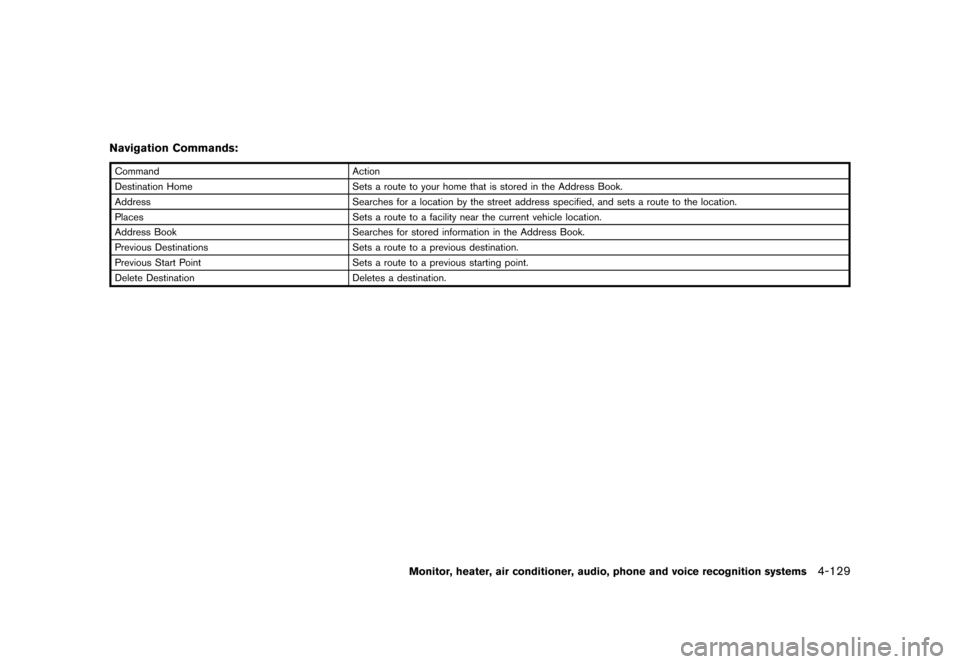

Navigation Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Destination Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
Previous Start Point Sets a route to a previous starting point.
Delete Destination Deletes a destination.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-129
Condition:
Page 338 of 507
Black plate (336,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

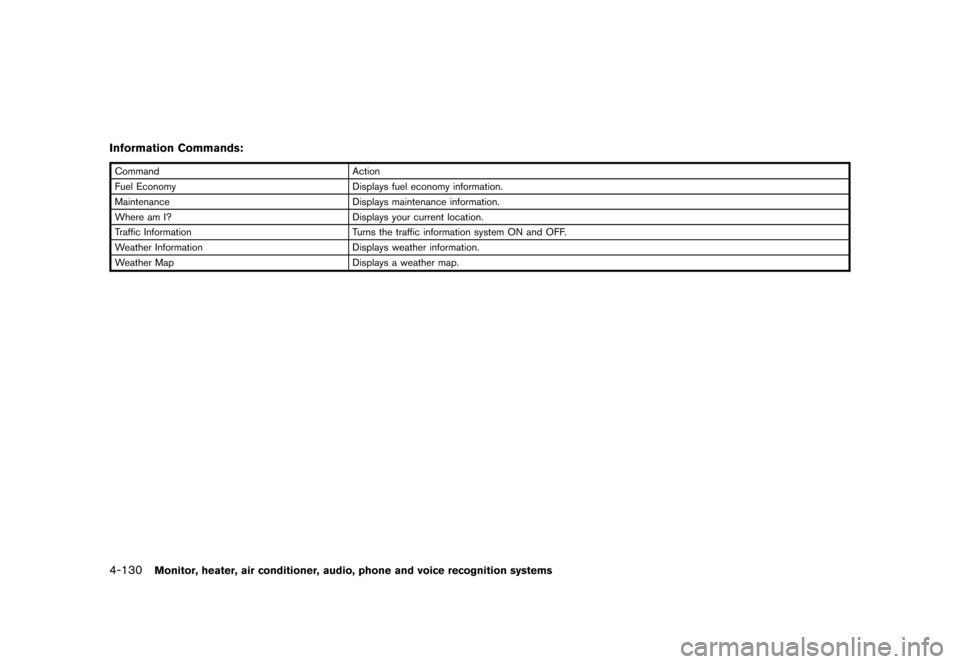

4-130Monitor, heater, air conditioner, audio, phone and voice recognition systems
Information Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Where am I? Displays your current location.
Traffic Information Turns the traffic information system ON and OFF.
Weather Information Displays weather information.
Weather Map Displays a weather map.
Condition:
Page 339 of 507
Black plate (337,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

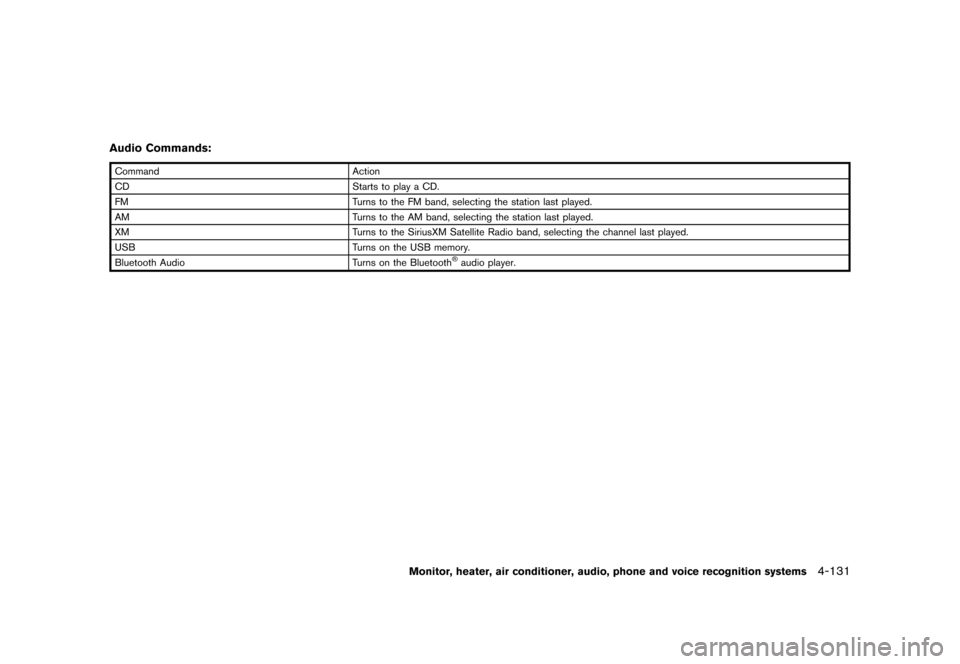

Audio Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the SiriusXM Satellite Radio band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetooth
®audio player.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-131
Condition:
Page 340 of 507
Black plate (338,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]

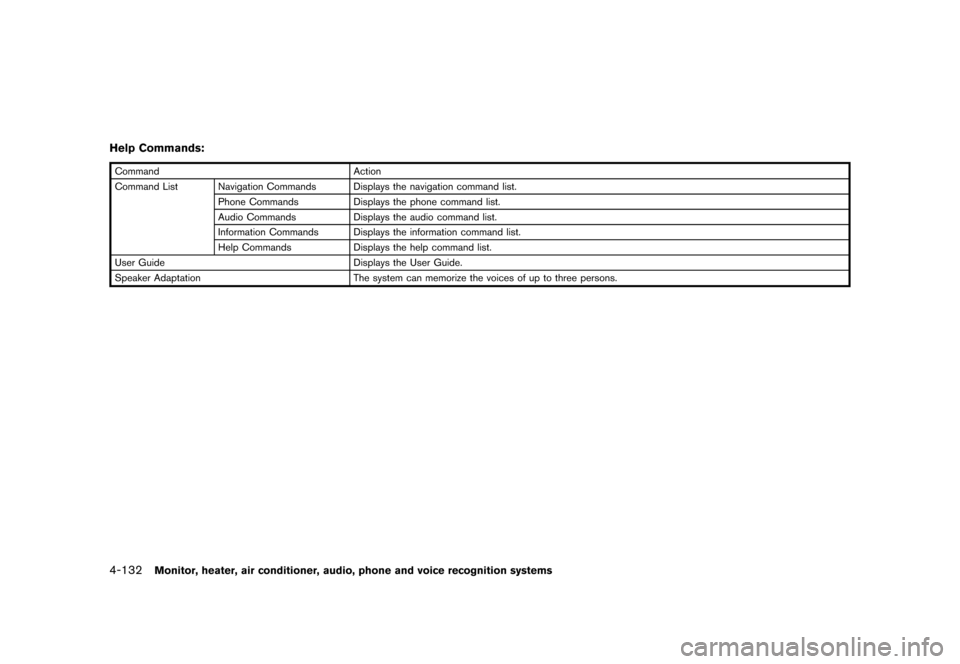

4-132Monitor, heater, air conditioner, audio, phone and voice recognition systems
Help Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Command List Navigation Commands Displays the navigation command list. Phone Commands Displays the phone command list.
Audio Commands Displays the audio command list.
Information Commands Displays the information command list.
Help Commands Displays the help command list.
User Guide Displays the User Guide.
Speaker Adaptation The system can memorize the voices of up to three persons.
