NISSAN NAVARA 2005 Repair Workshop Manual

AMBIENT SENSOR
ATC-117
C
D
E
F
G
H
I
K
L
MA
B
AT C
AMBIENT SENSORPFP:27722
Removal and InstallationEJS006C1
REMOVAL
1. Remove the front grille. Refer toEI-19, "FRONT GRILLE".
2. Disconnect the ambient sensor electrical connector.
NOTE:
The ambient sensor is located behind the front bumper, in front
of the condenser.
3. Release the ambient sensor clip and then remove the ambient
sensor.
INSTALLATION
Installation is in the reverse order of removal.
MJIB0175E

ATC-118
IN-VEHICLE SENSOR
IN-VEHICLE SENSOR
PFP:27720
Removal and InstallationEJS006C2

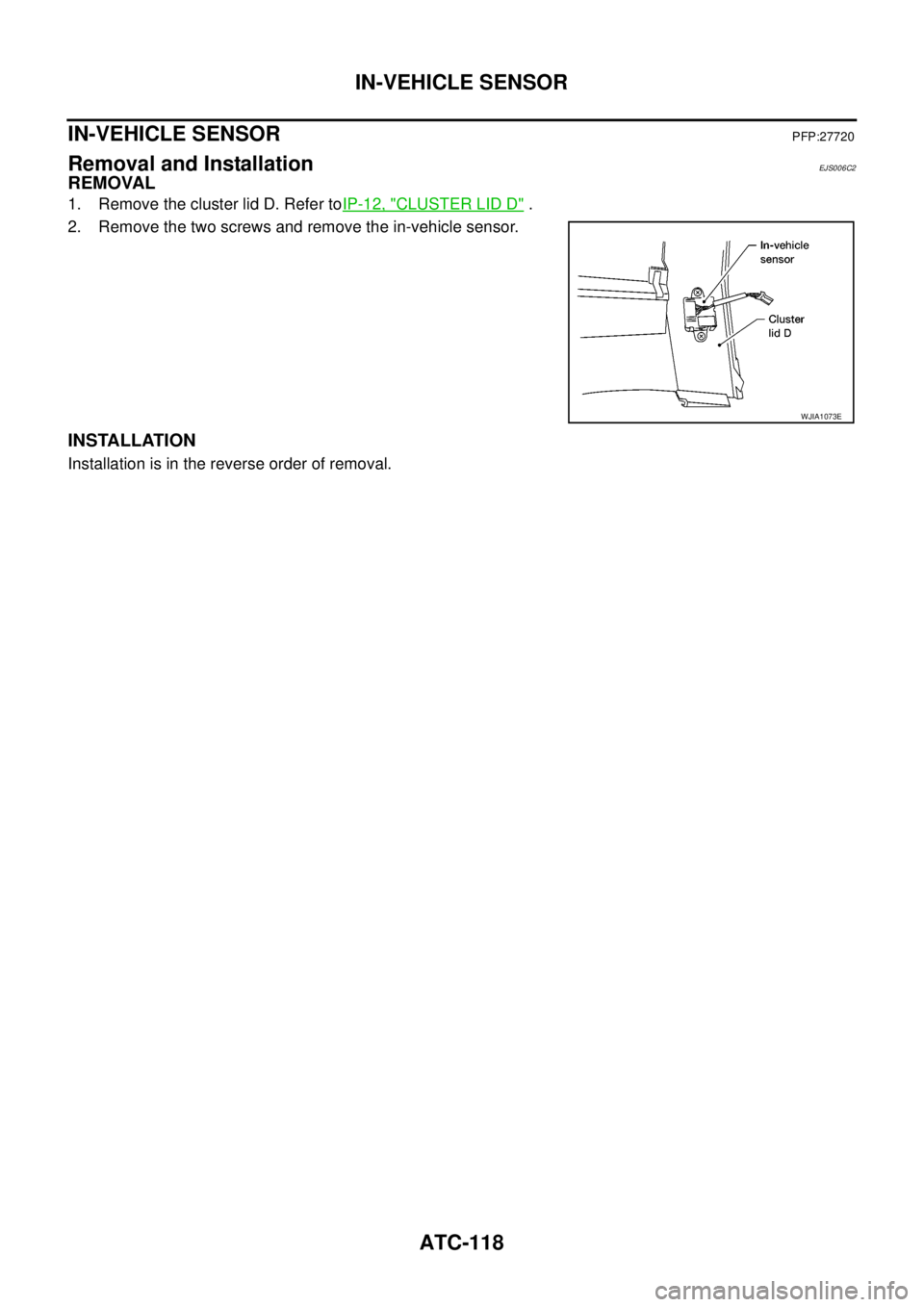

REMOVAL
1. Remove the cluster lid D. Refer toIP-12, "CLUSTER LID D".
2. Remove the two screws and remove the in-vehicle sensor.
INSTALLATION
Installation is in the reverse order of removal.
WJIA1073E

OPTICAL SENSOR
ATC-119
C
D
E
F
G
H
I
K
L
MA
B
AT C
OPTICAL SENSORPFP:28576
Removal and InstallationEJS006C3
The optical sensor is located in the top center of the instrument
panel.
WJIA1072E

ATC-120
INTAKE SENSOR
INTAKE SENSOR
PFP:27723
Removal and InstallationEJS006C4
REMOVAL
1. Remove the front kick plate.
2. Remove the instrument panel side finisher.
3. Remove the glove box.
4. Remove the front pillar finisher.
5. Remove the upper glove box (cluster lid E).
6. Disconnect the intake sensor electrical connector.
NOTE:
The intake sensor is located on the top of the heater and cooling
unit assembly next to the A/C evaporator cover.
7. Twist the intake sensor to remove the intake sensor from the
heater and cooling unit assembly.
INSTALLATION
Installation is in the reverse order of removal.
MJIB0325E

BLOWER MOTOR
ATC-121
C
D
E
F
G
H
I
K
L
MA
B
AT C
BLOWER MOTORPFP:27226

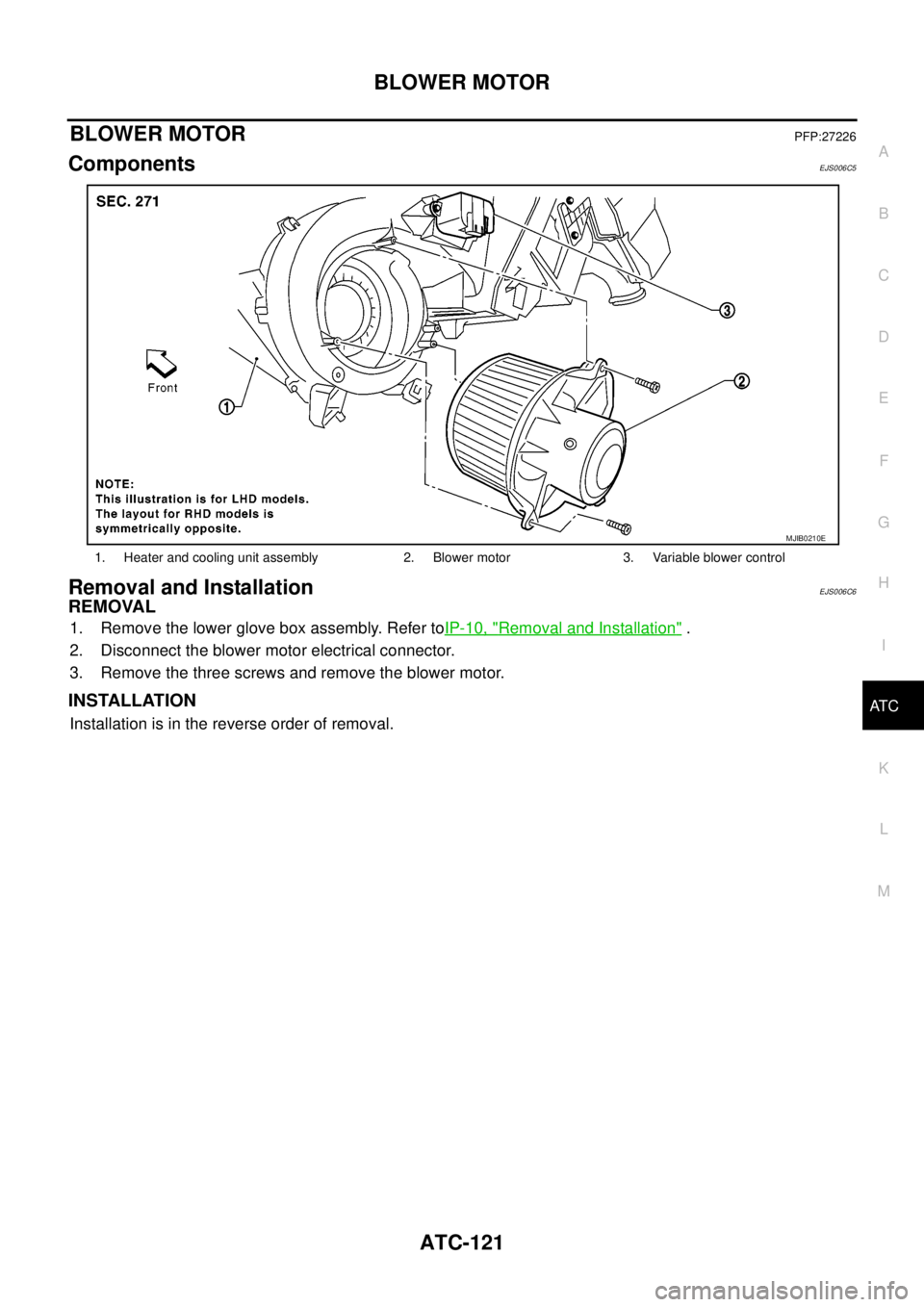

ComponentsEJS006C5
Removal and InstallationEJS006C6
REMOVAL
1. Remove the lower glove box assembly. Refer toIP-10, "Removal and Installation".
2. Disconnect the blower motor electrical connector.
3. Remove the three screws and remove the blower motor.
INSTALLATION
Installation is in the reverse order of removal.
1. Heater and cooling unit assembly 2. Blower motor 3. Variable blower control
MJIB0210E

ATC-122
AIR CONDITIONER FILTER
AIR CONDITIONER FILTER
PFP:27277
Removal and InstallationEJS006C7

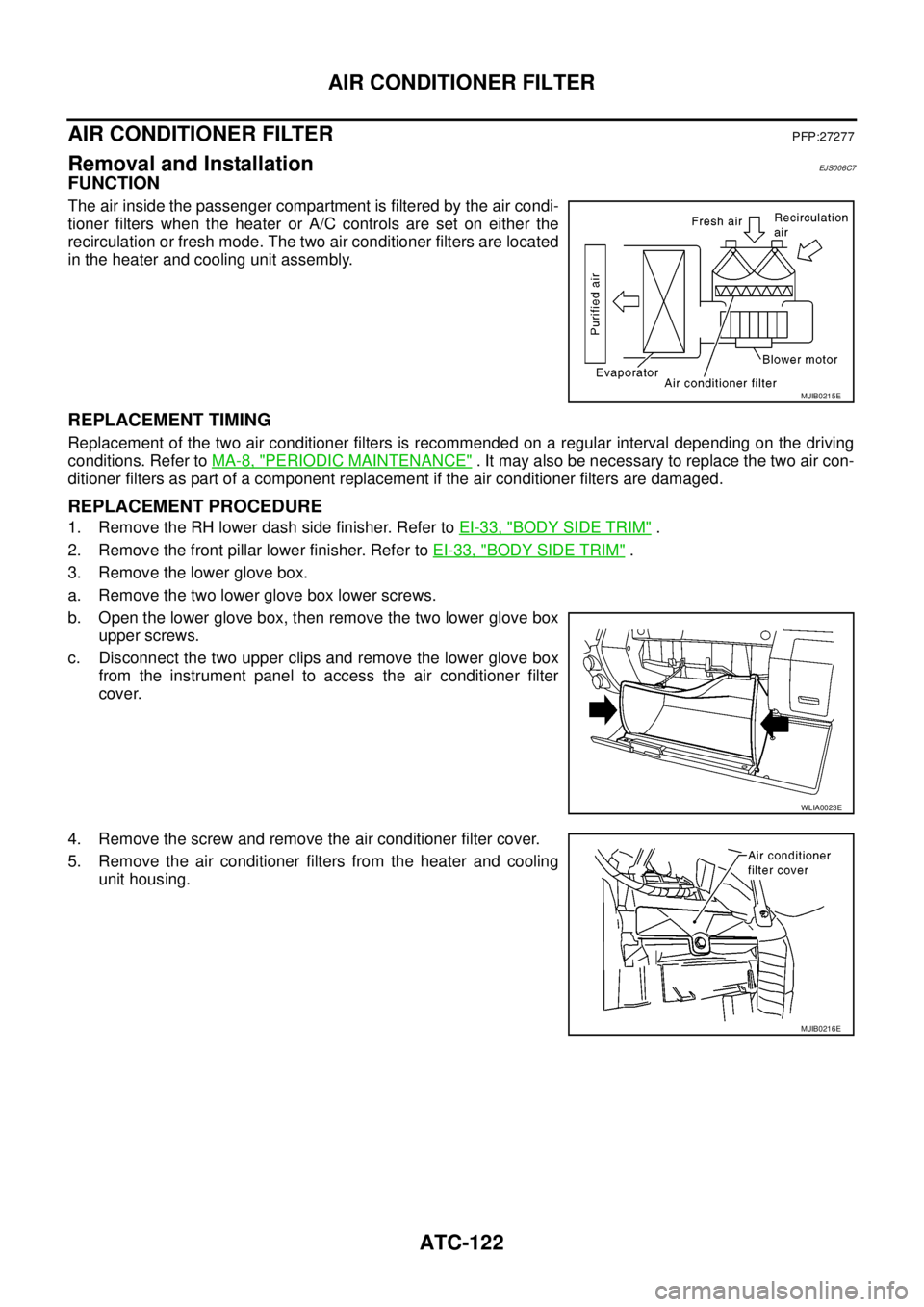

FUNCTION
The air inside the passenger compartment is filtered by the air condi-
tioner filters when the heater or A/C controls are set on either the
recirculation or fresh mode. The two air conditioner filters are located
in the heater and cooling unit assembly.
REPLACEMENT TIMING
Replacement of the two air conditioner filters is recommended on a regular interval depending on the driving
conditions. Refer toMA-8, "
PERIODIC MAINTENANCE". It may also be necessary to replace the two air con-
ditioner filters as part of a component replacement if the air conditioner filters are damaged.
REPLACEMENT PROCEDURE
1. Remove the RH lower dash side finisher. Refer toEI-33, "BODY SIDE TRIM".
2. Remove the front pillar lower finisher. Refer toEI-33, "
BODY SIDE TRIM".
3. Remove the lower glove box.
a. Remove the two lower glove box lower screws.
b. Open the lower glove box, then remove the two lower glove box
upper screws.
c. Disconnect the two upper clips and remove the lower glove box
from the instrument panel to access the air conditioner filter
cover.
4. Remove the screw and remove the air conditioner filter cover.
5. Remove the air conditioner filters from the heater and cooling
unit housing.
MJIB0215E
WLIA0023E
MJIB0216E

AIR CONDITIONER FILTER
ATC-123
C
D
E
F
G
H
I
K
L
MA
B
AT C

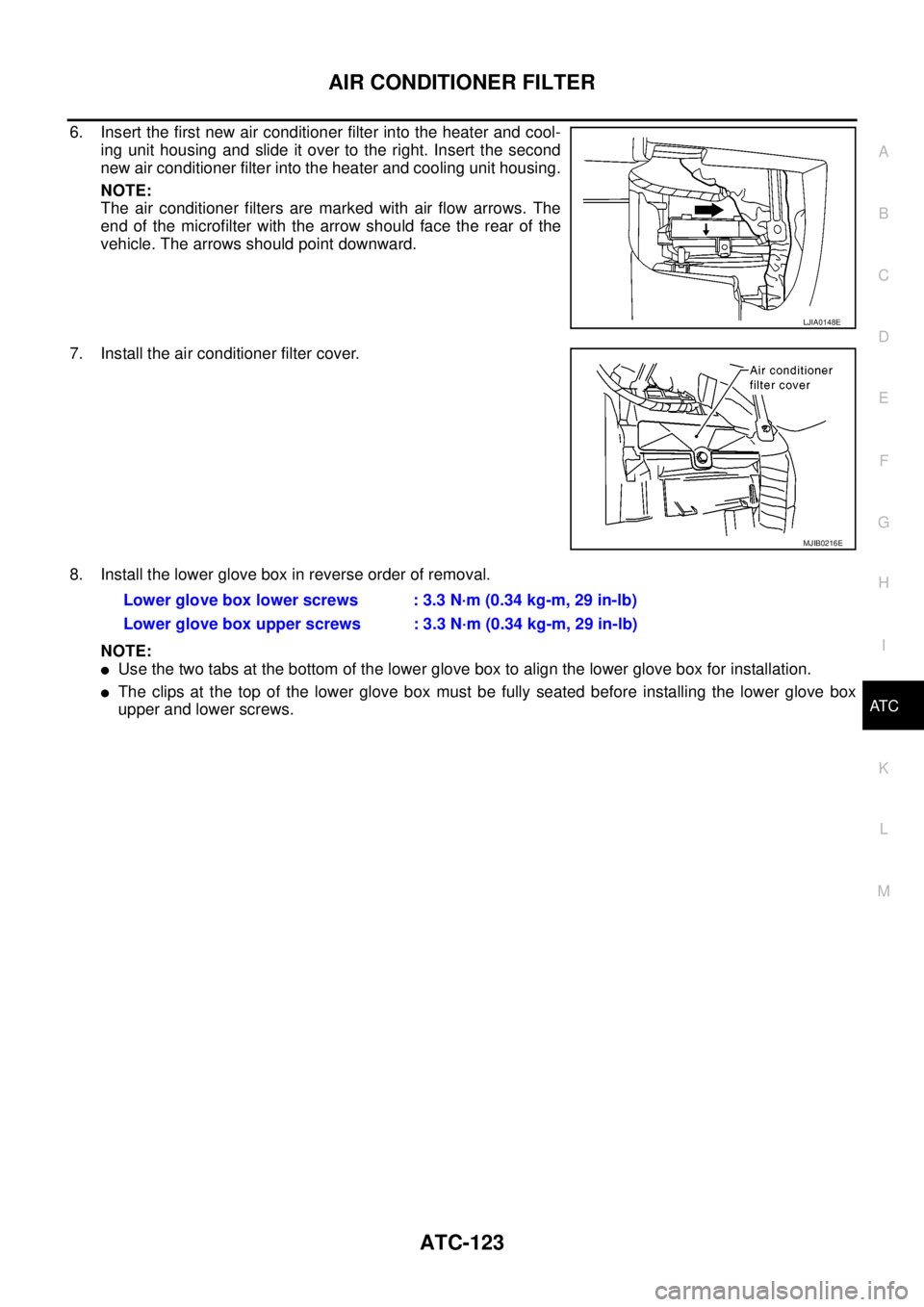

6. Insert the first new air conditioner filter into the heater and cool-
ing unit housing and slide it over to the right. Insert the second
new air conditioner filter into the heater and cooling unit housing.
NOTE:
The air conditioner filters are marked with air flow arrows. The
end of the microfilter with the arrow should face the rear of the
vehicle. The arrows should point downward.
7. Install the air conditioner filter cover.
8. Install the lower glove box in reverse order of removal.
NOTE:
lUse the two tabs at the bottom of the lower glove box to align the lower glove box for installation.
lThe clips at the top of the lower glove box must be fully seated before installing the lower glove box
upper and lower screws.
LJIA0148E
MJIB0216E
Lower glove box lower screws : 3.3 N·m (0.34 kg-m, 29 in-lb)
Lower glove box upper screws : 3.3 N·m (0.34 kg-m, 29 in-lb)

ATC-124
HEATER & COOLING UNIT ASSEMBLY
HEATER & COOLING UNIT ASSEMBLY
PFP:27110
ComponentsEJS006C8

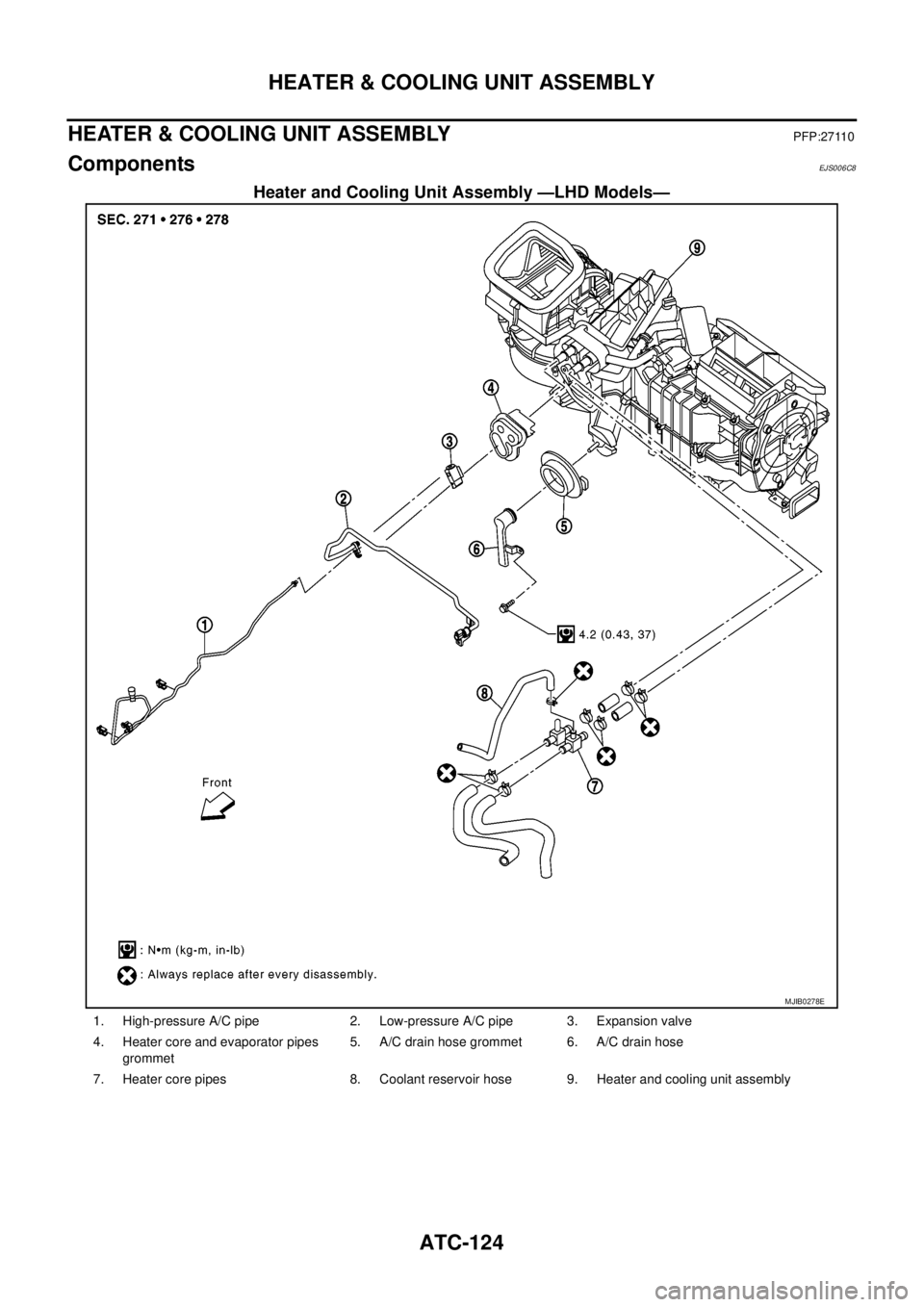

Heater and Cooling Unit Assembly —LHD Models—
MJIB0278E
1. High-pressure A/C pipe 2. Low-pressure A/C pipe 3. Expansion valve
4. Heater core and evaporator pipes
grommet5. A/C drain hose grommet 6. A/C drain hose
7. Heater core pipes 8. Coolant reservoir hose 9. Heater and cooling unit assembly

HEATER & COOLING UNIT ASSEMBLY
ATC-125
C
D
E
F
G
H
I
K
L
MA
B
AT C
Heater and Cooling Unit Assembly —RHD Models—
MJIB0279E
1. High-pressure A/C pipe A 2. High-pressure A/C pipe B 3. Low-pressure A/C pipe
4. Expansion valve 5. Heater core and evaporator pipes
grommet6. A/C drain hose grommet
7. A/C drain hose 8. Heater core pipe mounts 9. Heater core pipes
10. Heater and cooling unit assembly

ATC-126
HEATER & COOLING UNIT ASSEMBLY
Removal and Installation
EJS006C9

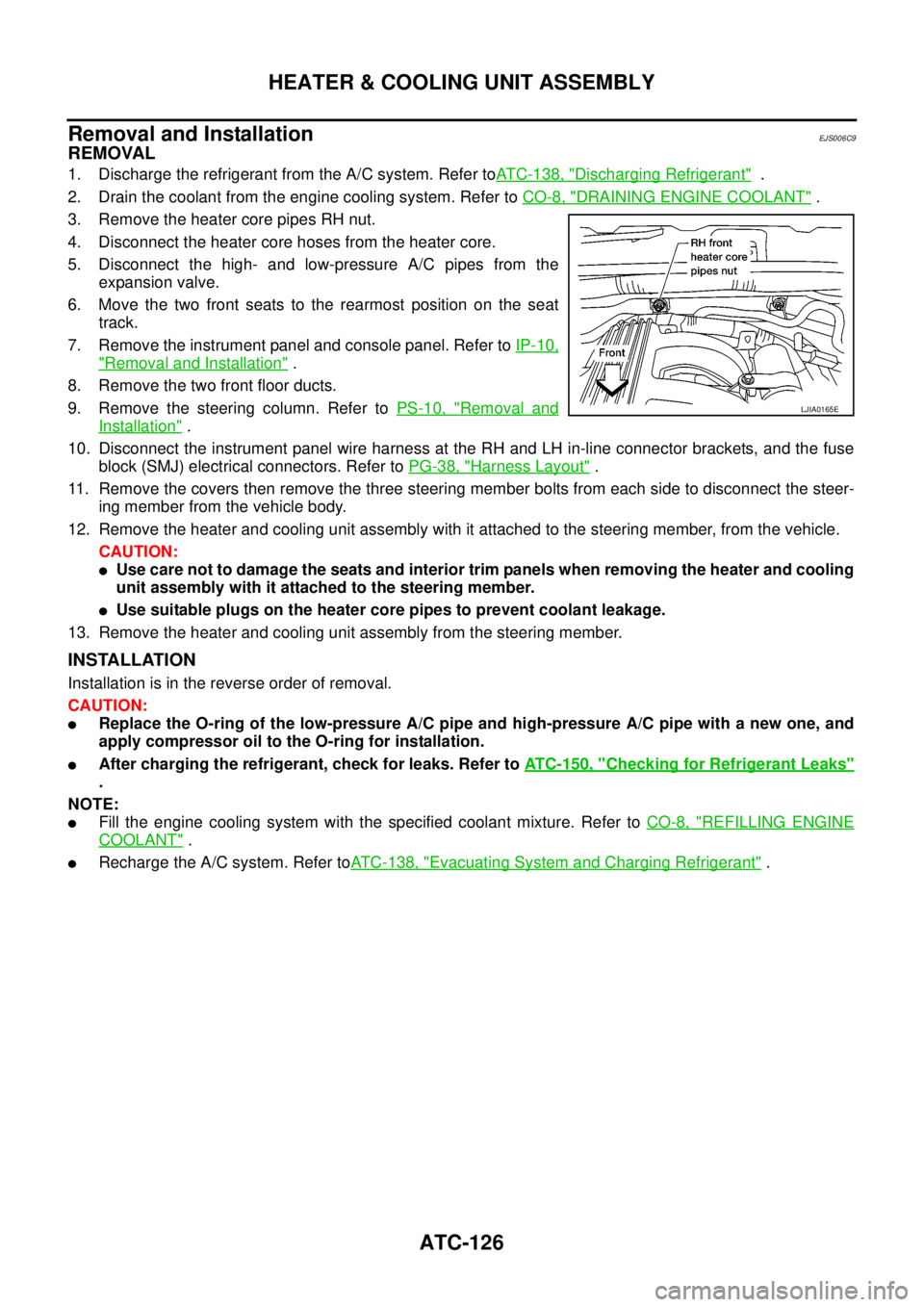

REMOVAL
1. Discharge the refrigerant from the A/C system. Refer toATC-138, "Discharging Refrigerant".
2. Drain the coolant from the engine cooling system. Refer toCO-8, "
DRAINING ENGINE COOLANT".
3. Remove the heater core pipes RH nut.
4. Disconnect the heater core hoses from the heater core.
5. Disconnect the high- and low-pressure A/C pipes from the
expansion valve.
6. Move the two front seats to the rearmost position on the seat
track.
7. Remove the instrument panel and console panel. Refer toIP-10,
"Removal and Installation".
8. Remove the two front floor ducts.
9. Remove the steering column. Refer toPS-10, "
Removal and
Installation".
10. Disconnect the instrument panel wire harness at the RH and LH in-line connector brackets, and the fuse
block (SMJ) electrical connectors. Refer toPG-38, "
Harness Layout".
11. Remove the covers then remove the three steering member bolts from each side to disconnect the steer-
ing member from the vehicle body.
12. Remove the heater and cooling unit assembly with it attached to the steering member, from the vehicle.
CAUTION:
lUse care not to damage the seats and interior trim panels when removing the heater and cooling
unit assembly with it attached to the steering member.
lUse suitable plugs on the heater core pipes to prevent coolant leakage.
13. Remove the heater and cooling unit assembly from the steering member.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
lReplace the O-ring of the low-pressure A/C pipe and high-pressure A/C pipe with a new one, and
apply compressor oil to the O-ring for installation.
lAfter charging the refrigerant, check for leaks. Refer toATC-150, "Checking for Refrigerant Leaks"
.
NOTE:
lFill the engine cooling system with the specified coolant mixture. Refer toCO-8, "REFILLING ENGINE
COOLANT".
lRecharge the A/C system. Refer toATC-138, "Evacuating System and Charging Refrigerant".
LJIA0165E
