NISSAN NOTE 2016 Service Repair Manual

EM-10
< BASIC INSPECTION >[HR16DE]
CAMSHAFT VALVE CLEARANCE
BASIC INSPECTION
CAMSHAFT VALVE CLEARANCE
Inspection and AdjustmentINFOID:0000000012431690
INSPECTION
Perform inspection as follows after removal, replacement or installation of camshaft or valve-related parts, or if
there are unusual engine conditions regarding valve clearance.
1. Remove rocker cover. Refer to
EM-48, "
Removal and Installation".
2. Measure the valve clearance with the following procedure:
a. Set No. 1 cylinder at TDC of its compression stroke. • Rotate crankshaft pulley (2) clockwise and align TDC mark (no
paint) (A) to timing indicator (1) on front cover.
• At the same time, check that both intake and exhaust cam lobes of No. 1 cylinder face inside ( ) as shown.
• If the lobes do not face inside, rotate the crankshaft pulley 360 degrees to align as shown.
b. Using suitable tool (A) measure the clearance between the valve lifter and camshaft.
(B) : White paint mark (Not used for service)
PBIC3673E
(1) : Camshaft (INT)
(2) : Camshaft (EXH)
: Engine front
JPBIA4738ZZ
Valve clearance : Refer to EM-117, "Camshaft".
JPBIA4116ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

CAMSHAFT VALVE CLEARANCEEM-11
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
• Measure the valve clearances at locations marked “
×” [loca-
tions indicated with ( )] as shown using suitable tool.
c. Set No. 4 cylinder at TDC of its compression stroke. • Rotate crankshaft pulley (2) one revolution (360 degrees) andalign TDC mark (no paint) (A) to timing indicator (1) on front
cover.
• Measure the valve clearances at locations marked “ ×” [loca-
tions indicated with ( )] as shown using suitable tool.
3. If out of the specifications, adjust as necessary. Refer to “ADJUSTMENT”.
ADJUSTMENT
NOTE:
Proper valve clearance is obtained by selecting the correct valve lifter head thickness.
1. Remove camshaft. Refer to EM-60, "
Exploded View".
2. Remove valve lifters from the loca tions that are out of the standard.
(A) : No. 1 cylinder
(B) : No. 2 cylinder
(C) : No. 3 cylinder
(D) : No. 4 cylinder
JPBIA4117ZZ
Measuring position No. 1 CYL. No. 2 CYL. No. 3 CYL. No. 4 CYL.
No. 1 cylinder at compression TDC EXH
× ×
INT × ×
(B) : White paint mark (Not use for service)
PBIC3673E
(A) : No. 1 cylinder
(B) : No. 2 cylinder
(C) : No. 3 cylinder
(D) : No. 4 cylinder
JPBIA4118ZZ
Measuring position No. 1 CYL. No. 2 CYL. No. 3 CYL. No. 4 CYL.
No. 4 cylinder at compression TDC EXH
× ×
INT × ×
Revision: August 2015 2016 Versa Note

cardiagn.com

EM-12
< BASIC INSPECTION >[HR16DE]
CAMSHAFT VALVE CLEARANCE
3. Measure the center thickness of the removed valve lifters using
a suitable tool (A).
4. Use the equation below to calculate valve lifter thickness for replacement.
• Crown surface thickness of new valve lifter (B) can be identi-fied by stamp mark (A) on the under side of the lifter.
NOTE:
Available thickness of valve lifter: 26 sizes range 3.00 to 3.50
mm (0.1181 to 0.1378 in) in increments of 0.02 mm (0.0008 in)
when manufactured at factory. Refer to EM-117, "
Camshaft".
• Stamp mark “302” indicates 3.02 mm (0.1189 in) in thickness.
5. Install the correct thickness valve lifter.
6. Install camshaft. Refer to EM-60, "
Exploded View".
7. Install timing chain. Refer to EM-51, "
Exploded View".
8. Manually rotate crankshaft pulley a few rotations.
9. Check that valve clearances are within specification. Refer to “INSPECTION”.
10. Installation of remaining components is in the reverse order of removal.
11. Warm up the engine, and check for unusual noise and vibration.
PBIC3195J
Valve lifter thickness calculation: t = t1 + (C1 – C2)
t = Valve lifter thickness to be replaced
t
1 = Removed valve lifter thickness
C
1= Measured valve clearance
C
2= Standard valve clearance at 20° C (68°F):
Intake : 0.30 mm (0.012 in)
Exhaust : 0.33 mm (0.013 in)
PBIC3196J
Revision: August 2015 2016 Versa Note

cardiagn.com

COMPRESSION PRESSUREEM-13
< BASIC INSPECTION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
COMPRESSION PRESSURE
InspectionINFOID:0000000012431691
1. Warm up engine to full operating temperature and then turn it off.
2. Release fuel pressure. Refer to
EC-137, "
Work Procedure".
3. Remove ignition coil and spark plug from each cylinder. Refer to EM-48, "
Exploded View".
4. Connect engine tachometer (not required in use of CONSULT).
5. Install compression gauge (B) with an adapter (A) into spark plug hole.
• Use an adapter with a diameter (a) smaller than 20 mm (0.79in). Otherwise, it may be caught by cylinder head during
removal.
6. With accelerator pedal fully depressed, turn ignition switch to »»» for cranking. When the gauge pointer stabilizes, read the compression pressure and the engi ne rpm. Perform these steps to check each cylin-
der.
CAUTION:
Always use a fully charged battery to obtain the specified engine speed.
• If the engine speed is out of the specified range, check the battery. Check the engine speed again with a
fully charged battery.
• If some cylinders have low compression pressure, pour a small amount of engine oil into the spark plug hole to recheck the compression.
- If the added engine oil improves the compression, the piston rings may be worn or damaged. Check the piston rings and replace if necessary.
- If the compression pressure remains low despite the addition of engine oil, the valves may be malfunc-
tioning. Check the valves for damage. Replace the valve or valve seat as necessary.
• If two adjacent cylinders have respectively low compression pressure and their compression remains low even after the addition of engine oil the head gasket may be leaking, or valves in adjacent cylinders
may be damaged. Inspect and repair as required.
• If the compression pressure is below the minimum value, check the valve clearances and parts associ-
ated with the combustion chamber (valve, valve seat , piston, piston ring, cylinder bore, cylinder head,
cylinder head gasket). After repairing, measure the compression pressure again.
7. After inspection is completed, install removed parts.
8. Start the engine, and ensure that the engine runs smoothly.
9. Perform trouble diagnosis. If DTC appears, erase it. Refer to EC-120, "
Work Flow".
JPBIA4119ZZ
(a) : Less than 20 mm (0.79 in)
JPBIA0171ZZ
Compression pressure : Refer to EM-116, "General Specification".
Revision: August 2015 2016 Versa Note

cardiagn.com

EM-14
< SYMPTOM DIAGNOSIS >[HR16DE]
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING
SYMPTOM DIAGNOSIS

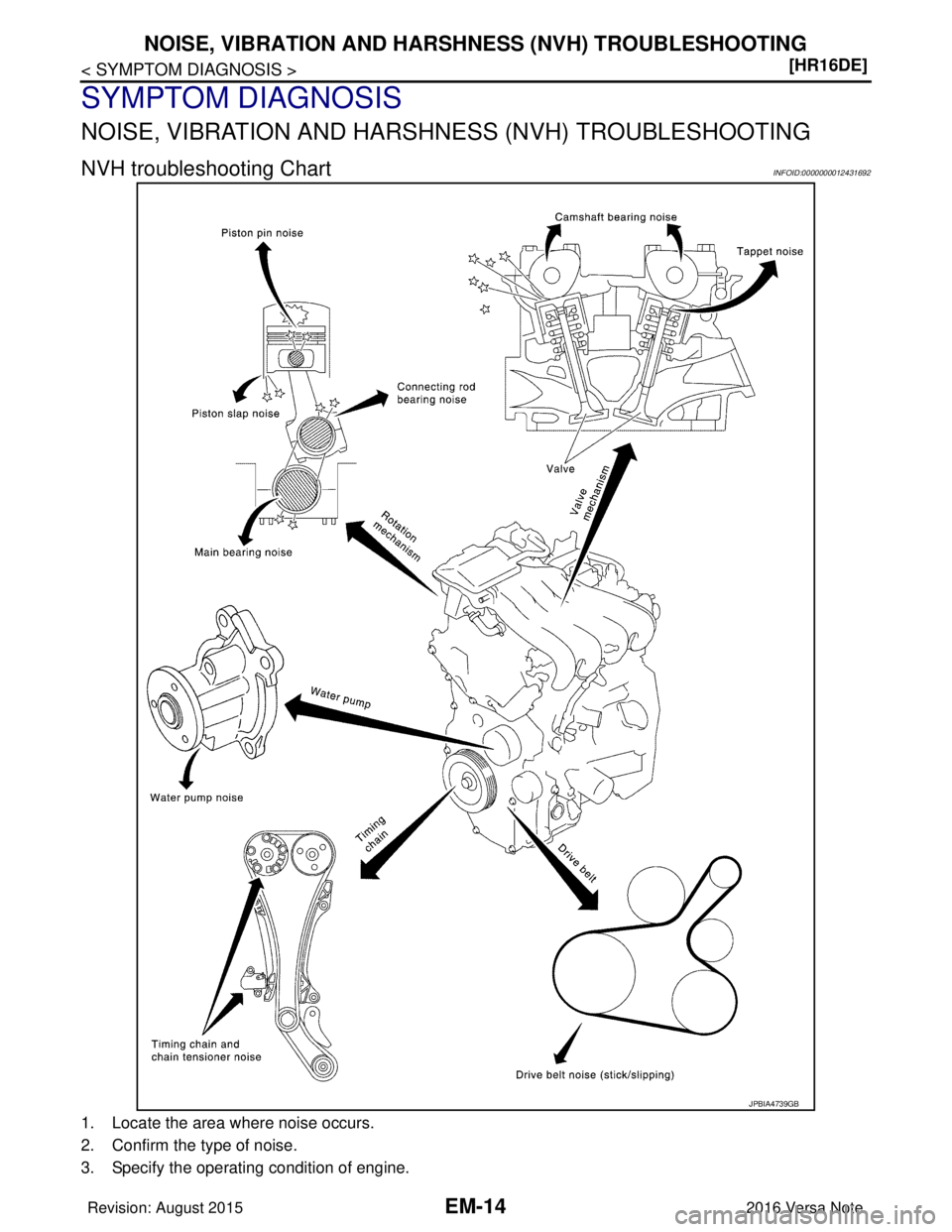

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
NVH troubleshooting ChartINFOID:0000000012431692
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
JPBIA4739GB
Revision: August 2015 2016 Versa Note

cardiagn.com

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGEM-15
< SYMPTOM DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not related Location
of noise Type of
noise Operating condition of engine
Source of noise Check item
Refer-
ence page
Before
warm-
up After
warm-
up When
start-
ing When
idling When
racing While
driving
Top of en-
gine rock-
er cover
cylinder
head Ticking or
clicking
CA—AB—
Tappet
noiseValve clearance
EM-10
Rattle C A — A B C Camshaft
bearing
noiseCamshaft journal oil
clearance
Camshaft runout
EM-117
Crank-
shaft pul-
ley
cylinder
block (side
of engine)
oil panSlap or
knock
—A—BB— Piston pin
noisePiston to piston pin oil
clearance
Connecting rod bushing
oil clearance
EM-121Slap or
rap
A——BBA Piston
slap noisePiston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsion
EM-121
Knock A B C B B B
Connect-
ing rod
bearing
noiseConnecting rod bushing
oil clearance
Connecting rod bearing
oil clearance
EM-121EM-125
Knock A B — A B C
Main bear-
ing noiseMain bearing oil clear-
ance
Crankshaft runout EM-124EM-121
Front of
engine
front coverTapping or
ticking
AA—BBB Timing
chain and
chain ten-
sioner
noiseTiming chain cracks
and wear
Timing chain tensioner
operation
EM-51
EM-51
Front of
engineSqueak-
ing or fizz-
ing
AB—B—C Drive belt
(Sticking
or slip-
ping)Drive belt deflection
EM-116
CreakingA B ABAB Drive belt
(Slipping)Idler pulley bearing op-
eration
Squall
Creak AB—BAB Water
pump
noise
Water pump operation
CO-18
Revision: August 2015 2016 Versa Note

cardiagn.com

EM-16
< PERIODIC MAINTENANCE >[HR16DE]
DRIVE BELT
PERIODIC MAINTENANCE
DRIVE BELT
Exploded ViewINFOID:0000000012431693
Removal and InstallationINFOID:0000000012431694
REMOVAL
1. Remove engine undercover. Refer to
EXT-39, "FRONT UNDER COVER : Removal and Installation".
2. Remove wheel and tire (RH) using a power tool. Refer to WT-48, "
Removal and Installation".
3. Partially remove the fender protector (RH). Refer to EXT-38, "
Removal and Installation".
4. Loosen the lock nut and then release the belt tension by turning the adjusting bolt.
5. Remove the drive belt.
INSTALLATION
1. Pull the idler pulley in the loosening direction, and then temporarily tighten the lock nut to the following
torque.
NOTE:
Do not move the lock nut from the te mporary tightened position. Go to step 2.
2. Install the drive belt on each pulley. CAUTION:
• Check that there is no engine oil, grease, or engine coolant, etc. in pulley grooves.
• Check that the belt seats securely inside the groove on each pulley.
3. Adjust drive belt tension by turning the adjusting bolt. Refer to EM-17, "
Adjustment".
CAUTION:
• Perform the belt tension adjustment with the lock nut temporarily tightened to the torque specifi-
cation listed in step 1 which preven ts the idler pulley from tilting.
• When checking immediately after in stallation, first adjust it to the specified value. Then, after
turning crankshaft two turns or more, readjust to the specified value to avoid variation in deflec-
tion between pulleys.
1. Generator 2. Water pump 3. Crankshaft pulley
4. A/C compressor 5. Tensioner idler pulley 6. Drive belt
A. Lock nut B. Adjusting bolt
ALBIA1157ZZ
Lock nut
(Temporary tightening): 4.4 N·m (0.45 kg-m, 39 in-lb)
Revision: August 2015
2016 Versa Note

cardiagn.com

DRIVE BELTEM-17
< PERIODIC MAINTENANCE > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
4. Tighten the lock nut to final tightening specification.
5. Check that belt tension is within the specification using suitable tool. Refer to
EM-116, "
Drive Belt".
InspectionINFOID:0000000012431695
• Inspection should be done only when engine is cold or over 30
minutes after the engine is stopped.
• Visually check belt for wear, damage, and cracks on inside and edges.
• Turn crankshaft pulley clockwise twice, and check that the tension on all pulleys equalizes before testing.
• When measuring deflection, apply 98.1 N (10 kg, 22 lb) at the ( ) marked point.
• Measure the belt tension and frequency using suitable tool at the ( ) marked point.
CAUTION:
• When checking immediately after installation, first ad just it to the specified value. Then, after turning
crankshaft two turns or more, readjust to the specified value to avoid varia tion in deflection between
pulleys.
AdjustmentINFOID:0000000012431696
CAUTION:
• When belt is replaced with new one, adjust belt te nsion to the value for “New belt,” because new belt
will not fully seat in the pulley groove.
• When tension of the belt being used exceeds “Limit,” adjust it to the value for “After adjusted.”
• When installing a belt, check it is correctly engaged with the pulley groove.
• Do not allow engine oil or engine coolant to get on the belt.
• Do not twist or bend the belt strongly.
1. Partially remove the fender protector (RH) front side clip. Refer to EXT-38, "
Removal and Installation".
2. Loosen lock nut (A) and temporarily set to the following torque.
3. Adjust the belt tension by turning the adjusting bolt. Refer to EM-116, "
Drive Belt".
CAUTION: Lock nut (Final tightening) :
34.8 N·m (3.5 kg-m, 26 ft-lb)
(1) : Generator
(2) : Water pump
(3) : Crankshaft pulley
(4) : A/C compressor
(5) : Idler pulley
(6) : Drive belt
Belt deflection/belt tension and frequency : Refer to EM-116, "Drive Belt".
PBIC3642E
LocationLocation of adjuster and tightening method
Drive belt Adjusting bolt on idler pulley
Lock nut (A)
(Temporary tightening): 4.4 N·m (0.45 kg-m, 39 in-lb)
(1) : Generator
(2) : Water pump
(3) : Crankshaft pulley
(4) : A/C compressor
(5) : Idler pulley
(6) : Drive belt
(B) : Adjusting bolt
PBIC3643E
Revision: August 2015
2016 Versa Note

cardiagn.com

EM-18
< PERIODIC MAINTENANCE >[HR16DE]
DRIVE BELT
• When checking immediately after in
stallation, first adjust it to the specified value. Then, after
turning crankshaft two turns or more, readjust to the specified value to avoid variation in deflec-
tion between pulleys.
• When the tension adjustment is performed, the lock nut should be in the condition at Step 2. If the tension adjustment is performed when the lock nut is loosened more than the temporary
tightening, the idler pulley tilts and the corr ect tension adjustment cannot be performed.
4. Tighten the lock nut to final tightening specification.
Lock nut (Final tightening) : 34.8 N·m (3.5 kg-m, 26 ft-lb)
Revision: August 2015 2016 Versa Note

cardiagn.com

AIR CLEANER FILTEREM-19
< PERIODIC MAINTENANCE > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
AIR CLEANER FILTER
Exploded ViewINFOID:0000000012431697
Removal and InstallationINFOID:0000000012431698
REMOVAL
1. Unhook clips (A) and pull the air cleaner cover (1) upward.
1. Air cleaner cover
2. Mass air flow sensor 3. Gasket
4. Clamp 5. Air duct 6. Clamp
7. Hose 8. Clamp 9. Grommet
10. Grommet insert 11. Grommet 12. Grommet insert
13. Air duct inlet 14. Air cleaner body 15. Air cleaner filter
A. To electric throttle contro l actuator B. To rocker cover
AWBIA2082ZZ
JSBIA1092ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com
