REAR DOOR
2. Disconnect the harness connec
tor (A) from rear door.
3. Remove door check link bolt (body side).
4. Remove door hinge nuts (door side) and rear door assembly.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Apply anticorrosive agent to the hinge mating surface.
• After installation, perform the rear door adjustment procedure. Refer to DLK-283, "
DOOR ASSEMBLY
: Adjustment".
• After adjusting, apply touch-up paint (body color) to the head of door hinge nuts.
• Check door hinge rota ting point for poor lubrication. If neces-
sary, apply a suitable multi-purpose grease.
JMKIA8084ZZ
JMKIA8072ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

REAR DOORDLK-283
< REMOVAL AND INSTALLATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
DOOR ASSEMBLY : AdjustmentINFOID:0000000012430250
Check the clearance and surface height between rear door and each part by visual inspection and tactile feel.
If the clearance and the surface height are out of specific ation, adjust them according to the adjustment proce-
dure.
Unit: mm (in)
1. Remove center pillar lower finisher. Refer to INT-25, "CENTER PILLAR LOWER FINISHER : Removal
and Installation".

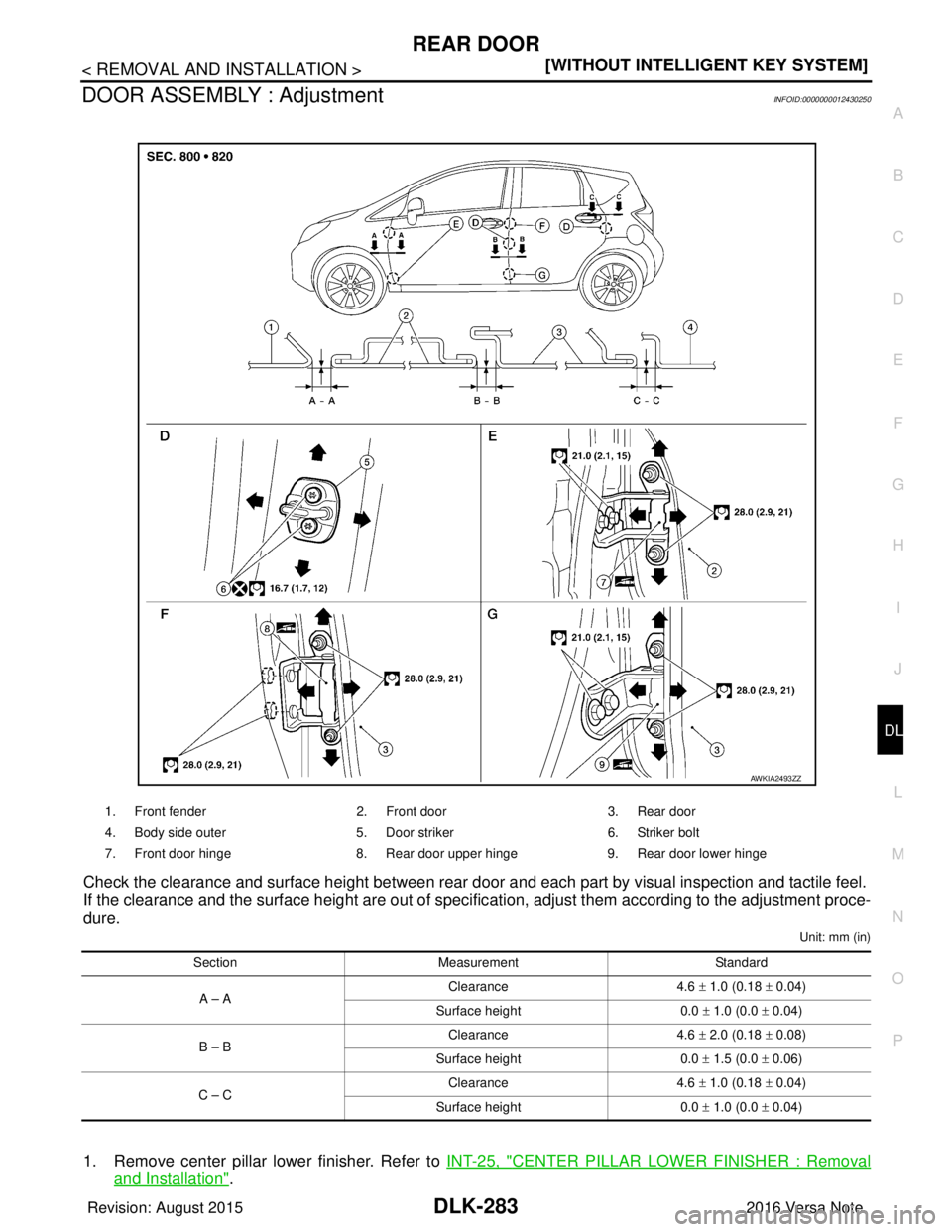

1. Front fender2. Front door 3. Rear door
4. Body side outer 5. Door striker 6. Striker bolt
7. Front door hinge 8. Rear door upper hinge9. Rear door lower hinge
AWKIA2493ZZ
SectionMeasurement Standard
A – A Clearance
4.6 ± 1.0 (0.18 ± 0.04)
Surface height 0.0 ± 1.0 (0.0 ± 0.04)
B – B Clearance
4.6 ± 2.0 (0.18 ± 0.08)
Surface height 0.0 ± 1.5 (0.0 ± 0.06)
C – C Clearance
4.6 ± 1.0 (0.18 ± 0.04)
Surface height 0.0 ± 1.0 (0.0 ± 0.04)
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-284
< REMOVAL AND INSTALLATION >[WITHOUT INTELLIGENT KEY SYSTEM]
REAR DOOR
2. Loosen door hinge nuts (door side).
3. Adjust the surface height of rear door
according to the specifications provided.
4. Temporarily tighten door hinge nuts (door side).
5. Loosen door hinge nuts and bolts (body side).
6. Raise rear door at rear end to adjust clearance of rear door according to the specifications provided.
7. After adjustment tighten bolts and nuts to the specified torque. CAUTION:
• Apply touch-up paint (body color) to the head of hinge bolts and nuts.
• Check door hinge rotating point fo r poor lubrication. If necessary, apply a suitable multi-purpose
grease.
8. Install center pillar lower finisher. Refer to INT-25, "
CENTER PILLAR LOWER FINISHER : Removal and
Installation".
DOOR STRIKER
DOOR STRIKER : Removal and InstallationINFOID:0000000012430251
REMOVAL
Remove bolts and rear door striker.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse door striker bolts.
• Tighten door striker bolts to specification. Refer to DLK-281, "
Exploded View".
• After installation, check front door open/close oper ation. If necessary, adjust the door striker. Refer
to DLK-284, "
DOOR STRIKER : Adjustment".
DOOR STRIKER : AdjustmentINFOID:0000000012430252
DOOR STRIKER ADJUSTMENT
1. Loosen door striker bolts.
2. Adjust door striker so that it becomes parallel with rear door lock
insertion direction.
3. Tighten door striker bolts to specification. Refer to DLK-281, "
Exploded View".
DOOR HINGE
DOOR HINGE : Removal and InstallationINFOID:0000000012430253
REMOVAL
CAUTION:
• Use two people when removing or installing front door due to its heavy weight
• When removing and installing front door assembly, support the door using a suitable tool.
• Use shops cloths to protect surrounding components from damage during removal and installation of front door assembly.
1. Remove rear door assembly. Refer to DLK-281, "
DOOR ASSEMBLY : Removal and Installation".
2. Remove center pillar lower finisher. Refer to INT-25, "
CENTER PILLAR LOWER FINISHER : Removal
and Installation".
PIIB2804J
Revision: August 2015 2016 Versa Note

cardiagn.com

REAR DOORDLK-285
< REMOVAL AND INSTALLATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
3. Remove rear door hinge bolts and nuts (body side) and rear door hinge.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Apply anticorrosive agent to the door hinge mating surface.
• After installation, perform the rear door adjustment procedure. Refer to DLK-283, "
DOOR ASSEMBLY
: Adjustment".
• After adjusting, apply touch-up paint (body color) to the head of door hinge bolts and nuts.
• Check door hinge rotating point for poor lubrication. If neces-
sary, apply a suitable multi-purpose grease.
DOOR CHECK LINK
DOOR CHECK LINK : Re moval and InstallationINFOID:0000000012430254
REMOVAL
1. Remove rear door speaker. Refer to AV-55, "Removal and Installation" (BASE AUDIO), AV-115, "Removal
and Installation" (DISPLAY AUDIO) or AV-244, "Removal and Installation" ( N AV I G AT I O N ) .
2. Remove door check link bolt (body side).
3. Remove door check link bolts (door side) and remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• After installation, check rear door open/close operation.
• Check door check link rotating point for poor lubrication. If
necessary, apply a suitable multi-purpose grease.
JMKIA8072ZZ
JMKIA8074ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-286
< REMOVAL AND INSTALLATION >[WITHOUT INTELLIGENT KEY SYSTEM]
BACK DOOR
BACK DOOR
Exploded ViewINFOID:0000000012430255
BACK DOOR ASSEMBLY
BACK DOOR ASSEMBLY :
Removal and InstallationINFOID:0000000012430256
CAUTION:
• Use two people when removing or installing the back door due to its heavy weight.
• Use shop cloths to protect surro unding components from damage during removal and installation of
back door.
REMOVAL
1. Remove back door inner finisher. Refer to INT-36, "BACK DOOR INNER FINISHER : Removal and Instal-
lation".
2. Remove back door stay (LH/RH). Refer to DLK-163, "
BACK DOOR STAY : Removal and Installation".

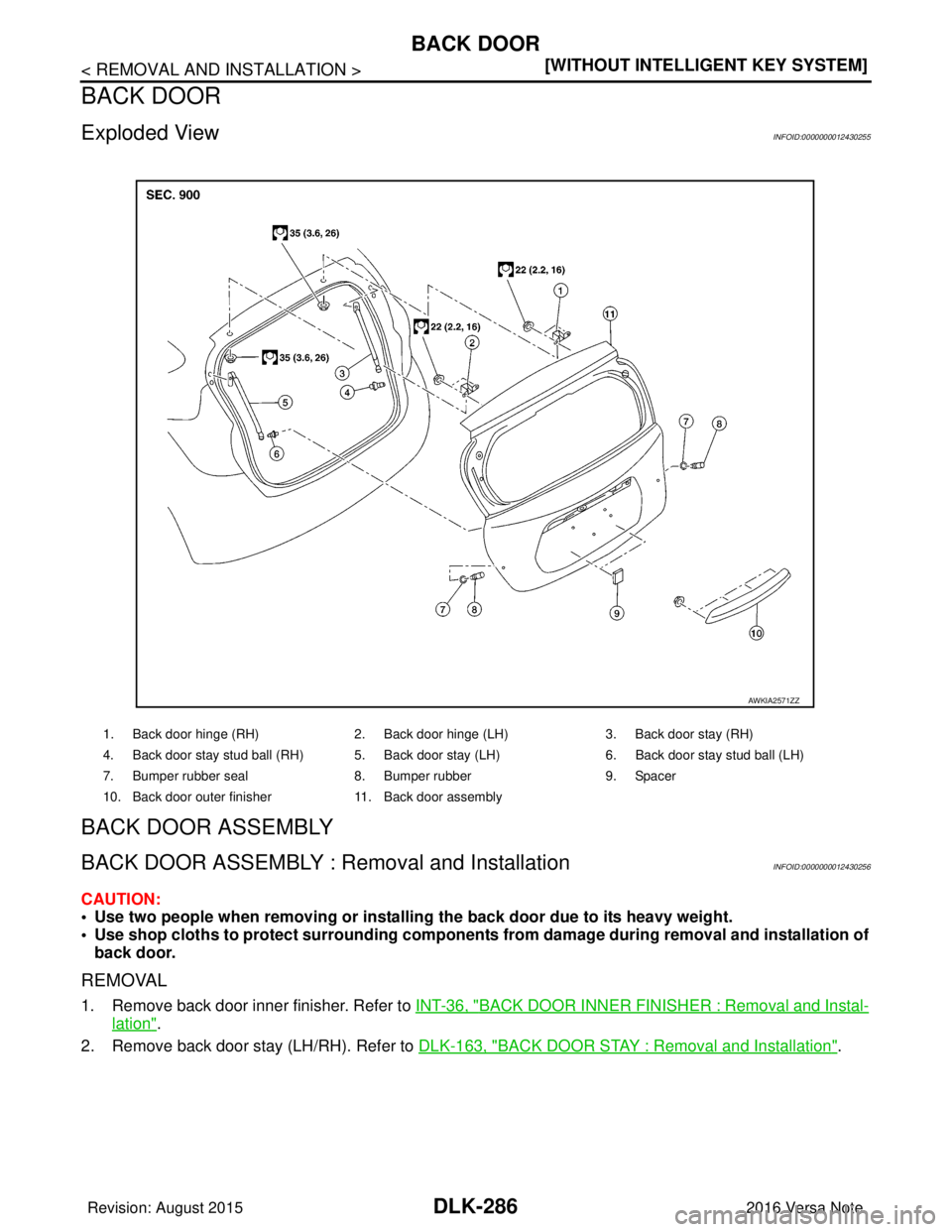

1. Back door hinge (RH)2. Back door hinge (LH) 3. Back door stay (RH)
4. Back door stay stud ball (RH) 5. Back door stay (LH) 6. Back door stay stud ball (LH)
7. Bumper rubber seal 8. Bumper rubber9. Spacer
10. Back door outer finisher 11. Back door assembly
AWKIA2571ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BACK DOORDLK-287
< REMOVAL AND INSTALLATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
3. Remove back door harness grommet (1), then pull harness from the back door.
4. Disconnect washer tube from rear wiper.
5. Remove washer tube grommet (1), then pull washer tube from the back door.
6. Support the back door assembly using a suitable tool. WARNING:
Bodily injury may occur if back door assembly is not supported properly when removing the back
door spindle unit.
7. Remove back door hinge nuts (door side) and remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Apply anticorrosive agent onto the su rface between hinge and door side.
• When reusing stud ball, always apply locking sealan t before installing stud ball to back door.
• After installation, perfor m the back door assembly adjustment procedure. Refer to DLK-288, "
BACK
DOOR ASSEMBLY : Adjustment".
ALKIA3187ZZ
ALKIA3188ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-288
< REMOVAL AND INSTALLATION >[WITHOUT INTELLIGENT KEY SYSTEM]
BACK DOOR
BACK DOOR ASSEMBLY : Adjustment
INFOID:0000000012430257
1. Back door panel 2. Roof panel3. Rear combination lamp
4. Rear bumper fascia 5. Back door hinge6. Bumper rubber
7. Bolt 8. Back door striker
AWKIA2495ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BACK DOORDLK-289
< REMOVAL AND INSTALLATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Check the clearance and the surface height between back door and each part by visual inspection and tactile
feel. If the clearance and the surface height are out of specification, adjust them according to the adjustment
procedure.
Unit: mm (in)
1. Loosen back door hinge nuts (door side).
2. Lift up back door approximately 100 – 150 mm (3.94 – 5.91 in) height then close it lightly and check that it
is engaged firmly with back door closed.
3. Check the clearance and surface height and adjust back door as necessary.
4. Tighten back door hinge nuts to specified torque.
CAUTION:
• After installation, check back door open/close, lock/ unlock operation.
• Check back door hinge rotating po int for poor lubrication. If necessary, apply a suitable multi-pur-
pose grease.
• After adjusting, apply touch-up paint (body color) to the head of rear door hinge bolts and nuts.
BACK DOOR STRIKER
BACK DOOR STRIKER : Removal and InstallationINFOID:0000000012430258
REMOVAL
1. Remove back door kicking plate using a suitable tool.
2. Remove bolts and back door striker.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse back door striker bolts.
• After installation, check back door open/close, lock/ unlock operation.
• After installation, perfor m the back door assembly adjustment procedure. Refer to DLK-288, "
BACK
DOOR ASSEMBLY : Adjustment".
BACK DOOR STRIKER : AdjustmentINFOID:0000000012430259
DOOR STRIKER ADJUSTMENT
1. Loosen door striker bolts.
2. Adjust door striker so that it becomes parallel with back door
lock insertion direction.
3. Tighten door striker bolts to specification. Refer to DLK-286, "
Exploded View".
PortionSection Item Measurement Standard
Back door panel – Roof panel A – A H
Clearance 6.0 ± 1.0 (0.24 ± 0.04)
I Surface height 0.0 +0.5, -1.5 (0.00 +0.02, -0.06)
Rear combination lamp – Back door panel B – B J
Clearance 5.0 ± 2.0 (0.20 ± 0.08)
K Surface height -2.0 ± 2.0 (-0.08 ± 0.08)
Rear bumper fascia – Back-door panel C – CL C
le a ra n ce 5 .0 ± 2.0 (0.20 ± 0.08)
M Surface height 0.0 +0.5, -2.0 (0.0 +0.02, -0.08)
D – D M Clearance7.0 ± 2.0 (0.28 ± 0.08)
PIIB2804J
Revision: August 2015 2016 Versa Note

cardiagn.com

DLK-290
< REMOVAL AND INSTALLATION >[WITHOUT INTELLIGENT KEY SYSTEM]
BACK DOOR
BACK DOOR HINGE
BACK DOOR HINGE : Re
moval and InstallationINFOID:0000000012430260
REMOVAL
1. Remove back door assembly. Refer to DLK-286, "BACK DOOR ASSEMBLY : Removal and Installation".
2. Partially remove back door weatherstrip. Refer to DLK-291, "
BACK DOOR WEATHER-STRIP : Removal
and Installation".
3. Remove back door hinge nuts and bolts (body side) and then remove back door hinge.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Apply anticorrosive agent onto the surface between hinge and body side.
• After installation, perform the back door assembly adjustment procedure. Refer to DLK-288, "
BACK
DOOR ASSEMBLY : Adjustment".
BACK DOOR STAY
BACK DOOR STAY : Removal and InstallationINFOID:0000000012430261
REMOVAL
1. Support the back door with a suitable tool too prevent it from falling.
WARNING:
Body injury may occur if no su pporting rod is holding the back door op en when removing the
back door stay.
2. Remove the metal clip (3) located on the connection between the back door stay (1) and the stud ball (2) (back door side) by
using a flat blade screwdriver (A).
3. Remove the back door stay (back door side).
4. In the same way, remove the back door stay from the body side.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Check the back door open/close op eration after installation.
BACK DOOR STAY : DisposalINFOID:0000000012430262
BACK DOOR STAY DISPOSAL
WARNING:
When performing disposal procedur e, wear protective gloves and glasses.
JMKIA2255ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

BACK DOORDLK-291
< REMOVAL AND INSTALLATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
1. Secure back door stay (1) using a vice (C). CAUTION:
When cutting back door stay, al ways cover suitable tool (A)
using a shop cloth (B) to avoid scattering metal fragments
or oil.
2. Slowly cut a hole in back door stay and drain the gas using a hacksaw at position (B) as shown.
A: 20 mm (0.79 in)
BACK DOOR WEATHER-STRIP
BACK DOOR WEATHER-STRIP : Removal and InstallationINFOID:0000000012430263
REMOVAL
1. Support back door using a suitable tool.
2. Carefully remove back door weather-strip from opening door joint.
INSTALLATION
1. Beginning with upper section, align weather-strip mark with vehicle center position mark and install
weather strip to the vehicle.
2. For the lower section, align weather-str ip seam with center of back door striker.
NOTE:
Pull weather-strip gently to make sure that there are no loose sections.
JMKIA3336ZZ
JMKIA5421ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com
