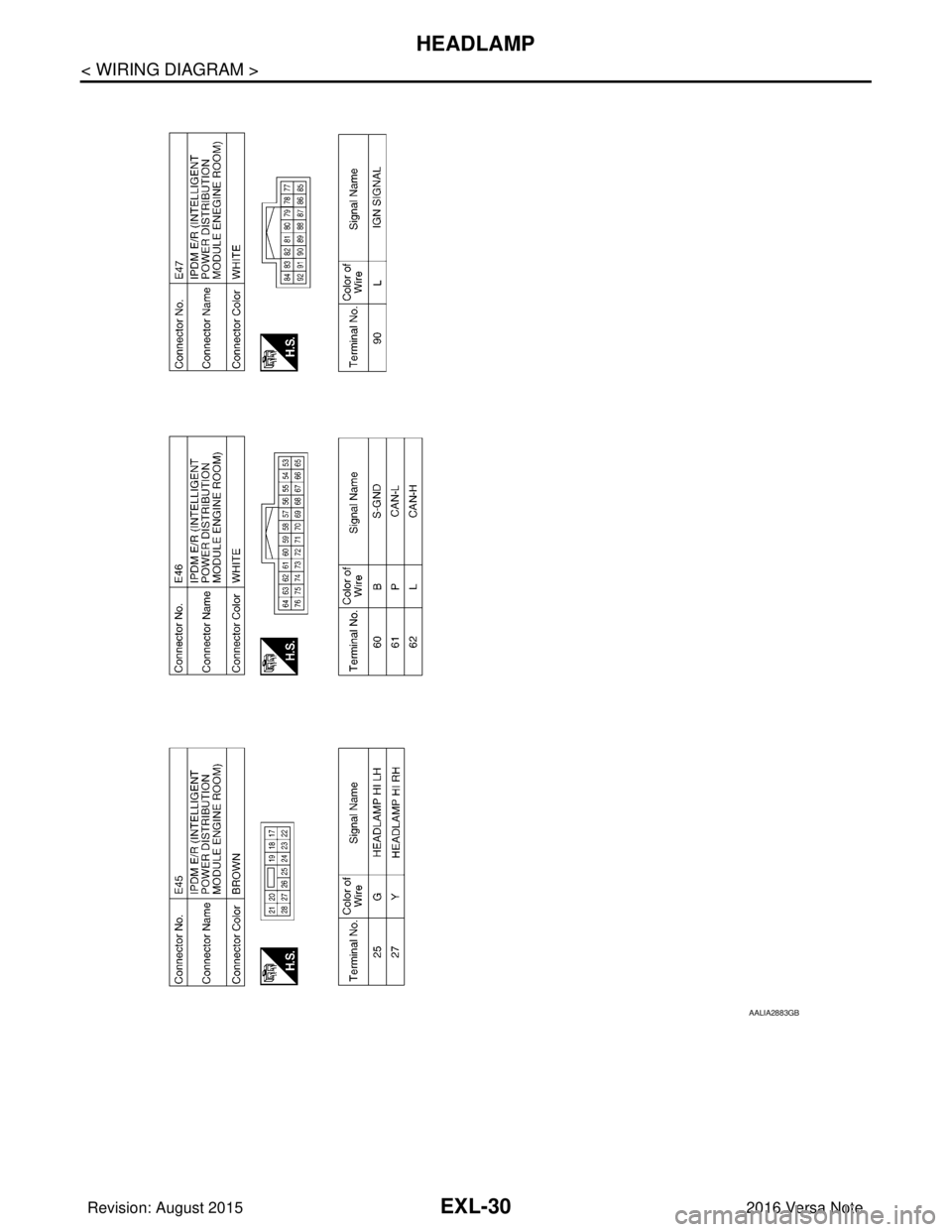

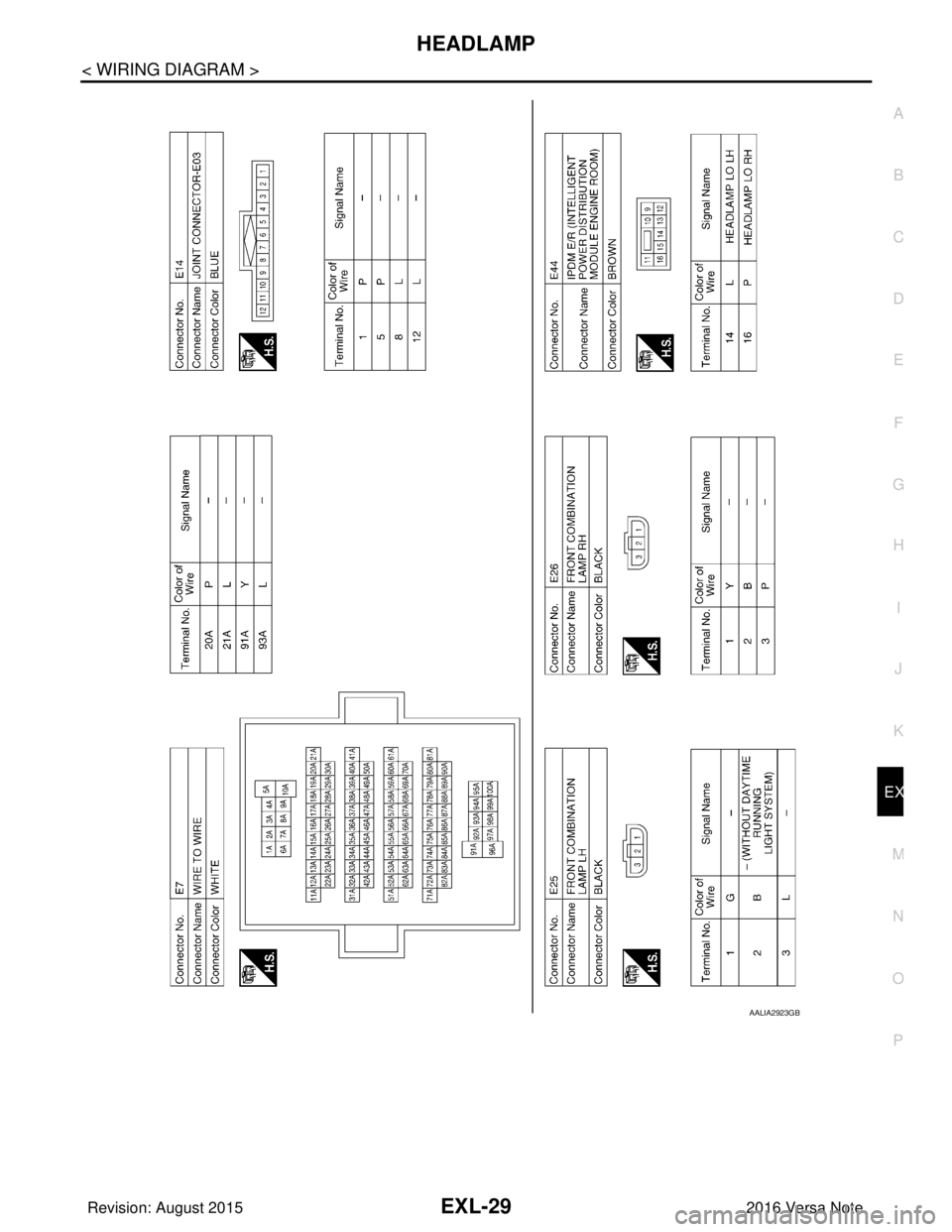

NISSAN NOTE 2016 Service Repair Manual HEADLAMPEXL-29 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P AALIA2923GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1682 of 3641

NISSAN NOTE 2016 Service Repair Manual EXL-30 < WIRING DIAGRAM > HEADLAMP AALIA2883GB Revision: August 20152016 Versa Note cardiagn.com

Page 1683 of 3641

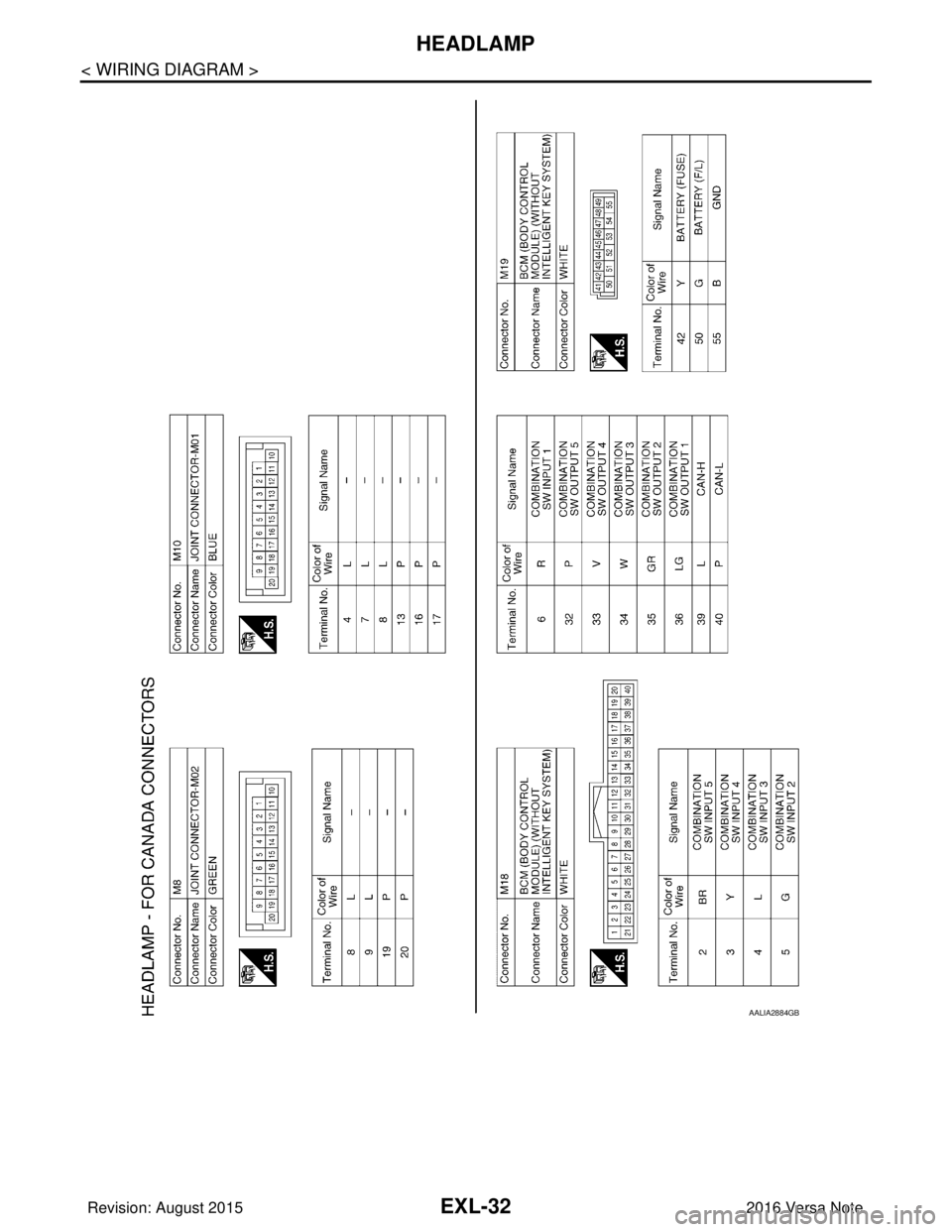

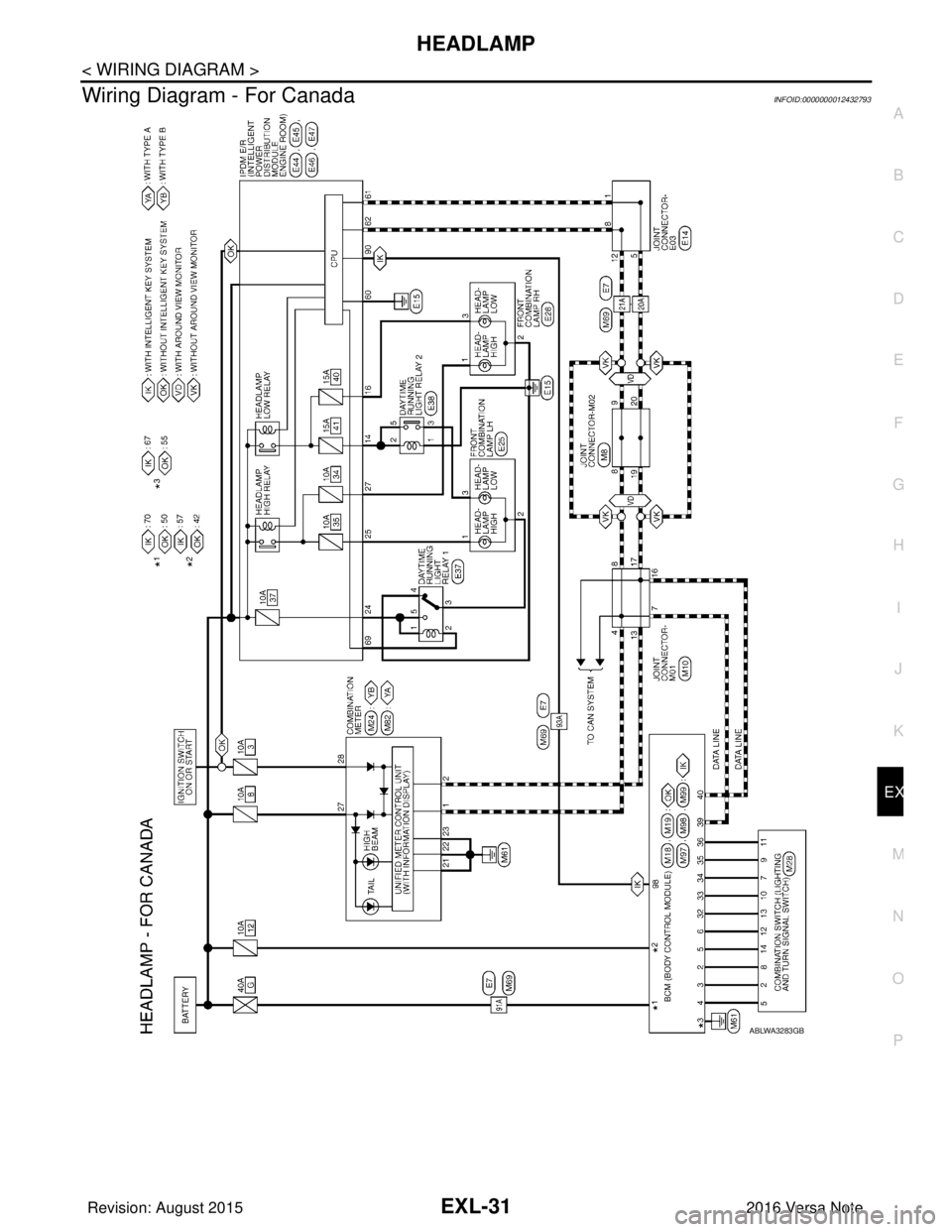

NISSAN NOTE 2016 Service Repair Manual HEADLAMPEXL-31 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P Wiring Diagram - For CanadaINFOID:0000000012432793 ABLWA3283GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1684 of 3641

NISSAN NOTE 2016 Service Repair Manual EXL-32 < WIRING DIAGRAM > HEADLAMP AALIA2884GB Revision: August 20152016 Versa Note cardiagn.com

Page 1685 of 3641

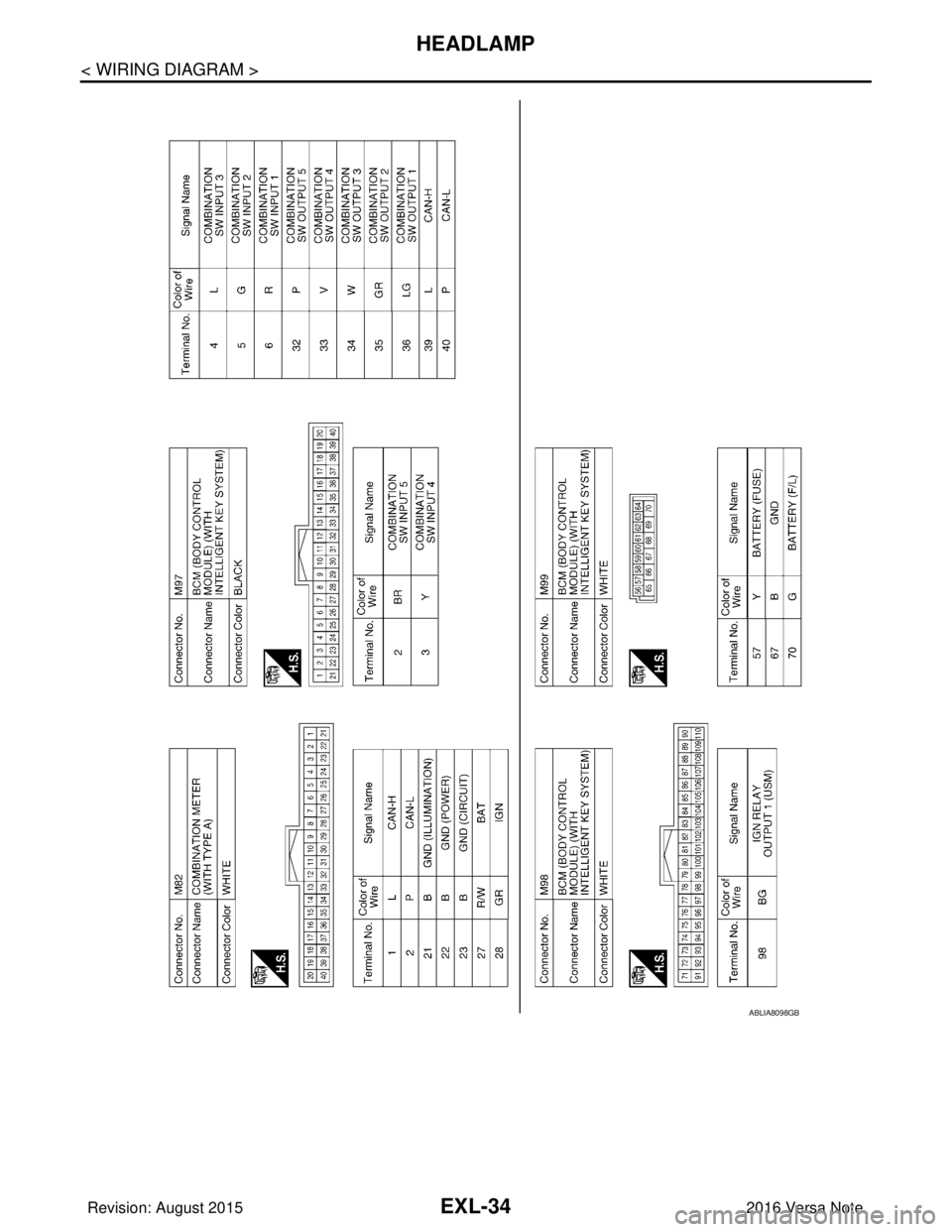

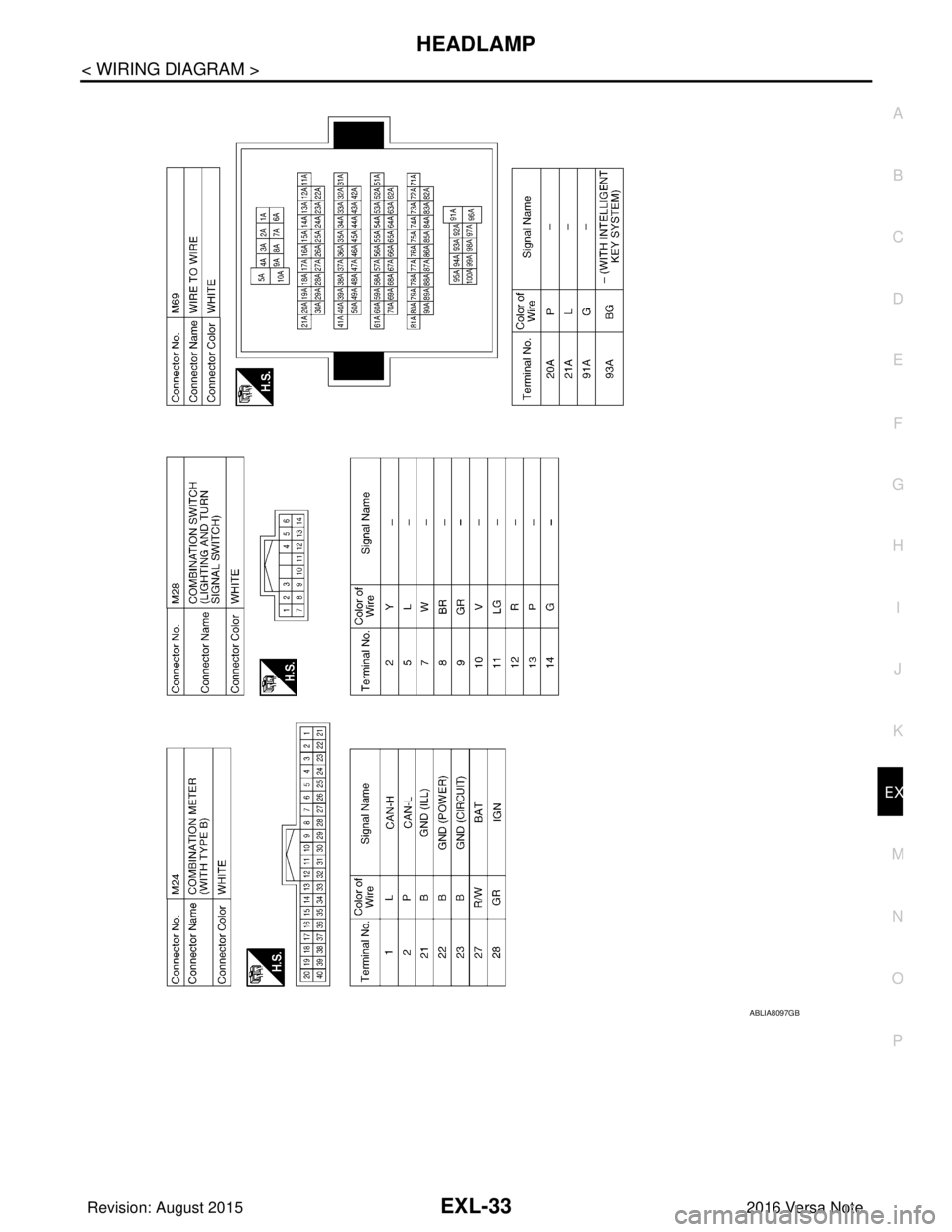

NISSAN NOTE 2016 Service Repair Manual HEADLAMPEXL-33 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P ABLIA8097GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1686 of 3641

NISSAN NOTE 2016 Service Repair Manual EXL-34 < WIRING DIAGRAM > HEADLAMP ABLIA8098GB Revision: August 20152016 Versa Note cardiagn.com

Page 1687 of 3641

NISSAN NOTE 2016 Service Repair Manual HEADLAMPEXL-35 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P ABLIA8099GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1688 of 3641

NISSAN NOTE 2016 Service Repair Manual EXL-36 < WIRING DIAGRAM > HEADLAMP ABLIA8100GB Revision: August 20152016 Versa Note cardiagn.com

Page 1689 of 3641

NISSAN NOTE 2016 Service Repair Manual DAYTIME LIGHT SYSTEMEXL-37 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P DAYTIME LIGHT SYSTEM Wiring DiagramINFOID:0000000012432794 ABLWA3281GB Revision: August 2015 2016 Versa Note cardiagn.co

Page 1690 of 3641

NISSAN NOTE 2016 Service Repair Manual EXL-38 < WIRING DIAGRAM > DAYTIME LIGHT SYSTEM AALIA2870GB Revision: August 20152016 Versa Note cardiagn.com
