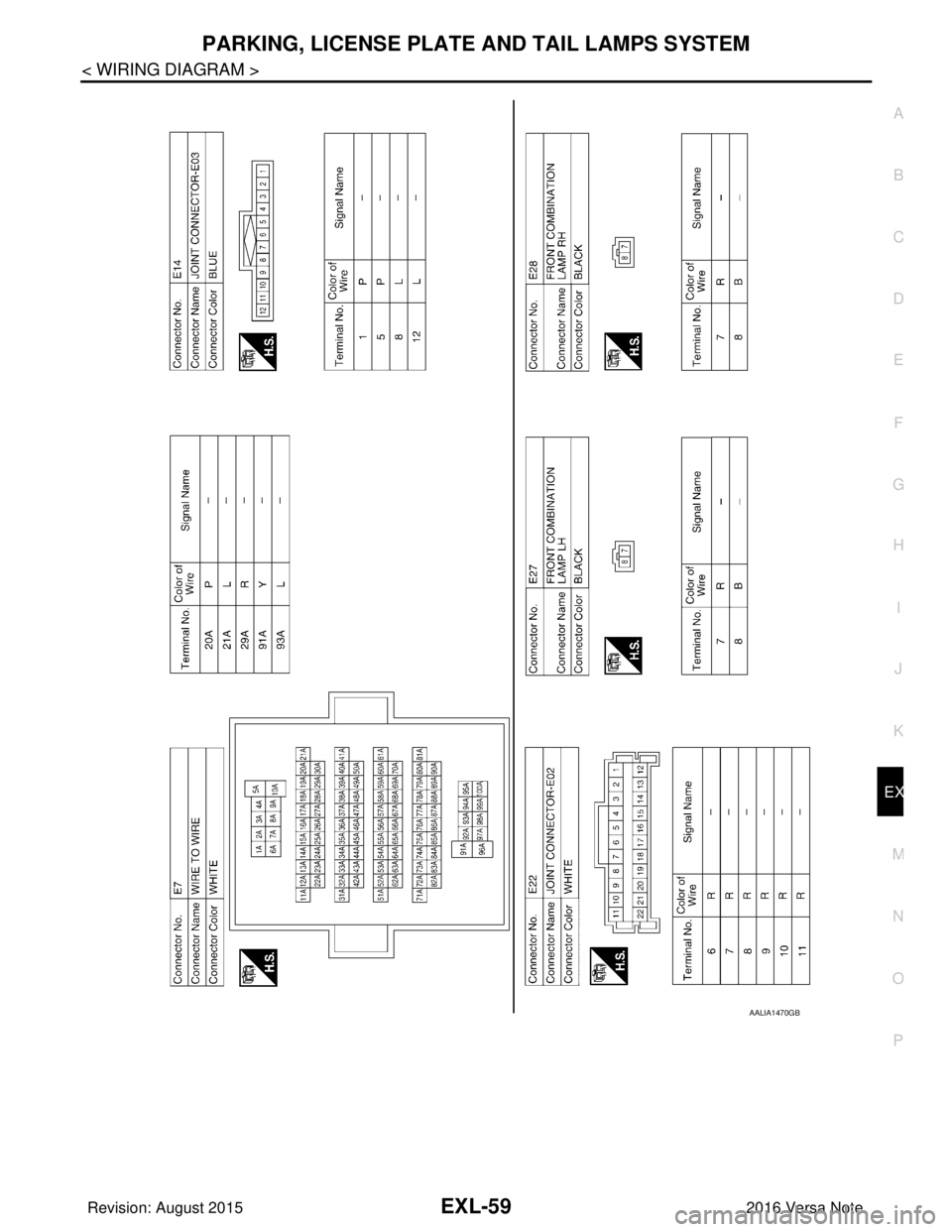

NISSAN NOTE 2016 Service Repair Manual PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEMEXL-59 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P AALIA1470GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1712 of 3641

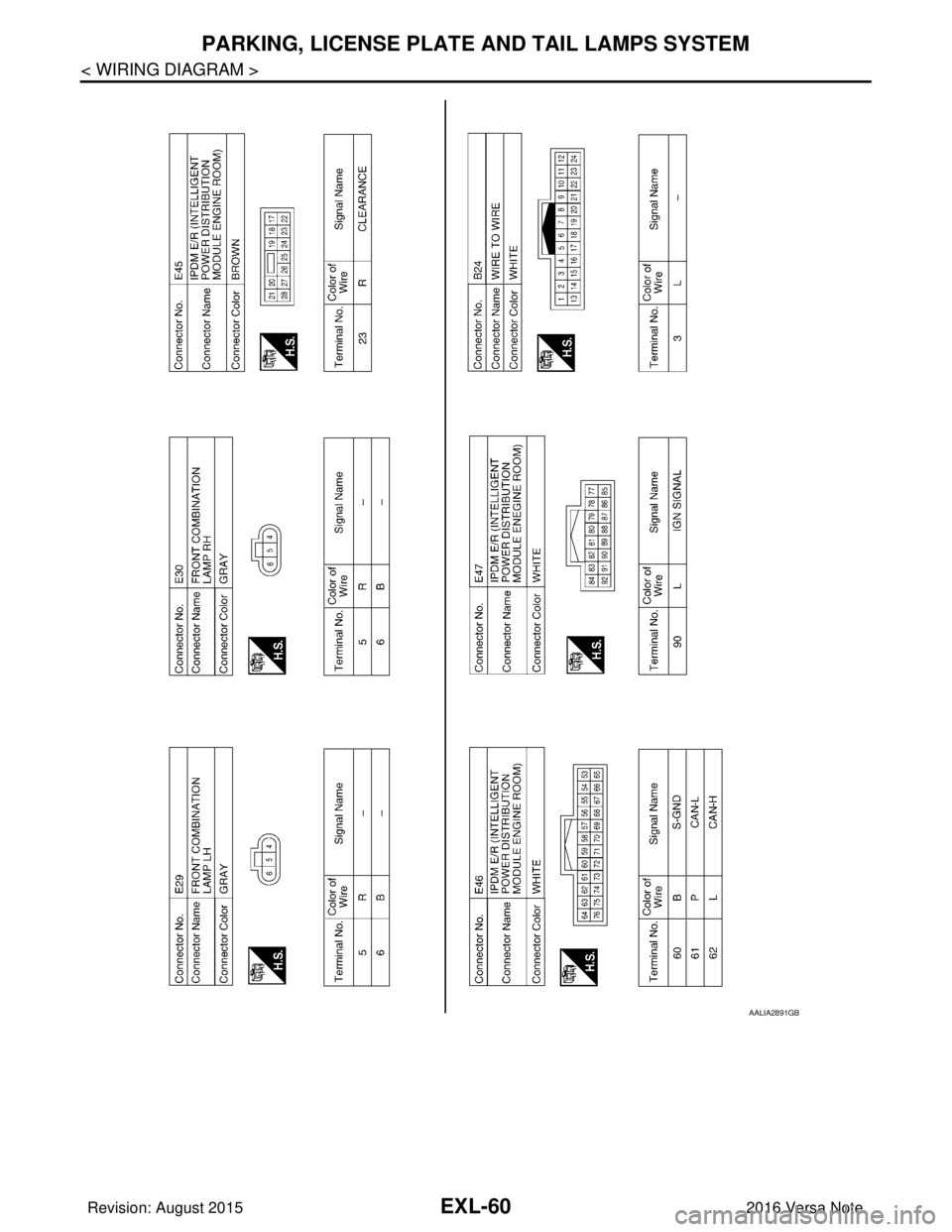

NISSAN NOTE 2016 Service Repair Manual EXL-60 < WIRING DIAGRAM > PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM AALIA2891GB Revision: August 20152016 Versa Note cardiagn.com

Page 1713 of 3641

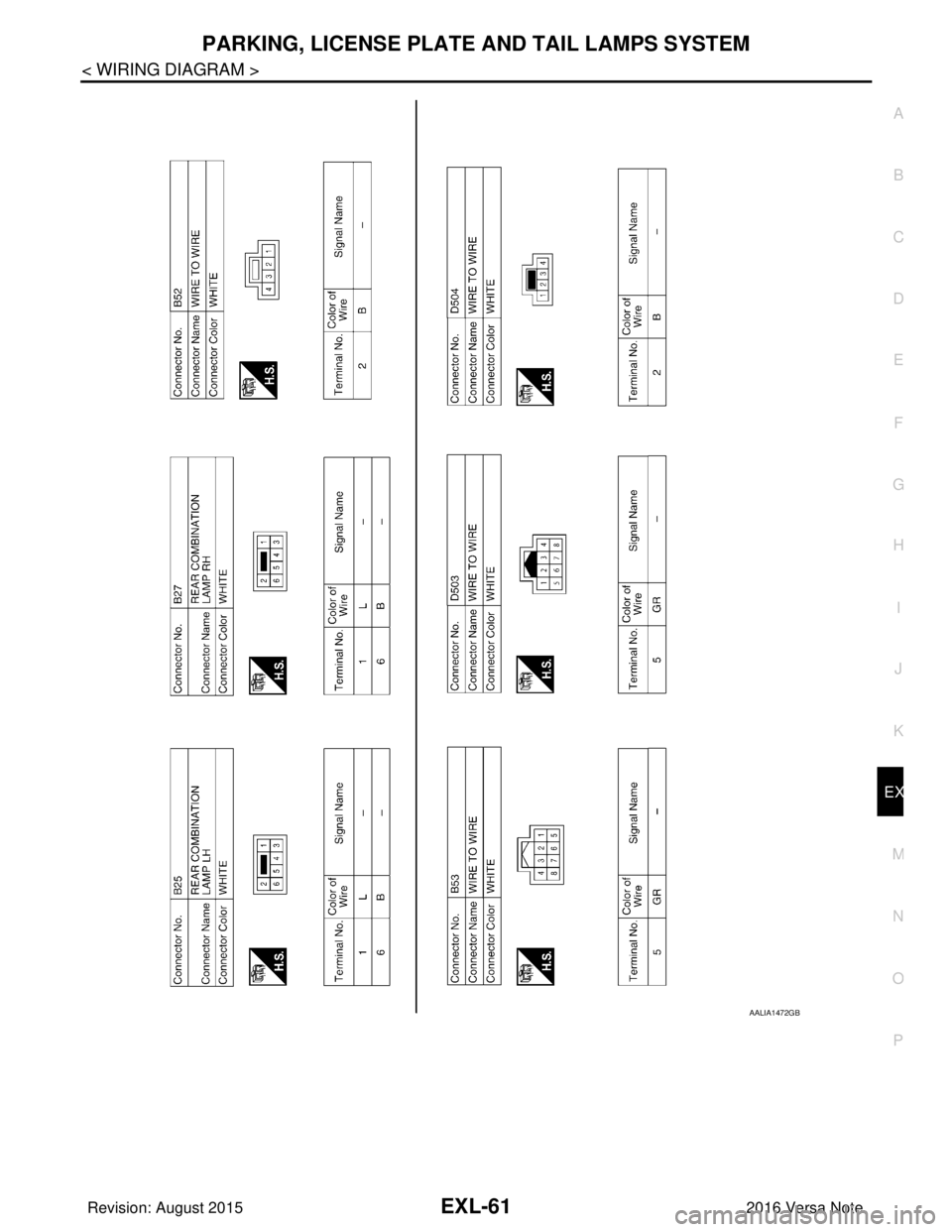

NISSAN NOTE 2016 Service Repair Manual PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEMEXL-61 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P AALIA1472GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1714 of 3641

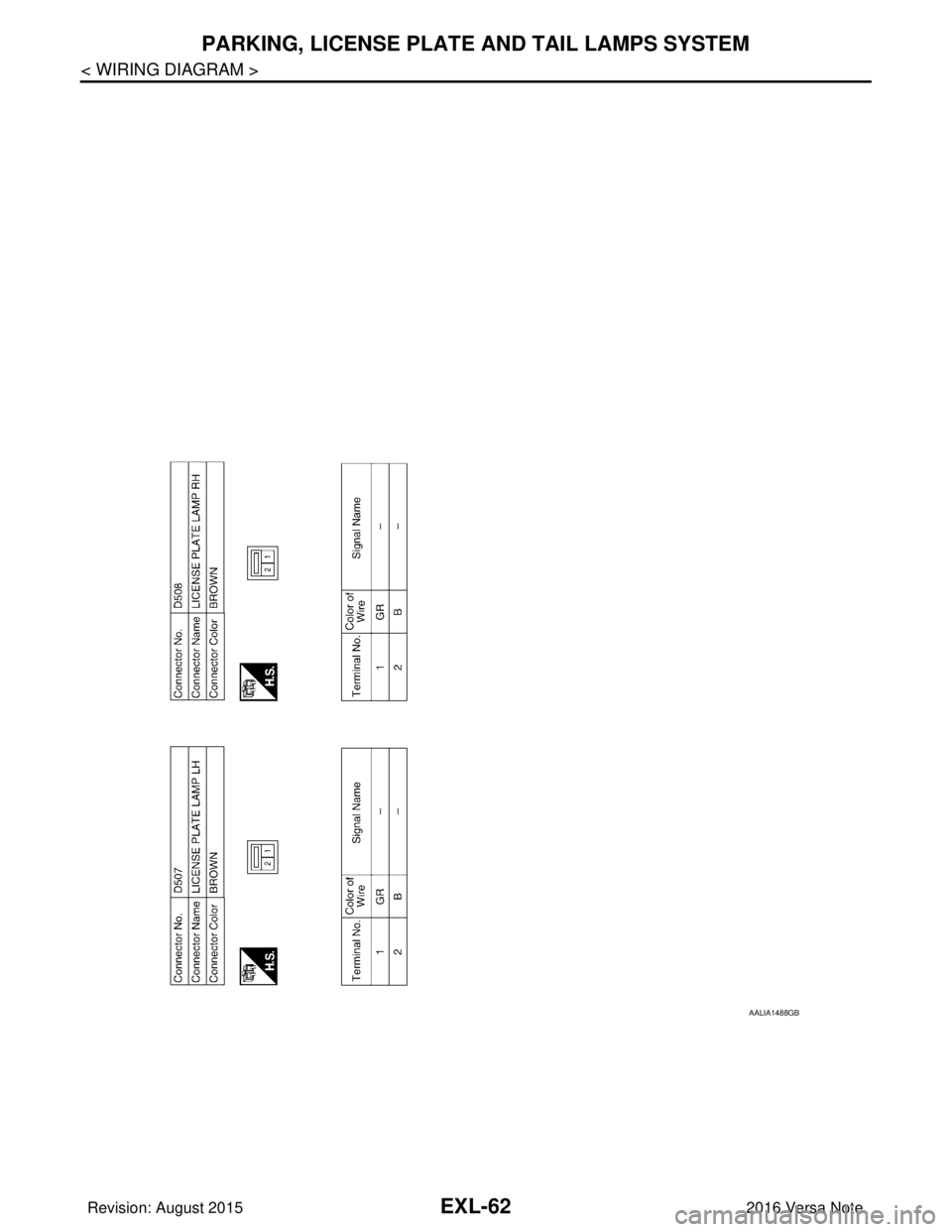

NISSAN NOTE 2016 Service Repair Manual EXL-62 < WIRING DIAGRAM > PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM AALIA1488GB Revision: August 20152016 Versa Note cardiagn.com

Page 1715 of 3641

NISSAN NOTE 2016 Service Repair Manual STOP LAMPEXL-63 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P STOP LAMP Wiring DiagramINFOID:0000000012432798 ABLWA3286GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1716 of 3641

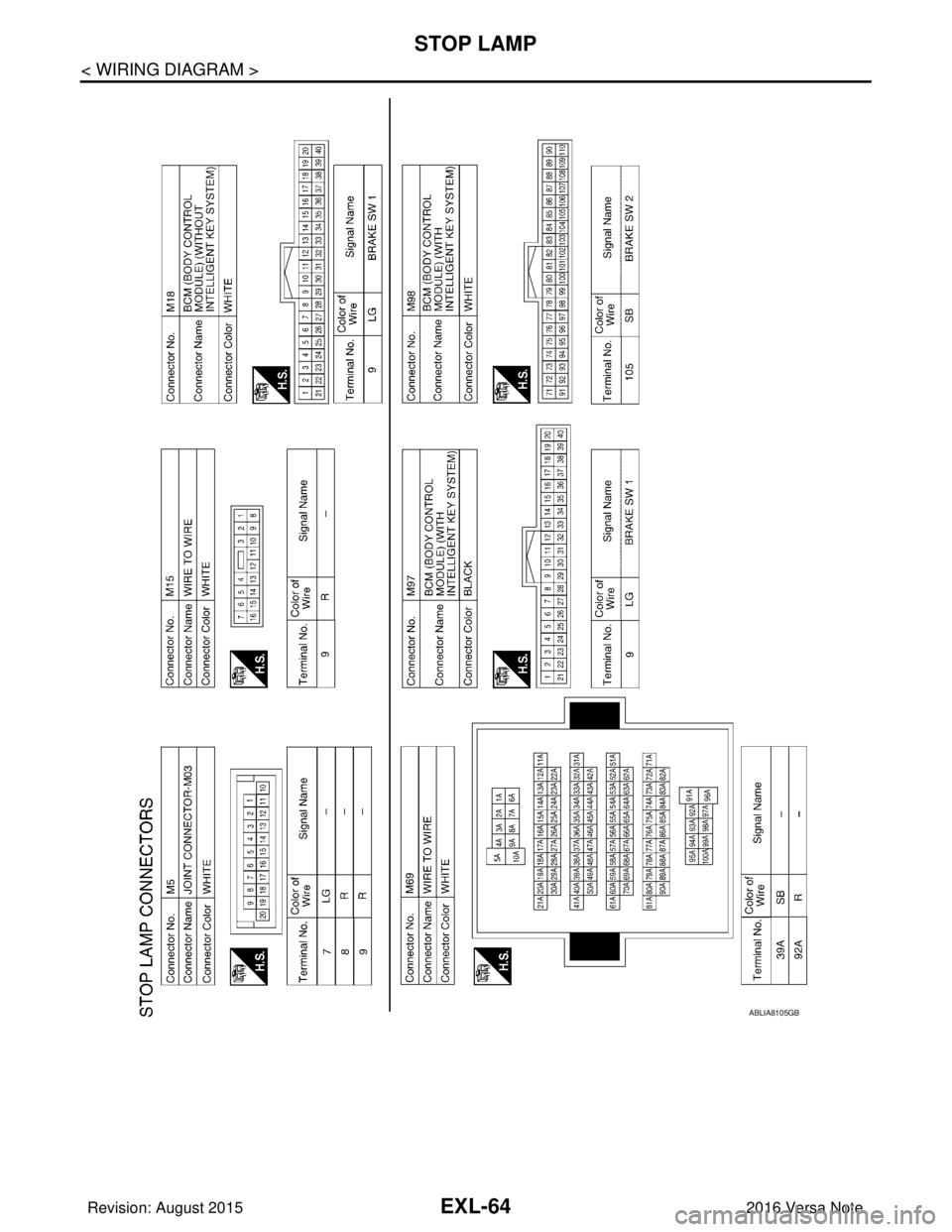

NISSAN NOTE 2016 Service Repair Manual EXL-64 < WIRING DIAGRAM > STOP LAMP ABLIA8105GB Revision: August 20152016 Versa Note cardiagn.com

Page 1717 of 3641

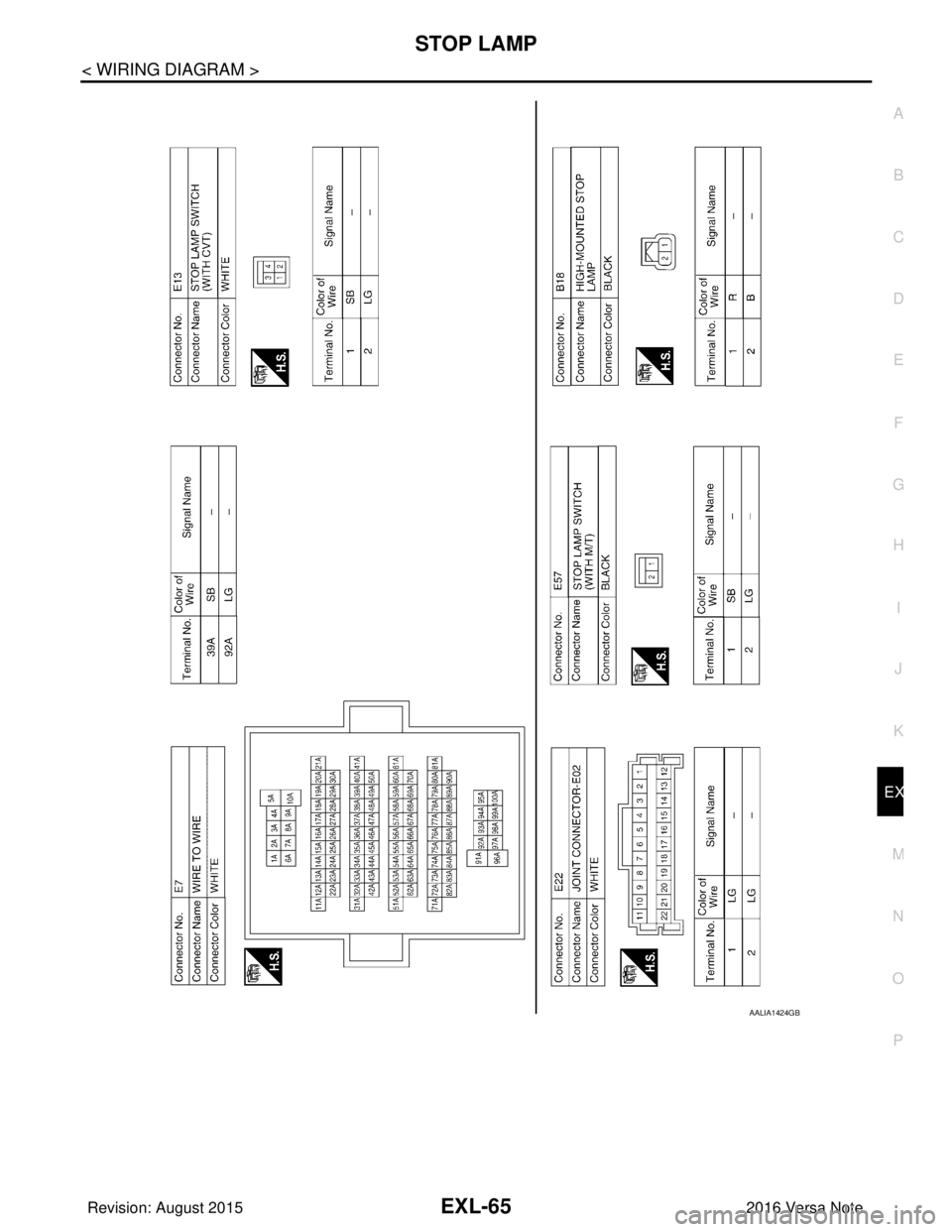

NISSAN NOTE 2016 Service Repair Manual STOP LAMPEXL-65 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P AALIA1424GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1718 of 3641

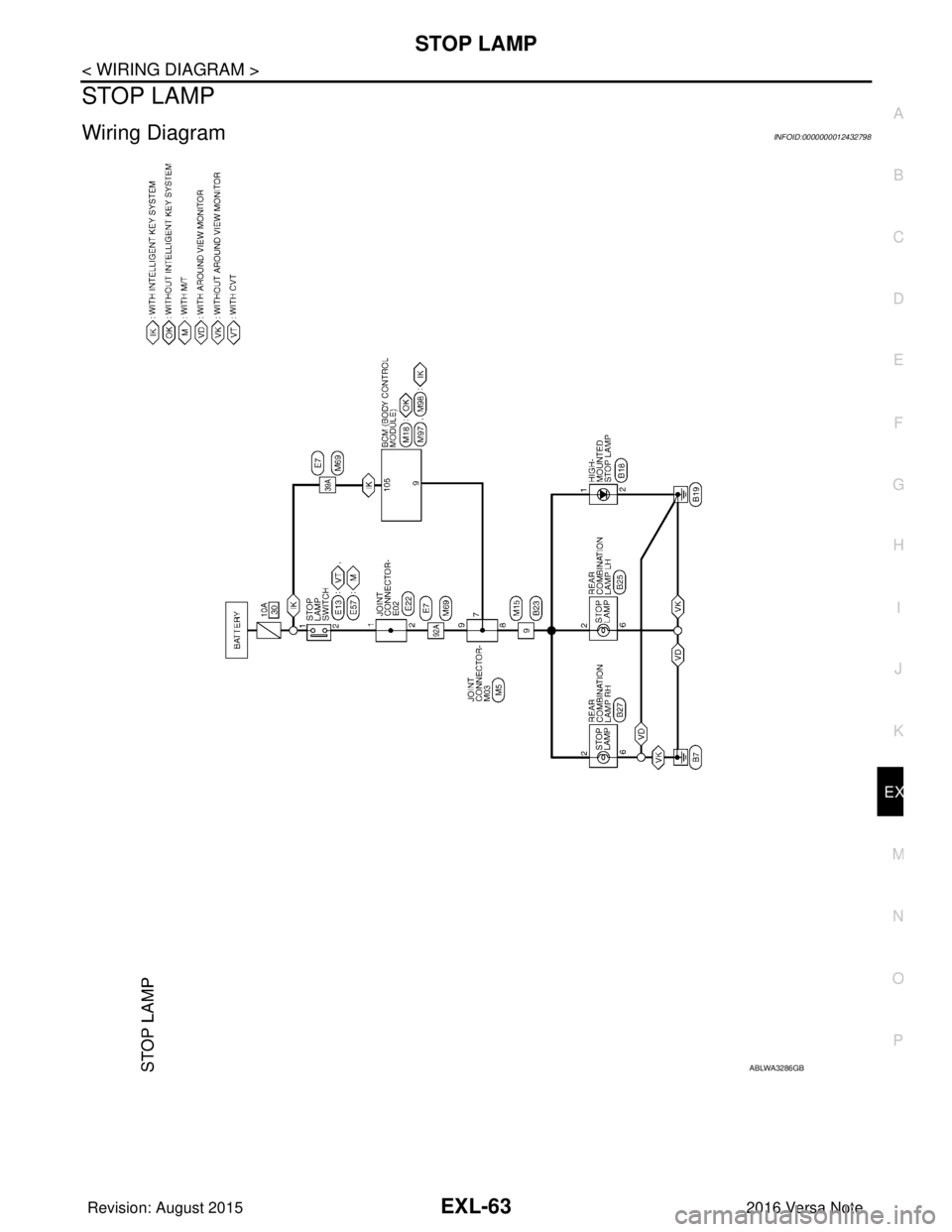

NISSAN NOTE 2016 Service Repair Manual EXL-66 < WIRING DIAGRAM > STOP LAMP AALIA1425GB Revision: August 20152016 Versa Note cardiagn.com

Page 1719 of 3641

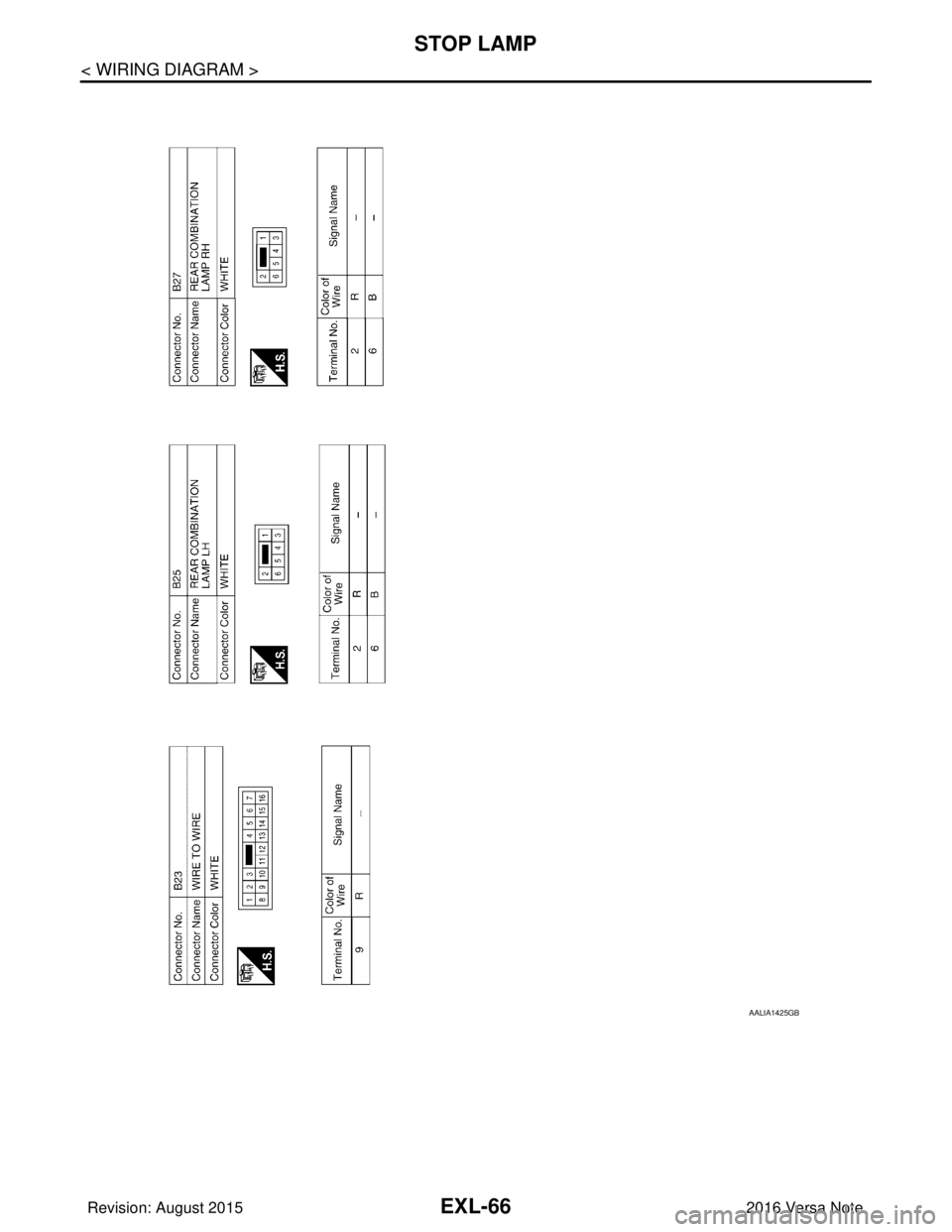

NISSAN NOTE 2016 Service Repair Manual BACK-UP LAMPEXL-67 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P BACK-UP LAMP Wiring DiagramINFOID:0000000012432799 AALWA1006GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1720 of 3641

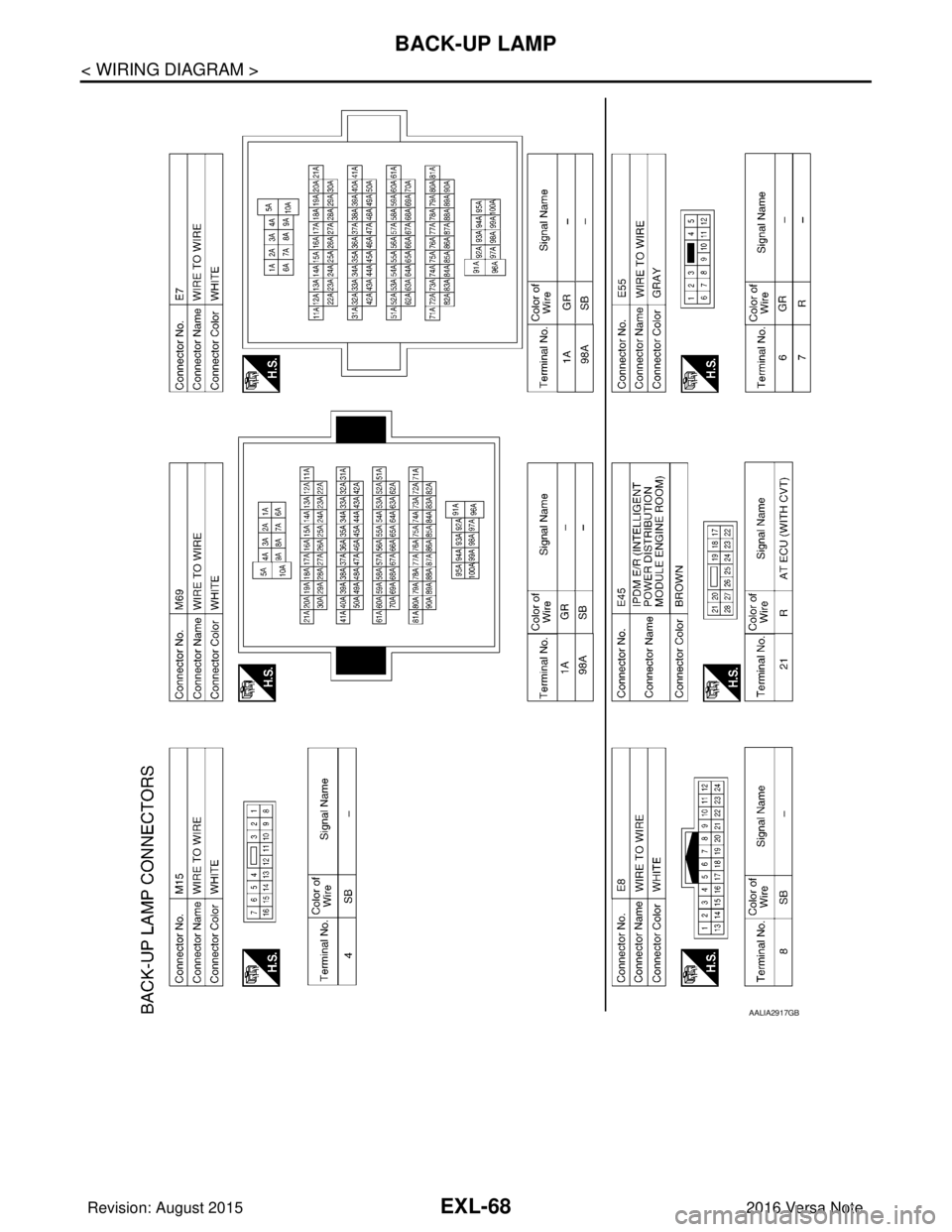

NISSAN NOTE 2016 Service Repair Manual EXL-68 < WIRING DIAGRAM > BACK-UP LAMP AALIA2917GB Revision: August 20152016 Versa Note cardiagn.com
