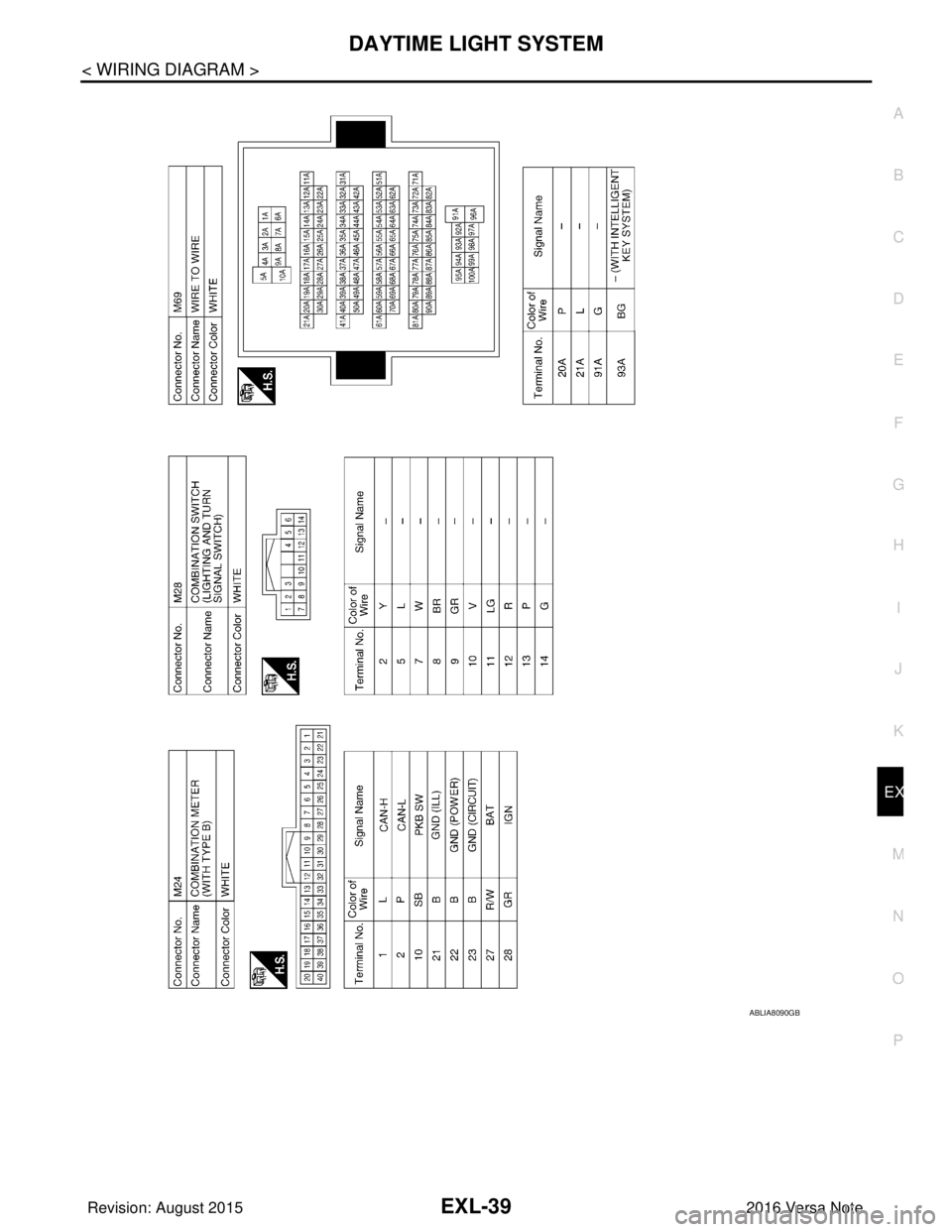

NISSAN NOTE 2016 Service Repair Manual DAYTIME LIGHT SYSTEMEXL-39 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P ABLIA8090GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1692 of 3641

NISSAN NOTE 2016 Service Repair Manual EXL-40 < WIRING DIAGRAM > DAYTIME LIGHT SYSTEM ABLIA8091GB Revision: August 20152016 Versa Note cardiagn.com

Page 1693 of 3641

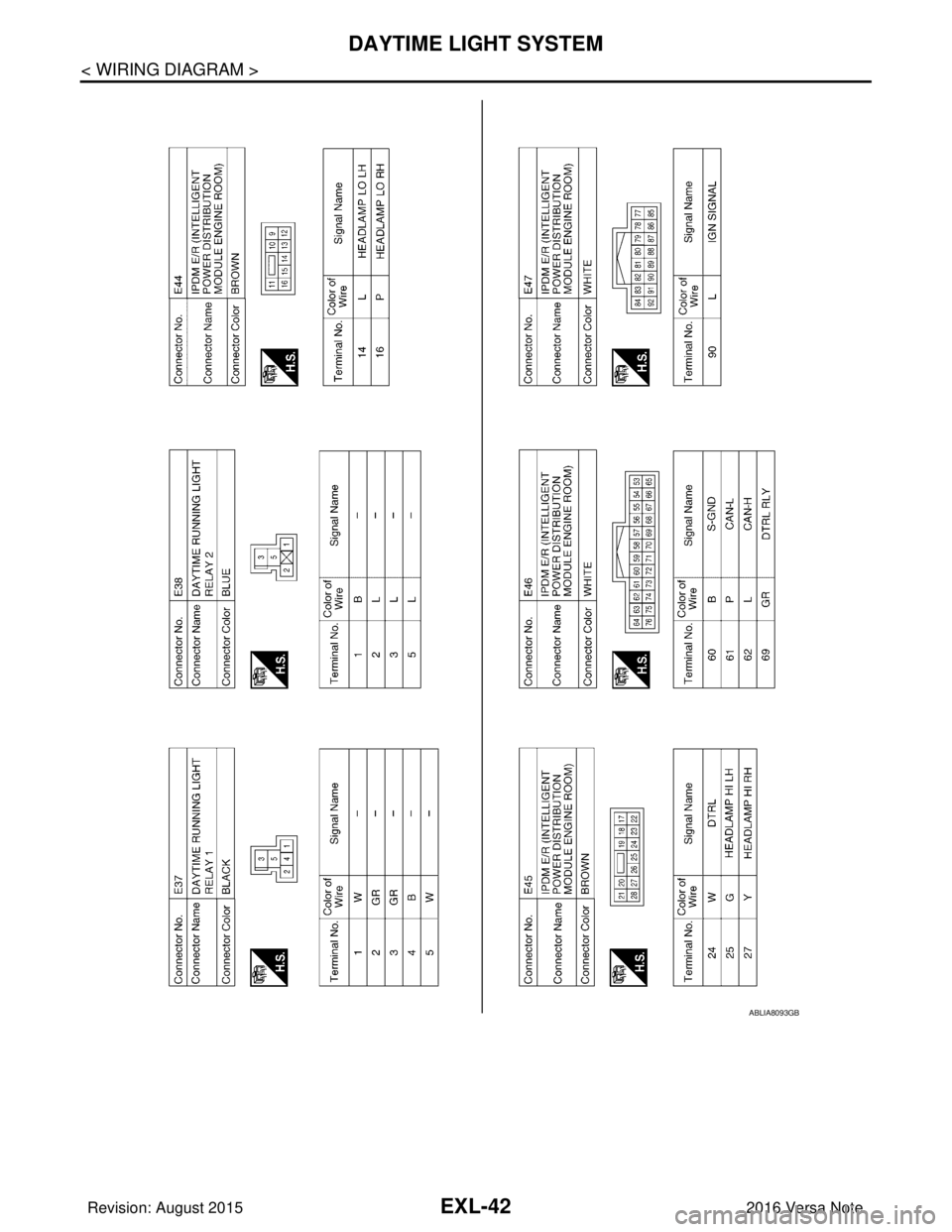

NISSAN NOTE 2016 Service Repair Manual DAYTIME LIGHT SYSTEMEXL-41 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P ABLIA8092GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1694 of 3641

NISSAN NOTE 2016 Service Repair Manual EXL-42 < WIRING DIAGRAM > DAYTIME LIGHT SYSTEM ABLIA8093GB Revision: August 20152016 Versa Note cardiagn.com

Page 1695 of 3641

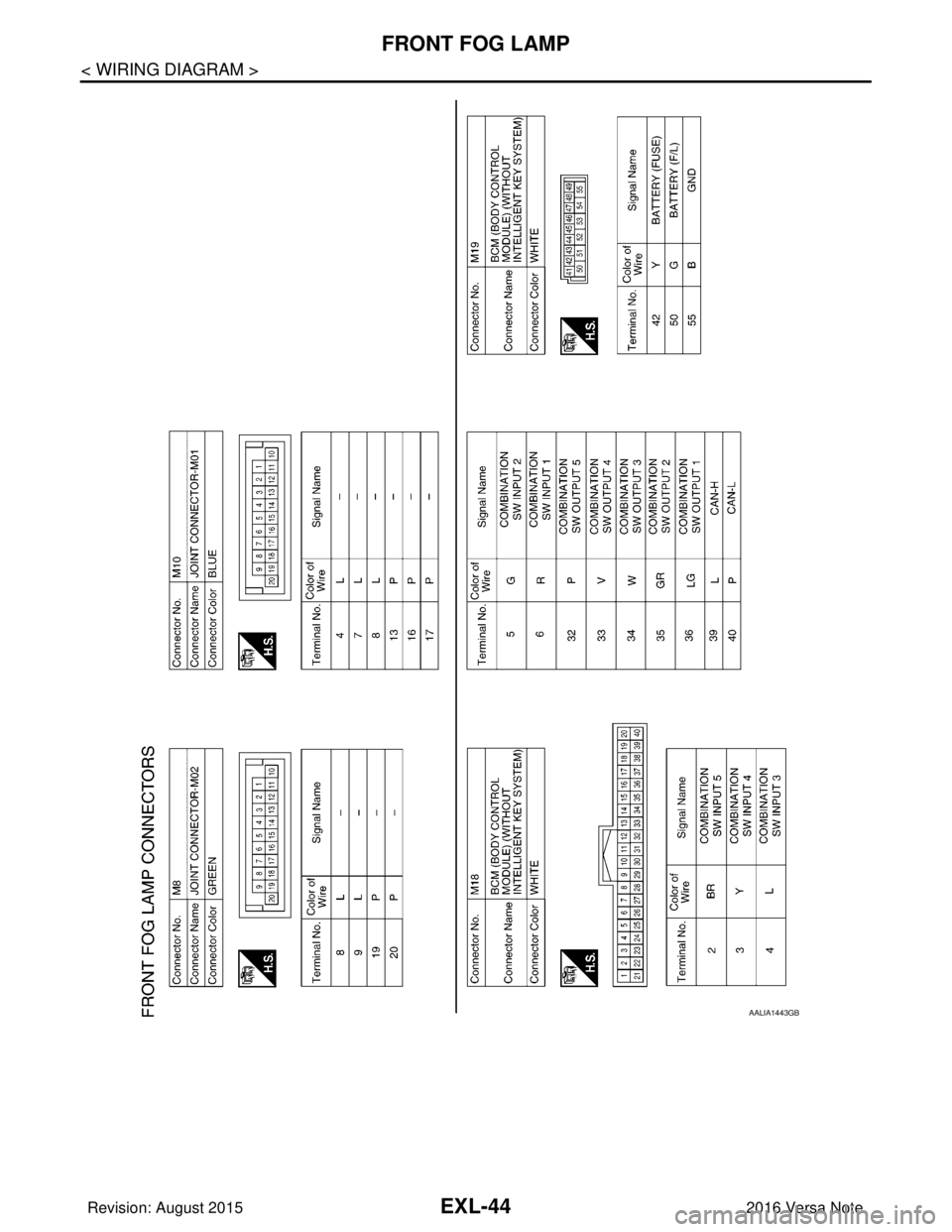

NISSAN NOTE 2016 Service Repair Manual FRONT FOG LAMPEXL-43 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P FRONT FOG LAMP Wiring DiagramINFOID:0000000012432795 ABLWA3282GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1696 of 3641

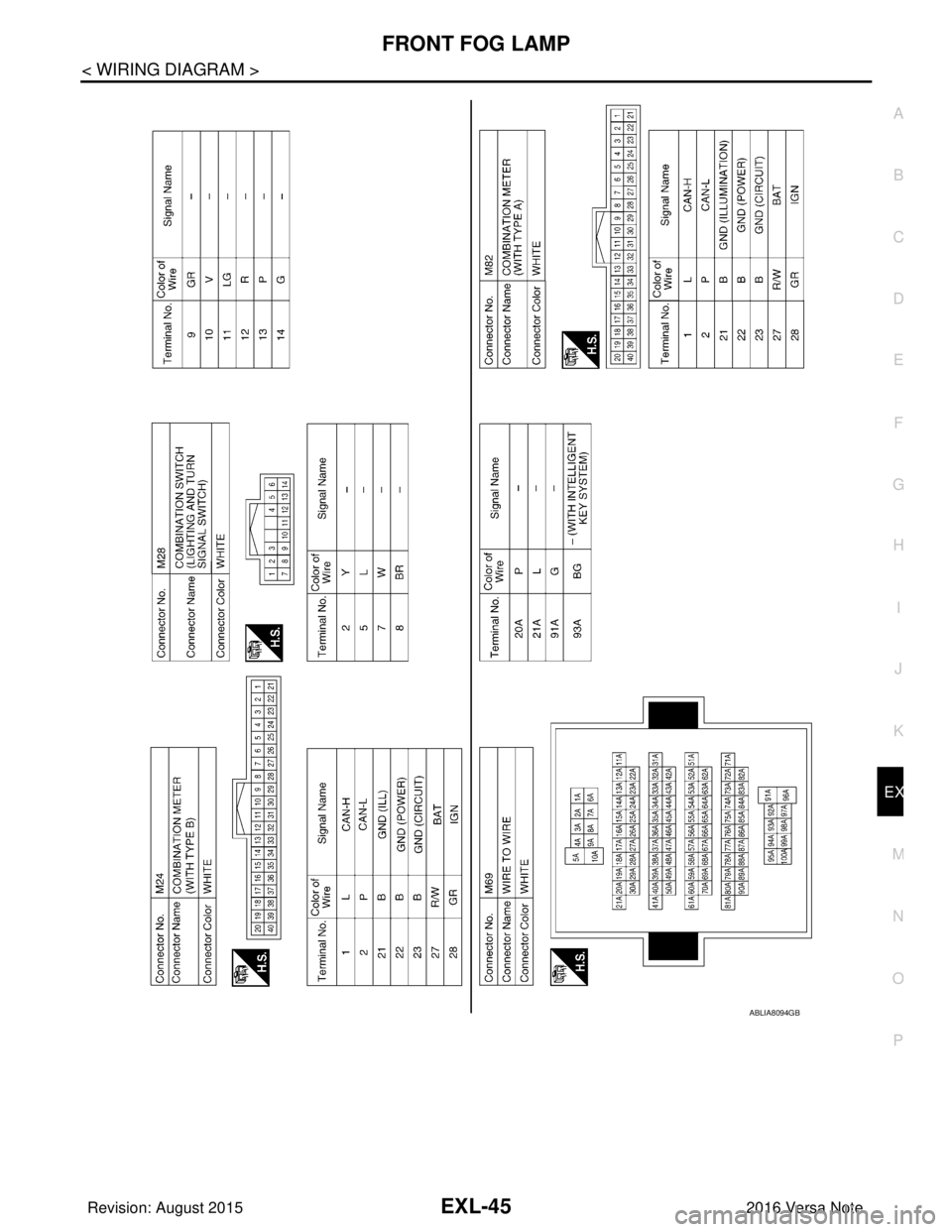

NISSAN NOTE 2016 Service Repair Manual EXL-44 < WIRING DIAGRAM > FRONT FOG LAMP AALIA1443GB Revision: August 20152016 Versa Note cardiagn.com

Page 1697 of 3641

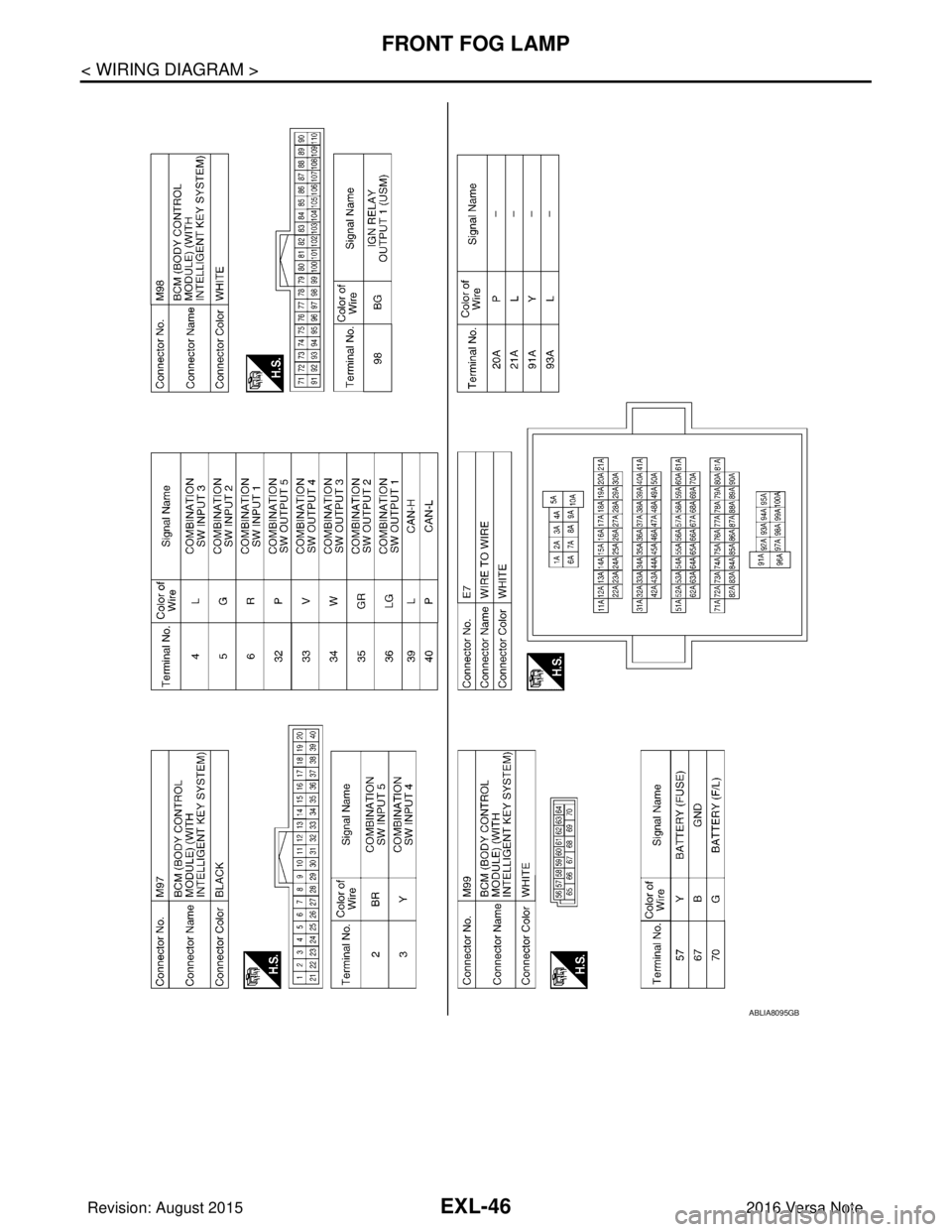

NISSAN NOTE 2016 Service Repair Manual FRONT FOG LAMPEXL-45 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P ABLIA8094GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1698 of 3641

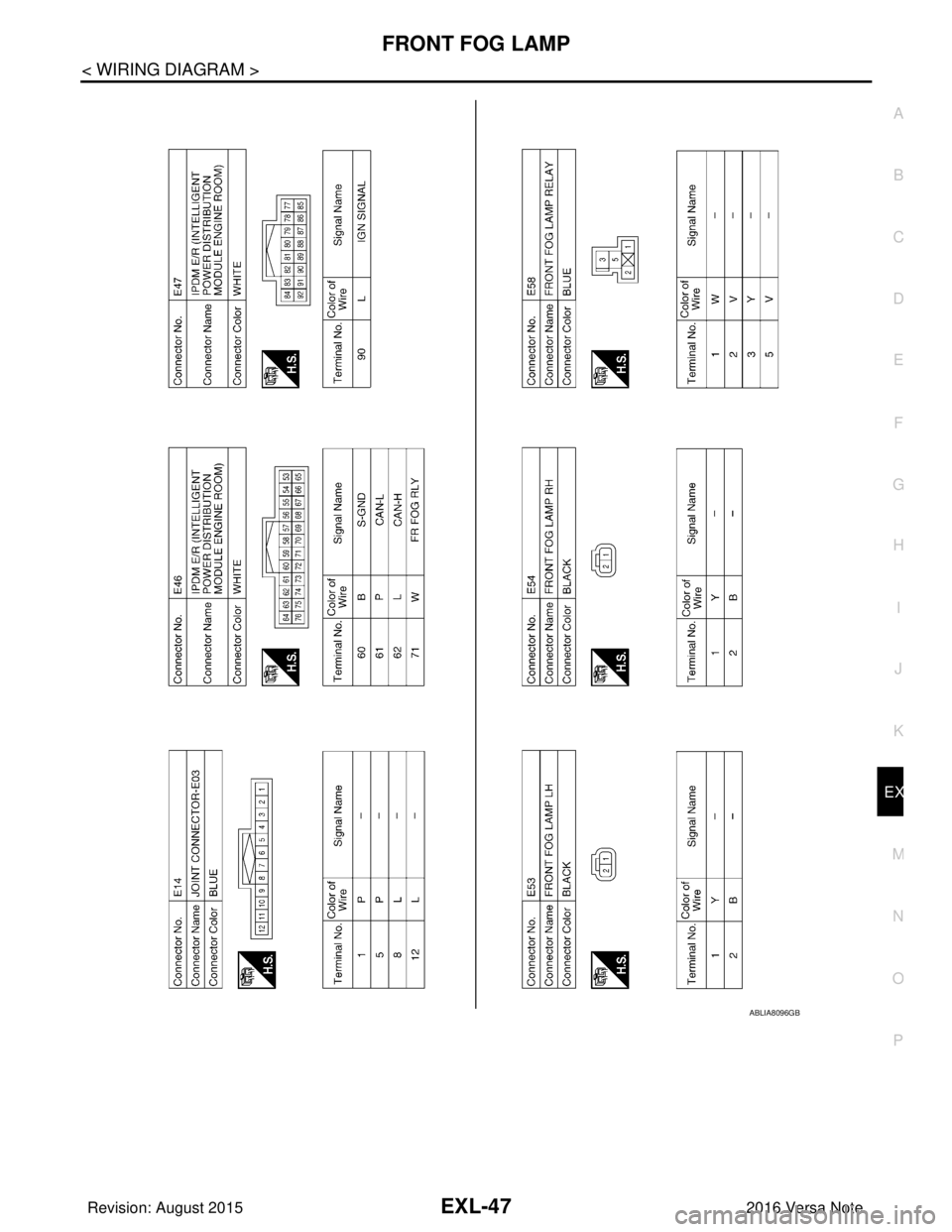

NISSAN NOTE 2016 Service Repair Manual EXL-46 < WIRING DIAGRAM > FRONT FOG LAMP ABLIA8095GB Revision: August 20152016 Versa Note cardiagn.com

Page 1699 of 3641

NISSAN NOTE 2016 Service Repair Manual FRONT FOG LAMPEXL-47 < WIRING DIAGRAM > C DE F G H I J K M A B EXL N O P ABLIA8096GB Revision: August 2015 2016 Versa Note cardiagn.com

Page 1700 of 3641

NISSAN NOTE 2016 Service Repair Manual EXL-48 < WIRING DIAGRAM > TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM Wiring DiagramINFOID:0000000012432796 ABLWA3289GB Revision: August 2015 2016 Versa Note
