NISSAN PATHFINDER 2004 R50 / 2.G Owners Manual

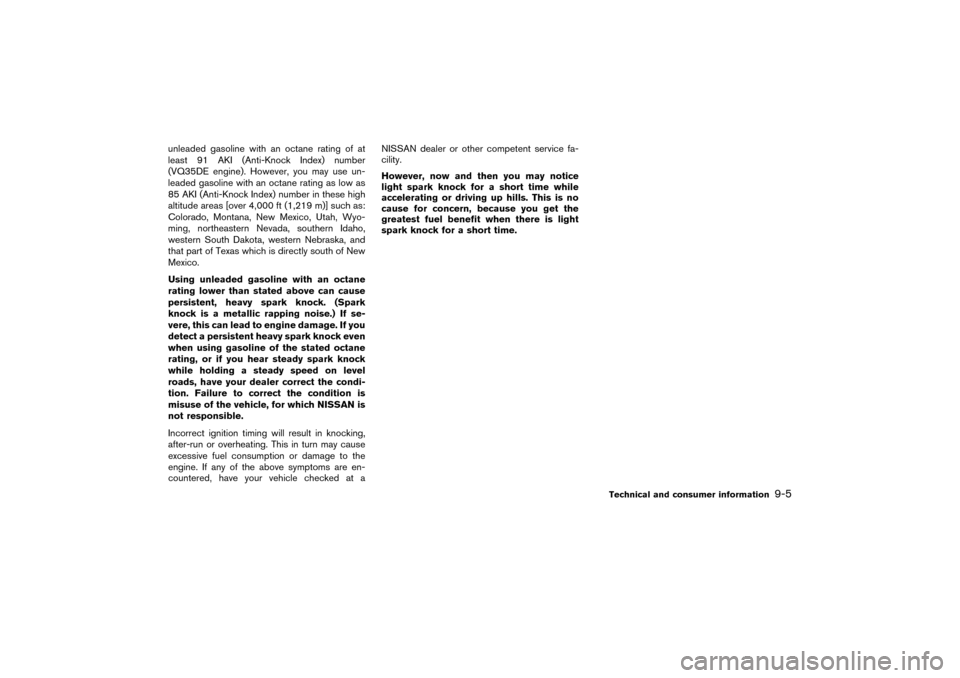

unleaded gasoline with an octane rating of at
least 91 AKI (Anti-Knock Index) number
(VQ35DE engine). However, you may use un-
leaded gasoline with an octane rating as low as
85 AKI (Anti-Knock Index) number in these high
altitude areas [over 4,000 ft (1,219 m)] such as:
Colorado, Montana, New Mexico, Utah, Wyo-
ming, northeastern Nevada, southern Idaho,
western South Dakota, western Nebraska, and
that part of Texas which is directly south of New
Mexico.
Using unleaded gasoline with an octane
rating lower than stated above can cause
persistent, heavy spark knock. (Spark
knock is a metallic rapping noise.) If se-
vere, this can lead to engine damage. If you
detect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level
roads, have your dealer correct the condi-
tion. Failure to correct the condition is
misuse of the vehicle, for which NISSAN is
not responsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are en-
countered, have your vehicle checked at aNISSAN dealer or other competent service fa-
cility.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time.
Technical and consumer information
9-5


04.3.9/R50-D/V5

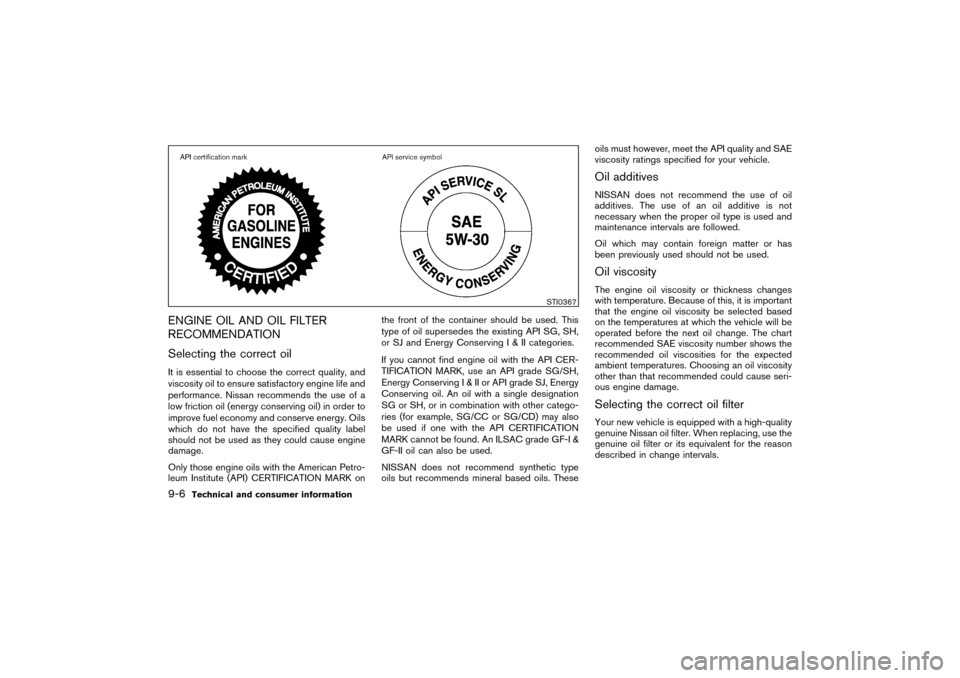

ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oilIt is essential to choose the correct quality, and
viscosity oil to ensure satisfactory engine life and
performance. Nissan recommends the use of a
low friction oil (energy conserving oil) in order to
improve fuel economy and conserve energy. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Only those engine oils with the American Petro-
leum Institute (API) CERTIFICATION MARK onthe front of the container should be used. This
type of oil supersedes the existing API SG, SH,
or SJ and Energy ConservingI&IIcategories.
If you cannot find engine oil with the API CER-
TIFICATION MARK, use an API grade SG/SH,
Energy ConservingI&IIorAPIgrade SJ, Energy
Conserving oil. An oil with a single designation
SG or SH, or in combination with other catego-
ries (for example, SG/CC or SG/CD) may also
be used if one with the API CERTIFICATION
MARK cannot be found. An ILSAC grade GF-I &
GF-II oil can also be used.
NISSAN does not recommend synthetic type
oils but recommends mineral based oils. Theseoils must however, meet the API quality and SAE
viscosity ratings specified for your vehicle.
Oil additivesNISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.Oil viscosityThe engine oil viscosity or thickness changes
with temperature. Because of this, it is important
that the engine oil viscosity be selected based
on the temperatures at which the vehicle will be
operated before the next oil change. The chart
recommended SAE viscosity number shows the
recommended oil viscosities for the expected
ambient temperatures. Choosing an oil viscosity
other than that recommended could cause seri-
ous engine damage.Selecting the correct oil filterYour new vehicle is equipped with a high-quality
genuine Nissan oil filter. When replacing, use the
genuine oil filter or its equivalent for the reason
described in change intervals.
STI0367
9-6
Technical and consumer information


04.3.9/R50-D/V5

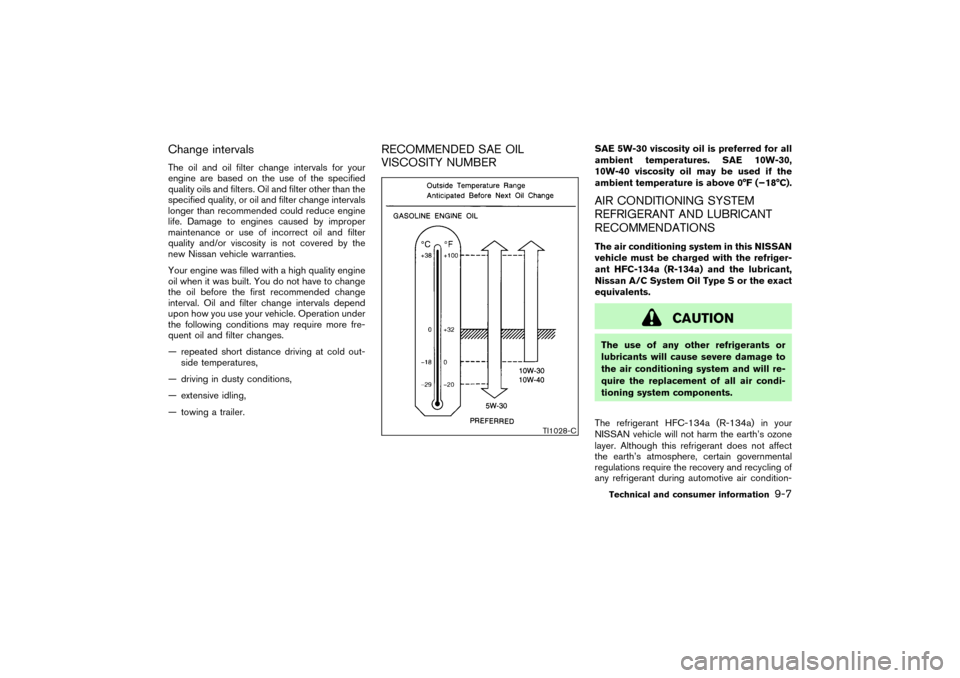

Change intervalsThe oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than the
specified quality, or oil and filter change intervals
longer than recommended could reduce engine
life. Damage to engines caused by improper
maintenance or use of incorrect oil and filter
quality and/or viscosity is not covered by the
new Nissan vehicle warranties.
Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle. Operation under
the following conditions may require more fre-
quent oil and filter changes.
— repeated short distance driving at cold out-
side temperatures,
— driving in dusty conditions,
— extensive idling,
— towing a trailer.
RECOMMENDED SAE OIL
VISCOSITY NUMBER
SAE 5W-30 viscosity oil is preferred for all
ambient temperatures. SAE 10W-30,
10W-40 viscosity oil may be used if the
ambient temperature is above 0°F (−18°C).AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONSThe air conditioning system in this NISSAN
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and the lubricant,
Nissan A/C System Oil Type S or the exact
equivalents.
CAUTION
The use of any other refrigerants or
lubricants will cause severe damage to
the air conditioning system and will re-
quire the replacement of all air condi-
tioning system components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air condition-
TI1028-C
Technical and consumer information
9-7


04.3.9/R50-D/V5

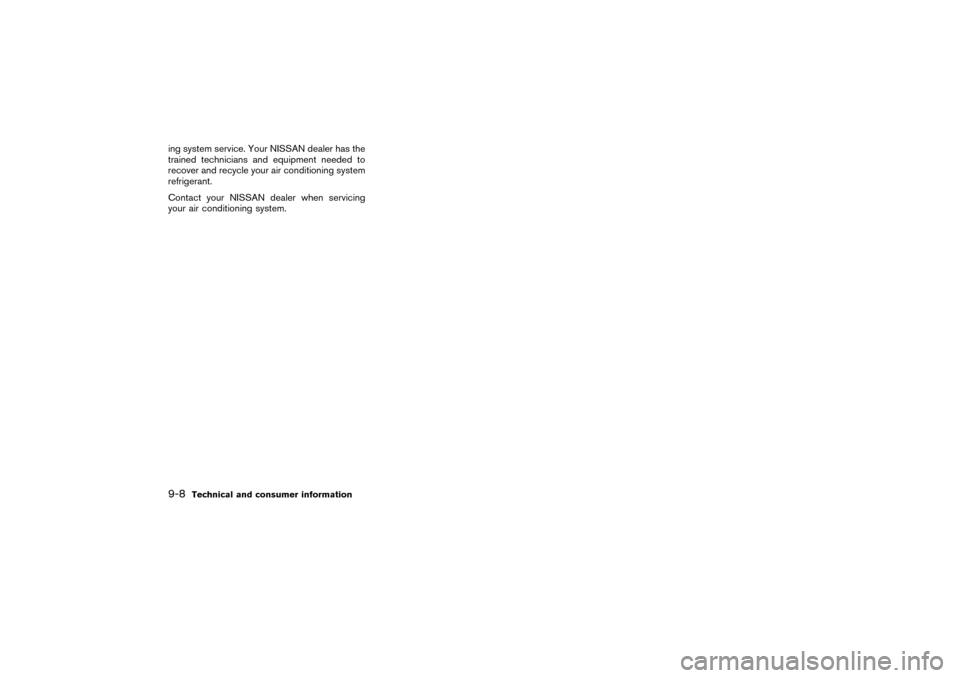

ing system service. Your NISSAN dealer has the
trained technicians and equipment needed to
recover and recycle your air conditioning system
refrigerant.
Contact your NISSAN dealer when servicing
your air conditioning system.9-8
Technical and consumer information


04.3.9/R50-D/V5


ENGINE
ModelVQ35DE
TypeGasoline, 4-cycle
Cylinder arrangement6-cylinder, V-slanted at 60°
Bore×Stroke in (mm) 3.760×3.205 (95.5×81.4)
Displacement cu in (cm
3) 213.45 (3,498)
Firing order1-2-3-4-5-6
Idle speed rpm
See the “Emission control label” on the underside of the hood. Ignition timing (BTDC) degree/rpm
CO percentage at idle speed [No air] %
Spark plugPL FR5A-11 (Standard)
PL FR4A-11 (Service option)
PL FR6A-11 (Service option)
Spark plug gap in (mm) 0.043 (1.1)
Camshaft operationTiming chain
Alternator belt size
Width×Length in (mm) 0.8409×46.26 (21.36×1,175)
*1: Periodic maintenance is necessary. See “Periodic maintenance” in the “Service and Maintenance Guide” for maintenance intervals.
SPECIFICATIONS
Technical and consumer information
9-9


04.3.9/R50-D/V5

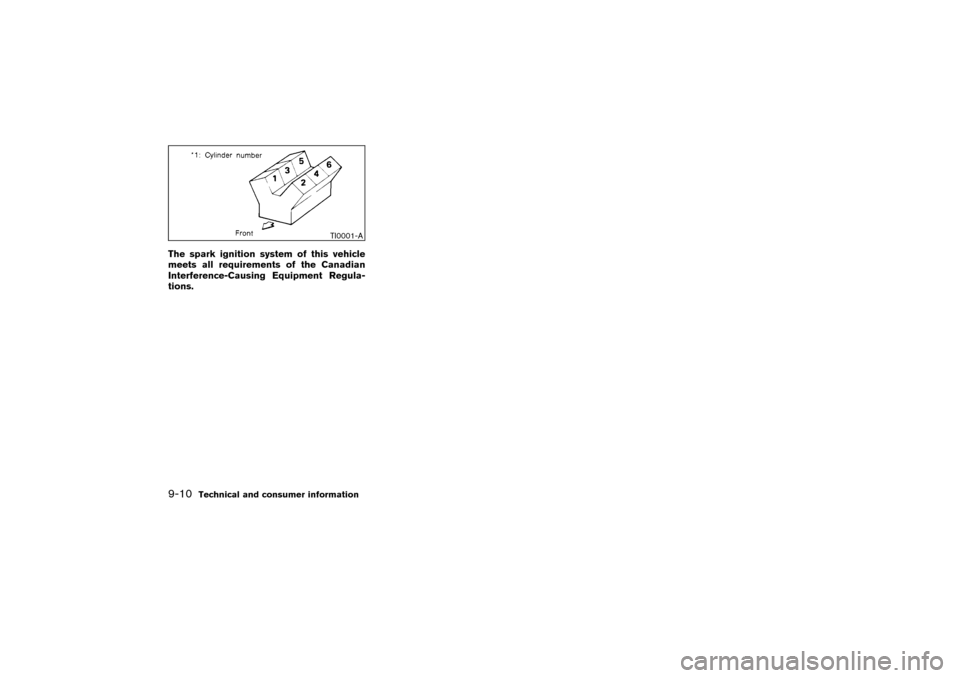

The spark ignition system of this vehicle
meets all requirements of the Canadian
Interference-Causing Equipment Regula-
tions.
TI0001-A
9-10
Technical and consumer information


04.3.9/R50-D/V5

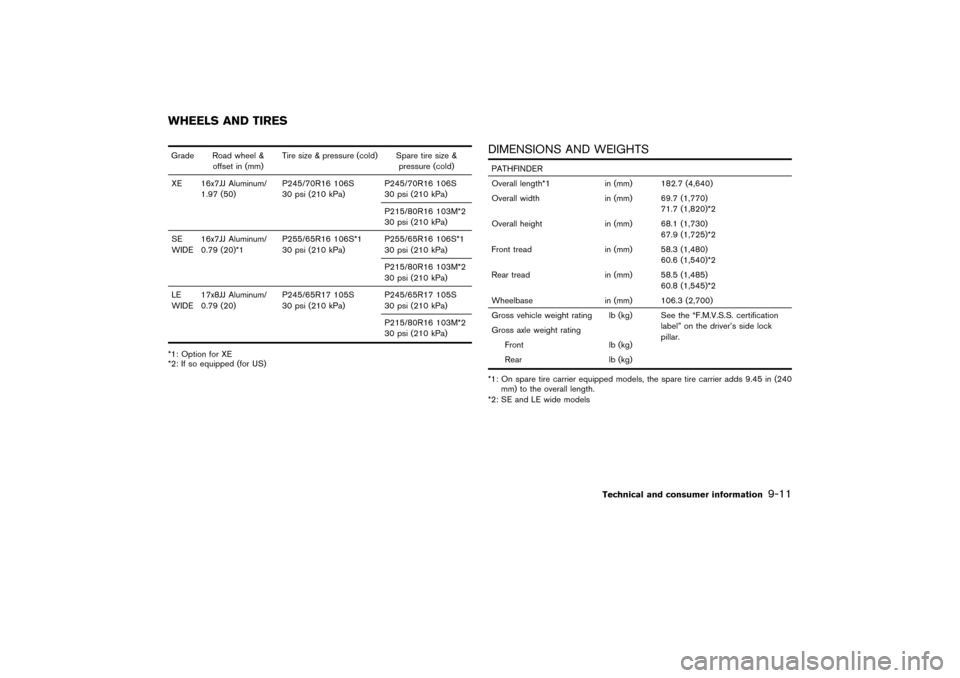

Grade Road wheel &
offset in (mm)Tire size & pressure (cold) Spare tire size &
pressure (cold)
XE 16x7JJ Aluminum/
1.97 (50)P245/70R16 106S
30 psi (210 kPa)P245/70R16 106S
30 psi (210 kPa)
P215/80R16 103M*2
30 psi (210 kPa)
SE
WIDE16x7JJ Aluminum/
0.79 (20)*1P255/65R16 106S*1
30 psi (210 kPa)P255/65R16 106S*1
30 psi (210 kPa)
P215/80R16 103M*2
30 psi (210 kPa)
LE
WIDE17x8JJ Aluminum/
0.79 (20)P245/65R17 105S
30 psi (210 kPa)P245/65R17 105S
30 psi (210 kPa)
P215/80R16 103M*2
30 psi (210 kPa)
*1: Option for XE
*2: If so equipped (for US)
DIMENSIONS AND WEIGHTSPATHFINDER
Overall length*1 in (mm) 182.7 (4,640)
Overall width in (mm) 69.7 (1,770)
71.7 (1,820)*2
Overall height in (mm) 68.1 (1,730)
67.9 (1,725)*2
Front tread in (mm) 58.3 (1,480)
60.6 (1,540)*2
Rear tread in (mm) 58.5 (1,485)
60.8 (1,545)*2
Wheelbase in (mm) 106.3 (2,700)
Gross vehicle weight rating lb(kg) See the “F.M.V.S.S. certification
label” on the driver’s side lock
pillar. Gross axle weight rating
Front lb(kg)
Rear lb(kg)
*1: On spare tire carrier equipped models, the spare tire carrier adds 9.45 in (240
mm) to the overall length.
*2: SE and LE wide models
WHEELS AND TIRES
Technical and consumer information
9-11


04.3.9/R50-D/V5


When planning to travel in another country,
you should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating
may cause engine damage. All gasoline
vehicles can be operated with unleaded
gasoline. Therefore, avoid taking your ve-
hicle to areas where appropriate fuel is not
available.
When transferring the registration of your
vehicle to another country, state, province
or district,it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle emis-
sion control and safety standards vary according
to the country, state, province or district; there-
fore, vehicle specifications may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, transpor-
tation and registration are the responsibil-
ity of the user. NISSAN is not responsible
for any inconvenience that may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATEThe vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(Chassis number)
STI0095
STI0227
WHENTRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRYVEHICLE IDENTIFICATION9-12
Technical and consumer information


04.3.9/R50-D/V5

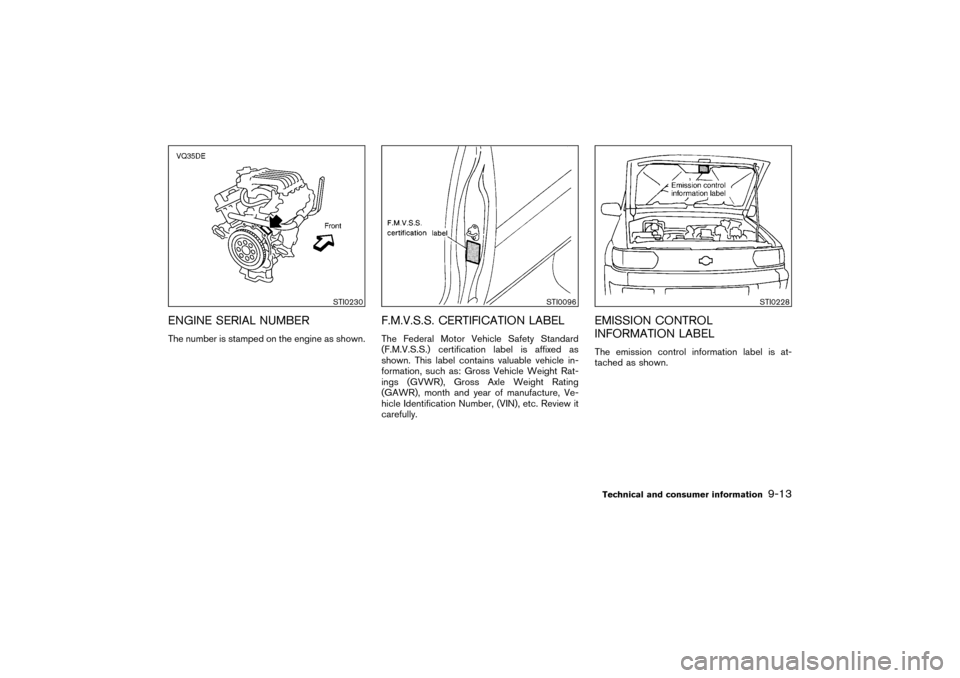

ENGINE SERIAL NUMBERThe number is stamped on the engine as shown.
F.M.V.S.S. CERTIFICATION LABELThe Federal Motor Vehicle Safety Standard
(F.M.V.S.S.) certification label is affixed as
shown. This label contains valuable vehicle in-
formation, such as: Gross Vehicle Weight Rat-
ings (GVWR), Gross Axle Weight Rating
(GAWR), month and year of manufacture, Ve-
hicle Identification Number, (VIN), etc. Review it
carefully.
EMISSION CONTROL
INFORMATION LABELThe emission control information label is at-
tached as shown.
STI0230
STI0096
STI0228
Technical and consumer information
9-13


04.3.9/R50-D/V5

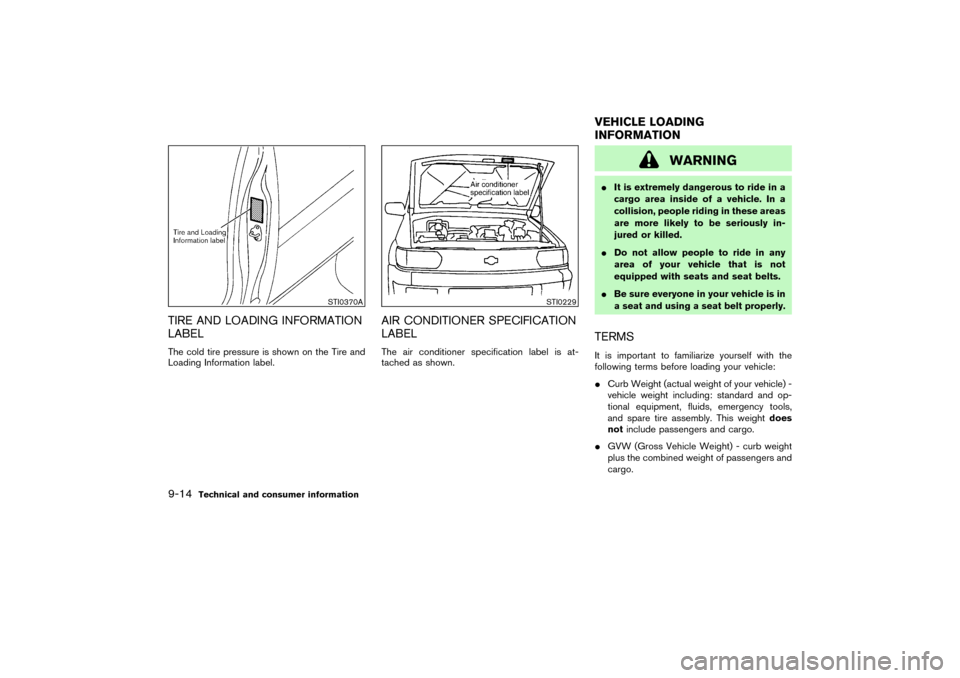

TIRE AND LOADING INFORMATION
LABELThe cold tire pressure is shown on the Tire and
Loading Information label.
AIR CONDITIONER SPECIFICATION
LABELThe air conditioner specification label is at-
tached as shown.
WARNING

It is extremely dangerous to ride in a
cargo area inside of a vehicle. In a
collision, people riding in these areas
are more likely to be seriously in-
jured or killed.

Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.

Be sure everyone in your vehicle is in
a seat and using a seat belt properly.TERMSIt is important to familiarize yourself with the
following terms before loading your vehicle:

CurbWeight (actual weight of your vehicle) -
vehicle weight including: standard and op-
tional equipment, fluids, emergency tools,
and spare tire assembly. This weightdoes
notinclude passengers and cargo.

GVW (Gross Vehicle Weight) - curbweight
plus the combined weight of passengers and
cargo.
STI0370A
STI0229
VEHICLE LOADING
INFORMATION
9-14
Technical and consumer information


04.3.9/R50-D/V5
