NISSAN PATHFINDER 2017 R52 / 4.G Owners Manual

RADIO
How to view radio operation screen
*For models with radio status indicator and
reception information display.The radio screen can be viewed and operated on
the display.1Radio mode indicator: The current radio
mode is displayed.
2“Source” key: Touch to switch to the source
select screen. For additional information, re-
fer to “Selecting audio source” in this sec-
tion.
3“Control” key: Touch to display the control
screen. For additional information, refer to
“Radio controls” in this section.
4HD Radio reception status indicator (for AM
and FM):
The icon is displayed when the HD Radio
digital signal is received. The icon flashes
when the radio is acquiring the digital signal
but the sound output is not yet in the HD
mode.
5Radio band indicator: The currently selected
radio band (AM, FM or SXM) is displayed.
6Reception information display: Reception in-
formation available at the time such as fre-
quency, station/channel name, etc. are dis-
played.
On the SXM screen, touch the area to dis-
play the category list.
736 stations/channels can be registered in
the preset list.
For additional information, refer to “Preset-
ting” in this section.
NAA1716
4-72Monitor, climate, audio, phone and voice recognition systems

NOTE:
HD Radio reception needs to be activated to
receive HD Radio broadcasts. This enables you
to receive radio broadcasts digitally (where avail-
able) , providing a better quality sound with clear
reception. When this feature is not activated or
HD Radio broadcasts are not available, you will
receive analog radio (AM/FM broadcasts) .
Radio source control
There are 2 elements used in the preset list area
that are associated with radio source:
1Highlight for multi-function controller opera-
tion.
2(With triangle) Indicator of current selected
preset station.
Radio operation
Radio activation and band selection
Push the RADIO button or select the preferred
radio band (AM, FM or SXM) from the audio
source list to turn on the radio. Each time the RADIO button is pushed, the radio band will
change. For additional information, refer to “Se-
lecting audio source” in this section.
NOTE:
When the stereo broadcast signal is weak,
the radio will automatically change from
stereo to monaural reception.
Seeking stations/channels
AM and FM radio
Push the SEEK•CAT button or TRACK button to
tune from low to high or high to low frequencies
and to stop at the next broadcasting station.
SiriusXM Satellite Radio
Push the SEEK•CAT button or TRACK button to
tune to the first channel of the next or previous
category.
Scan tuning
To tune the stations/channels, touch the “Con-
trol” key on the display and touch the “Scan” key.
The stations will be turned from low to high
frequencies and stop at each broadcasting sta-
tion for 5 seconds. Touching the “Scan” key again
during this 5 second period will stop scan tuning
and the radio will remain tuned to that station.
Pushing the SCAN button can also scan tune.
NAA1717
Monitor, climate, audio, phone and voice recognition systems4-73

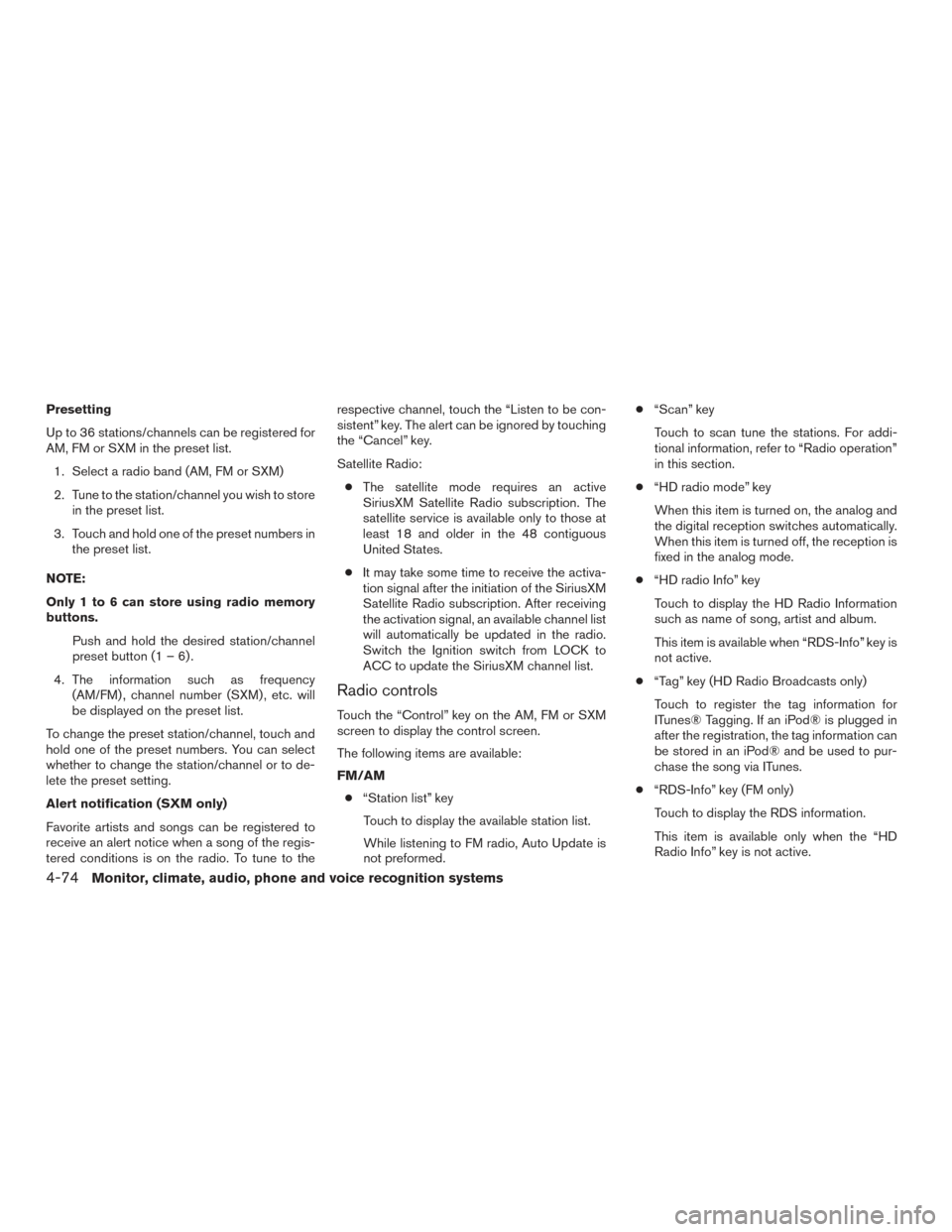

Presetting
Up to 36 stations/channels can be registered for
AM, FM or SXM in the preset list.1. Select a radio band (AM, FM or SXM)
2. Tune to the station/channel you wish to store in the preset list.
3. Touch and hold one of the preset numbers in the preset list.
NOTE:
Only 1 to 6 can store using radio memory
buttons. Push and hold the desired station/channel
preset button (1 – 6) .
4. The information such as frequency (AM/FM) , channel number (SXM) , etc. will
be displayed on the preset list.
To change the preset station/channel, touch and
hold one of the preset numbers. You can select
whether to change the station/channel or to de-
lete the preset setting.
Alert notification (SXM only)
Favorite artists and songs can be registered to
receive an alert notice when a song of the regis-
tered conditions is on the radio. To tune to the respective channel, touch the “Listen to be con-
sistent” key. The alert can be ignored by touching
the “Cancel” key.
Satellite Radio:
● The satellite mode requires an active
SiriusXM Satellite Radio subscription. The
satellite service is available only to those at
least 18 and older in the 48 contiguous
United States.
● It may take some time to receive the activa-
tion signal after the initiation of the SiriusXM
Satellite Radio subscription. After receiving
the activation signal, an available channel list
will automatically be updated in the radio.
Switch the Ignition switch from LOCK to
ACC to update the SiriusXM channel list.
Radio controls
Touch the “Control” key on the AM, FM or SXM
screen to display the control screen.
The following items are available:
FM/AM
● “Station list” key
Touch to display the available station list.
While listening to FM radio, Auto Update is
not preformed. ●
“Scan” key
Touch to scan tune the stations. For addi-
tional information, refer to “Radio operation”
in this section.
● “HD radio mode” key
When this item is turned on, the analog and
the digital reception switches automatically.
When this item is turned off, the reception is
fixed in the analog mode.
● “HD radio Info” key
Touch to display the HD Radio Information
such as name of song, artist and album.
This item is available when “RDS-Info” key is
not active.
● “Tag” key (HD Radio Broadcasts only)
Touch to register the tag information for
ITunes® Tagging. If an iPod® is plugged in
after the registration, the tag information can
be stored in an iPod® and be used to pur-
chase the song via ITunes.
● “RDS-Info” key (FM only)
Touch to display the RDS information.
This item is available only when the “HD
Radio Info” key is not active.
4-74Monitor, climate, audio, phone and voice recognition systems

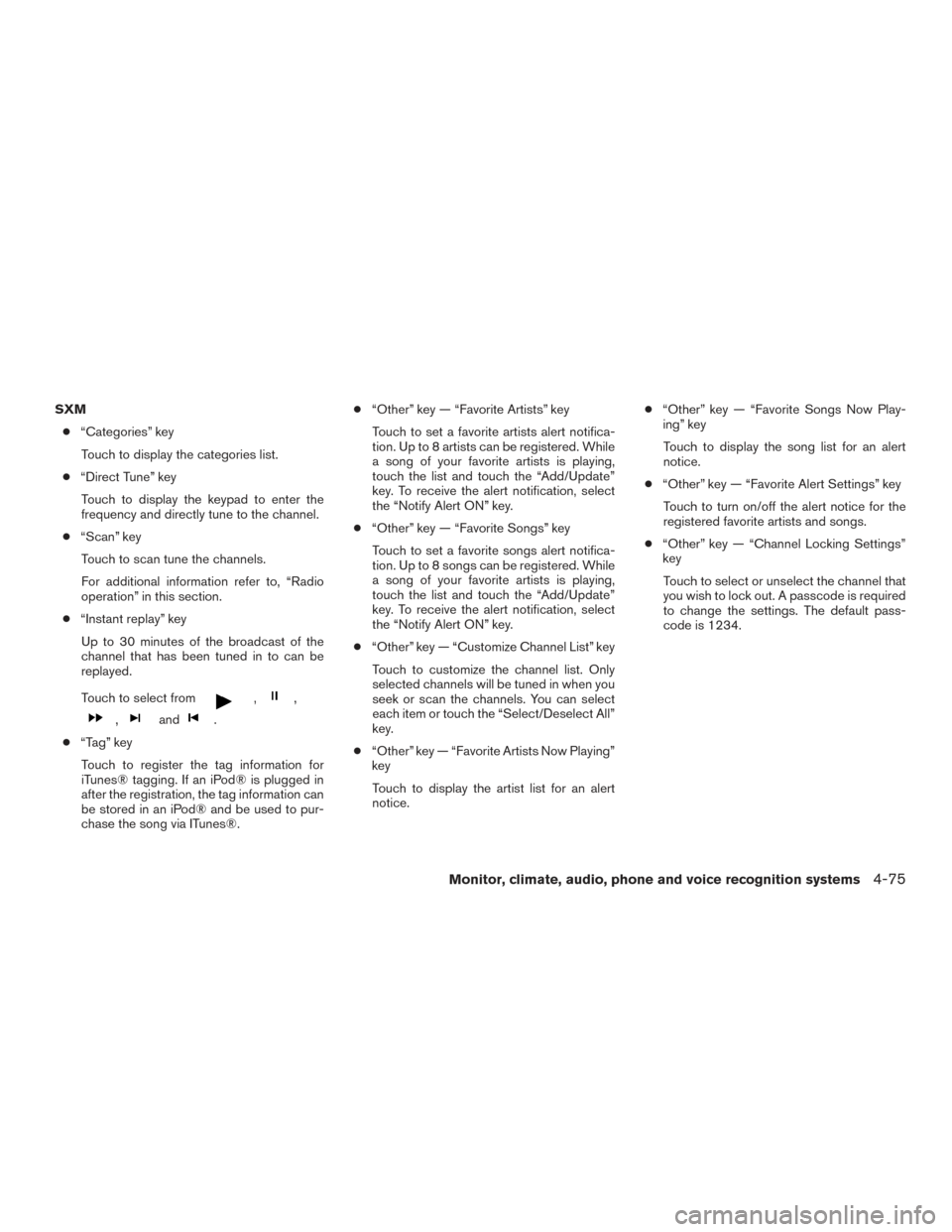

SXM● “Categories” key
Touch to display the categories list.
● “Direct Tune” key
Touch to display the keypad to enter the
frequency and directly tune to the channel.
● “Scan” key
Touch to scan tune the channels.
For additional information refer to, “Radio
operation” in this section.
● “Instant replay” key
Up to 30 minutes of the broadcast of the
channel that has been tuned in to can be
replayed.
Touch to select from
,,
,and.
● “Tag” key
Touch to register the tag information for
iTunes® tagging. If an iPod® is plugged in
after the registration, the tag information can
be stored in an iPod® and be used to pur-
chase the song via ITunes®. ●
“Other” key — “Favorite Artists” key
Touch to set a favorite artists alert notifica-
tion. Up to 8 artists can be registered. While
a song of your favorite artists is playing,
touch the list and touch the “Add/Update”
key. To receive the alert notification, select
the “Notify Alert ON” key.
● “Other” key — “Favorite Songs” key
Touch to set a favorite songs alert notifica-
tion. Up to 8 songs can be registered. While
a song of your favorite artists is playing,
touch the list and touch the “Add/Update”
key. To receive the alert notification, select
the “Notify Alert ON” key.
● “Other” key — “Customize Channel List” key
Touch to customize the channel list. Only
selected channels will be tuned in when you
seek or scan the channels. You can select
each item or touch the “Select/Deselect All”
key.
● “Other” key — “Favorite Artists Now Playing”
key
Touch to display the artist list for an alert
notice. ●
“Other” key — “Favorite Songs Now Play-
ing” key
Touch to display the song list for an alert
notice.
● “Other” key — “Favorite Alert Settings” key
Touch to turn on/off the alert notice for the
registered favorite artists and songs.
● “Other” key — “Channel Locking Settings”
key
Touch to select or unselect the channel that
you wish to lock out. A passcode is required
to change the settings. The default pass-
code is 1234.
Monitor, climate, audio, phone and voice recognition systems4-75

COMPACT DISC (CD) PLAYERHow to view CD operation screen
1“Source” key
Touch to switch to the source list screen. For
additional information, refer to “Selecting au-
dio source” in this section.
2“Scan” key
Touch to play the first 10 seconds of the
tracks. Touch again to stop scanning.
3Track information
Track information such as the song title, art-
ist name, and album name is displayed.
4Audio source indicator
Indicates that CD is currently selected.
5Play time
The play time of the track is displayed.
6Track number
This indicates the current track number and
the total number of tracks.
7CD menu
CD menu items are displayed. Touch an icon
to display the list or to change the setting.
● “Track” key
● “Folder” key (for MP3, WMA, AAC)
● “Play Mode” key
8Play Mode indicator
This indicates the current play mode. Touch
to change the play mode.
9Folder number (for MP3, WMA, AAC)
This indicates the folder number when a CD
with compressed audio files is loaded.
NAA1718
4-76Monitor, climate, audio, phone and voice recognition systems

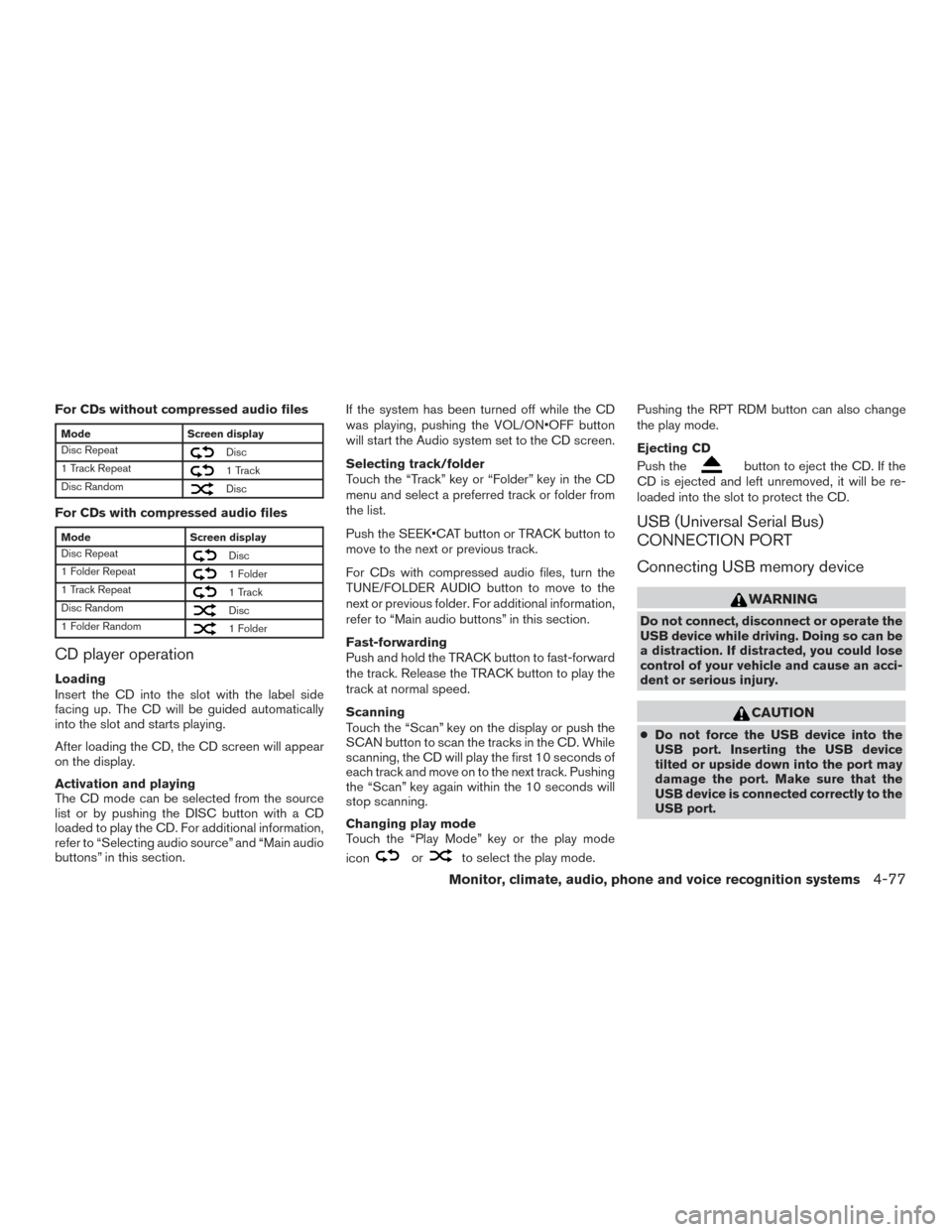

For CDs without compressed audio files
ModeScreen display
Disc Repeat
Disc
1 Track Repeat
1 Track
Disc Random
Disc
For CDs with compressed audio files
Mode Screen display
Disc Repeat
Disc
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
Disc Random
Disc
1 Folder Random
1 Folder
CD player operation
Loading
Insert the CD into the slot with the label side
facing up. The CD will be guided automatically
into the slot and starts playing.
After loading the CD, the CD screen will appear
on the display.
Activation and playing
The CD mode can be selected from the source
list or by pushing the DISC button with a CD
loaded to play the CD. For additional information,
refer to “Selecting audio source” and “Main audio
buttons” in this section. If the system has been turned off while the CD
was playing, pushing the VOL/ON•OFF button
will start the Audio system set to the CD screen.
Selecting track/folder
Touch the “Track” key or “Folder” key in the CD
menu and select a preferred track or folder from
the list.
Push the SEEK•CAT button or TRACK button to
move to the next or previous track.
For CDs with compressed audio files, turn the
TUNE/FOLDER AUDIO button to move to the
next or previous folder. For additional information,
refer to “Main audio buttons” in this section.
Fast-forwarding
Push and hold the TRACK button to fast-forward
the track. Release the TRACK button to play the
track at normal speed.
Scanning
Touch the “Scan” key on the display or push the
SCAN button to scan the tracks in the CD. While
scanning, the CD will play the first 10 seconds of
each track and move on to the next track. Pushing
the “Scan” key again within the 10 seconds will
stop scanning.
Changing play mode
Touch the “Play Mode” key or the play mode
icon
orto select the play mode.Pushing the RPT RDM button can also change
the play mode.
Ejecting CD
Push the
button to eject the CD. If the
CD is ejected and left unremoved, it will be re-
loaded into the slot to protect the CD.
USB (Universal Serial Bus)
CONNECTION PORT
Connecting USB memory device
WARNING
Do not connect, disconnect or operate the
USB device while driving. Doing so can be
a distraction. If distracted, you could lose
control of your vehicle and cause an acci-
dent or serious injury.
CAUTION
● Do not force the USB device into the
USB port. Inserting the USB device
tilted or upside down into the port may
damage the port. Make sure that the
USB device is connected correctly to the
USB port.
Monitor, climate, audio, phone and voice recognition systems4-77

●Do not grab the USB port cover (if so
equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.
● Do not leave the USB cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.
Two USB connection ports are located on the
center console box. For additional information,
refer to “USB/iPod® connection port” in this
section.
When compatible storage devices are plugged
into the jack, compatible audio files on the stor-
age devices can be played through the vehicle’s
audio system.
How to view USB operation screen
1“Source” key
Touch to switch to the source list screen. For
additional information, refer to “Selecting au-
dio source” in this section.
2Play time
The play time of the track is displayed.
3Track information
Track information such as the song title, art-
ist name and folder name is displayed.
NAA1719
4-78Monitor, climate, audio, phone and voice recognition systems

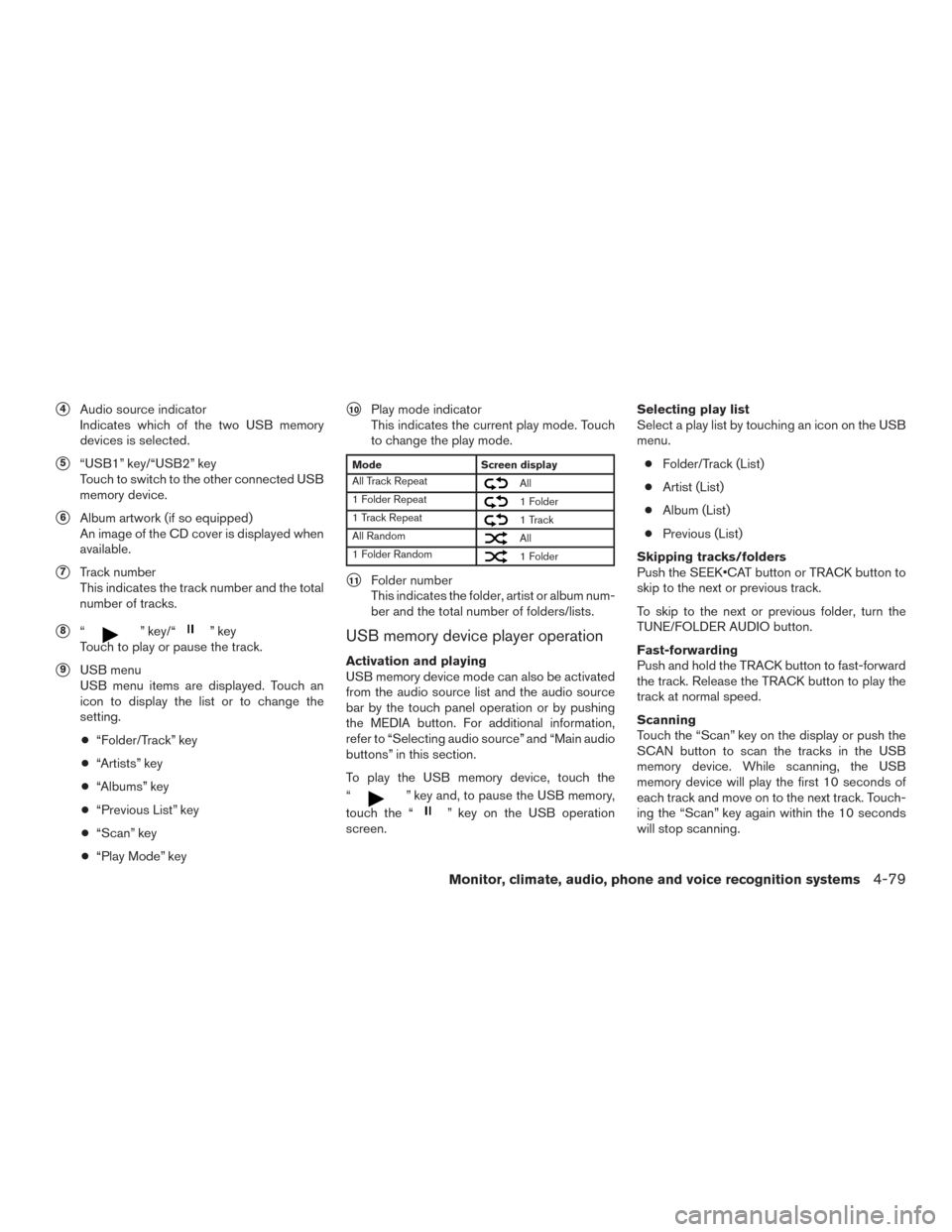

4Audio source indicator
Indicates which of the two USB memory
devices is selected.
5“USB1” key/“USB2” key
Touch to switch to the other connected USB
memory device.
6Album artwork (if so equipped)
An image of the CD cover is displayed when
available.
7Track number
This indicates the track number and the total
number of tracks.
8“” key/“” key
Touch to play or pause the track.
9USB menu
USB menu items are displayed. Touch an
icon to display the list or to change the
setting.
● “Folder/Track” key
● “Artists” key
● “Albums” key
● “Previous List” key
● “Scan” key
● “Play Mode” key
10Play mode indicator
This indicates the current play mode. Touch
to change the play mode.
Mode Screen display
All Track Repeat
All
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
All Random
All
1 Folder Random
1 Folder
11Folder number
This indicates the folder, artist or album num-
ber and the total number of folders/lists.
USB memory device player operation
Activation and playing
USB memory device mode can also be activated
from the audio source list and the audio source
bar by the touch panel operation or by pushing
the MEDIA button. For additional information,
refer to “Selecting audio source” and “Main audio
buttons” in this section.
To play the USB memory device, touch the
“
” key and, to pause the USB memory,
touch the “
” key on the USB operation
screen. Selecting play list
Select a play list by touching an icon on the USB
menu.
● Folder/Track (List)
● Artist (List)
● Album (List)
● Previous (List)
Skipping tracks/folders
Push the SEEK•CAT button or TRACK button to
skip to the next or previous track.
To skip to the next or previous folder, turn the
TUNE/FOLDER AUDIO button.
Fast-forwarding
Push and hold the TRACK button to fast-forward
the track. Release the TRACK button to play the
track at normal speed.
Scanning
Touch the “Scan” key on the display or push the
SCAN button to scan the tracks in the USB
memory device. While scanning, the USB
memory device will play the first 10 seconds of
each track and move on to the next track. Touch-
ing the “Scan” key again within the 10 seconds
will stop scanning.
Monitor, climate, audio, phone and voice recognition systems4-79

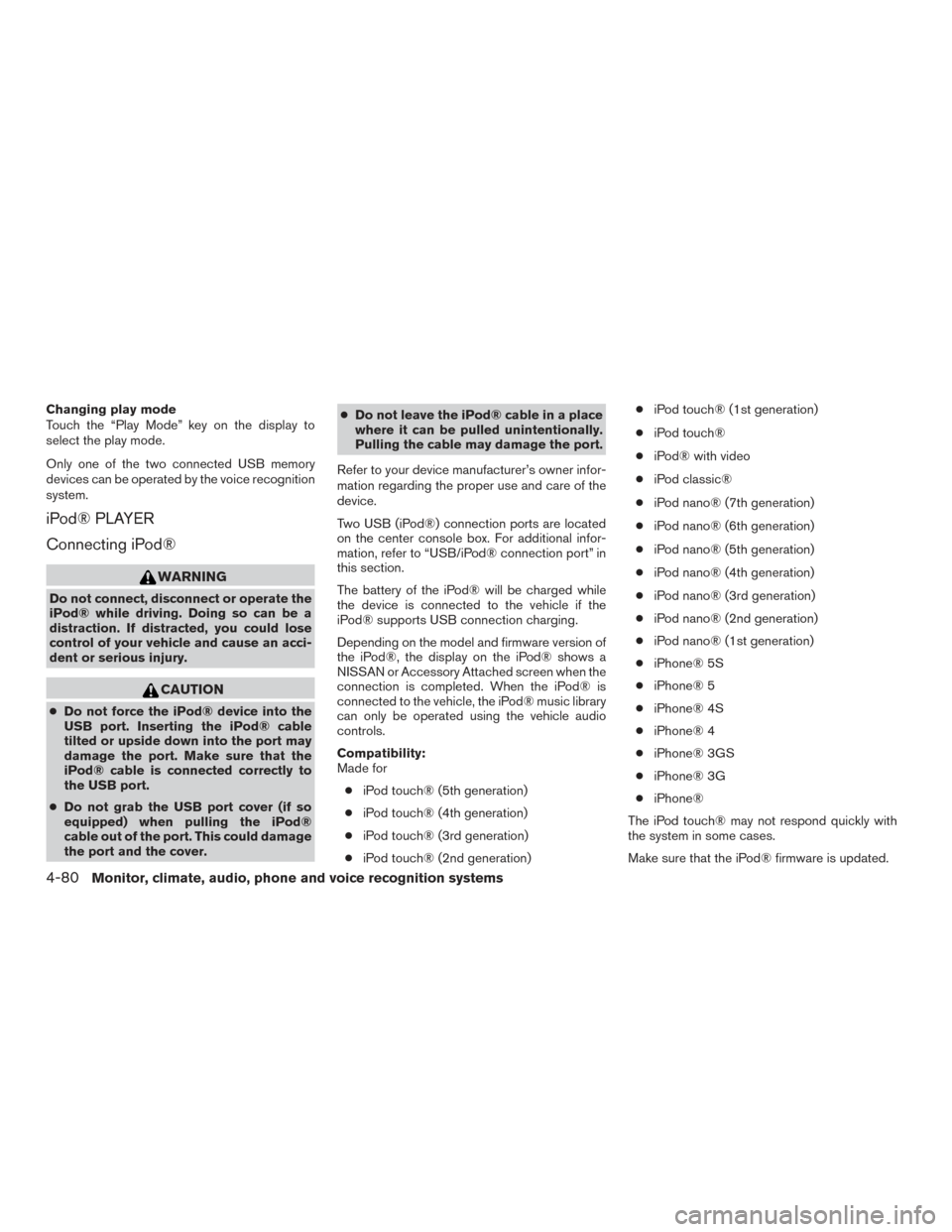

Changing play mode
Touch the “Play Mode” key on the display to
select the play mode.
Only one of the two connected USB memory
devices can be operated by the voice recognition
system.
iPod® PLAYER
Connecting iPod®
WARNING
Do not connect, disconnect or operate the
iPod® while driving. Doing so can be a
distraction. If distracted, you could lose
control of your vehicle and cause an acci-
dent or serious injury.
CAUTION
●Do not force the iPod® device into the
USB port. Inserting the iPod® cable
tilted or upside down into the port may
damage the port. Make sure that the
iPod® cable is connected correctly to
the USB port.
● Do not grab the USB port cover (if so
equipped) when pulling the iPod®
cable out of the port. This could damage
the port and the cover. ●
Do not leave the iPod® cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.
Two USB (iPod®) connection ports are located
on the center console box. For additional infor-
mation, refer to “USB/iPod® connection port” in
this section.
The battery of the iPod® will be charged while
the device is connected to the vehicle if the
iPod® supports USB connection charging.
Depending on the model and firmware version of
the iPod®, the display on the iPod® shows a
NISSAN or Accessory Attached screen when the
connection is completed. When the iPod® is
connected to the vehicle, the iPod® music library
can only be operated using the vehicle audio
controls.
Compatibility:
Made for ● iPod touch® (5th generation)
● iPod touch® (4th generation)
● iPod touch® (3rd generation)
● iPod touch® (2nd generation) ●
iPod touch® (1st generation)
● iPod touch®
● iPod® with video
● iPod classic®
● iPod nano® (7th generation)
● iPod nano® (6th generation)
● iPod nano® (5th generation)
● iPod nano® (4th generation)
● iPod nano® (3rd generation)
● iPod nano® (2nd generation)
● iPod nano® (1st generation)
● iPhone® 5S
● iPhone® 5
● iPhone® 4S
● iPhone® 4
● iPhone® 3GS
● iPhone® 3G
● iPhone®
The iPod touch® may not respond quickly with
the system in some cases.
Make sure that the iPod® firmware is updated.
4-80Monitor, climate, audio, phone and voice recognition systems

The LightningTMconnector works with iPhone®
5, iPhone® 5S, iPod touch® (5th generation)
and iPod nano® (7th generation) .
The 30–pin connector works with iPhone® 4S,
iPhone® 4, iPhone® 3GS, iPhone® 3G,
iPhone®, iPod touch® (1st through 4th genera-
tion) , iPod classic® and iPod nano® (1st
through 6th generation) .
USB works with iPhone® 5, iPhone® 4S,
iPhone® 4, iPhone® 3GS, iPhone® 3G,
iPhone®, iPod touch® (1st through 5th genera-
tion) , iPod classic® and iPod nano® (1st
through 7th generation) .
How to view iPod® operation screen
1Search condition indicator
This indicates the current search condition.
2“Source” key
Touch to switch to the source list screen. For
additional information, refer to “Selecting au-
dio source” in this section.
3Play time
The play time of the track is displayed.
NAA1633
Monitor, climate, audio, phone and voice recognition systems4-81
