NISSAN PATHFINDER 2017 R52 / 4.G Owners Manual

Combinations of video/audio codecs and playable file extensions
VideoAudio Codec Extenstion
H.263 AAC “.3gp”, “.3g2”
H.264 AAC “.avi”, “.3gp”, “.3g2”, “.mp4”, “.m4v”, “.divx”, “.mov”
AAC+ “.avi”, “.3gp”, “.3g2”, “.mp4”, “.m4v”, “.divx”, “.mov”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”, “.m2ts”, “.mts”
MP3 “.avi”, “.flv”, “.mp4”, “.m4v”, “.divx”, “.mov”
WMA “.avi”, “.divx”
Divx AAC “.avi”, “.divx”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.divx”
MP3 “.avi”, “.divx”
WMA “.avi”, “.divx”
XviD AAC “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
AAC+ “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
MP3 “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
WMA “.avi”, “.divx”
MPEG-1 AAC “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
AAC+ “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.mp4”, “.m4v”, “.mpg”, “.divx”, “.mov”
MP3 “.avi”, “.mp4”, “.m4v”, “.mpg”, “.mpeg”, “.divx”, “.mov”
WMA “.avi”, “.divx”
4-92Monitor, climate, audio, phone and voice recognition systems

VideoAudio Codec Extenstion
MPEG-2 AAC “.avi”, “.mp4”, “.m4v”, “.divx”
AAC+ “.avi”, “.mp4”, “.m4v”, “.divx”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.mp4”, “.m4v”, “.mpg”, “.divx”
MP3 “.avi”, “.mp4”, “.m4v”, “.mpg”, “.divx”
WMA “.avi”, “.divx”
MPEG-4 AAC “.avi”, “.3gp”, “.mp4”, “.m4v”, “.divx”, “.mov”
AAC+ “.avi”, “.3gp”, “.mp4”, “.m4v”, “.divx”, “.mov”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
MP3 “.avi”, “.mp4”, “.m4v”, “.divx”, “.mov”
WMA “.avi”, “.divx”
WMV7/8 AAC “.avi”, “.divx”
Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.divx”
MP3 “.avi”, “.divx”
WMA “.avi”, “.wmv”, “.divx”
WMV9/VC-1 Linear PCM “.avi”, “.divx”
Dolby Digital “.avi”, “.divx”
MP3 “.avi”, “.divx”
WMA “.avi”, “.wmv”, “.divx”
Flash MP3 “.flv”
Real Video Real Audio “.rmvb”, “.rm”
Monitor, climate, audio, phone and voice recognition systems4-93

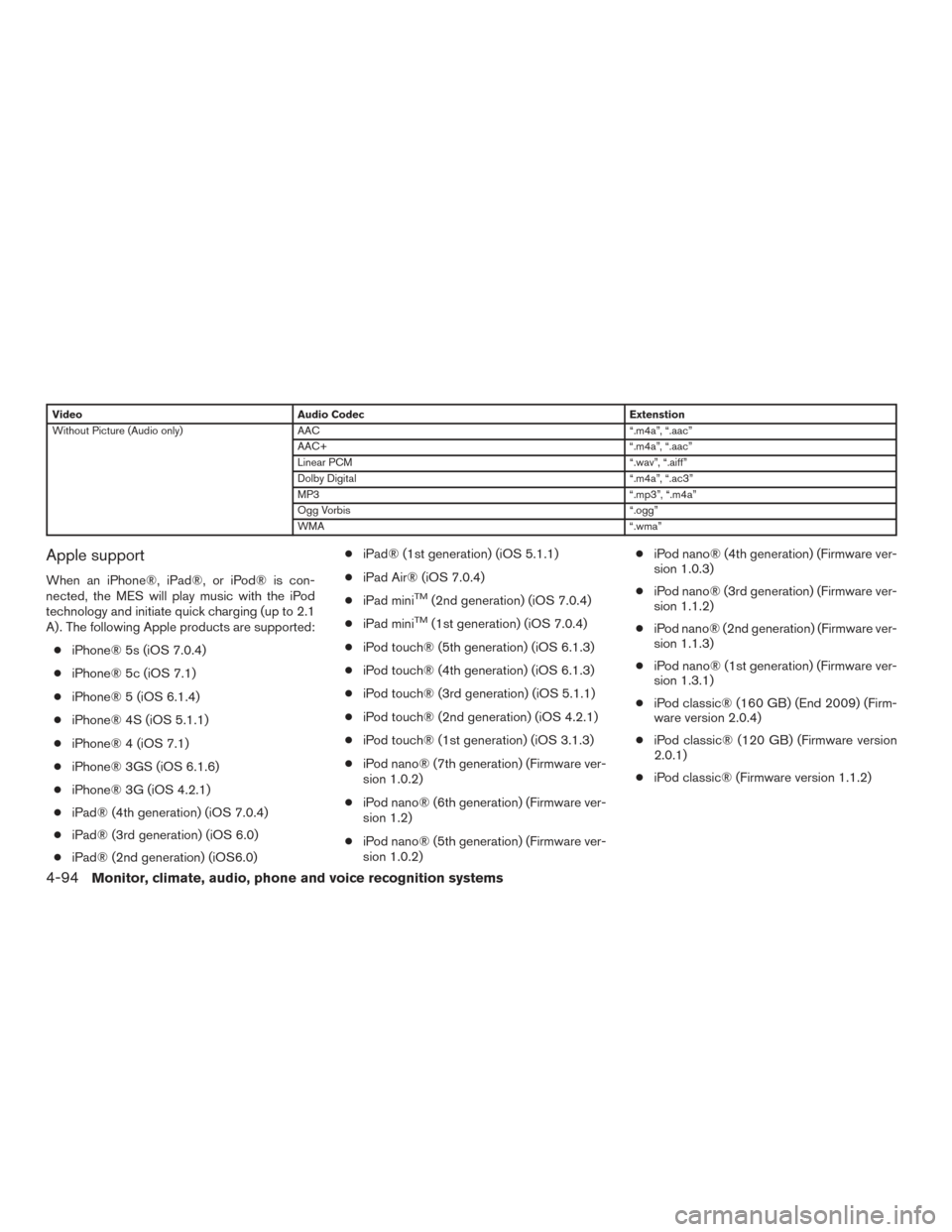

VideoAudio Codec Extenstion
Without Picture (Audio only) AAC “.m4a”, “.aac”
AAC+ “.m4a”, “.aac”
Linear PCM “.wav”, “.aiff”
Dolby Digital “.m4a”, “.ac3”
MP3 “.mp3”, “.m4a”
Ogg Vorbis “.ogg”
WMA “.wma”
Apple support
When an iPhone®, iPad®, or iPod® is con-
nected, the MES will play music with the iPod
technology and initiate quick charging (up to 2.1
A) . The following Apple products are supported:
● iPhone® 5s (iOS 7.0.4)
● iPhone® 5c (iOS 7.1)
● iPhone® 5 (iOS 6.1.4)
● iPhone® 4S (iOS 5.1.1)
● iPhone® 4 (iOS 7.1)
● iPhone® 3GS (iOS 6.1.6)
● iPhone® 3G (iOS 4.2.1)
● iPad® (4th generation) (iOS 7.0.4)
● iPad® (3rd generation) (iOS 6.0)
● iPad® (2nd generation) (iOS6.0) ●
iPad® (1st generation) (iOS 5.1.1)
● iPad Air® (iOS 7.0.4)
● iPad miniTM(2nd generation) (iOS 7.0.4)
● iPad mini
TM(1st generation) (iOS 7.0.4)
● iPod touch® (5th generation) (iOS 6.1.3)
● iPod touch® (4th generation) (iOS 6.1.3)
● iPod touch® (3rd generation) (iOS 5.1.1)
● iPod touch® (2nd generation) (iOS 4.2.1)
● iPod touch® (1st generation) (iOS 3.1.3)
● iPod nano® (7th generation) (Firmware ver-
sion 1.0.2)
● iPod nano® (6th generation) (Firmware ver-
sion 1.2)
● iPod nano® (5th generation) (Firmware ver-
sion 1.0.2) ●
iPod nano® (4th generation) (Firmware ver-
sion 1.0.3)
● iPod nano® (3rd generation) (Firmware ver-
sion 1.1.2)
● iPod nano® (2nd generation) (Firmware ver-
sion 1.1.3)
● iPod nano® (1st generation) (Firmware ver-
sion 1.3.1)
● iPod classic® (160 GB) (End 2009) (Firm-
ware version 2.0.4)
● iPod classic® (120 GB) (Firmware version
2.0.1)
● iPod classic® (Firmware version 1.1.2)
4-94Monitor, climate, audio, phone and voice recognition systems

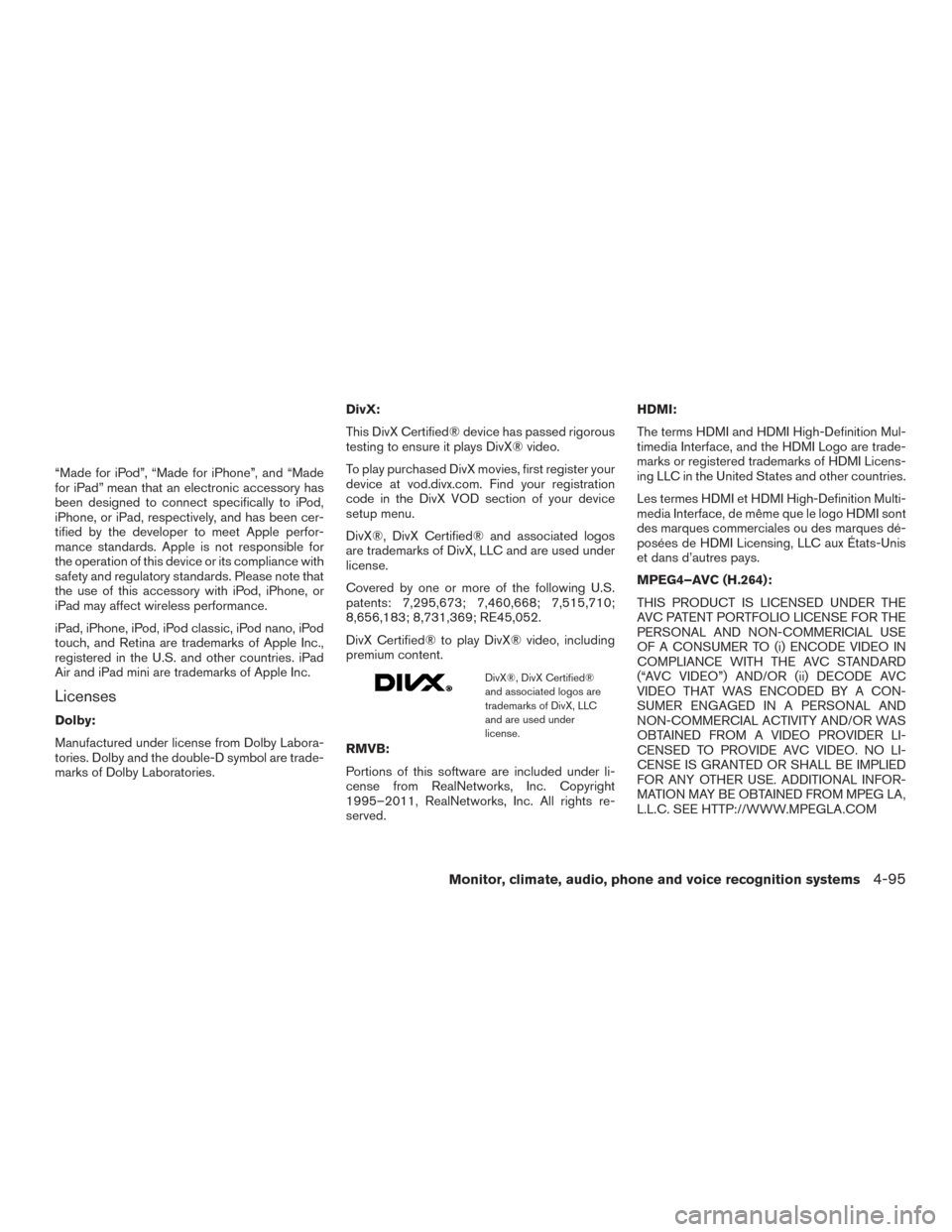

“Made for iPod”, “Made for iPhone”, and “Made
for iPad” mean that an electronic accessory has
been designed to connect specifically to iPod,
iPhone, or iPad, respectively, and has been cer-
tified by the developer to meet Apple perfor-
mance standards. Apple is not responsible for
the operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod, iPhone, or
iPad may affect wireless performance.
iPad, iPhone, iPod, iPod classic, iPod nano, iPod
touch, and Retina are trademarks of Apple Inc.,
registered in the U.S. and other countries. iPad
Air and iPad mini are trademarks of Apple Inc.
Licenses
Dolby:
Manufactured under license from Dolby Labora-
tories. Dolby and the double-D symbol are trade-
marks of Dolby Laboratories.DivX:
This DivX Certified® device has passed rigorous
testing to ensure it plays DivX® video.
To play purchased DivX movies, first register your
device at vod.divx.com. Find your registration
code in the DivX VOD section of your device
setup menu.
DivX®, DivX Certified® and associated logos
are trademarks of DivX, LLC and are used under
license.
Covered by one or more of the following U.S.
patents: 7,295,673; 7,460,668; 7,515,710;
8,656,183; 8,731,369; RE45,052.
DivX Certified® to play DivX® video, including
premium content.
DivX®, DivX Certified®
and associated logos are
trademarks of DivX, LLC
and are used under
license.
RMVB:
Portions of this software are included under li-
cense from RealNetworks, Inc. Copyright
1995–2011, RealNetworks, Inc. All rights re-
served.HDMI:
The terms HDMI and HDMI High-Definition Mul-
timedia Interface, and the HDMI Logo are trade-
marks or registered trademarks of HDMI Licens-
ing LLC in the United States and other countries.
Les termes HDMI et HDMI High-Definition Multi-
media Interface, de même que le logo HDMI sont
des marques commerciales ou des marques dé-
posées de HDMI Licensing, LLC aux États-Unis
et dans d’autres pays.
MPEG4–AVC (H.264):
THIS PRODUCT IS LICENSED UNDER THE
AVC PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERICIAL USE
OF A CONSUMER TO (i) ENCODE VIDEO IN
COMPLIANCE WITH THE AVC STANDARD
(“AVC VIDEO”) AND/OR (ii) DECODE AVC
VIDEO THAT WAS ENCODED BY A CON-
SUMER ENGAGED IN A PERSONAL AND
NON-COMMERCIAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER LI-
CENSED TO PROVIDE AVC VIDEO. NO LI-
CENSE IS GRANTED OR SHALL BE IMPLIED
FOR ANY OTHER USE. ADDITIONAL INFOR-
MATION MAY BE OBTAINED FROM MPEG LA,
L.L.C. SEE HTTP://WWW.MPEGLA.COM
Monitor, climate, audio, phone and voice recognition systems4-95

VC-1:
THIS PRODUCT IS LICENSED UNDER THE
VC-1 PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL USE
OF A CONSUMER TO (i) ENCODE VIDEO IN
COMPLIANCE WITH THE VC-1 STANDARD
(“VC-1 VIDEO”) AND/OR (ii) DECODE VC-1
VIDEO THAT WAS ENCODED BY A CON-
SUMER ENGAGED IN A PERSONAL AND
NON-COMMERCIAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER LI-
CENSED TO PROVIDE VC-1 VIDEO. NO LI-
CENSE IS GRANTED OR SHALL BE IMPLIED
FOR ANY OTHER USE. ADDITIONAL INFOR-
MATION MAY BE OBTAINED FROM MPEG LA,
L.L.C. SEE HTTP://WWW.MPEGLA.COM
MPEG-4 VISUAL:
USE OF THIS PRODUCT IN ANY MANNER
THAT COMPLIES WITH THE MPEG-4 VISUAL
STANDARD IS PROHIBITED, EXCEPT FOR
USE BY A CONSUMER ENGAGING IN PER-
SONAL AND NON-COMMERCIAL ACTIVI-
TIES.
MP3:
MPEG Layer-3 audio coding technology li-
censed from Fraunhofer IIS and Thomson.WMA/WMV:
This product includes technology owned by Mi-
crosoft Corporation and under a license from
Microsoft Licensing, GP. Use or distribution of
such technology outside of this product is pro-
hibited without a license from Microsoft
Corporation and/or Microsoft Licensing, GP as
applicable.
Natune surround sound:
Le son surround Natune
est un terme général pour
la famille de la dernière
technologie de traitement
de signal acoustique
produite par DiMAGIC
Co., Ltd.
CONNECTING REAR MEDIA
INTERFACE
Ports for the USB1and HDMI2interface are
located at the rear of the center console box.
Compatible devices connected to the ports can
be played on the rear displays. Turn off the power
of the portable device before connecting to the
port.
LHA4288
4-96Monitor, climate, audio, phone and voice recognition systems

REMOTE CONTROLLER AND
HEADPHONES
Remote controller
A remote controller is provided with the Mobile
Entertainment System.The remote controller is for the rear display op-
eration and cannot be used to control portable
devices.
The following buttons/switches are on the re-
mote controller.
1button
The rear displays can be activated or deac-
tivated individually.
2HOME button
Push to display the HOME screen. Select
the media from the DVD, AUX, USB and
HDMI interface device.
3buttons (select
buttons)
Push the select buttons to select the items
displayed on the rear screens.
4BACK button
Push to go back to the previous screen
5Keypad
Push the keys below for operations.
button Push play or pause the movie
button Push to stop playing the
movie
button Push to select the next chap-
ter. Push and hold to fast-forward the chap-
ter.
button Push once to return to the
beginning of the current chapter. Push again
to select the previous chapter. Push and
hold to rewind the current chapter.
JVH1388X
Monitor, climate, audio, phone and voice recognition systems4-97

buttonPush to fast forward skipping
a number of seconds (for DVD-VIDEO) .
button Push to rewind skipping a
number of seconds (for DVD-VIDEO) .
6SPEAKER button
Push to turn on all of the in-vehicle speakers.
7Volume control button +-
Push to adjust the speaker volume.
8DISPLAY SELECT button
Slide the switch to the side corresponding to
the screen you wish to operate (L or R) .
9MENU button
Push to display the operation screen for the
source that is being played. For additional
information, refer to “Menus” in this section.
10ENTER button
Push to execute the selected item.
11SET UP button
Push to display the rear seat display set-
tings. For additional information, refer to
“Settings and information” in this section.
12HEADPHONE button
Push to turn on the sound from the head-
phones and turn off the speakers
13button
Push to turn on the backlighting of the re-
mote controller buttons.
Battery replacement:
CAUTION
● An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.
● When changing the batteries, do not let
dust or oil get on the components.
NOTE:
Change the batteries of the remote control-
ler when it does not function properly. To replace the battery:
1. Open the lid as illustrated above.
2. Replace both batteries with new ones.● Recommended battery: Size AA x 2
● Be careful not to touch the battery terminal.
● Make sure that the
andends on
the batteries match the markings inside the
compartment.
3. Close the lid securely. ● If you will not be using the remote controller
for long periods of time, remove the batteries
JVH0246X
4-98Monitor, climate, audio, phone and voice recognition systems

●Replacement of the batteries is needed
when the remote controller only functions at
extremely close distances to the Mobile En-
tertainment System or when is does not
function at all.
Headphones
Two wireless headphones are provided with the
Mobile Entertainment System. The headphones
can only be used in the rear seats. 1.
MODE button
Push to select a surround audio mode opti-
mal for the media. Three types of virtual
surround modes supported by natune sur-
round sound technology are available.
When the surround audio modes are turned
off, a regular 2.0 ch stereo mode is applied.
JVH0598X
Monitor, climate, audio, phone and voice recognition systems4-99

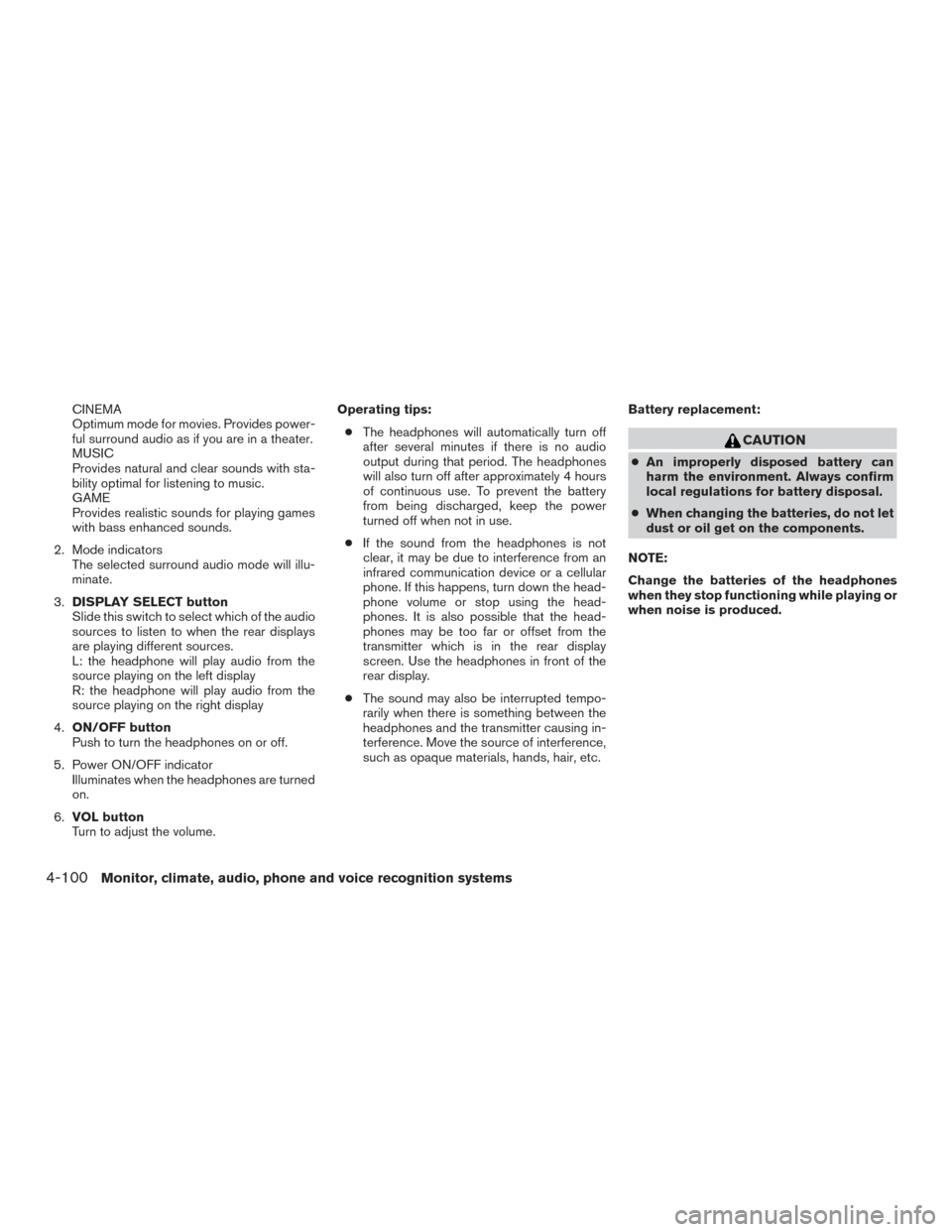

CINEMA
Optimum mode for movies. Provides power-
ful surround audio as if you are in a theater.
MUSIC
Provides natural and clear sounds with sta-
bility optimal for listening to music.
GAME
Provides realistic sounds for playing games
with bass enhanced sounds.
2. Mode indicators The selected surround audio mode will illu-
minate.
3. DISPLAY SELECT button
Slide this switch to select which of the audio
sources to listen to when the rear displays
are playing different sources.
L: the headphone will play audio from the
source playing on the left display
R: the headphone will play audio from the
source playing on the right display
4. ON/OFF button
Push to turn the headphones on or off.
5. Power ON/OFF indicator Illuminates when the headphones are turned
on.
6. VOL button
Turn to adjust the volume. Operating tips:
● The headphones will automatically turn off
after several minutes if there is no audio
output during that period. The headphones
will also turn off after approximately 4 hours
of continuous use. To prevent the battery
from being discharged, keep the power
turned off when not in use.
● If the sound from the headphones is not
clear, it may be due to interference from an
infrared communication device or a cellular
phone. If this happens, turn down the head-
phone volume or stop using the head-
phones. It is also possible that the head-
phones may be too far or offset from the
transmitter which is in the rear display
screen. Use the headphones in front of the
rear display.
● The sound may also be interrupted tempo-
rarily when there is something between the
headphones and the transmitter causing in-
terference. Move the source of interference,
such as opaque materials, hands, hair, etc. Battery replacement:
CAUTION
●
An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.
● When changing the batteries, do not let
dust or oil get on the components.
NOTE:
Change the batteries of the headphones
when they stop functioning while playing or
when noise is produced.
4-100Monitor, climate, audio, phone and voice recognition systems

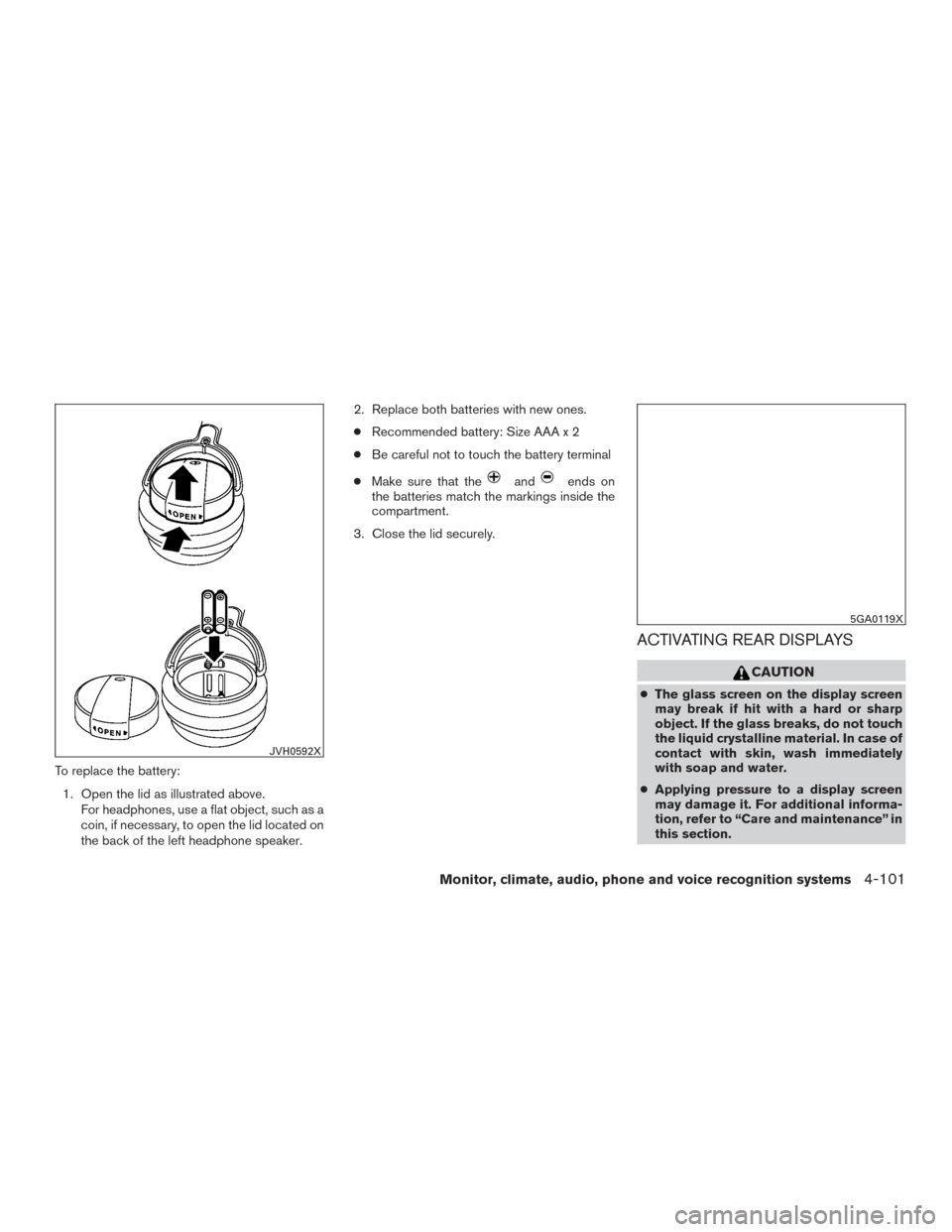

To replace the battery:1. Open the lid as illustrated above. For headphones, use a flat object, such as a
coin, if necessary, to open the lid located on
the back of the left headphone speaker. 2. Replace both batteries with new ones.
● Recommended battery: Size AAA x 2
● Be careful not to touch the battery terminal
● Make sure that the
andends on
the batteries match the markings inside the
compartment.
3. Close the lid securely.
ACTIVATING REAR DISPLAYS
CAUTION
● The glass screen on the display screen
may break if hit with a hard or sharp
object. If the glass breaks, do not touch
the liquid crystalline material. In case of
contact with skin, wash immediately
with soap and water.
● Applying pressure to a display screen
may damage it. For additional informa-
tion, refer to “Care and maintenance” in
this section.
JVH0592X
5GA0119X
Monitor, climate, audio, phone and voice recognition systems4-101
