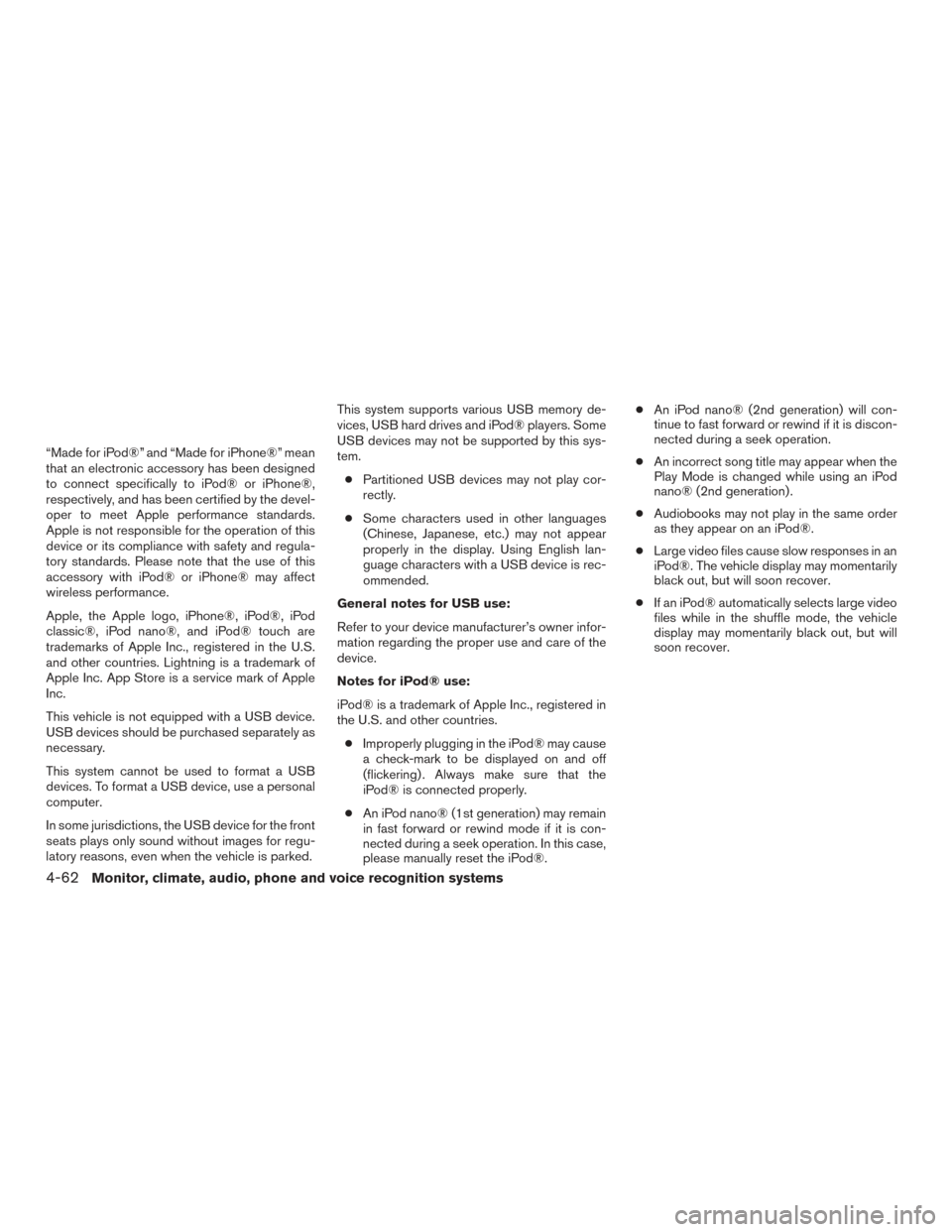

“Made for iPod®” and “Made for iPhone®” mean
that an electronic accessory has been designed
to connect specifically to iPod® or iPhone®,
respectively, and has been certified by the devel-
oper to meet Apple performance standards.
Apple is not responsible for the operation of this
device or its compliance with safety and regula-
tory standards. Please note that the use of this
accessory with iPod® or iPhone® may affect
wireless performance.
Apple, the Apple logo, iPhone®, iPod®, iPod
classic®, iPod nano®, and iPod® touch are
trademarks of Apple Inc., registered in the U.S.
and other countries. Lightning is a trademark of
Apple Inc. App Store is a service mark of Apple
Inc.
This vehicle is not equipped with a USB device.
USB devices should be purchased separately as
necessary.
This system cannot be used to format a USB
devices. To format a USB device, use a personal
computer.
In some jurisdictions, the USB device for the front
seats plays only sound without images for regu-
latory reasons, even when the vehicle is parked.This system supports various USB memory de-
vices, USB hard drives and iPod® players. Some
USB devices may not be supported by this sys-
tem.
● Partitioned USB devices may not play cor-
rectly.
● Some characters used in other languages
(Chinese, Japanese, etc.) may not appear
properly in the display. Using English lan-
guage characters with a USB device is rec-
ommended.
General notes for USB use:
Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.
Notes for iPod® use:
iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries. ● Improperly plugging in the iPod® may cause
a check-mark to be displayed on and off
(flickering) . Always make sure that the
iPod® is connected properly.
● An iPod nano® (1st generation) may remain
in fast forward or rewind mode if it is con-
nected during a seek operation. In this case,
please manually reset the iPod®. ●
An iPod nano® (2nd generation) will con-
tinue to fast forward or rewind if it is discon-
nected during a seek operation.
● An incorrect song title may appear when the
Play Mode is changed while using an iPod
nano® (2nd generation) .
● Audiobooks may not play in the same order
as they appear on an iPod®.
● Large video files cause slow responses in an
iPod®. The vehicle display may momentarily
black out, but will soon recover.
● If an iPod® automatically selects large video
files while in the shuffle mode, the vehicle
display may momentarily black out, but will
soon recover.
4-62Monitor, climate, audio, phone and voice recognition systems

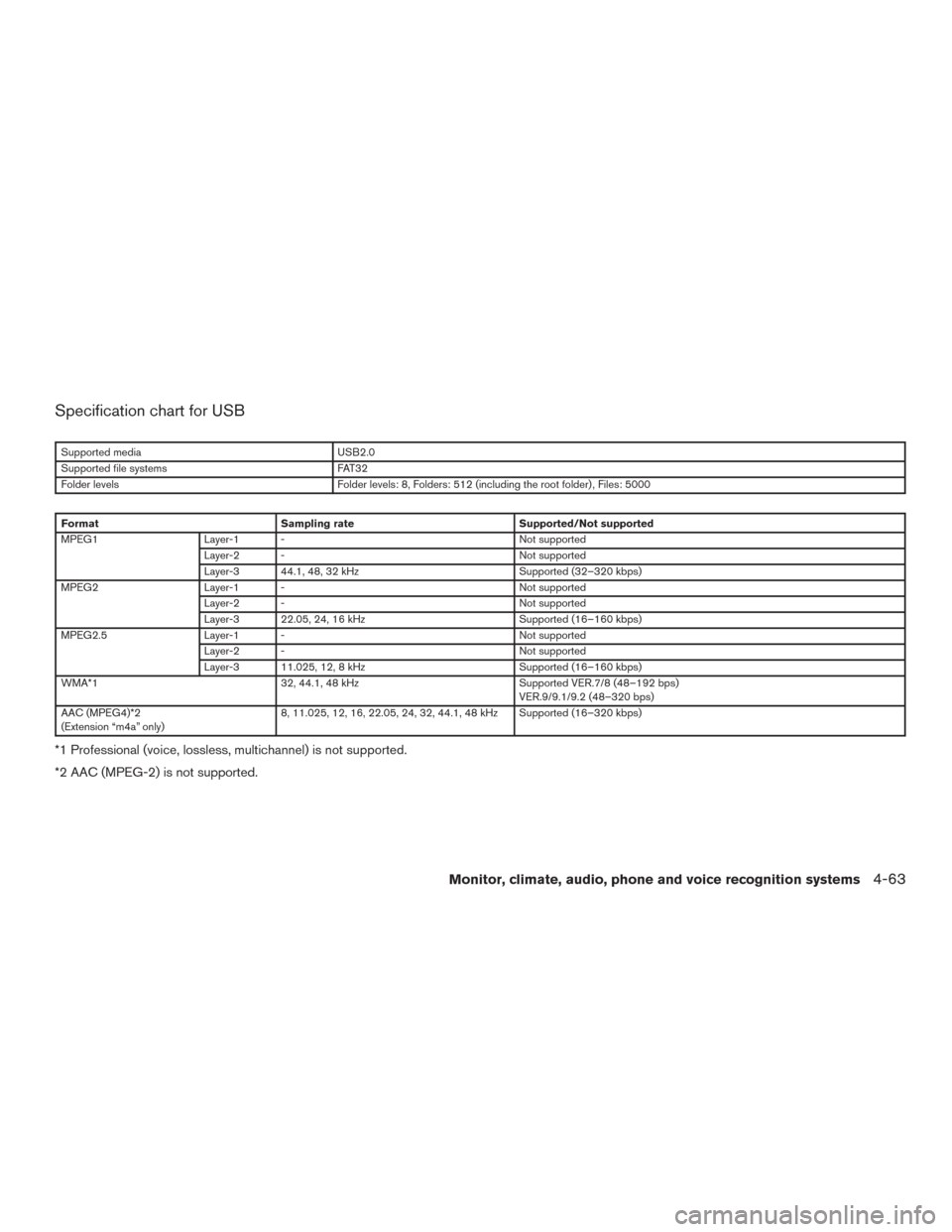

Specification chart for USB
Supported mediaUSB2.0
Supported file systems FAT32
Folder levels Folder levels: 8, Folders: 512 (including the root folder) , Files: 5000
FormatSampling rate Supported/Not supported
MPEG1 Layer-1 - Not supported
Layer-2 - Not supported
Layer-3 44.1, 48, 32 kHz Supported (32–320 kbps)
MPEG2 Layer-1 - Not supported
Layer-2 - Not supported
Layer-3 22.05, 24, 16 kHz Supported (16–160 kbps)
MPEG2.5 Layer-1 - Not supported
Layer-2 - Not supported
Layer-3 11.025, 12, 8 kHz Supported (16–160 kbps)
WMA*1 32, 44.1, 48 kHz Supported VER.7/8 (48–192 bps)
VER.9/9.1/9.2 (48–320 bps)
AAC (MPEG4)*2
(Extension “m4a” only) 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48 kHz Supported (16–320 kbps)
*1 Professional (voice, lossless, multichannel) is not supported.
*2 AAC (MPEG-2) is not supported.
Monitor, climate, audio, phone and voice recognition systems4-63

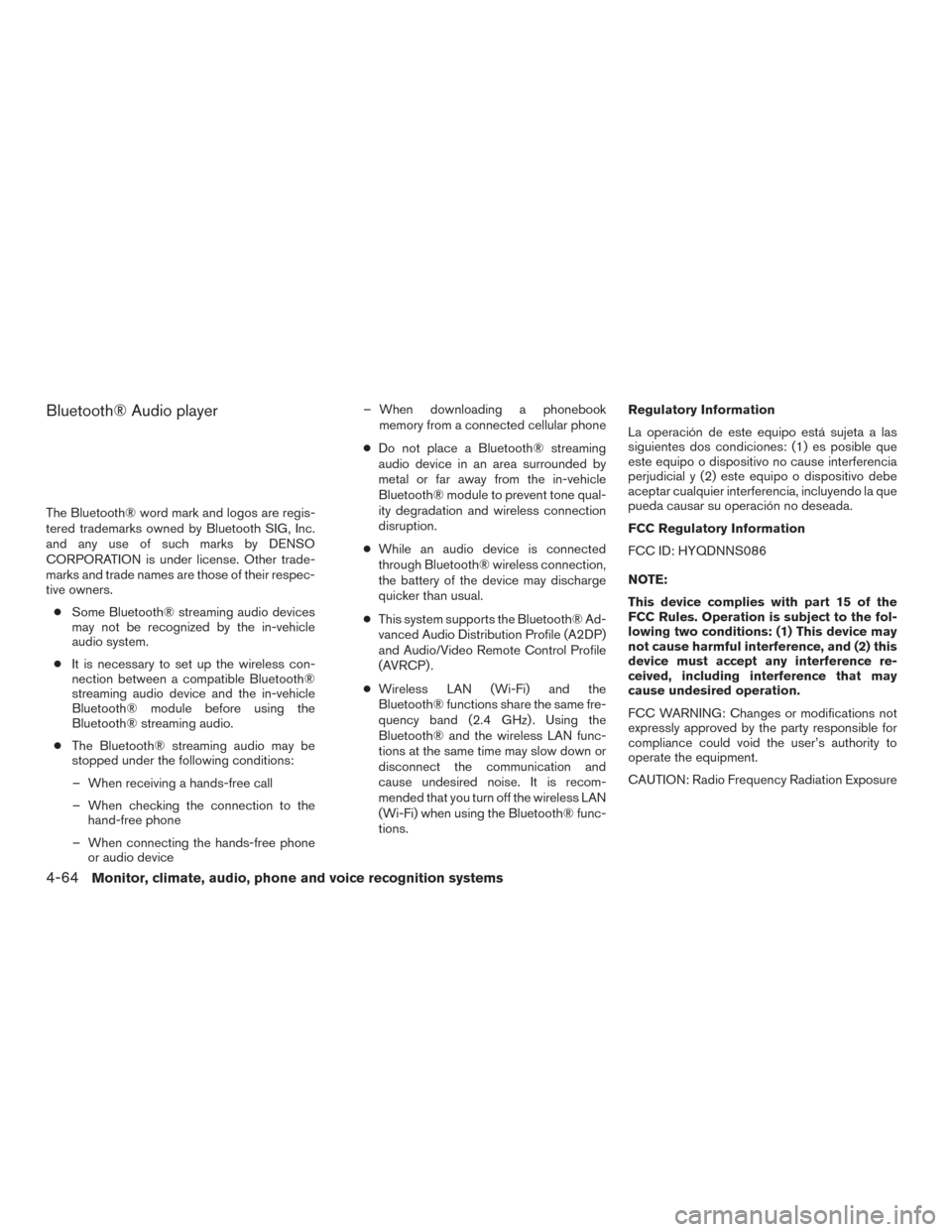

Bluetooth® Audio player
The Bluetooth® word mark and logos are regis-
tered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by DENSO
CORPORATION is under license. Other trade-
marks and trade names are those of their respec-
tive owners.● Some Bluetooth® streaming audio devices
may not be recognized by the in-vehicle
audio system.
● It is necessary to set up the wireless con-
nection between a compatible Bluetooth®
streaming audio device and the in-vehicle
Bluetooth® module before using the
Bluetooth® streaming audio.
● The Bluetooth® streaming audio may be
stopped under the following conditions:
– When receiving a hands-free call
– When checking the connection to the hand-free phone
– When connecting the hands-free phone or audio device – When downloading a phonebook
memory from a connected cellular phone
● Do not place a Bluetooth® streaming
audio device in an area surrounded by
metal or far away from the in-vehicle
Bluetooth® module to prevent tone qual-
ity degradation and wireless connection
disruption.
● While an audio device is connected
through Bluetooth® wireless connection,
the battery of the device may discharge
quicker than usual.
● This system supports the Bluetooth® Ad-
vanced Audio Distribution Profile (A2DP)
and Audio/Video Remote Control Profile
(AVRCP) .
● Wireless LAN (Wi-Fi) and the
Bluetooth® functions share the same fre-
quency band (2.4 GHz) . Using the
Bluetooth® and the wireless LAN func-
tions at the same time may slow down or
disconnect the communication and
cause undesired noise. It is recom-
mended that you turn off the wireless LAN
(Wi-Fi) when using the Bluetooth® func-
tions. Regulatory Information
La operación de este equipo está sujeta a las
siguientes dos condiciones: (1) es posible que
este equipo o dispositivo no cause interferencia
perjudicial y (2) este equipo o dispositivo debe
aceptar cualquier interferencia, incluyendo la que
pueda causar su operación no deseada.
FCC Regulatory Information
FCC ID: HYQDNNS086
NOTE:
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
FCC WARNING: Changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
CAUTION: Radio Frequency Radiation Exposure
4-64Monitor, climate, audio, phone and voice recognition systems

This equipment complies with FCC radiation ex-
posure limits set forth for uncontrolled environ-
ment and meets the FCC radio frequency (RF)
Exposure Guidelines. This equipment has very
low levels of RF energy that it deemed to comply
without maximum permissive exposure evaluation
(MPE) . But it is desirable that it should be in-
stalled and operated with at lease 20cm and
more between the radiator and person’s body.
Co-location: This transmitter must not be co-
located or operated in conjunction with any other
antenna or transmitter.
IC Regulatory Information
The antenna cannot be removed (and changed)
by the user.
NOTE:
This device complies with Industry Canada
license–exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) This device may or may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired operation
of the device.
CAUTION: Radio Frequency Radiation ExposureThis equipment complies with IC radiation expo-
sure limits set forth for uncontrolled environment
and meets RSS-102 of the IC radio frequency
(RF) exposure rules. This equipment has very low
levels of RF energy that it deemed to comply
without maximum permissive exposure evaluation
(MPE) . But it is desirable that it should be in-
stalled and operated with at least 20cm and more
between the radiator and person’s body.
Co-location: This transmitter must not be co-
located or operated in conjunction with any other
antenna or transmitter.
This Class B digital apparatus meets all require-
ments of the Canadian Interference Causing
Equipment Regulations.
L’antenne ne peut être enlevé (et modifié par
l’utilisateur) .
NOTE:
Le préent appareil est conforme aux CNR
d’Industrie Canada applicables aux appar-
eils radio exempts de licence.
L’exploitation est autorisé aux deux condi-
tions suivantes: (1) l’appareil ne doit pas
produire de brouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage ra-
dioéectrique subi, mêe si le brouillage est
susceptible d’en compromettre le fonction-
nement.The Bluetooth® word
mark and logos are
registered trademarks
owned by Bluetooth
SIG, Inc. and any use
of such marks by
DENSO
CORPORATION is
under license. Other
trademarks and trade
names are those of
their respective owners.
Digital Versatile Disc (DVD) Player
Copyright and trademark:
● The technology protected by the U.S. patent
and other intellectual property rights owned
by Macrovision Corporation and other right
holders is adopted for this system.
● This copyright protected technology cannot
be used without a permit from Macrovision
Corporation. It is limited to be for personal
use, etc., as long as the permit from Macro-
vision Corporation is not issued.
● Modifying or disassembling is prohibited.
Monitor, climate, audio, phone and voice recognition systems4-65

●Dolby digital is manufactured under license
from Dolby Laboratories, Inc.
● Dolby and the double D mark
are
trademarks of Dolby Laboratories, Inc.
● DTS is a registered trademark DTS, Inc. and
DTS 2.0 “
” is a trademark of DTS, Inc.
Parental level (parental control):
DVDs with the parental control settings can be
played with this system. Please use your own
judgement to set the parental control with the
system.

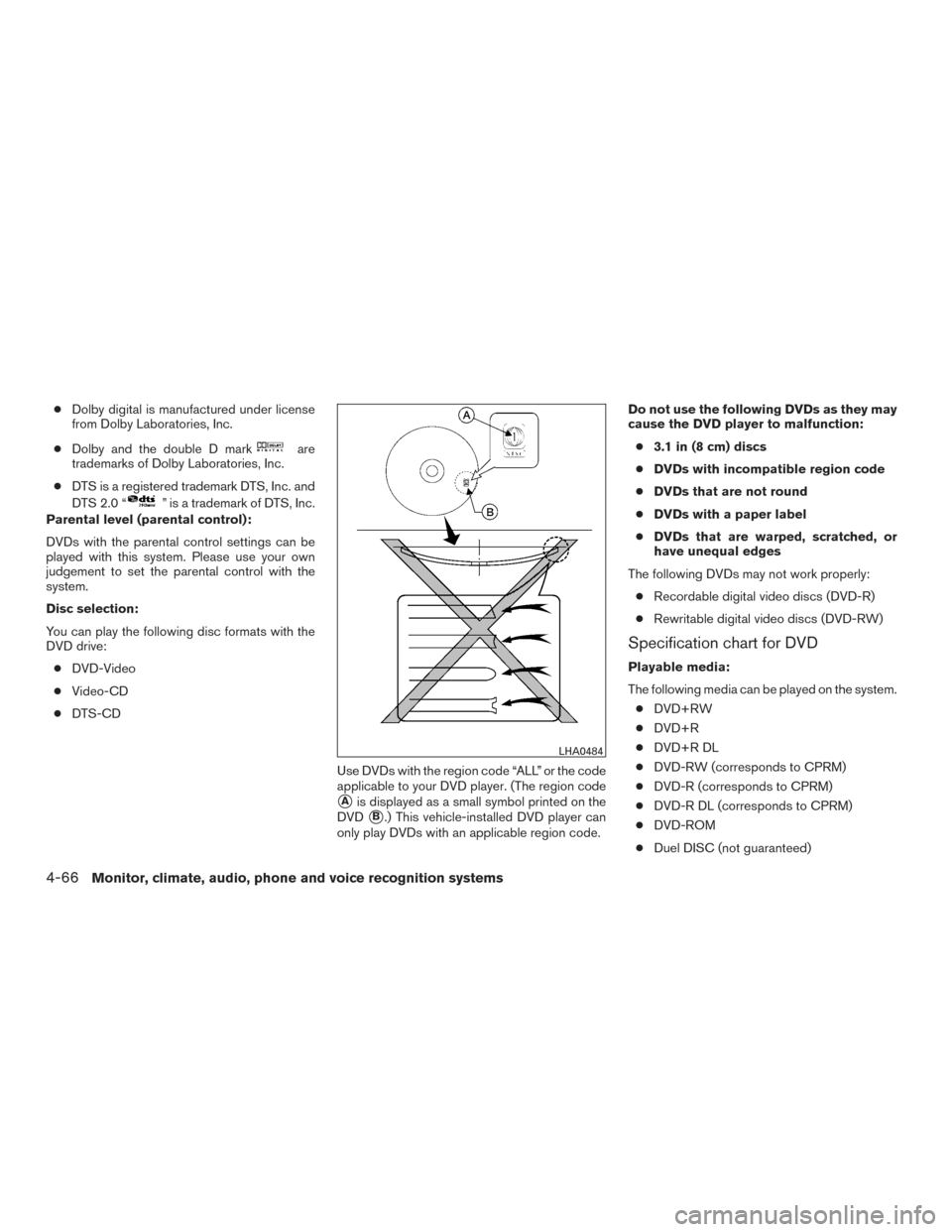

Disc selection:
You can play the following disc formats with the
DVD drive:
● DVD-Video
● Video-CD
● DTS-CD
Use DVDs with the region code “ALL” or the code
applicable to your DVD player. (The region code
Ais displayed as a small symbol printed on the
DVD
B.) This vehicle-installed DVD player can
only play DVDs with an applicable region code. Do not use the following DVDs as they may
cause the DVD player to malfunction:
● 3.1 in (8 cm) discs
● DVDs with incompatible region code
● DVDs that are not round
● DVDs with a paper label
● DVDs that are warped, scratched, or
have unequal edges
The following DVDs may not work properly: ● Recordable digital video discs (DVD-R)
● Rewritable digital video discs (DVD-RW)
Specification chart for DVD
Playable media:
The following media can be played on the system.
● DVD+RW
● DVD+R
● DVD+R DL
● DVD-RW (corresponds to CPRM)
● DVD-R (corresponds to CPRM)
● DVD-R DL (corresponds to CPRM)
● DVD-ROM
● Duel DISC (not guaranteed)
LHA0484
4-66Monitor, climate, audio, phone and voice recognition systems

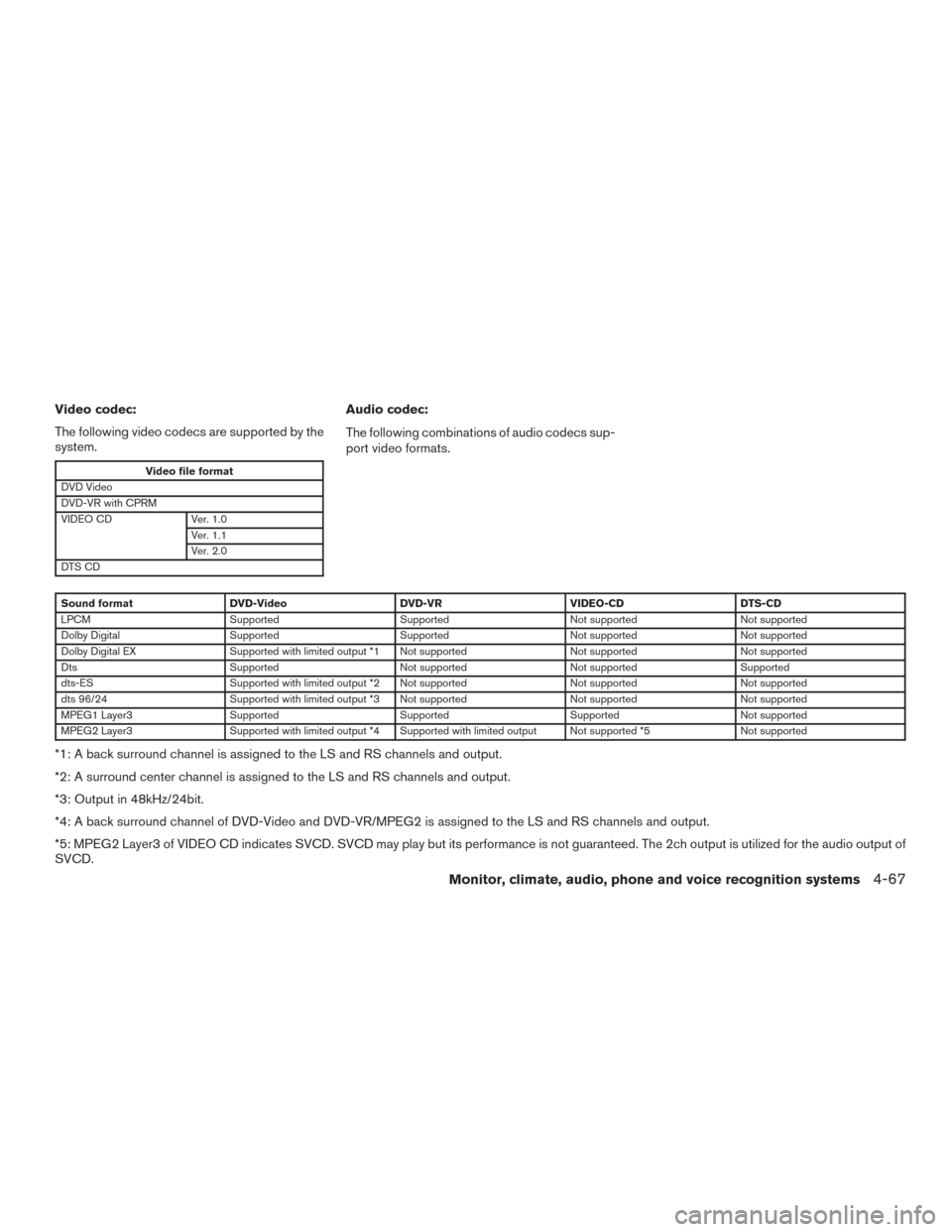

Video codec:
The following video codecs are supported by the
system.
Video file format
DVD Video
DVD-VR with CPRM
VIDEO CD Ver. 1.0
Ver. 1.1
Ver. 2.0
DTS CD
Audio codec:
The following combinations of audio codecs sup-
port video formats.
Sound format DVD-Video DVD-VRVIDEO-CDDTS-CD
LPCM Supported SupportedNot supportedNot supported
Dolby Digital Supported SupportedNot supportedNot supported
Dolby Digital EX Supported with limited output *1 Not supported Not supportedNot supported
Dts Supported Not supportedNot supportedSupported
dts-ES Supported with limited output *2 Not supported Not supportedNot supported
dts 96/24 Supported with limited output *3 Not supported Not supportedNot supported
MPEG1 Layer3 Supported SupportedSupportedNot supported
MPEG2 Layer3 Supported with limited output *4 Supported with limited output Not supported *5 Not supported
*1: A back surround channel is assigned to the LS and RS channels and output.
*2: A surround center channel is assigned to the LS and RS channels and output.
*3: Output in 48kHz/24bit.
*4: A back surround channel of DVD-Video and DVD-VR/MPEG2 is assigned to the LS and RS channels and output.
*5: MPEG2 Layer3 of VIDEO CD indicates SVCD. SVCD may play but its performance is not guaranteed. The 2ch output is utilized for the audio output of
SVCD.
Monitor, climate, audio, phone and voice recognition systems4-67

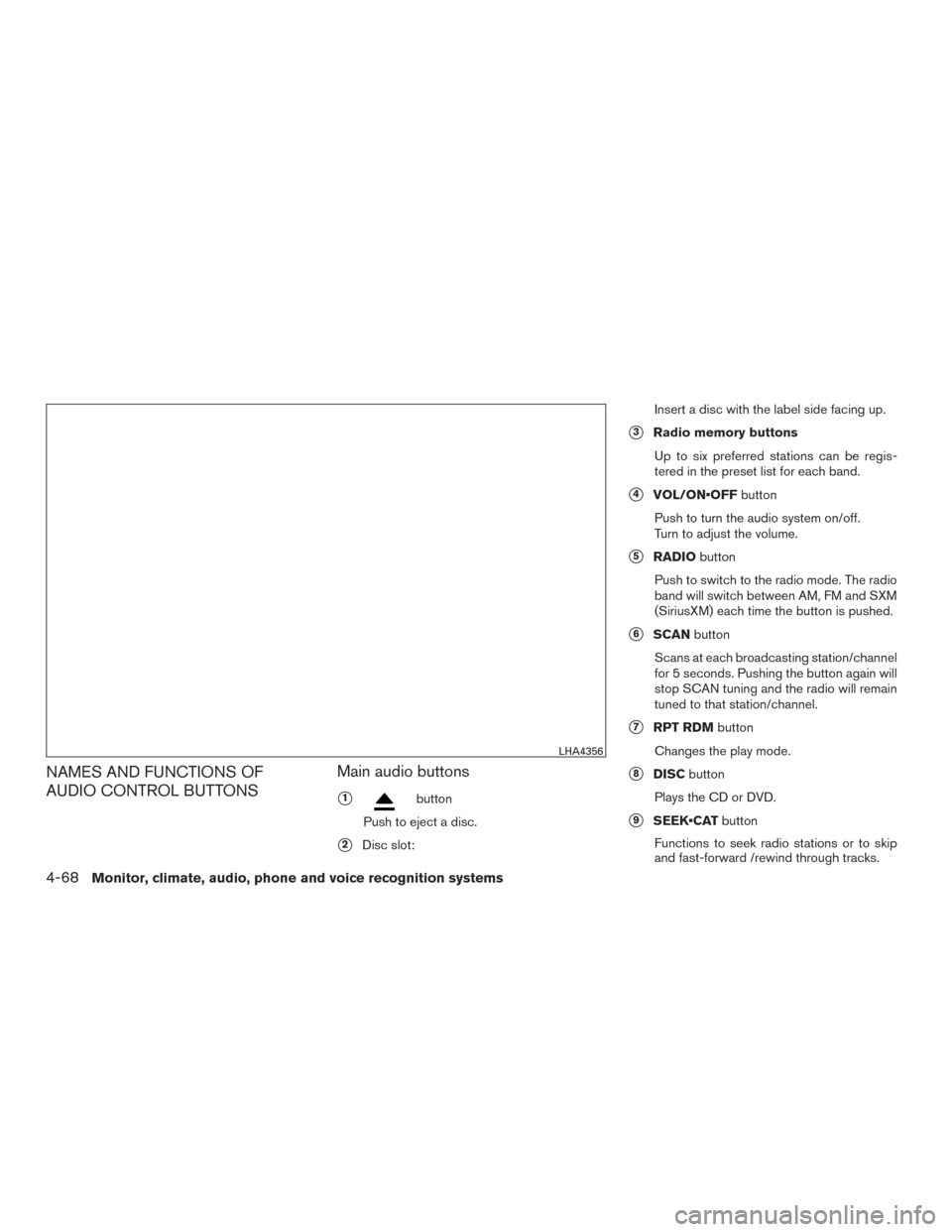

NAMES AND FUNCTIONS OF
AUDIO CONTROL BUTTONSMain audio buttons
1button
Push to eject a disc.
2Disc slot: Insert a disc with the label side facing up.
3Radio memory buttons
Up to six preferred stations can be regis-
tered in the preset list for each band.
4VOL/ON•OFF button
Push to turn the audio system on/off.
Turn to adjust the volume.
5RADIO button
Push to switch to the radio mode. The radio
band will switch between AM, FM and SXM
(SiriusXM) each time the button is pushed.
6SCAN button
Scans at each broadcasting station/channel
for 5 seconds. Pushing the button again will
stop SCAN tuning and the radio will remain
tuned to that station/channel.
7RPT RDM button
Changes the play mode.
8DISC button
Plays the CD or DVD.
9SEEK•CAT button
Functions to seek radio stations or to skip
and fast-forward /rewind through tracks.
LHA4356
4-68Monitor, climate, audio, phone and voice recognition systems

10TRACKbutton
Functions to seek radio stations or to skip
and fast-forward through tracks.
11MEDIA button
Each time the button is pushed, a different
audio source (iPod®, USB, Bluetooth®
streaming audio, AUX or Rear Display) will
be selected.
12TUNE/FOLDER AUDIO button
Bass, treble, balance and fade can also be
adjusted by pushing this button and turning
the knob to select the item to adjust.

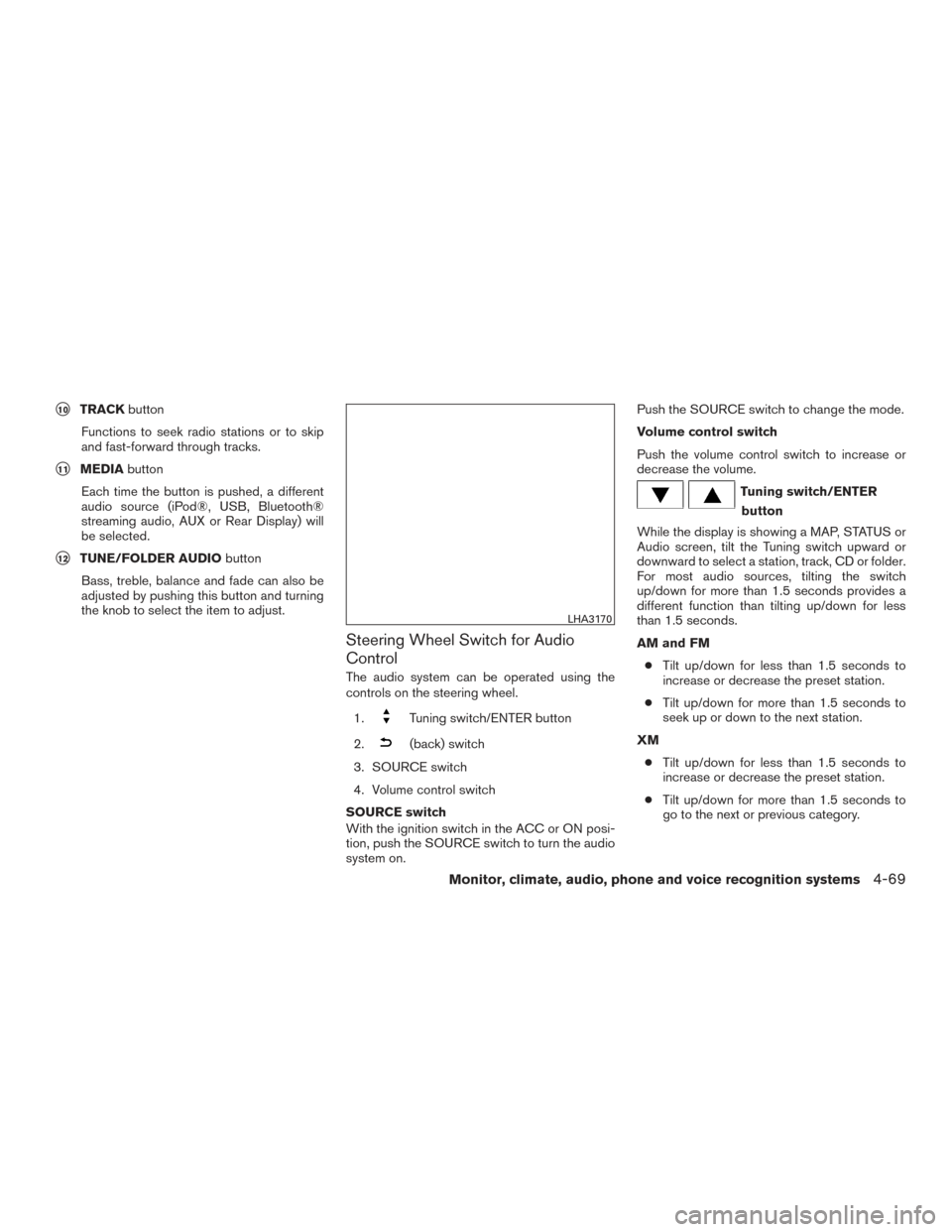

Steering Wheel Switch for Audio
Control
The audio system can be operated using the
controls on the steering wheel.
1.
Tuning switch/ENTER button
2.
(back) switch
3. SOURCE switch
4. Volume control switch
SOURCE switch
With the ignition switch in the ACC or ON posi-
tion, push the SOURCE switch to turn the audio
system on. Push the SOURCE switch to change the mode.
Volume control switch
Push the volume control switch to increase or
decrease the volume.
Tuning switch/ENTER
button
While the display is showing a MAP, STATUS or
Audio screen, tilt the Tuning switch upward or
downward to select a station, track, CD or folder.
For most audio sources, tilting the switch
up/down for more than 1.5 seconds provides a
different function than tilting up/down for less
than 1.5 seconds.
AM and FM
● Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
● Tilt up/down for more than 1.5 seconds to
seek up or down to the next station.
XM ● Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
● Tilt up/down for more than 1.5 seconds to
go to the next or previous category.
LHA3170
Monitor, climate, audio, phone and voice recognition systems4-69

iPod®● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
CD ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the folder number (if
playing compressed audio files) .
DVD ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the title number.
USB ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.
● Tilt up/down for more than 1.5 seconds to
increase or decrease the folder number.
Bluetooth® Audio ● Tilt up/down for less than 1.5 seconds to
increase or decrease the track number.(back) switch
Press the
(back) switch to return to the
previous screen or cancel the current selection.
NOTE:
You are unable to operate the display of the
NissanConnect
SMusing the buttons on the
steering switch whenever the meter shows
the setting display.
ANTENNA
The antenna cannot be shortened, but can be
removed. When you need to remove the antenna,
turn the antenna rod counterclockwise.
To install the antenna rod, turn the antenna rod
clockwise and hand tighten.
CAUTION
● Always properly tighten the antenna
rod during installation or the antenna
rod may break during vehicle operation.
● Be sure that the antenna is removed
before the vehicle enters an automatic
car wash.
Window antenna
The antenna pattern is printed inside the rear
window.
CAUTION
●Do not place metalized film near the
rear window glass or attach any metal
parts to it. This may cause poor recep-
tion or noise.
● When cleaning the inside of the rear
window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the antenna with a
dampened soft cloth.
AUDIO MAIN OPERATION
Turning audio system on/off
The ignition switch must be in the ACC or ON
position to turn on the audio system. Push the
ON•OFF button on the steering wheel to turn on
the last audio source which was playing immedi-
ately before the system was turned off. To turn off
the audio system, push the ON•OFFbutton on
the steering wheel again.
Displaying Audio screen
Push the AUDIObutton on the control panel to
display the current audio screen.
4-70Monitor, climate, audio, phone and voice recognition systems

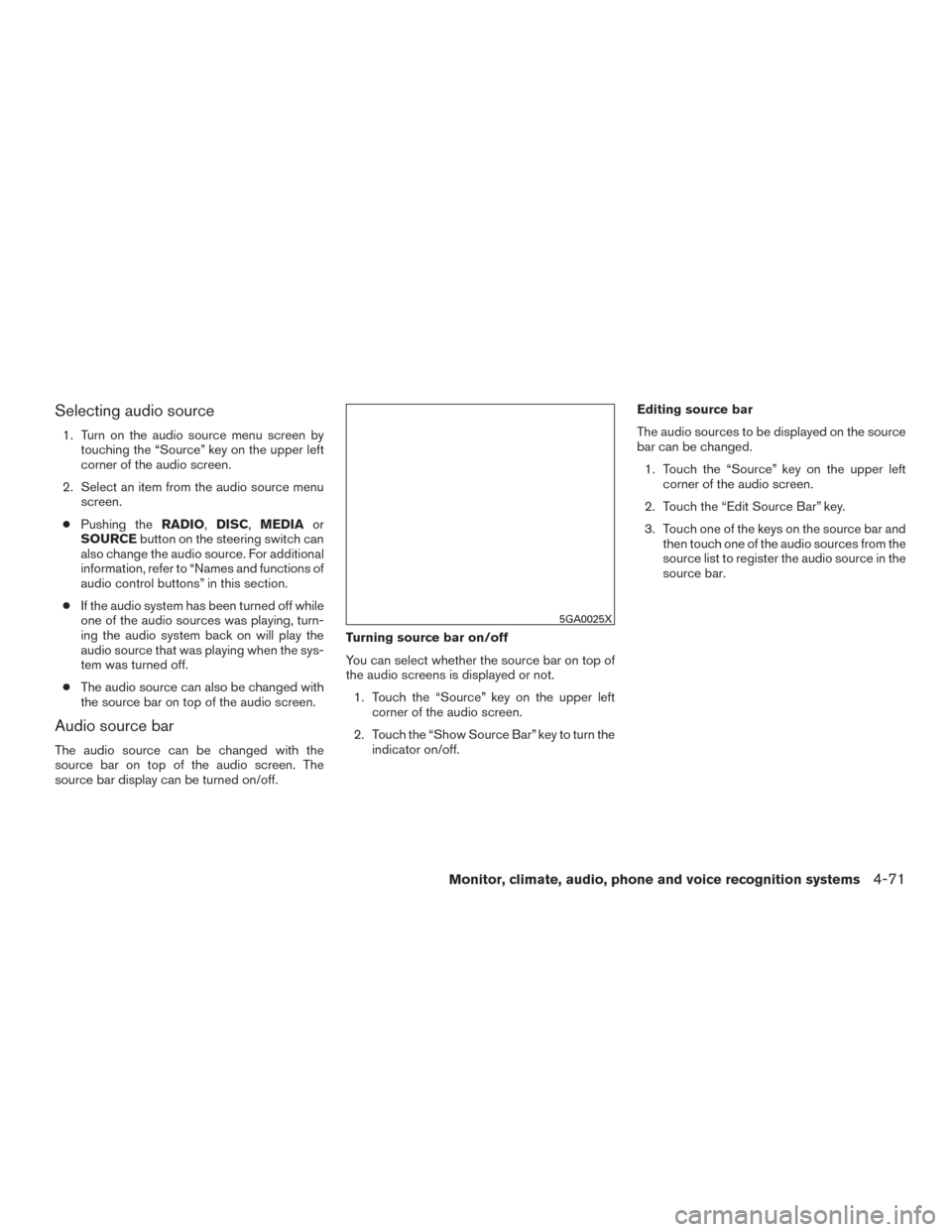

Selecting audio source
1. Turn on the audio source menu screen bytouching the “Source” key on the upper left
corner of the audio screen.
2. Select an item from the audio source menu screen.
● Pushing the RADIO,DISC,MEDIA or
SOURCE button on the steering switch can
also change the audio source. For additional
information, refer to “Names and functions of
audio control buttons” in this section.
● If the audio system has been turned off while
one of the audio sources was playing, turn-
ing the audio system back on will play the
audio source that was playing when the sys-
tem was turned off.
● The audio source can also be changed with
the source bar on top of the audio screen.
Audio source bar
The audio source can be changed with the
source bar on top of the audio screen. The
source bar display can be turned on/off. Turning source bar on/off
You can select whether the source bar on top of
the audio screens is displayed or not.
1. Touch the “Source” key on the upper left corner of the audio screen.
2. Touch the “Show Source Bar” key to turn the indicator on/off. Editing source bar
The audio sources to be displayed on the source
bar can be changed.
1. Touch the “Source” key on the upper left corner of the audio screen.
2. Touch the “Edit Source Bar” key.
3. Touch one of the keys on the source bar and then touch one of the audio sources from the
source list to register the audio source in the
source bar.
5GA0025X
Monitor, climate, audio, phone and voice recognition systems4-71
