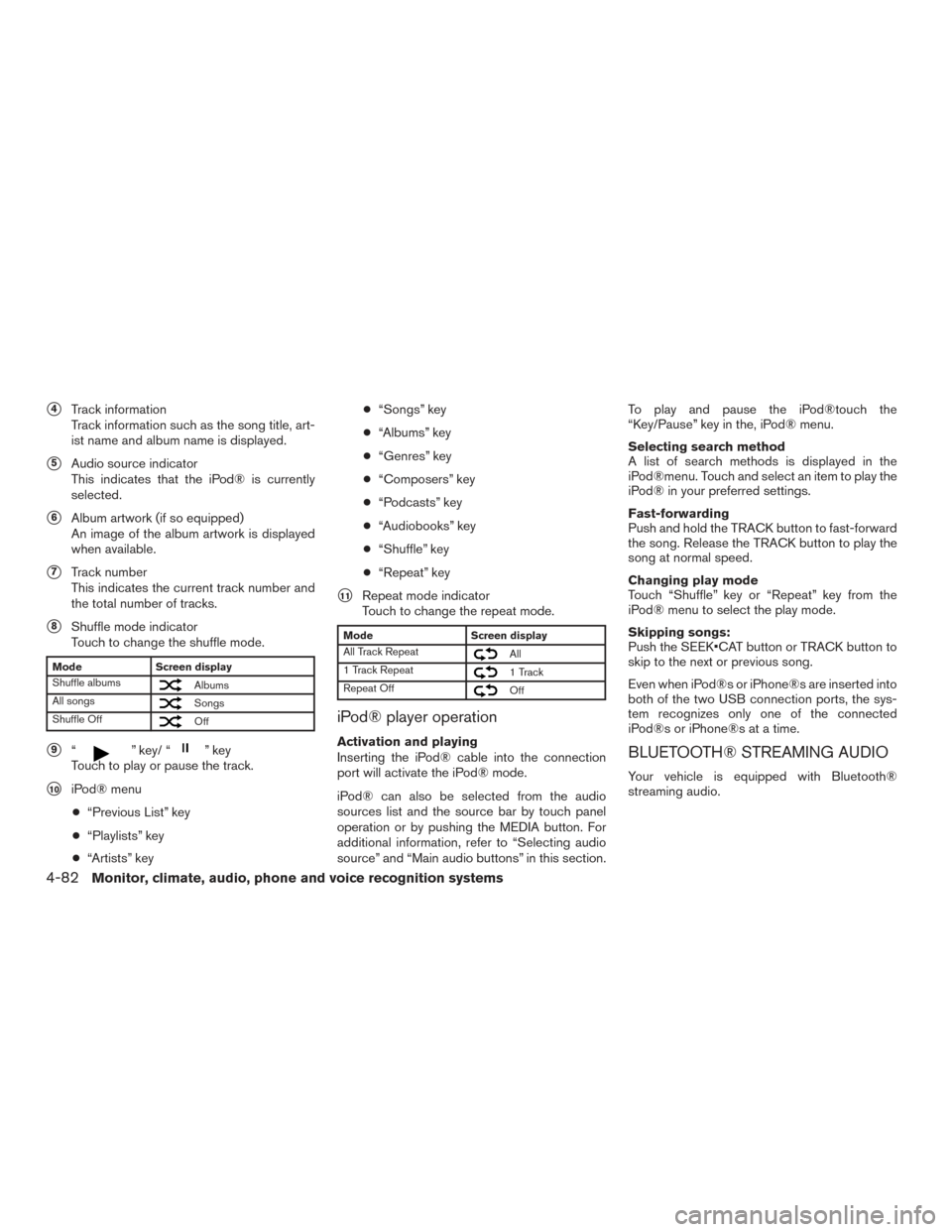

4Track information
Track information such as the song title, art-
ist name and album name is displayed.
5Audio source indicator
This indicates that the iPod® is currently
selected.
6Album artwork (if so equipped)
An image of the album artwork is displayed
when available.
7Track number
This indicates the current track number and
the total number of tracks.
8Shuffle mode indicator
Touch to change the shuffle mode.
Mode Screen display
Shuffle albums
Albums
All songs
Songs
Shuffle Off
Off
9“” key/ “” key
Touch to play or pause the track.
10iPod® menu
● “Previous List” key
● “Playlists” key
● “Artists” key ●
“Songs” key
● “Albums” key
● “Genres” key
● “Composers” key
● “Podcasts” key
● “Audiobooks” key
● “Shuffle” key
● “Repeat” key
11Repeat mode indicator
Touch to change the repeat mode.
Mode Screen display
All Track Repeat
All
1 Track Repeat
1 Track
Repeat Off
Off
iPod® player operation
Activation and playing
Inserting the iPod® cable into the connection
port will activate the iPod® mode.
iPod® can also be selected from the audio
sources list and the source bar by touch panel
operation or by pushing the MEDIA button. For
additional information, refer to “Selecting audio
source” and “Main audio buttons” in this section. To play and pause the iPod®touch the
“Key/Pause” key in the, iPod® menu.
Selecting search method
A list of search methods is displayed in the
iPod®menu. Touch and select an item to play the
iPod® in your preferred settings.
Fast-forwarding
Push and hold the TRACK button to fast-forward
the song. Release the TRACK button to play the
song at normal speed.
Changing play mode
Touch “Shuffle” key or “Repeat” key from the
iPod® menu to select the play mode.
Skipping songs:
Push the SEEK•CAT button or TRACK button to
skip to the next or previous song.
Even when iPod®s or iPhone®s are inserted into
both of the two USB connection ports, the sys-
tem recognizes only one of the connected
iPod®s or iPhone®s at a time.BLUETOOTH® STREAMING AUDIO
Your vehicle is equipped with Bluetooth®
streaming audio.
4-82Monitor, climate, audio, phone and voice recognition systems

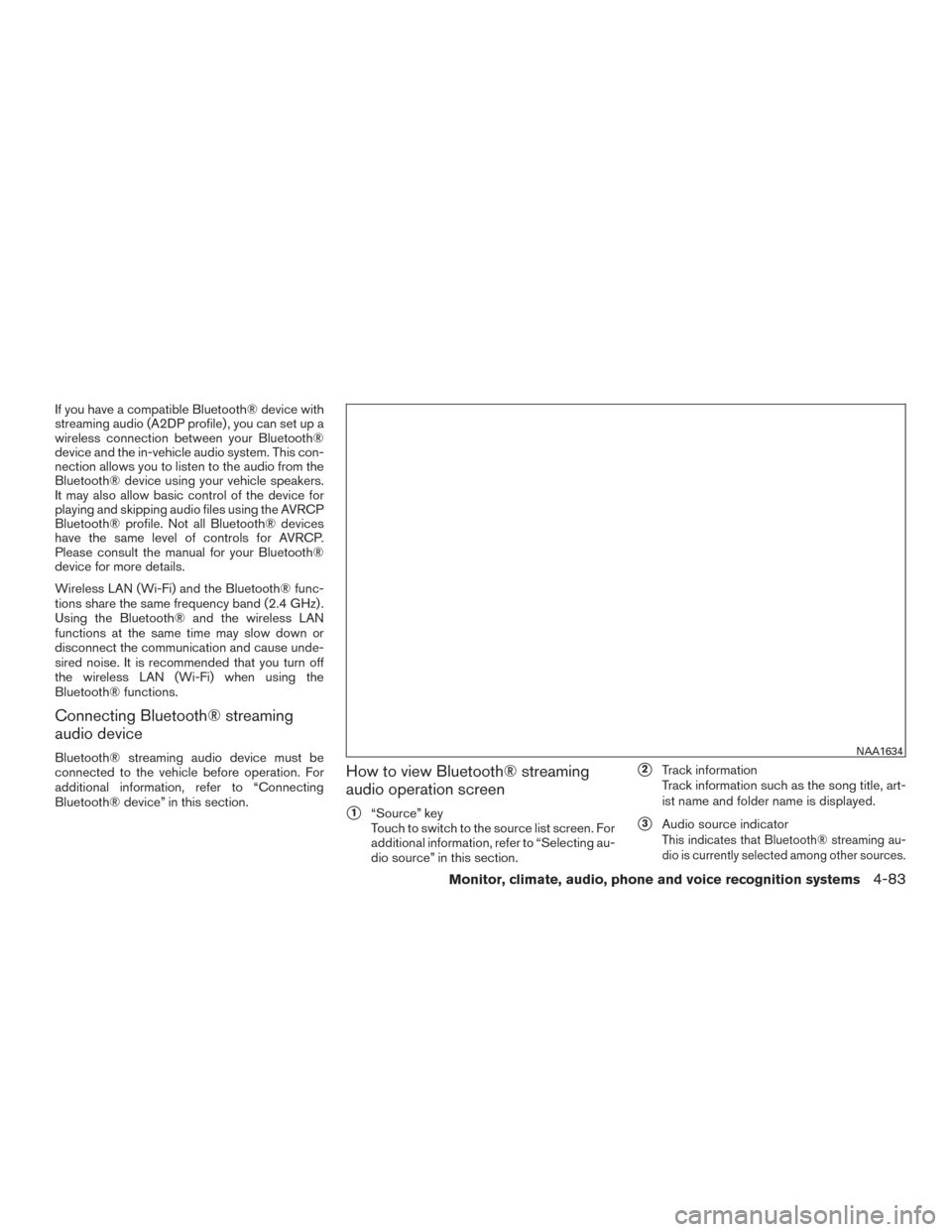

If you have a compatible Bluetooth® device with
streaming audio (A2DP profile) , you can set up a
wireless connection between your Bluetooth®
device and the in-vehicle audio system. This con-
nection allows you to listen to the audio from the
Bluetooth® device using your vehicle speakers.
It may also allow basic control of the device for
playing and skipping audio files using the AVRCP
Bluetooth® profile. Not all Bluetooth® devices
have the same level of controls for AVRCP.
Please consult the manual for your Bluetooth®
device for more details.
Wireless LAN (Wi-Fi) and the Bluetooth® func-
tions share the same frequency band (2.4 GHz) .
Using the Bluetooth® and the wireless LAN
functions at the same time may slow down or
disconnect the communication and cause unde-
sired noise. It is recommended that you turn off
the wireless LAN (Wi-Fi) when using the
Bluetooth® functions.
Connecting Bluetooth® streaming
audio device
Bluetooth® streaming audio device must be
connected to the vehicle before operation. For
additional information, refer to “Connecting
Bluetooth® device” in this section.How to view Bluetooth® streaming
audio operation screen
1“Source” key
Touch to switch to the source list screen. For
additional information, refer to “Selecting au-
dio source” in this section.
2Track information
Track information such as the song title, art-
ist name and folder name is displayed.
3Audio source indicatorThis indicates that Bluetooth® streaming au-
dio is currently selected among other sources.
NAA1634
Monitor, climate, audio, phone and voice recognition systems4-83

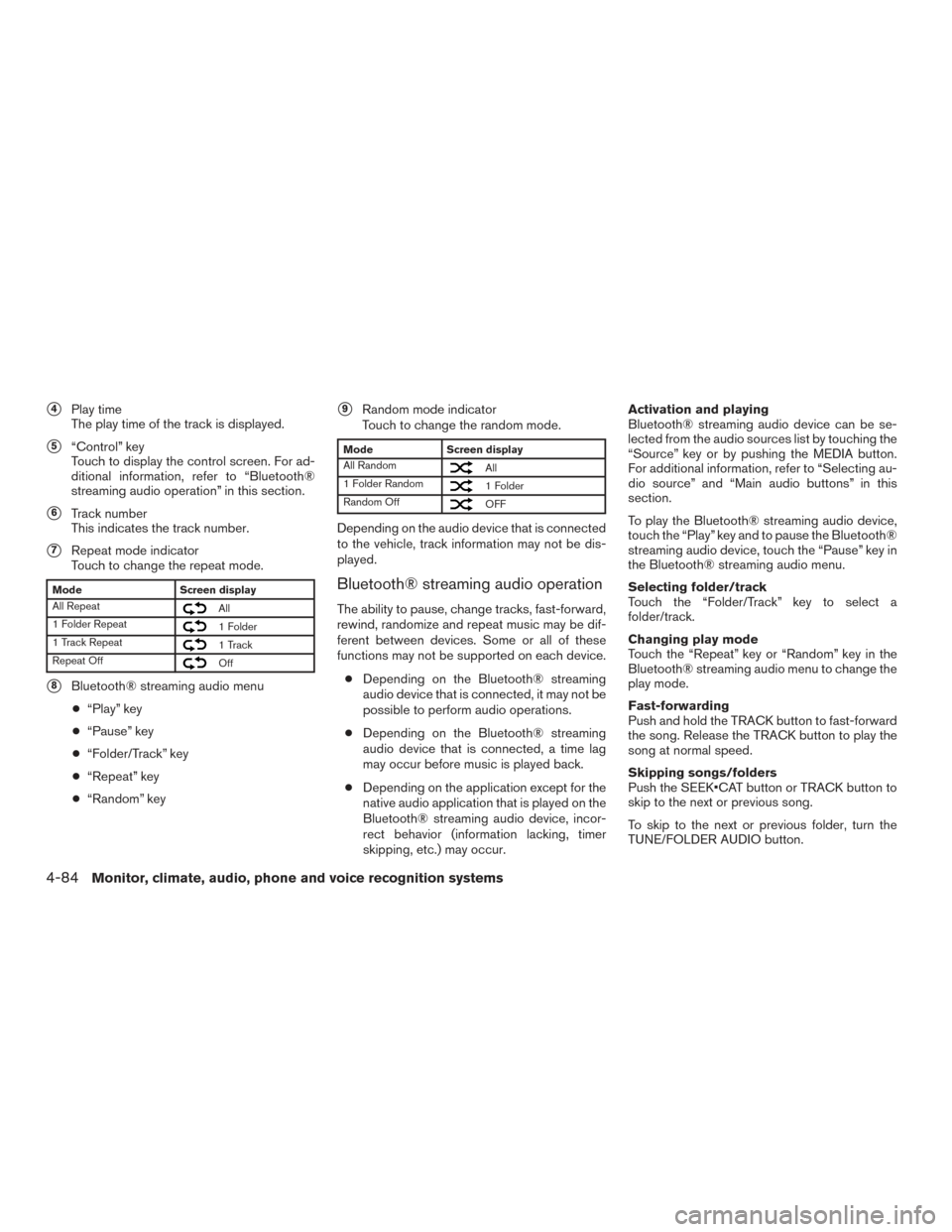

4Play time
The play time of the track is displayed.
5“Control” key
Touch to display the control screen. For ad-
ditional information, refer to “Bluetooth®
streaming audio operation” in this section.
6Track number
This indicates the track number.
7Repeat mode indicator
Touch to change the repeat mode.
Mode Screen display
All Repeat
All
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
Repeat Off
Off
8Bluetooth® streaming audio menu
● “Play” key
● “Pause” key
● “Folder/Track” key
● “Repeat” key
● “Random” key
9Random mode indicator
Touch to change the random mode.
Mode Screen display
All Random
All
1 Folder Random
1 Folder
Random Off
OFF
Depending on the audio device that is connected
to the vehicle, track information may not be dis-
played.
Bluetooth® streaming audio operation
The ability to pause, change tracks, fast-forward,
rewind, randomize and repeat music may be dif-
ferent between devices. Some or all of these
functions may not be supported on each device.
● Depending on the Bluetooth® streaming
audio device that is connected, it may not be
possible to perform audio operations.
● Depending on the Bluetooth® streaming
audio device that is connected, a time lag
may occur before music is played back.
● Depending on the application except for the
native audio application that is played on the
Bluetooth® streaming audio device, incor-
rect behavior (information lacking, timer
skipping, etc.) may occur. Activation and playing
Bluetooth® streaming audio device can be se-
lected from the audio sources list by touching the
“Source” key or by pushing the MEDIA button.
For additional information, refer to “Selecting au-
dio source” and “Main audio buttons” in this
section.
To play the Bluetooth® streaming audio device,
touch the “Play” key and to pause the Bluetooth®
streaming audio device, touch the “Pause” key in
the Bluetooth® streaming audio menu.
Selecting folder/track
Touch the “Folder/Track” key to select a
folder/track.
Changing play mode
Touch the “Repeat” key or “Random” key in the
Bluetooth® streaming audio menu to change the
play mode.
Fast-forwarding
Push and hold the TRACK button to fast-forward
the song. Release the TRACK button to play the
song at normal speed.
Skipping songs/folders
Push the SEEK•CAT button or TRACK button to
skip to the next or previous song.
To skip to the next or previous folder, turn the
TUNE/FOLDER AUDIO button.
4-84Monitor, climate, audio, phone and voice recognition systems

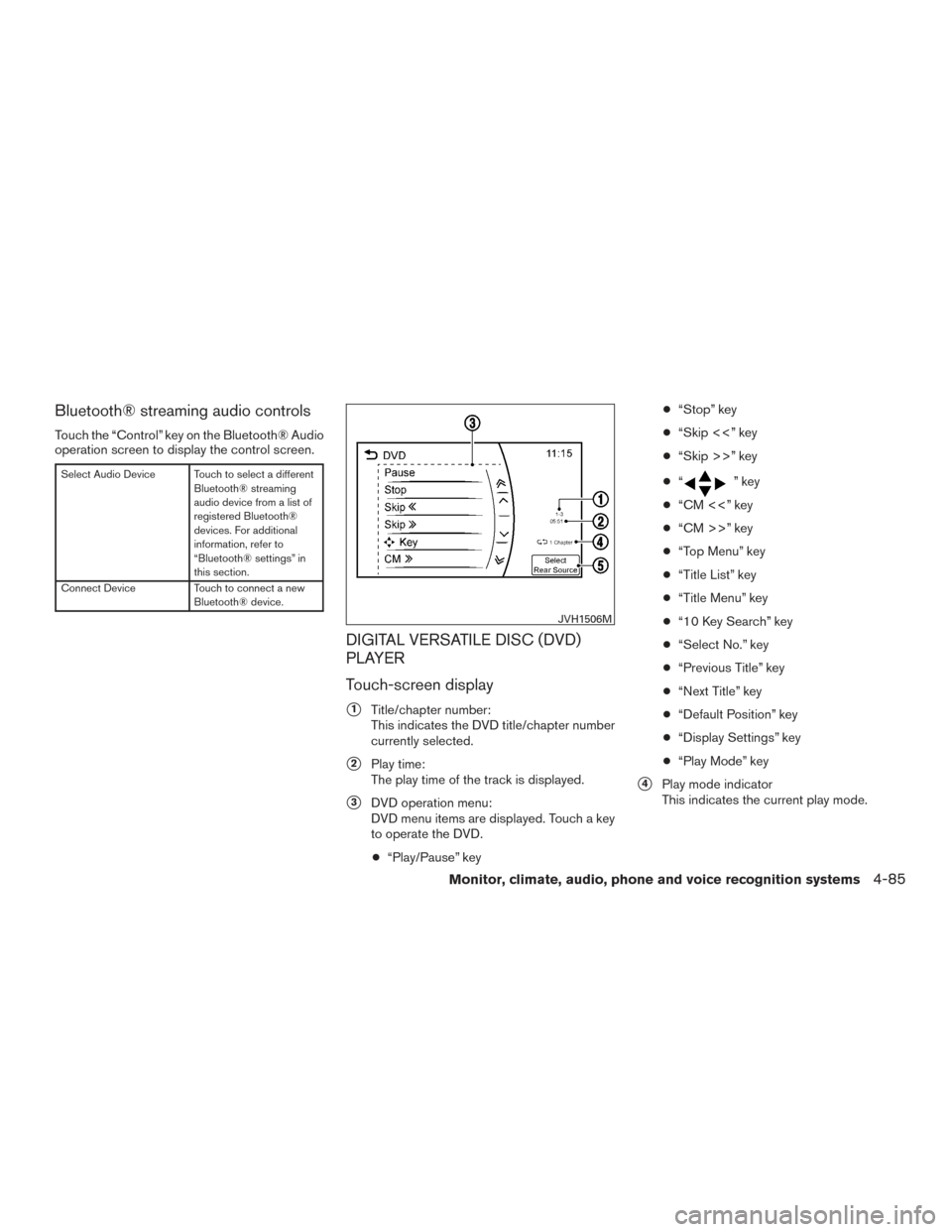

Bluetooth® streaming audio controls
Touch the “Control” key on the Bluetooth® Audio
operation screen to display the control screen.
Select Audio Device Touch to select a differentBluetooth® streaming
audio device from a list of
registered Bluetooth®
devices. For additional
information, refer to
“Bluetooth® settings” in
this section.
Connect Device Touch to connect a new Bluetooth® device.
DIGITAL VERSATILE DISC (DVD)
PLAYER
Touch-screen display
1Title/chapter number:
This indicates the DVD title/chapter number
currently selected.
2Play time:
The play time of the track is displayed.
3DVD operation menu:
DVD menu items are displayed. Touch a key
to operate the DVD.
● “Play/Pause” key ●
“Stop” key
● “Skip <<” key
● “Skip >>” key
● “
” key
● “CM <<” key
● “CM >>” key
● “Top Menu” key
● “Title List” key
● “Title Menu” key
● “10 Key Search” key
● “Select No.” key
● “Previous Title” key
● “Next Title” key
● “Default Position” key
● “Display Settings” key
● “Play Mode” key
4Play mode indicator
This indicates the current play mode.
JVH1506M
Monitor, climate, audio, phone and voice recognition systems4-85

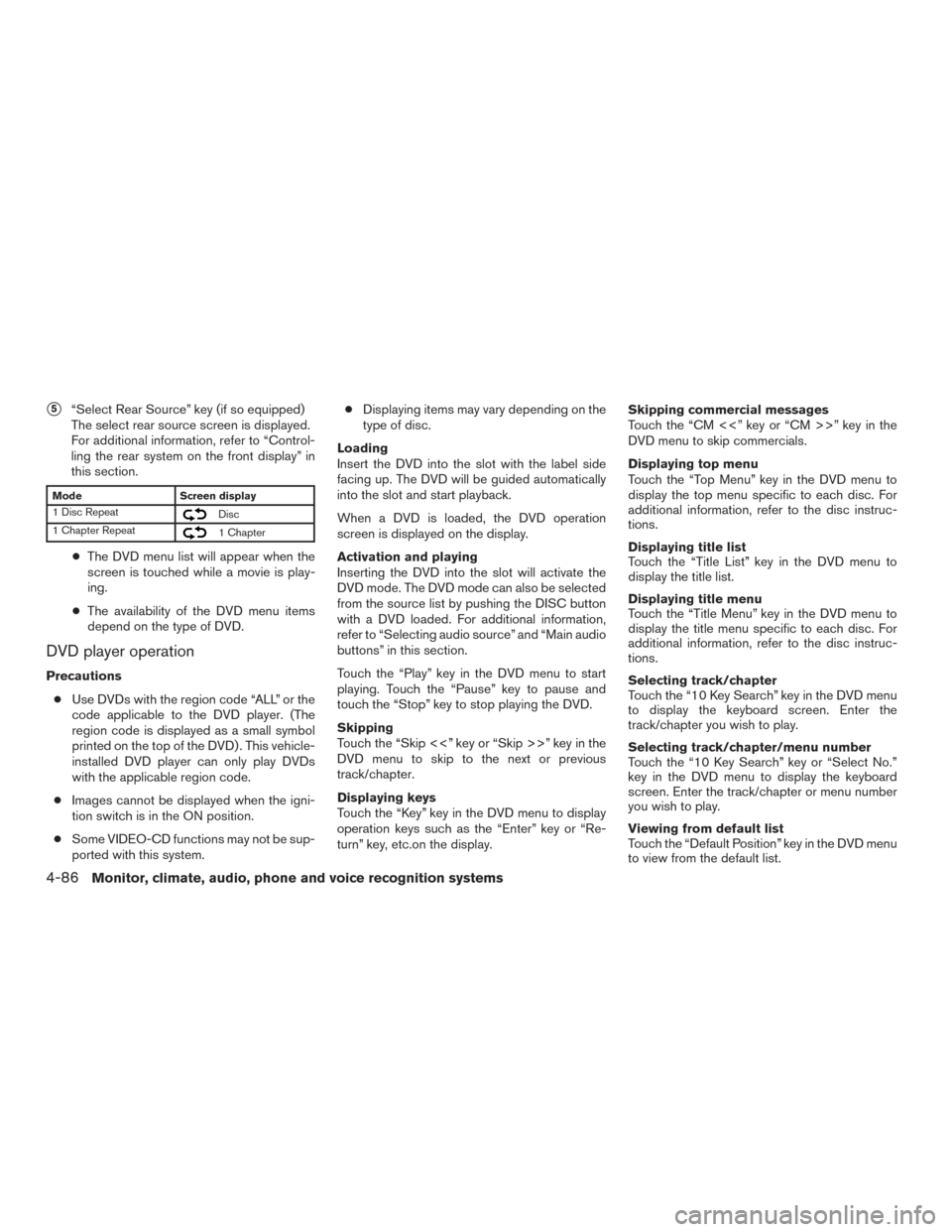

5“Select Rear Source” key (if so equipped)
The select rear source screen is displayed.
For additional information, refer to “Control-
ling the rear system on the front display” in
this section.
Mode Screen display
1 Disc Repeat
Disc
1 Chapter Repeat
1 Chapter
● The DVD menu list will appear when the
screen is touched while a movie is play-
ing.
● The availability of the DVD menu items
depend on the type of DVD.
DVD player operation
Precautions
● Use DVDs with the region code “ALL” or the
code applicable to the DVD player. (The
region code is displayed as a small symbol
printed on the top of the DVD) . This vehicle-
installed DVD player can only play DVDs
with the applicable region code.
● Images cannot be displayed when the igni-
tion switch is in the ON position.
● Some VIDEO-CD functions may not be sup-
ported with this system. ●
Displaying items may vary depending on the
type of disc.
Loading
Insert the DVD into the slot with the label side
facing up. The DVD will be guided automatically
into the slot and start playback.
When a DVD is loaded, the DVD operation
screen is displayed on the display.
Activation and playing
Inserting the DVD into the slot will activate the
DVD mode. The DVD mode can also be selected
from the source list by pushing the DISC button
with a DVD loaded. For additional information,
refer to “Selecting audio source” and “Main audio
buttons” in this section.
Touch the “Play” key in the DVD menu to start
playing. Touch the “Pause” key to pause and
touch the “Stop” key to stop playing the DVD.
Skipping
Touch the “Skip <<” key or “Skip >>” key in the
DVD menu to skip to the next or previous
track/chapter.
Displaying keys
Touch the “Key” key in the DVD menu to display
operation keys such as the “Enter” key or “Re-
turn” key, etc.on the display. Skipping commercial messages
Touch the “CM <<” key or “CM >>” key in the
DVD menu to skip commercials.
Displaying top menu
Touch the “Top Menu” key in the DVD menu to
display the top menu specific to each disc. For
additional information, refer to the disc instruc-
tions.
Displaying title list
Touch the “Title List” key in the DVD menu to
display the title list.
Displaying title menu
Touch the “Title Menu” key in the DVD menu to
display the title menu specific to each disc. For
additional information, refer to the disc instruc-
tions.
Selecting track/chapter
Touch the “10 Key Search” key in the DVD menu
to display the keyboard screen. Enter the
track/chapter you wish to play.
Selecting track/chapter/menu number
Touch the “10 Key Search” key or “Select No.”
key in the DVD menu to display the keyboard
screen. Enter the track/chapter or menu number
you wish to play.
Viewing from default list
Touch the “Default Position” key in the DVD menu
to view from the default list.
4-86Monitor, climate, audio, phone and voice recognition systems

Adjusting the display
Touch the “Display Settings” key in the DVD
menu to adjust the display settings of the display.
BrightnessAdjusts the display brightness
Contrast Adjusts the display contrast
Black Level Adjusts the display black level
Tint Adjusts the tint level
Color Adjusts the color
Reset Settings Resets all the display settings to default
AUXILIARY (AUX) DEVICES
Connecting auxiliary devices
The auxiliary input jacks are located in the center
console box.
The auxiliary audio input jack accepts any stan-
dard analog audio input such as from a portable
cassette player, CD player or MP3 player.
A video player can be connected to the auxiliary
video input jack to play movies.
INFO:
Insert a 1/8 in (3.5 mm) stereo mini plug in the
audio input jack. If a cable with a mono plug is
used, the audio output may not function normally.

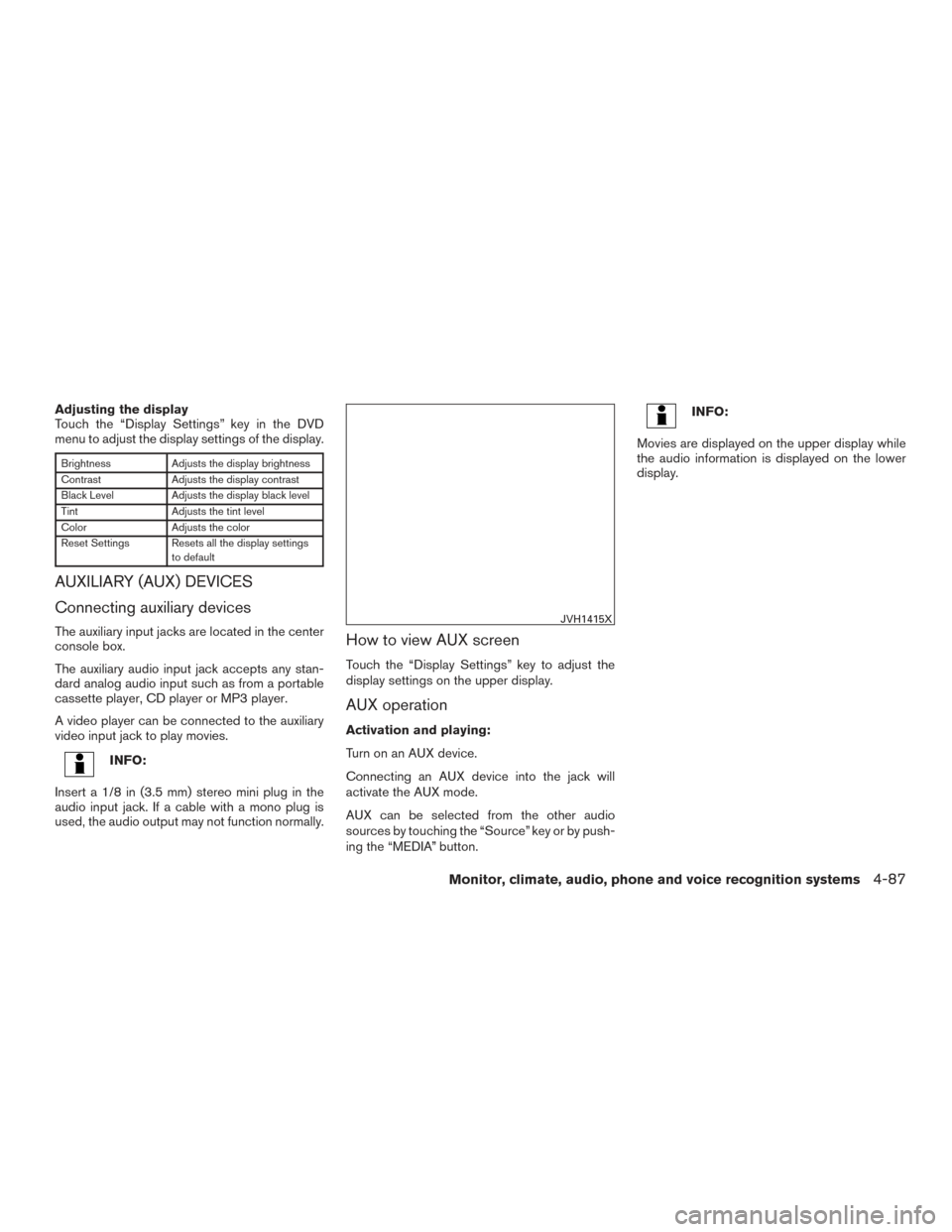

How to view AUX screen
Touch the “Display Settings” key to adjust the
display settings on the upper display.
AUX operation
Activation and playing:
Turn on an AUX device.
Connecting an AUX device into the jack will
activate the AUX mode.
AUX can be selected from the other audio
sources by touching the “Source” key or by push-
ing the “MEDIA” button.
INFO:
Movies are displayed on the upper display while
the audio information is displayed on the lower
display.
JVH1415X
Monitor, climate, audio, phone and voice recognition systems4-87

If your vehicle is equipped with the Mobile Enter-
tainment System, you can enjoy playing audio
and movie files on the rear displays with images
and sound.
A DVD and an AUX device inserted/connected to
the audio system for the front seat audio unit as
well as the devices connected to the rear media
interface (USB and HDMI ports for the rear dis-
plays) can be played on the rear displays.
The front and left/right rear displays can show
different sources individually.
CD/DVD slot is on the instrument panel. For
additional information, refer to “Names and func-
tions of audio control buttons” in this section.
AUX jacks are located inside the center console
box.
The rear media interface (USB and HDMI con-
nection ports) is located behind the center con-
sole box. For additional information, refer to
“Connecting rear media interface” in this section.
WARNING
The driver must not attempt to operate the
Mobile Entertainment System while driv-
ing so full attention may be given to ve-
hicle operation.
CAUTION
●Do not attempt to use the system in
extremely high or low temperature con-
ditions [below -4°F (-20°C) or above
158°F (70°C)].
● To avoid draining the vehicle battery
(12V battery) , do not operate the system
for more that 15 minutes without start-
ing the engine.
The front display is designed not to show
images during driving, as the driver’s at-
tention must be given to vehicle operation
for safety. Sounds are still audible. To
show images on the front display, stop the
vehicle in a safe location, move the shift
lever to the “P” (Park) position and apply
the parking brake.
PRECAUTIONS
Start the engine when using the Mobile Enter-
tainment System.
WARNING
The driver must not attempt to operate the
Mobile Entertainment System or wear the
headphones while the vehicle is in motion
so that full attention may be given to ve-
hicle operation. Park the vehicle in a safe location and
apply the parking break to view the im-
ages on the front center display screen
using the DVD player.
CAUTION
●
Only operate the Mobile Entertainment
System while the engine is running. Op-
erating the Mobile Entertainment Sys-
tem for extended periods of time with
the engine turned off can discharge the
vehicle battery (12V battery) .
● Do not allow the system to get wet.
Excessive moisture such as spilled liq-
uids may cause the system to
malfunction.
● While playing VIDEO-CD media, this
DVD player does not guarantee com-
plete functionality of all VIDEO-CD
formats.
MOBILE ENTERTAINMENT SYSTEM
(MES) (if so equipped)
4-88Monitor, climate, audio, phone and voice recognition systems

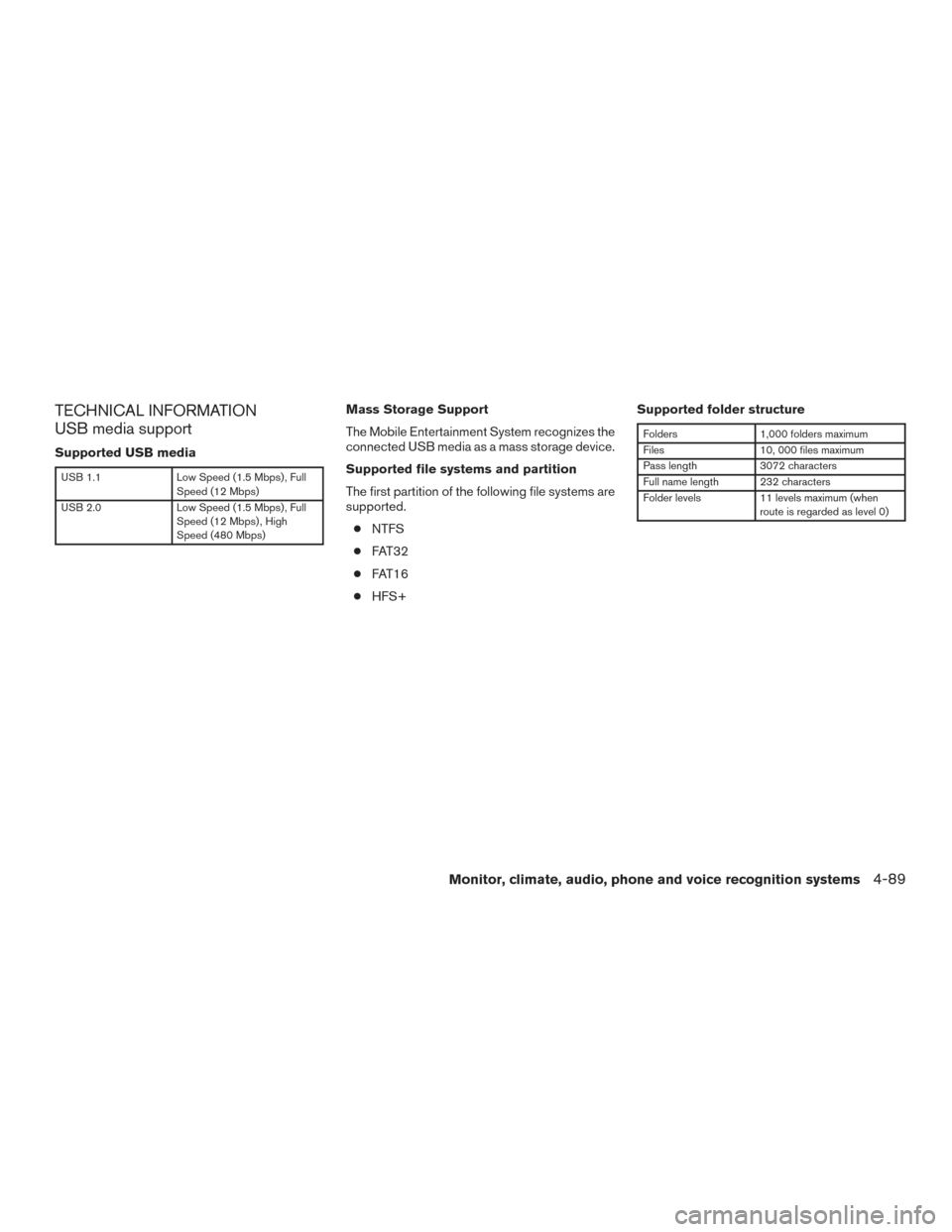

TECHNICAL INFORMATION
USB media support
Supported USB media
USB 1.1Low Speed (1.5 Mbps) , Full
Speed (12 Mbps)
USB 2.0 Low Speed (1.5 Mbps) , Full
Speed (12 Mbps) , High
Speed (480 Mbps)
Mass Storage Support
The Mobile Entertainment System recognizes the
connected USB media as a mass storage device.
Supported file systems and partition
The first partition of the following file systems are
supported.
● NTFS
● FAT32
● FAT16
● HFS+ Supported folder structure
Folders
1,000 folders maximum
Files 10, 000 files maximum
Pass length 3072 characters
Full name length 232 characters
Folder levels 11 levels maximum (when
route is regarded as level 0)
Monitor, climate, audio, phone and voice recognition systems4-89

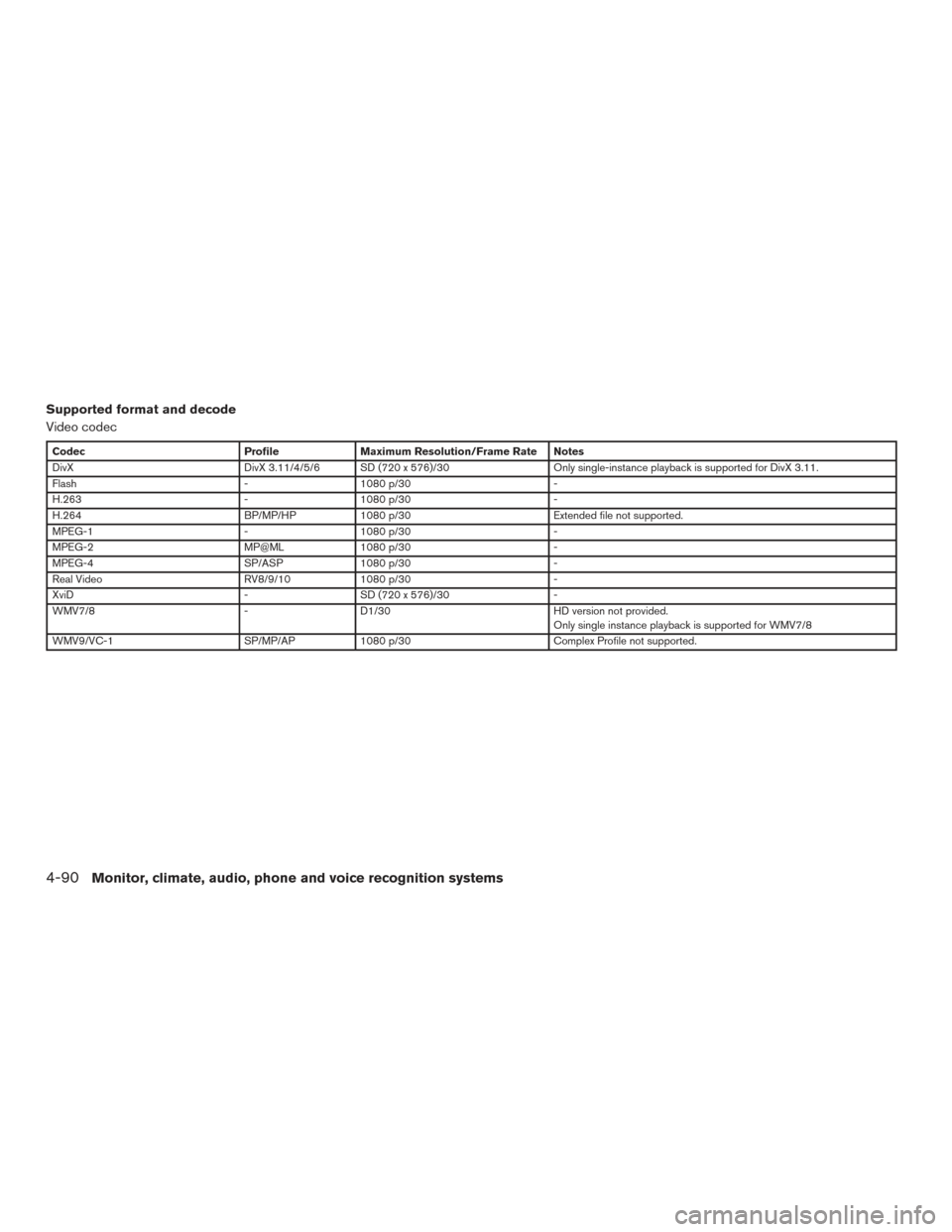

Supported format and decode
Video codec
CodecProfileMaximum Resolution/Frame Rate Notes
DivX DivX 3.11/4/5/6 SD (720 x 576)/30 Only single-instance playback is supported for DivX 3.11.
Flash -1080 p/30 -
H.263 -1080 p/30 -
H.264 BP/MP/HP1080 p/30 Extended file not supported.
MPEG-1 -1080 p/30 -
MPEG-2 MP@ML1080 p/30 -
MPEG-4 SP/ASP1080 p/30 -
Real Video RV8/9/101080 p/30 -
XviD -SD (720 x 576)/30 -
WMV7/8 -D1/30 HD version not provided.
Only single instance playback is supported for WMV7/8
WMV9/VC-1 SP/MP/AP1080 p/30 Complex Profile not supported.
4-90Monitor, climate, audio, phone and voice recognition systems

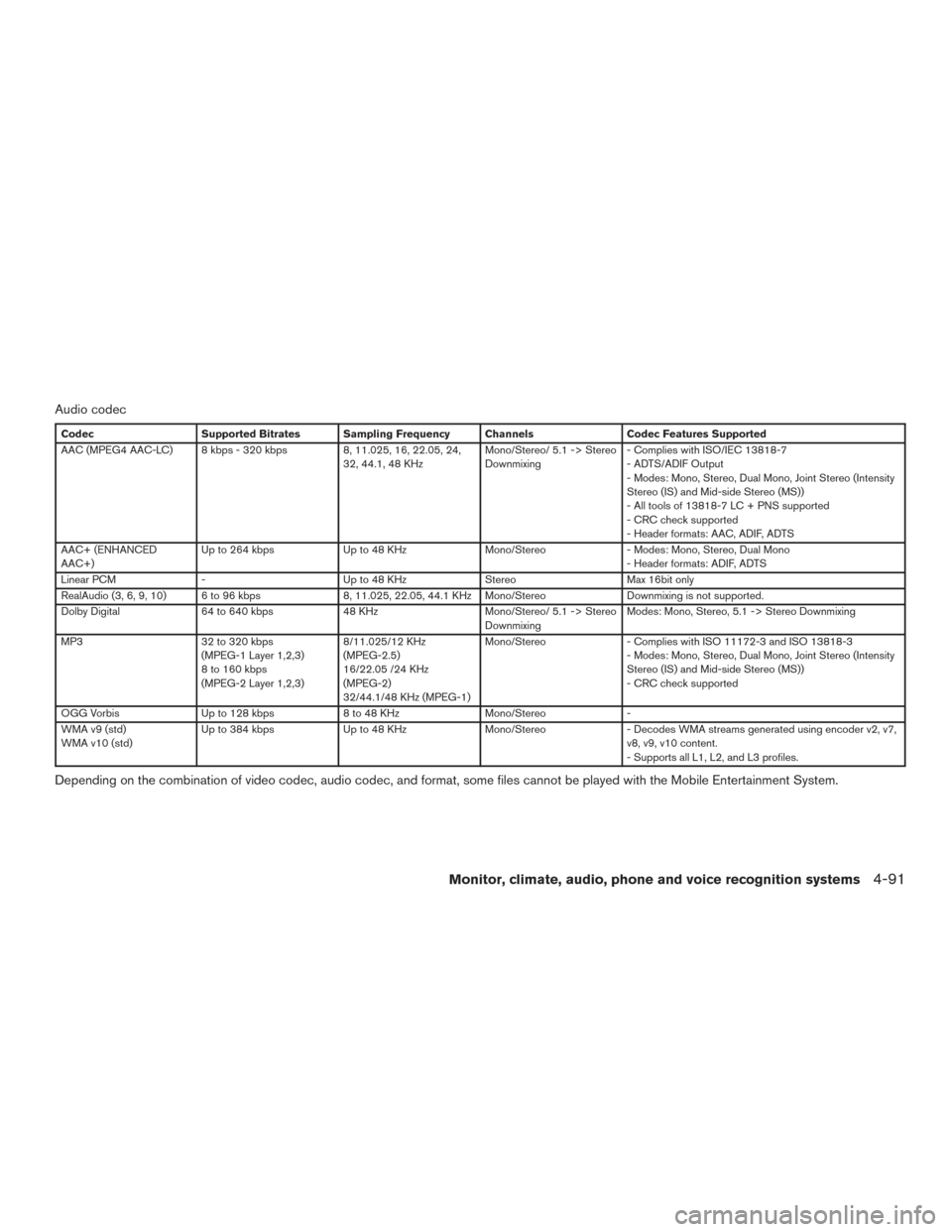

Audio codec
CodecSupported Bitrates Sampling Frequency Channels Codec Features Supported
AAC (MPEG4 AAC-LC) 8 kbps - 320 kbps 8, 11.025, 16, 22.05, 24,
32, 44.1, 48 KHz Mono/Stereo/ 5.1 -> Stereo
Downmixing- Complies with ISO/IEC 13818-7
- ADTS/ADIF Output
- Modes: Mono, Stereo, Dual Mono, Joint Stereo (Intensity
Stereo (IS) and Mid-side Stereo (MS))
- All tools of 13818-7 LC + PNS supported
- CRC check supported
- Header formats: AAC, ADIF, ADTS
AAC+ (ENHANCED
AAC+) Up to 264 kbps
Up to 48 KHzMono/Stereo- Modes: Mono, Stereo, Dual Mono
- Header formats: ADIF, ADTS
Linear PCM - Up to 48 KHzStereoMax 16bit only
RealAudio (3, 6, 9, 10) 6 to 96 kbps 8, 11.025, 22.05, 44.1 KHz Mono/Stereo Downmixing is not supported.
Dolby Digital 64 to 640 kbps 48 KHzMono/Stereo/ 5.1 -> Stereo
Downmixing Modes: Mono, Stereo, 5.1 -> Stereo Downmixing
MP3 32 to 320 kbps
(MPEG-1 Layer 1,2,3)
8 to 160 kbps
(MPEG-2 Layer 1,2,3) 8/11.025/12 KHz
(MPEG-2.5)
16/22.05 /24 KHz
(MPEG-2)
32/44.1/48 KHz (MPEG-1)Mono/Stereo
- Complies with ISO 11172-3 and ISO 13818-3
- Modes: Mono, Stereo, Dual Mono, Joint Stereo (Intensity
Stereo (IS) and Mid-side Stereo (MS))
- CRC check supported
OGG Vorbis Up to 128 kbps 8 to 48 KHzMono/Stereo-
WMA v9 (std)
WMA v10 (std) Up to 384 kbps
Up to 48 KHzMono/Stereo- Decodes WMA streams generated using encoder v2, v7,
v8, v9, v10 content.
- Supports all L1, L2, and L3 profiles.
Depending on the combination of video codec, audio codec, and format, some files cannot be played with the Mobile Entertainment System.
Monitor, climate, audio, phone and voice recognition systems4-91
