NISSAN PATROL 1998 Y61 / 5.G Brake System Workshop Manual BRAKE SYSTEM
SECTION
BR

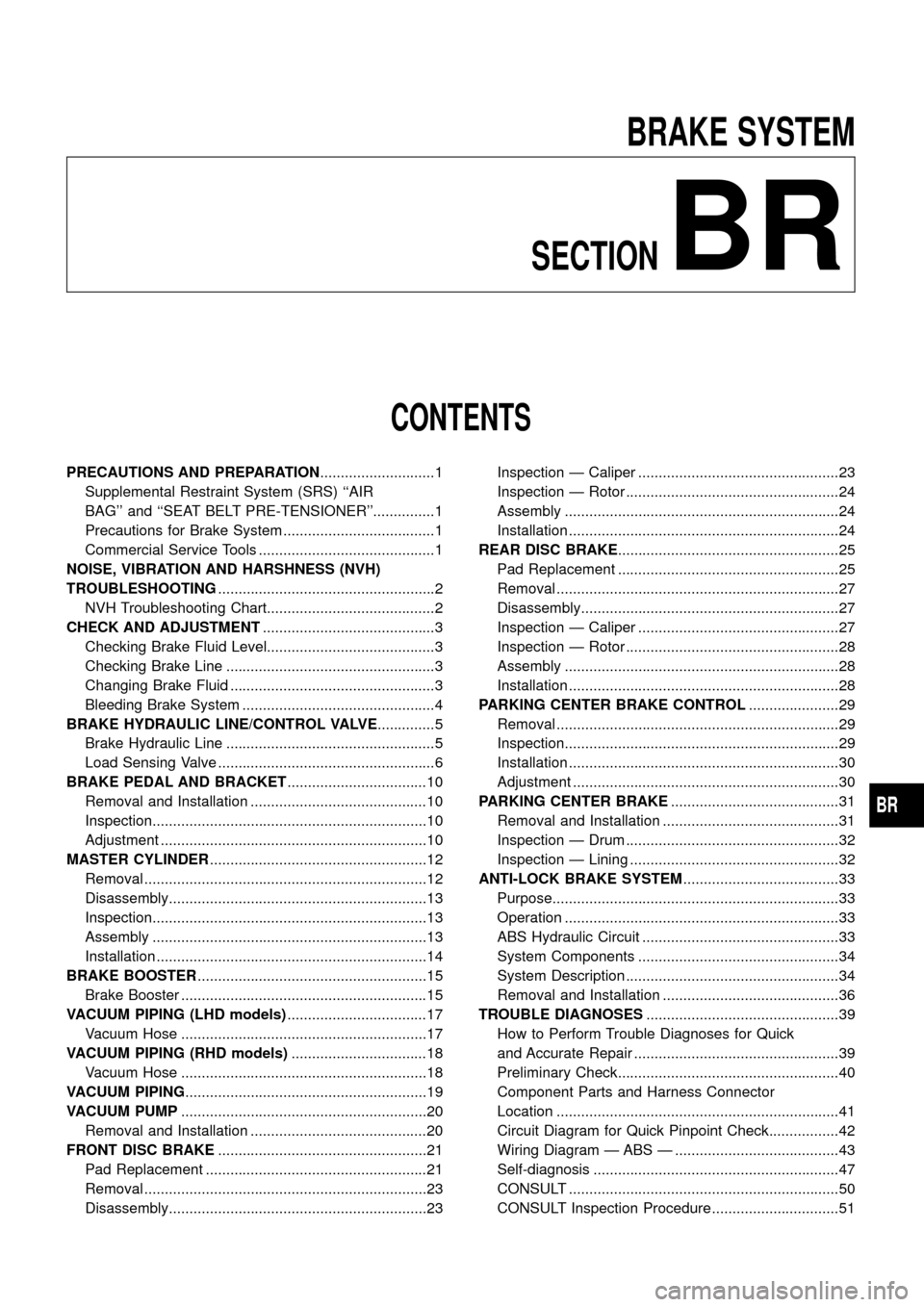

CONTENTS
PRECAUTIONS AND PREPARATION ............................1
Supplemental Restraint System (SRS) ``AIR
BAG and ``SEAT BELT PRE-TENSIONER...............1
Precautions f

Page 2 of 75

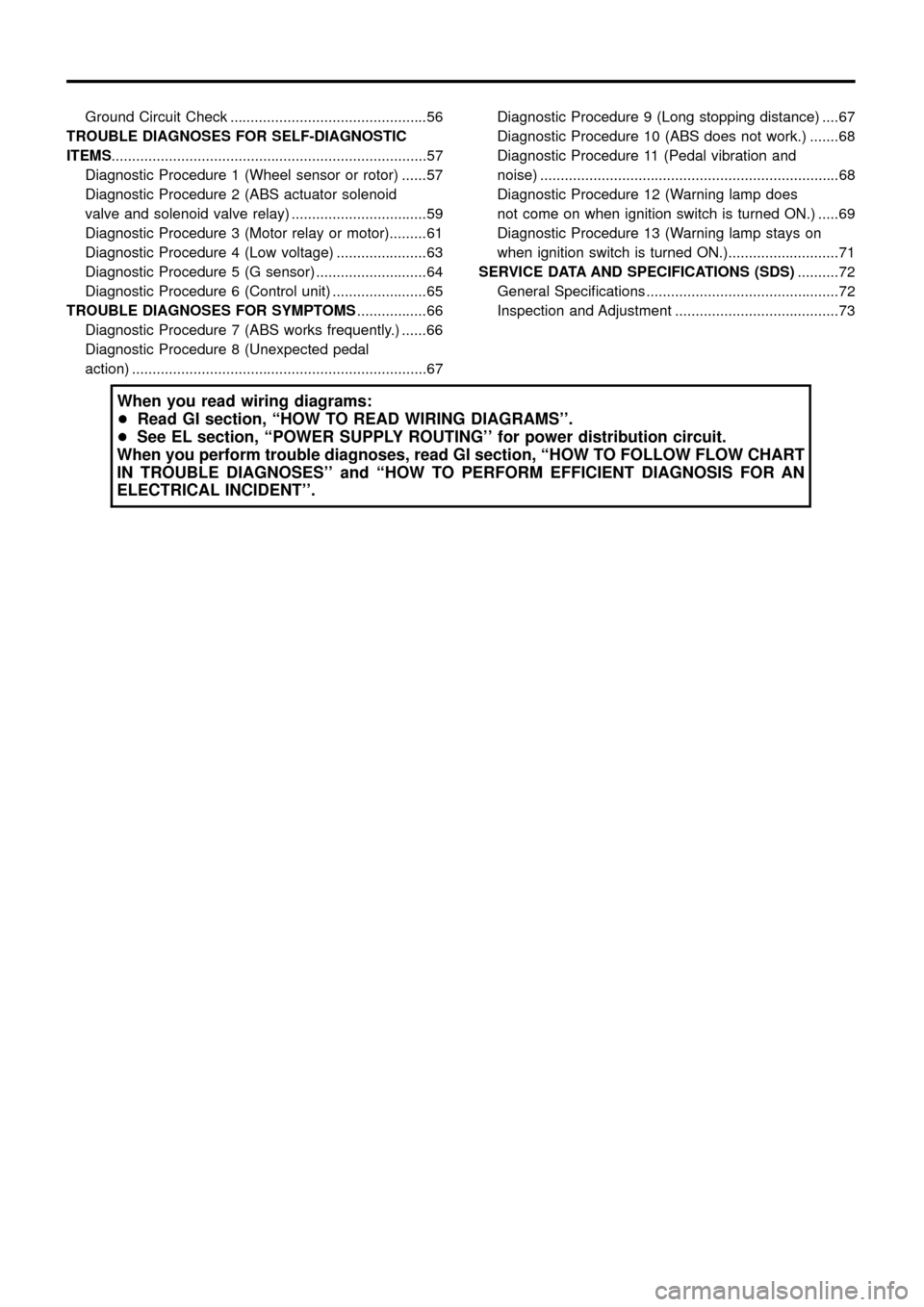

NISSAN PATROL 1998 Y61 / 5.G Brake System Workshop Manual Ground Circuit Check ................................................56
TROUBLE DIAGNOSES FOR SELF-DIAGNOSTIC
ITEMS ........................................................................\
.....57
Di

Page 3 of 75

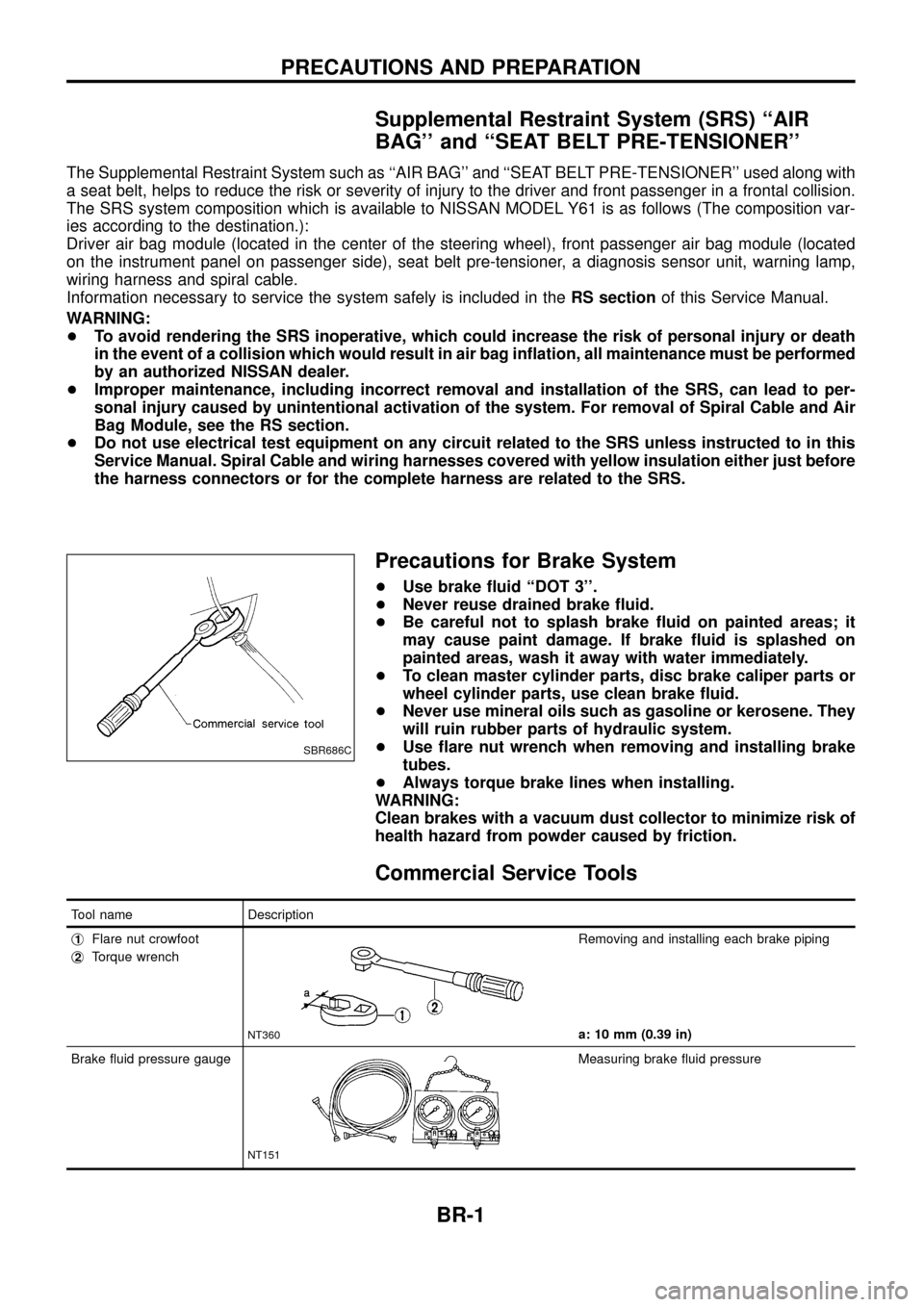

NISSAN PATROL 1998 Y61 / 5.G Brake System Workshop Manual Supplemental Restraint System (SRS) ``AIR
BAG and ``SEAT BELT PRE-TENSIONER
The Supplemental Restraint System such as ``AIR BAG and ``SEAT BELT PRE-TENSIONER used along with
a seat belt, helps

Page 4 of 75

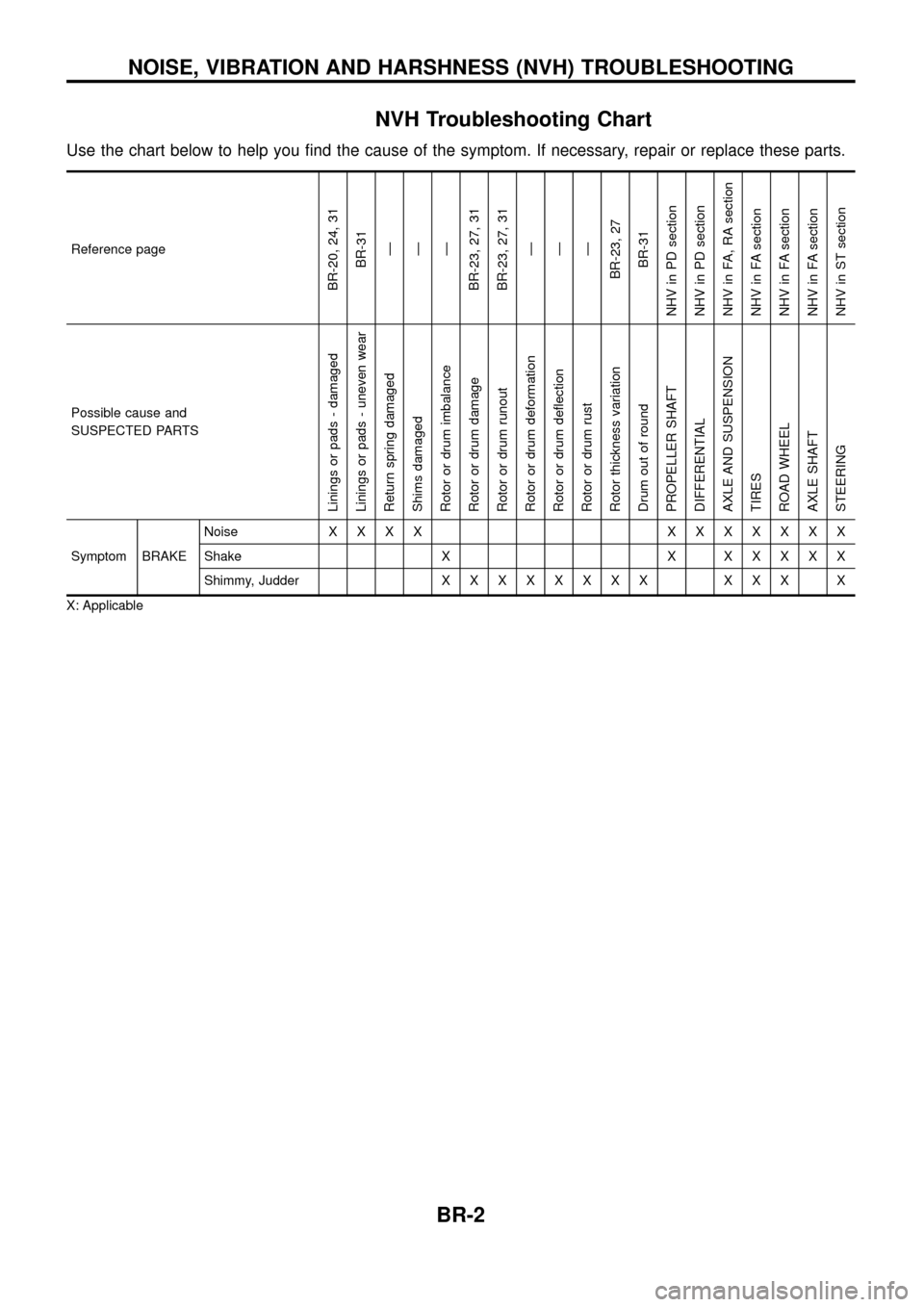

NISSAN PATROL 1998 Y61 / 5.G Brake System Workshop Manual NVH Troubleshooting Chart
Use the chart below to help you ®nd the cause of the symptom. If necessary, repair or replace these parts.
Reference page
BR-20, 24, 31BR-31Ð
Ð
Ð
BR-23, 27, 31
BR-23, 27,

Page 5 of 75

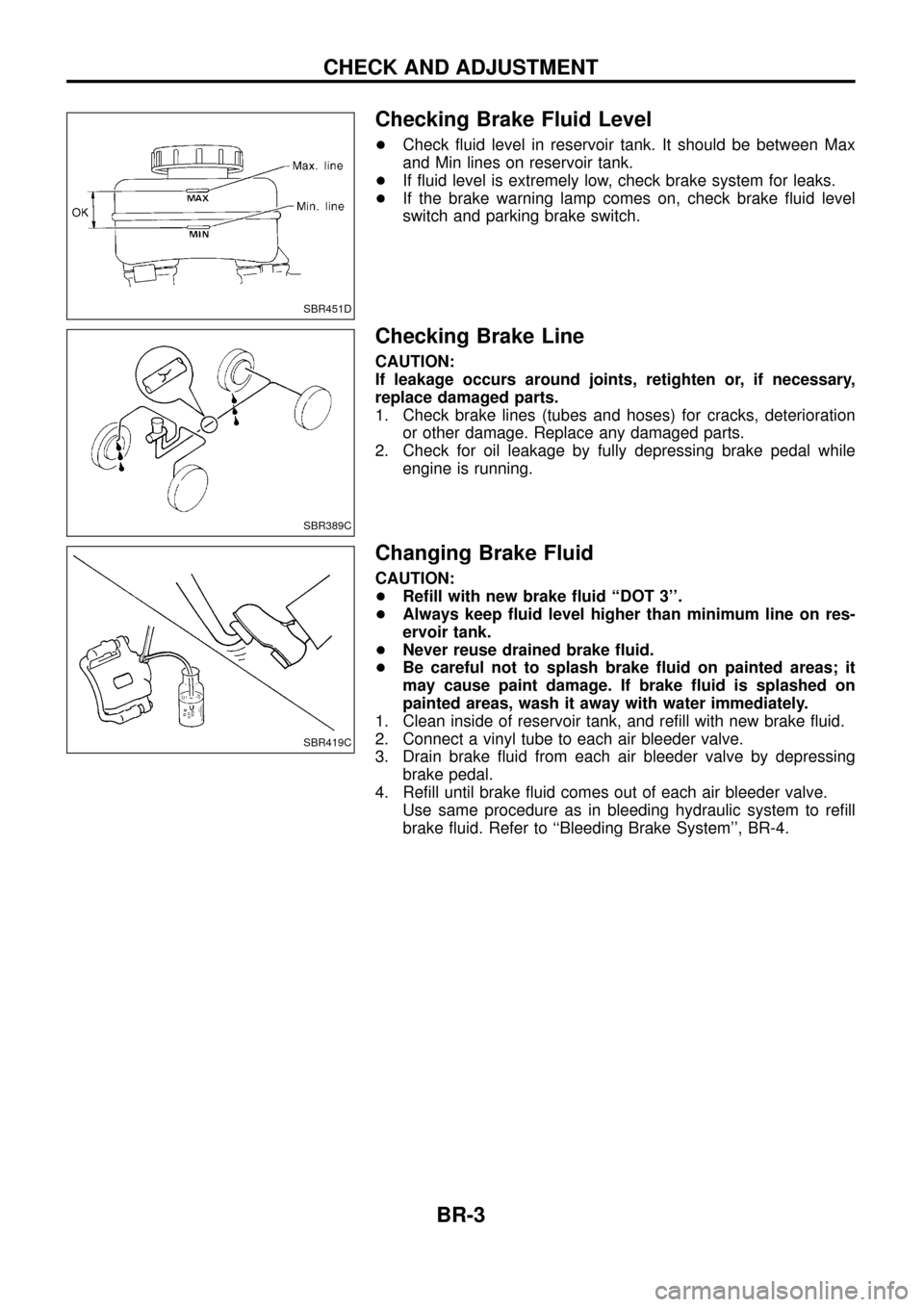

NISSAN PATROL 1998 Y61 / 5.G Brake System Workshop Manual Checking Brake Fluid Level
+Check ¯uid level in reservoir tank. It should be between Max
and Min lines on reservoir tank.
+ If ¯uid level is extremely low, check brake system for leaks.
+ If the bra

Page 6 of 75

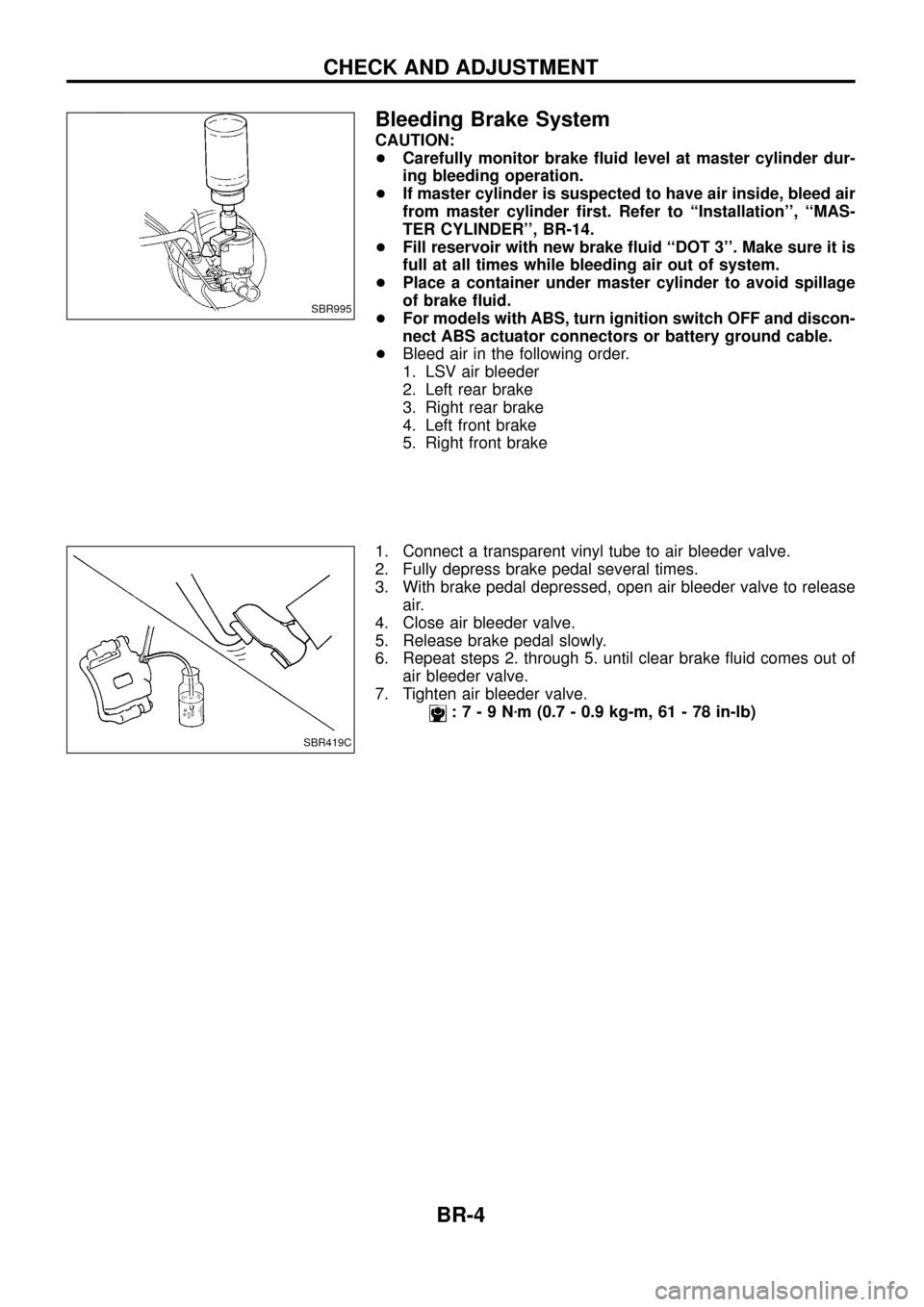

NISSAN PATROL 1998 Y61 / 5.G Brake System Workshop Manual Bleeding Brake System
CAUTION:
+Carefully monitor brake ¯uid level at master cylinder dur-
ing bleeding operation.
+ If master cylinder is suspected to have air inside, bleed air
from master cylinder

Page 7 of 75

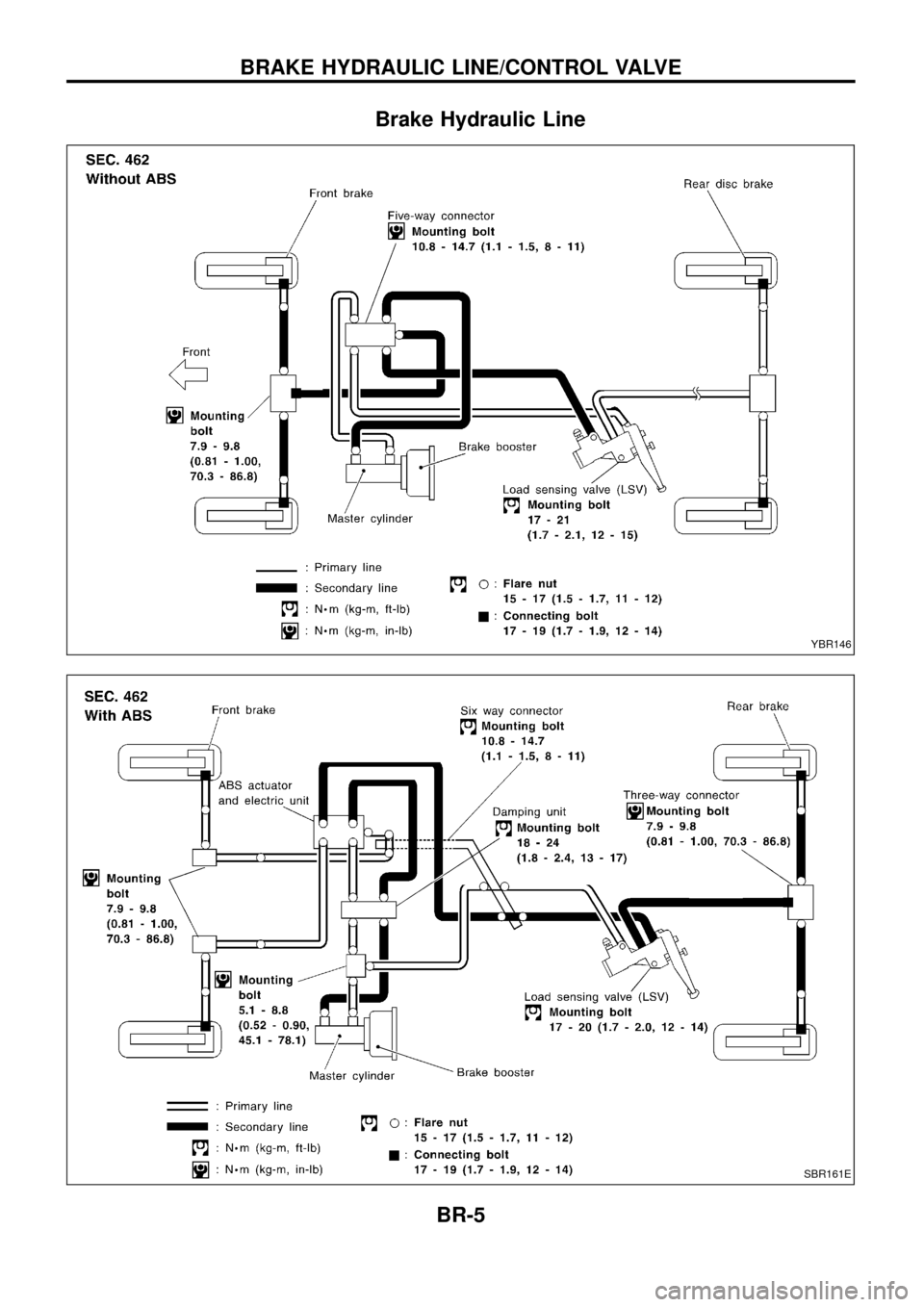

NISSAN PATROL 1998 Y61 / 5.G Brake System Workshop Manual Brake Hydraulic Line
YBR146
SBR161E
BRAKE HYDRAULIC LINE/CONTROL VALVE
BR-5

Page 8 of 75

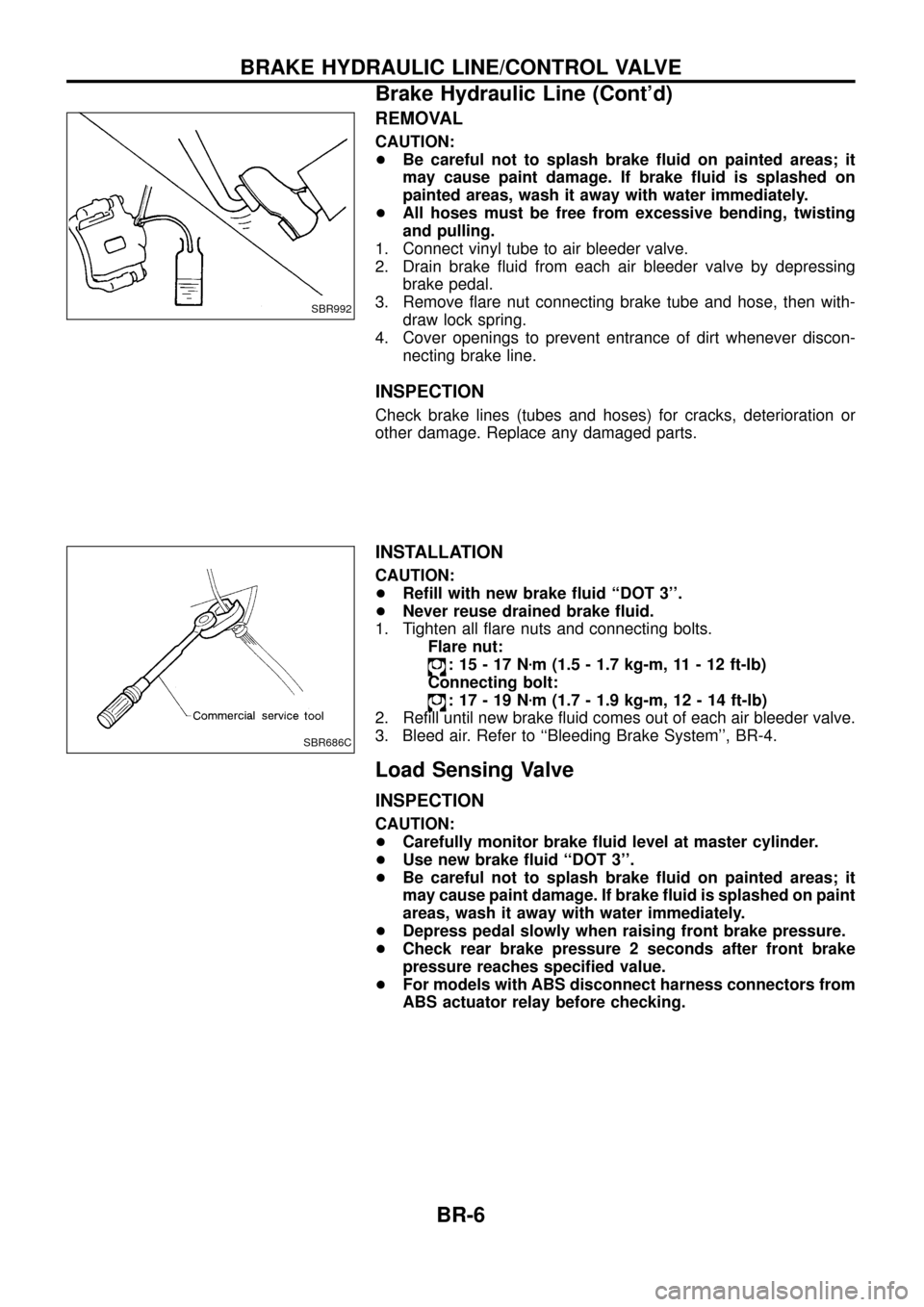

NISSAN PATROL 1998 Y61 / 5.G Brake System Workshop Manual REMOVAL
CAUTION:
+Be careful not to splash brake ¯uid on painted areas; it
may cause paint damage. If brake ¯uid is splashed on
painted areas, wash it away with water immediately.
+ All hoses must b

Page 9 of 75

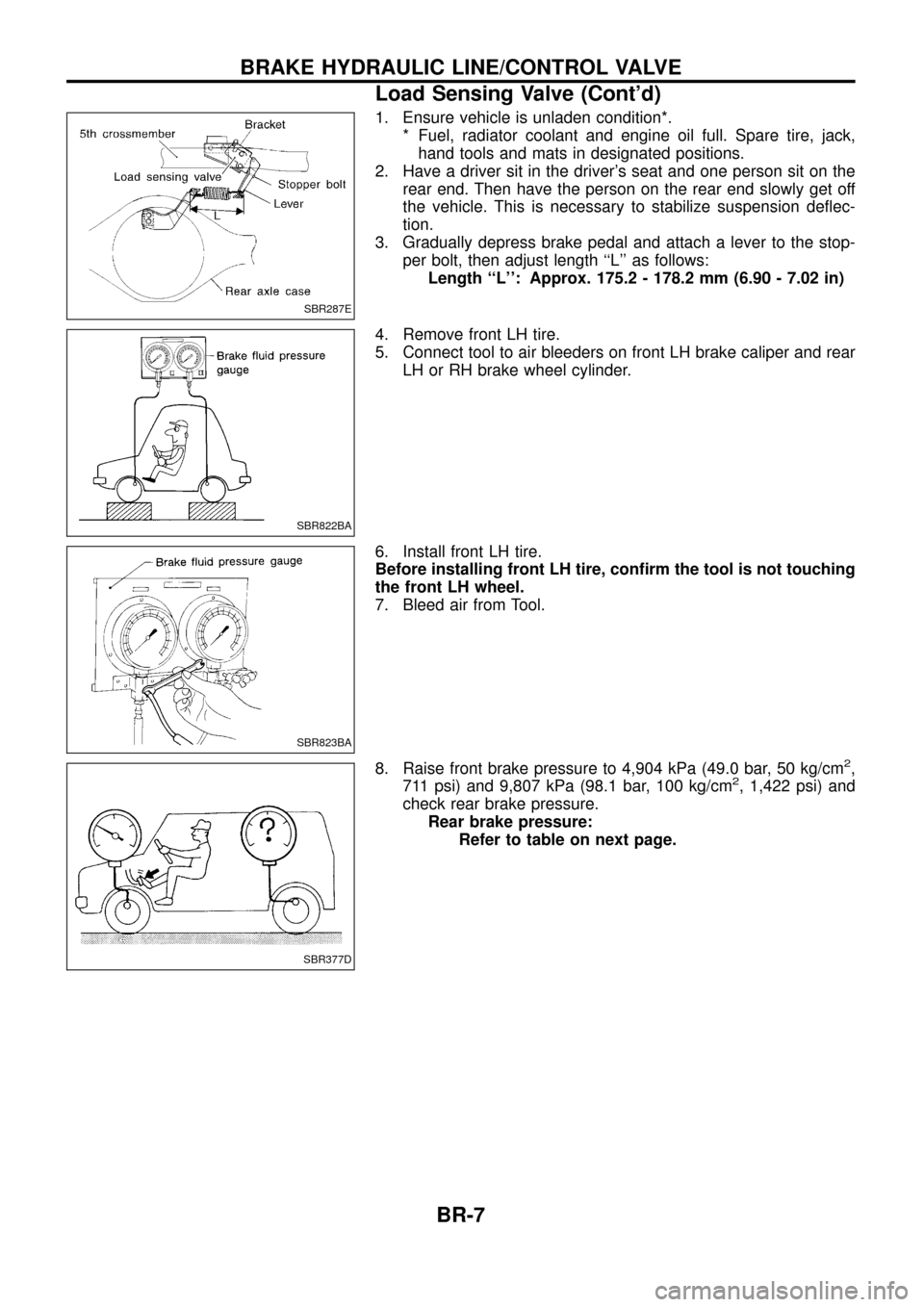

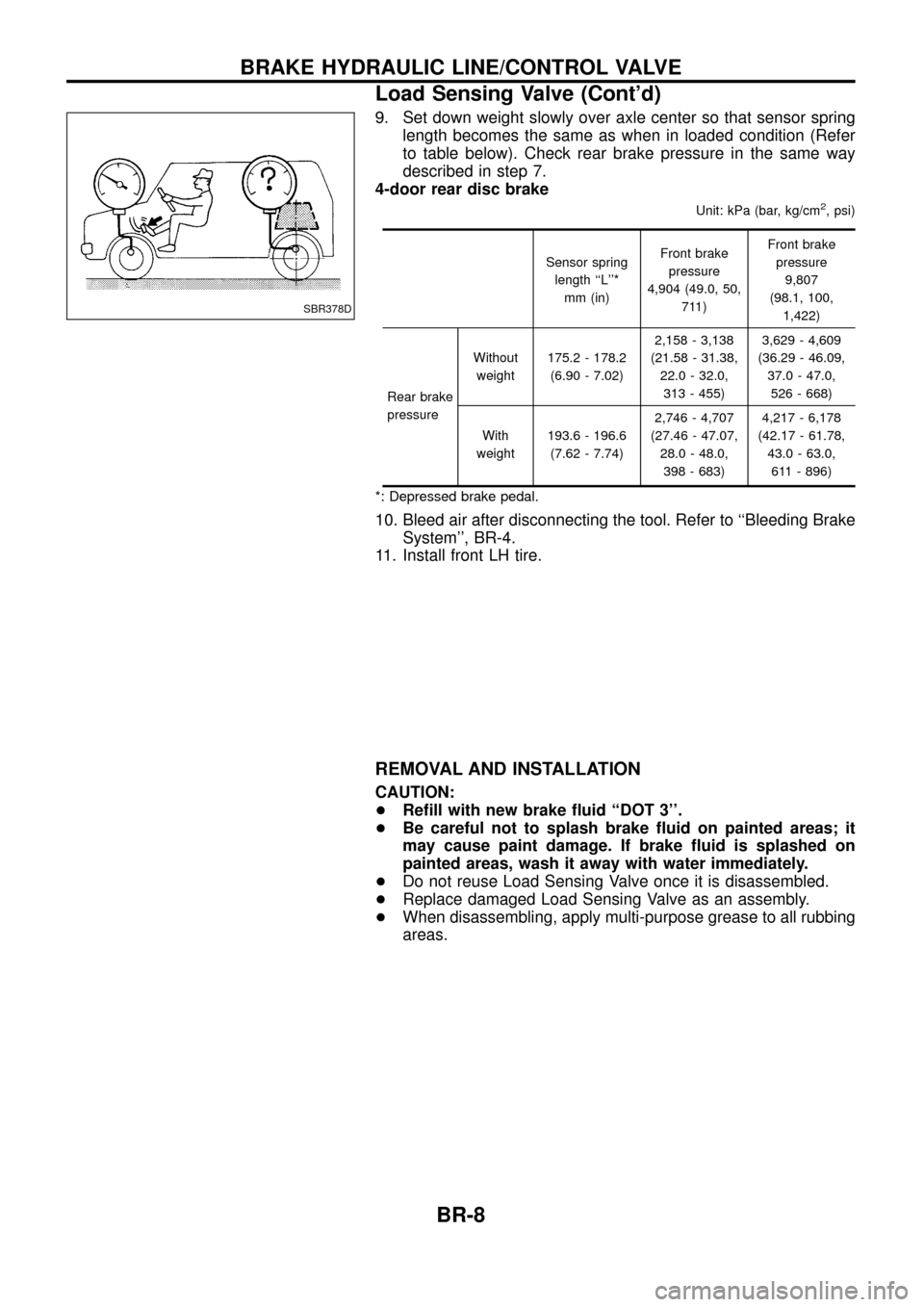

NISSAN PATROL 1998 Y61 / 5.G Brake System Workshop Manual 1. Ensure vehicle is unladen condition*.* Fuel, radiator coolant and engine oil full. Spare tire, jack,hand tools and mats in designated positions.
2. Have a driver sit in the drivers seat and one pe

Page 10 of 75

NISSAN PATROL 1998 Y61 / 5.G Brake System Workshop Manual 9. Set down weight slowly over axle center so that sensor springlength becomes the same as when in loaded condition (Refer
to table below). Check rear brake pressure in the same way
described in step
