NISSAN PATROL 2000 Electronic Repair Manual

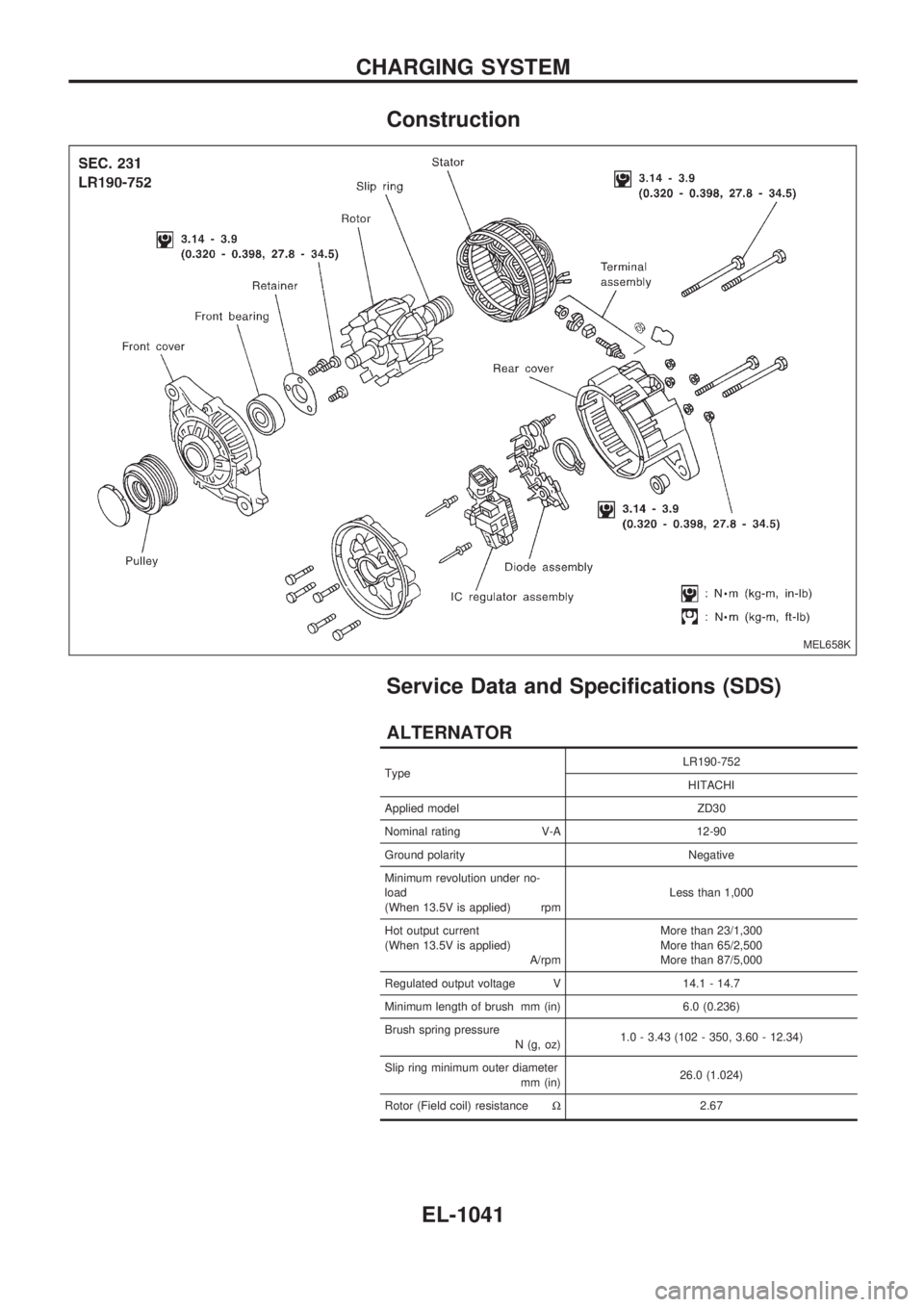

Construction
Service Data and Specifications (SDS)
ALTERNATOR
TypeLR190-752
HITACHI
Applied model ZD30
Nominal rating V-A 12-90
Ground polarity Negative
Minimum revolution under no-
load
(When 13.5V is applied) rpmLess than 1,000
Hot output current
(When 13.5V is applied)
A/rpmMore than 23/1,300
More than 65/2,500
More than 87/5,000
Regulated output voltage V 14.1 - 14.7
Minimum length of brush mm (in) 6.0 (0.236)
Brush spring pressure
N (g, oz)1.0 - 3.43 (102 - 350, 3.60 - 12.34)
Slip ring minimum outer diameter
mm (in)26.0 (1.024)
Rotor (Field coil) resistanceW2.67
MEL658K
CHARGING SYSTEM
EL-1041

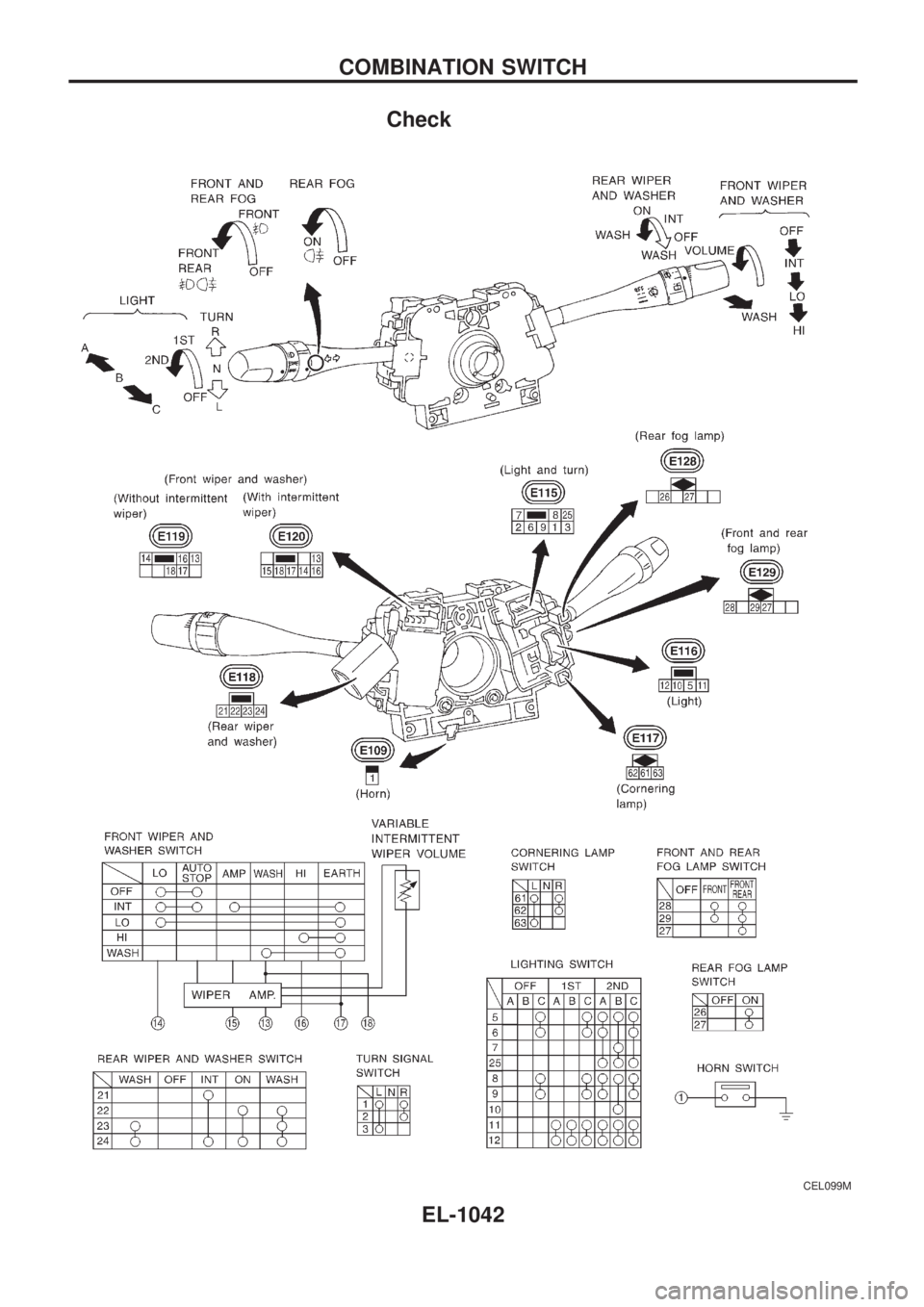

Check
CEL099M
COMBINATION SWITCH
EL-1042

Check

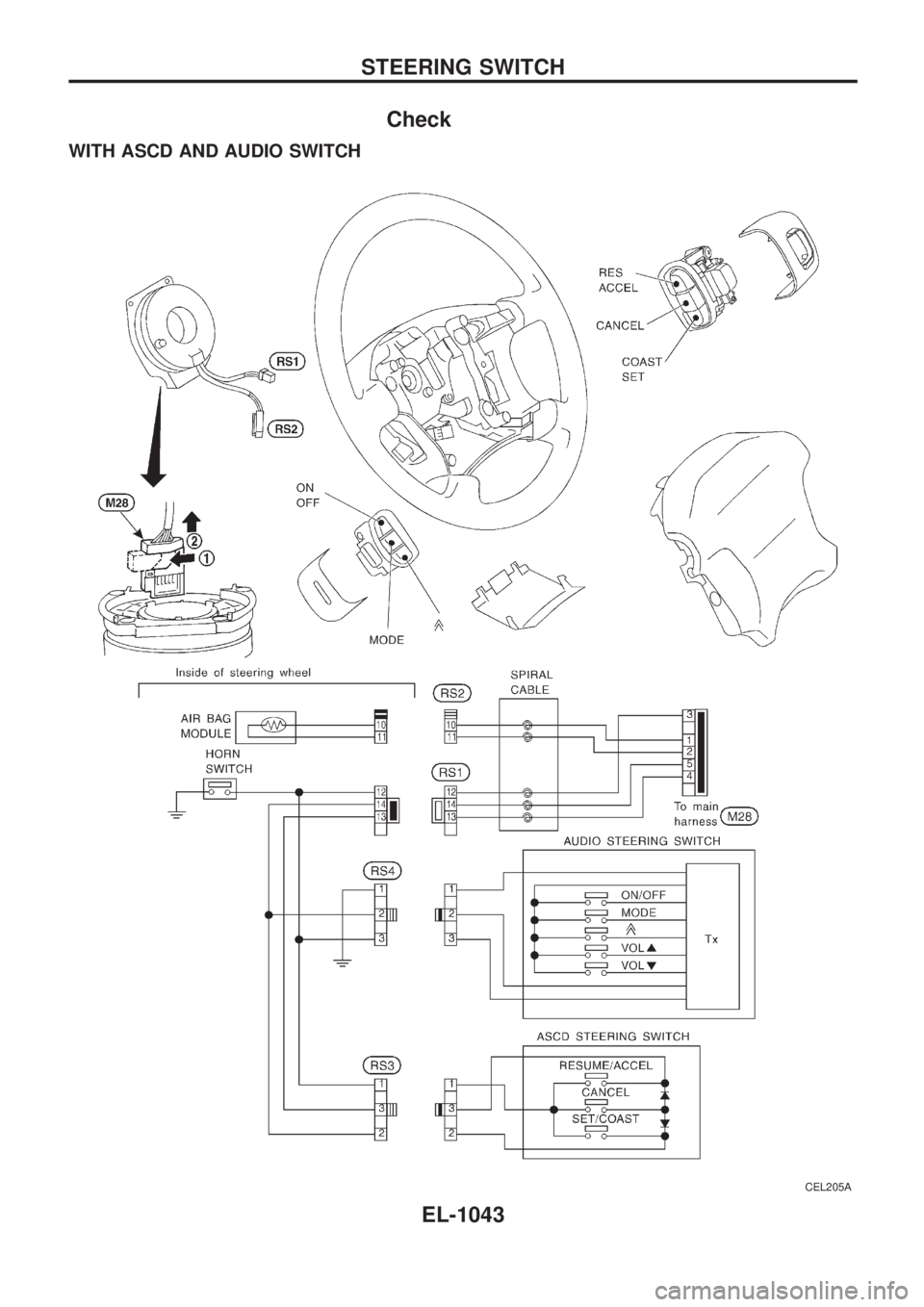

WITH ASCD AND AUDIO SWITCH
CEL205A
STEERING SWITCH
EL-1043

Wiring Diagram Ð DTRL Ð
TEL675B
HEADLAMP Ð Daytime Light System Ð
EL-1044

TEL211M

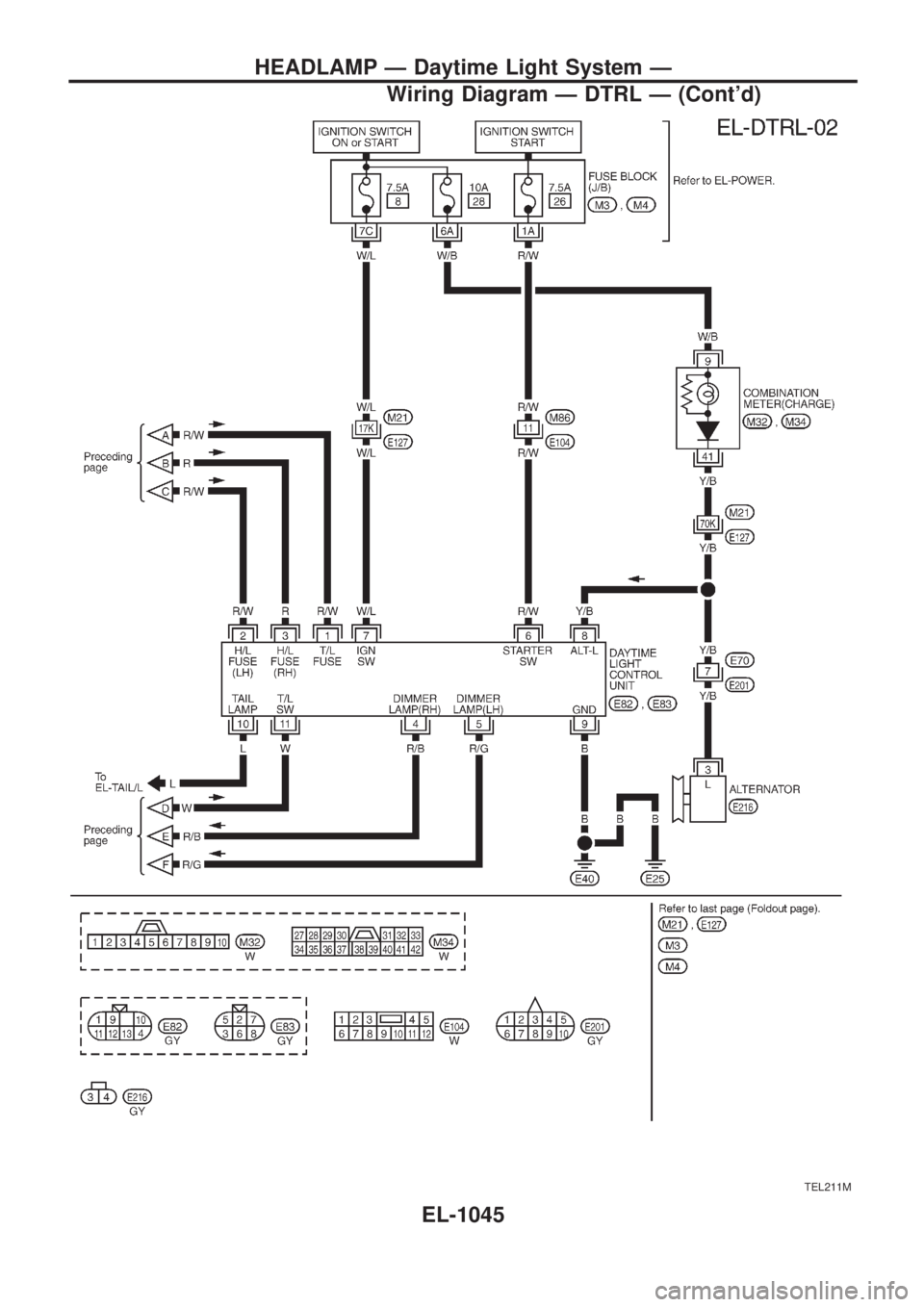

HEADLAMP Ð Daytime Light System Ð
Wiring Diagram Ð DTRL Ð (Cont'd)
EL-1045

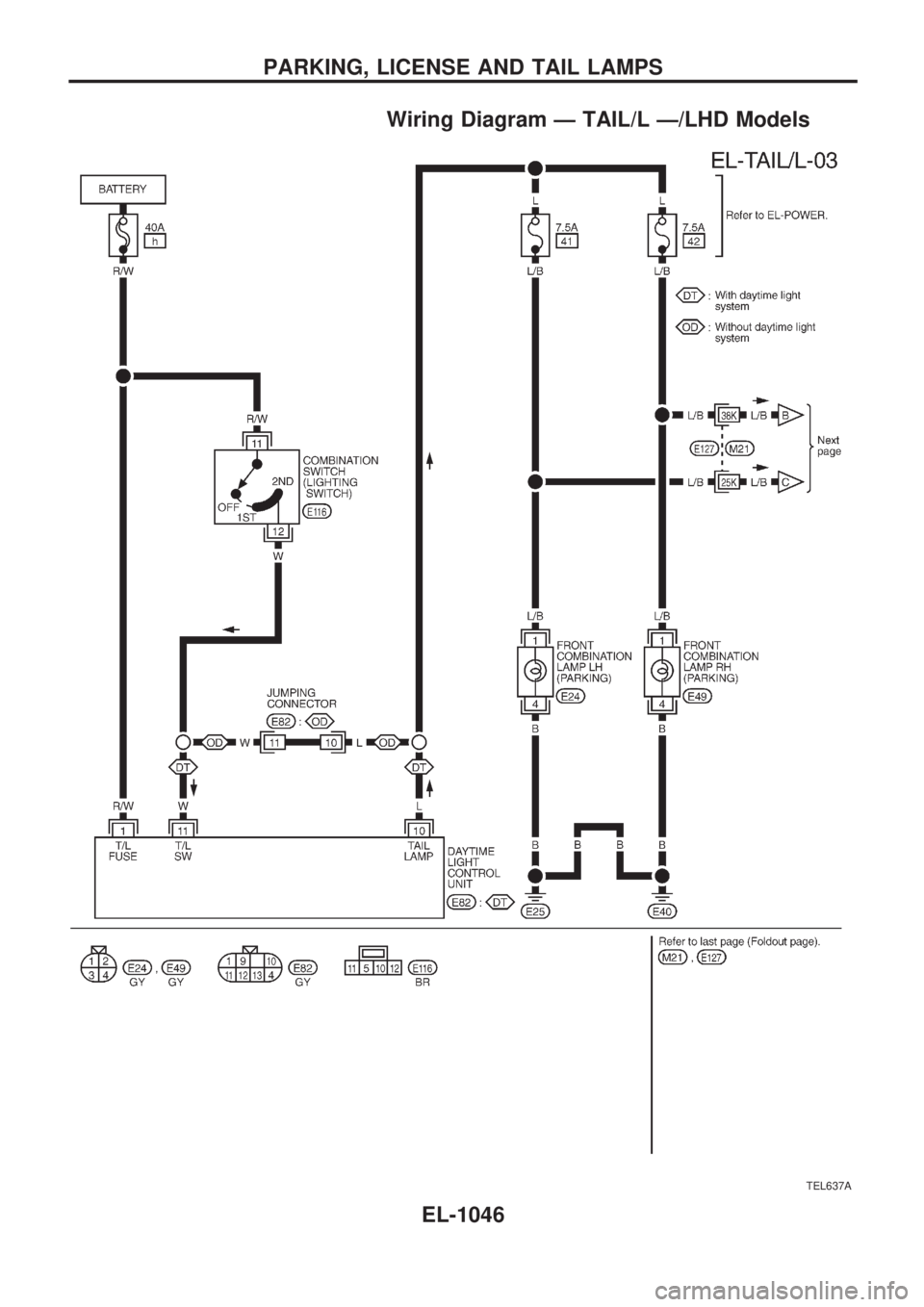

Wiring Diagram Ð TAIL/L Ð/LHD Models
TEL637A
PARKING, LICENSE AND TAIL LAMPS
EL-1046

TEL213M
PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram Ð TAIL/L Ð/LHD Models
(Cont'd)
EL-1047

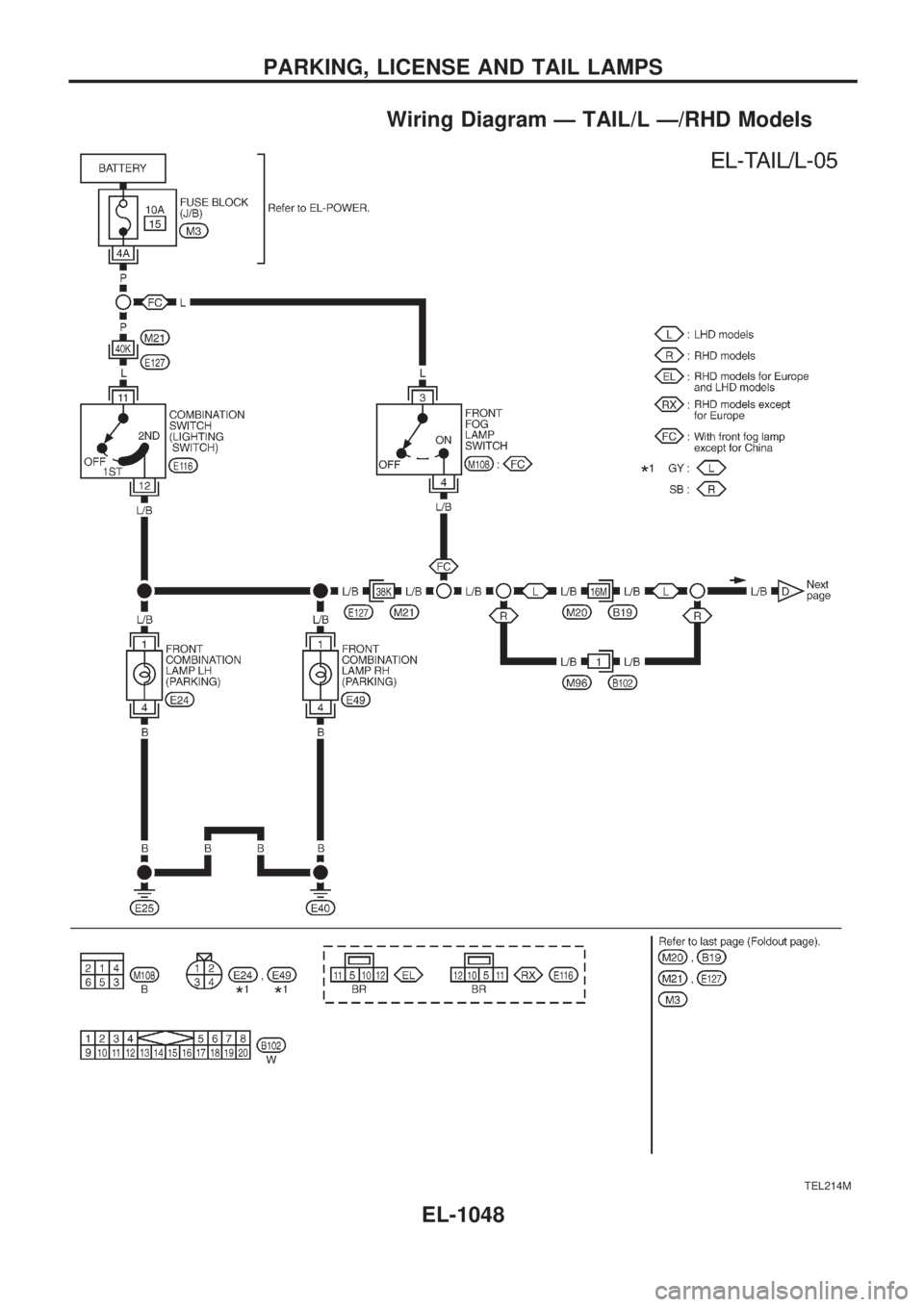

Wiring Diagram Ð TAIL/L Ð/RHD Models
TEL214M
PARKING, LICENSE AND TAIL LAMPS
EL-1048

TEL215M
PARKING, LICENSE AND TAIL LAMPS

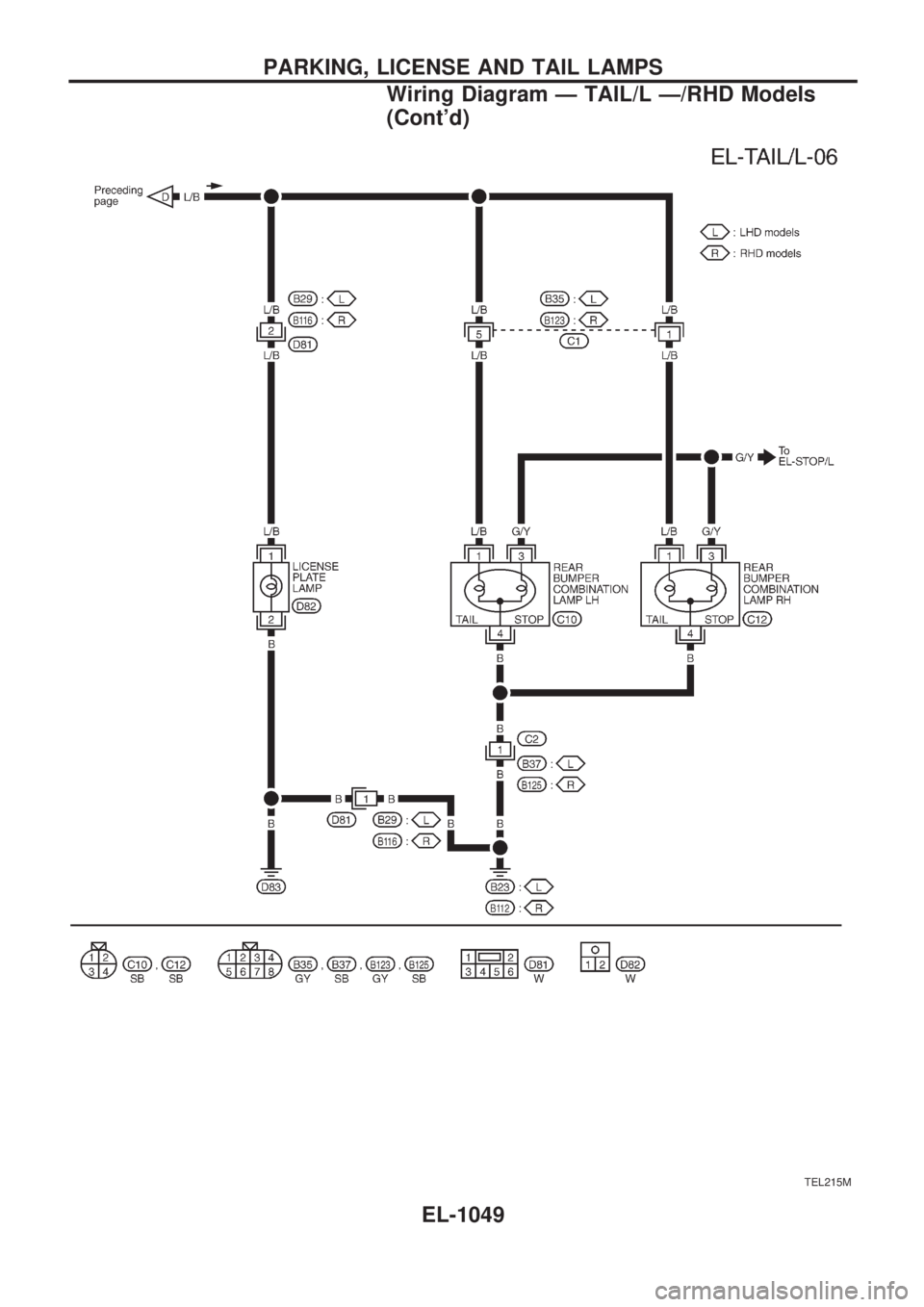

Wiring Diagram Ð TAIL/L Ð/RHD Models
(Cont'd)
EL-1049

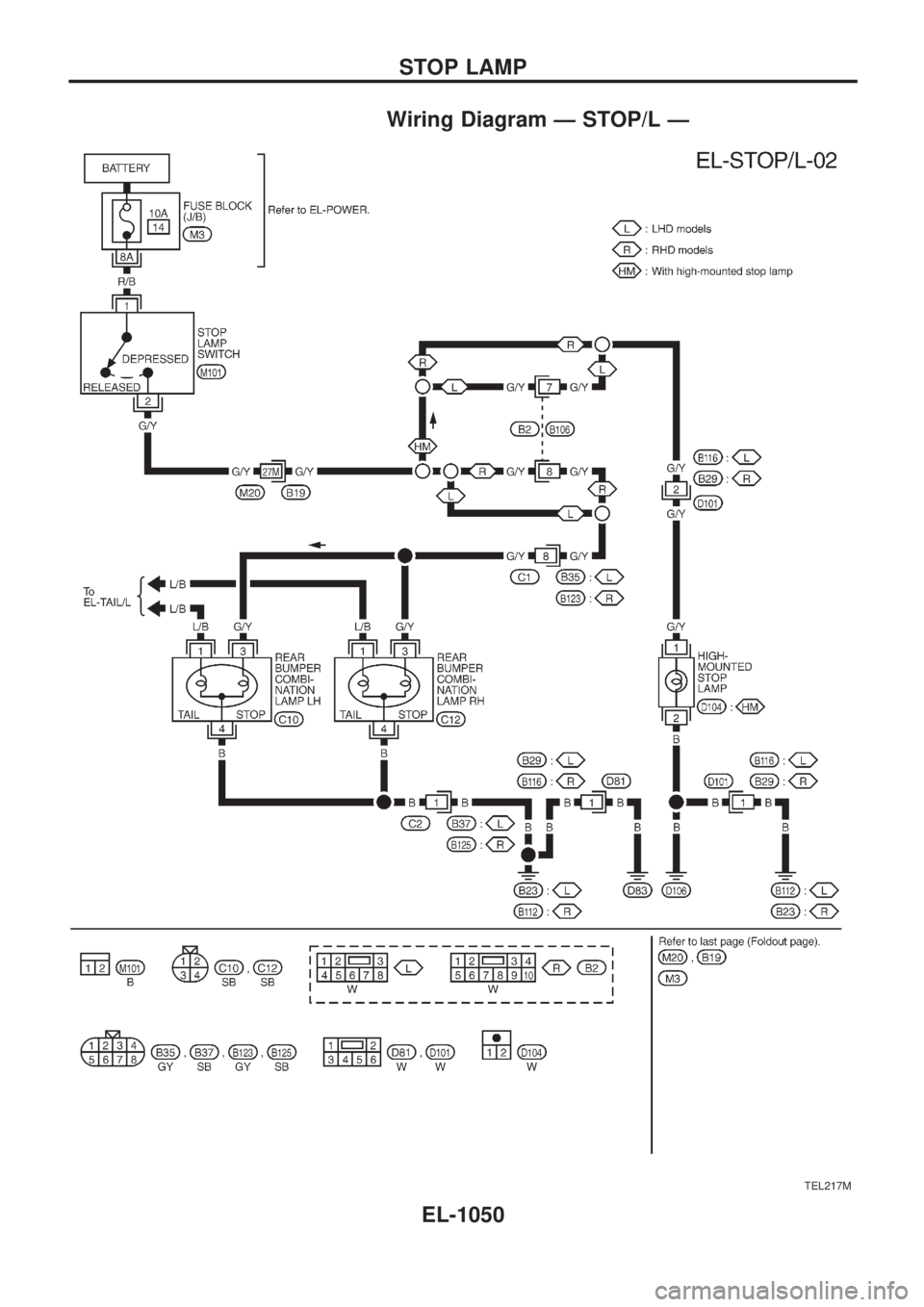

Wiring Diagram Ð STOP/L Ð
TEL217M
STOP LAMP
EL-1050
