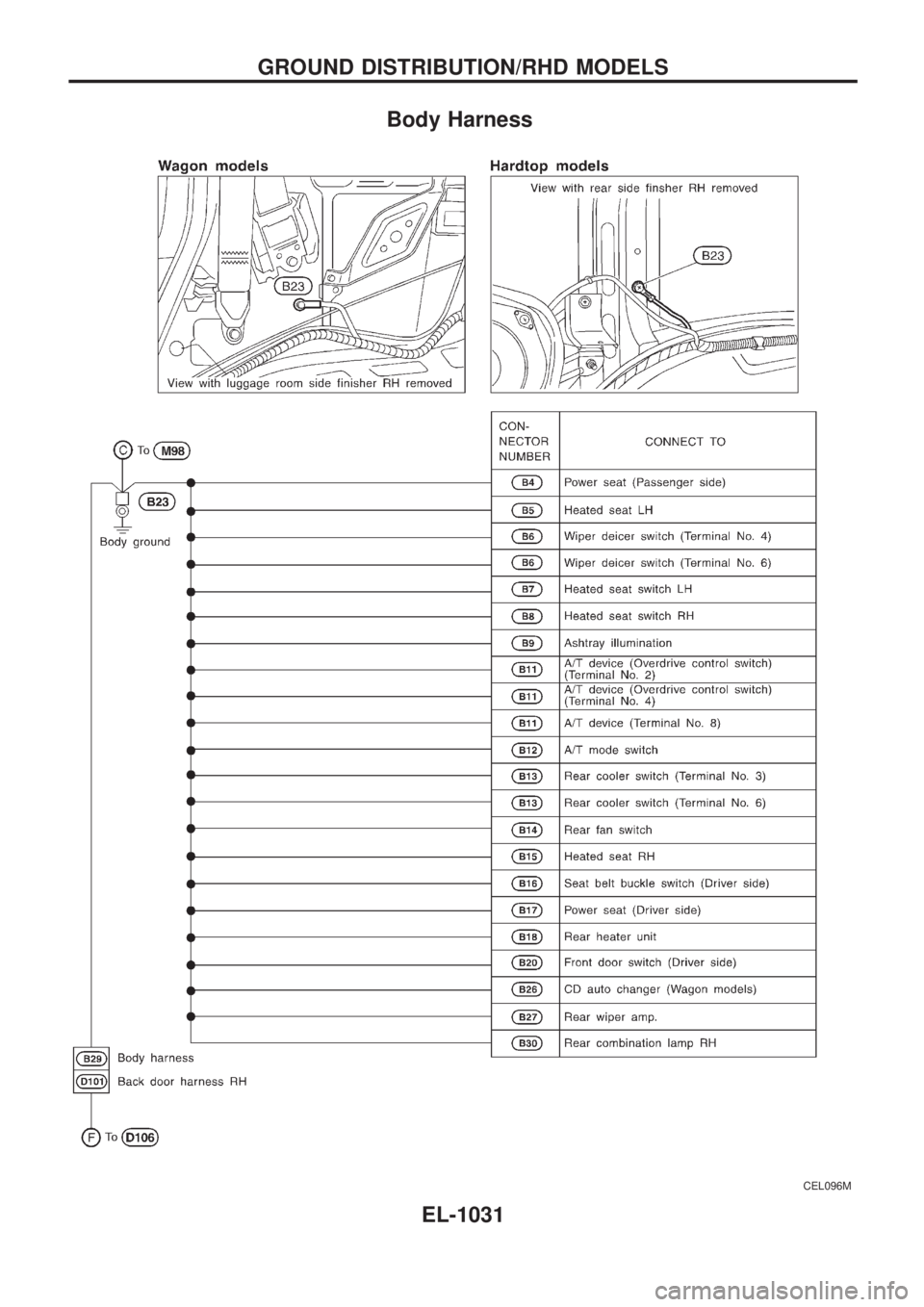

Body Harness
CEL096M
GROUND DISTRIBUTION/RHD MODELS
EL-1031

CEL097M
GROUND DISTRIBUTION/RHD MODELS

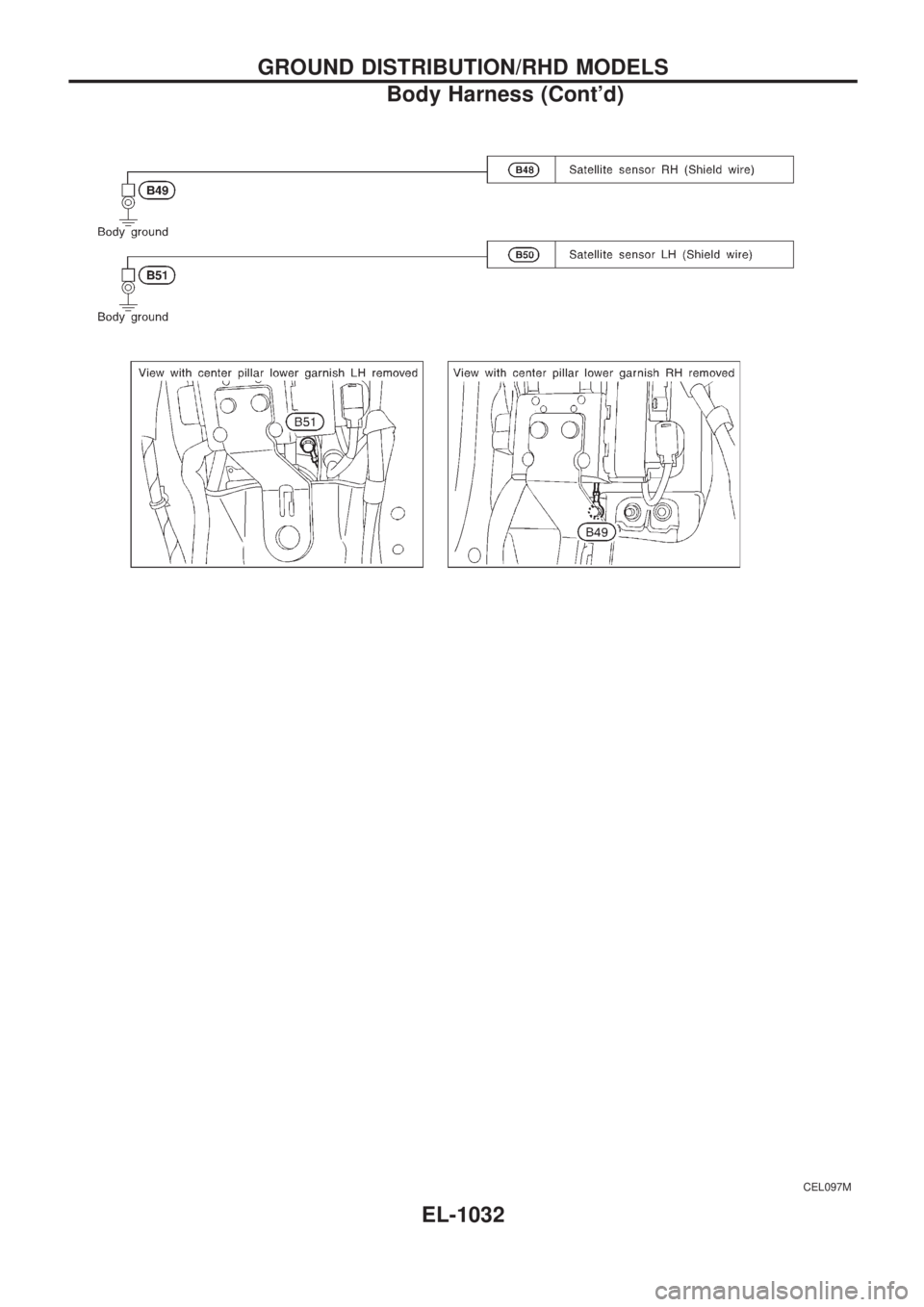

Body Harness (Cont'd)
EL-1032

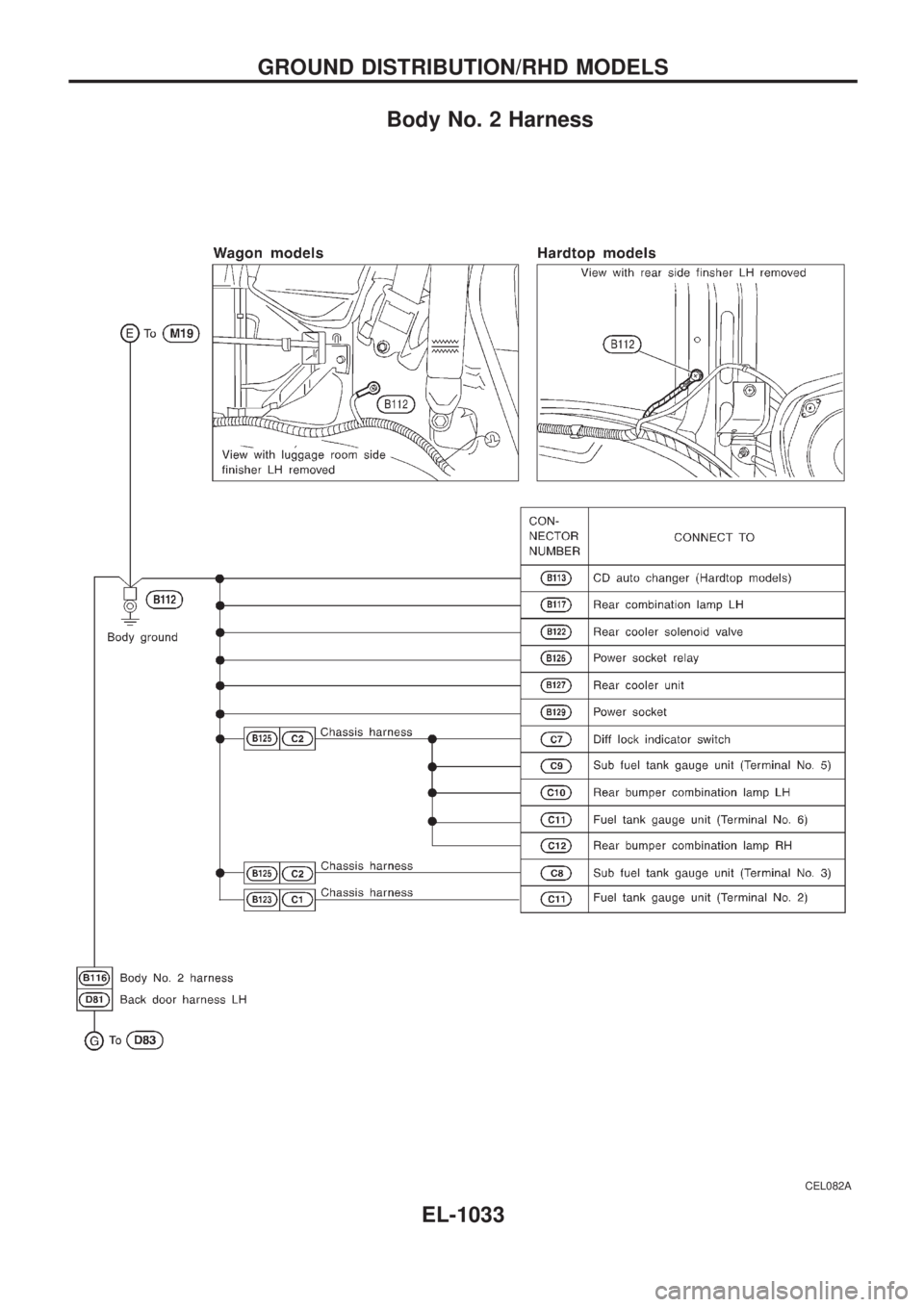

Body No. 2 Harness
CEL082A
GROUND DISTRIBUTION/RHD MODELS
EL-1033

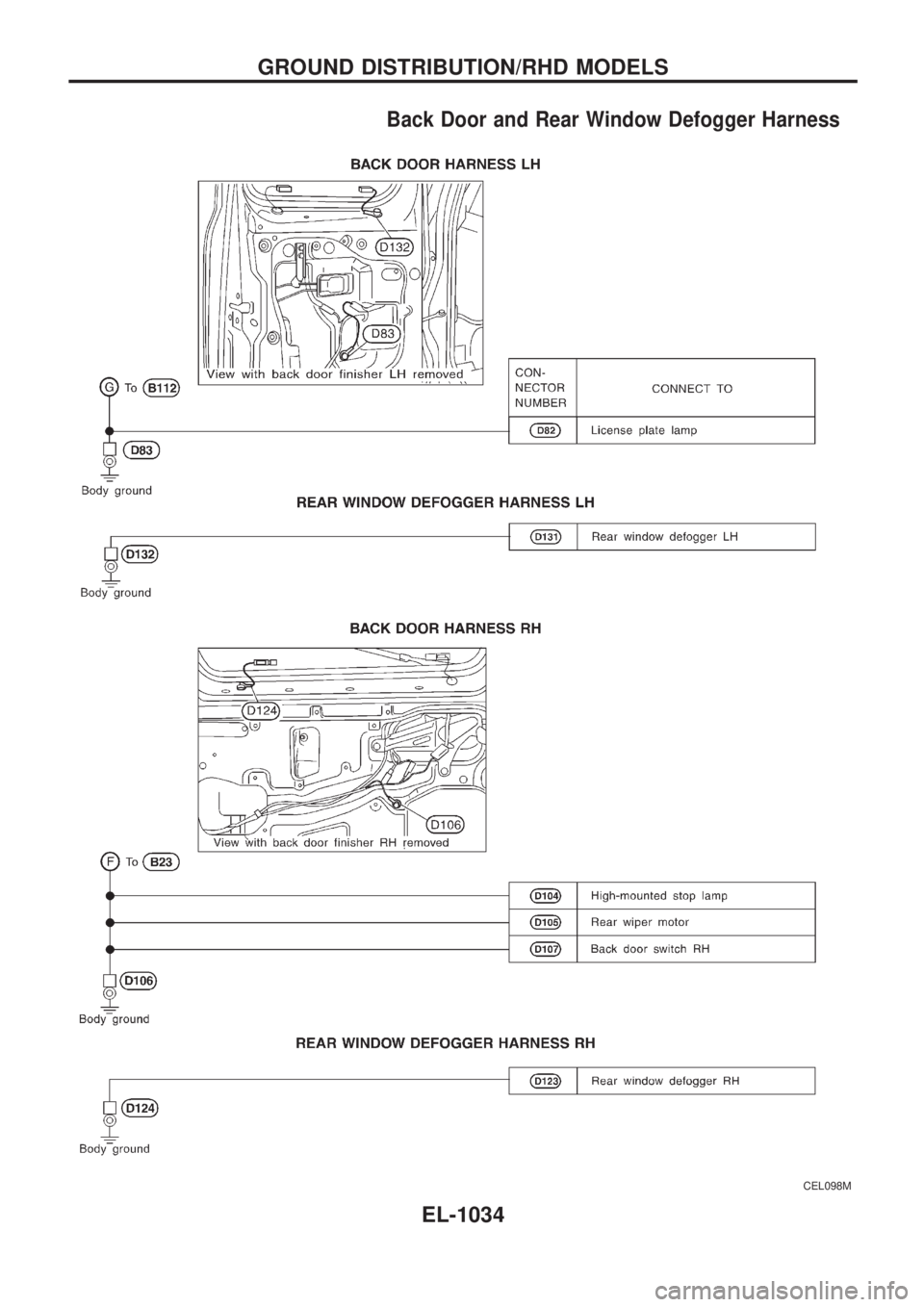

Back Door and Rear Window Defogger Harness
CEL098M
GROUND DISTRIBUTION/RHD MODELS
EL-1034

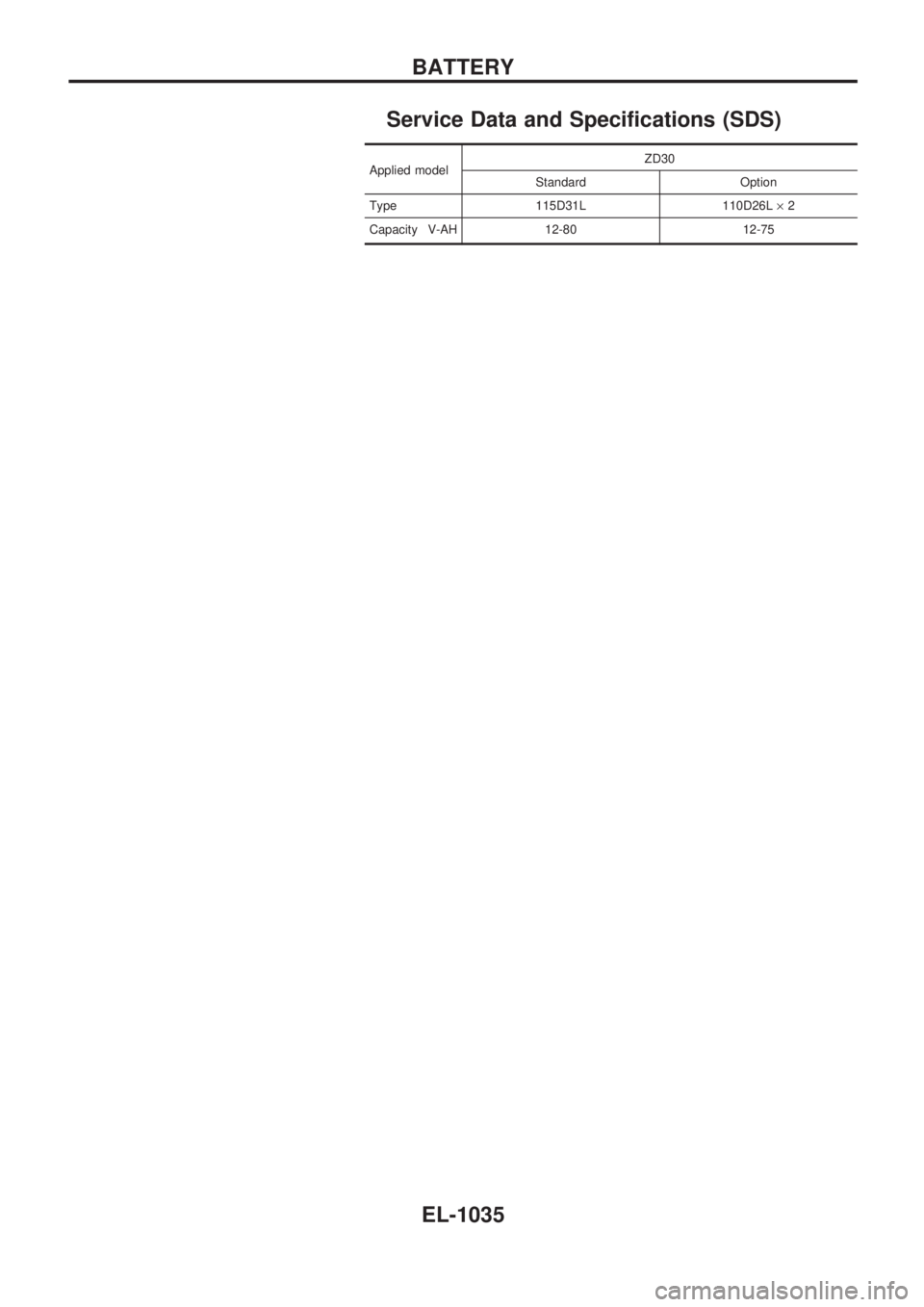

Service Data and Specifications (SDS)
Applied modelZD30
Standard Option
Type 115D31L 110D26L´2
Capacity V-AH 12-80 12-75
BATTERY
EL-1035

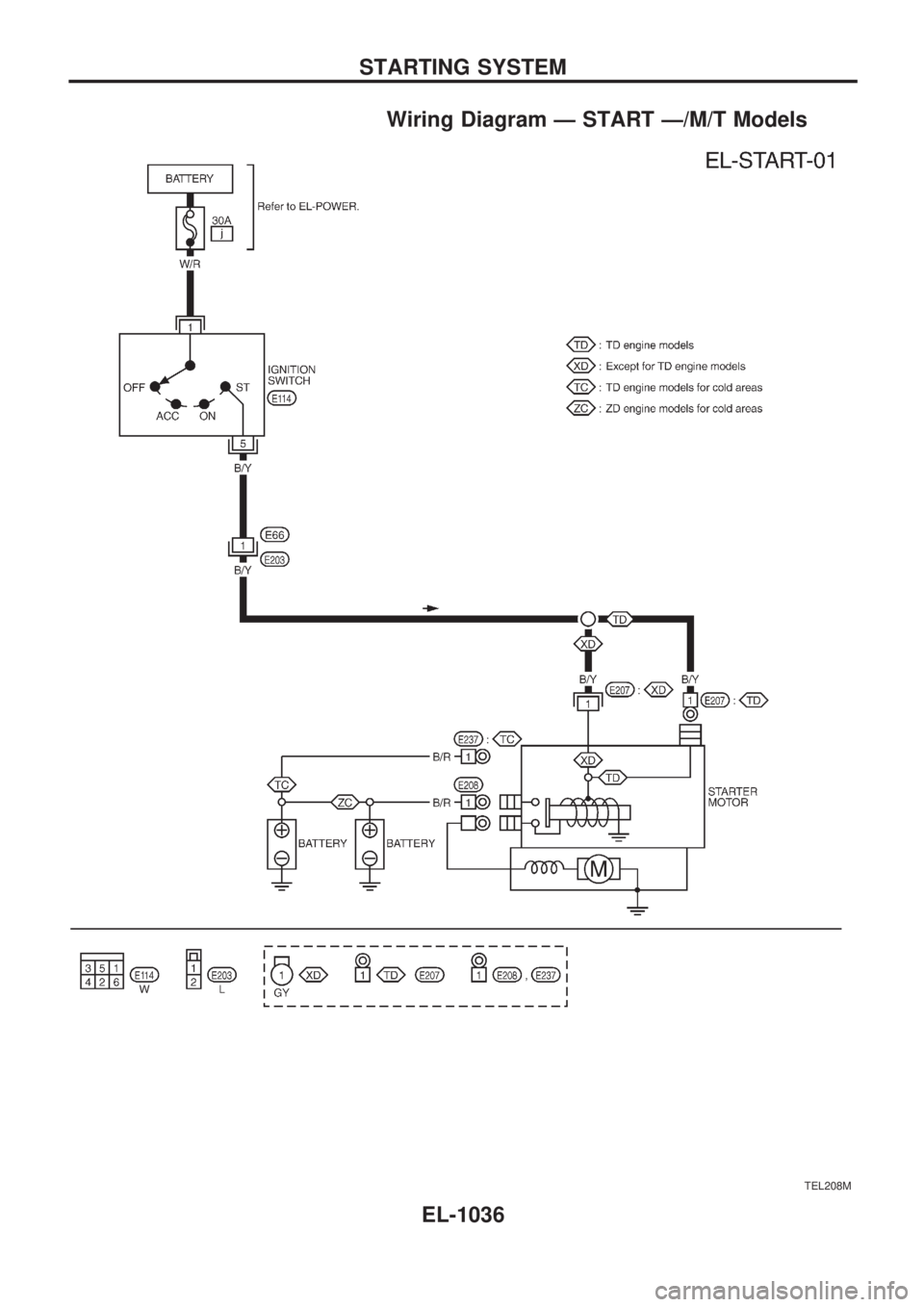

Wiring Diagram Ð START Ð/M/T Models
TEL208M
STARTING SYSTEM
EL-1036

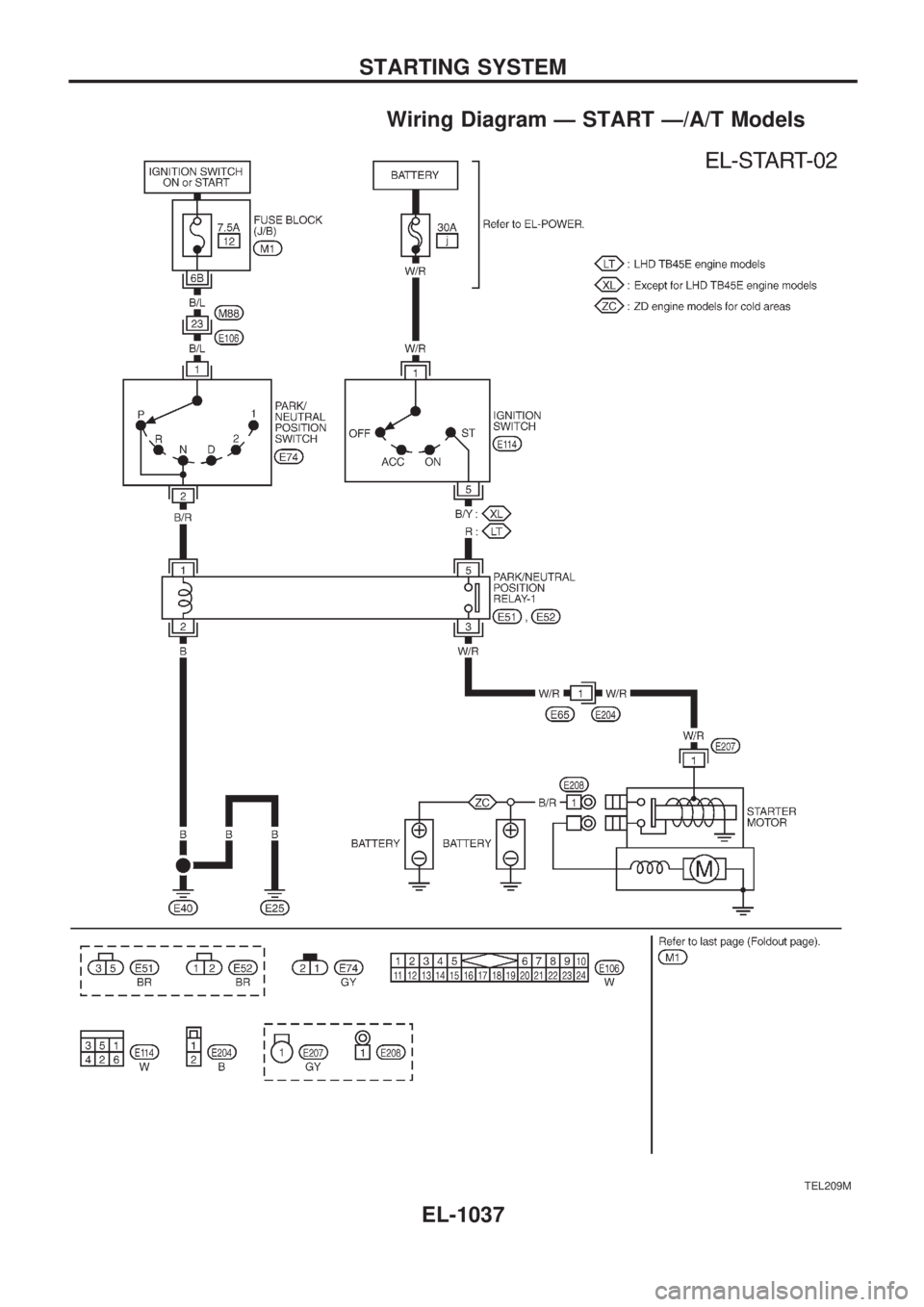

Wiring Diagram Ð START Ð/A/T Models
TEL209M
STARTING SYSTEM
EL-1037

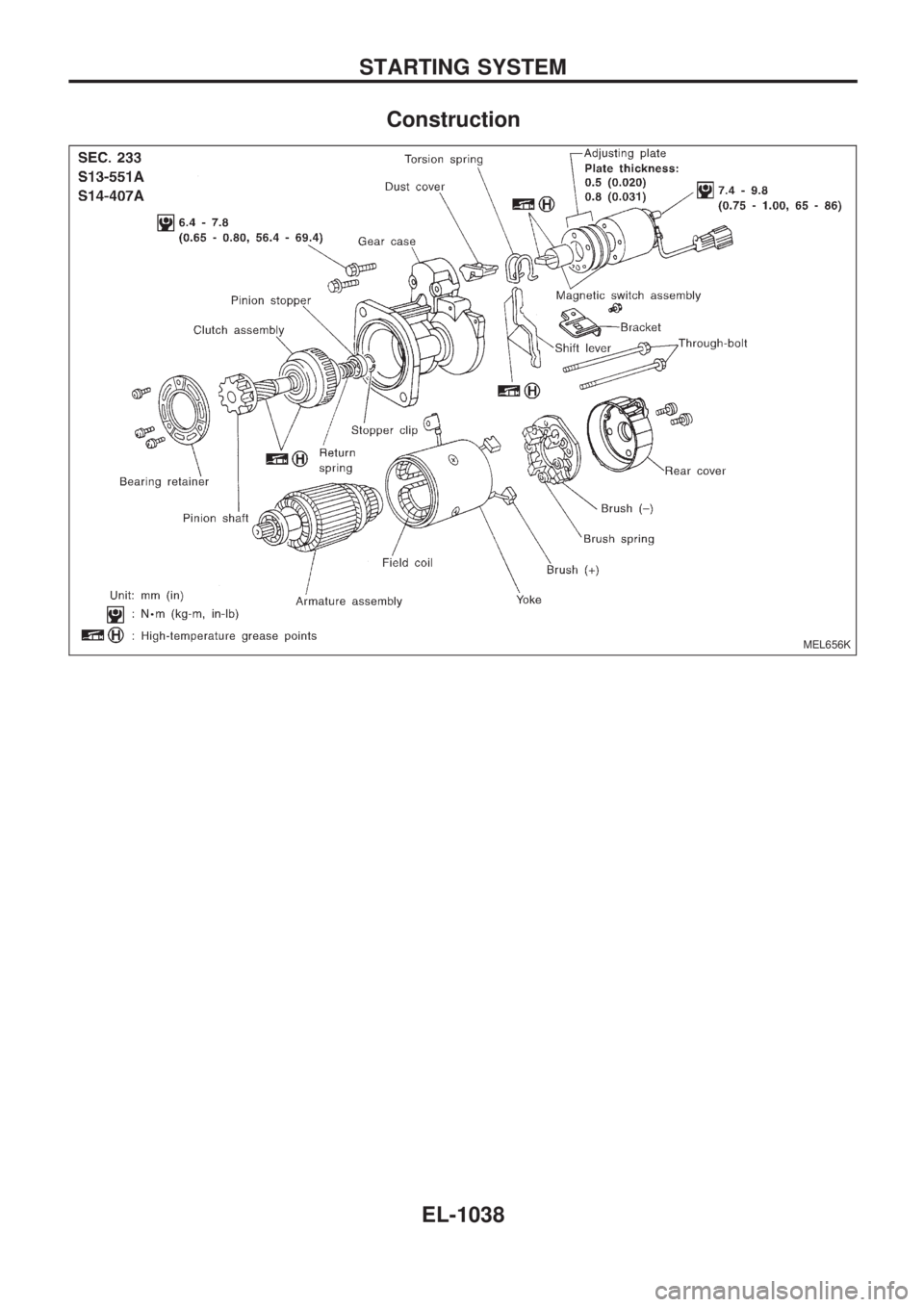

Construction
MEL656K
STARTING SYSTEM
EL-1038

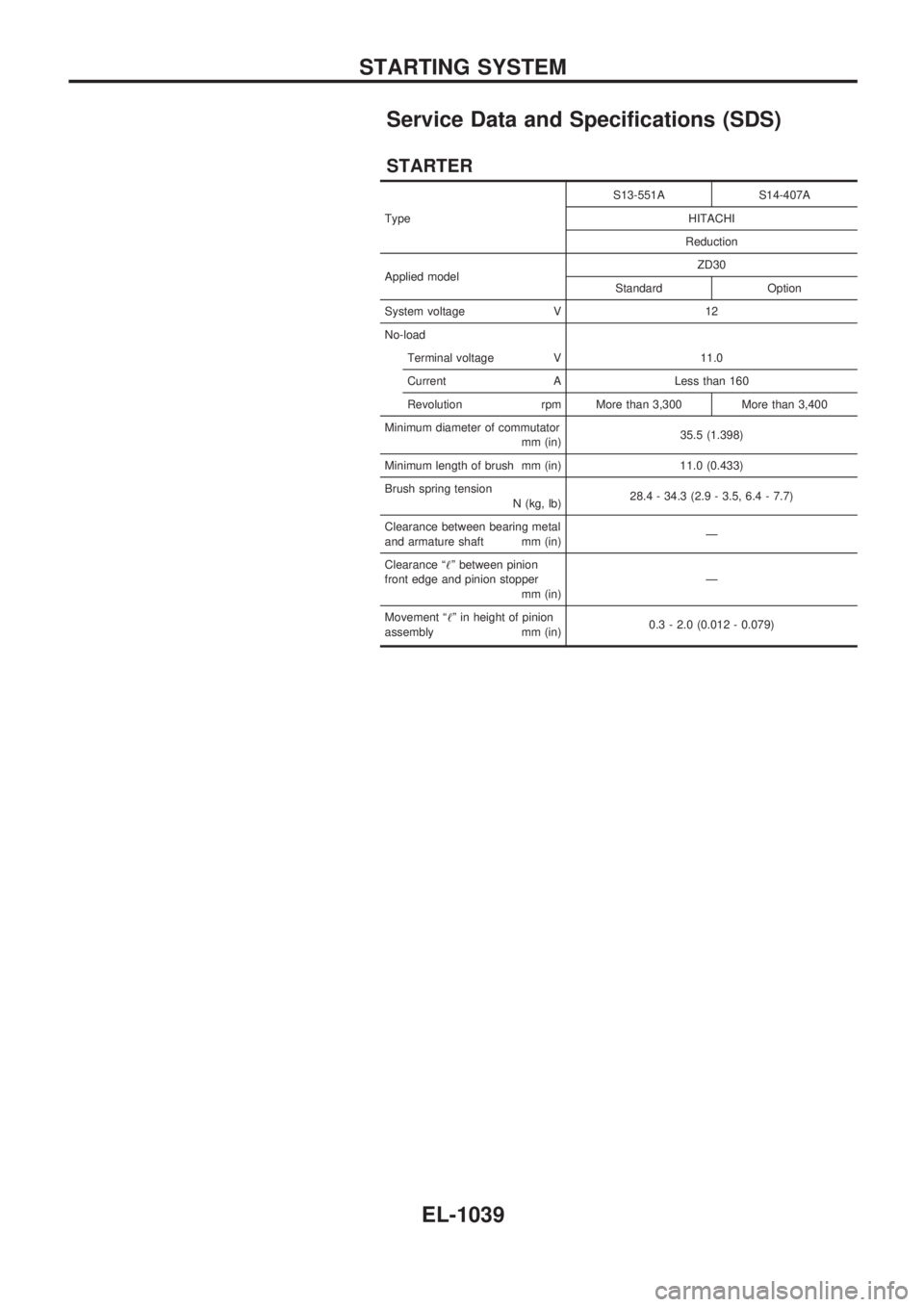

Service Data and Specifications (SDS)
STARTER
TypeS13-551A S14-407A
HITACHI
Reduction
Applied modelZD30
Standard Option
System voltage V 12
No-load
Terminal voltage V 11.0
Current A Less than 160
Revolution rpm More than 3,300 More than 3,400
Minimum diameter of commutator
mm (in)35.5 (1.398)
Minimum length of brush mm (in) 11.0 (0.433)
Brush spring tension
N (kg, lb)28.4 - 34.3 (2.9 - 3.5, 6.4 - 7.7)
Clearance between bearing metal
and armature shaft mm (in)Ð
Clearance ª!º between pinion
front edge and pinion stopper
mm (in)Ð
Movement ª!º in height of pinion
assembly mm (in)0.3 - 2.0 (0.012 - 0.079)
STARTING SYSTEM
EL-1039

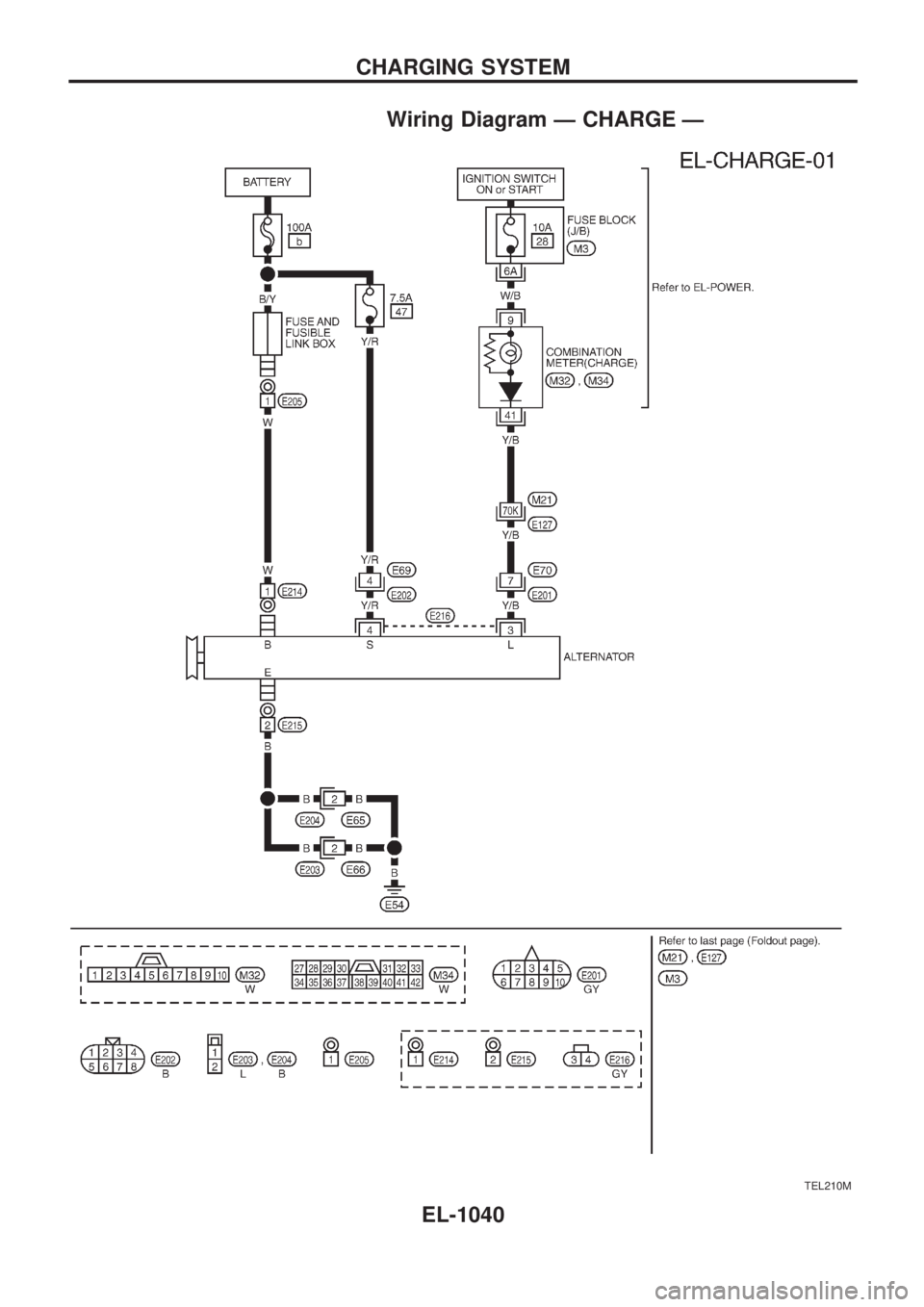

WiringDiagramÐCHARGE —
TEL210M
CHARGING SYSTEM
