Page 521 of 1033

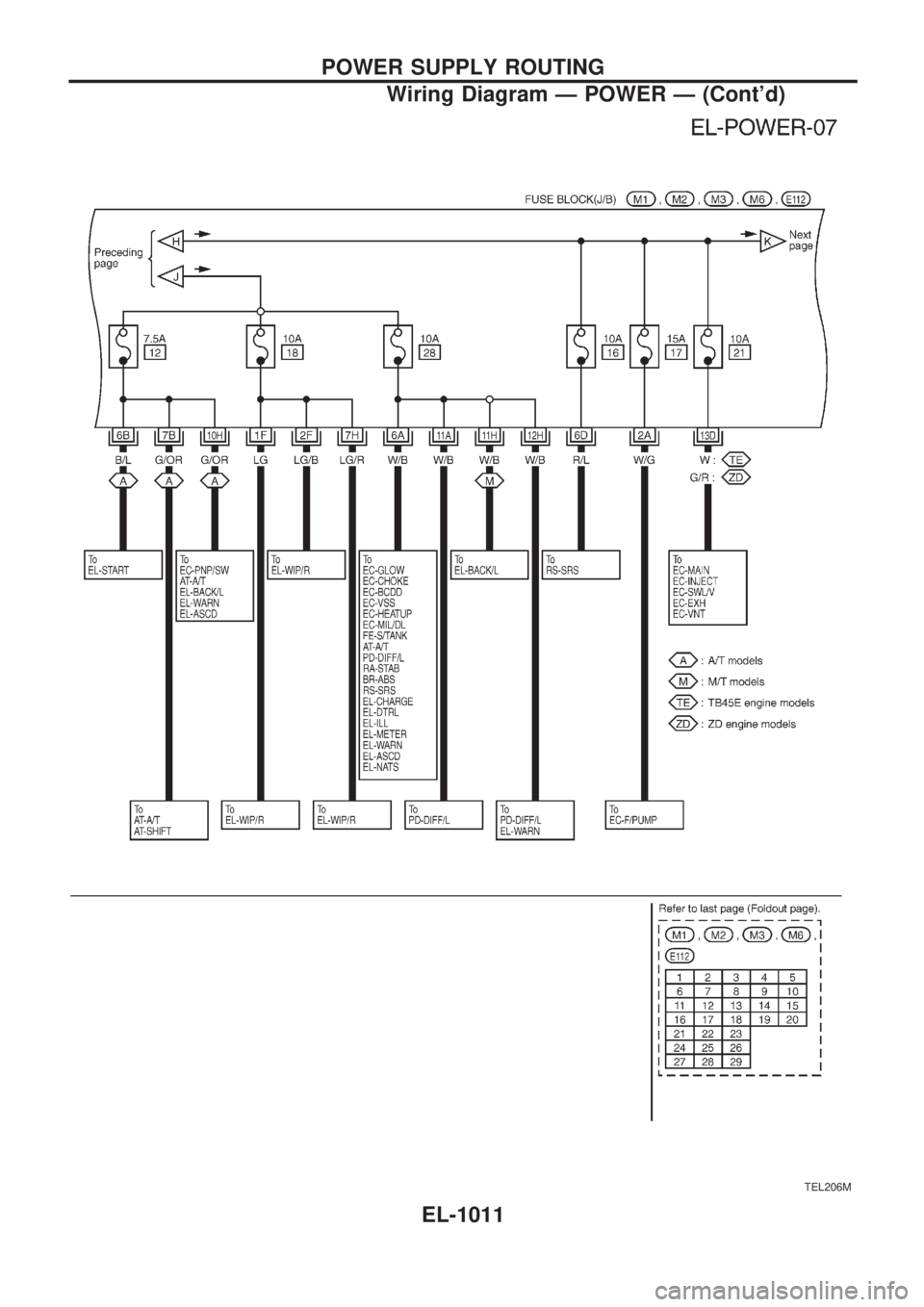

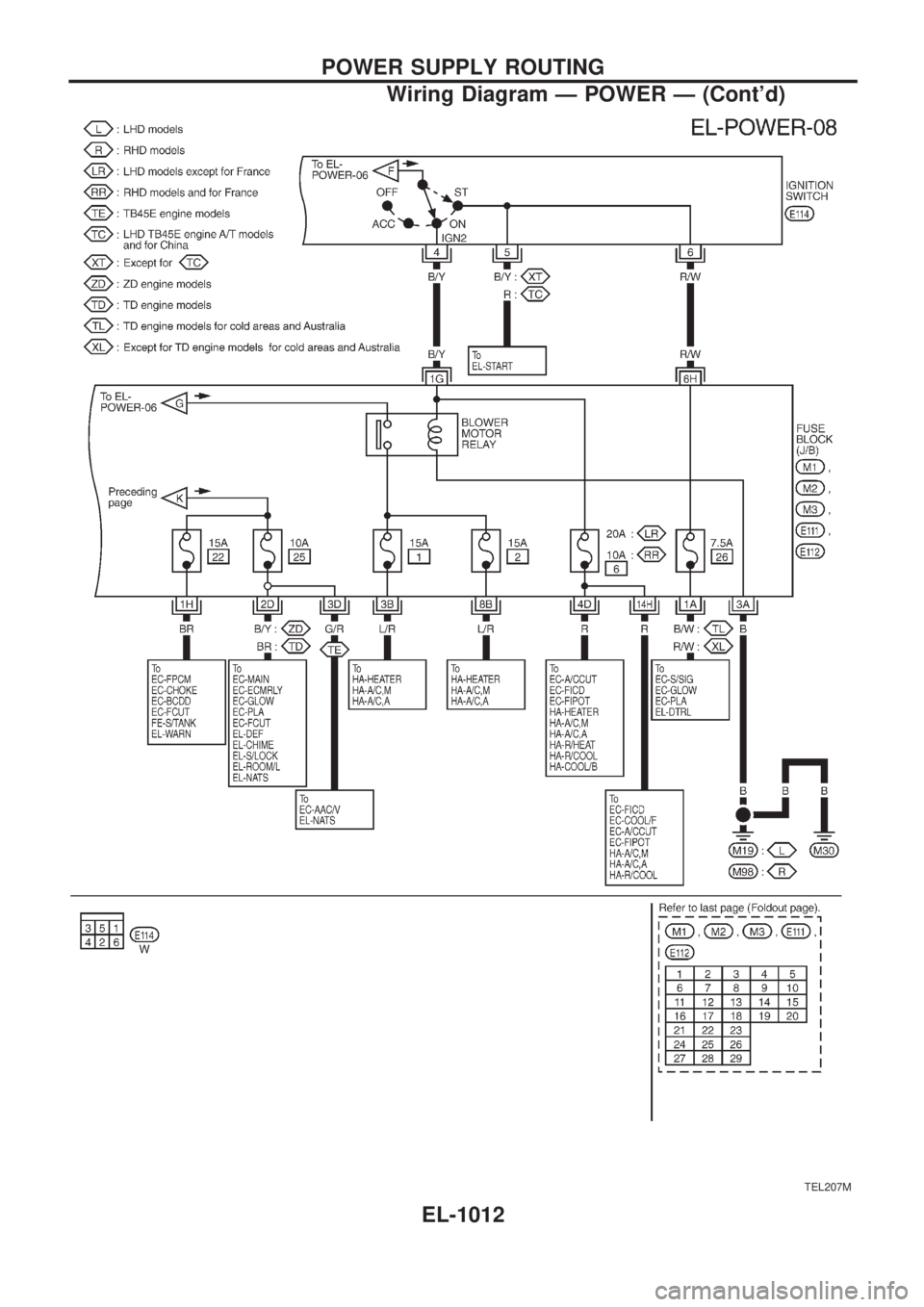

NISSAN PATROL 2000 Electronic Repair Manual TEL206M POWER SUPPLY ROUTING Wiring Diagram Ð POWER Ð (Contd) EL-1011

Page 522 of 1033

NISSAN PATROL 2000 Electronic Repair Manual TEL207M POWER SUPPLY ROUTING Wiring Diagram Ð POWER Ð (Contd) EL-1012

Page 523 of 1033

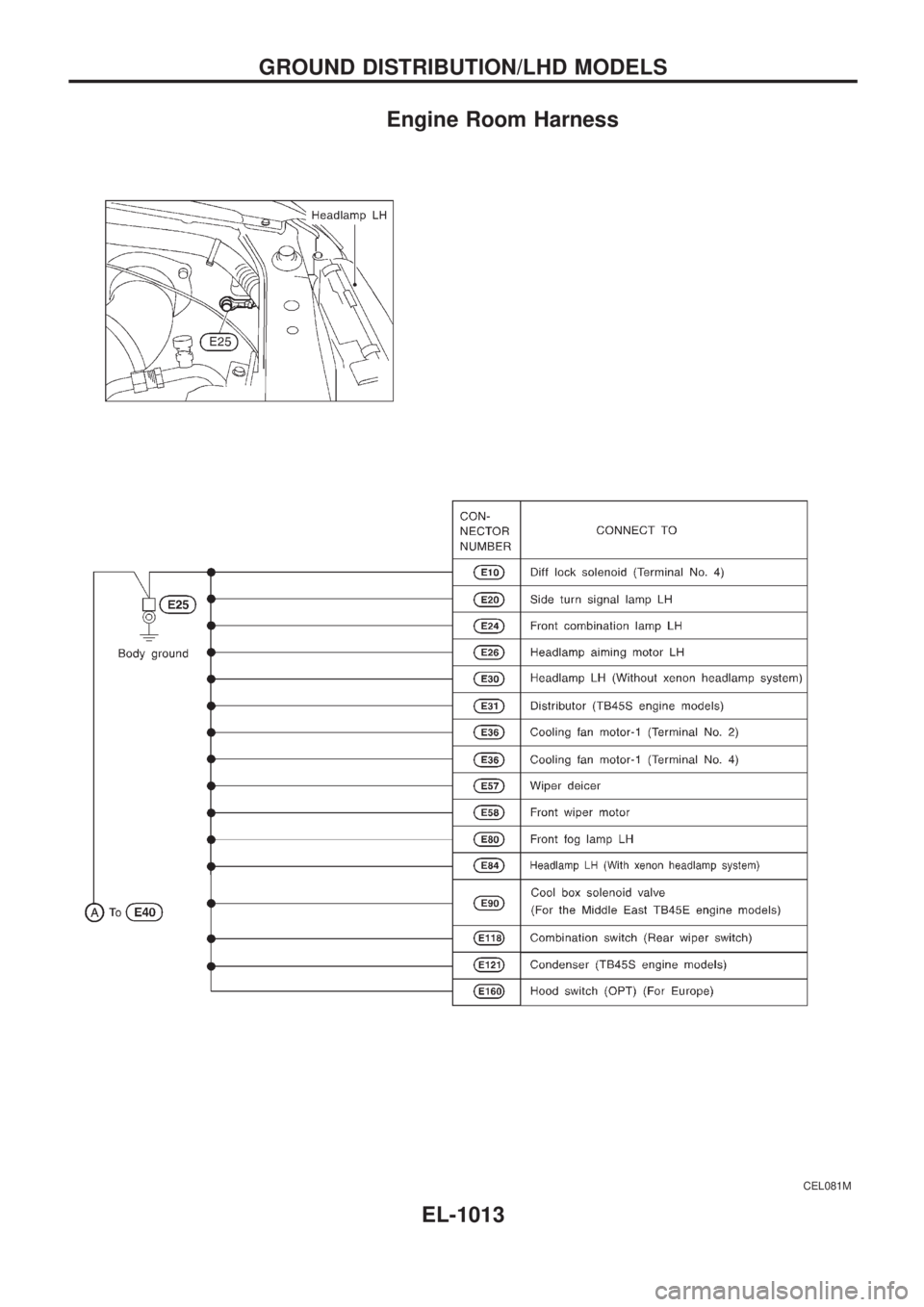

NISSAN PATROL 2000 Electronic Repair Manual Engine Room Harness CEL081M GROUND DISTRIBUTION/LHD MODELS EL-1013

Page 524 of 1033

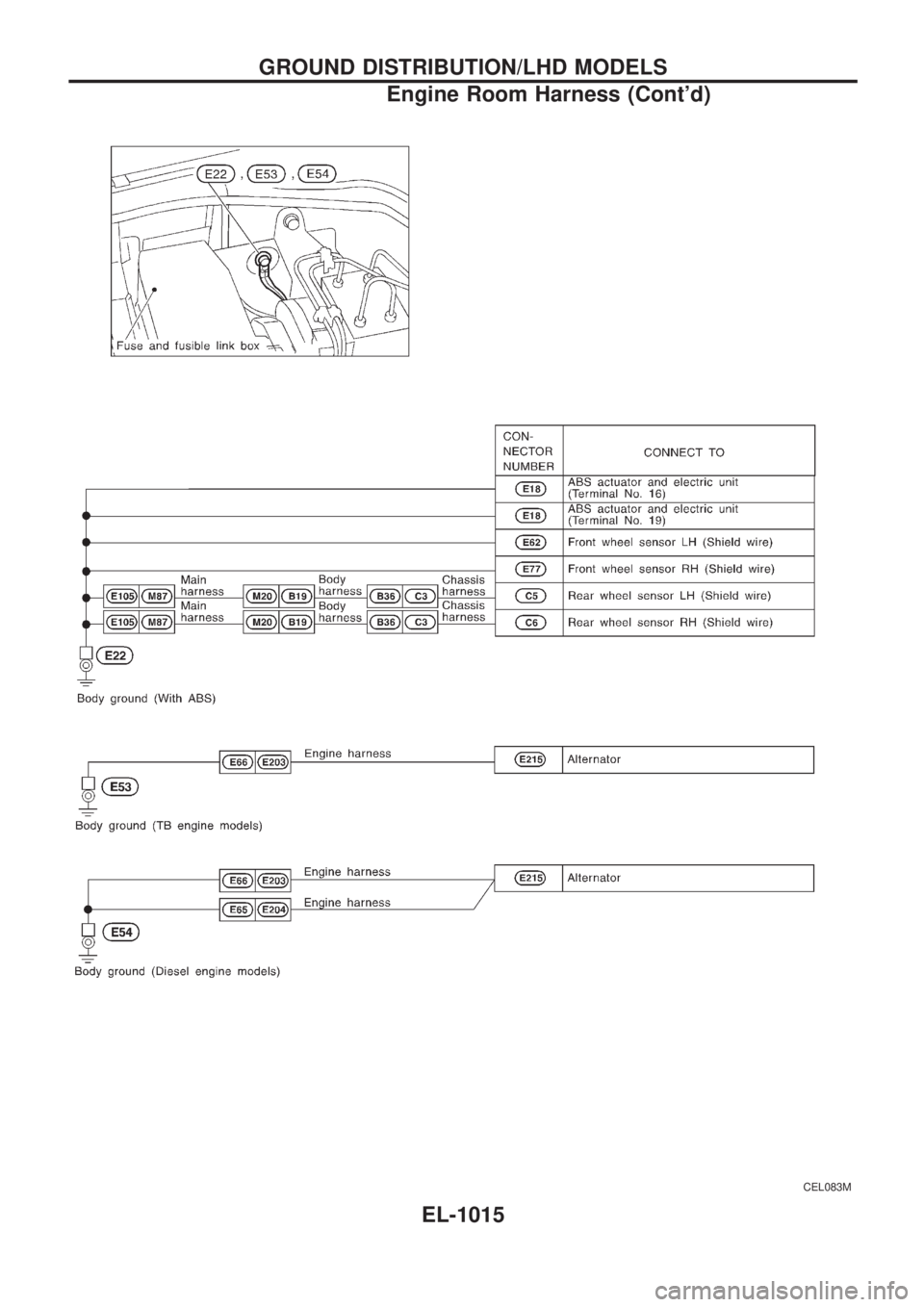

NISSAN PATROL 2000 Electronic Repair Manual CEL082M GROUND DISTRIBUTION/LHD MODELS Engine Room Harness (Contd) EL-1014

Page 525 of 1033

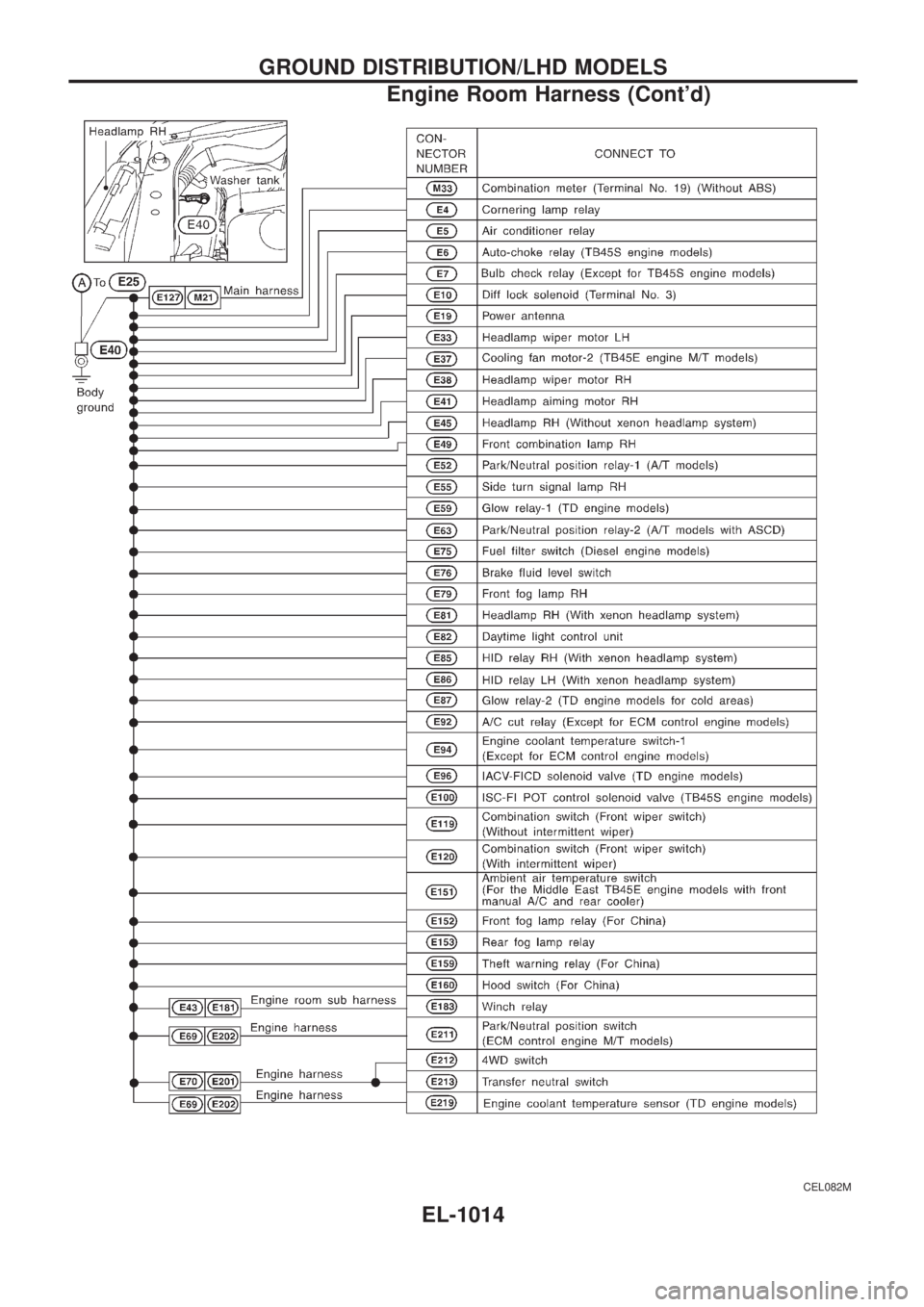

NISSAN PATROL 2000 Electronic Repair Manual CEL083M GROUND DISTRIBUTION/LHD MODELS Engine Room Harness (Contd) EL-1015

Page 526 of 1033

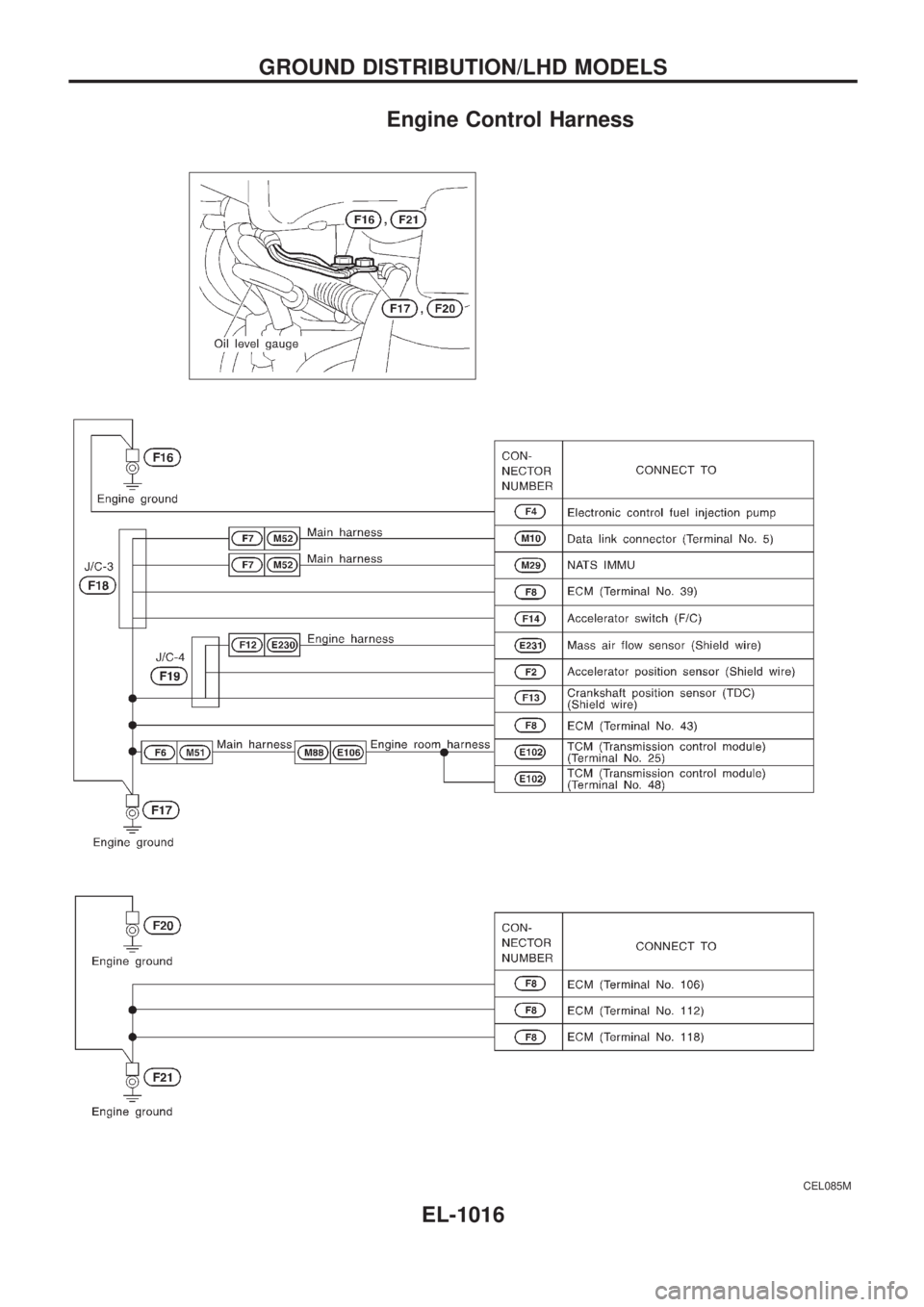

NISSAN PATROL 2000 Electronic Repair Manual Engine Control Harness CEL085M GROUND DISTRIBUTION/LHD MODELS EL-1016

Page 527 of 1033

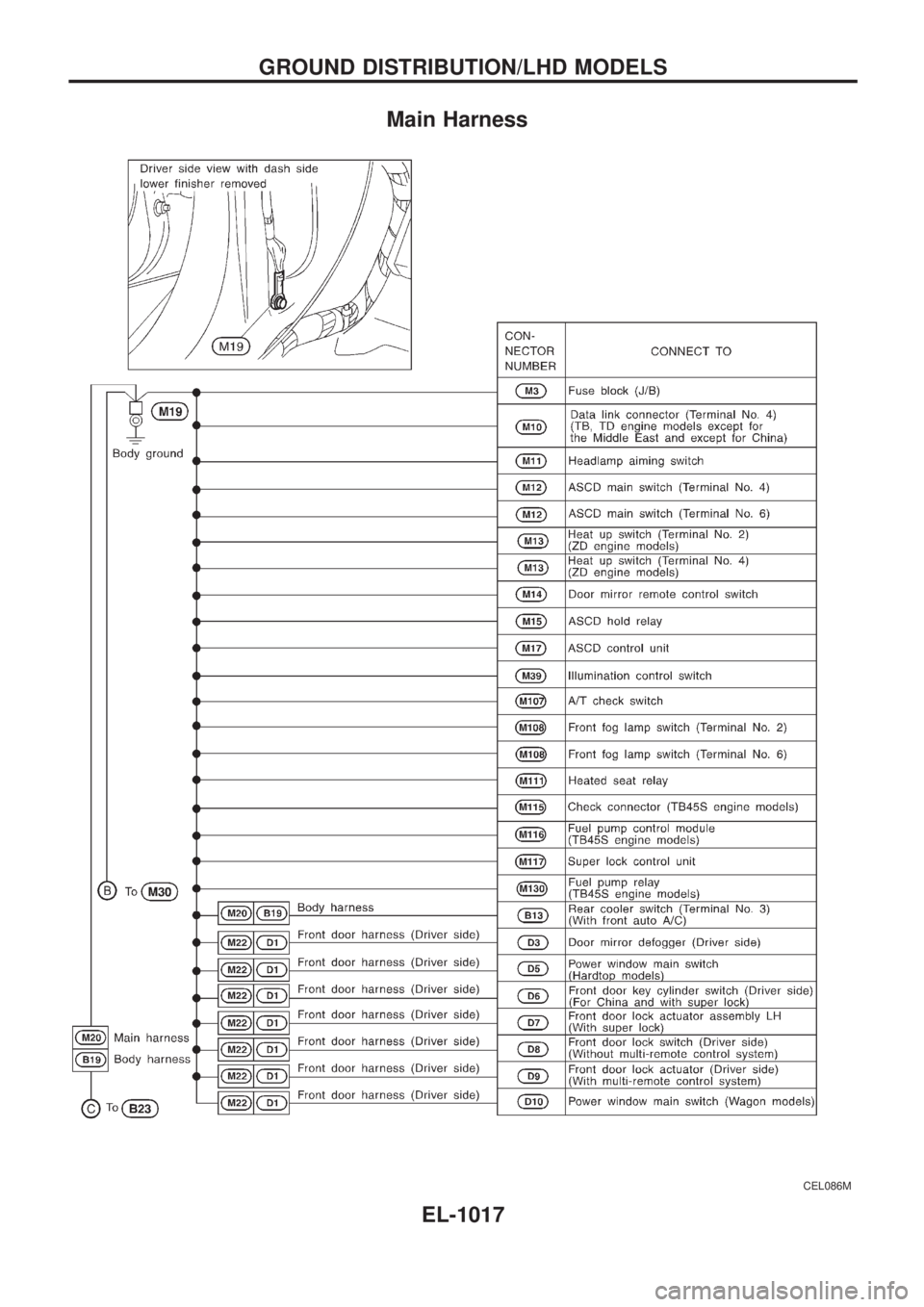

NISSAN PATROL 2000 Electronic Repair Manual Main Harness CEL086M GROUND DISTRIBUTION/LHD MODELS EL-1017

Page 528 of 1033

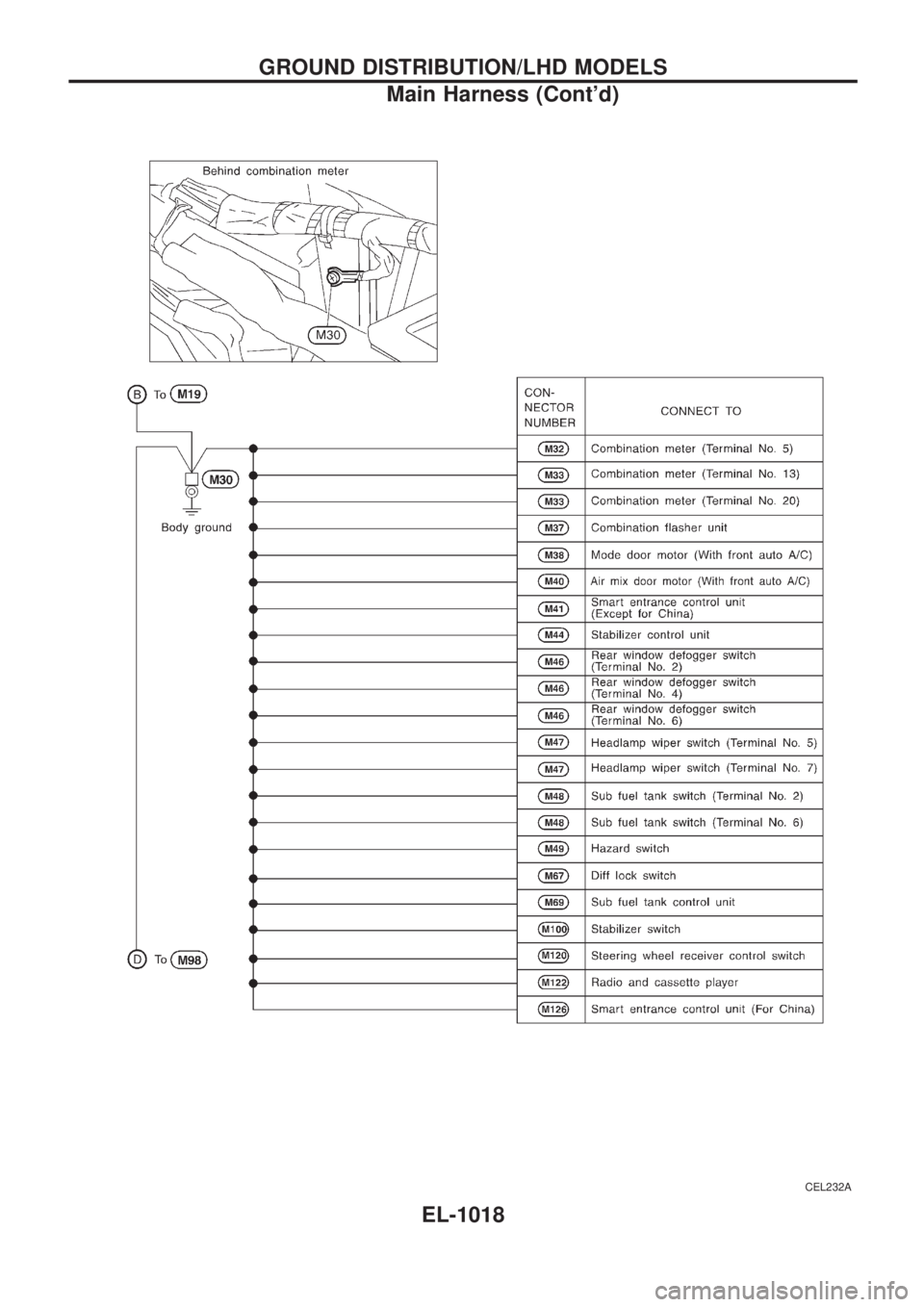

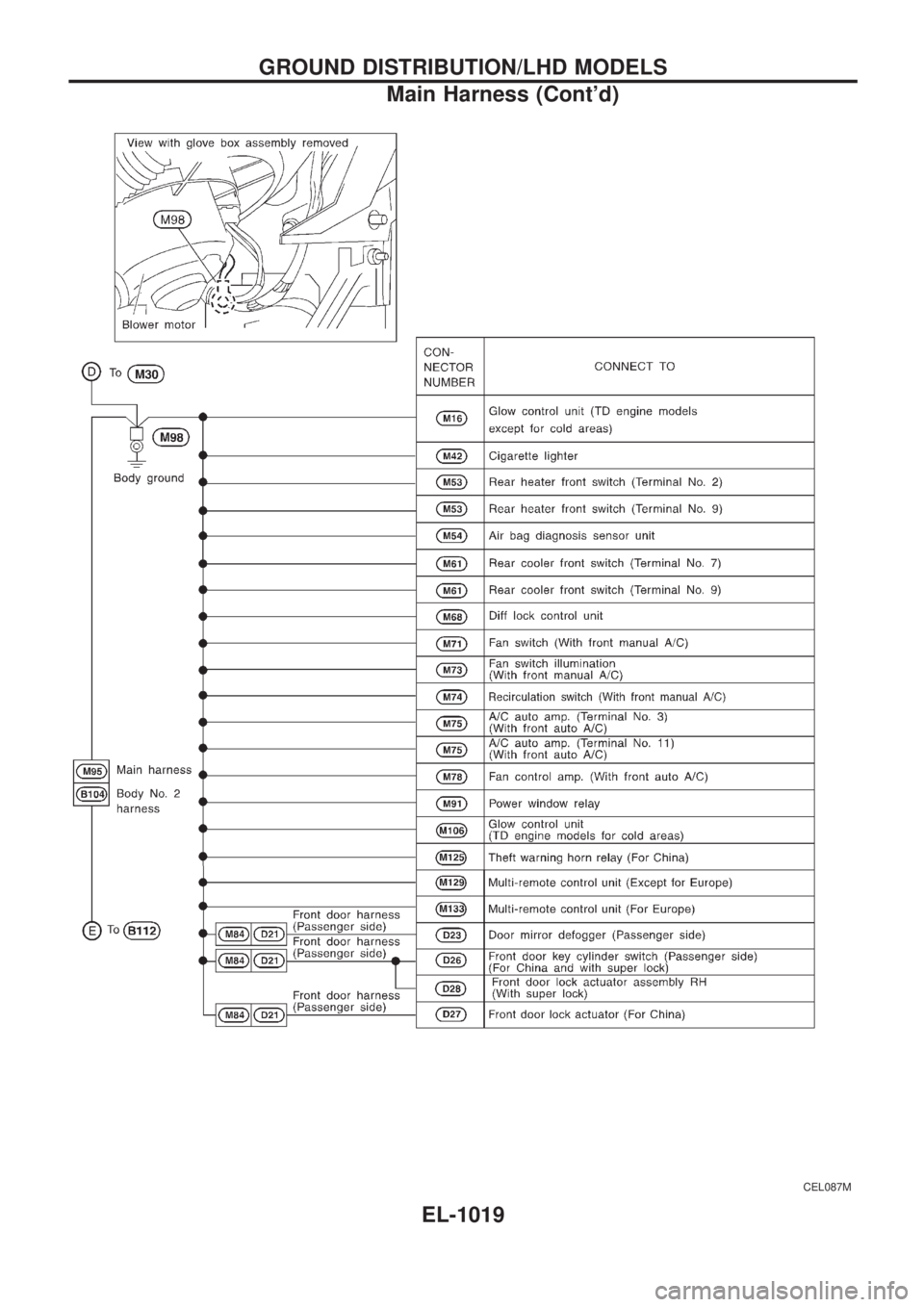

NISSAN PATROL 2000 Electronic Repair Manual CEL232A GROUND DISTRIBUTION/LHD MODELS Main Harness (Contd) EL-1018

Page 529 of 1033

NISSAN PATROL 2000 Electronic Repair Manual CEL087M GROUND DISTRIBUTION/LHD MODELS Main Harness (Contd) EL-1019

Page 530 of 1033

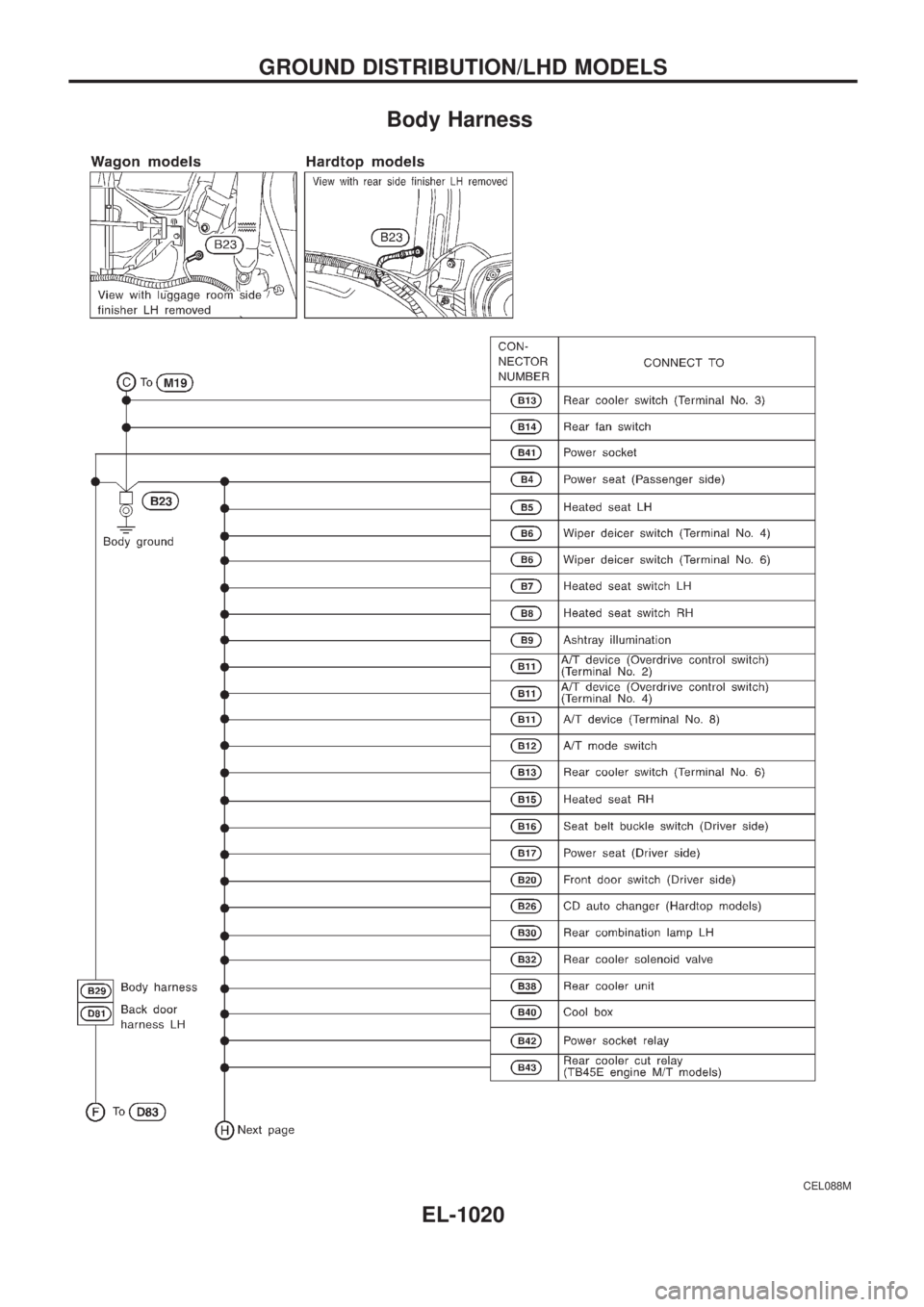

NISSAN PATROL 2000 Electronic Repair Manual Body Harness CEL088M GROUND DISTRIBUTION/LHD MODELS EL-1020
