NISSAN PATROL 2006 Service Manual

SBT569
INTERIOR TRIM
Roof Trim (Cont'd)
BT-23

Back Door Trim
REMOVAL Ð Back door trim
V1Remove bolts securing pull handle (LH only).
V2Remove inside handle escutcheon (LH only).
V3Remove clip securing high-mounted stop lamp cover (RH only).
V4Remove back door cover (RH only).
V5Remove clips securing back door upper garnish.
V6Remove clips securing back door trim.
V7Pull out back door trim.
SBT533
INTERIOR TRIM
BT-24

SBT568
INTERIOR TRIM
Back Door Trim (Cont'd)
BT-25

SBT534

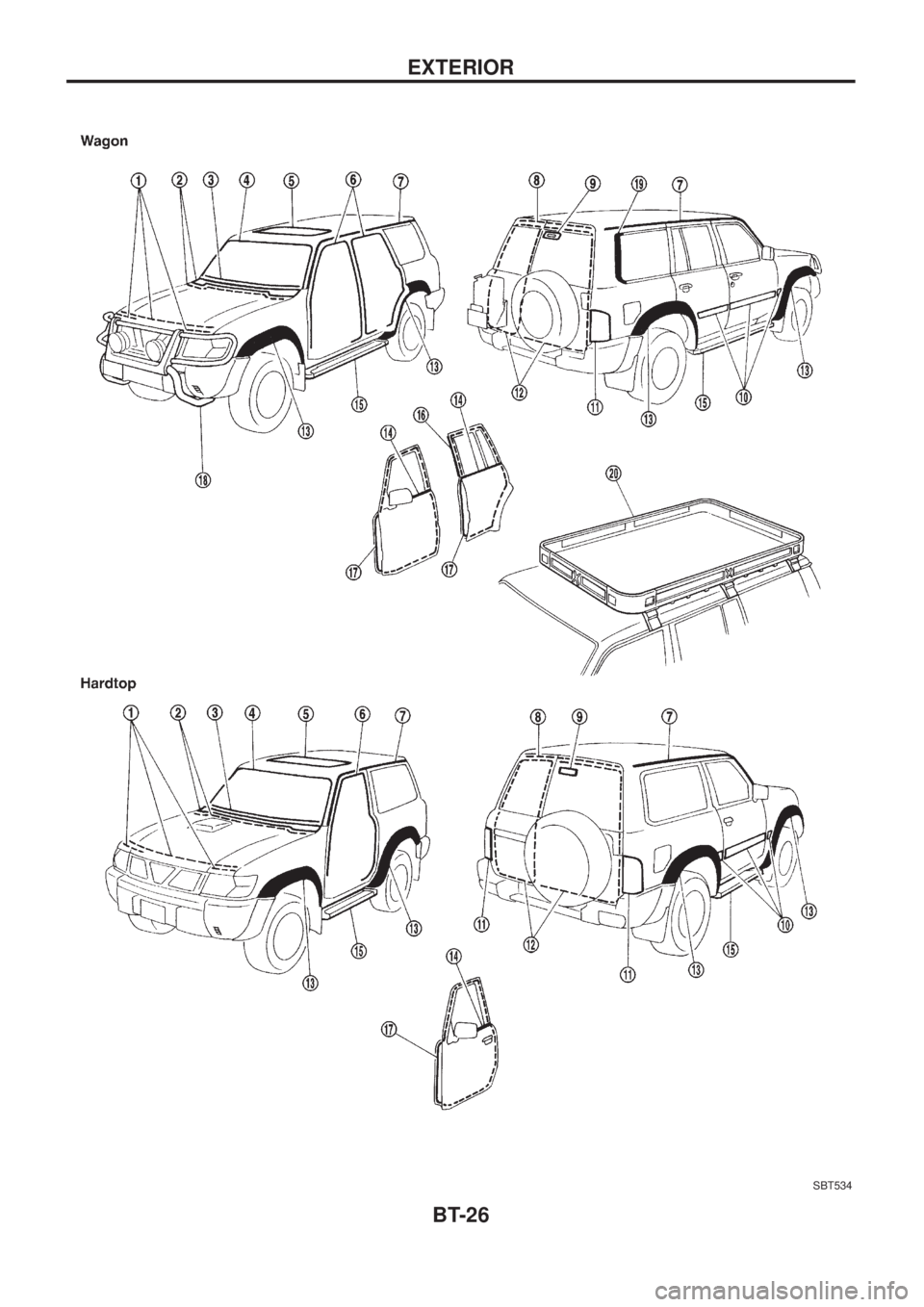

EXTERIOR
BT-26

V1Hood front seal
V3V4Front windshield molding
+Upper and side molding
+Lower molding
Mounted with screws.
V2Cowl top seal and cowl top grille
V5Sunroof lid weatherstrip
V6Body side welt
SBT535
SBT537
SBT536
SBT538
SBT540
EXTERIOR
BT-27

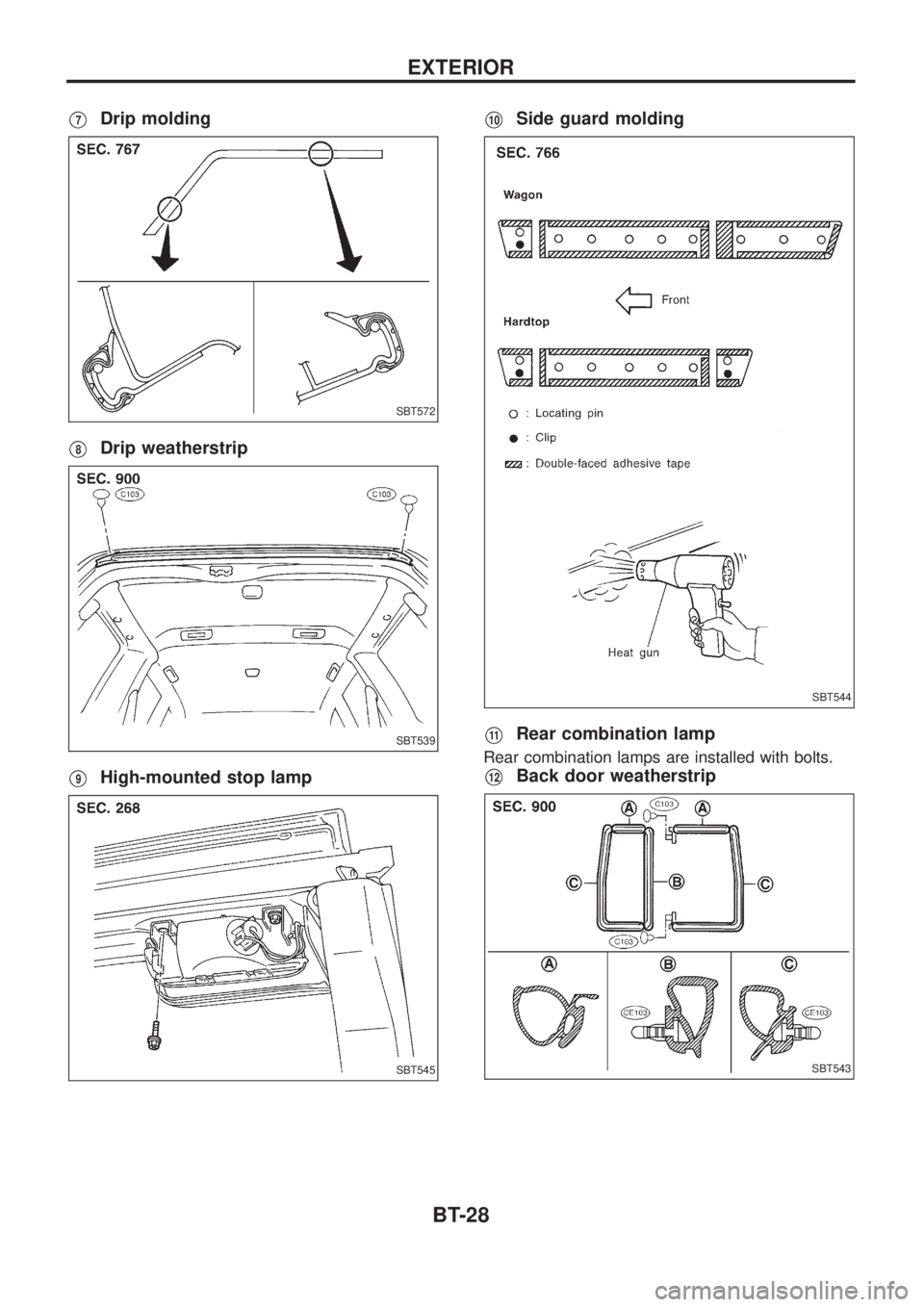

V7Drip molding
V8Drip weatherstrip
V9High-mounted stop lamp
V10Side guard molding
V11Rear combination lamp
Rear combination lamps are installed with bolts.
V12Back door weatherstrip
SBT572
SBT539
SBT545
SBT544
SBT543
EXTERIOR
BT-28

V13Over fender
V14Door outside molding
SBT548
SBT542
EXTERIOR
BT-29

V15Side step
V16Front door parting sealV17Door weatherstrip
SBT546
SBT570SBT541
EXTERIOR
BT-30

V18Front grille guard
V19Air outlet grilleV20Roof rack
SBT549
SBT547SBT574
EXTERIOR
BT-31

Front Seat
+When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.
MANUAL SEAT
SBT550
SEAT
BT-32
