Page 371 of 1226

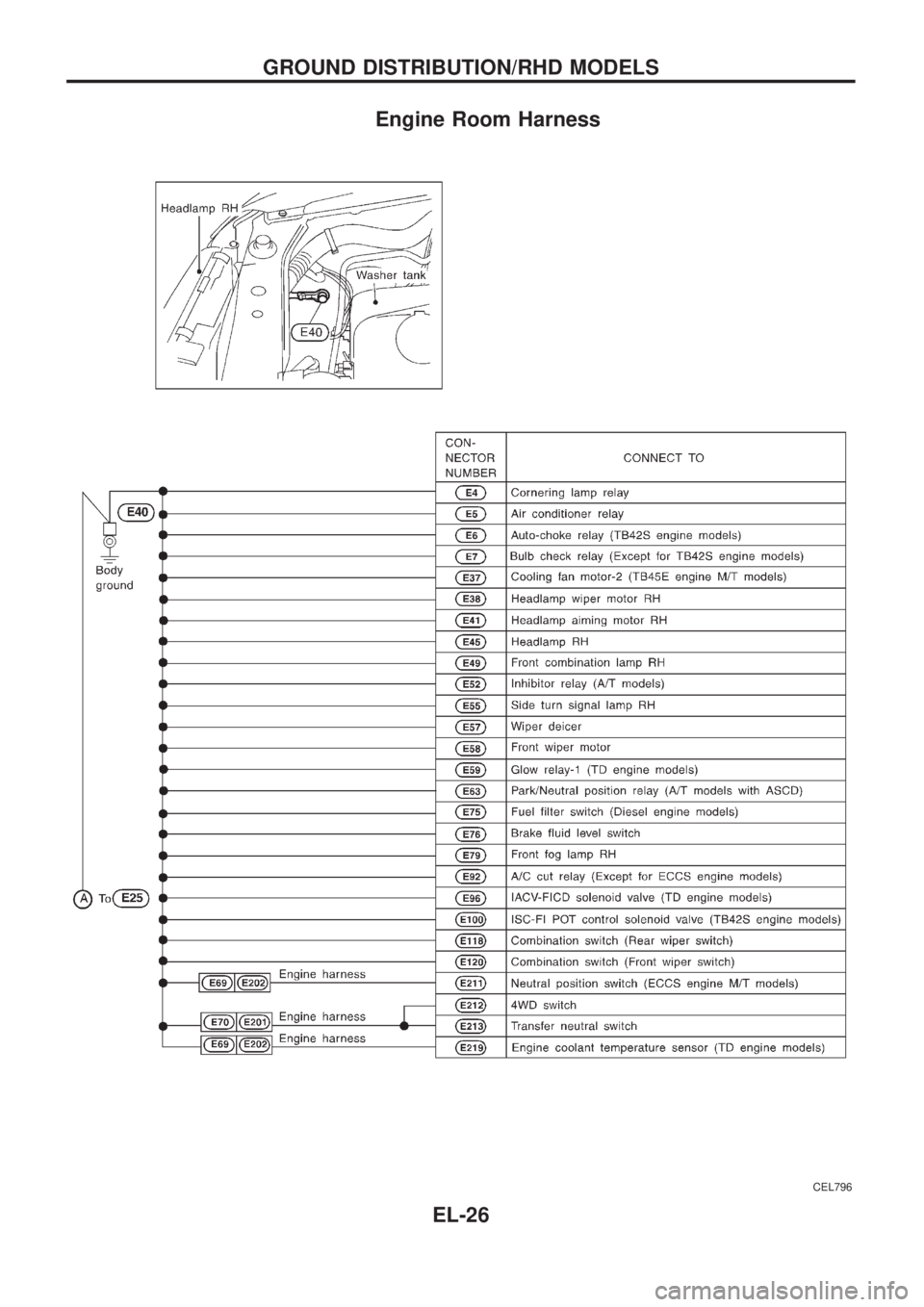

NISSAN PATROL 2006 Service Manual Engine Room Harness CEL796 GROUND DISTRIBUTION/RHD MODELS EL-26

Page 372 of 1226

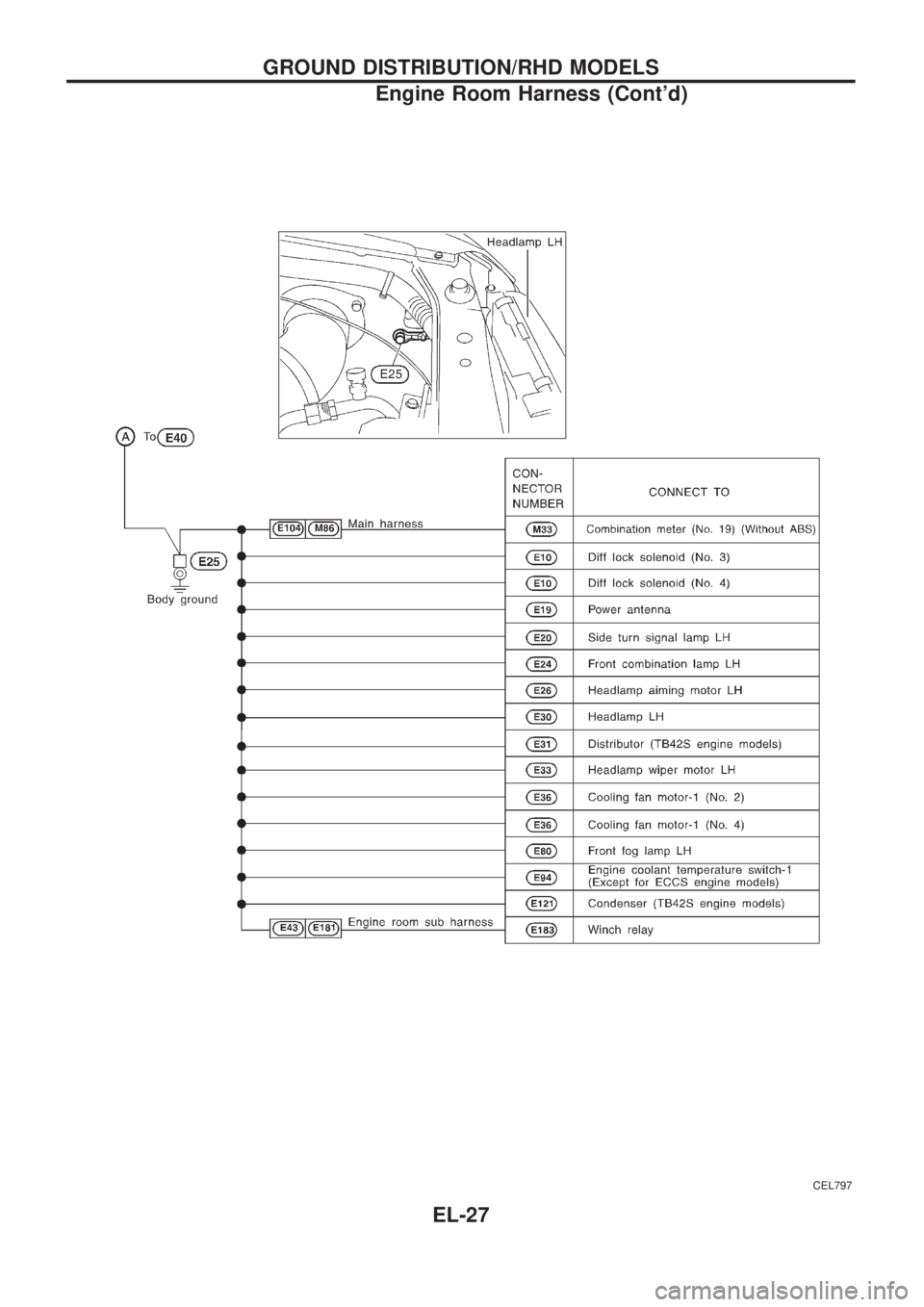

NISSAN PATROL 2006 Service Manual CEL797 GROUND DISTRIBUTION/RHD MODELS Engine Room Harness (Contd) EL-27

Page 373 of 1226

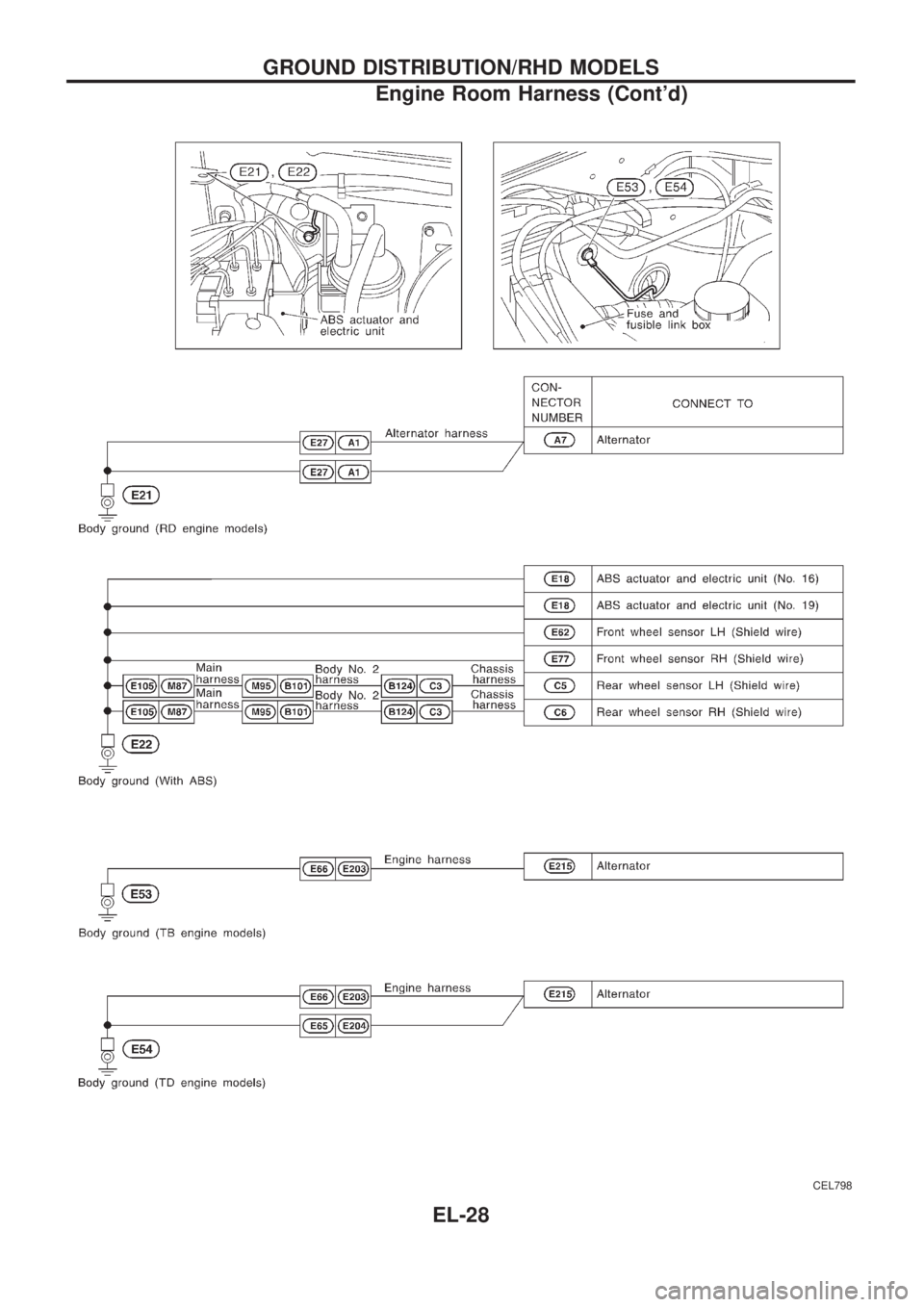

NISSAN PATROL 2006 Service Manual CEL798 GROUND DISTRIBUTION/RHD MODELS Engine Room Harness (Contd) EL-28

Page 374 of 1226

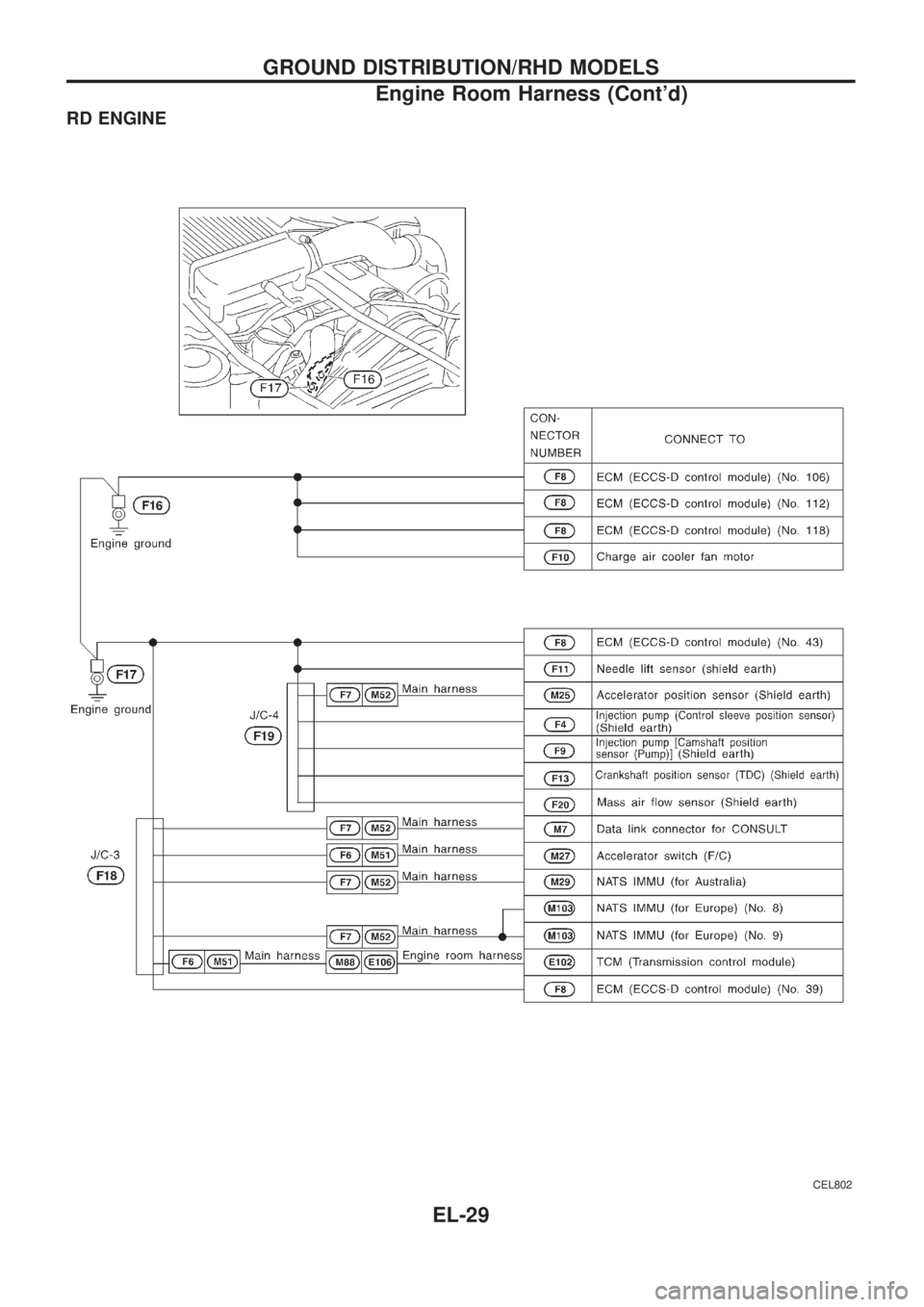

NISSAN PATROL 2006 Service Manual RD ENGINE CEL802 GROUND DISTRIBUTION/RHD MODELS Engine Room Harness (Contd) EL-29

Page 375 of 1226

NISSAN PATROL 2006 Service Manual Main Harness CEL803 GROUND DISTRIBUTION/RHD MODELS EL-30

Page 376 of 1226

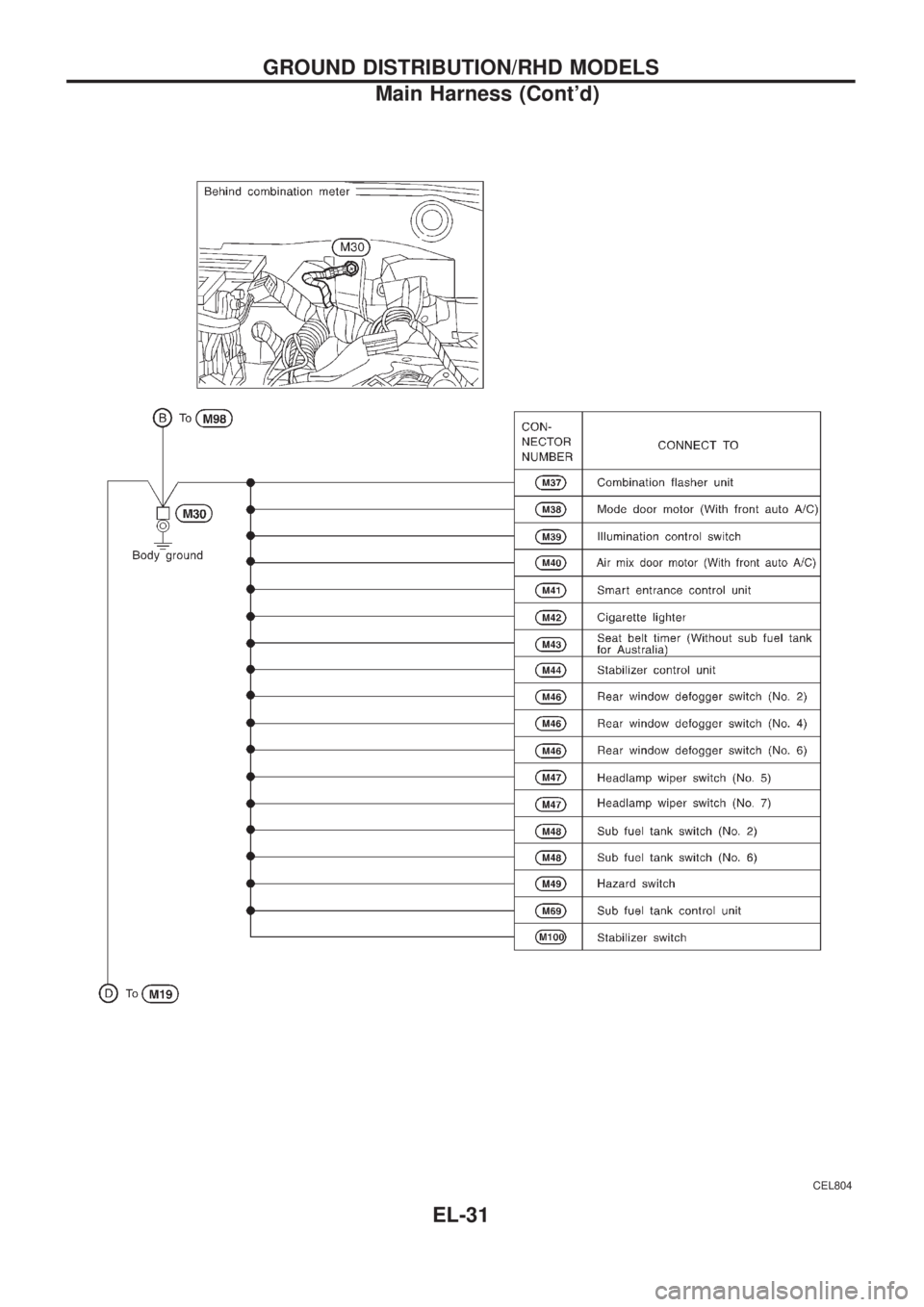

NISSAN PATROL 2006 Service Manual CEL804 GROUND DISTRIBUTION/RHD MODELS Main Harness (Contd) EL-31

Page 377 of 1226

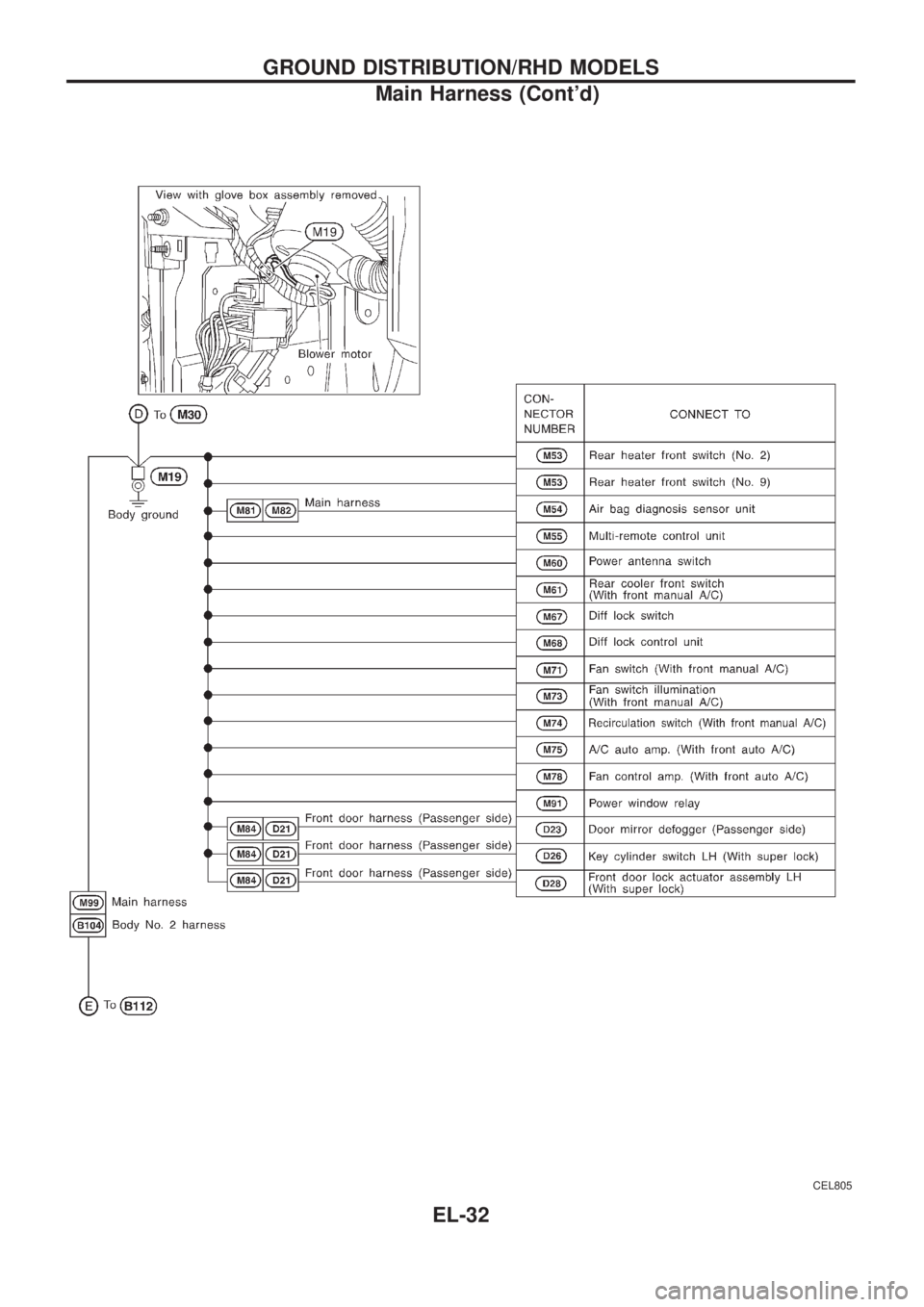

NISSAN PATROL 2006 Service Manual CEL805 GROUND DISTRIBUTION/RHD MODELS Main Harness (Contd) EL-32

Page 378 of 1226

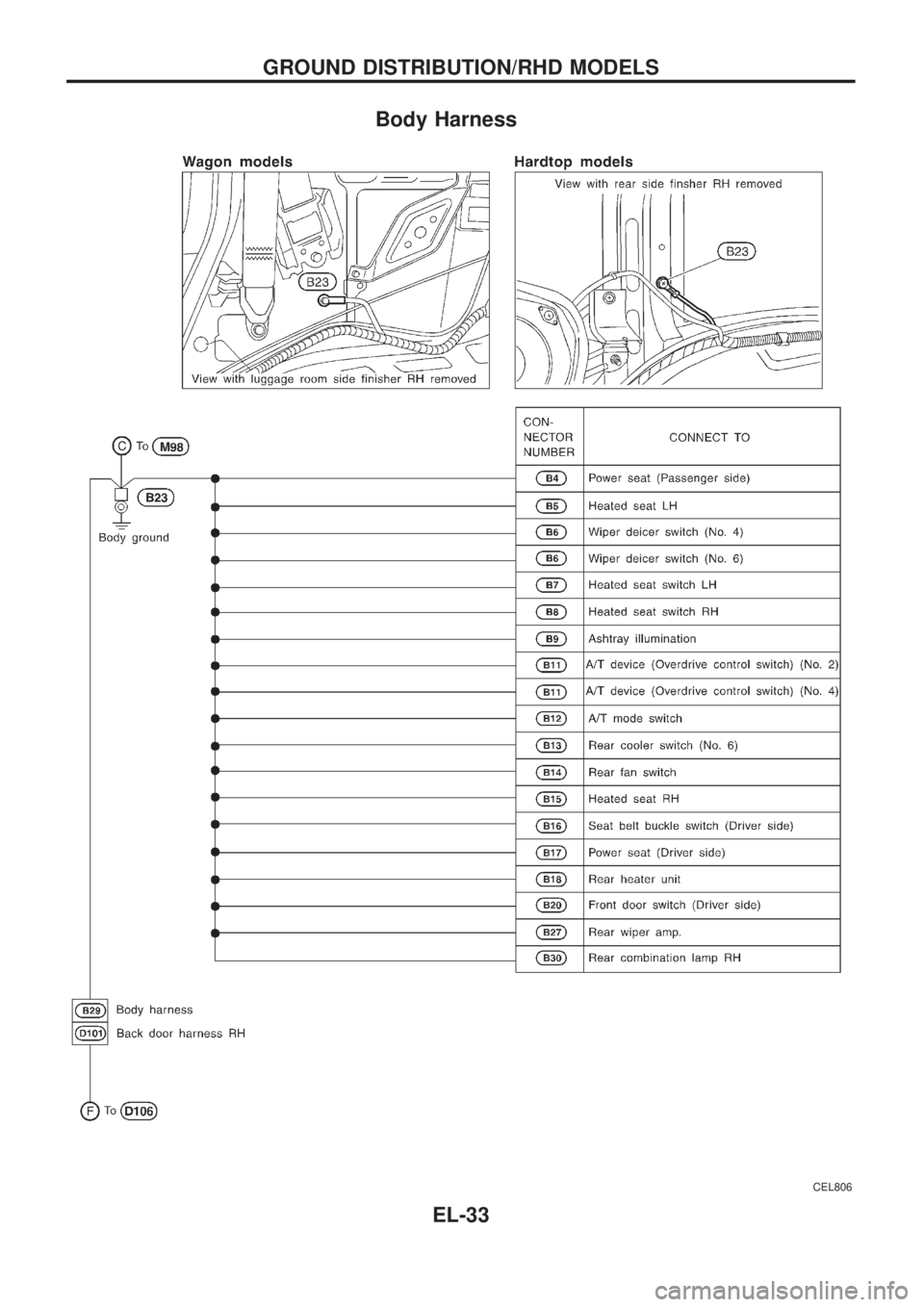

NISSAN PATROL 2006 Service Manual Body Harness CEL806 GROUND DISTRIBUTION/RHD MODELS EL-33

Page 379 of 1226

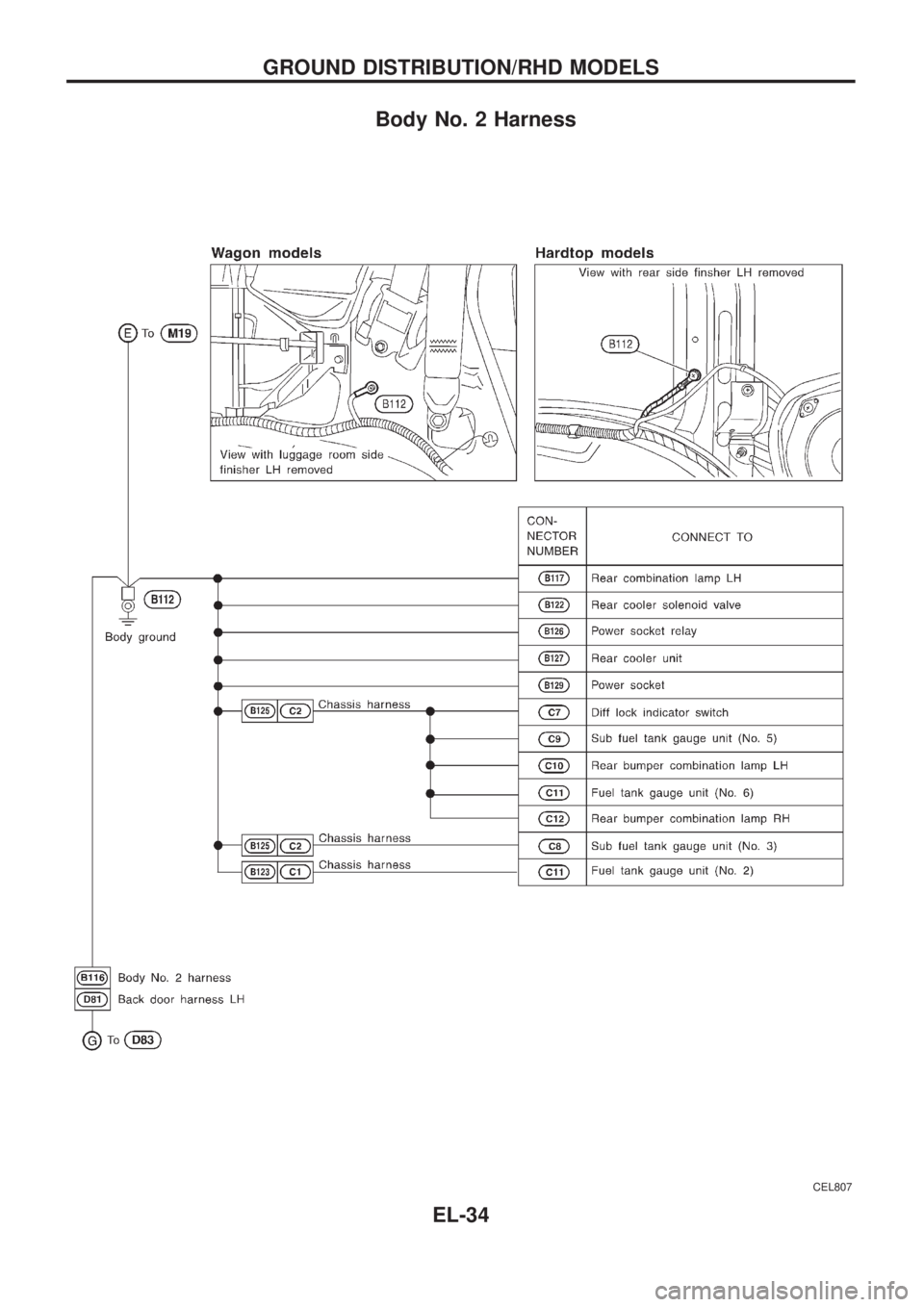

NISSAN PATROL 2006 Service Manual Body No. 2 Harness CEL807 GROUND DISTRIBUTION/RHD MODELS EL-34

Page 380 of 1226

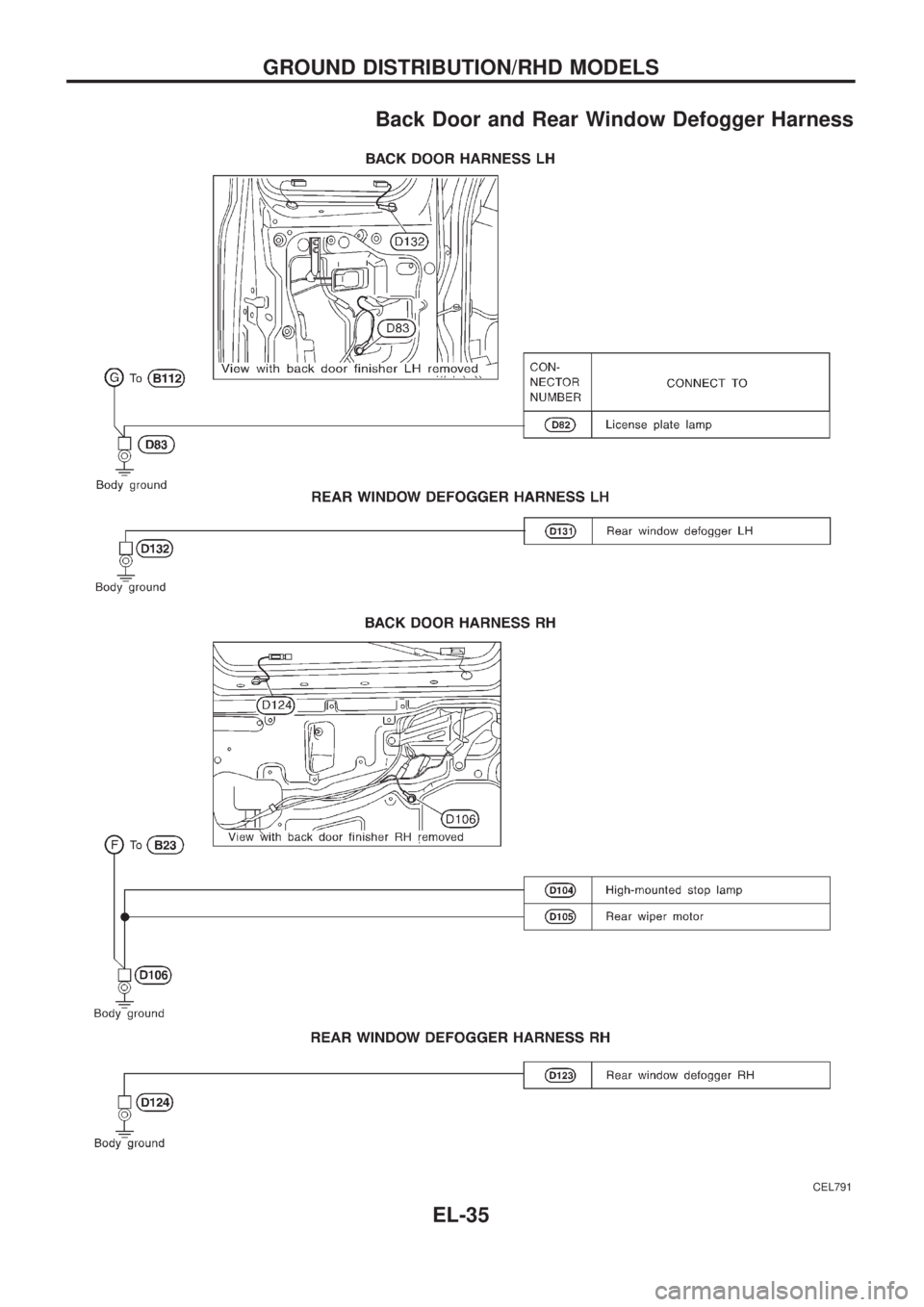

NISSAN PATROL 2006 Service Manual Back Door and Rear Window Defogger Harness CEL791 GROUND DISTRIBUTION/RHD MODELS EL-35
