Page 621 of 1226

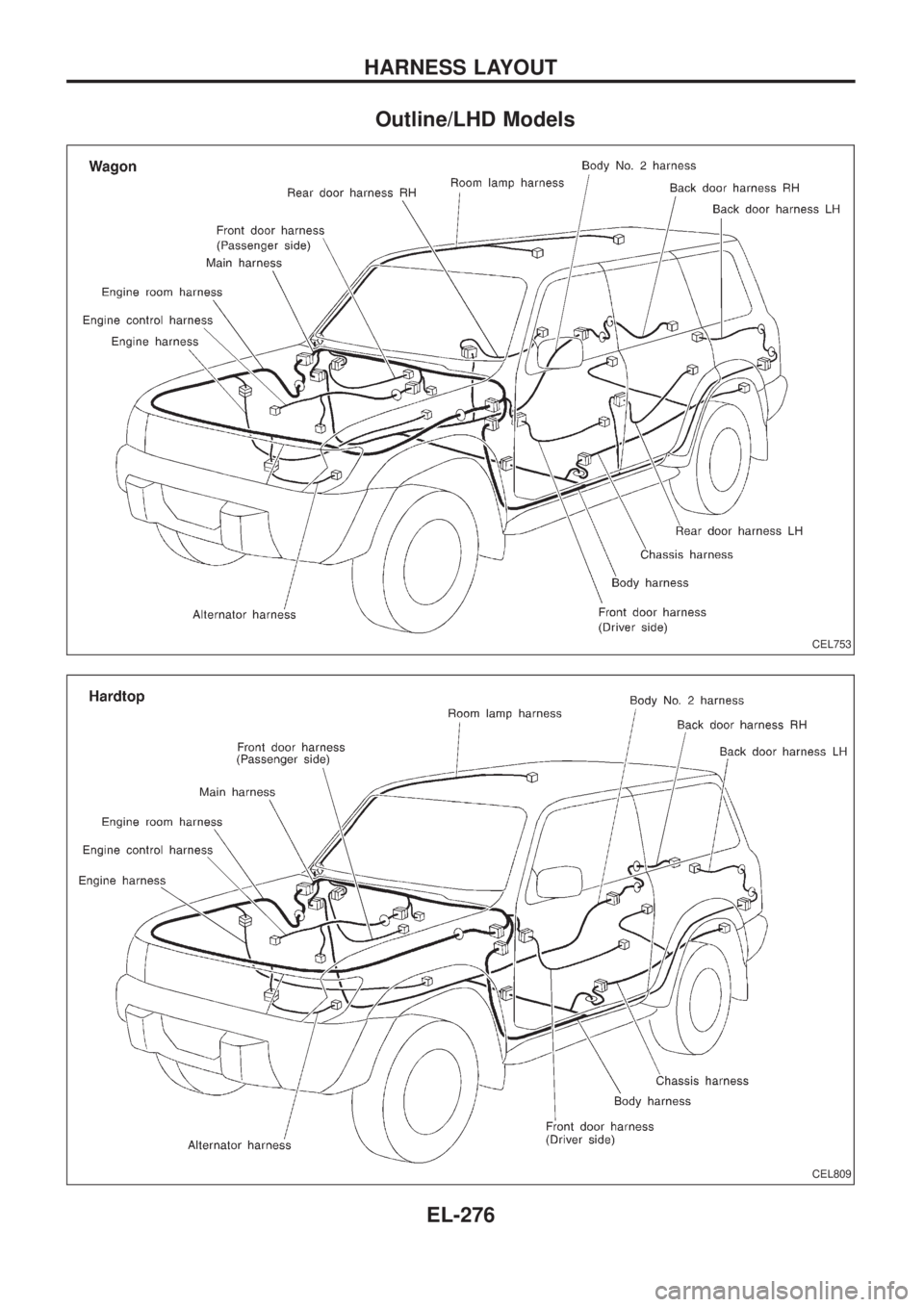

NISSAN PATROL 2006 Service Manual Outline/LHD Models CEL753 CEL809 HARNESS LAYOUT EL-276

Page 622 of 1226

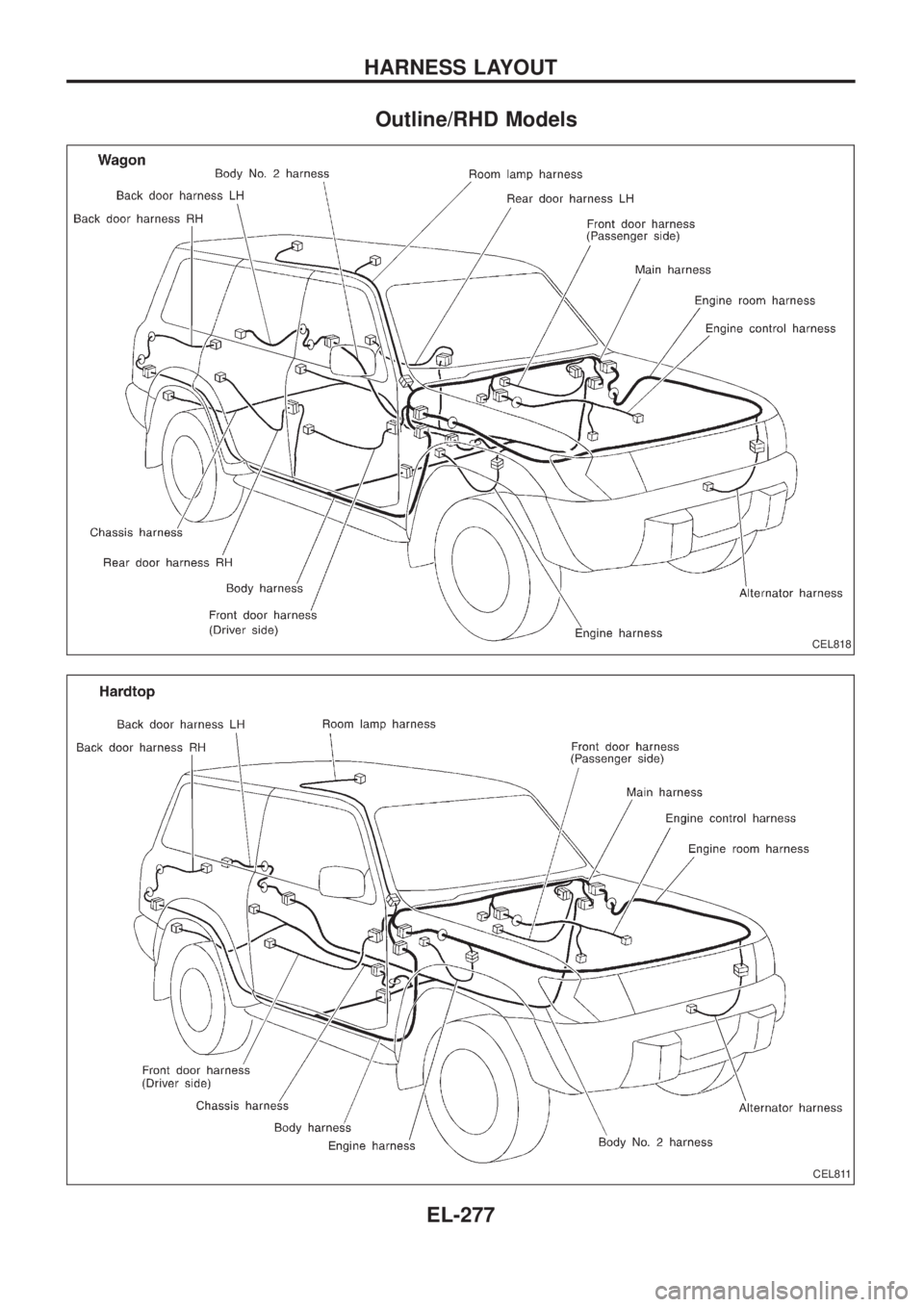

NISSAN PATROL 2006 Service Manual Outline/RHD Models CEL818 CEL811 HARNESS LAYOUT EL-277

Page 623 of 1226

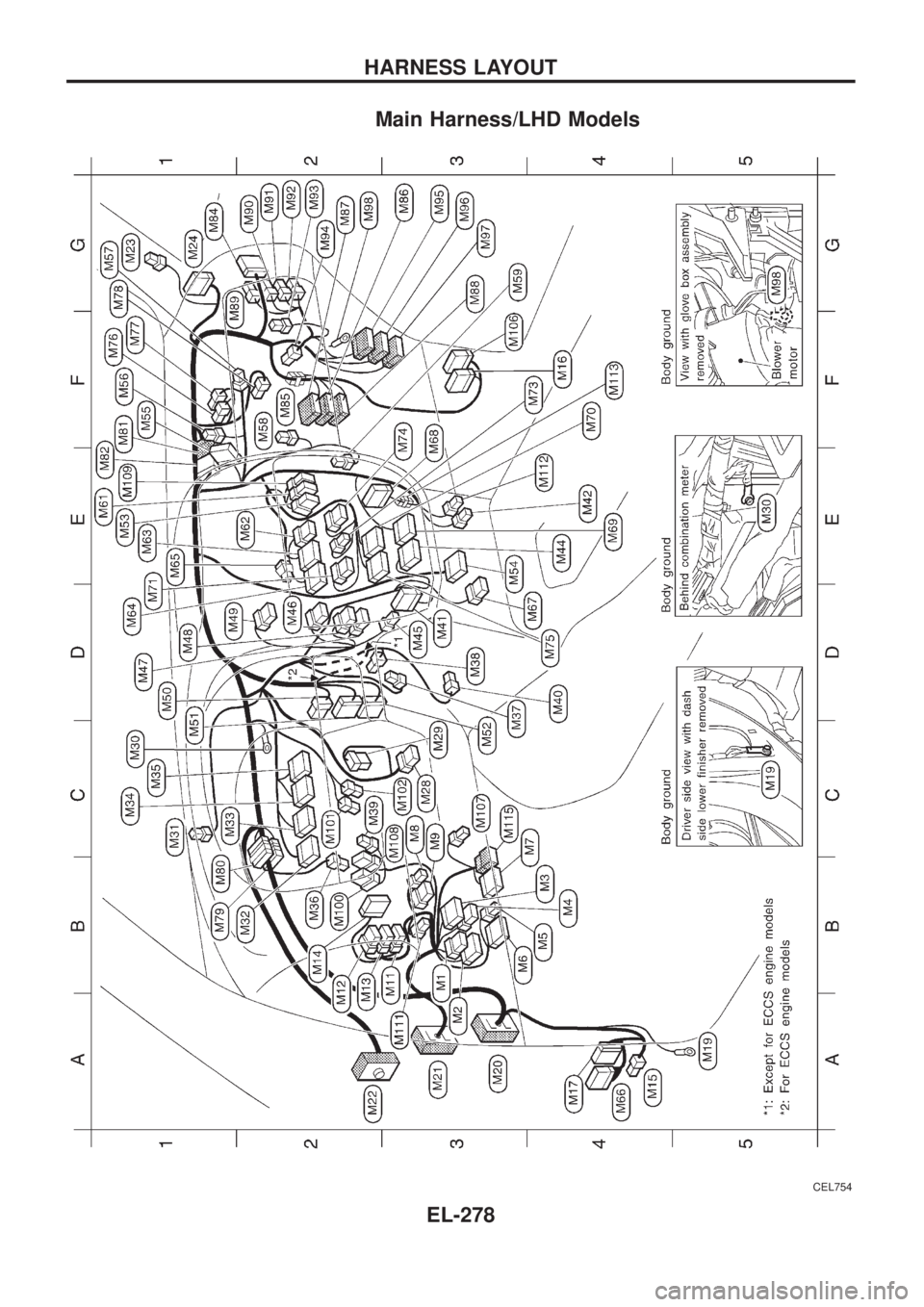

NISSAN PATROL 2006 Service Manual Main Harness/LHD Models CEL754 HARNESS LAYOUT EL-278

Page 624 of 1226

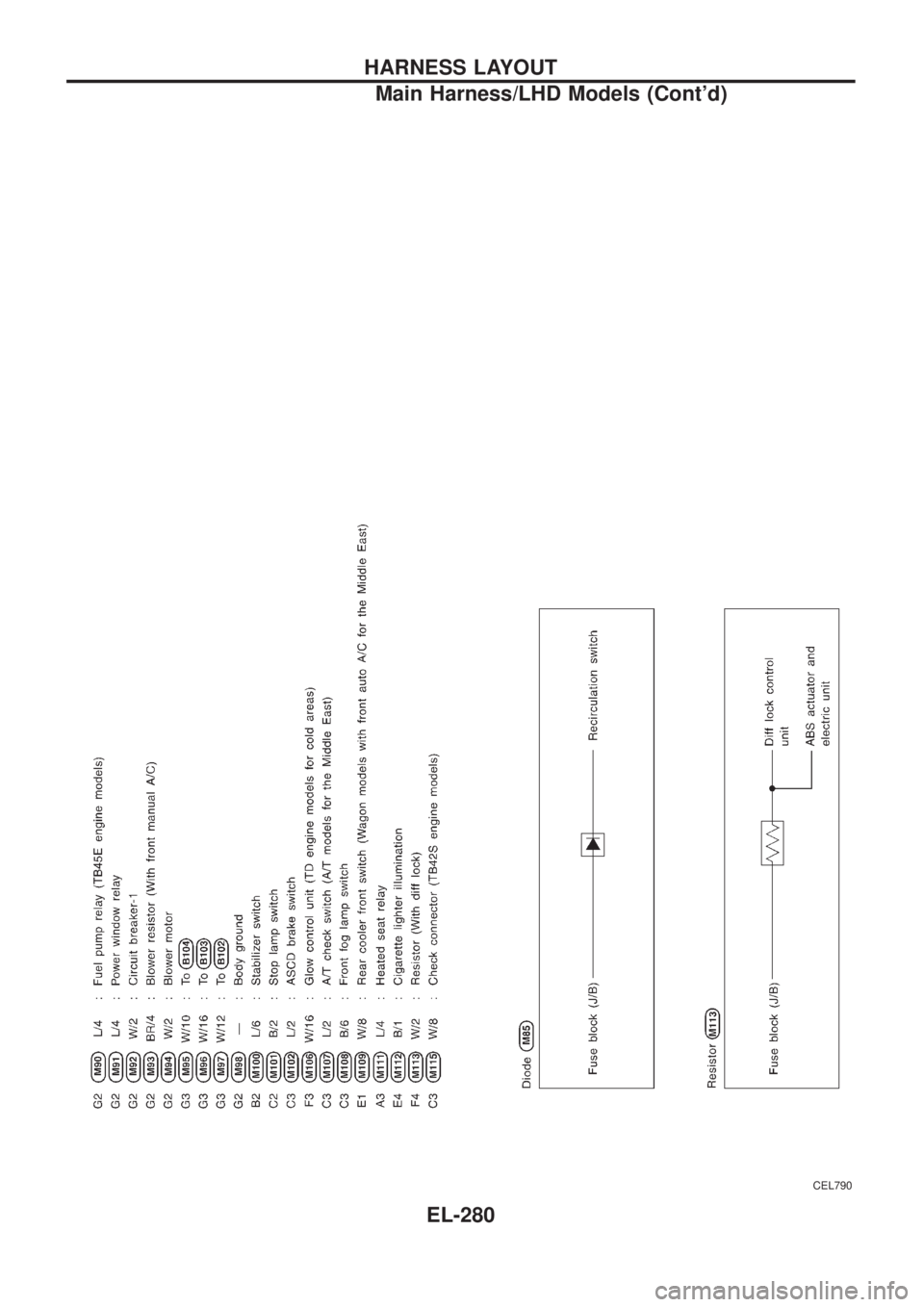

NISSAN PATROL 2006 Service Manual CEL755 HARNESS LAYOUT Main Harness/LHD Models (Contd) EL-279

Page 625 of 1226

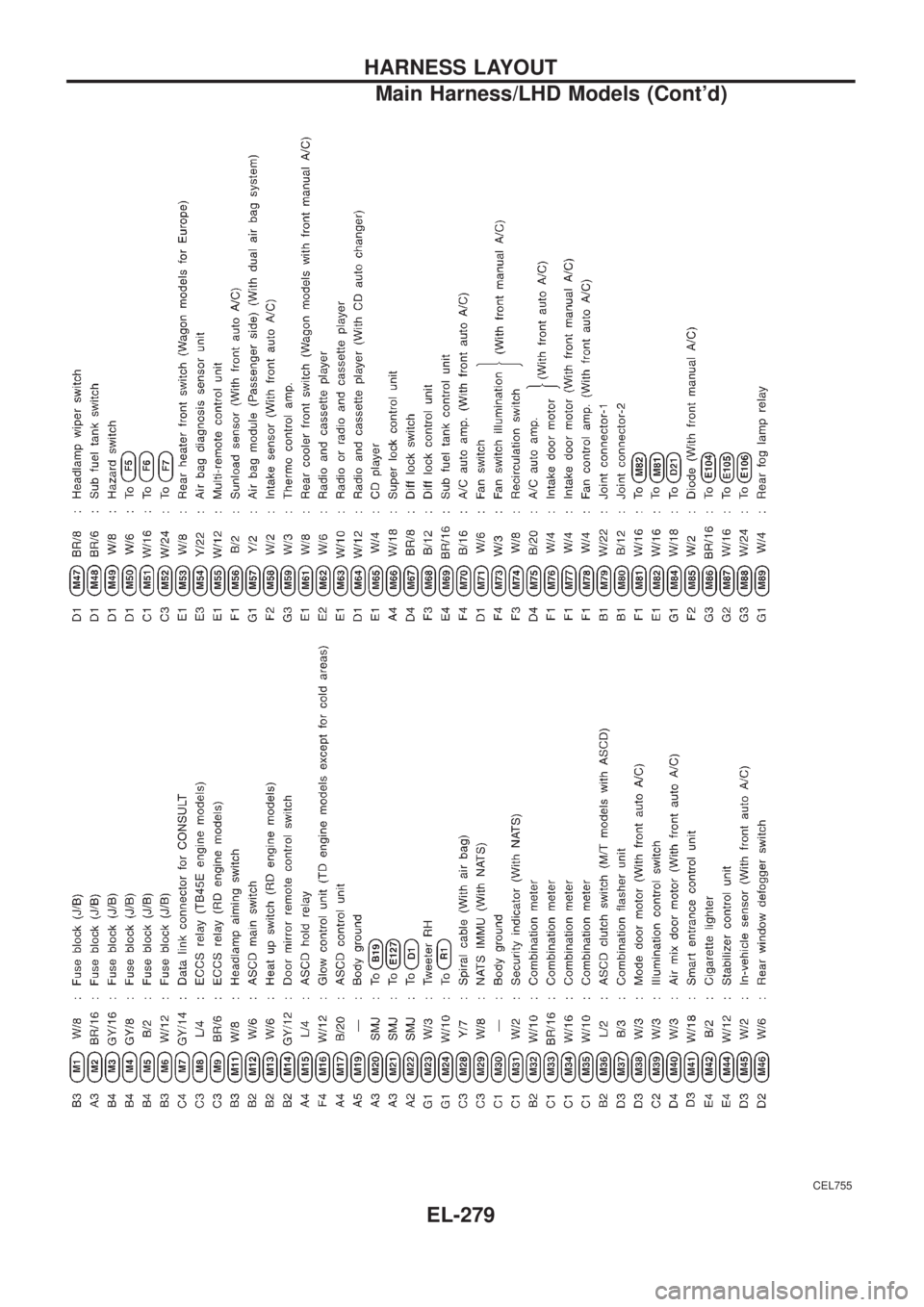

NISSAN PATROL 2006 Service Manual CEL790 HARNESS LAYOUT Main Harness/LHD Models (Contd) EL-280

Page 626 of 1226

NISSAN PATROL 2006 Service Manual NOTE HARNESS LAYOUT EL-281

Page 627 of 1226

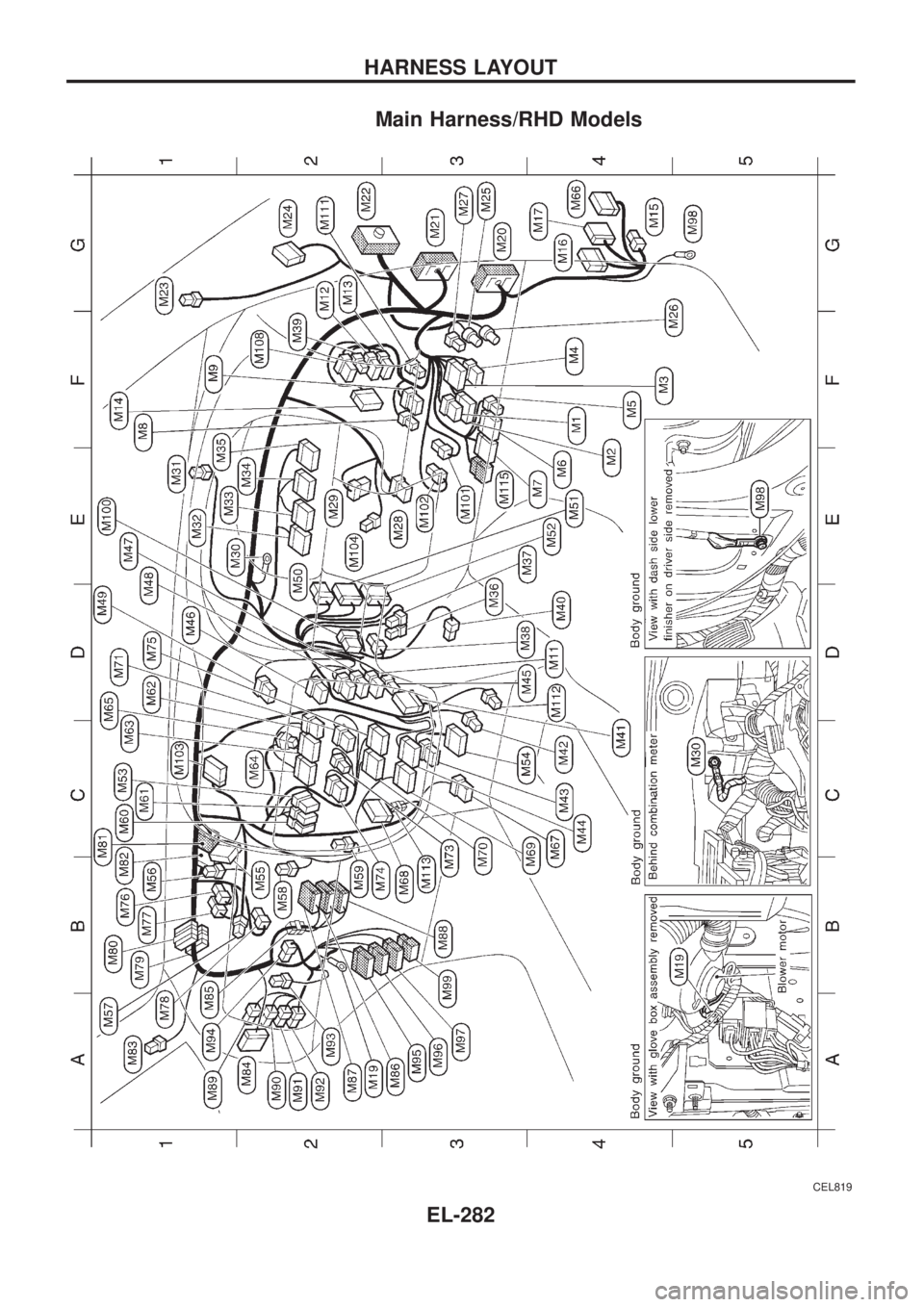

NISSAN PATROL 2006 Service Manual Main Harness/RHD Models CEL819 HARNESS LAYOUT EL-282

Page 628 of 1226

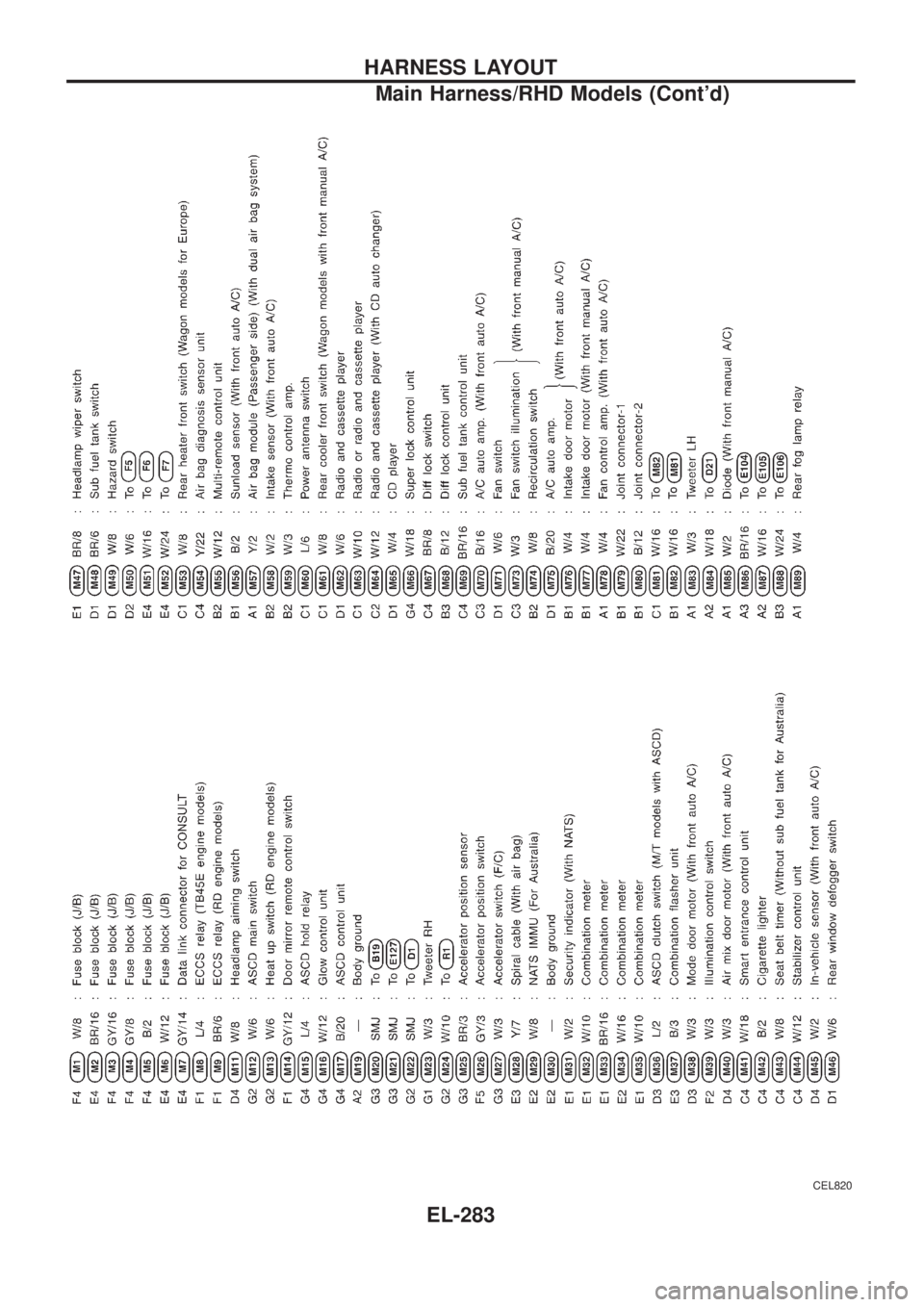

NISSAN PATROL 2006 Service Manual CEL820 HARNESS LAYOUT Main Harness/RHD Models (Contd) EL-283

Page 629 of 1226

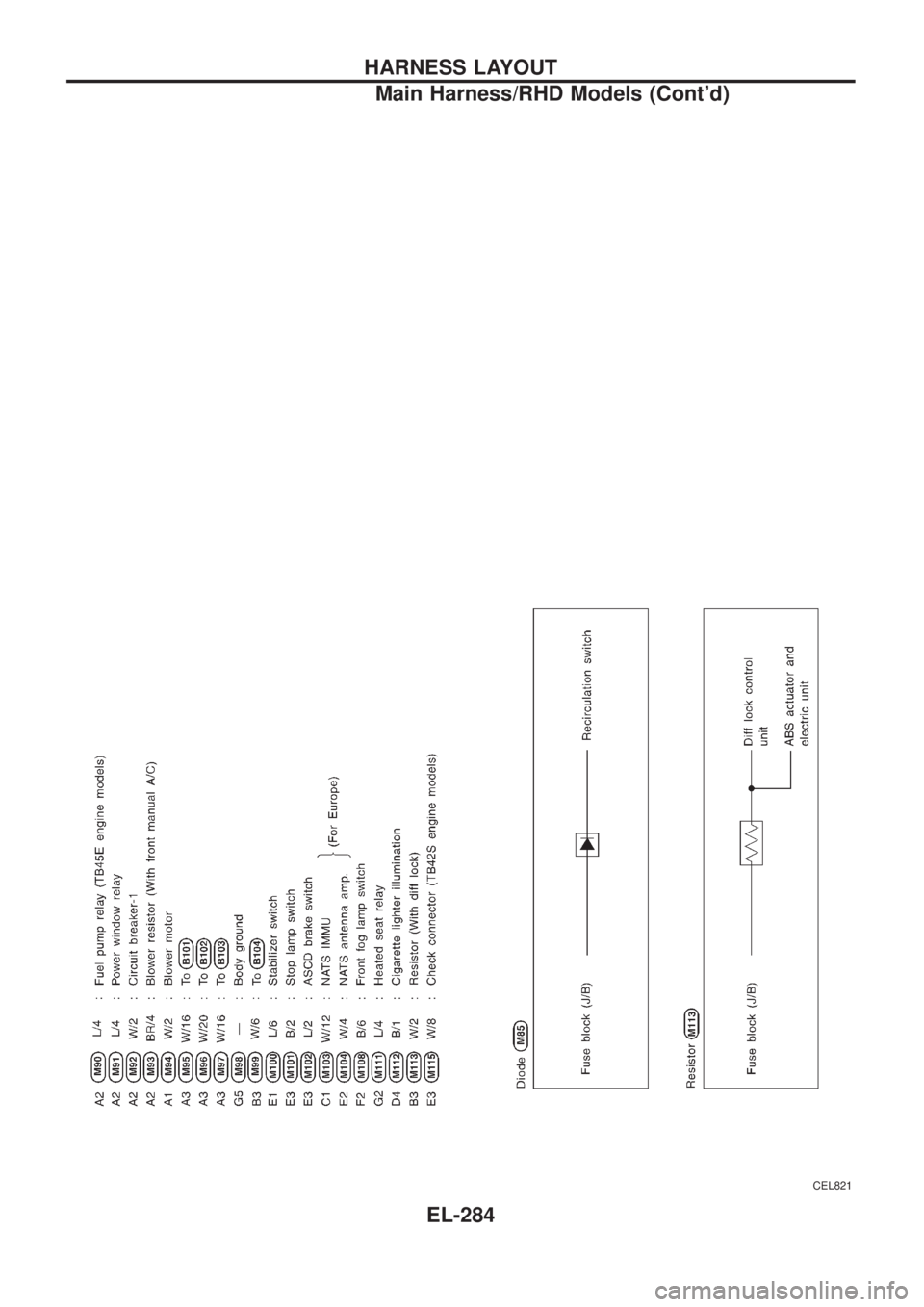

NISSAN PATROL 2006 Service Manual CEL821 HARNESS LAYOUT Main Harness/RHD Models (Contd) EL-284

Page 630 of 1226

NISSAN PATROL 2006 Service Manual NOTE HARNESS LAYOUT EL-285
