NISSAN PICK-UP 1999 Repair Manual

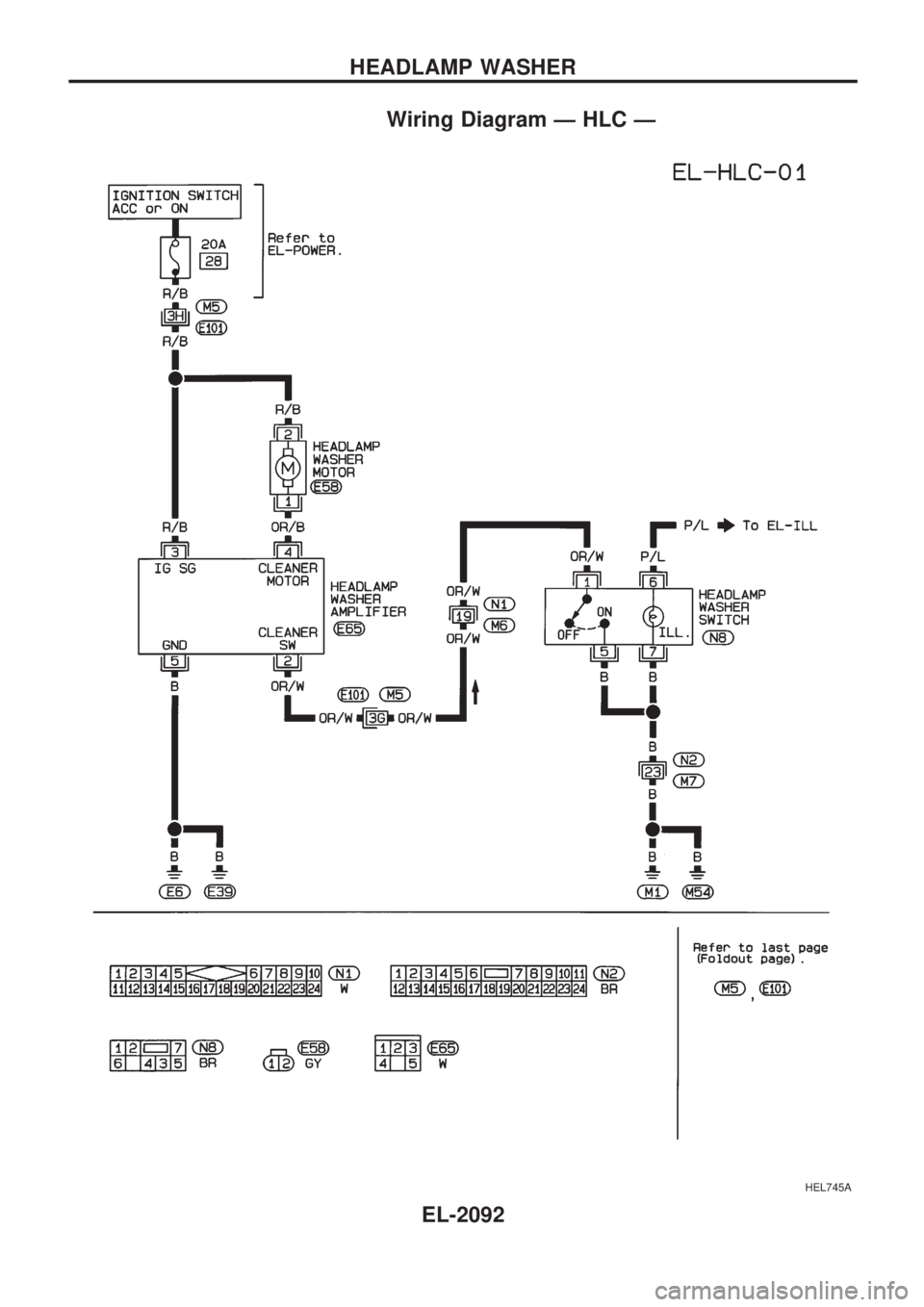

Wiring Diagram Ð HLC Ð
HEL745A
HEADLAMP WASHER
EL-2092

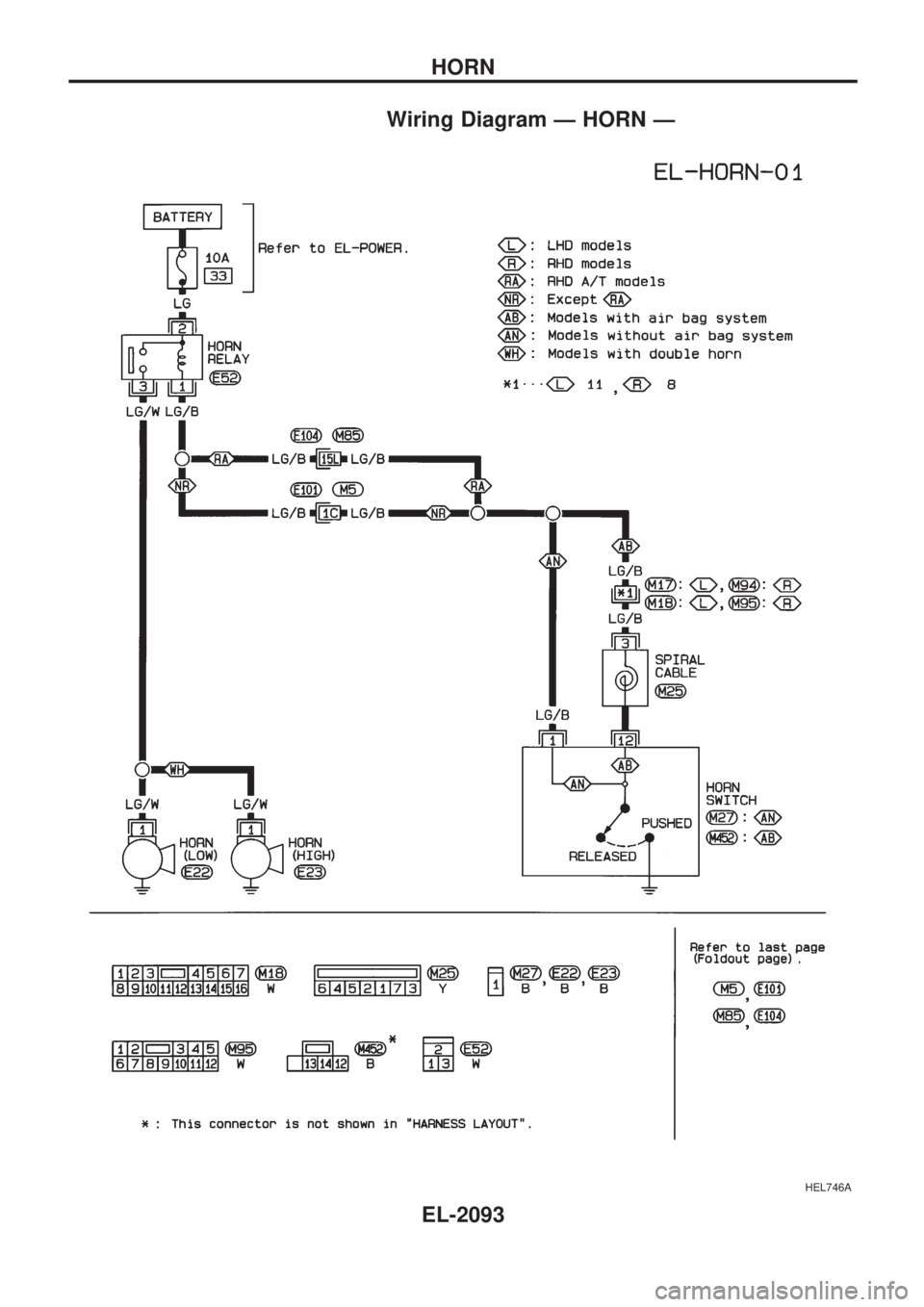

Wiring Diagram Ð HORN Ð
HEL746A
HORN
EL-2093

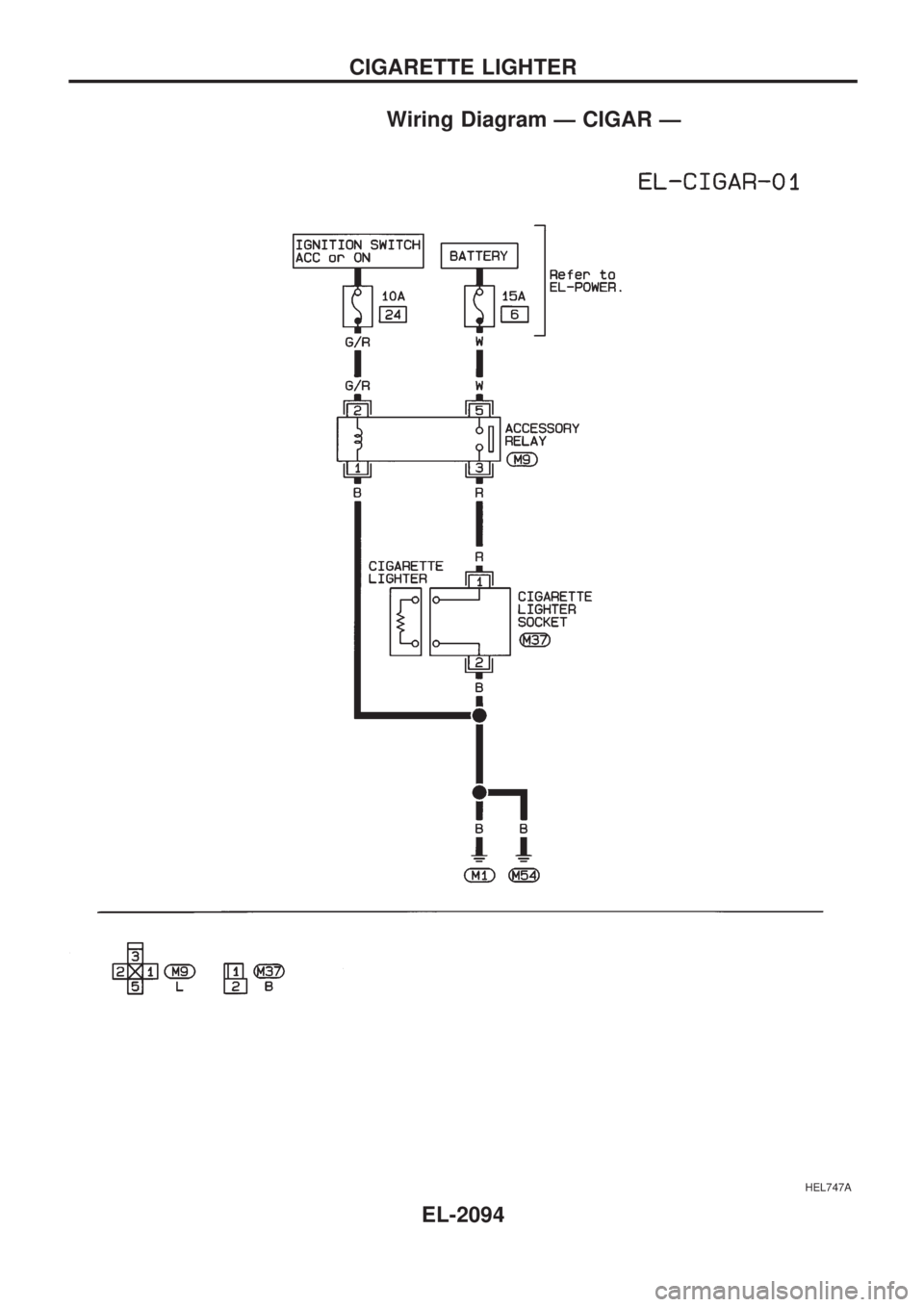

Wiring Diagram Ð CIGAR Ð
HEL747A
CIGARETTE LIGHTER
EL-2094

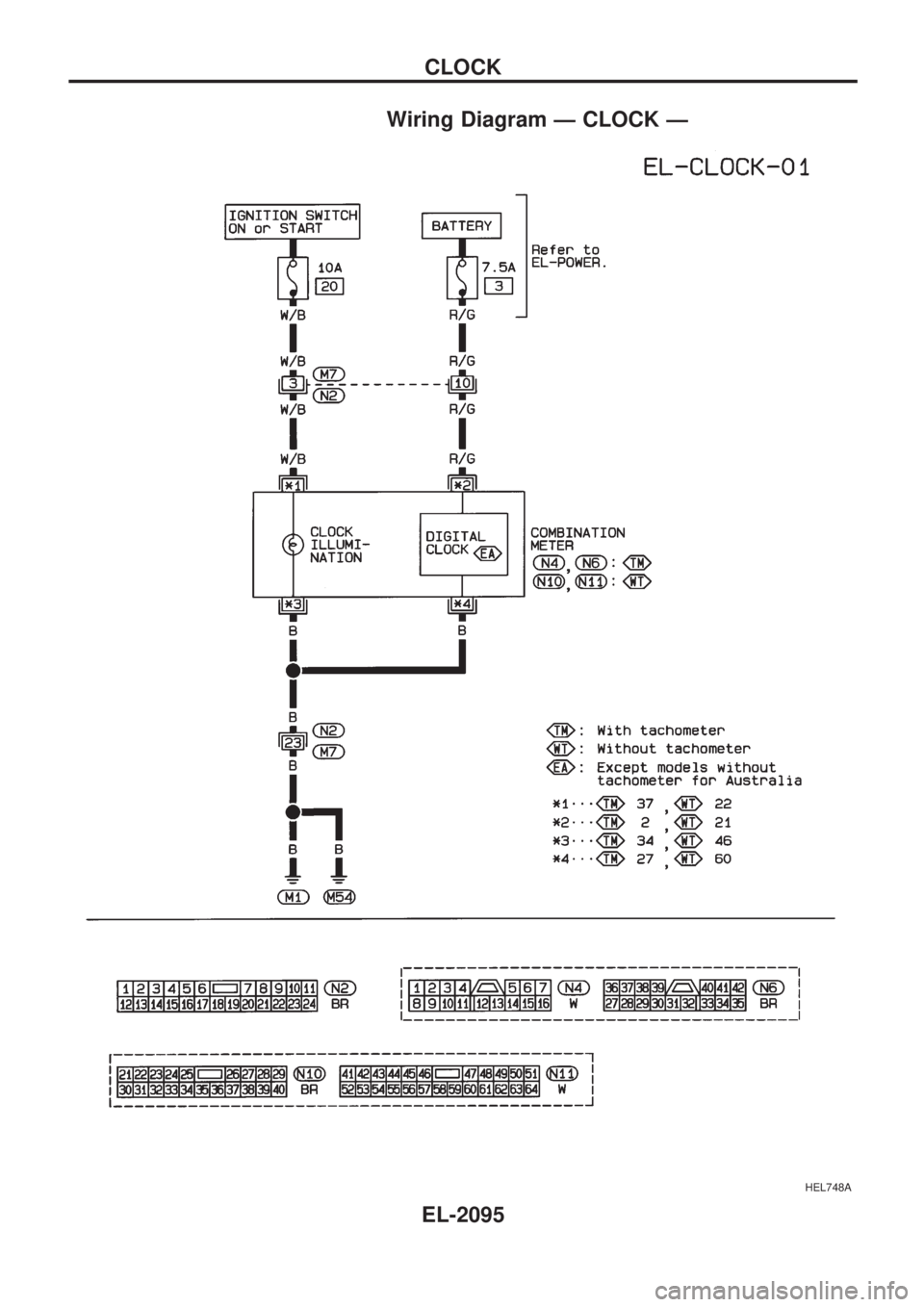

Wiring Diagram Ð CLOCK Ð
HEL748A
CLOCK
EL-2095

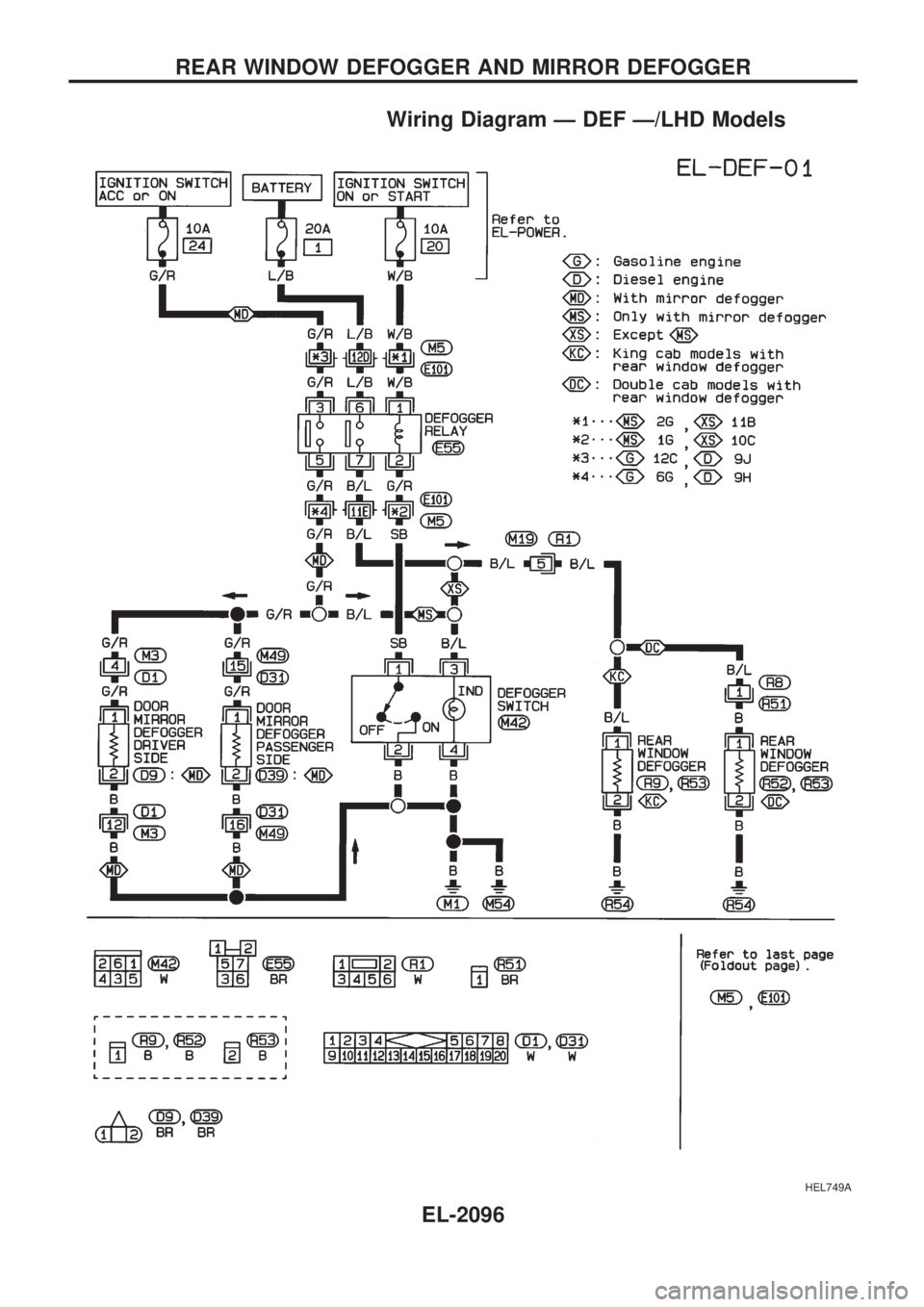

Wiring Diagram Ð DEF Ð/LHD Models
HEL749A
REAR WINDOW DEFOGGER AND MIRROR DEFOGGER
EL-2096

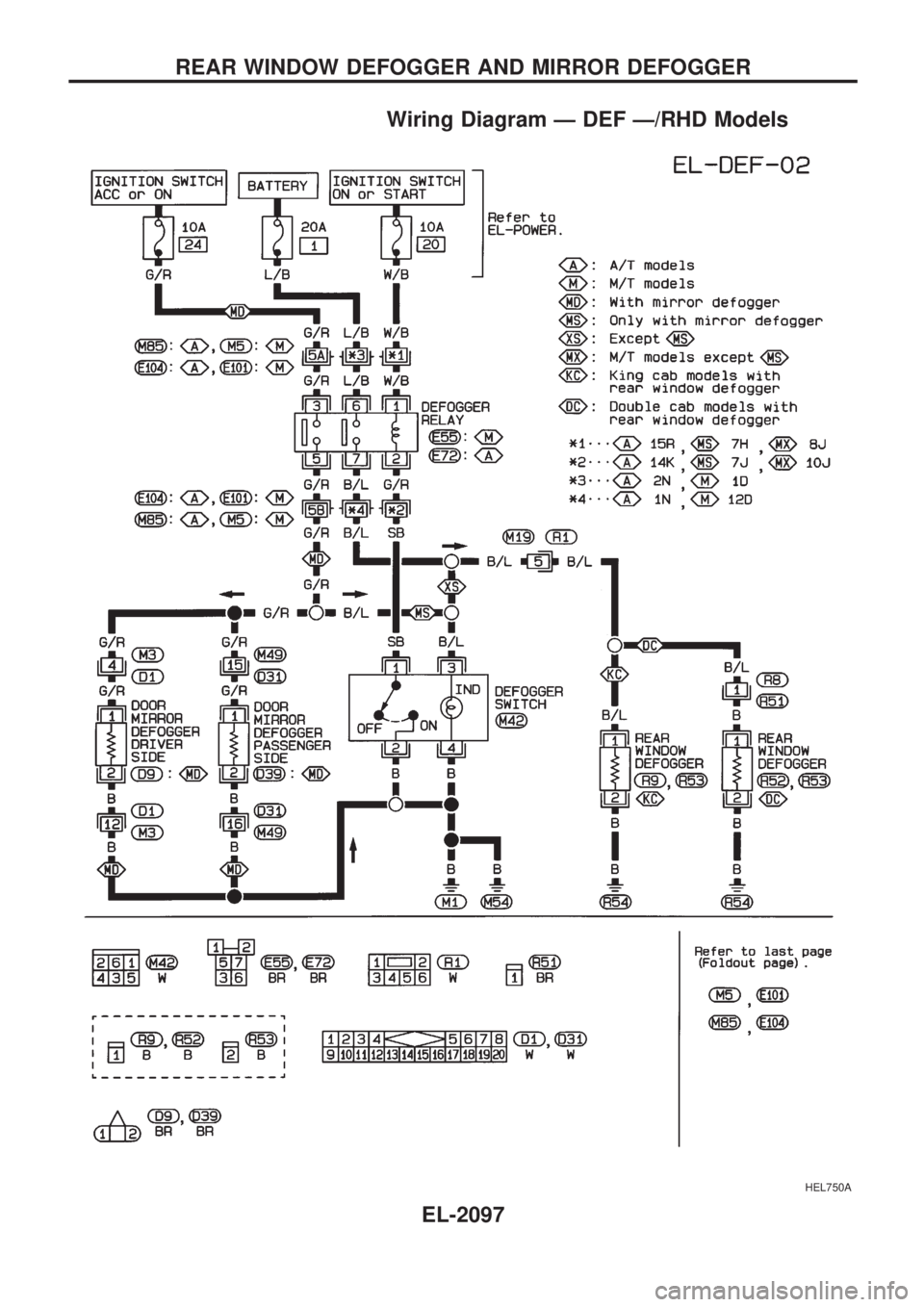

Wiring Diagram Ð DEF Ð/RHD Models
HEL750A
REAR WINDOW DEFOGGER AND MIRROR DEFOGGER
EL-2097

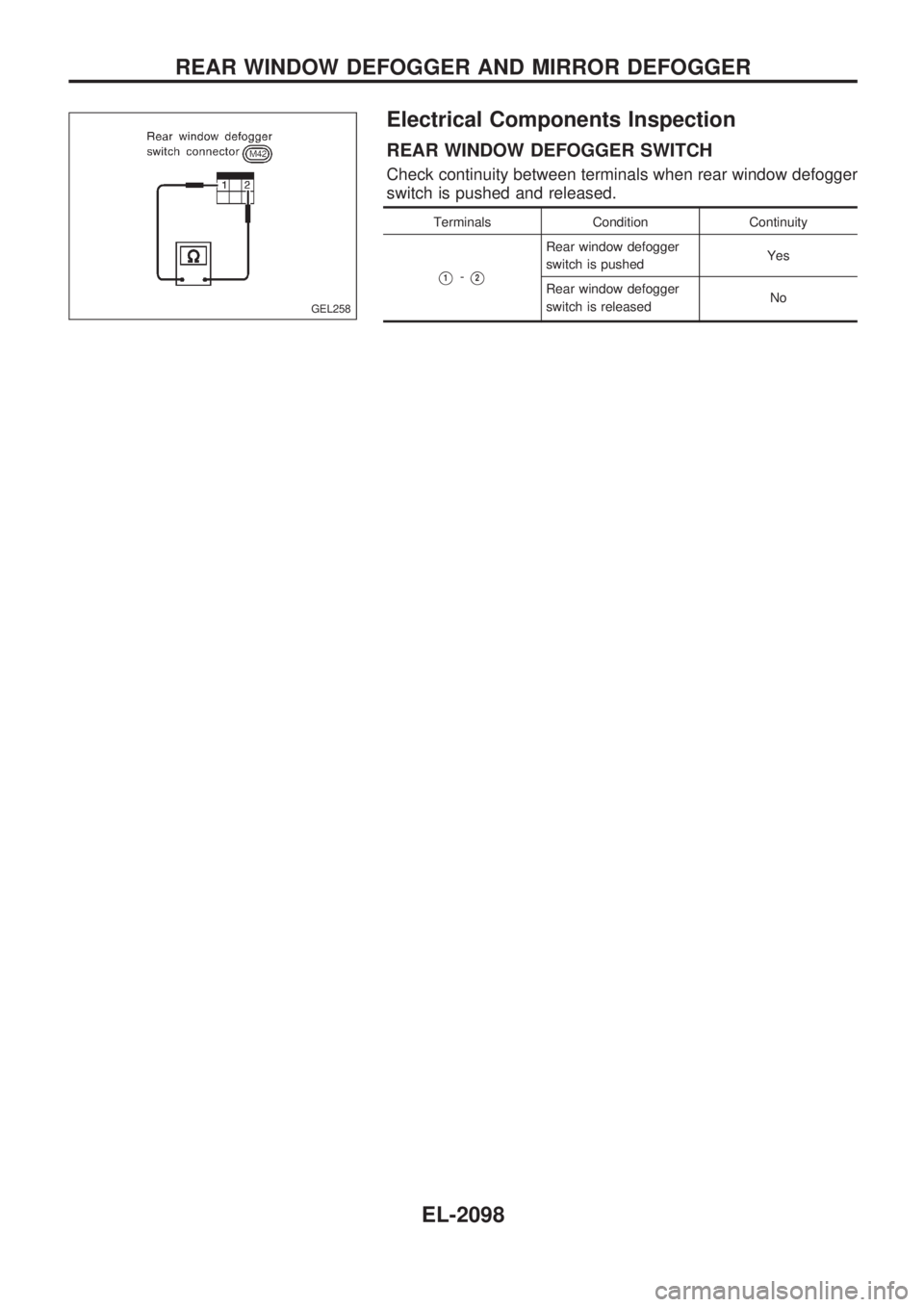

Electrical Components Inspection
REAR WINDOW DEFOGGER SWITCH
Check continuity between terminals when rear window defogger
switch is pushed and released.
Terminals Condition Continuity
V1-V2
Rear window defogger
switch is pushedYes
Rear window defogger
switch is releasedNo
GEL258
REAR WINDOW DEFOGGER AND MIRROR DEFOGGER
EL-2098

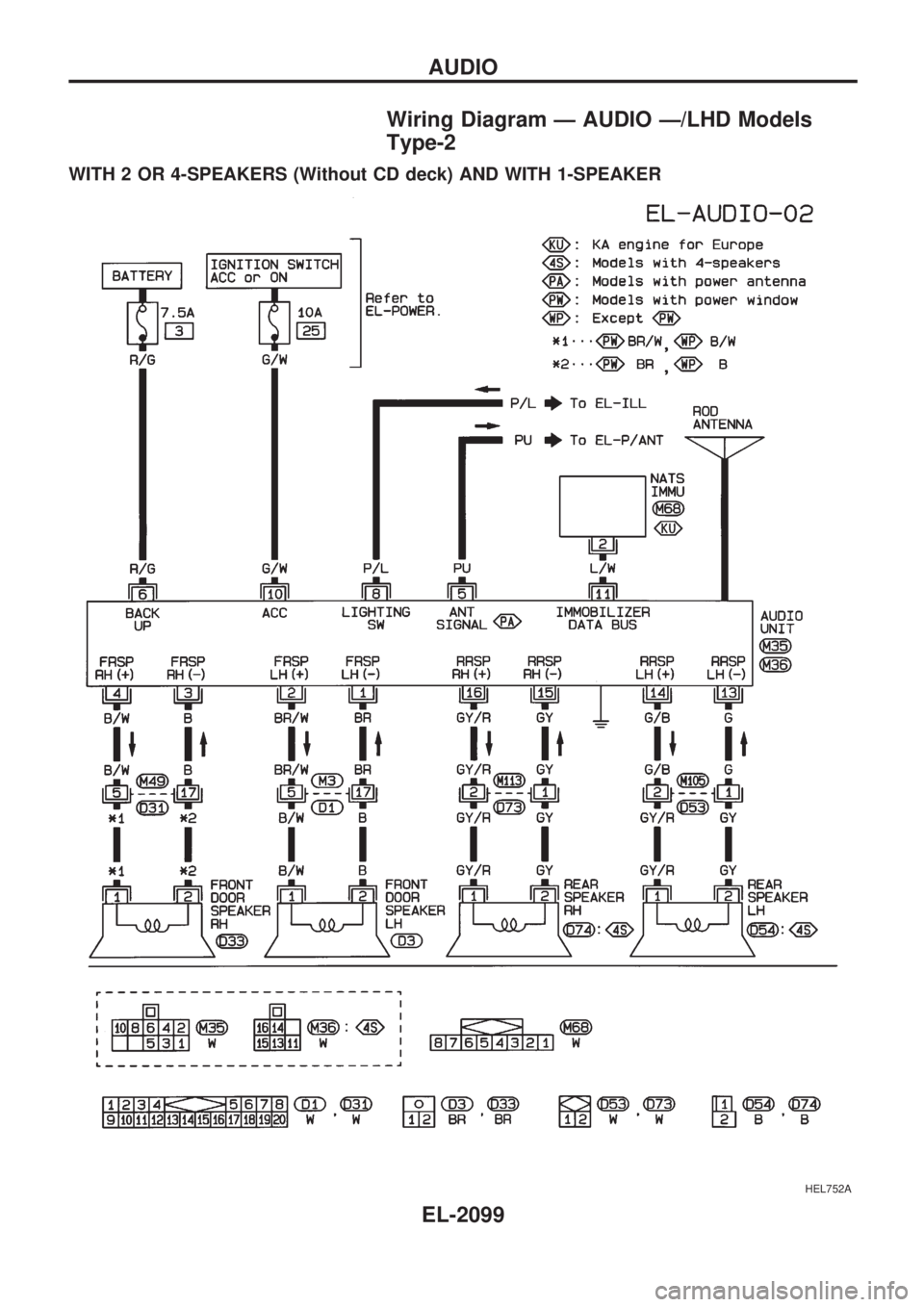

Wiring Diagram Ð AUDIO Ð/LHD Models
Type-2
WITH 2 OR 4-SPEAKERS (Without CD deck) AND WITH 1-SPEAKER
HEL752A
AUDIO
EL-2099

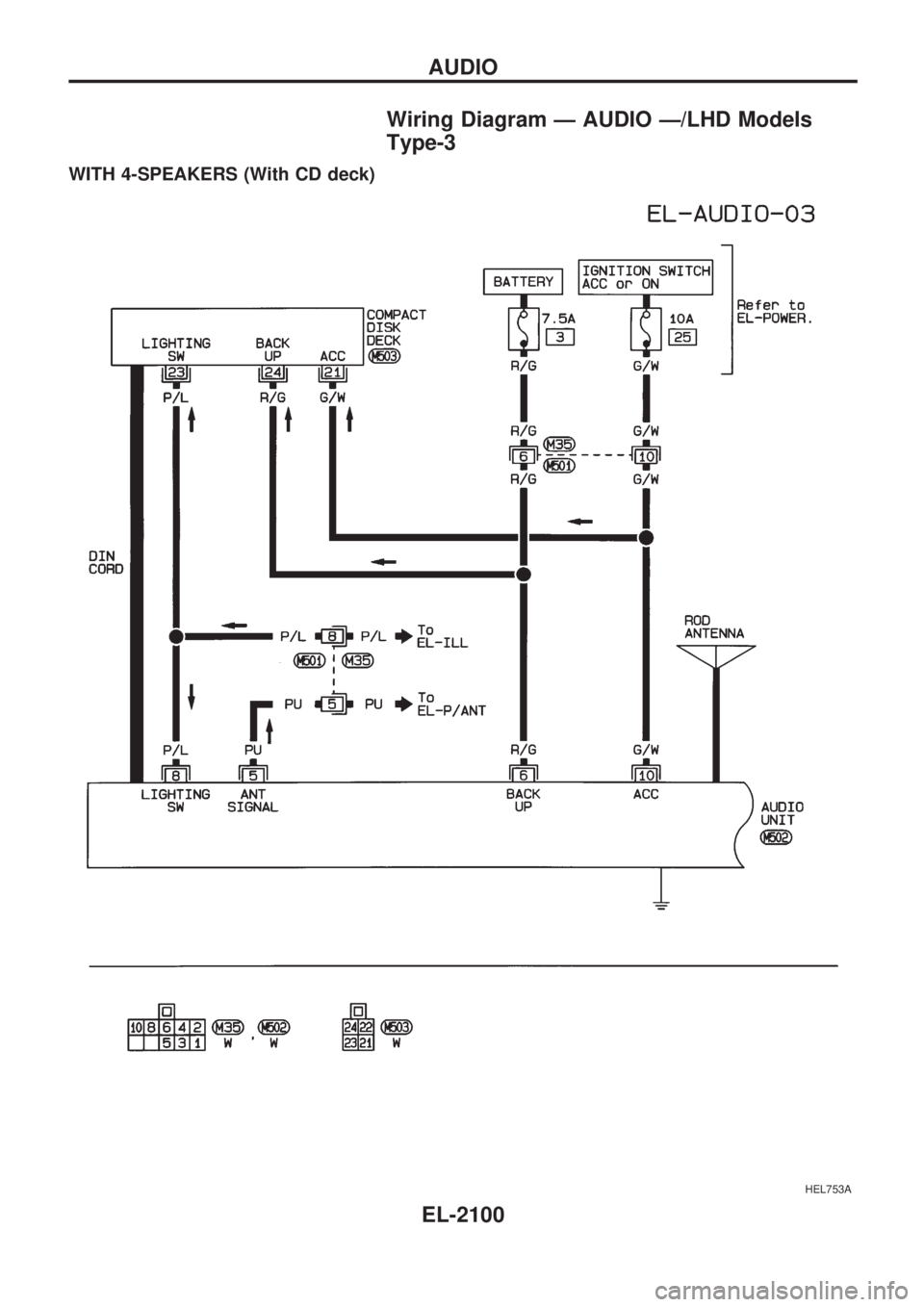

Wiring Diagram Ð AUDIO Ð/LHD Models
Type-3
WITH 4-SPEAKERS (With CD deck)
HEL753A
AUDIO
EL-2100

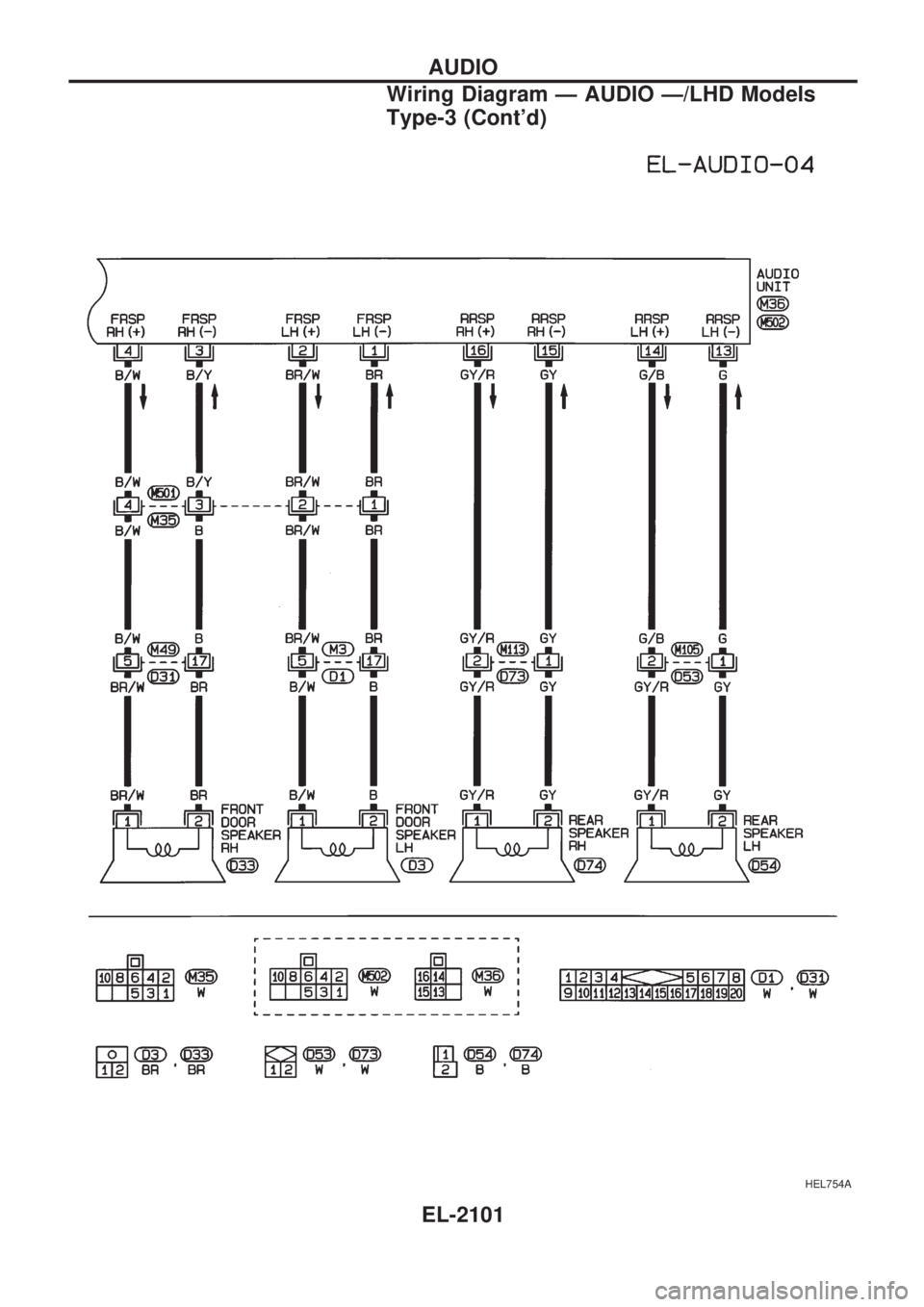

HEL754A
AUDIO
Wiring Diagram Ð AUDIO Ð/LHD Models
Type-3 (Cont'd)
EL-2101
