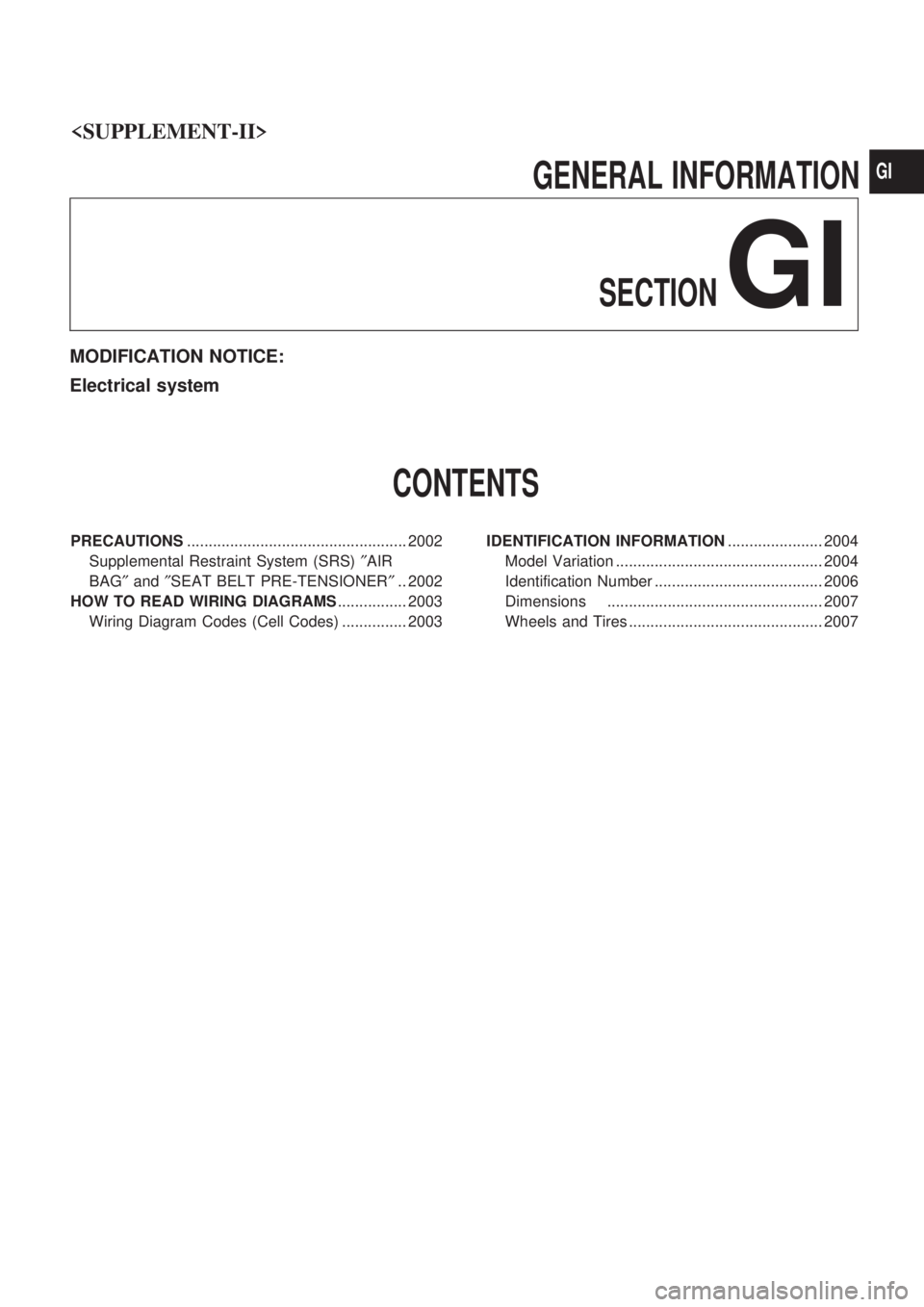

GENERALINFORMATIONSECTION
GI
MODIFICATION NOTICE:
Electrical system
CONTENTS
PRECAUTIONS ................................................... 2002
Supplemental Restraint System (SRS) ²AIR
BAG ²and ²SEAT BELT PRE-TENSIONER ².. 2002
HOW TO READ WIRING DIAGRAMS ................ 2003
Wiring Diagram Codes (Cell Codes) ............... 2003 IDENTIFICATION INFORMATION
...................... 2004
Model Variation ................................................ 2004
Identification Number ....................................... 2006
Dimensions .................................................. 2007
Wheels and Tires ............................................. 2007
GI

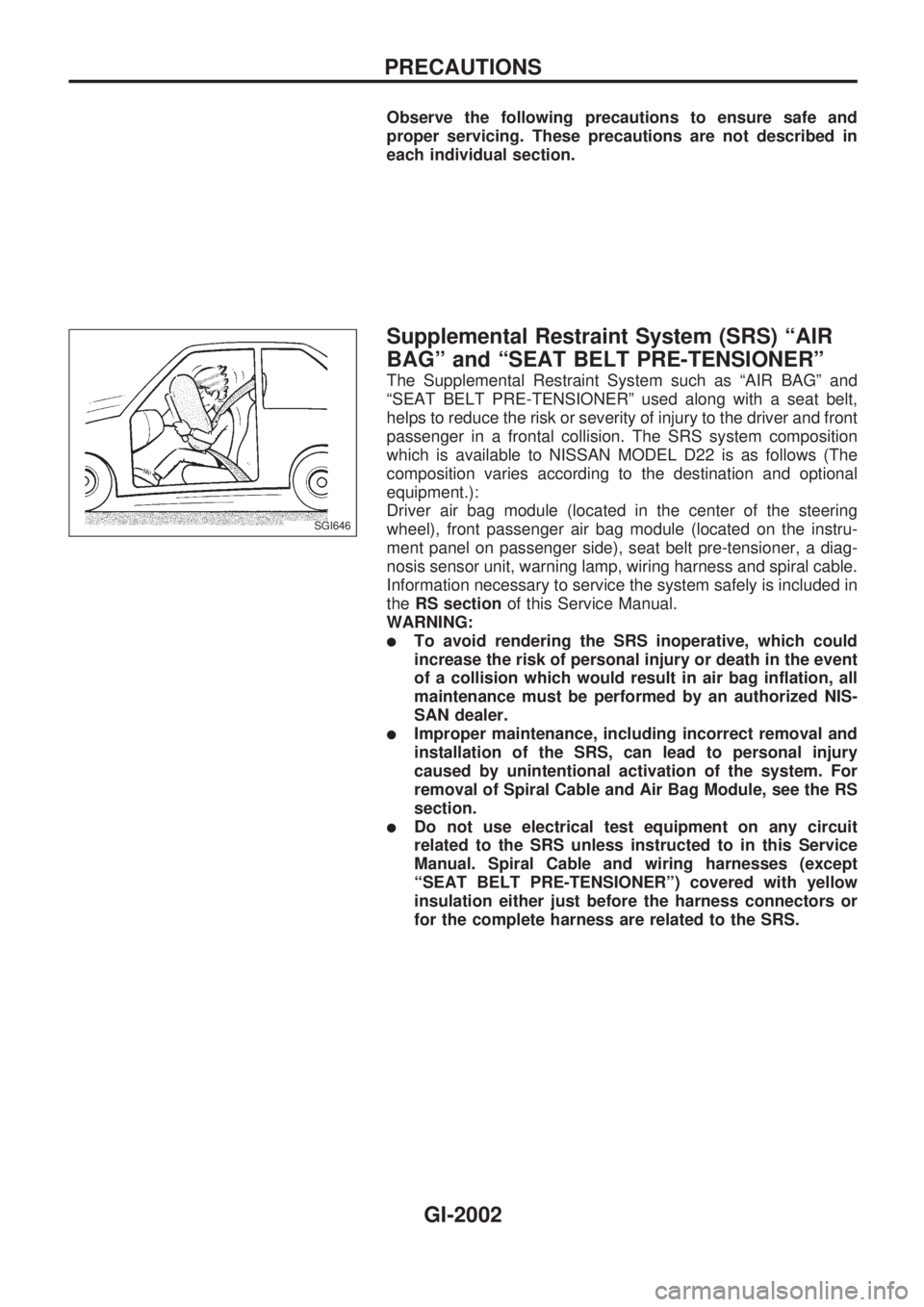

Observe the following precautions to ensure safe and
proper servicing. These precautions are not described in
each individual section.
Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
The Supplemental Restraint System such as ªAIR BAGº and
ªSEAT BELT PRE-TENSIONERº used along with a seat belt,
helps to reduce the risk or severity of injury to the driver and front
passenger in a frontal collision. The SRS system composition
which is available to NISSAN MODEL D22 is as follows (The
composition varies according to the destination and optional
equipment.):
Driver air bag module (located in the center of the steering
wheel), front passenger air bag module (located on the instru-
ment panel on passenger side), seat belt pre-tensioner, a diag-
nosis sensor unit, warning lamp, wiring harness and spiral cable.
Information necessary to service the system safely is included in
theRS sectionof this Service Manual.
WARNING:
lTo avoid rendering the SRS inoperative, which could
increase the risk of personal injury or death in the event
of a collision which would result in air bag inflation, all
maintenance must be performed by an authorized NIS-
SAN dealer.
lImproper maintenance, including incorrect removal and
installation of the SRS, can lead to personal injury
caused by unintentional activation of the system. For
removal of Spiral Cable and Air Bag Module, see the RS
section.
lDo not use electrical test equipment on any circuit
related to the SRS unless instructed to in this Service
Manual. Spiral Cable and wiring harnesses (except
ªSEAT BELT PRE-TENSIONERº) covered with yellow
insulation either just before the harness connectors or
for the complete harness are related to the SRS.
SGI646
PRECAUTIONS
GI-2002

Wiring Diagram Codes (Cell Codes)
Use the chart below to find out what each wiring diagram code
stands for.
Refer to the wiring diagram code in the alphabetical index to find
the location (page number) of each wiring diagram.
Code Section Wiring Diagram Name
AAC/V EC IACV-AAC Valve
ABS BR Anti-lock Brake System
A/C HA Air Conditioner
AUDIO EL Audio
BACK/L EL Back-up Lamp
BUZZER EL Warning Buzzer
CHARGE EL Charging System
CHOKE EC Automatic Choke
CMPS EC Camshaft Position Sensor
COOL/F LC Cooling Fan Control
DEF EL Rear Window Defogger
D/LOCK EL Power Door Lock
ECTS ECEngine Coolant Temperature
Sensor
PGC/V ECCanister Purge
Control Solenoid Valve
FCUT EC Fuel Cut Solenoid Valve
FICD EC IACV-FICD Solenoid Valve
FIPOT EC ISC-FI Pot
FPCM EC Fuel Pump Control Module
F/PUMP EC Fuel Pump
F/RTN EC Fuel Return Control Solenoid Valve
GLOW EC Quick-glow System
H/LAMP EL Headlamp
HEAT HA Heater
HO2S EC Heated Oxygen Sensor
HORN EL Horn, Cigarette Lighter, Clock
IATS EC Intake Air Temperature Sensor
IDLE EC IACV-Idle Up Control
IGN EC Ignition System
IGN/SG EC Ignition SignalCode Section Wiring Diagram Name
ILL EL Illumination
INJECT EC Injector
INT/L EL Interior and Spot Lamps
MAFS EC Mass Air Flow Sensor
MAIN ECMain Power Supply and Ground Cir-
cuit
METER ELSpeedometer, Tachometer, Temp.
and Fuel Gauges
MIL/DL ECMIL and Data Link Connector For
CONSULT
MIRROR EL Power Door Mirror
P/ANT EL Power Antenna
PLA EC Partial Load Advance Control
PNP/SW EC Park/Neutral Position Switch
POWER EL Power Supply Routing
PST/SW EC Power Steering Oil Pressure Switch
SRS RS Supplemental Restraint System
S/SIG EC Start Signal
START EL Starting System
STOP/L EL Stop Lamp
SWL/V ECSwirl Control Valve Control Solenoid
Valve
TAIL/L EL Parking, License and Tail Lamps
TPS EC Throttle Position Sensor
TURN ELTurn Signal and Hazard Warning
Lamps
VSS EC Vehicle Speed Sensor
WARN EL Warning Lamps
WINDOW EL Power Window
WIPER EL Front Wiper and Washer
HOW TO READ WIRING DIAGRAMS
GI-2003

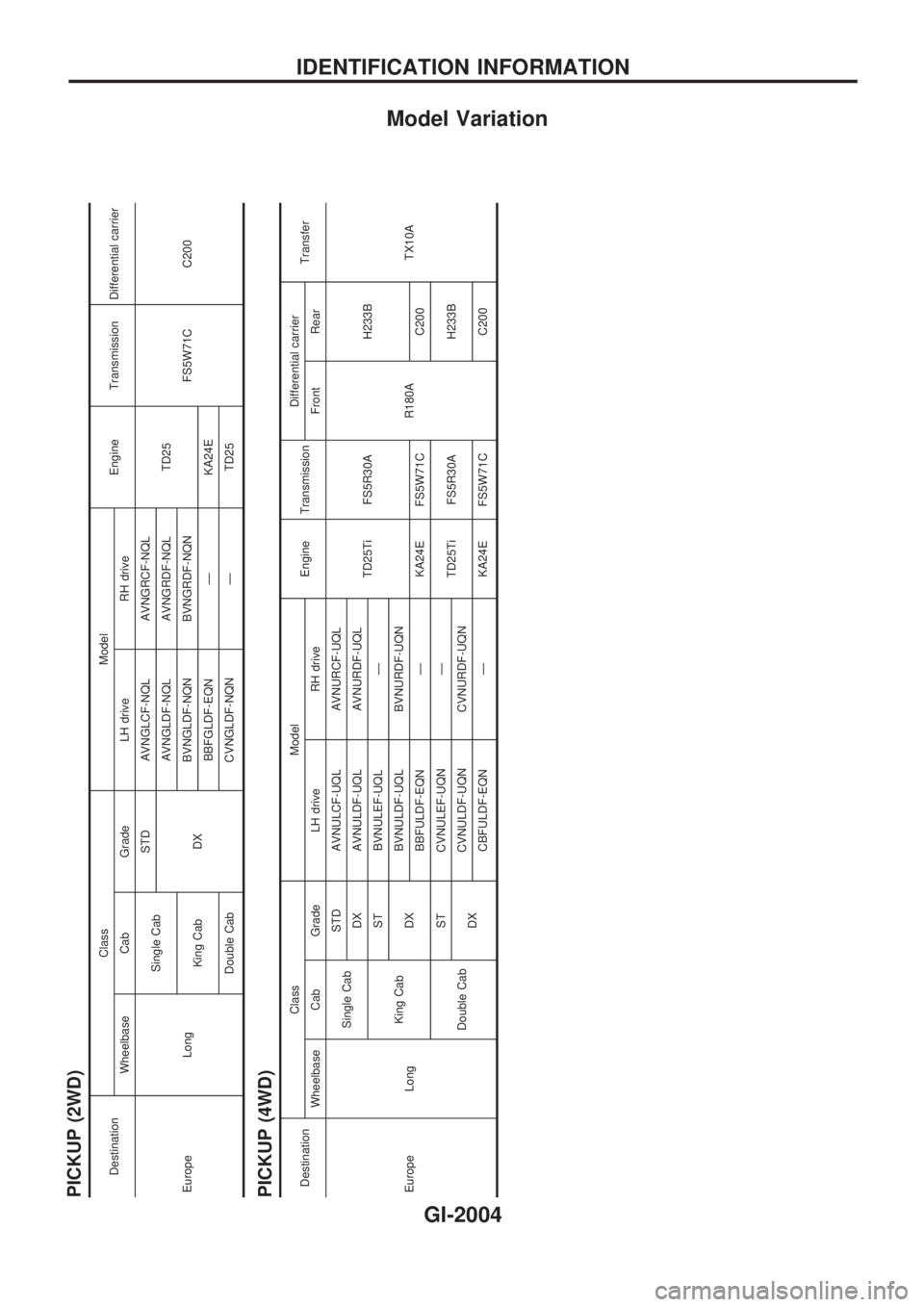

Model Variation
PICKUP (2WD)
DestinationClass Model
Engine Transmission Differential carrier
Wheelbase Cab Grade LH drive RH drive
Europe LongSingle CabSTD AVNGLCF-NQL AVNGRCF-NQL
TD25
FS5W71C C200
DXAVNGLDF-NQL AVNGRDF-NQL
King CabBVNGLDF-NQN BVNGRDF-NQN
BBFGLDF-EQN Ð KA24E
Double Cab CVNGLDF-NQN Ð TD25
PICKUP (4WD)DestinationClass Model
Engine TransmissionDifferential carrier
Transfer
Wheelbase Cab Grade LH drive RH drive Front Rear
Europe LongSingle CabSTD AVNULCF-UQL AVNURCF-UQL
TD25Ti FS5R30A
R180AH233B
TX10A DX AVNULDF-UQL AVNURDF-UQL
King CabST BVNULEF-UQL Ð
DXBVNULDF-UQL BVNURDF-UQN
BBFULDF-EQN Ð KA24E FS5W71C C200
Double CabST CVNULEF-UQN Ð
TD25Ti FS5R30A H233B
DXCVNULDF-UQN CVNURDF-UQN
CBFULDF-EQN Ð KA24E FS5W71C C200
IDENTIFICATION INFORMATION
GI-2004

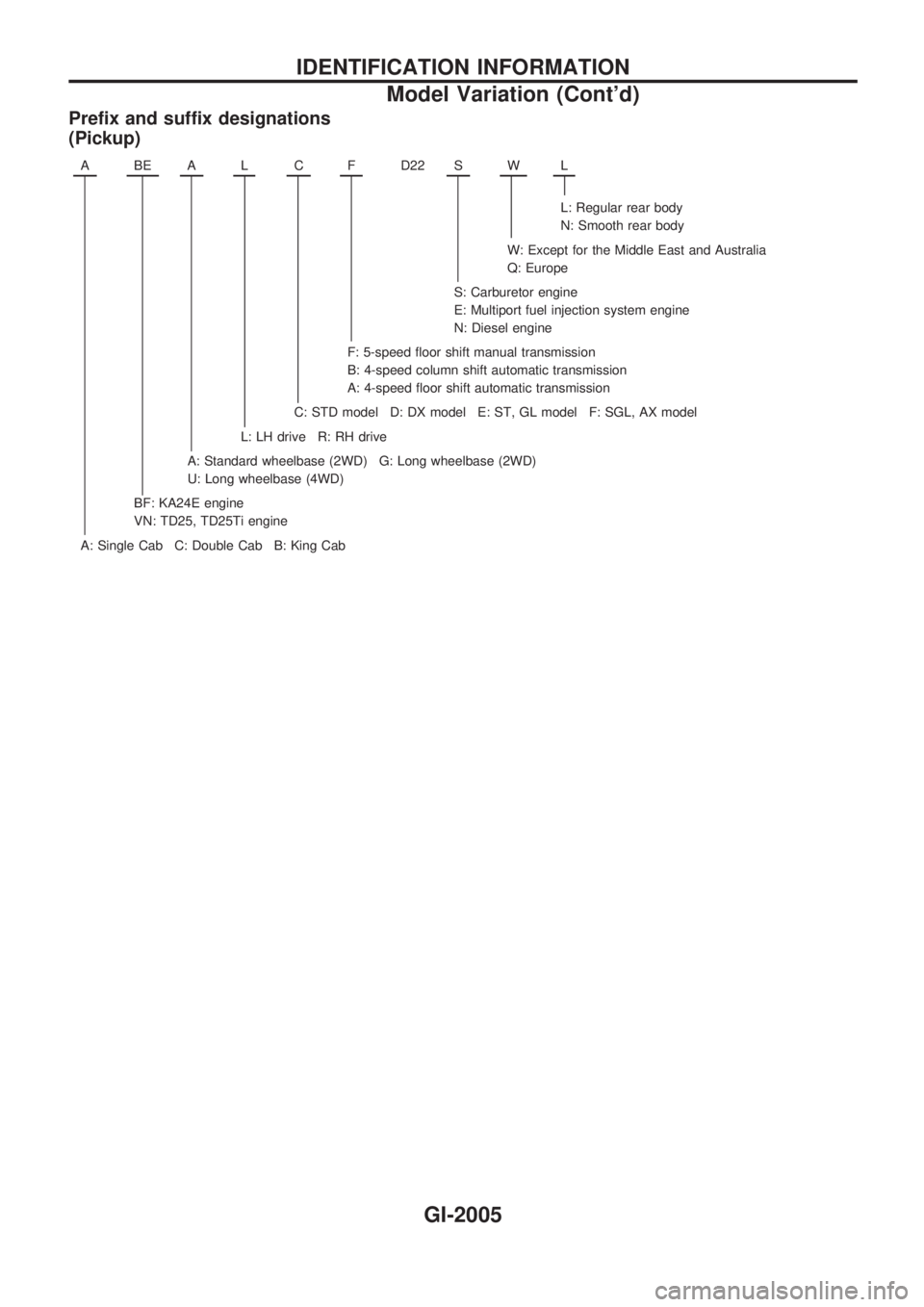

Prefix and suffix designations
(Pickup)
ABEALCFD22 SWL
L: Regular rear body
N: Smooth rear body
W: Except for the Middle East and Australia
Q: Europe
S: Carburetor engine
E: Multiport fuel injection system engine
N: Diesel engine
F: 5-speed floor shift manual transmission
B: 4-speed column shift automatic transmission
A: 4-speed floor shift automatic transmission
C: STD model D: DX model E: ST, GL model F: SGL, AX model
L: LH drive R: RH drive
A: Standard wheelbase (2WD) G: Long wheelbase (2WD)
U: Long wheelbase (4WD)
BF: KA24E engine
VN: TD25, TD25Ti engine
A: Single Cab C: Double Cab B: King Cab
IDENTIFICATION INFORMATION
Model Variation (Cont'd)
GI-2005

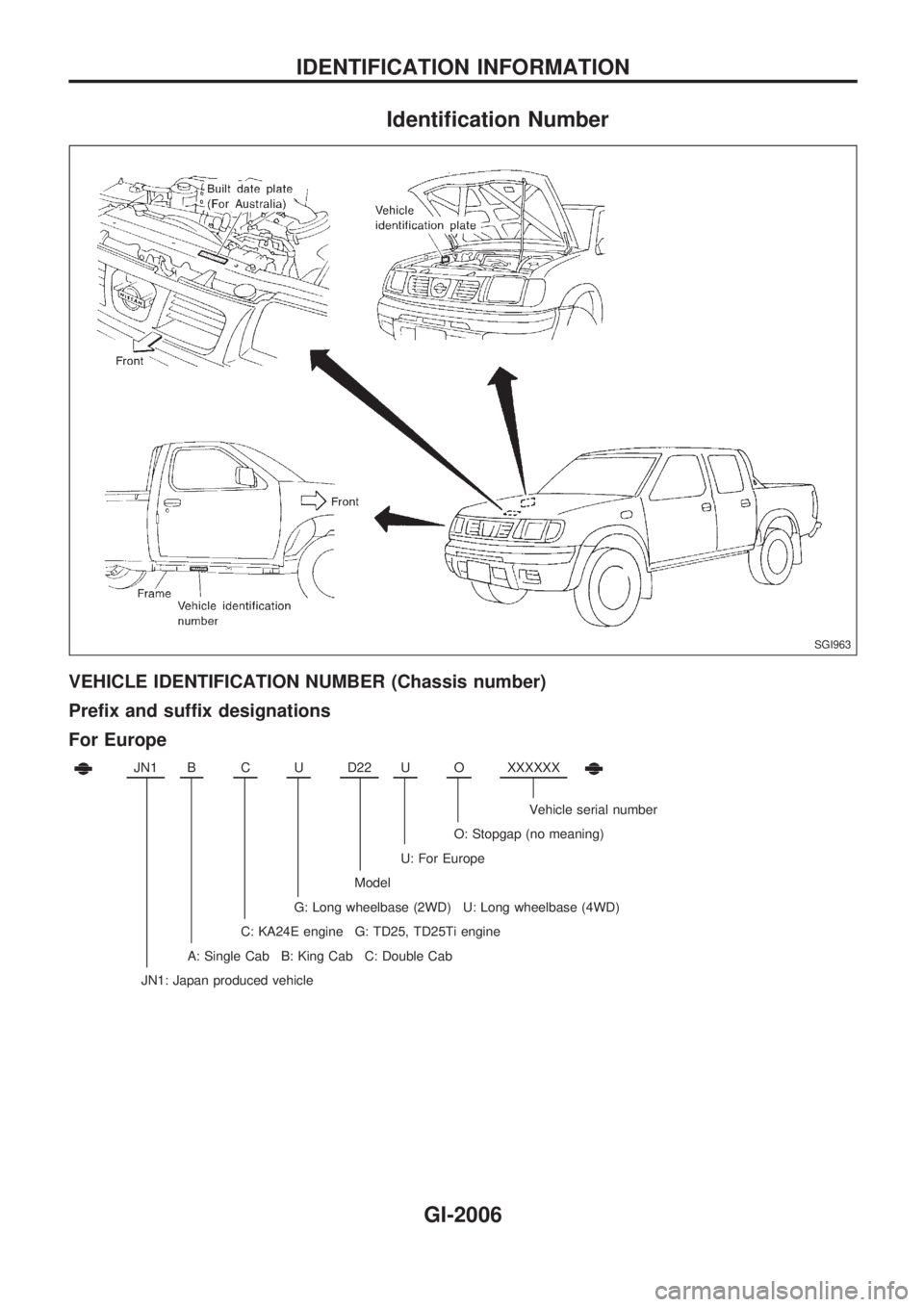

Identification Number
VEHICLE IDENTIFICATION NUMBER (Chassis number)
Prefix and suffix designations
For Europe
JN1BCUD22UOXXXXXX
Vehicle serial number
O: Stopgap (no meaning)
U: For Europe
Model
G: Long wheelbase (2WD) U: Long wheelbase (4WD)
C: KA24E engine G: TD25, TD25Ti engine
A: Single Cab B: King Cab C: Double Cab
JN1: Japan produced vehicle
SGI963
IDENTIFICATION INFORMATION
GI-2006

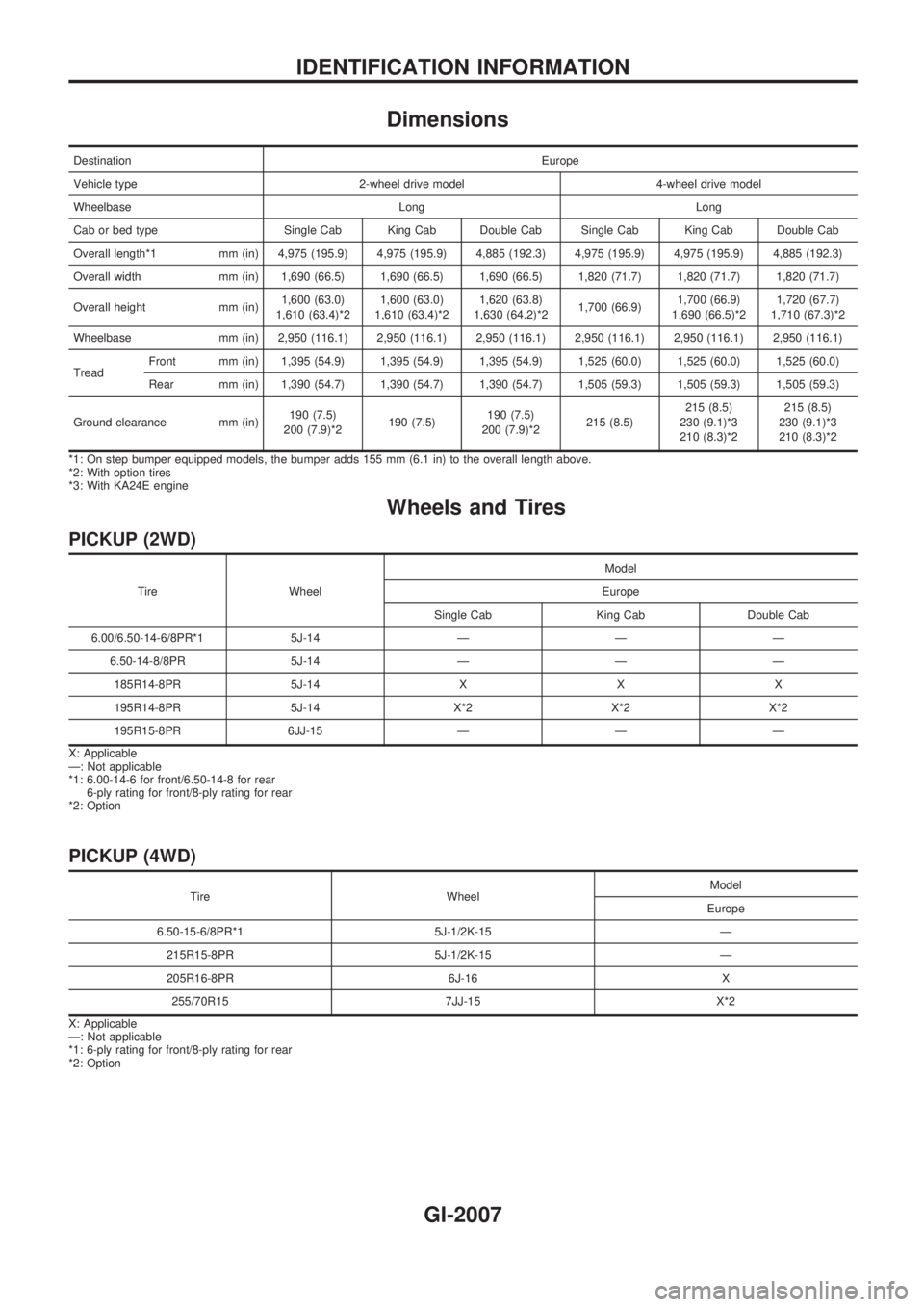

Dimensions
DestinationEurope
Vehicle type 2-wheel drive model 4-wheel drive model
Wheelbase Long Long
Cab or bed type Single Cab King Cab Double Cab Single Cab King Cab Double Cab
Overall length*1 mm (in) 4,975 (195.9) 4,975 (195.9) 4,885 (192.3) 4,975 (195.9) 4,975 (195.9) 4,885 (192.3)
Overall width mm (in) 1,690 (66.5) 1,690 (66.5) 1,690 (66.5) 1,820 (71.7) 1,820 (71.7) 1,820 (71.7)
Overall height mm (in)1,600 (63.0)
1,610 (63.4)*21,600 (63.0)
1,610 (63.4)*21,620 (63.8)
1,630 (64.2)*21,700 (66.9)1,700 (66.9)
1,690 (66.5)*21,720 (67.7)
1,710 (67.3)*2
Wheelbase mm (in) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1) 2,950 (116.1)
TreadFront mm (in) 1,395 (54.9) 1,395 (54.9) 1,395 (54.9) 1,525 (60.0) 1,525 (60.0) 1,525 (60.0)
Rear mm (in) 1,390 (54.7) 1,390 (54.7) 1,390 (54.7) 1,505 (59.3) 1,505 (59.3) 1,505 (59.3)
Ground clearance mm (in)190 (7.5)
200 (7.9)*2190 (7.5)190 (7.5)
200 (7.9)*2215 (8.5)215 (8.5)
230 (9.1)*3
210 (8.3)*2215 (8.5)
230 (9.1)*3
210 (8.3)*2
*1: On step bumper equipped models, the bumper adds 155 mm (6.1 in) to the overall length above.
*2: With option tires
*3: With KA24E engine
Wheels and Tires
PICKUP (2WD)
Tire WheelModel
Europe
Single Cab King Cab Double Cab
6.00/6.50-14-6/8PR*1 5J-14 Ð Ð Ð
6.50-14-8/8PR 5J-14 Ð Ð Ð
185R14-8PR 5J-14 X X X
195R14-8PR 5J-14 X*2 X*2 X*2
195R15-8PR 6JJ-15 Ð Ð Ð
X: Applicable
Ð: Not applicable
*1: 6.00-14-6 for front/6.50-14-8 for rear
6-ply rating for front/8-ply rating for rear
*2: Option
PICKUP (4WD)
Tire WheelModel
Europe
6.50-15-6/8PR*1 5J-1/2K-15 Ð
215R15-8PR 5J-1/2K-15 Ð
205R16-8PR 6J-16 X
255/70R15 7JJ-15 X*2
X: Applicable
Ð: Not applicable
*1: 6-ply rating for front/8-ply rating for rear
*2: Option
IDENTIFICATION INFORMATION
