SAE Viscosity Number
+For warm and cold areas: 75W-90 for trans-
fer and 80W-90 for differential are prefer-
able.
+For hot areas: 90 is suitable for ambient
temperatures below 40ÉC (104ÉF).
+For extremely hot areas:
140 for differential is preferable.
SLIA0015E
RECOMMENDED FLUIDS AND LUBRICANTS
MA-3009

Changing Air Cleaner Filter
VISCOUS PAPER TYPE
The viscous paper type filter does not need cleaning
between renewals.
Changing Positive Crankcase Ventilation
(PCV) Filter
Remove air cleaner cover and take out PCV filter located inside
air cleaner cover. Then install new PCV filter.
SMA243C
SMA167D
ENGINE MAINTENANCEKA24DE
MA-3010

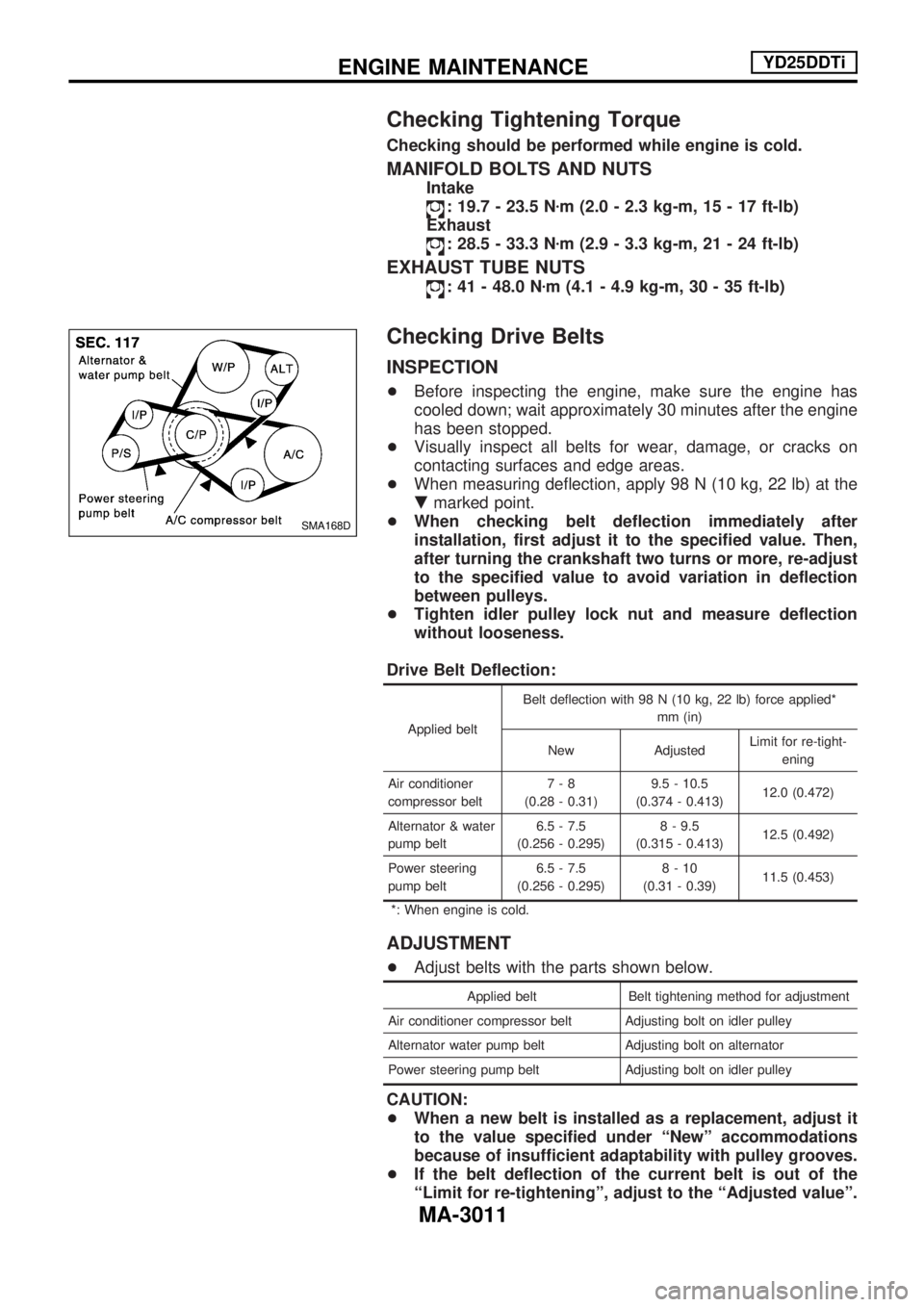

Checking Tightening Torque
Checking should be performed while engine is cold.
MANIFOLD BOLTS AND NUTS
Intake
: 19.7 - 23.5 Nzm (2.0 - 2.3 kg-m, 15 - 17 ft-lb)
Exhaust
: 28.5 - 33.3 Nzm (2.9 - 3.3 kg-m, 21 - 24 ft-lb)
EXHAUST TUBE NUTS
: 41 - 48.0 Nzm (4.1 - 4.9 kg-m, 30 - 35 ft-lb)
Checking Drive Belts
INSPECTION
+Before inspecting the engine, make sure the engine has
cooled down; wait approximately 30 minutes after the engine
has been stopped.
+Visually inspect all belts for wear, damage, or cracks on
contacting surfaces and edge areas.
+When measuring deflection, apply 98 N (10 kg, 22 lb) at the
.marked point.
+When checking belt deflection immediately after
installation, first adjust it to the specified value. Then,
after turning the crankshaft two turns or more, re-adjust
to the specified value to avoid variation in deflection
between pulleys.
+Tighten idler pulley lock nut and measure deflection
without looseness.
Drive Belt Deflection:
Applied beltBelt deflection with 98 N (10 kg, 22 lb) force applied*
mm (in)
New AdjustedLimit for re-tight-
ening
Air conditioner
compressor belt7-8
(0.28 - 0.31)9.5 - 10.5
(0.374 - 0.413)12.0 (0.472)
Alternator & water
pump belt6.5 - 7.5
(0.256 - 0.295)8 - 9.5
(0.315 - 0.413)12.5 (0.492)
Power steering
pump belt6.5 - 7.5
(0.256 - 0.295)8-10
(0.31 - 0.39)11.5 (0.453)
*: When engine is cold.
ADJUSTMENT
+Adjust belts with the parts shown below.
Applied belt Belt tightening method for adjustment
Air conditioner compressor belt Adjusting bolt on idler pulley
Alternator water pump belt Adjusting bolt on alternator
Power steering pump belt Adjusting bolt on idler pulley
CAUTION:
+When a new belt is installed as a replacement, adjust it
to the value specified under ªNewº accommodations
because of insufficient adaptability with pulley grooves.
+If the belt deflection of the current belt is out of the
ªLimit for re-tighteningº, adjust to the ªAdjusted valueº.
SMA168D
ENGINE MAINTENANCEYD25DDTi
MA-3011

+When checking belt deflection immediately after
installation, first adjust it to the specified value. Then,
after turning crankshaft two turns or more, re-adjust it to
the specified value to avoid variation in deflection
between pulleys.
+Make sure the belts are fully fitted into the pulley
grooves during installation.
+Handle with care to avoid smearing the belts with oil or
cooling water etc.
+Do not twist or bend the belts with strong force.
Air conditioner compressor belt and power steering
pump belt
1. Loosen idler pulley lock nut (A).
2. Turn adjusting bolt (B) to adjust.
+Refer to MA-3011, ªInspectionº for adjustment values.
3. Tighten lock nut (A).
Nut A:
: 30.4 - 39.2 Nzm (3.1 - 3.9 kg-m, 23 - 28 ft-lb)
Alternator & water pump belt
1. Loosen adjuster lock nut (C).
2. Loosen alternator fixing nut (D) (Rear).
3. Turn adjusting bolt (E) to adjust.
+Refer to MA-3011, ªInspectionº for adjustment values.
4. Tighten nut (C) and nut (D) in this order.
Nut C:
: 19.6 - 23.4 Nzm (2.0 - 2.3 kg-m, 15 - 17 ft-lb)
Bolt D:
: 45.1 - 59.7 Nzm (4.6 - 6.0 kg-m, 34 - 44 ft-lb)
Changing Engine Oil
WARNING:
+Be careful not to burn yourself, as the engine oil is hot.
+Prolonged and repeated contact with used engine oil
may cause skin cancer; try to avoid direct skin contact
with used oil. If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as possible.
1. Put vehicle horizontally.
2. Warm up engine, and check for oil leakage from engine com-
ponents.
3. Stop engine and wait more than 10 minutes.
4. Remove drain plug and oil filler cap.
5. Drain oil and refill with new engine oil.
Oil Specification and Viscosity:
+API CD, CE, CF or CF-4 (Except for Europe)
+API CF-4 or ACEA 98-B1 (For Europe)
Refer to MA-3008, ªRECOMMENDED FLUIDS AND LUBRI
CANTSº.
SMA169D
SMA157D
ENGINE MAINTENANCEYD25DDTi
Checking Drive Belts (Cont'd)
MA-3012

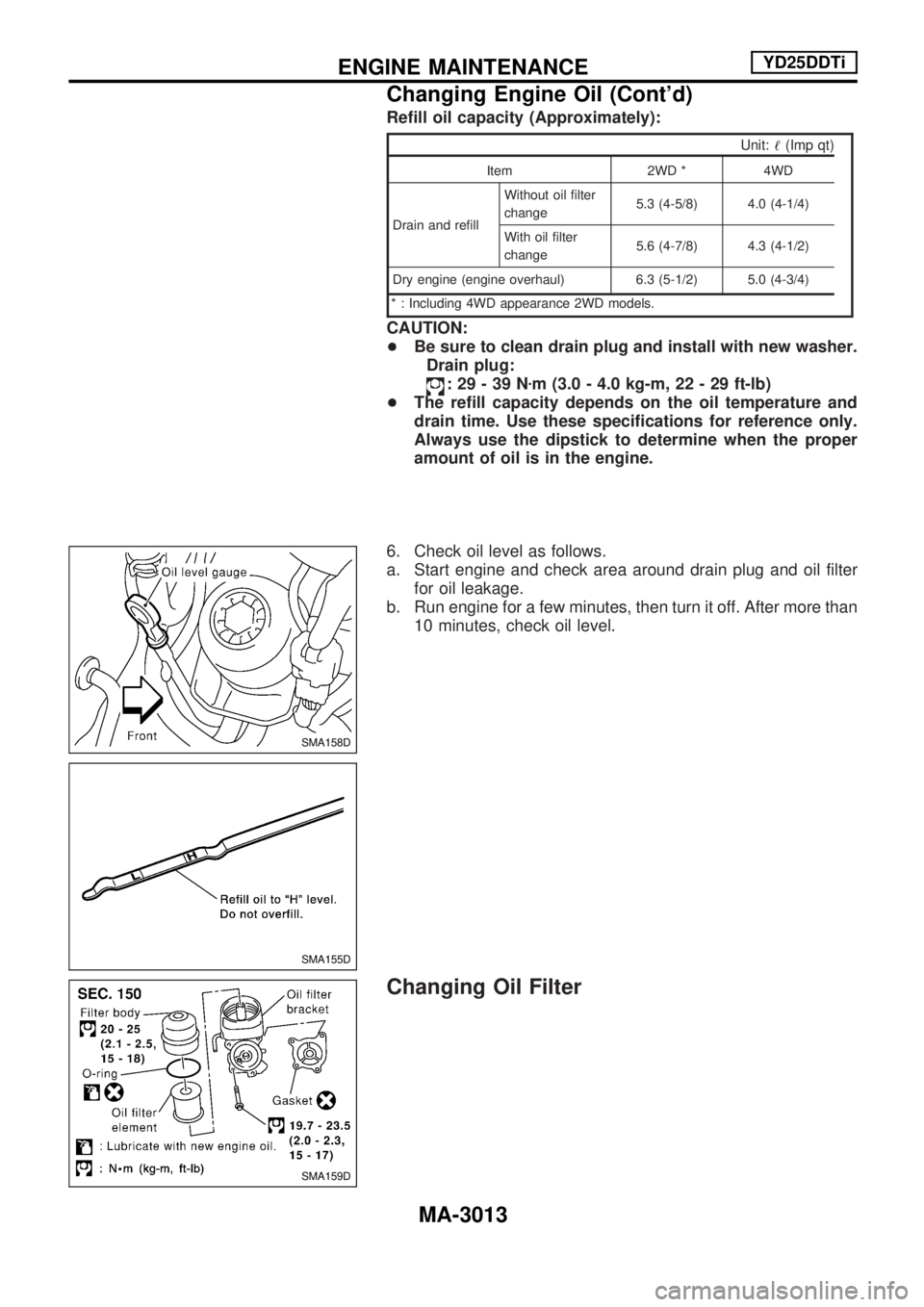

Refill oil capacity (Approximately):
Unit:!(Imp qt)
Item 2WD * 4WD
Drain and refillWithout oil filter
change5.3 (4-5/8) 4.0 (4-1/4)
With oil filter
change5.6 (4-7/8) 4.3 (4-1/2)
Dry engine (engine overhaul) 6.3 (5-1/2) 5.0 (4-3/4)
* : Including 4WD appearance 2WD models.
CAUTION:
+Be sure to clean drain plug and install with new washer.
Drain plug:
:29-39Nzm (3.0 - 4.0 kg-m, 22 - 29 ft-lb)
+The refill capacity depends on the oil temperature and
drain time. Use these specifications for reference only.
Always use the dipstick to determine when the proper
amount of oil is in the engine.
6. Check oil level as follows.
a. Start engine and check area around drain plug and oil filter
for oil leakage.
b. Run engine for a few minutes, then turn it off. After more than
10 minutes, check oil level.
Changing Oil Filter
SMA158D
SMA155D
SMA159D
ENGINE MAINTENANCEYD25DDTi
Changing Engine Oil (Cont'd)
MA-3013

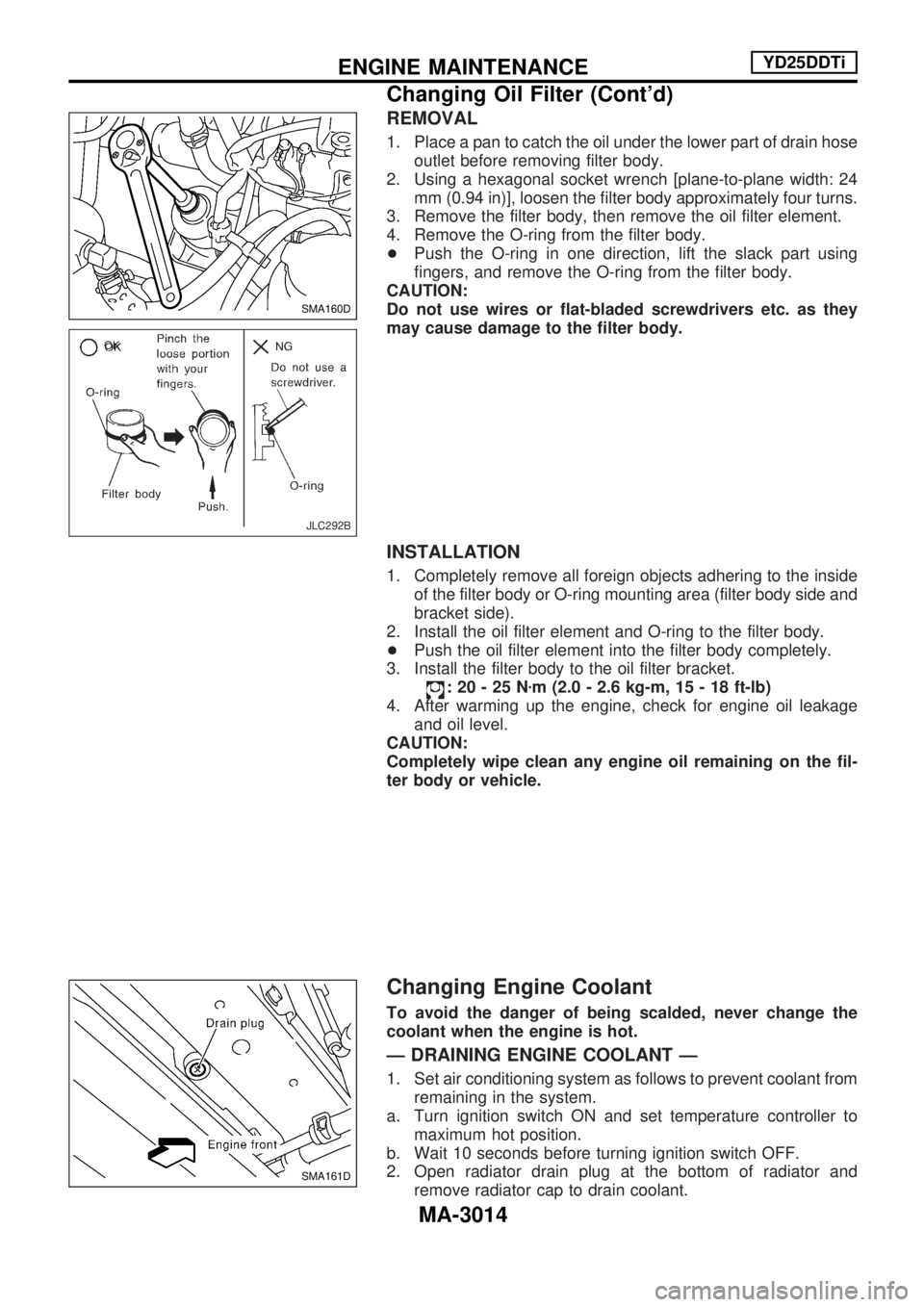

REMOVAL
1. Place a pan to catch the oil under the lower part of drain hose
outlet before removing filter body.
2. Using a hexagonal socket wrench [plane-to-plane width: 24
mm (0.94 in)], loosen the filter body approximately four turns.
3. Remove the filter body, then remove the oil filter element.
4. Remove the O-ring from the filter body.
+Push the O-ring in one direction, lift the slack part using
fingers, and remove the O-ring from the filter body.
CAUTION:
Do not use wires or flat-bladed screwdrivers etc. as they
may cause damage to the filter body.
INSTALLATION
1. Completely remove all foreign objects adhering to the inside
of the filter body or O-ring mounting area (filter body side and
bracket side).
2. Install the oil filter element and O-ring to the filter body.
+Push the oil filter element into the filter body completely.
3. Install the filter body to the oil filter bracket.
:20-25Nzm (2.0 - 2.6 kg-m, 15 - 18 ft-lb)
4. After warming up the engine, check for engine oil leakage
and oil level.
CAUTION:
Completely wipe clean any engine oil remaining on the fil-
ter body or vehicle.
Changing Engine Coolant
To avoid the danger of being scalded, never change the
coolant when the engine is hot.
Ð DRAINING ENGINE COOLANT Ð
1. Set air conditioning system as follows to prevent coolant from
remaining in the system.
a. Turn ignition switch ON and set temperature controller to
maximum hot position.
b. Wait 10 seconds before turning ignition switch OFF.
2. Open radiator drain plug at the bottom of radiator and
remove radiator cap to drain coolant.
SMA160D
JLC292B OK
SMA161D
ENGINE MAINTENANCEYD25DDTi
Changing Oil Filter (Cont'd)
MA-3014

3. Remove reservoir tank, drain coolant, then clean reservoir
tank.
+Be careful not to allow coolant to contact drive belts.
4. Remove drain plug of cylinder block.
5. Check drained coolant for contaminants such as rust, corro-
sion or discoloration. If contaminated flush engine cooling
system, refer to MA-3016, ªFLUSHING COOLING SYS-
TEMº.

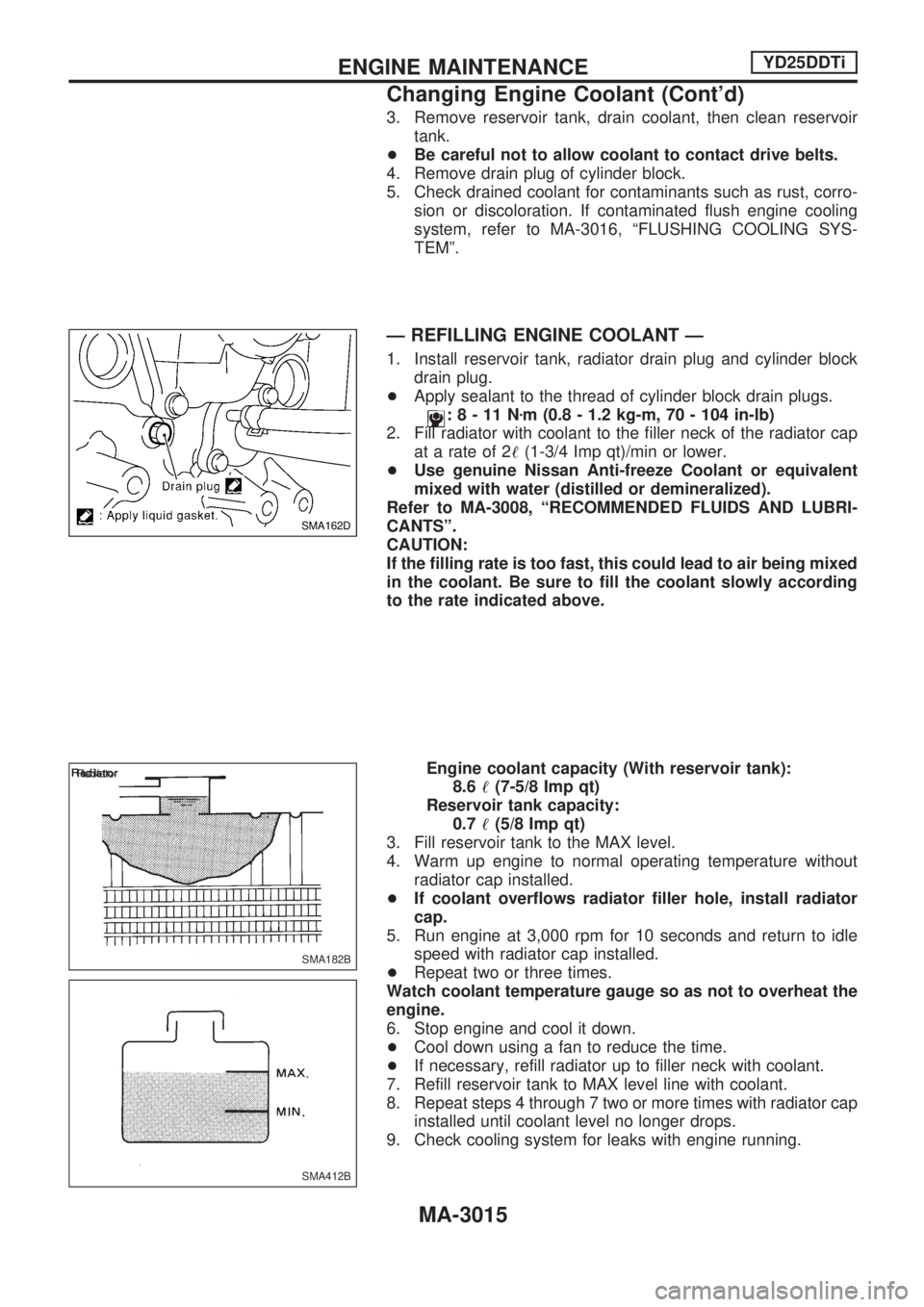

Ð REFILLING ENGINE COOLANT Ð
1. Install reservoir tank, radiator drain plug and cylinder block
drain plug.
+Apply sealant to the thread of cylinder block drain plugs.
:8-11Nzm (0.8 - 1.2 kg-m, 70 - 104 in-lb)
2. Fill radiator with coolant to the filler neck of the radiator cap
at a rate of 2!(1-3/4 Imp qt)/min or lower.
+Use genuine Nissan Anti-freeze Coolant or equivalent
mixed with water (distilled or demineralized).
Refer to MA-3008, ªRECOMMENDED FLUIDS AND LUBRI-
CANTSº.
CAUTION:
If the filling rate is too fast, this could lead to air being mixed
in the coolant. Be sure to fill the coolant slowly according
to the rate indicated above.
Engine coolant capacity (With reservoir tank):
8.6!(7-5/8 Imp qt)
Reservoir tank capacity:
0.7!(5/8 Imp qt)
3. Fill reservoir tank to the MAX level.
4. Warm up engine to normal operating temperature without
radiator cap installed.
+If coolant overflows radiator filler hole, install radiator
cap.
5. Run engine at 3,000 rpm for 10 seconds and return to idle
speed with radiator cap installed.
+Repeat two or three times.
Watch coolant temperature gauge so as not to overheat the
engine.
6. Stop engine and cool it down.
+Cool down using a fan to reduce the time.
+If necessary, refill radiator up to filler neck with coolant.
7. Refill reservoir tank to MAX level line with coolant.
8. Repeat steps 4 through 7 two or more times with radiator cap
installed until coolant level no longer drops.
9. Check cooling system for leaks with engine running.
SMA162D
SMA182B Radiator
SMA412B
ENGINE MAINTENANCEYD25DDTi
Changing Engine Coolant (Cont'd)
MA-3015

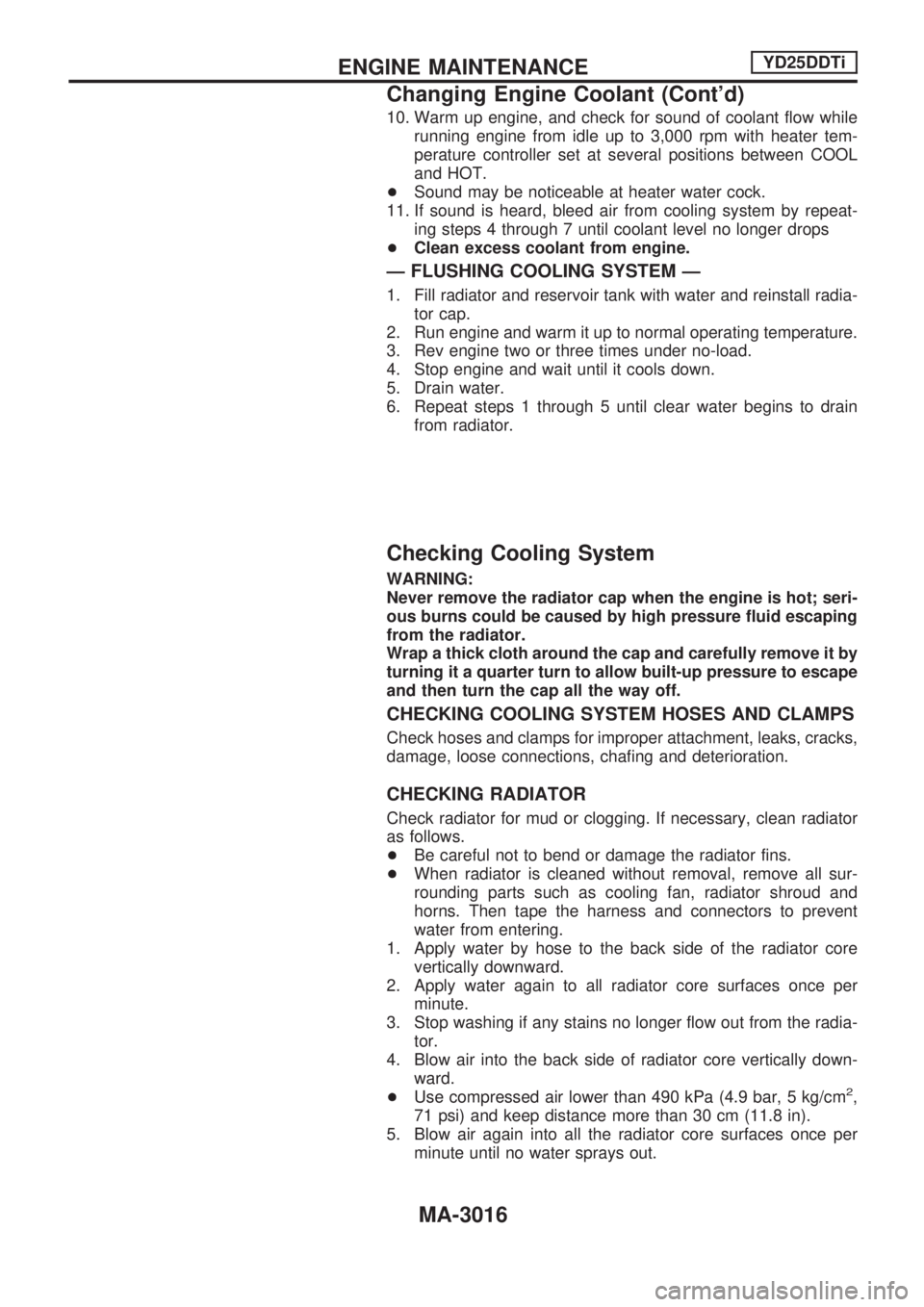

10. Warm up engine, and check for sound of coolant flow while
running engine from idle up to 3,000 rpm with heater tem-
perature controller set at several positions between COOL
and HOT.
+Sound may be noticeable at heater water cock.
11. If sound is heard, bleed air from cooling system by repeat-
ing steps 4 through 7 until coolant level no longer drops
+Clean excess coolant from engine.
Ð FLUSHING COOLING SYSTEM Ð
1. Fill radiator and reservoir tank with water and reinstall radia-
tor cap.
2. Run engine and warm it up to normal operating temperature.
3. Rev engine two or three times under no-load.
4. Stop engine and wait until it cools down.
5. Drain water.
6. Repeat steps 1 through 5 until clear water begins to drain
from radiator.
Checking Cooling System
WARNING:
Never remove the radiator cap when the engine is hot; seri-
ous burns could be caused by high pressure fluid escaping
from the radiator.
Wrap a thick cloth around the cap and carefully remove it by
turning it a quarter turn to allow built-up pressure to escape
and then turn the cap all the way off.
CHECKING COOLING SYSTEM HOSES AND CLAMPS
Check hoses and clamps for improper attachment, leaks, cracks,
damage, loose connections, chafing and deterioration.
CHECKING RADIATOR
Check radiator for mud or clogging. If necessary, clean radiator
as follows.
+Be careful not to bend or damage the radiator fins.
+When radiator is cleaned without removal, remove all sur-
rounding parts such as cooling fan, radiator shroud and
horns. Then tape the harness and connectors to prevent
water from entering.
1. Apply water by hose to the back side of the radiator core
vertically downward.
2. Apply water again to all radiator core surfaces once per
minute.
3. Stop washing if any stains no longer flow out from the radia-
tor.
4. Blow air into the back side of radiator core vertically down-
ward.
+Use compressed air lower than 490 kPa (4.9 bar, 5 kg/cm
2,
71 psi) and keep distance more than 30 cm (11.8 in).
5. Blow air again into all the radiator core surfaces once per
minute until no water sprays out.
ENGINE MAINTENANCEYD25DDTi
Changing Engine Coolant (Cont'd)
MA-3016

CHECKING RADIATOR CAP
To check radiator cap, apply pressure to cap with a tester.
Radiator cap relief pressure:
Standard
78-98kPa
(0.78 - 0.98 bar, 0.8 - 1.0 kg/cm
2, 11 - 14 psi)
Limit
59 kPa (0.59 bar, 0.6 kg/cm
2, 9 psi)
Pull the negative pressure valve to open it.
Check that it closes completely when released.
+Check the radiator cap negative pressure valve for contami-
nation or damage to the valve seat.
+Move the negative pressure valve to check for unusualness
to the opening/shutting operation.
CAUTION:
+Be sure to perform the inspections after cooling down
the engine.
+Before connecting the radiator cap to the tester, apply
water or LLC to the cap sealing.
+Replace the radiator cap if unusualness is found with the
negative pressure valve, or if the valve opening pressure is
out of the standard range.
CHECKING COOLING SYSTEM FOR LEAKS
To check for leakage, apply pressure to the cooling system with
a tester.
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm
2, 23 psi)
CAUTION:
+Higher than the specified pressure may cause radiator
damage.
+Be sure to perform the inspections after cooling down
the engine.
+Use a hose adapter between the cap tester and filler
neck to prevent the radiator filler neck from deforming.
+If any abnormalities are found, repair or replace the mal-
functioning parts.
SLC755AC
SMA967B
SLC756AA
ENGINE MAINTENANCEYD25DDTi
Checking Cooling System (Cont'd)
MA-3017

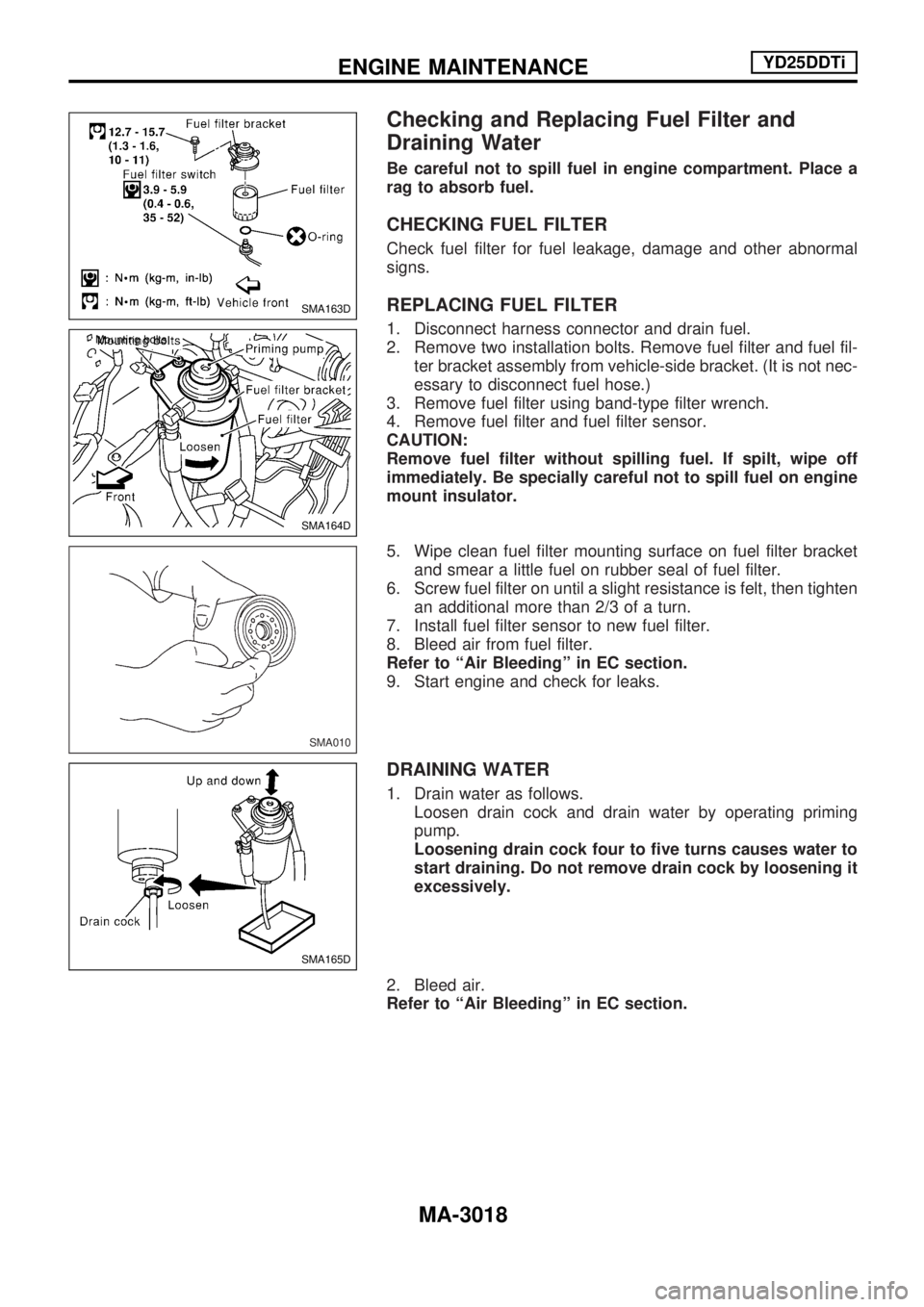

Checking and Replacing Fuel Filter and
Draining Water
Be careful not to spill fuel in engine compartment. Place a
rag to absorb fuel.
CHECKING FUEL FILTER
Check fuel filter for fuel leakage, damage and other abnormal
signs.
REPLACING FUEL FILTER
1. Disconnect harness connector and drain fuel.
2. Remove two installation bolts. Remove fuel filter and fuel fil-
ter bracket assembly from vehicle-side bracket. (It is not nec-
essary to disconnect fuel hose.)
3. Remove fuel filter using band-type filter wrench.
4. Remove fuel filter and fuel filter sensor.
CAUTION:
Remove fuel filter without spilling fuel. If spilt, wipe off
immediately. Be specially careful not to spill fuel on engine
mount insulator.
5. Wipe clean fuel filter mounting surface on fuel filter bracket
and smear a little fuel on rubber seal of fuel filter.
6. Screw fuel filter on until a slight resistance is felt, then tighten
an additional more than 2/3 of a turn.
7. Install fuel filter sensor to new fuel filter.
8. Bleed air from fuel filter.
Refer to ªAir Bleedingº in EC section.
9. Start engine and check for leaks.
DRAINING WATER
1. Drain water as follows.
Loosen drain cock and drain water by operating priming
pump.
Loosening drain cock four to five turns causes water to
start draining. Do not remove drain cock by loosening it
excessively.
2. Bleed air.
Refer to ªAir Bleedingº in EC section.
SMA163D
SMA164D Mounting bolts
SMA010
SMA165D
ENGINE MAINTENANCEYD25DDTi
MA-3018
