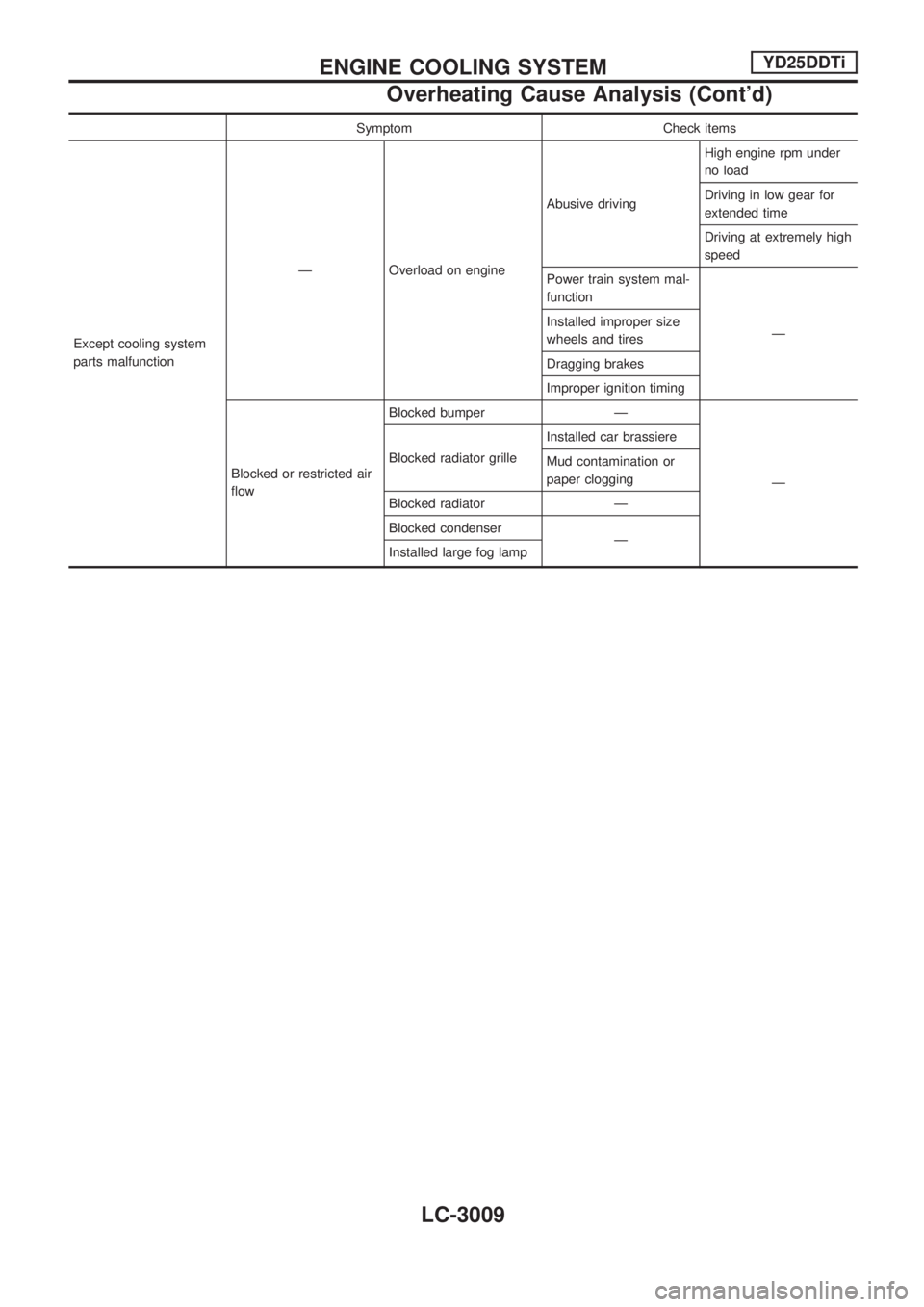

Symptom Check items
Except cooling system
parts malfunctionÐ Overload on engineAbusive drivingHigh engine rpm under
no load
Driving in low gear for
extended time
Driving at extremely high
speed
Power train system mal-
function
Ð Installed improper size
wheels and tires
Dragging brakes
Improper ignition timing
Blocked or restricted air
flowBlocked bumper Ð
Ð Blocked radiator grilleInstalled car brassiere
Mud contamination or
paper clogging
Blocked radiator Ð
Blocked condenser
Ð
Installed large fog lamp
ENGINE COOLING SYSTEMYD25DDTi
Overheating Cause Analysis (Cont'd)
LC-3009

Cooling Circuit
SLC478B
ENGINE COOLING SYSTEMYD25DDTi
LC-3010

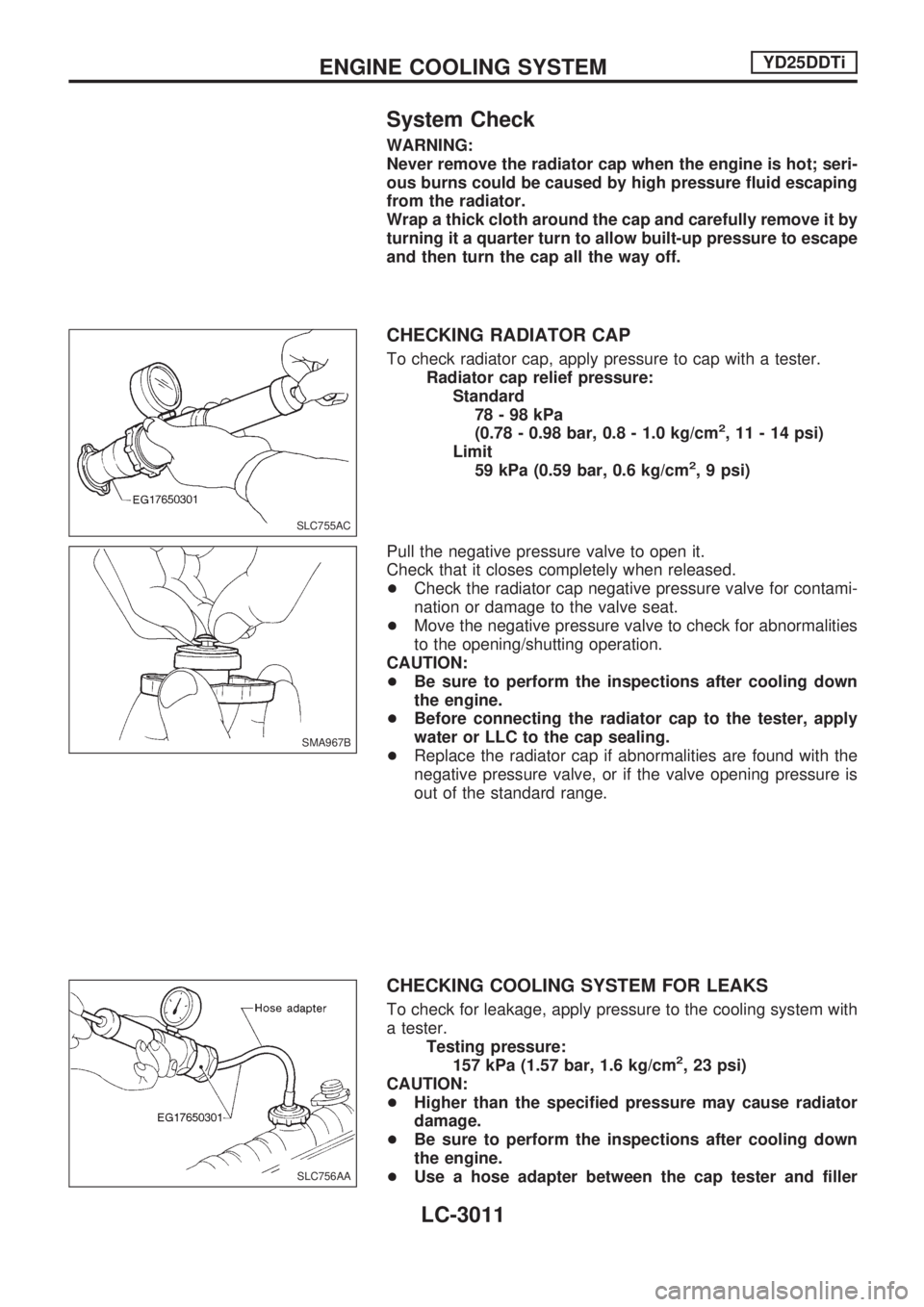

System Check
WARNING:
Never remove the radiator cap when the engine is hot; seri-
ous burns could be caused by high pressure fluid escaping
from the radiator.
Wrap a thick cloth around the cap and carefully remove it by
turning it a quarter turn to allow built-up pressure to escape
and then turn the cap all the way off.
CHECKING RADIATOR CAP
To check radiator cap, apply pressure to cap with a tester.
Radiator cap relief pressure:
Standard
78-98kPa
(0.78 - 0.98 bar, 0.8 - 1.0 kg/cm
2, 11 - 14 psi)
Limit
59 kPa (0.59 bar, 0.6 kg/cm
2, 9 psi)
Pull the negative pressure valve to open it.
Check that it closes completely when released.
+Check the radiator cap negative pressure valve for contami-
nation or damage to the valve seat.
+Move the negative pressure valve to check for abnormalities
to the opening/shutting operation.
CAUTION:
+Be sure to perform the inspections after cooling down
the engine.
+Before connecting the radiator cap to the tester, apply
water or LLC to the cap sealing.
+Replace the radiator cap if abnormalities are found with the
negative pressure valve, or if the valve opening pressure is
out of the standard range.
CHECKING COOLING SYSTEM FOR LEAKS
To check for leakage, apply pressure to the cooling system with
a tester.
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm
2, 23 psi)
CAUTION:
+Higher than the specified pressure may cause radiator
damage.
+Be sure to perform the inspections after cooling down
the engine.
+Use a hose adapter between the cap tester and filler
SLC755AC
SMA967B
SLC756AA
ENGINE COOLING SYSTEMYD25DDTi
LC-3011

neck to prevent the radiator filler neck from deforming.
+If any abnormalities are found, repair or replace the malfunc-
tioning parts.

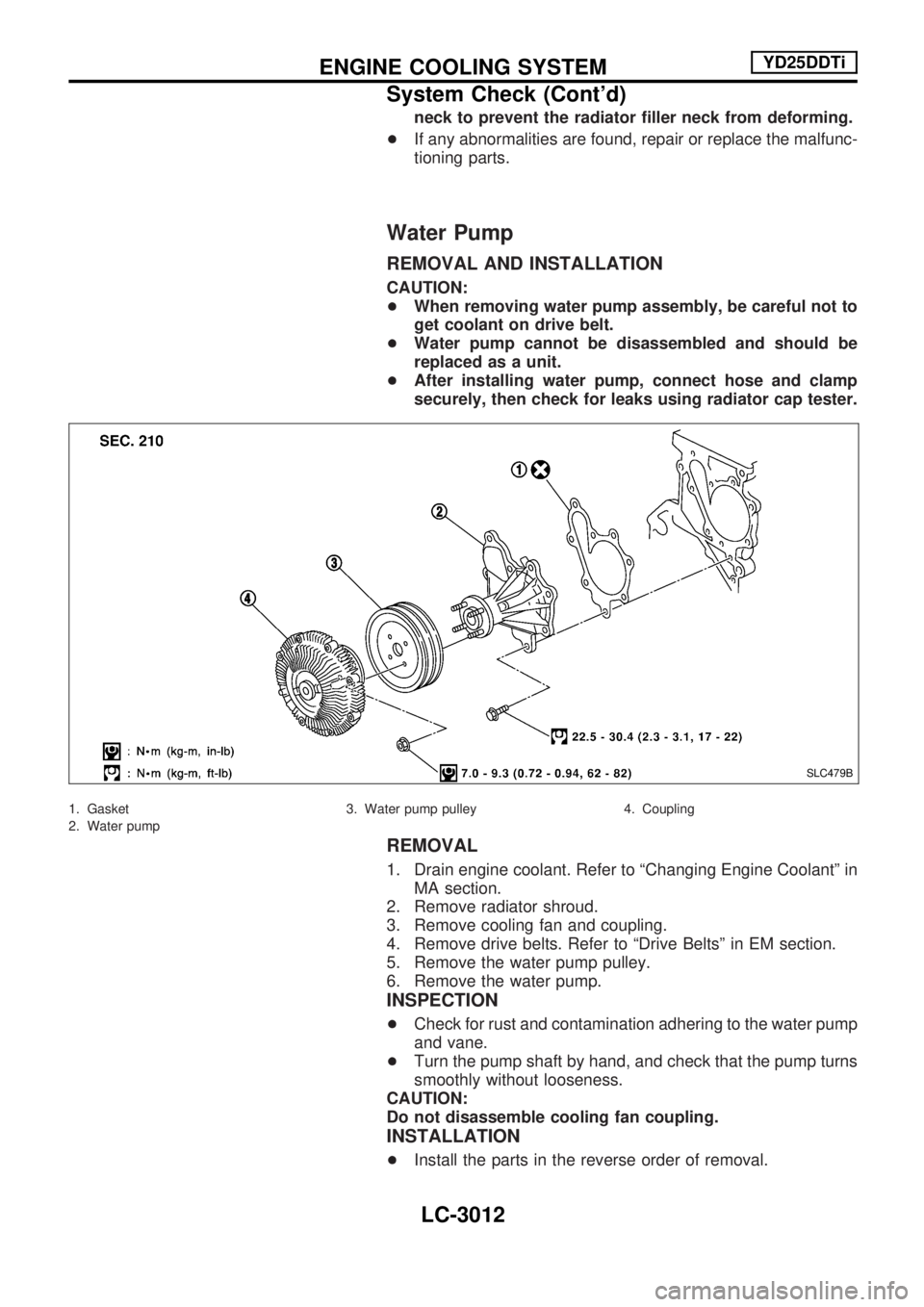

Water Pump
REMOVAL AND INSTALLATION
CAUTION:
+When removing water pump assembly, be careful not to
get coolant on drive belt.
+Water pump cannot be disassembled and should be
replaced as a unit.
+After installing water pump, connect hose and clamp
securely, then check for leaks using radiator cap tester.
1. Gasket
2. Water pump3. Water pump pulley 4. Coupling
REMOVAL
1. Drain engine coolant. Refer to ªChanging Engine Coolantº in
MA section.
2. Remove radiator shroud.
3. Remove cooling fan and coupling.
4. Remove drive belts. Refer to ªDrive Beltsº in EM section.
5. Remove the water pump pulley.
6. Remove the water pump.
INSPECTION
+Check for rust and contamination adhering to the water pump
and vane.
+Turn the pump shaft by hand, and check that the pump turns
smoothly without looseness.
CAUTION:
Do not disassemble cooling fan coupling.
INSTALLATION
+Install the parts in the reverse order of removal.
SLC479B
ENGINE COOLING SYSTEMYD25DDTi
System Check (Cont'd)
LC-3012

+Install the water pump pulley with the front mark (painted
white, used to prevent errors during assembly) facing the
front of the engine. Refer to the figure on the previous page.
ENGINE COOLING SYSTEMYD25DDTi
Water Pump (Cont'd)
LC-3013

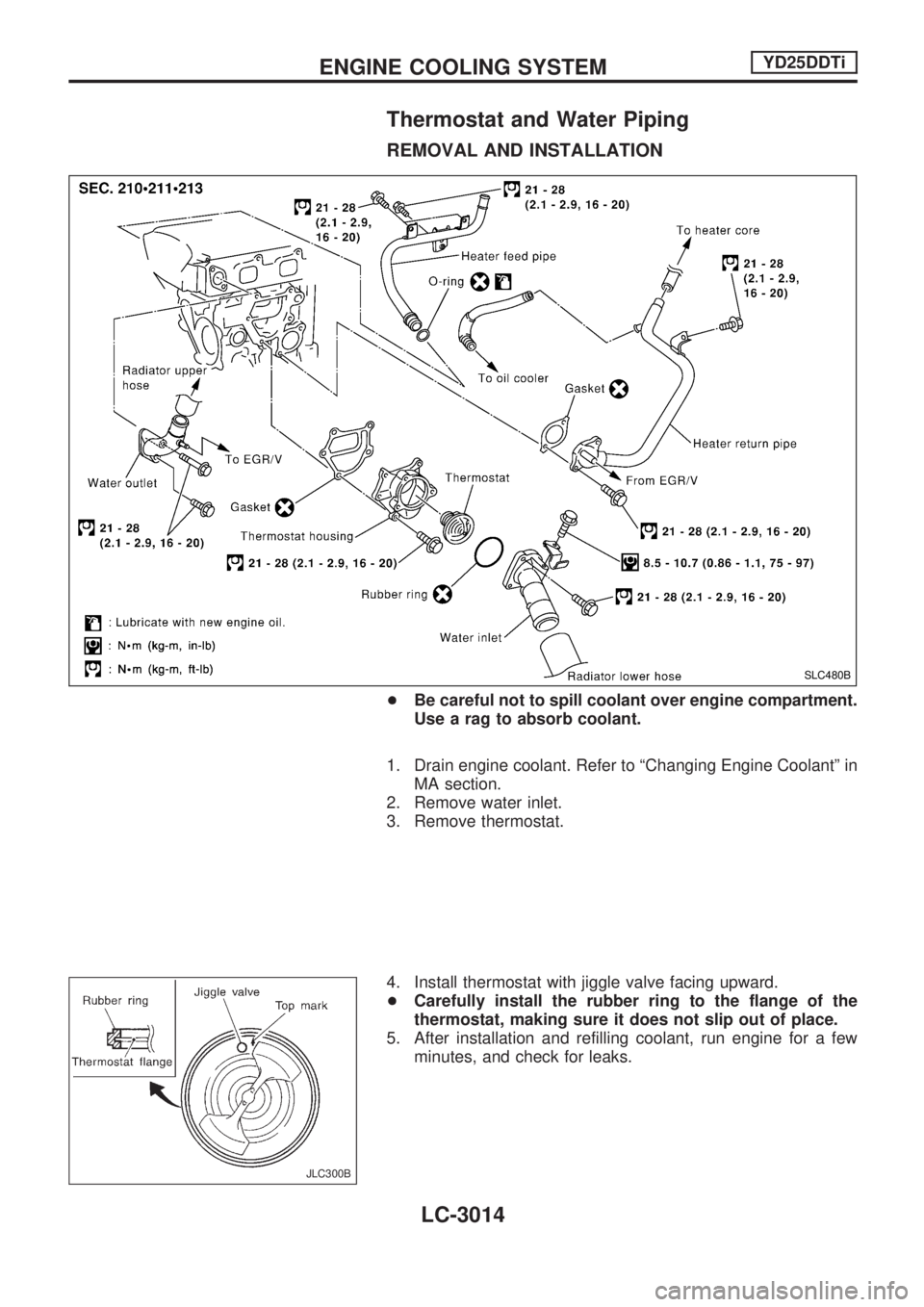

Thermostat and Water Piping
REMOVAL AND INSTALLATION
+Be careful not to spill coolant over engine compartment.
Use a rag to absorb coolant.
1. Drain engine coolant. Refer to ªChanging Engine Coolantº in
MA section.
2. Remove water inlet.
3. Remove thermostat.
4. Install thermostat with jiggle valve facing upward.
+Carefully install the rubber ring to the flange of the
thermostat, making sure it does not slip out of place.
5. After installation and refilling coolant, run engine for a few
minutes, and check for leaks.
SLC480B
JLC300B
ENGINE COOLING SYSTEMYD25DDTi
LC-3014

INSPECTION
1. Check valve seating condition at ordinary room tempera-
tures. It should seat tightly.
2. Check valve opening temperature and maximum valve lift.
Standard
Valve opening temperature Above 80 - 84ÉC (176 - 183ÉF)
Valve lift More than 10 mm/95ÉC
(0.39 in/203ÉF)
3. Then check if valve closes at 5ÉC (9ÉF) below valve opening
temperature.
Radiator
REMOVAL AND INSTALLATION
1. Remove under guard.
2. Drain engine coolant. Refer to MA section, ªChanging Engine
Coolantº.
3. Remove radiator shroud (lower).
4. Remove radiator shroud (upper).
5. Disconnect radiator hose (upper and lower).
6. Disconnect reservoir tank hose.
7. Remove radiator.
8. After repairing or replacing radiator, install all removed parts
in reverse order of removal.
SLC252B
SLC481B
ENGINE COOLING SYSTEMYD25DDTi
Thermostat and Water Piping (Cont'd)
LC-3015

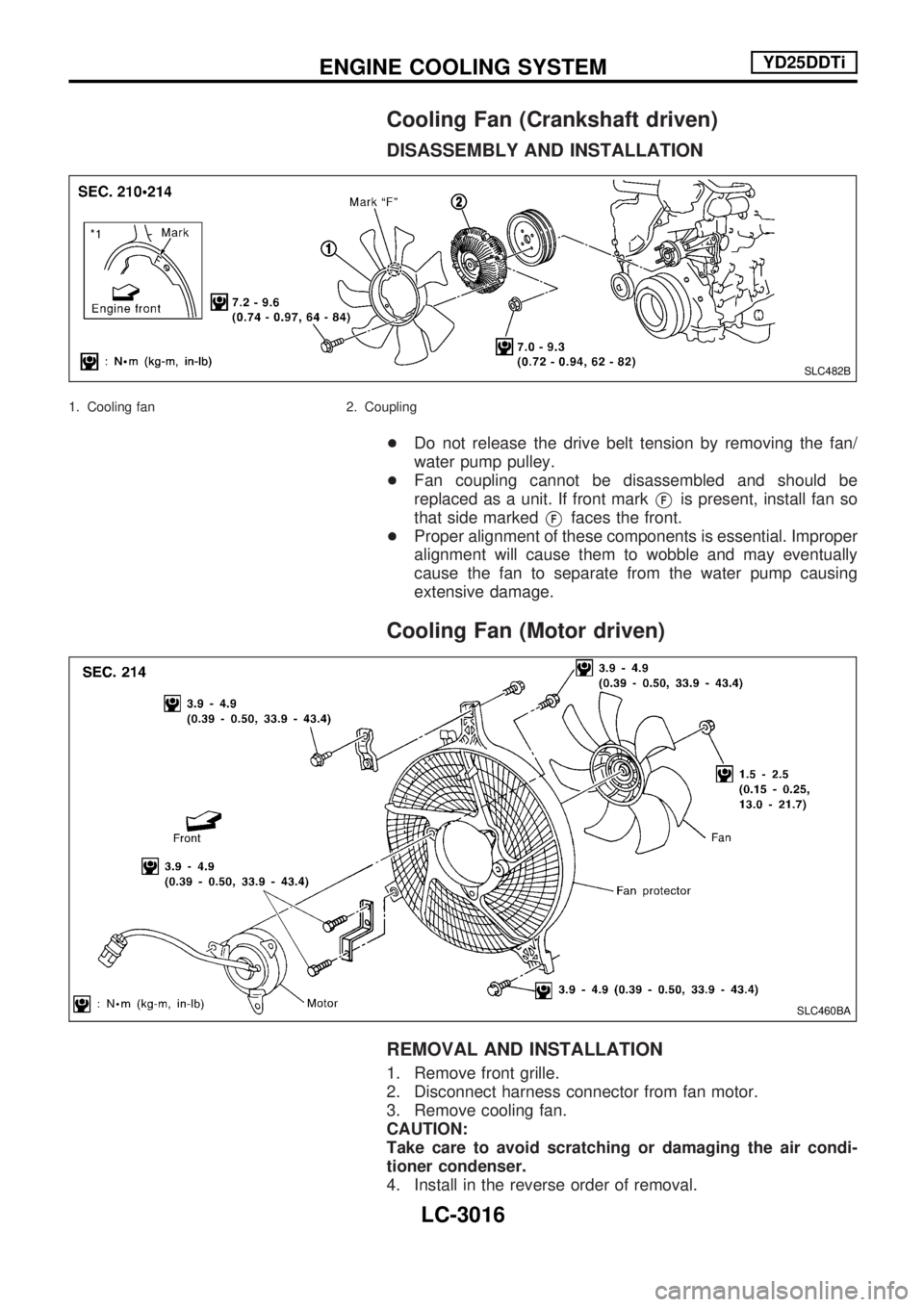

Cooling Fan (Crankshaft driven)
DISASSEMBLY AND INSTALLATION
1. Cooling fan 2. Coupling
+Do not release the drive belt tension by removing the fan/
water pump pulley.
+Fan coupling cannot be disassembled and should be
replaced as a unit. If front mark
VFis present, install fan so
that side marked
VFfaces the front.
+Proper alignment of these components is essential. Improper
alignment will cause them to wobble and may eventually
cause the fan to separate from the water pump causing
extensive damage.
Cooling Fan (Motor driven)
REMOVAL AND INSTALLATION
1. Remove front grille.
2. Disconnect harness connector from fan motor.
3. Remove cooling fan.
CAUTION:
Take care to avoid scratching or damaging the air condi-
tioner condenser.
4. Install in the reverse order of removal.
SLC482B
SLC460BA
ENGINE COOLING SYSTEMYD25DDTi
LC-3016

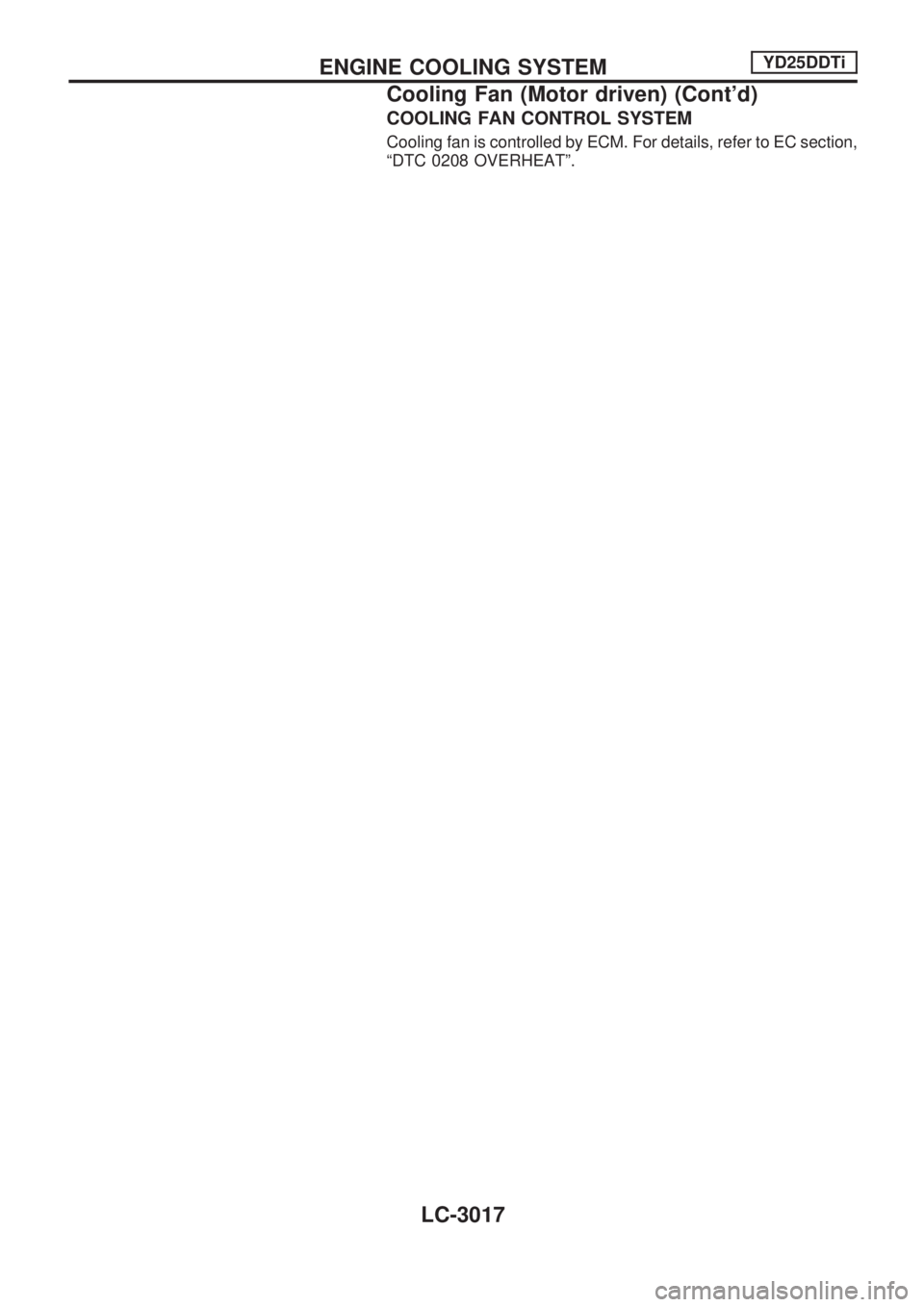

COOLING FAN CONTROL SYSTEM
Cooling fan is controlled by ECM. For details, refer to EC section,
ªDTC 0208 OVERHEATº.
ENGINE COOLING SYSTEMYD25DDTi
Cooling Fan (Motor driven) (Cont'd)
LC-3017

Engine Lubrication System
OIL PRESSURE CHECK
Engine speed
rpmApproximate discharge pressure
kPa (bar, kg/cm2, psi)
Idle speed More than 140 (1.40, 1.43, 20.3)
2,000 More than 270 (2.69, 2.75, 39.1)
4,000 More than 430 (4.29, 4.38, 62.3)
OIL PUMP
Unit: mm (in)
Housing to outer rotor radial
clearance10.114 - 0.260
(0.0045 - 0.0102)
Inner rotor to outer rotor tip
clearance2Below 0.180 (0.0071)
Housing to inner rotor axial
clearance30.050 - 0.090
(0.0020 - 0.0035)
Housing to outer rotor axial
clearance40.030 - 0.190
(0.0012 - 0.0075)
Inner rotor to brazed portion
of housing clearance50.045 - 0.091
(0.0018 - 0.0036)
OIL PUMP REGULATOR VALVE
Unit: mm (in)
Regulator valve to oil pump
cover clearance60.040 - 0.097
(0.0016 - 0.0038)
Engine Cooling System
RADIATOR
Unit: kPa (bar, kg/cm2, psi)
Cap relief
pressureStandard78-98
(0.78 - 0.98, 0.8 - 1.0, 11 - 14)
Limit 59 (0.59, 0.6, 9)
Leakage test pressure 157 (1.57, 1.6, 23)
THERMOSTAT
Valve opening temperatureAbove 80 - 84ÉC
(176 - 183ÉF)
Valve liftMore than 10 mm/95ÉC
(0.394 in/203ÉF)
SERVICE DATA AND SPECIFICATIONS (SDS)YD25DDTi
