NISSAN PRIMERA 1999 Electronic Repair Manual

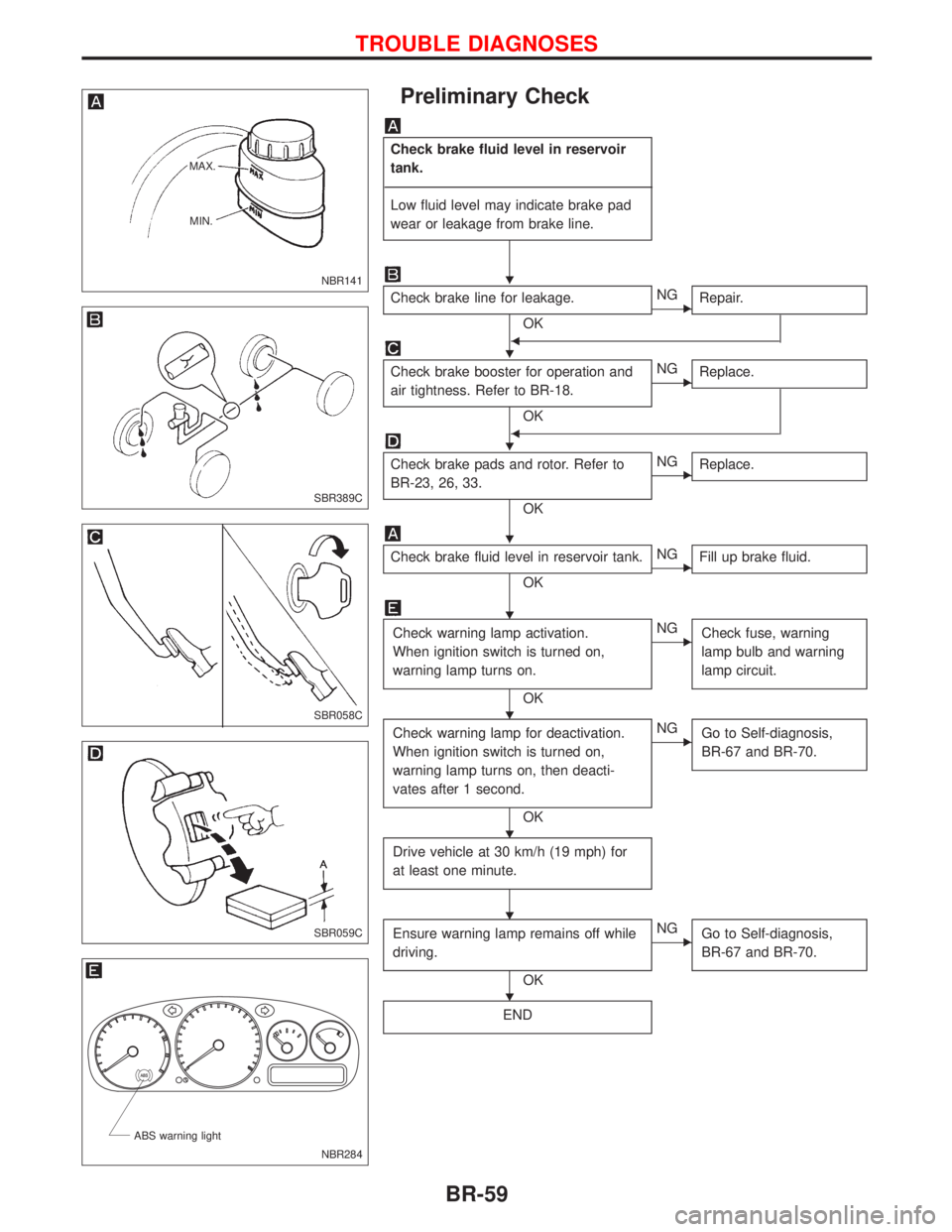

Preliminary Check
Check brake fluid level in reservoir
tank.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Low fluid level may indicate brake pad
wear or leakage from brake line.
Check brake line for leakage.
OK
ENG
Repair.
F
Check brake booster for operation and
air tightness. Refer to BR-18.
OK
ENG
Replace.
F
Check brake pads and rotor. Refer to
BR-23, 26, 33.
OK
ENG
Replace.
Check brake fluid level in reservoir tank.
OK
ENG
Fill up brake fluid.
Check warning lamp activation.
When ignition switch is turned on,
warning lamp turns on.
OK
ENG
Check fuse, warning
lamp bulb and warning
lamp circuit.
Check warning lamp for deactivation.
When ignition switch is turned on,
warning lamp turns on, then deacti-
vates after 1 second.
OK
ENG
Go to Self-diagnosis,
BR-67 and BR-70.
Drive vehicle at 30 km/h (19 mph) for
at least one minute.
Ensure warning lamp remains off while
driving.
OK
ENG
Go to Self-diagnosis,
BR-67 and BR-70.
END
NBR141 MAX.
MIN.
SBR389C
SBR058C
SBR059C
.
NBR284 ABS warning light
H
H
H
H
H
H
H
H
H
TROUBLE DIAGNOSES
BR-59

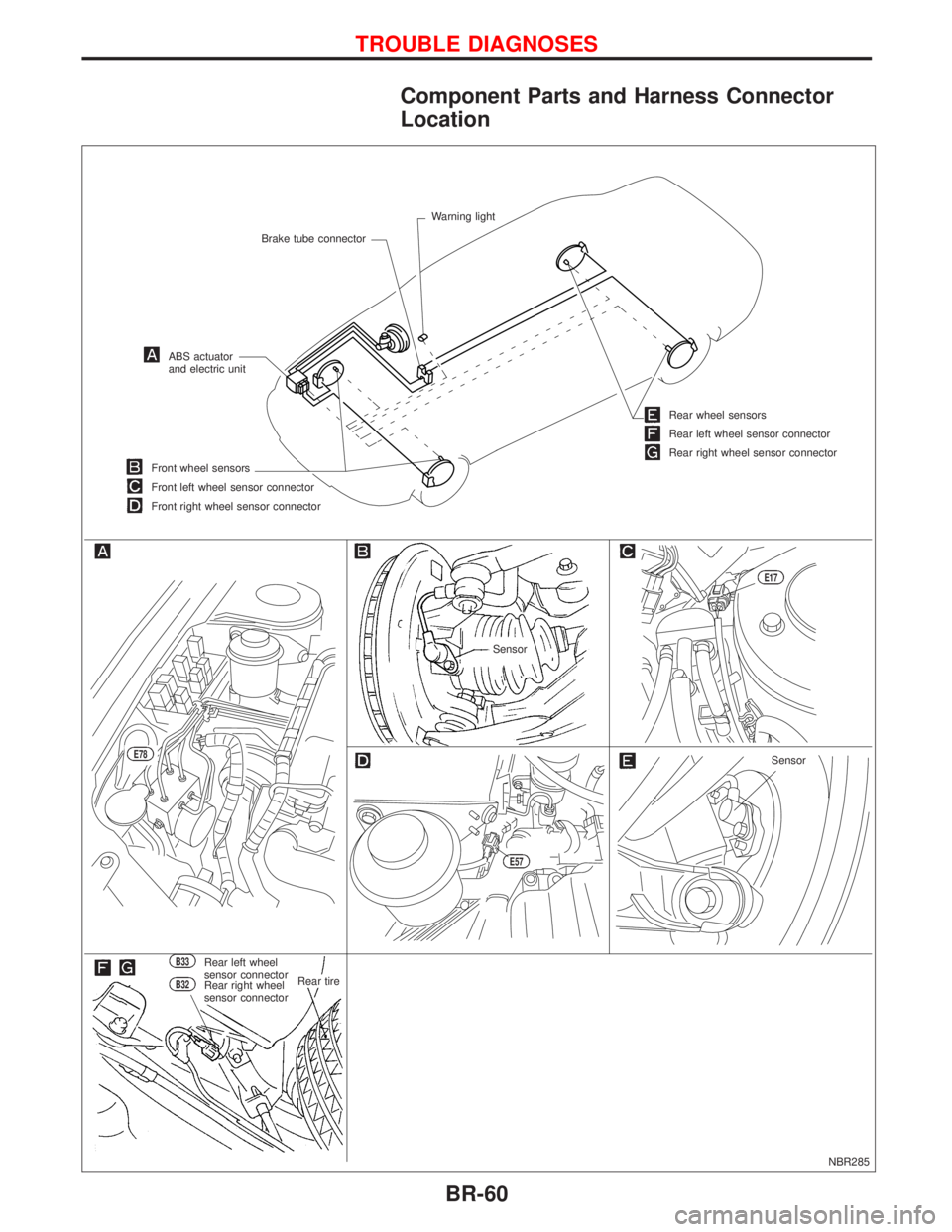

Component Parts and Harness Connector
Location
NBR285
Brake tube connectorWarning light
ABS actuator
and electric unit
Front wheel sensors
Front left wheel sensor connector
Front right wheel sensor connector
Sensor
E17
Rear wheel sensors
Rear left wheel sensor connector
Rear right wheel sensor connector
B33Rear left wheel
sensor connector
B32Rear right wheel
sensor connector.Rear tire
.E78
E57
Sensor
TROUBLE DIAGNOSES
BR-60

Circuit Diagram for Quick Pinpoint Check
YBR228
TROUBLE DIAGNOSES
BR-61

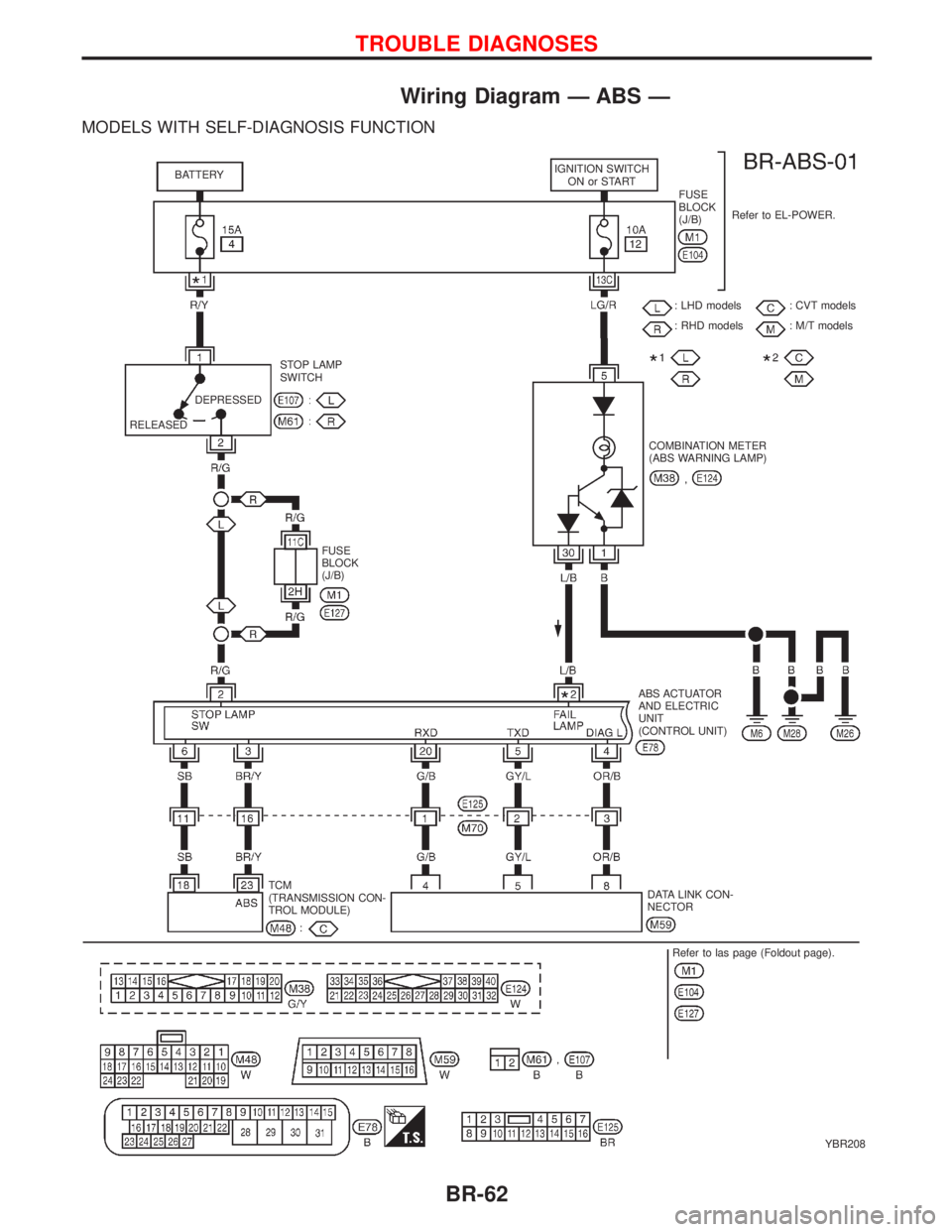

Wiring Diagram Ð ABS Ð
MODELS WITH SELF-DIAGNOSIS FUNCTION
YBR208 BATTERYIGNITION SWITCH
ON or START
FUSE
BLOCK
(J/B)Refer to EL-POWER.
: LHD models
: RHD models: CVT models
: M/T models
RELEASEDDEPRESSEDSTOP LAMP
SWITCH
FUSE
BLOCK
(J/B)COMBINATION METER
(ABS WARNING LAMP)
ABS ACTUATOR
AND ELECTRIC
UNIT
(CONTROL UNIT)
TCM
(TRANSMISSION CON-
TROL MODULE)DATA LINK CON-
NECTOR
Refer to las page (Foldout page).
TROUBLE DIAGNOSES
BR-62

MODELS WITHOUT SELF-DIAGNOSIS FUNCTION
YBR229
TROUBLE DIAGNOSES
Wiring Diagram Ð ABS Ð (Cont'd)
BR-63

YBR230
TROUBLE DIAGNOSES
Wiring Diagram Ð ABS Ð (Cont'd)
BR-64

YBR231
TROUBLE DIAGNOSES
Wiring Diagram Ð ABS Ð (Cont'd)
BR-65

YBR232
TROUBLE DIAGNOSES
Wiring Diagram Ð ABS Ð (Cont'd)
BR-66

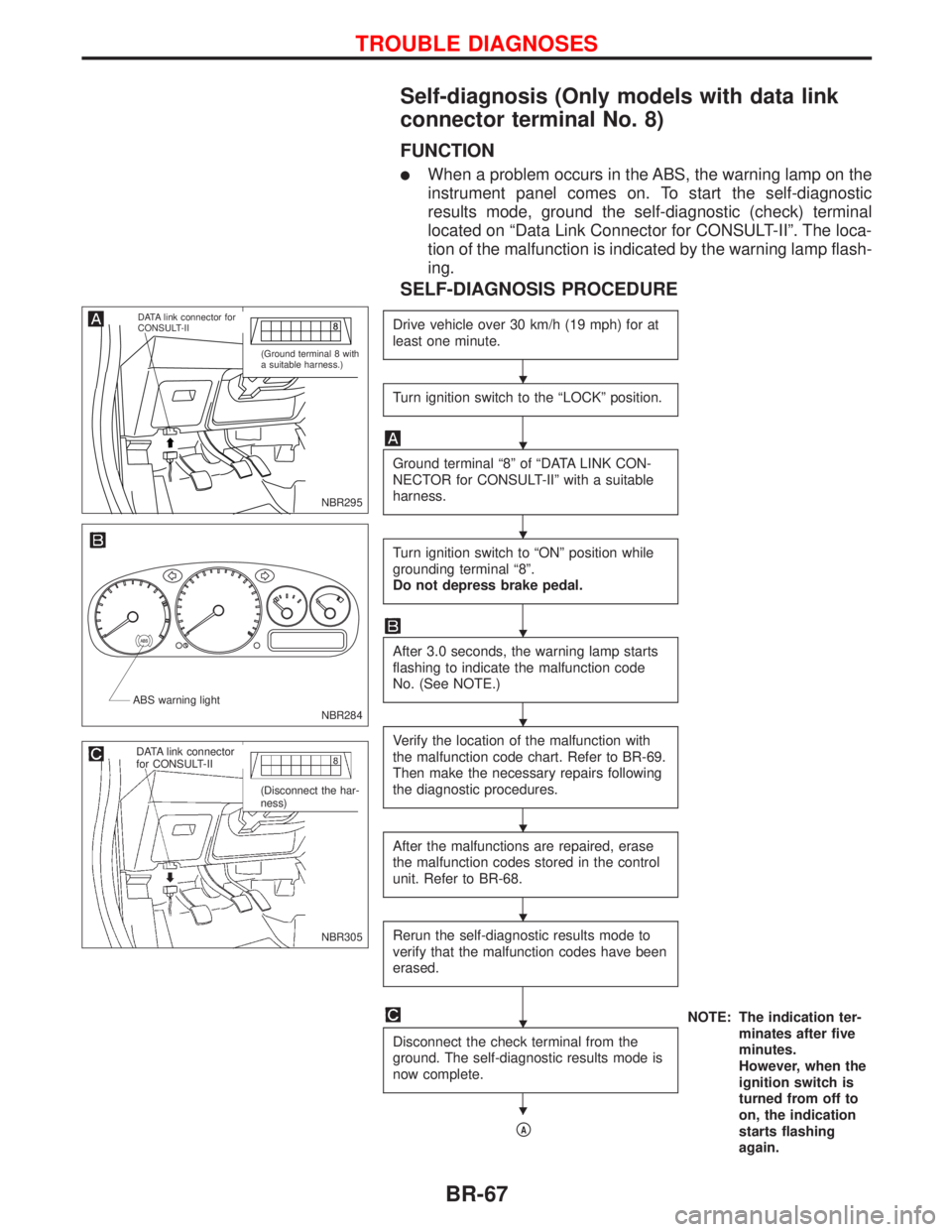

Self-diagnosis (Only models with data link
connector terminal No. 8)
FUNCTION
lWhen a problem occurs in the ABS, the warning lamp on the
instrument panel comes on. To start the self-diagnostic
results mode, ground the self-diagnostic (check) terminal
located on ªData Link Connector for CONSULT-IIº. The loca-
tion of the malfunction is indicated by the warning lamp flash-
ing.
SELF-DIAGNOSIS PROCEDURE
Drive vehicle over 30 km/h (19 mph) for at
least one minute.
Turn ignition switch to the ªLOCKº position.
Ground terminal ª8º of ªDATA LINK CON-
NECTOR for CONSULT-IIº with a suitable
harness.
Turn ignition switch to ªONº position while
grounding terminal ª8º.
Do not depress brake pedal.
After 3.0 seconds, the warning lamp starts
flashing to indicate the malfunction code
No. (See NOTE.)
Verify the location of the malfunction with
the malfunction code chart. Refer to BR-69.
Then make the necessary repairs following
the diagnostic procedures.
After the malfunctions are repaired, erase
the malfunction codes stored in the control
unit. Refer to BR-68.
Rerun the self-diagnostic results mode to
verify that the malfunction codes have been
erased.
NOTE: The indication ter-
minates after five
minutes.
However, when the
ignition switch is
turned from off to
on, the indication
starts flashing
again. Disconnect the check terminal from the
ground. The self-diagnostic results mode is
now complete.
pA
NBR295
.DATA link connector for
CONSULT-II
(Ground terminal 8 with
a suitable harness.)
NBR284 ABS warning light
NBR305
.DATA link connector
for CONSULT-II
(Disconnect the har-
ness)
H
H
H
H
H
H
H
H
H
TROUBLE DIAGNOSES
BR-67

pA
Check warning lamp for deactivation after
driving vehicle over 30 km/h (19 mph) for
at least one minute.
After making certain that warning lamp
does not come on, test the ABS in a safe
area to verify that it functions properly.

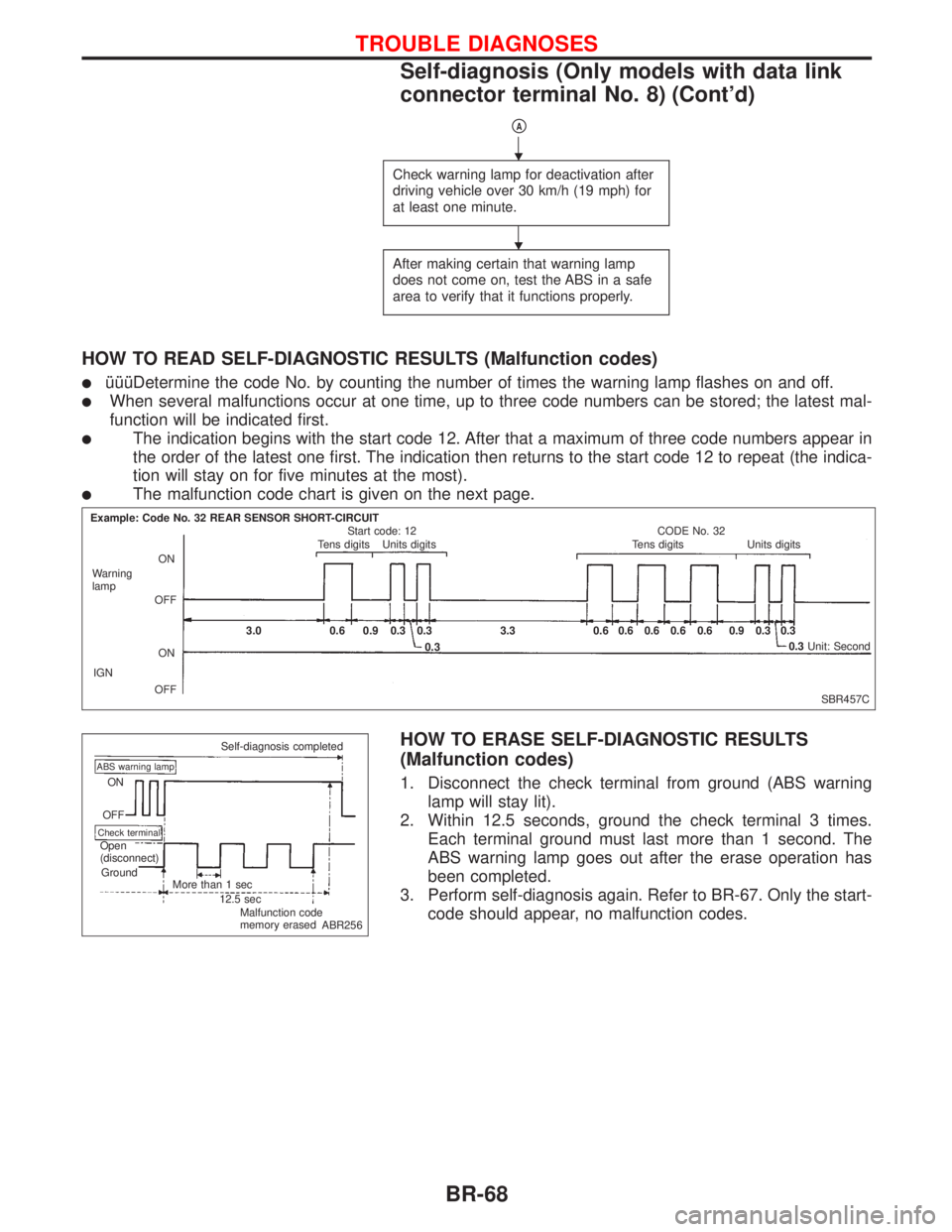

HOW TO READ SELF-DIAGNOSTIC RESULTS (Malfunction codes)
lîîîDetermine the code No. by counting the number of times the warning lamp flashes on and off.
lWhen several malfunctions occur at one time, up to three code numbers can be stored; the latest mal-
function will be indicated first.
lThe indication begins with the start code 12. After that a maximum of three code numbers appear in
the order of the latest one first. The indication then returns to the start code 12 to repeat (the indica-
tion will stay on for five minutes at the most).
lThe malfunction code chart is given on the next page.
HOW TO ERASE SELF-DIAGNOSTIC RESULTS
(Malfunction codes)
1. Disconnect the check terminal from ground (ABS warning
lamp will stay lit).
2. Within 12.5 seconds, ground the check terminal 3 times.
Each terminal ground must last more than 1 second. The
ABS warning lamp goes out after the erase operation has
been completed.
3. Perform self-diagnosis again. Refer to BR-67. Only the start-
code should appear, no malfunction codes.
SBR457C Example: Code No. 32 REAR SENSOR SHORT-CIRCUIT
Warning
lampON
OFF
ON
OFF IGNStart code: 12
Tens digits Units digits
Unit: Second CODE No. 32
Tens digits Units digits
3.0 0.6 0.9 0.3 0.3
0.33.3 0.6 0.6 0.6 0.6 0.6 0.9 0.3
0.3 0.3
ABR256 Self-diagnosis completed
ABS warning lamp
ON
OFF
Check terminalOpen
(disconnect)
Ground
More than 1 sec
12.5 sec
Malfunction code
memory erased
H
H
TROUBLE DIAGNOSES
Self-diagnosis (Only models with data link
connector terminal No. 8) (Cont'd)
BR-68
