2-62Instruments and controls

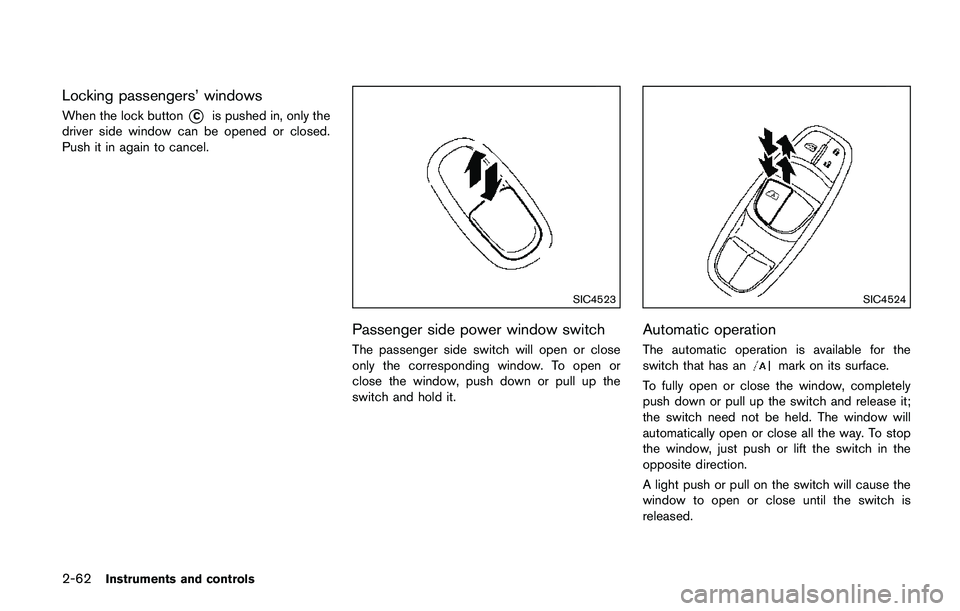

Locking passengers’ windows
When the lock button*Cis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
SIC4523
Passenger side power window switch
The passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
SIC4524
Automatic operation
The automatic operation is available for the
switch that has anmark on its surface.
To fully open or close the window, completely
push down or pull up the switch and release it;
the switch need not be held. The window will
automatically open or close all the way. To stop
the window, just push or lift the switch in the
opposite direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.

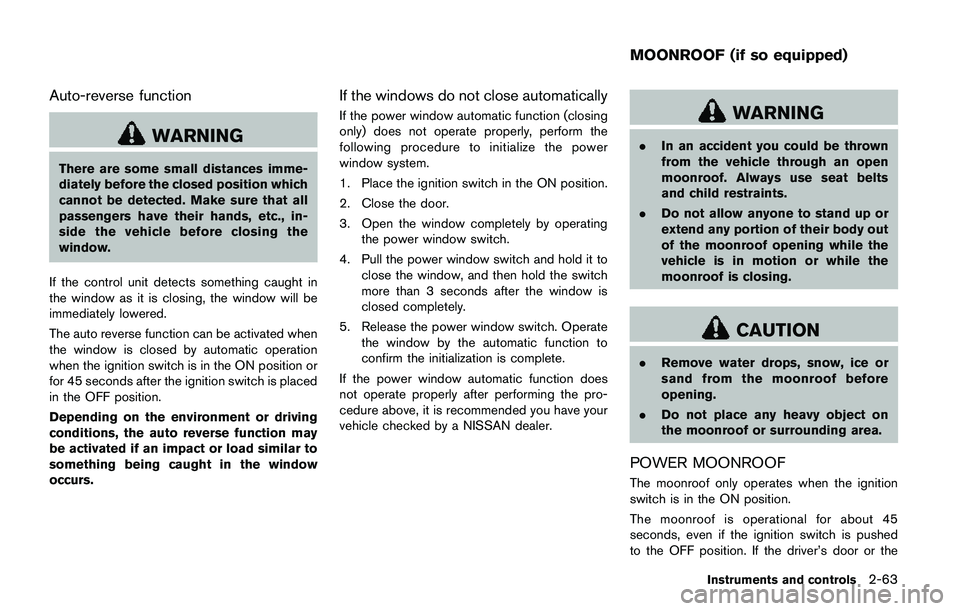

Auto-reverse function
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is placed
in the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
If the windows do not close automatically
If the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.
1. Place the ignition switch in the ON position.
2. Close the door.
3. Open the window completely by operating
the power window switch.
4. Pull the power window switch and hold it to
close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate
the window by the automatic function to
confirm the initialization is complete.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, it is recommended you have your
vehicle checked by a NISSAN dealer.WARNING
.In an accident you could be thrown
from the vehicle through an open
moonroof. Always use seat belts
and child restraints.
.Do not allow anyone to stand up or
extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.
CAUTION
.Remove water drops, snow, ice or
sand from the moonroof before
opening.
.Do not place any heavy object on
the moonroof or surrounding area.
POWER MOONROOF
The moonroof only operates when the ignition
switch is in the ON position.
The moonroof is operational for about 45
seconds, even if the ignition switch is pushed
to the OFF position. If the driver’s door or the
Instruments and controls2-63
MOONROOF (if so equipped)

2-64Instruments and controls
passenger’s door is opened during this period of
about 45 seconds, power to the moonroof is
canceled.

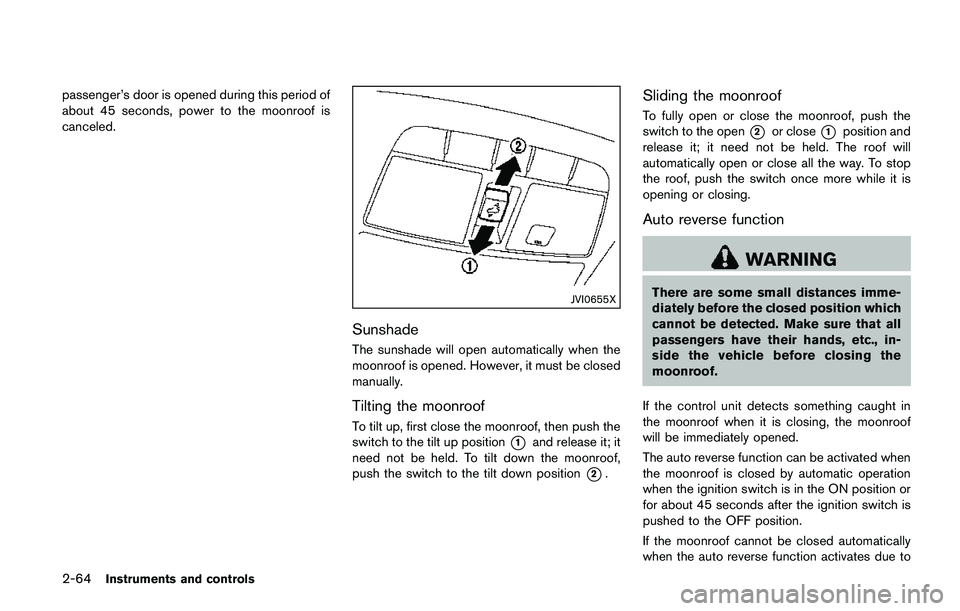

JVI0655X
Sunshade
The sunshade will open automatically when the
moonroof is opened. However, it must be closed
manually.
Tilting the moonroof
To tilt up, first close the moonroof, then push the
switch to the tilt up position
*1and release it; it
need not be held. To tilt down the moonroof,
push the switch to the tilt down position
*2.
Sliding the moonroof
To fully open or close the moonroof, push the
switch to the open
*2or close*1position and
release it; it need not be held. The roof will
automatically open or close all the way. To stop
the roof, push the switch once more while it is
opening or closing.
Auto reverse function
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
moonroof.
If the control unit detects something caught in
the moonroof when it is closing, the moonroof
will be immediately opened.
The auto reverse function can be activated when
the moonroof is closed by automatic operation
when the ignition switch is in the ON position or
for about 45 seconds after the ignition switch is
pushed to the OFF position.
If the moonroof cannot be closed automatically
when the auto reverse function activates due to

a malfunction, push and hold the moonroof
switch to the close position
*1.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.

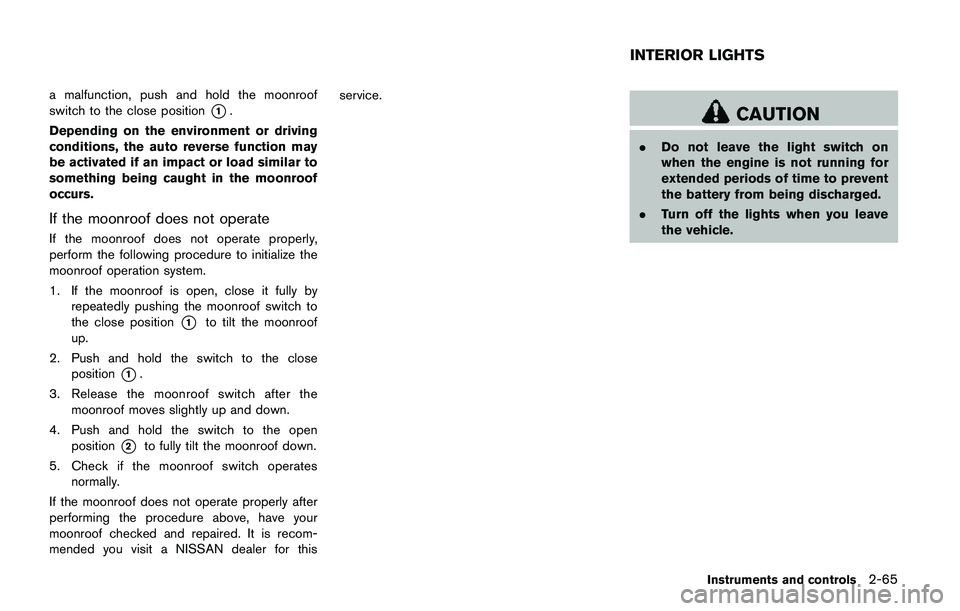

If the moonroof does not operate
If the moonroof does not operate properly,
perform the following procedure to initialize the
moonroof operation system.
1. If the moonroof is open, close it fully by
repeatedly pushing the moonroof switch to
the close position
*1to tilt the moonroof
up.
2. Push and hold the switch to the close
position
*1.
3. Release the moonroof switch after the
moonroof moves slightly up and down.
4. Push and hold the switch to the open
position
*2to fully tilt the moonroof down.
5. Check if the moonroof switch operates
normally.
If the moonroof does not operate properly after
performing the procedure above, have your
moonroof checked and repaired. It is recom-
mended you visit a NISSAN dealer for thisservice.
CAUTION
.Do not leave the light switch on
when the engine is not running for
extended periods of time to prevent
the battery from being discharged.
.Turn off the lights when you leave
the vehicle.
Instruments and controls2-65
INTERIOR LIGHTS

2-66Instruments and controls

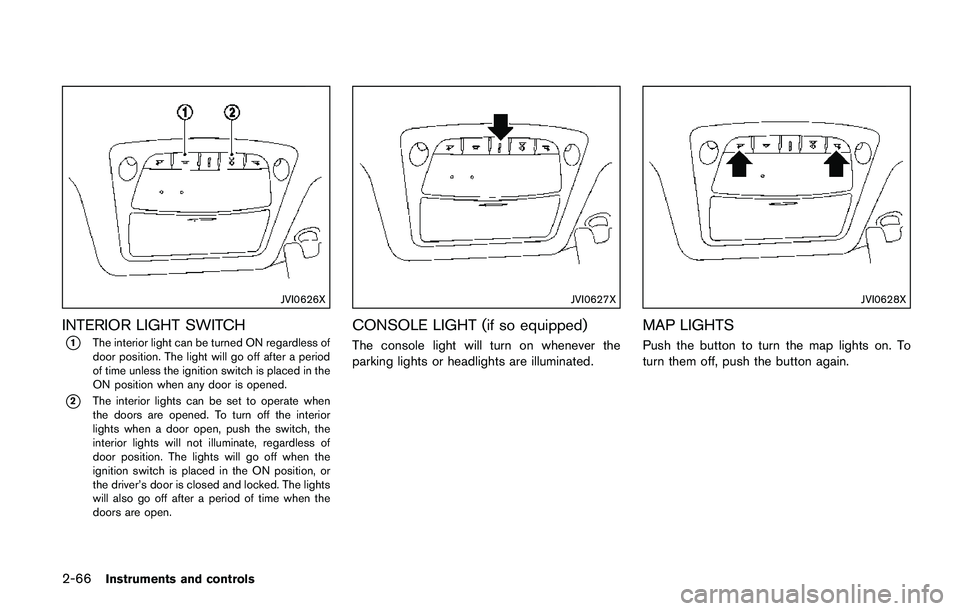

JVI0626X
INTERIOR LIGHT SWITCH
*1The interior light can be turned ON regardless of
door position. The light will go off after a period
of time unless the ignition switch is placed in the
ON position when any door is opened.
*2The interior lights can be set to operate when
the doors are opened. To turn off the interior
lights when a door open, push the switch, the
interior lights will not illuminate, regardless of
door position. The lights will go off when the
ignition switch is placed in the ON position, or
the driver’s door is closed and locked. The lights
will also go off after a period of time when the
doors are open.
JVI0627X
CONSOLE LIGHT (if so equipped)
The console light will turn on whenever the
parking lights or headlights are illuminated.
JVI0628X
MAP LIGHTS
Push the button to turn the map lights on. To
turn them off, push the button again.

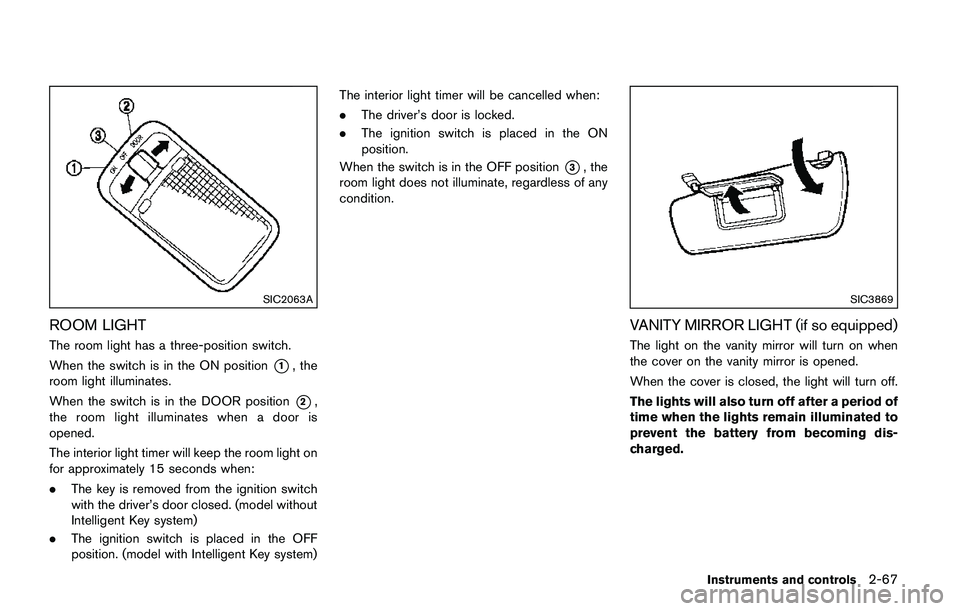

SIC2063A
ROOM LIGHT
The room light has a three-position switch.
When the switch is in the ON position
*1, the
room light illuminates.
When the switch is in the DOOR position
*2,
the room light illuminates when a door is
opened.
The interior light timer will keep the room light on
for approximately 15 seconds when:
.The key is removed from the ignition switch
with the driver’s door closed. (model without
Intelligent Key system)
.The ignition switch is placed in the OFF
position. (model with Intelligent Key system)The interior light timer will be cancelled when:
.The driver’s door is locked.
.The ignition switch is placed in the ON
position.
When the switch is in the OFF position
*3, the
room light does not illuminate, regardless of any
condition.
SIC3869
VANITY MIRROR LIGHT (if so equipped)
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will also turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
Instruments and controls2-67

2-68Instruments and controls

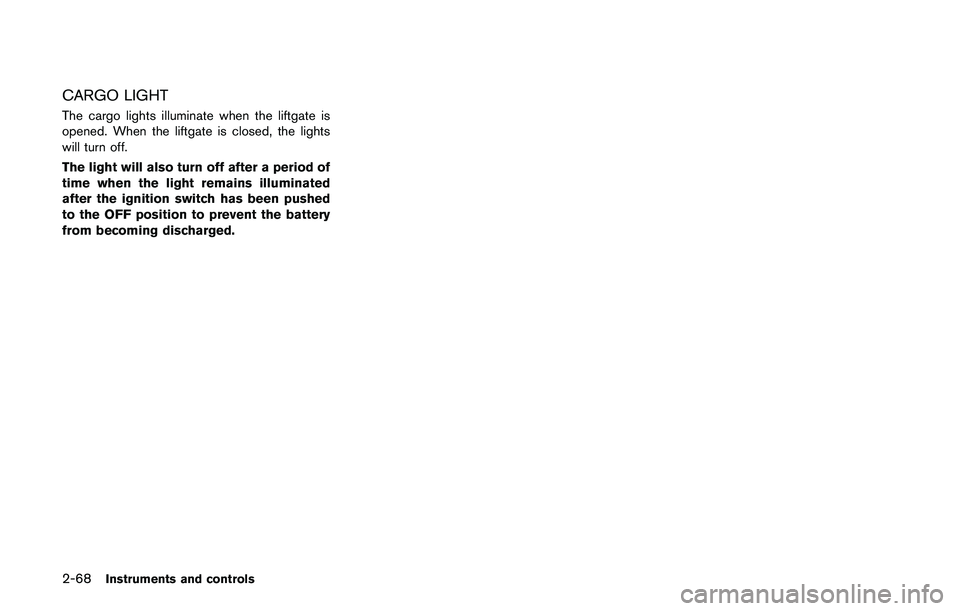

CARGO LIGHT
The cargo lights illuminate when the liftgate is
opened. When the liftgate is closed, the lights
will turn off.
The light will also turn off after a period of
time when the light remains illuminated
after the ignition switch has been pushed
to the OFF position to prevent the battery
from becoming discharged.

3 Pre-driving checks and adjustments
Keys .............................................................................................. 3-2
NISSAN Vehicle Immobilizer System key (if
so equipped) ........................................................................ 3-2
Intelligent Key (if so equipped) ........................................ 3-3
Doors ............................................................................................ 3-5
Locking with key .................................................................. 3-5
Locking with inside lock knob .......................................... 3-6
Locking with power door lock switch ............................ 3-7
Automatic door locks ......................................................... 3-7
Child safety rear door lock ............................................... 3-7
Remote keyless entry system (if so equipped) ................. 3-8
How to use remote keyless entry system ..................... 3-9
Intelligent Key system (if so equipped) ............................ 3-11
Intelligent Key operating range ..................................... 3-13
Door locks/unlocks precaution ..................................... 3-13
Intelligent Key operation ................................................. 3-14
Battery saver system ....................................................... 3-16
Warning lights and audible reminders ........................ 3-16
Troubleshooting guide ..................................................... 3-17
How to use remote keyless entry function ................ 3-18Remote engine start (if so equipped) .............................. 3-22
Remote engine start operating range ....................... 3-22
Remote starting the engine ......................................... 3-22
Extending engine run time ........................................... 3-23
Canceling a remote start ............................................. 3-23
Conditions the remote engine start will
not work ............................................................................ 3-23
Hood ......................................................................................... 3-24
Liftgate ..................................................................................... 3-25
Liftgate release lever ..................................................... 3-26
Fuel-filler door ........................................................................ 3-27
Opening the fuel-filler door ......................................... 3-27
Fuel-filler cap .................................................................. 3-27
Tilt/telescopic steering ......................................................... 3-29
Tilt or telescopic operation .......................................... 3-30
Sun visors ................................................................................ 3-30
Mirrors ..................................................................................... 3-31
Inside mirror ..................................................................... 3-31
Outside mirrors ............................................................... 3-31
Vanity mirror ..................................................................... 3-33

3-2Pre-driving checks and adjustments

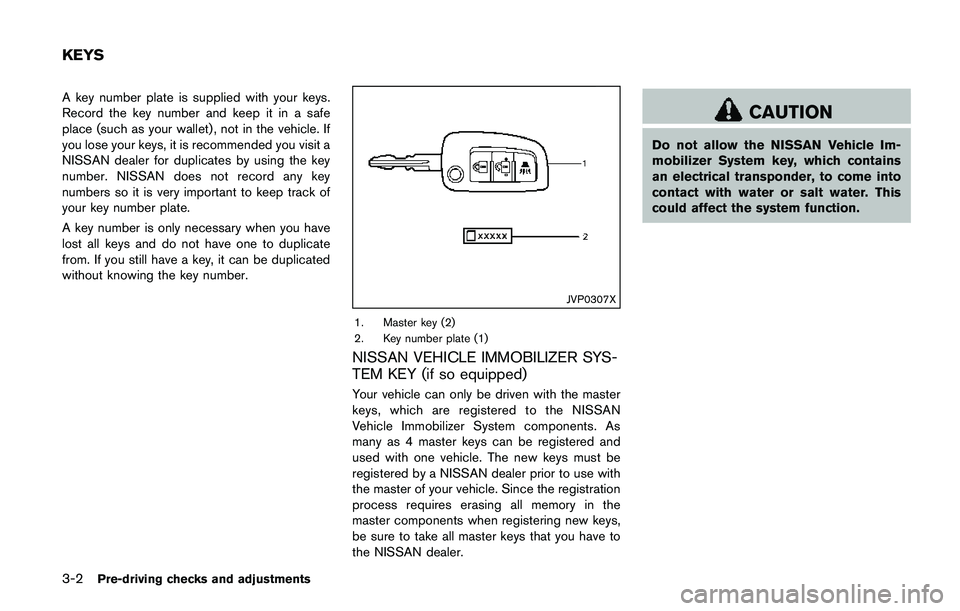

A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet) , not in the vehicle. If
you lose your keys, it is recommended you visit a
NISSAN dealer for duplicates by using the key
number. NISSAN does not record any key
numbers so it is very important to keep track of
your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, it can be duplicated
without knowing the key number.
JVP0307X
1. Master key (2)
2. Key number plate (1)
NISSAN VEHICLE IMMOBILIZER SYS-
TEM KEY (if so equipped)
Your vehicle can only be driven with the master
keys, which are registered to the NISSAN
Vehicle Immobilizer System components. As
many as 4 master keys can be registered and
used with one vehicle. The new keys must be
registered by a NISSAN dealer prior to use with
the master of your vehicle. Since the registration
process requires erasing all memory in the
master components when registering new keys,
be sure to take all master keys that you have to
the NISSAN dealer.
CAUTION
Do not allow the NISSAN Vehicle Im-
mobilizer System key, which contains
an electrical transponder, to come into
contact with water or salt water. This
could affect the system function.
KEYS

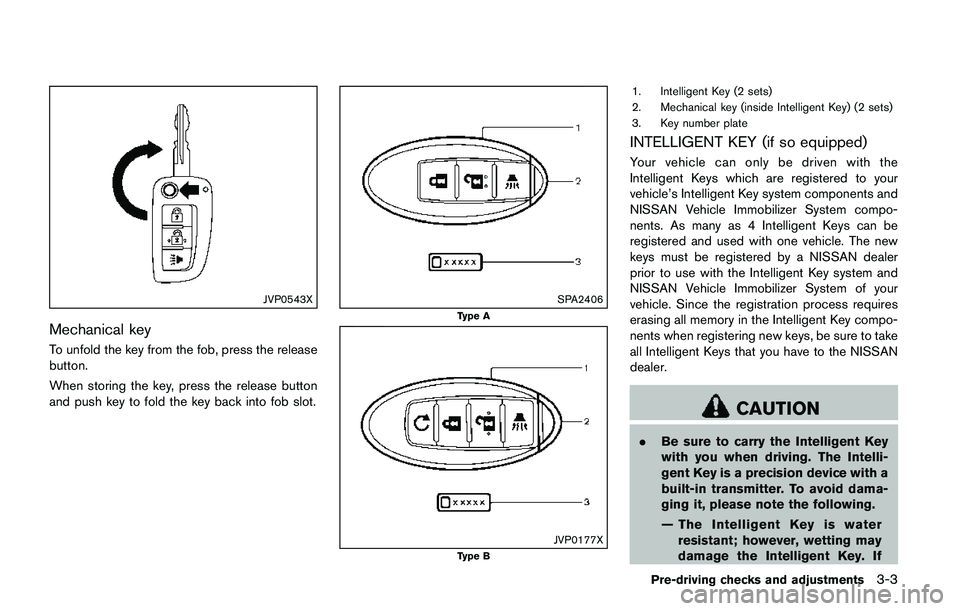

JVP0543X
Mechanical key
To unfold the key from the fob, press the release
button.
When storing the key, press the release button
and push key to fold the key back into fob slot.
SPA2406
Type A
JVP0177XType B
1. Intelligent Key (2 sets)
2. Mechanical key (inside Intelligent Key) (2 sets)
3. Key number plate
INTELLIGENT KEY (if so equipped)
Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-
nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.
CAUTION
.Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
— The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
Pre-driving checks and adjustments3-3
