Welcome to the growing family of new NISSAN
owners. This vehicle is delivered to you with
confidence. It was produced using the latest
techniques and strict quality control.
This manual was prepared to help you under-
stand the operation and maintenance of your
vehicle so that you may enjoy many miles of
driving pleasure. Please read through this
manual before operating your vehicle.
A separate Warranty Information Booklet
explains details about the warranties cov-
ering your vehicle. Additionally, a separate
Customer Care/Lemon Law Booklet (U.S.
only) will explain how to resolve any
concerns you may have with your vehicle,
as well as clarify your rights under your
state’s lemon law.
In addition to factory installed options, your
vehicle may also be equipped with additional
accessories installed by NISSAN or by your
NISSAN dealer prior to delivery. It is important
that you familiarize yourself with all disclosures,
warnings, cautions and instructions concerning
proper use of such accessories prior to operat-
ing the vehicle and/or accessory. It is recom-
mended you see a NISSAN dealer for details
concerning the particular accessories with
which your vehicle is equipped.
Your NISSAN dealer knows your vehicle best.When you require any service or have any
questions, we will be glad to assist you with the
extensive resources available to us.
READ FIRST — THEN DRIVE SAFELY
Before driving your vehicle, read your Owner’s
Manual carefully. This will ensure familiarity with
controls and maintenance requirements, assist-
ing you in the safe operation of your vehicle.
WARNING
IMPORTANT SAFETY INFORMATION
REMINDERS!
Follow these important driving rules to
help ensure a safe and comfortable trip
for you and your passengers!
.NEVER drive under the influence of
alcohol or drugs.
.ALWAYS observe posted speed lim-
its and never drive too fast for
conditions.
.ALWAYS give your full attention to
driving and avoid using vehicle
features or taking other actions that
could distract you.
.ALWAYS use your seat belts and
appropriate child restraint systems.Pre-teen children should be seated
in the rear seat.
.ALWAYS provide information about
the proper use of vehicle safety
features to all occupants of the
vehicle.
.ALWAYS review this Owner’s Man-
ual for important safety information.
On-pavement and off-road driv-
ing
This vehicle will handle and maneuver
differently from an ordinary passenger
car because it has a higher center of
gravity. As with other vehicles with fea-
tures of this type, failure to operate this
vehicle correctly may result in loss of
control or an accident. Be sure to read
“Avoiding collision and rollover” and
“Driving safety precautions” in the “5.
Starting and driving” section of this
manual.
Foreword
Page 8 of 508
Illustrated table of contents0
Safety — Seats, seat belts and supplemental restraint system1
Instruments and controls
Pre-driving checks and adjustments
Heater, air conditioner, audio and phone systems
Starting and driving
In case of emergency
Appearance and care
Do-it-yourself
Maintenance and schedules
Technical and consumer information
2
3
4
5
6
7
8
9
10
Table of
Contents
Index11
Page 10 of 508
0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS) ............................................................................ 0-2
Exterior front ............................................................................... 0-3
Exterior rear ................................................................................ 0-4
Passenger compartment ......................................................... 0-5
Cockpit ........................................................................................ 0-6Instrument panel ....................................................................... 0-7
Meters and gauges .................................................................. 0-8
Engine compartment ............................................................... 0-9
MR20DD engine model .................................................. 0-9
Warning and indicator lights .............................................. 0-10
Page 11 of 508
0-2Illustrated table of contents
JVC1064X

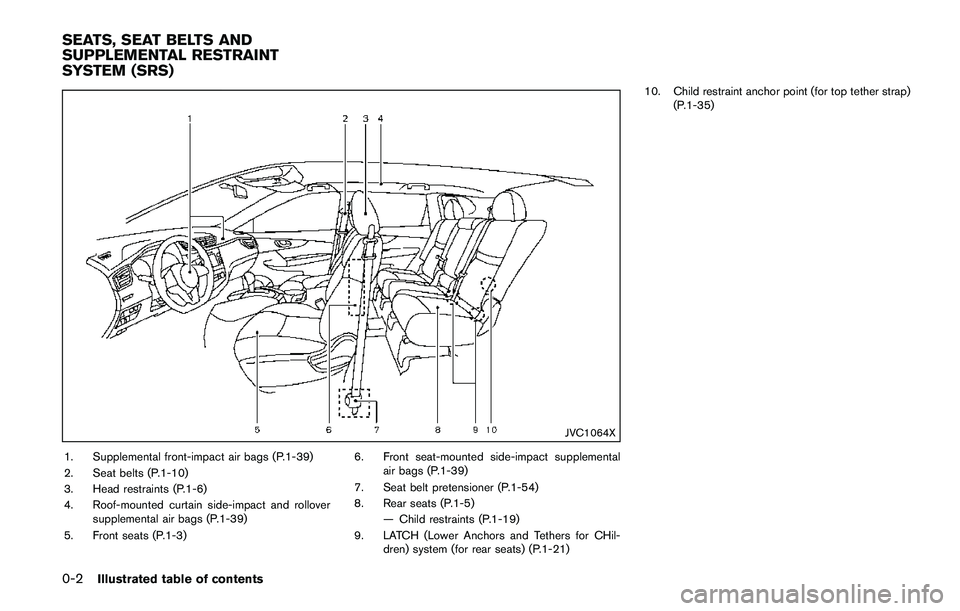

1. Supplemental front-impact air bags (P.1-39)
2. Seat belts (P.1-10)
3. Head restraints (P.1-6)
4. Roof-mounted curtain side-impact and rollover
supplemental air bags (P.1-39)
5. Front seats (P.1-3)6. Front seat-mounted side-impact supplemental
air bags (P.1-39)
7. Seat belt pretensioner (P.1-54)
8. Rear seats (P.1-5)
— Child restraints (P.1-19)
9. LATCH (Lower Anchors and Tethers for CHil-
dren) system (for rear seats) (P.1-21)10. Child restraint anchor point (for top tether strap)
(P.1-35)
SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
Page 18 of 508
JVC1070X
MR20DD ENGINE MODEL

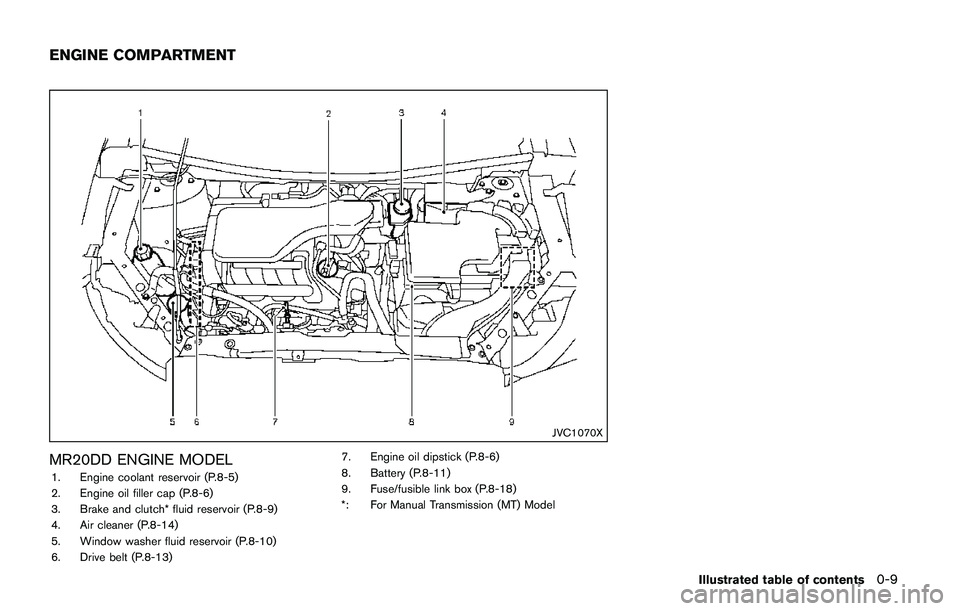

1. Engine coolant reservoir (P.8-5)
2. Engine oil filler cap (P.8-6)
3. Brake and clutch* fluid reservoir (P.8-9)
4. Air cleaner (P.8-14)
5. Window washer fluid reservoir (P.8-10)
6. Drive belt (P.8-13)7. Engine oil dipstick (P.8-6)
8. Battery (P.8-11)
9. Fuse/fusible link box (P.8-18)
*: For Manual Transmission (MT) Model
Illustrated table of contents0-9
ENGINE COMPARTMENT
Page 19 of 508
0-10Illustrated table of contents
Warning
lightNamePage
Anti-lock Braking System
(ABS) warning light2-10
Brake warning light (red)2-11
Charge warning light2-11
Electric power steering warning
light2-12
Electronic parking brake system
warning light (yellow) (if so
equipped)2-12
Electronic parking brake warn-
ing light (if so equipped)2-12
Forward Emergency Braking
(FEB) system warning light (if
so equipped)2-12
Low tire pressure warning light2-13
Master warning light2-14
Seat belt warning light2-15
Supplemental air bag warning
light2-15
Vehicle Dynamic Control (VDC)
warning light2-15Indicator
lightNamePage
All-Wheel Drive (AWD) LOCK
indicator light (if so equipped)2-16
Exterior light indicator2-16
Front fog light indicator light (if
so equipped)2-16
High beam assist indicator light
(if so equipped)2-16
High beam indicator light2-16
Malfunction Indicator Light
(MIL)2-16
Security indicator light2-17
Turn signal/hazard indicator
lights2-17
Vehicle Dynamic Control (VDC)
off indicator light2-17
WARNING AND INDICATOR LIGHTS
Page 20 of 508

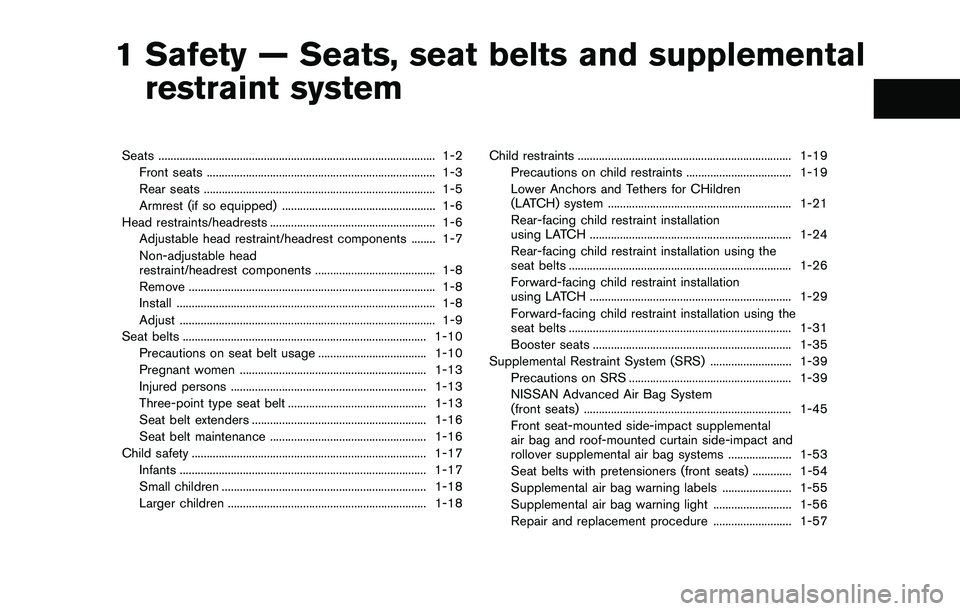

1 Safety — Seats, seat belts and supplemental
restraint system
Seats ............................................................................................ 1-2
Front seats ............................................................................ 1-3
Rear seats ............................................................................. 1-5
Armrest (if so equipped) ................................................... 1-6
Head restraints/headrests ....................................................... 1-6
Adjustable head restraint/headrest components ........ 1-7
Non-adjustable head
restraint/headrest components ........................................ 1-8
Remove .................................................................................. 1-8
Install ...................................................................................... 1-8
Adjust ..................................................................................... 1-9
Seat belts ................................................................................. 1-10
Precautions on seat belt usage .................................... 1-10
Pregnant women .............................................................. 1-13
Injured persons ................................................................. 1-13
Three-point type seat belt .............................................. 1-13
Seat belt extenders .......................................................... 1-16
Seat belt maintenance .................................................... 1-16
Child safety .............................................................................. 1-17
Infants .................................................................................. 1-17
Small children .................................................................... 1-18
Larger children .................................................................. 1-18Child restraints ....................................................................... 1-19
Precautions on child restraints ................................... 1-19
Lower Anchors and Tethers for CHildren
(LATCH) system ............................................................. 1-21
Rear-facing child restraint installation
using LATCH ................................................................... 1-24
Rear-facing child restraint installation using the
seat belts .......................................................................... 1-26
Forward-facing child restraint installation
using LATCH ................................................................... 1-29
Forward-facing child restraint installation using the
seat belts .......................................................................... 1-31
Booster seats .................................................................. 1-35
Supplemental Restraint System (SRS) ........................... 1-39
Precautions on SRS ...................................................... 1-39
NISSAN Advanced Air Bag System
(front seats) ..................................................................... 1-45
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact and
rollover supplemental air bag systems ..................... 1-53
Seat belts with pretensioners (front seats) ............. 1-54
Supplemental air bag warning labels ....................... 1-55
Supplemental air bag warning light .......................... 1-56
Repair and replacement procedure .......................... 1-57
Page 21 of 508
1-2Safety — Seats, seat belts and supplemental restraint system
SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
.For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sitwell back and upright in the seat
with both feet on the floor and
adjust the seat properly. See“Pre-
cautions on seat belt usage”(P.1-
10) .
.After adjustment, gently rock in the
seat to make sure it is securely
locked.
.Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents..To help avoid risk of injury or death
through unintended operation of
the vehicle and/or its systems, do
not leave children, people who re-
quire the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.
.Do not adjust the driver’s seat while
driving so full attention may be
given to vehicle operation. The seat
may move suddenly and could
cause loss of control of the vehicle.
.The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
SEATS
Page 22 of 508
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT SEATS
Front manual seat adjustment
WARNING
After adjusting a seat, gently shake the
seat to confirm that the seat is locked
securely. If the seat is not locked
securely, it may move suddenly and
could cause the loss of control of the
vehicle.JVR0332X
Forward and backward:
1. Pull up the adjusting lever
*1.
2. Slide the seat to the desired position.
3. Release the adjusting lever to lock the seat
in position.
Reclining:
1. Pull up the adjusting lever
*2.
2. Tilt the seatback to the desired position.
3. Release the adjusting lever to lock the
seatback in position.
The reclining feature allows the adjustment of
the seatback for occupants of different sizes to
help obtain the proper seat belt fit. (See “Seatbelts” (P.1-10) .)
The seatback may be reclined to allow occu-
pants to rest when the vehicle is parked.
Safety — Seats, seat belts and supplemental restraint system1-3
Page 23 of 508
1-4Safety — Seats, seat belts and supplemental restraint system
JVR0333X
Seat lifter (if so equipped):
Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Front power seat adjustment
Operating tips:
.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during the seat adjustment, wait 30
seconds, then reactivate the switch.
.To avoid discharge of the battery, do not
operate the power seats for a long period of
time when the engine is not running.
JVR0334X
Forward and backward:
Move forward or backward the adjusting switch
*1to the desired position.
Reclining:
Move forward or backward the adjusting switch
*2to the desired position.
The reclining feature allows the adjustment of
the seatback for occupants of different sizes to
help obtain the proper seat belt fit. (See “Seat
belts” (P.1-10) .)
The seatback may be reclined to allow occu-
pants to rest when the vehicle is parked.
