NISSAN ROGUE HYBRID 2017 2.G Owners Manual

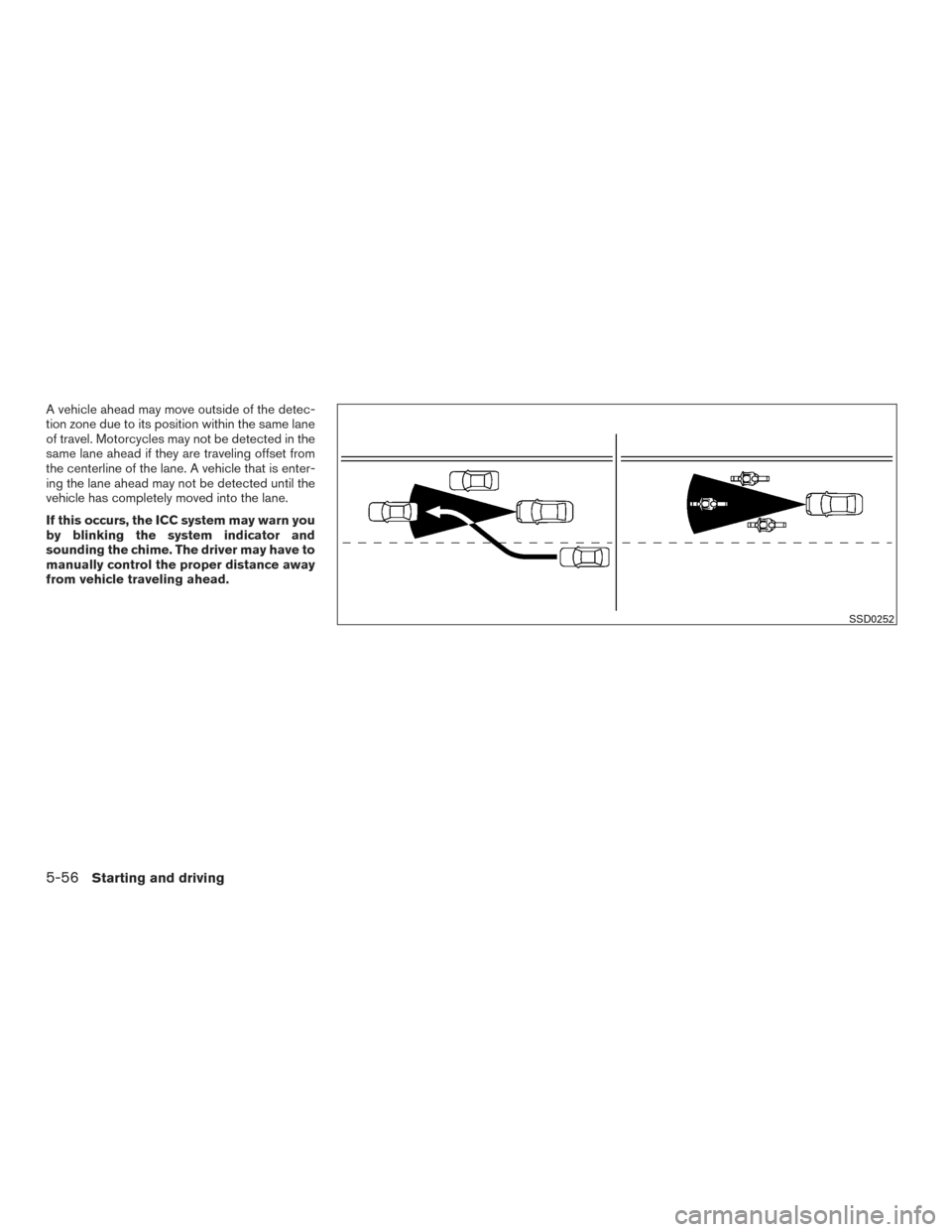

A vehicle ahead may move outside of the detec-
tion zone due to its position within the same lane
of travel. Motorcycles may not be detected in the
same lane ahead if they are traveling offset from
the centerline of the lane. A vehicle that is enter-
ing the lane ahead may not be detected until the
vehicle has completely moved into the lane.
If this occurs, the ICC system may warn you
by blinking the system indicator and
sounding the chime. The driver may have to
manually control the proper distance away
from vehicle traveling ahead.
SSD0252
5-56Starting and driving

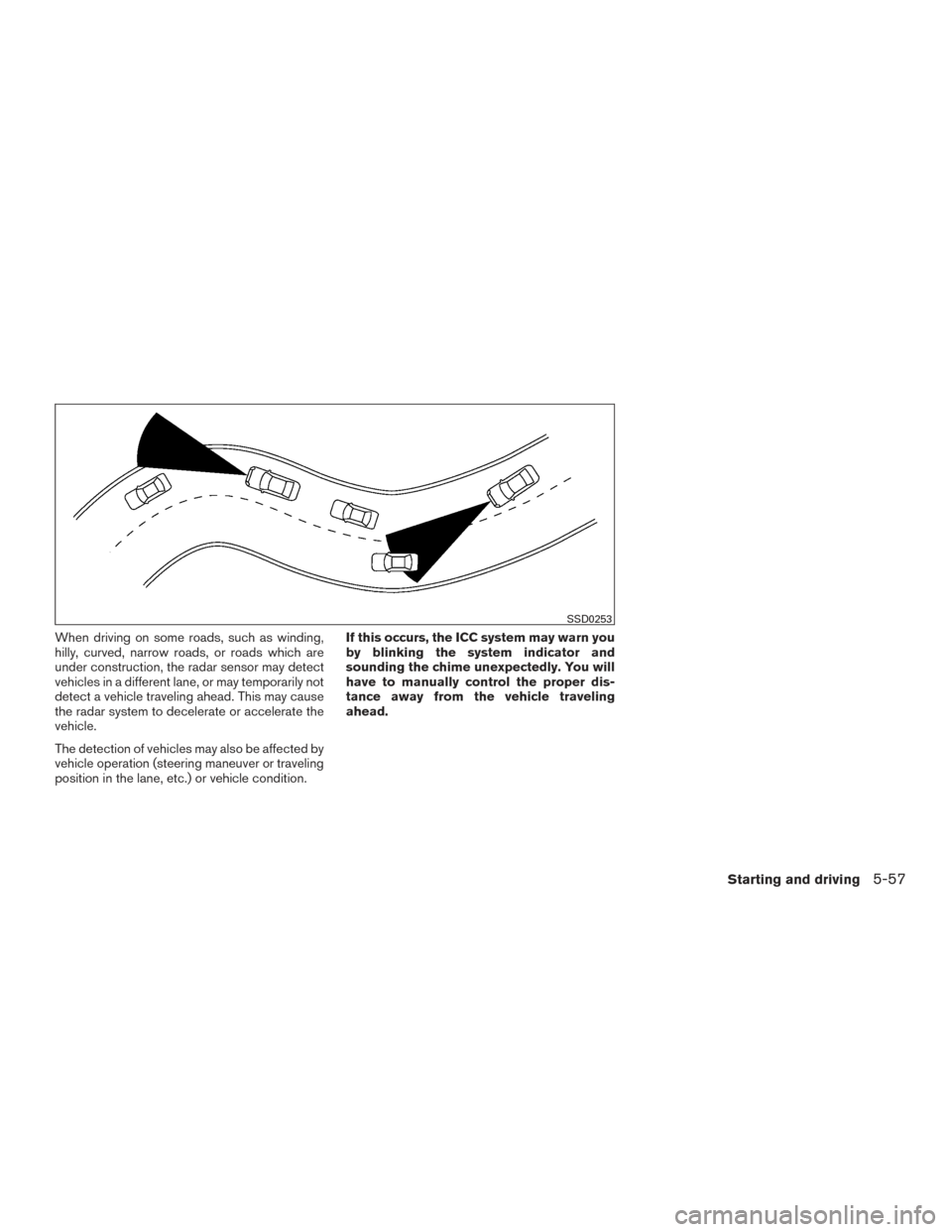

When driving on some roads, such as winding,
hilly, curved, narrow roads, or roads which are
under construction, the radar sensor may detect
vehicles in a different lane, or may temporarily not
detect a vehicle traveling ahead. This may cause
the radar system to decelerate or accelerate the
vehicle.
The detection of vehicles may also be affected by
vehicle operation (steering maneuver or traveling
position in the lane, etc.) or vehicle condition.If this occurs, the ICC system may warn you
by blinking the system indicator and
sounding the chime unexpectedly. You will
have to manually control the proper dis-
tance away from the vehicle traveling
ahead.
SSD0253
Starting and driving5-57

SYSTEM TEMPORARILY
UNAVAILABLE
The following are conditions in which the ICC
system may be temporarily unavailable. In these
instances, the ICC system may not cancel and
may not be able to maintain the selected follow-
ing distance from the vehicle ahead.
Condition A
Under the following conditions, the ICC system is
automatically canceled. A chime will sound and
the system will not be able to be set:● When the VDC system is turned off
● When the VDC or ABS operates
● When a vehicle ahead is not detected and
your vehicle is traveling below the speed of
15 mph (24 km/h)
● When the system judges the vehicle is at a
standstill
● When the shift lever is not in the D (Drive) or
Manual mode
● When the parking brake is applied
● When a wheel slips
● When the radar signal is temporarily inter-
rupted
LSD2684
5-58Starting and driving

Action to take
When the conditions listed above are no longer
present, turn the system off using the ICC
CRUISE ON/OFF switch. Turn the ICC system
back on to use the system.
Condition B
When the radar sensor area of the front bumper
is covered with dirt or is obstructed, the ICC
system will automatically be canceled.
The chime will sound and the “Unavailable: Front
Radar Obstruction” warning message will appear
in the vehicle information display.Action to take
If the warning message appears, stop the vehicle
in a safe place, place the shift lever in the P (Park)
position, and turn the hybrid system off. When the
radar signal is temporarily interrupted, clean the
sensor area of the front bumper and restart the
hybrid system. If the “Unavailable: Front Radar
Obstruction” warning message continues to be
displayed, it is recommended that you have the
ICC system checked by a NISSAN dealer.
Condition C
When the ICC system is not operating properly, a
chime sounds and the ICC system warning light
(orange) will come on.Action to take
If the warning light comes on, park the vehicle in a
safe place. Turn the hybrid system off, restart the
hybrid system, resume driving and set the ICC
system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still drivable under normal condi-
tions, have the vehicle checked. It is recom-
mended that you visit a NISSAN dealer for
this service.
LSD2685LSD2721
Starting and driving5-59

SYSTEM MAINTENANCE
The sensor for the ICC systemAis located on
the front of the vehicle.
To keep the ICC system operating properly, be
sure to observe the following:
● Always keep the sensor area clean.
● Do not strike or damage the areas around
the sensor.
● Do not attach a sticker (including transpar-
ent material) or install an accessory near the
sensor. This could cause failure or malfunc-
tion. ●
Do not attach metallic objects near the sen-
sor area (brush guard, etc.) This could cause
failure or malfunction.
● Do not alter, remove, or paint the front bum-
per. Before customizing or restoring the
front bumper, it is recommended that you
visit a NISSAN dealer.
Radio frequency statement
For USA
FCC ID OAYARS4B
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interfer- ence, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compliance
could void the user’s authority to operate the
equipment. For Canada
Model: ARS4–B
IC: 4135A-ARS4B
FCC ID: OAYARS4B
This device complies with Part 15 of the FCC
Rules and with Industry Canada licence-exempt
RSS standard(s) . Operation is subject to the
following two conditions:
1. This device may not cause harmful interfer- ence, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils ra-
dio exempts de licence. L’exploitation est autori-
sée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage, et
2. L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en comprom-
ettre le fonctionnement.
LSD2690
5-60Starting and driving

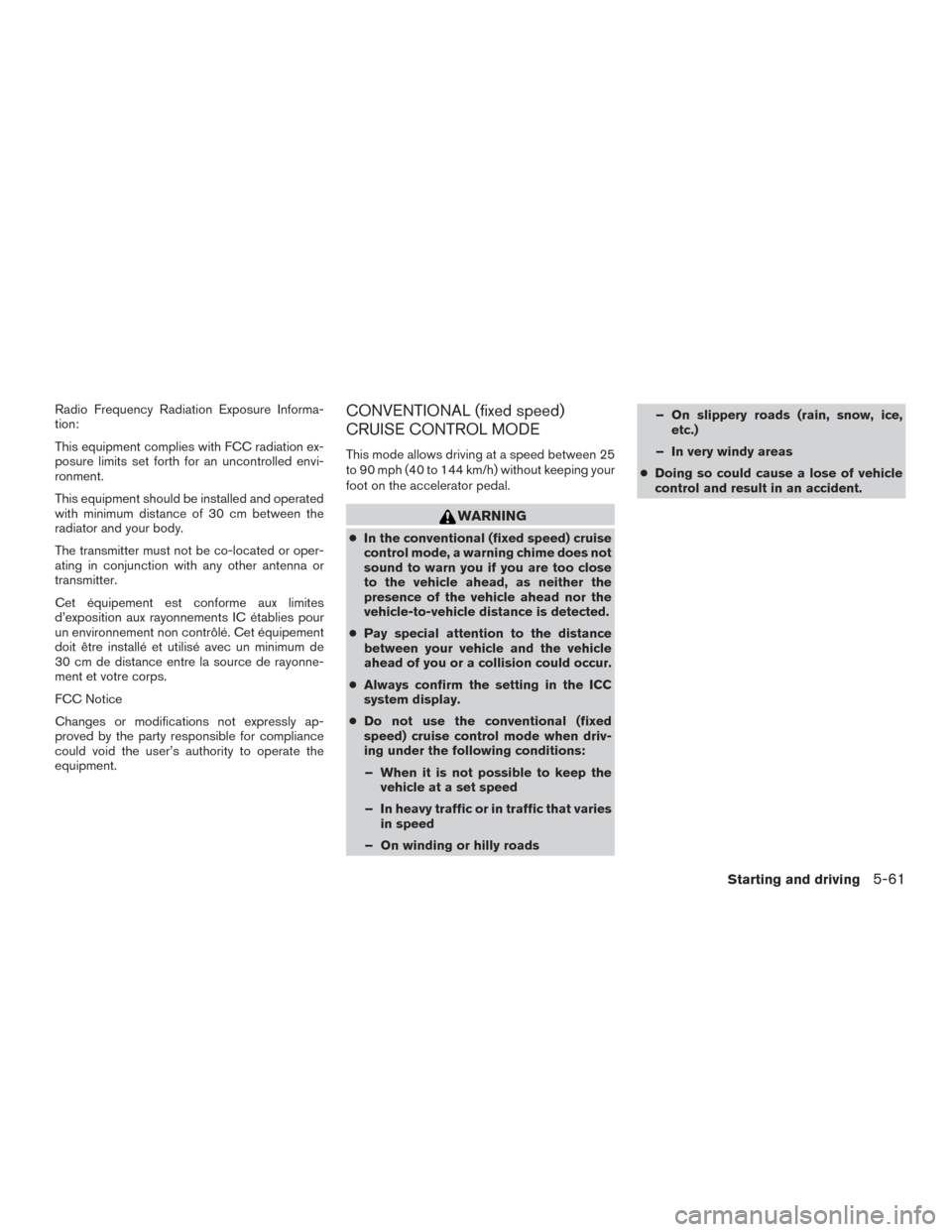

Radio Frequency Radiation Exposure Informa-
tion:
This equipment complies with FCC radiation ex-
posure limits set forth for an uncontrolled envi-
ronment.
This equipment should be installed and operated
with minimum distance of 30 cm between the
radiator and your body.
The transmitter must not be co-located or oper-
ating in conjunction with any other antenna or
transmitter.
Cet équipement est conforme aux limites
d’exposition aux rayonnements IC établies pour
un environnement non contrôlé. Cet équipement
doit être installé et utilisé avec un minimum de
30 cm de distance entre la source de rayonne-
ment et votre corps.
FCC Notice
Changes or modifications not expressly ap-
proved by the party responsible for compliance
could void the user’s authority to operate the
equipment.CONVENTIONAL (fixed speed)
CRUISE CONTROL MODE
This mode allows driving at a speed between 25
to 90 mph (40 to 144 km/h) without keeping your
foot on the accelerator pedal.
WARNING
●In the conventional (fixed speed) cruise
control mode, a warning chime does not
sound to warn you if you are too close
to the vehicle ahead, as neither the
presence of the vehicle ahead nor the
vehicle-to-vehicle distance is detected.
● Pay special attention to the distance
between your vehicle and the vehicle
ahead of you or a collision could occur.
● Always confirm the setting in the ICC
system display.
● Do not use the conventional (fixed
speed) cruise control mode when driv-
ing under the following conditions:
– When it is not possible to keep the vehicle at a set speed
– In heavy traffic or in traffic that varies in speed
– On winding or hilly roads – On slippery roads (rain, snow, ice,
etc.)
– In very windy areas
● Doing so could cause a lose of vehicle
control and result in an accident.
Starting and driving5-61

Conventional (fixed speed) cruise
control switches
1. CANCEL switch:Deactivates the system without erasing the
set speed
2. RES/+ switch: Resumes set speed or increases speed in-
crementally
3. SET/- switch: Sets desired cruise speed or reduces speed
incrementally
4. CRUISE ON/OFF switch: Master switch to activate the system
Conventional (fixed speed) cruise
control mode display and indicators
The display is located in the vehicle information
display.
1. Cruise indicator: This indicator indicates the condition of the
ICC system depending on a color.
● Cruise control ON indicator (gray): Indi-
cates that the CRUISE ON/OFF switch is
ON
● Cruise control SET indicator (green): In-
dicates that the cruising speed is set ●
Cruise control warning (yellow): Indicates
that there is a malfunction in the ICC
system
2. Set vehicle speed indicator: This indicator indicates the set vehicle
speed. For Canadian models, the speed is
displayed in km/h.
LSD2723LSD2724
5-62Starting and driving

Operating conventional (fixed speed)
cruise control mode
To turn on the conventional (fixed speed) cruise
control mode, push and hold the CRUISE
ON/OFF switch
Afor longer than about
1.5 seconds.
When pushing CRUISE ON/OFF switch on, the
conventional (fixed speed) cruise control mode
display and indicators
Bare displayed in the
vehicle information display. After you hold the
CRUISE ON/OFF switch on for longer than
about 1.5 seconds, the ICC system display turns
off. The cruise indicator appears. You can now
set your desired cruising speed. Pushing the CRUISE ON/OFF switch again will turn the sys-
tem completely off. When the ignition switch is
placed in the OFF position, the system is also
automatically turned off.
To use the ICC system again, quickly push and
release the CRUISE ON/OFF switch (vehicle-to
vehicle distance control mode) or push and hold
it (conventional cruise control mode) again to turn
it on.
CAUTION
To avoid accidentally engaging cruise con-
trol, make sure to turn the CRUISE
ON/OFF switch off when not using the ICC
system.
To set cruising speed, accelerate your vehicle to
the desired speed, push the SET/-
Cswitch and
release it. (The color of the cruise indicator
changes to green and set vehicle speed indicator
comes on.) Take your foot off the accelerator
pedal. Your vehicle will maintain the set speed.
● To pass another vehicle, depress the accel-
erator pedal. When you release the pedal,
the vehicle will return to the previously set
speed.
● The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, manually maintain vehicle speed.
LSD2725LSD2726
Starting and driving5-63

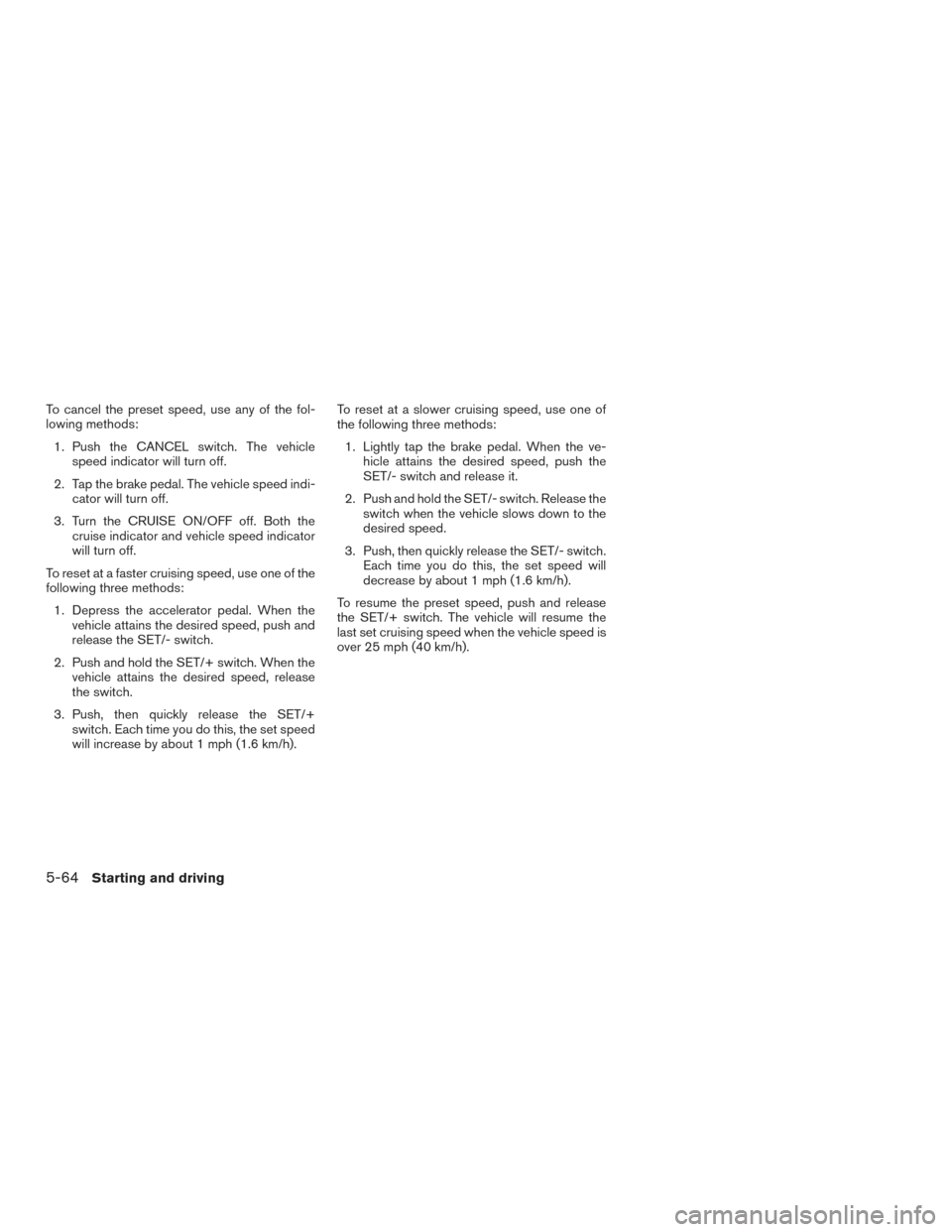

To cancel the preset speed, use any of the fol-
lowing methods:1. Push the CANCEL switch. The vehicle speed indicator will turn off.
2. Tap the brake pedal. The vehicle speed indi- cator will turn off.
3. Turn the CRUISE ON/OFF off. Both the cruise indicator and vehicle speed indicator
will turn off.
To reset at a faster cruising speed, use one of the
following three methods: 1. Depress the accelerator pedal. When the vehicle attains the desired speed, push and
release the SET/- switch.
2. Push and hold the SET/+ switch. When the vehicle attains the desired speed, release
the switch.
3. Push, then quickly release the SET/+ switch. Each time you do this, the set speed
will increase by about 1 mph (1.6 km/h). To reset at a slower cruising speed, use one of
the following three methods:
1. Lightly tap the brake pedal. When the ve- hicle attains the desired speed, push the
SET/- switch and release it.
2. Push and hold the SET/- switch. Release the switch when the vehicle slows down to the
desired speed.
3. Push, then quickly release the SET/- switch. Each time you do this, the set speed will
decrease by about 1 mph (1.6 km/h).
To resume the preset speed, push and release
the SET/+ switch. The vehicle will resume the
last set cruising speed when the vehicle speed is
over 25 mph (40 km/h).
5-64Starting and driving

System temporarily unavailable
A chime sounds under the following conditions
and the control is automatically canceled:● When the vehicle slows down more than
8 mph (13 km/h) below the set speed
● When the shift lever is not in the D (Drive) or
manual shift mode
● When the parking brake is applied
● When the VDC operates (including the trac-
tion control system)
● When a wheel slips
When the system is not operating properly, the
chime sounds and the color of the cruise indica-
tor will change to orange.
Action to take
If the color of the cruise indicator changes to
orange, stop the vehicle in a safe place and place
the shift lever in the P (Park) position. Turn the
hybrid system off, restart the hybrid system, re-
sume driving, and then perform the setting again.
If it is not possible to set or the indicator
stays on, it may indicate that the system is
malfunctioning. Although the vehicle is still
driveable under normal conditions, have the
vehicle checked. It is recommended that you
visit a NISSAN dealer for this service.
LSD2684
Starting and driving5-65
