DTC P0122, P0123 TP SENSOR
EC-139
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureBBS005DI
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to E C - 111 , "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
47 GSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V
49 W Throttle position sensor 1[Ignition switch: ON]
Engine stopped
Shift lever: D
Accelerator pedal: Fully releasedMore than 0.36V
[Ignition switch: ON]
Engine stopped
Shift lever: D
Accelerator pedal: Fully depressedLess than 4.75V
66 BSensor ground
(Throttle position sensor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
68 R Throttle position sensor 2[Ignition switch: ON]
Shift lever: D
Accelerator pedal: Fully releasedLess than 4.75V
[Ignition switch: ON]
Shift lever: D
Accelerator pedal: Fully depressedMore than 0.36V
91 PSensor power supply
(Accelerator pedal position
sensor 2)[Ignition switch: ON]Approximately 5V
PBIB2160E
Page 1422 of 3502
![NISSAN TEANA 2003 Service Manual EC-140
[QR]
DTC P0122, P0123 TP SENSOR
2. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.
3. C NISSAN TEANA 2003 Service Manual EC-140
[QR]
DTC P0122, P0123 TP SENSOR
2. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.
3. C](/img/5/57392/w960_57392-1421.png)
EC-140
[QR]
DTC P0122, P0123 TP SENSOR
2. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.
3. Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 1 and ECM terminal 47.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace open circuit.
4. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 5.
NG >> Repair short to ground or short to power in harness or connectors.
5. CHECK APP SENSOR
Refer to EC-264, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 6.
PBIB2129E
Voltage: Approximately 5V
PBIB0082E
Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 1EC-138
91 APP sensor terminal 1EC-260
Page 1423 of 3502
![NISSAN TEANA 2003 Service Manual DTC P0122, P0123 TP SENSOR
EC-141
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-47, "
Accelerator Pedal Released Position NISSAN TEANA 2003 Service Manual DTC P0122, P0123 TP SENSOR
EC-141
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-47, "
Accelerator Pedal Released Position](/img/5/57392/w960_57392-1422.png)
DTC P0122, P0123 TP SENSOR
EC-141
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-47, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-47, "
Throttle Valve Closed Position Learning" .
4. Perform EC-47, "
Idle Air Volume Learning" .
>>INSPECTION END
7. CHECK THROTTLE POSITION SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 5 and ECM terminal 66.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK THROTTLE POSITION SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between electric throttle control actuator terminal 2 and ECM terminal 68.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK THROTTLE POSITION SENSOR
Refer to EC-142, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-47, "
Throttle Valve Closed Position Learning" .
3. Perform EC-47, "
Idle Air Volume Learning" .
>>INSPECTION END
11 . CHECK INTERMITTENT INCIDENT
Refer to EC-105, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Continuity should exist.
Page 1424 of 3502
![NISSAN TEANA 2003 Service Manual EC-142
[QR]
DTC P0122, P0123 TP SENSOR
Component InspectionBBS005DJ
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-47, "
Throttle Valve Closed Position Lear NISSAN TEANA 2003 Service Manual EC-142
[QR]
DTC P0122, P0123 TP SENSOR
Component InspectionBBS005DJ
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-47, "
Throttle Valve Closed Position Lear](/img/5/57392/w960_57392-1423.png)
EC-142
[QR]
DTC P0122, P0123 TP SENSOR
Component InspectionBBS005DJ
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-47, "
Throttle Valve Closed Position Learning" .
3. Turn ignition switch ON.
4. Set selector lever to D position.
5. Check voltage between ECM terminals 49 (TP sensor 1 signal),
68 (TP sensor 2 signal) and ground under the following condi-
tions.
6. If NG, replace electric throttle control actuator and go to the next
step.
7. Perform EC-47, "
Throttle Valve Closed Position Learning" .
8. Perform EC-47, "
Idle Air Volume Learning" .
Removal and InstallationBBS005DK
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-19, "INTAKE MANIFOLD" .
Terminal Accelerator pedal Voltage
49
(Throttle position sensor 1)Fully released More than 0.36V
Fully depressed Less than 4.75V
68
(Throttle position sensor 2)Fully released Less than 4.75V
Fully depressed More than 0.36V
PBIB2170E
Page 1425 of 3502
![NISSAN TEANA 2003 Service Manual DTC P0132 HO2S1
EC-143
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0132 HO2S1PFP:22690
Component DescriptionBBS005DL
The heated oxygen sensor 1 is placed into the exhaust manifold. It
detects the amount of NISSAN TEANA 2003 Service Manual DTC P0132 HO2S1
EC-143
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0132 HO2S1PFP:22690
Component DescriptionBBS005DL
The heated oxygen sensor 1 is placed into the exhaust manifold. It
detects the amount of](/img/5/57392/w960_57392-1424.png)
DTC P0132 HO2S1
EC-143
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0132 HO2S1PFP:22690
Component DescriptionBBS005DL
The heated oxygen sensor 1 is placed into the exhaust manifold. It
detects the amount of oxygen in the exhaust gas compared to the
outside air. The heated oxygen sensor 1 has a closed-end tube
made of ceramic zirconia. The zirconia generates voltage from
approximately 1V in richer conditions to 0V in leaner conditions. The
heated oxygen sensor 1 signal is sent to the ECM. The ECM adjusts
the injection pulse duration to achieve the ideal air-fuel ratio. The
ideal air-fuel ratio occurs near the radical change from 1V to 0V.
CONSULT-II Reference Value in Data Monitor ModeBBS005DM
Specification data are reference values.
On Board Diagnosis LogicBBS005DN
To judge the malfunction, the diagnosis checks that the heated oxy-
gen sensor 1 output is not inordinately high.
SEF463R
SEF288D
MONITOR ITEM CONDITION SPECIFICATION
HO2S1 (B1)
Engine: After warming upMaintaining engine speed at 2,000
rpm0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S1 MNTR (B1)LEAN ←→ RICH
Changes more than 5 times dur-
ing 10 seconds.
PBIB1847E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0132
0132Heated oxygen sensor 1
circuit high voltageAn excessively high voltage from the sensor
is sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted.)
Heated oxygen sensor 1
Page 1426 of 3502
![NISSAN TEANA 2003 Service Manual EC-144
[QR]
DTC P0132 HO2S1
DTC Confirmation ProcedureBBS005DO
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before NISSAN TEANA 2003 Service Manual EC-144
[QR]
DTC P0132 HO2S1
DTC Confirmation ProcedureBBS005DO
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before](/img/5/57392/w960_57392-1425.png)
EC-144
[QR]
DTC P0132 HO2S1
DTC Confirmation ProcedureBBS005DO
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “DATA MONITOR” mode with CONSULT-II.
5. Restart engine and let it idle for 2 minutes.
6. If 1st trip DTC is detected, go to EC-146, "
Diagnostic Procedure"
.
WITHOUT CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Restart engine and let it idle for 2 minutes.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
6. If 1st trip DTC is detected, go to EC-146, "
Diagnostic Procedure" .
SEF174Y
Page 1427 of 3502
![NISSAN TEANA 2003 Service Manual DTC P0132 HO2S1
EC-145
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

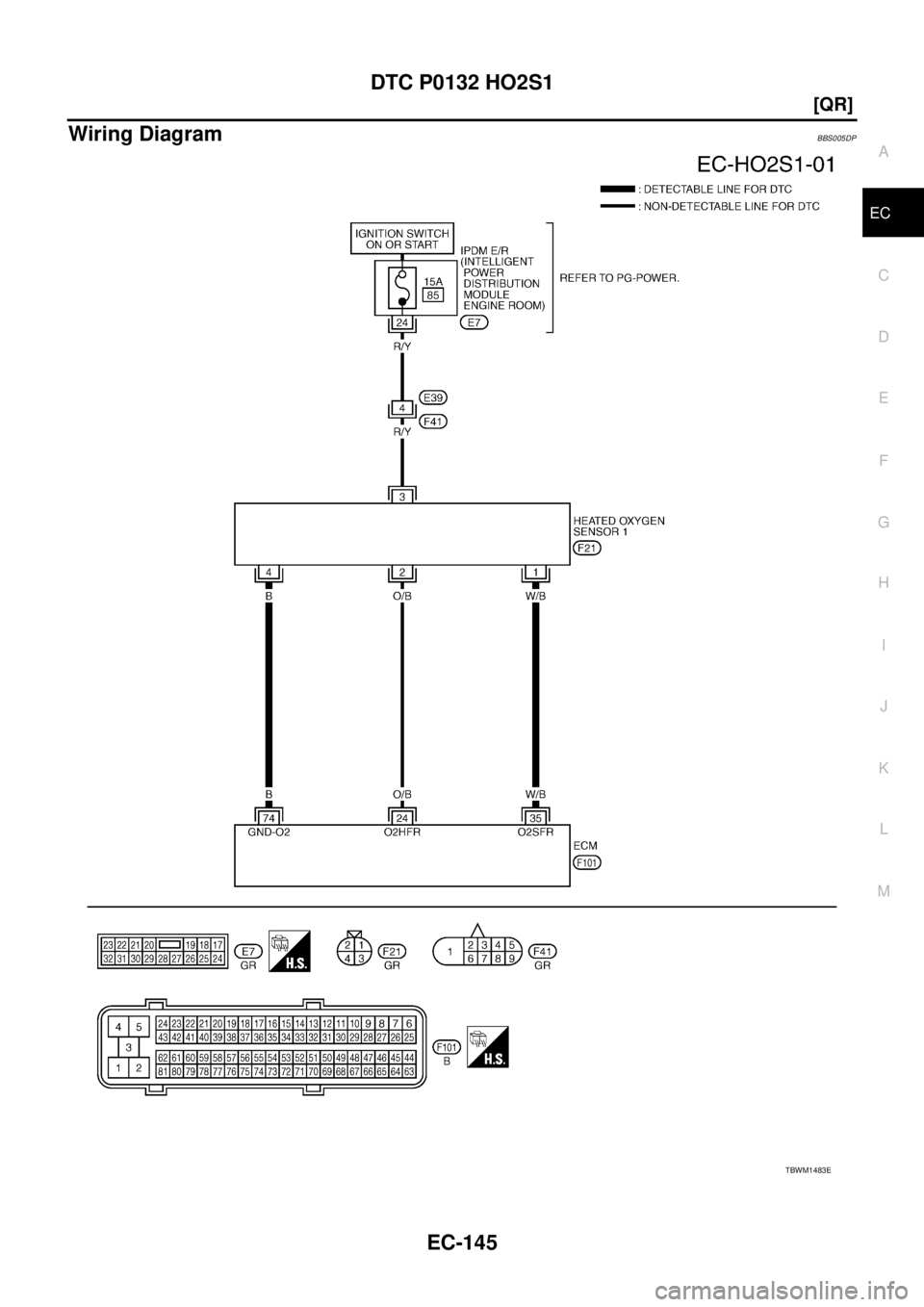

Wiring DiagramBBS005DP
TBWM1483E NISSAN TEANA 2003 Service Manual DTC P0132 HO2S1
EC-145
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramBBS005DP
TBWM1483E](/img/5/57392/w960_57392-1426.png)
DTC P0132 HO2S1
EC-145
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramBBS005DP
TBWM1483E
Page 1428 of 3502
![NISSAN TEANA 2003 Service Manual EC-146
[QR]
DTC P0132 HO2S1
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminal NISSAN TEANA 2003 Service Manual EC-146
[QR]
DTC P0132 HO2S1
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminal](/img/5/57392/w960_57392-1427.png)
EC-146
[QR]
DTC P0132 HO2S1
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureBBS005DQ
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to E C - 111 , "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
24 O/BHeated oxygen sensor 1
heater[Engine is running]
Warm-up condition
Engine speed: Below 3,600 rpmApproximately 7.0V
[Engine is running]
Engine speed: Above 3,600 rpmBATTERY VOLTAGE
(11 - 14V)
35 W/B Heated oxygen sensor 1[Engine is running]
Warm-up condition
Engine speed: 2,000 rpm0 - Approximately 1.0V
(Periodically change)
74 BSensor ground
(Heated oxygen sensor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
PBIB0519E
PBIB2160E
Page 1429 of 3502
![NISSAN TEANA 2003 Service Manual DTC P0132 HO2S1
EC-147
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. RETIGHTEN HEATED OXYGEN SENSOR 1
Loosen and retighten heated oxygen sensor 1.
>> GO TO 3.
3. CHECK HO2S1 GROUND CIRCUIT FOR OPEN AND SHORT
1. NISSAN TEANA 2003 Service Manual DTC P0132 HO2S1
EC-147
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. RETIGHTEN HEATED OXYGEN SENSOR 1
Loosen and retighten heated oxygen sensor 1.
>> GO TO 3.
3. CHECK HO2S1 GROUND CIRCUIT FOR OPEN AND SHORT
1.](/img/5/57392/w960_57392-1428.png)
DTC P0132 HO2S1
EC-147
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. RETIGHTEN HEATED OXYGEN SENSOR 1
Loosen and retighten heated oxygen sensor 1.
>> GO TO 3.
3. CHECK HO2S1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Disconnect heated oxygen sensor 1 harness connector.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 74 and HO2S1
terminal 4.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
4. CHECK HO2S1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 35 and HO2S1 terminal 1.
Refer to Wiring Diagram.
2. Check harness continuity between ECM terminal 35 or HO2S1 terminal 1 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK HO2S1 CONNECTOR FOR WATER
Check heated oxygen sensor 1 connectors for water.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace harness or connectors.Tightening torque: 40 - 60 N·m (4.1 - 6.2 kg-m, 30 - 44 ft-lb)
PBIB2135E
Continuity should exist.
PBIB2136E
Continuity should exist.
Continuity should not exist.
Water should not exist.
Page 1430 of 3502
![NISSAN TEANA 2003 Service Manual EC-148
[QR]
DTC P0132 HO2S1
6. CHECK HEATED OXYGEN SENSOR 1
Refer to EC-148, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace heated oxygen sensor 1.
7. CHECK INTERMITTENT INCIDENT
Re NISSAN TEANA 2003 Service Manual EC-148
[QR]
DTC P0132 HO2S1
6. CHECK HEATED OXYGEN SENSOR 1
Refer to EC-148, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace heated oxygen sensor 1.
7. CHECK INTERMITTENT INCIDENT
Re](/img/5/57392/w960_57392-1429.png)
EC-148
[QR]
DTC P0132 HO2S1
6. CHECK HEATED OXYGEN SENSOR 1
Refer to EC-148, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace heated oxygen sensor 1.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-105, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionBBS005DR
HEATED OXYGEN SENSOR 1
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “MANU TRIG” and adjust “TRIGGER POINT” to 100% in “DATA MONITOR” mode with CONSULT-
II.
3. Select “HO2S1 (B1)” and “HO2S1 MNTR (B1)”.
4. Hold engine speed at 2,000 rpm under no load during the follow-
ing steps.
5. Touch “RECORD” on CONSULT-II screen.
6. Check the following.
“HO2S1 MNTR (B1)” in “DATA MONITOR” mode changes
from “RICH” to “LEAN” to “RICH” more than 5 times in 10 sec-
onds.
5 times (cycles) are counted as shown at right.
“HO2S1 (B1)” voltage goes above 0.6V at least once.
“HO2S1 (B1)” voltage goes below 0.3V at least once.
“HO2S1 (B1)” voltage never exceeds 1.0V.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
SEF646Y
SEF217YA
SEF648Y
