A/T 3RD GEAR FUNCTIONPFP:31940
DescriptionBCS0013B

This malfunction will not be detected while A/T CHECK indicator lamp is indicating another self-diagnosis
malfunction.

This malfunction is detected when A/T does not shift into third gear position as instructed by TCM. This is
not caused by electrical malfunction (circuits open or shorted) but by mechanical malfunction such as con-
trol valve sticking, improper solenoid valve operation, malfunctioning servo piston or brake band, etc.
On Board Diagnosis LogicBCS0013C

This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (3rd) supposed by TCM, the slip ratio will be more
than normal. In case the ratio exceeds the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when shift solenoid valve A is stuck closed.

Gear positions supposed by TCM are as follows.
In case of gear position with no malfunctions: 1, 2, 3 and 4 positions
In case of gear position with shift solenoid valve A stuck closed: 1, 1, 4* and 4 positions to each gear
position above
*: “A/T 3RD GR FNCTN” is detected.

Diagnostic trouble code “A/T 3RD GR FNCTN” with CONSULT-II is detected when A/T cannot be shifted
to the 3rd gear position even if electrical circuit is good.
Possible CauseBCS0013D

Shift solenoid valve A

Each clutch

Hydraulic control circuit
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)

AT-144
A/T 3RD GEAR FUNCTION

DTC Confirmation ProcedureBCS0013E
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
TESTING CONDITION:
Always drive vehicle on a level road to improve the accuracy of test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.
2. Make sure that output voltage of A/T fluid temperature sensor is
within the range below.
FLUID TEMP SE: 0.4 - 1.5 V
If out of range, drive vehicle to decrease the voltage (warm up
the fluid) or stop engine to increase the voltage (cool down the
fluid).
3. Select “3RD GR FNCTN P0733” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
4. Accelerate vehicle to 60 to 75 km/h (37 to 47 MPH) under the following condition and release accelerator
pedal completely.
THROTTLE POSI: Less than 1.0/8 (at all times during step 4)
SLCT LVR POSI: “D” position
–Make sure that “GEAR” shows “4” after releasing pedal.
5. Depress accelerator pedal steadily with 3.5/8 - 4.5/8 of “THROTTLE POSI” from a speed of 60 to 75 km/h
(37 to 47 MPH) until “TESTING” changes to “STOP VEHICLE” or “COMPLETED”. (It will take approxi-
mately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to AT- 1 4 5 , "
Diagnostic Procedure" .
If “STOP VEHICLE” appears on CONSULT-II screen, go to following step.
–Make sure that “GEAR” shows “3” when depressing accelerator pedal with 3.5/8 - 4.5/8 of
“THROTTLE POSI”.
–If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS” for
“A/T”. In case a 1st trip DTC other than “A/T 3RD GR FNCTN” is shown, refer to applicable “TROU-
BLE DIAGNOSIS FOR DTC”.
6. Stop vehicle.
7. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
8. Make sure that “OK” is displayed. (If “NG” is displayed, refer to AT- 1 4 5 , "
Diagnostic Procedure" .)
Refer to AT- 5 4 , "
Vehicle Speed Which Gear Shifting Occurs" .
BCIA0031E
Vehicle condition Gear on actual transmission shift pattern when screen is changed to 1 → 2 → 3 → 4
No malfunction exists. 1 → 2 → 3 → 4
Malfunction for “A/T 3RD GR
FNCTN” exists.1 → 1 → 4 → 4

A/T 3RD GEAR FUNCTION
AT-145
D
E
F
G
H
I
J
K
L
MA
B
AT

Diagnostic ProcedureBCS0013F
1. CHECK VALVE RESISTANCE
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .

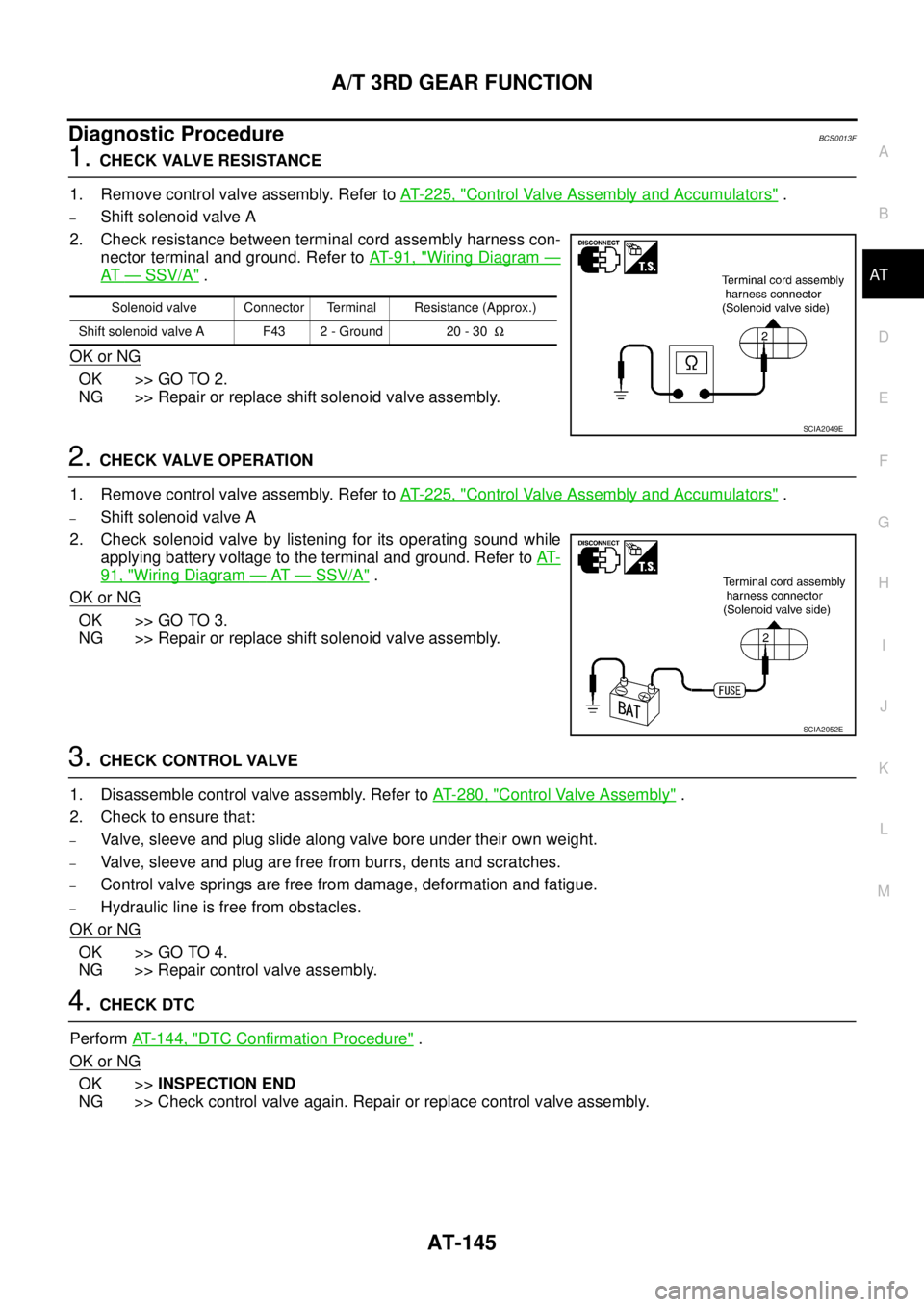

–Shift solenoid valve A
2. Check resistance between terminal cord assembly harness con-
nector terminal and ground. Refer to AT- 9 1 , "
Wiring Diagram —
AT — SSV/A" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace shift solenoid valve assembly.
2. CHECK VALVE OPERATION
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
–Shift solenoid valve A
2. Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground. Refer to AT-
91, "Wiring Diagram — AT — SSV/A" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace shift solenoid valve assembly.
3. CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to AT- 2 8 0 , "
Control Valve Assembly" .
2. Check to ensure that:
–Valve, sleeve and plug slide along valve bore under their own weight.
–Valve, sleeve and plug are free from burrs, dents and scratches.
–Control valve springs are free from damage, deformation and fatigue.
–Hydraulic line is free from obstacles.
OK or NG
OK >> GO TO 4.
NG >> Repair control valve assembly.
4. CHECK DTC
Perform AT- 1 4 4 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> Check control valve again. Repair or replace control valve assembly.
Solenoid valve Connector Terminal Resistance (Approx.)
Shift solenoid valve A F43 2 - Ground 20 - 30Ω
SCIA2049E
SCIA2052E

AT-146
A/T 4TH GEAR FUNCTION

A/T 4TH GEAR FUNCTIONPFP:31940
DescriptionBCS0013G

This malfunction will not be detected while A/T CHECK indicator lamp is indicating another self-diagnosis
malfunction.

This malfunction is detected when A/T does not shift into fourth gear position or the torque converter
clutch does not lock up as instructed by TCM. This is not caused by electrical malfunction (circuits open or
shorted) but by mechanical malfunction such as control valve sticking, improper solenoid valve operation,
malfunctioning oil pump or torque converter clutch, etc.
CONSULT-II Reference Value BCS0026N
On Board Diagnosis LogicBCS0013H

This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is much lower than the position (4th) supposed by TCM, the slip ratio will be
much less than normal. In case the ratio does not reach the specified value, TCM judges this diagnosis
malfunction.
This malfunction will be caused when shift solenoid valve B is stuck closed.

Gear positions supposed by TCM are as follows.
In case of gear position with no malfunctions: 1, 2, 3 and 4 positions
In case of gear position with shift solenoid valve A stuck open: 2, 2, 3 and 3* position
In case of gear position with shift solenoid valve B stuck closed: 1, 2, 2 and 1* positions to each gear
position above
*: “A/T 4TH GR FNCTN” is detected.

Diagnostic trouble code “A/T 4TH GR FNCTN” with CONSULT-II is detected when A/T cannot be shifted
to the 4th gear position even if electrical circuit is good.
Possible CauseBCS0013I

Shift solenoid valve A

Shift solenoid valve B

Line pressure solenoid valve

Each clutch

Hydraulic control circuit
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Item name Condition Display value (Approx.)
LINE PRES DTYSmall throttle opening (Low line pressure) ⇔ Large throttle opening
(High line pressure)0% ⇔ 92%

A/T 4TH GEAR FUNCTION
AT-147
D
E
F
G
H
I
J
K
L
MA
B
AT

DTC Confirmation ProcedureBCS0013J
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
TESTING CONDITION:
Always drive vehicle on a level road to improve the accuracy of test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.
2. Make sure that output voltage of A/T fluid temperature sensor is
within the range below.
FLUID TEMP SE: 0.4 - 1.5 V
If out of range, drive vehicle to decrease the voltage (warm up
the fluid) or stop engine to increase the voltage (cool down the
fluid).
3. Select “4TH GR FNCTN P0734” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
4. Accelerate vehicle to 55 to 65 km/h (34 to 40 MPH) under the
following condition and release accelerator pedal completely.
THROTTLE POSI: Less than 5.5/8 (at all times during step 4)
SLCT LVR POSI: “D” position
–Make sure that “GEAR” shows “3” after releasing pedal.
5. Depress accelerator pedal steadily with 1.0/8 - 2.0/8 of “THROTTLE POSI” from a speed of 55 to 65 km/h
(34 to 40 MPH) until “TESTING” has turned to “STOP VEHICLE” or “COMPLETED”. (It will take approxi-
mately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to AT- 1 4 7 , "
Diagnostic Procedure" .
If “STOP VEHICLE” appears on CONSULT-II screen, go to following step.
–Make sure that “GEAR” shows “4” when depressing accelerator pedal with 1.0/8 - 2.0/8 of
“THROTTLE POSI”.
–If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS” for
“A/T”. In case a 1st trip DTC other than “A/T 4TH GR FNCTN” is shown, refer to applicable “TROU-
BLE DIAGNOSIS FOR DTC”.
6. Stop vehicle.
7. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
8. Make sure that “OK” is displayed. (If “NG” is displayed, refer to AT- 1 4 7 , "
Diagnostic Procedure" .)
Refer to AT- 5 4 , "
Vehicle Speed Which Gear Shifting Occurs" .
Diagnostic ProcedureBCS0013K
1. CHECK SHIFT-UP (D3 TO D4 )
During AT- 5 0 , "
Cruise Test — Part 1" .
Does A/T shift from D
3 to D4 at the specified speed?
YES >> GO TO 11.
NO >> GO TO 2.
BCIA0031E
Vehicle condition Gear on actual transmission shift pattern when screen is changed to 1 → 2 → 3 → 4
No malfunction exists 1 → 2 → 3 → 4
Malfunction for “A/T 4TH GR
FNCTN” exists.2 → 2 → 3 → 3
1 → 2 → 2 → 1

AT-148
A/T 4TH GEAR FUNCTION

2. CHECK LINE PRESSURE
Perform line pressure test. Refer to AT- 4 6 , "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 3.
NG >> GO TO 7.

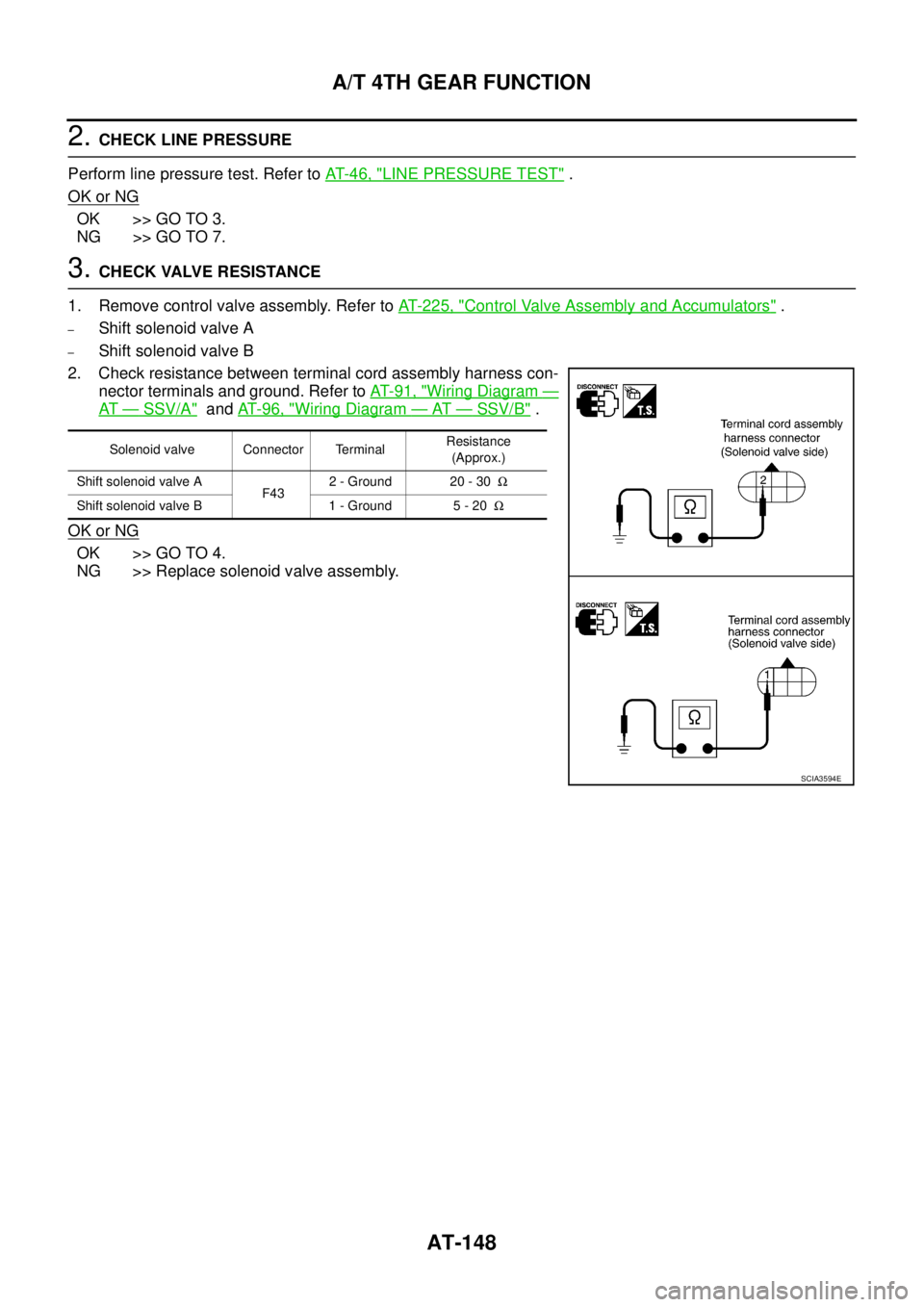

3. CHECK VALVE RESISTANCE
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
–Shift solenoid valve A
–Shift solenoid valve B
2. Check resistance between terminal cord assembly harness con-
nector terminals and ground. Refer to AT- 9 1 , "
Wiring Diagram —
AT — SSV/A" and AT- 9 6 , "Wiring Diagram — AT — SSV/B" .
OK or NG
OK >> GO TO 4.
NG >> Replace solenoid valve assembly.
Solenoid valve Connector TerminalResistance
(Approx.)
Shift solenoid valve A
F432 - Ground 20 - 30Ω
Shift solenoid valve B 1 - Ground 5 - 20Ω
SCIA3594E

A/T 4TH GEAR FUNCTION
AT-149
D
E
F
G
H
I
J
K
L
MA
B
AT

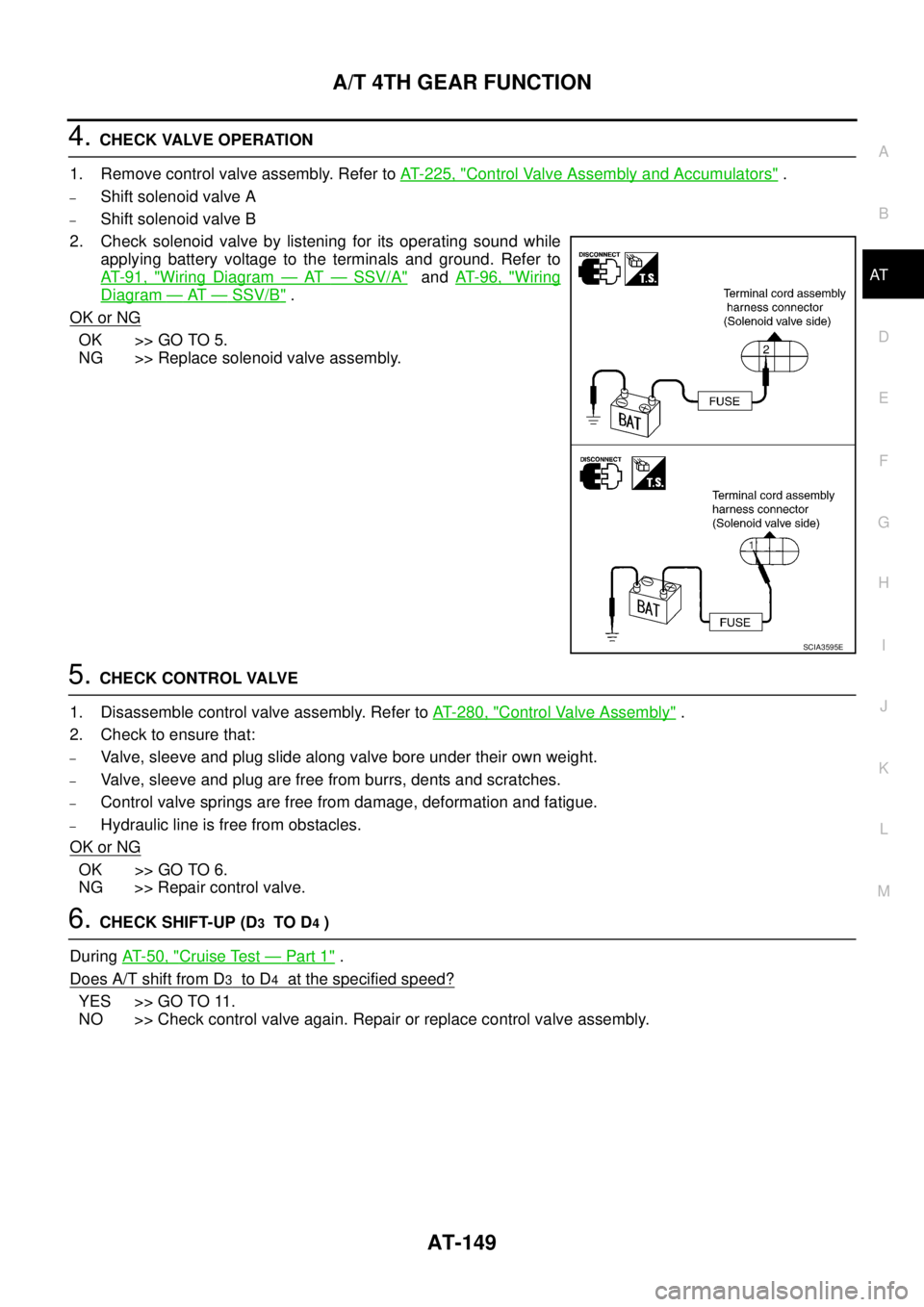

4. CHECK VALVE OPERATION
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
–Shift solenoid valve A
–Shift solenoid valve B
2. Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminals and ground. Refer to
AT- 9 1 , "
Wiring Diagram — AT — SSV/A" and AT- 9 6 , "Wiring
Diagram — AT — SSV/B" .
OK or NG
OK >> GO TO 5.
NG >> Replace solenoid valve assembly.
5. CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to AT- 2 8 0 , "
Control Valve Assembly" .
2. Check to ensure that:
–Valve, sleeve and plug slide along valve bore under their own weight.
–Valve, sleeve and plug are free from burrs, dents and scratches.
–Control valve springs are free from damage, deformation and fatigue.
–Hydraulic line is free from obstacles.
OK or NG
OK >> GO TO 6.
NG >> Repair control valve.
6. CHECK SHIFT-UP (D3 TO D4 )
During AT- 5 0 , "
Cruise Test — Part 1" .
Does A/T shift from D
3 to D4 at the specified speed?
YES >> GO TO 11.
NO >> Check control valve again. Repair or replace control valve assembly.
SCIA3595E

AT-150
A/T 4TH GEAR FUNCTION

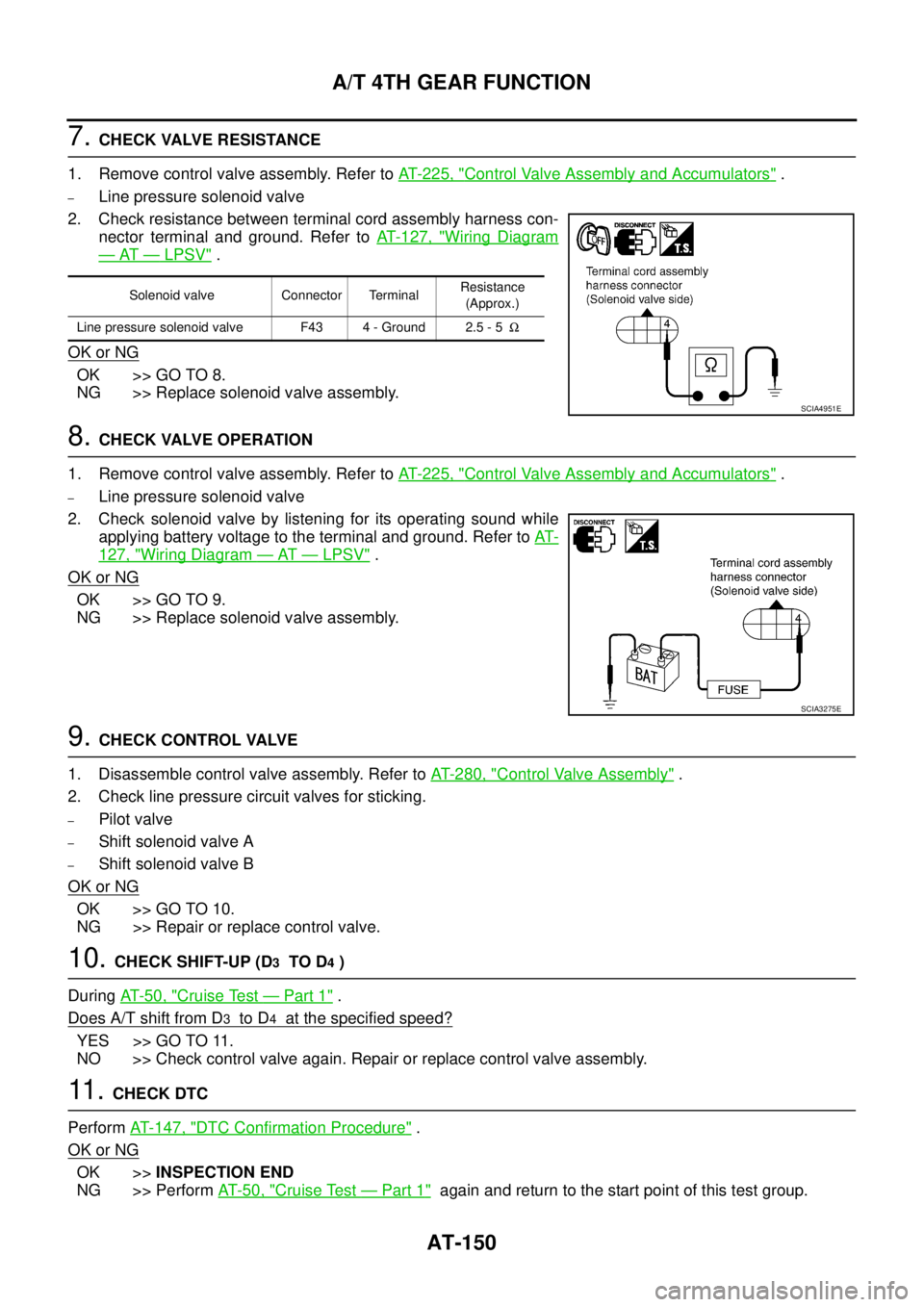

7. CHECK VALVE RESISTANCE
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
–Line pressure solenoid valve
2. Check resistance between terminal cord assembly harness con-
nector terminal and ground. Refer to AT- 1 2 7 , "
Wiring Diagram
— AT — LPSV" .
OK or NG
OK >> GO TO 8.
NG >> Replace solenoid valve assembly.
8. CHECK VALVE OPERATION
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
–Line pressure solenoid valve
2. Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground. Refer to AT-
127, "Wiring Diagram — AT — LPSV" .
OK or NG
OK >> GO TO 9.
NG >> Replace solenoid valve assembly.
9. CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to AT- 2 8 0 , "
Control Valve Assembly" .
2. Check line pressure circuit valves for sticking.
–Pilot valve
–Shift solenoid valve A
–Shift solenoid valve B
OK or NG
OK >> GO TO 10.
NG >> Repair or replace control valve.
10. CHECK SHIFT-UP (D3 TO D4 )
During AT- 5 0 , "
Cruise Test — Part 1" .
Does A/T shift from D
3 to D4 at the specified speed?
YES >> GO TO 11.
NO >> Check control valve again. Repair or replace control valve assembly.
11 . CHECK DTC
Perform AT- 1 4 7 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> Perform AT- 5 0 , "
Cruise Test — Part 1" again and return to the start point of this test group.
Solenoid valve Connector TerminalResistance
(Approx.)
Line pressure solenoid valve F43 4 - Ground 2.5 - 5Ω
SCIA4951E
SCIA3275E

A/T TCC S/V FUNCTION (LOCK-UP)
AT-151
D
E
F
G
H
I
J
K
L
MA
B
AT

A/T TCC S/V FUNCTION (LOCK-UP)PFP:31940
DescriptionBCS0013L

This malfunction is detected when A/T does not shift into fourth gear position or torque converter clutch
does not lock-up as instructed by TCM. This is not caused by electrical malfunction (circuits open or
shorted) but by mechanical malfunction such as control valve sticking, improper solenoid valve operation,
malfunctioning oil pump or torque converter clutch, etc.
CONSULT-II Reference ValueBCS0026O
On Board Diagnosis LogicBCS0013M

This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is much lower than the position (4th) supposed by TCM, the slip ratio will be
much less than normal. In case the ratio does not reach the specified value, TCM judges this diagnosis
malfunction.
This malfunction will be caused when shift solenoid valve B is stuck closed.

Gear positions supposed by TCM are as follows.
In case of gear position with no malfunctions: 1, 2, 3 and 4 positions
In case of gear position with shift solenoid valve B stuck closed: 1, 2, 2 and 1 positions to each gear posi-
tion above

Diagnostic trouble code “A/T TCC S/V FNCTN” with CONSULT-II is detected when A/T cannot perform
lock-up even if electrical circuit is good.
Possible CauseBCS0013N

Line pressure solenoid valve

Torque converter clutch solenoid valve

Each clutch

Hydraulic control circuit
Item name Condition Display value (Approx.)
TCC S/V DUTY Lock-up OFF ⇔ Lock-up ON 4% ⇔ 94%
LINE PRES DTYSmall throttle opening (Low line pressure) ⇔ Large throttle opening
(High line pressure)0% ⇔ 92%

AT-152
A/T TCC S/V FUNCTION (LOCK-UP)

DTC Confirmation ProcedureBCS0013O
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm that the malfunction is eliminated.
WITH CONSULT-II
1. Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.
2. Make sure that output voltage of A/T fluid temperature sensor is
within the range below.
FLUID TEMP SE: 0.4 - 1.5 V
If out of range, drive vehicle to decrease voltage (warm up the
fluid) or stop engine to increase voltage (cool down the fluid).
3. Select “TCC S/V FNCTN P0744” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
4. Accelerate vehicle to more than 80 km/h (50 MPH) and maintain
the following condition continuously until “TESTING” has turned
to “COMPLETE”. (It will take approximately 30 seconds after
“TESTING” shows.)
THROTTLE POSI: 1.0/8 - 2.0/8 (at all times during step 4)
SLCT LVR POSI: “D” position
TCC S/V DUTY: More than 94%
VEHICLE SPEED: Constant speed of more than 80 km/h (50 MPH)
–Make sure that “GEAR” shows “4”.
–For shift schedule, refer to AT- 5 4 , "Vehicle Speed Which Gear Shifting Occurs" .
–If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS” for
“A/T”. In case a 1st trip DTC other than “A/T TCC S/V FNCTN” is shown, refer to applicable “TROU-
BLE DIAGNOSIS FOR DTC”.
5. Make sure that “OK” is displayed. (If “NG” is displayed, refer to AT- 1 5 2 , "
Diagnostic Procedure" .)
Refer to AT- 5 4 , "
Vehicle Speed at When Lock-up Occurs/Releases" .
Diagnostic ProcedureBCS0013P
1. CHECK SHIFT-UP (D3 TO D4 )
During AT- 5 0 , "
Cruise Test — Part 1" .
Does A/T shift from D
3 to D4 at the specified speed?
YES >> GO TO 11.
NO >> GO TO 2.
2. CHECK LINE PRESSURE
Perform line pressure test. Refer to AT- 4 6 , "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 3.
NG >> GO TO 6.
BCIA0031E
