NISSAN TEANA 2003 Service Manual

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-183
D
E
F
G
H
I
J
K
L
MA
B
AT

4. CHECK LINE PRESSURE
Check line pressure at stall point with selector lever in “D” position. Refer to AT- 4 6 , "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Shift valve B
–Shift solenoid valve A
–Shift solenoid valve B
–Pilot valve
–Pilot filter
3. Disassemble A/T. Refer to AT- 2 5 5 , "
Disassembly" .
4. Check the following items:
–Forward clutch assembly. Refer to AT- 3 0 7 , "Forward and Overrun Clutches" .
–Low one-way clutch. Refer to AT- 2 5 5 , "Disassembly" .
–Forward one-way clutch. Refer to AT- 3 1 9 , "Rear Internal Gear, Forward Clutch Hub and Overrun Clutch
Hub" .
–High clutch assembly. Refer to AT- 3 0 1 , "High Clutch" .
–Torque converter. Refer to AT-255, "Disassembly" .
–Oil pump assembly. Refer to AT- 2 7 5 , "Oil Pump" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
6. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 4 6 , "
Components" .
2. Check A/T fluid condition. Refer to AT- 4 3 , "
A/T Fluid Condition Check" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 5.
7. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Shift valve B
–Shift solenoid valve A
–Shift solenoid valve B
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damage parts.

AT-184
TROUBLE DIAGNOSIS FOR SYMPTOMS

8. SYMPTOM CHECK
Check again. Refer to AT- 5 0 , "
Cruise Test — Part 1" or AT- 5 1 , "Cruise Test — Part 2" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 9.
9. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
A/T Does Not Shift: D1 → D2 or Does Not Kickdown: D4 → D2BCS0014H
SYMPTOM:

A/T does not shift from D1 to D2 at the specified speed on “Cruise Test — Part 1”.

A/T does not shift from D4 to D2 when depressing accelerator pedal fully at the specified speed
on “Cruise Test — Part 2”.
DIAGNOSTIC PROCEDURE
1. SYMPTOM CHECK
Check symptom. Refer to AT- 4 8 , "
Check at Idle" and AT- 5 0 , "Cruise Test — Part 1" .
Does vehicle creep forward in
“D”, “3”, “2” or “1” position, and start from D1 ?
YES >> GO TO 2.
NO >> Go to AT- 1 8 1 , "
Vehicle Does Not Creep Forward in “D”, “3”, “2” or “1” Position" and AT- 1 8 2 , "Ve h i -
cle Cannot Be Started From D1" .
2. CHECK A/T POSITION
Check A/T position. Refer to AT- 2 1 5 , "
Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust A/T position. Refer to AT- 2 1 5 , "
Adjustment of A/T Position" .
3. CHECK VEHICLE SPEED SENSOR·A/T AND VEHICLE SPEED SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 8 0 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 8 6 , "VEHICLE SPEED SENSOR MTR"
.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and/or vehicle speed sensor·MTR
circuits.
4. CHECK ACCELERATOR PEDAL POSITION SENSOR
Check accelerator pedal position sensor. Refer to EC-272, "
DTC P2138 APP SENSOR" (QR engine) or EC-
652, "DTC P2138 APP SENSOR" (VQ engine).
OK or NG
OK >> GO TO 5.
NG >> Repair or replace accelerator pedal position (APP) sensor.

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-185
D
E
F
G
H
I
J
K
L
MA
B
AT

5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 4 6 , "
Components" .
2. Check A/T fluid condition. Refer to AT- 4 3 , "
A/T Fluid Condition Check" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Shift valve B
–Shift solenoid valve A
–Shift solenoid valve B
–Pilot valve
–Pilot filter
3. Disassemble A/T. Refer to AT- 2 5 5 , "
Disassembly" .
4. Check the following items:
–Servo piston assembly
–Brake band
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
7. DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Shift valve B
–Shift solenoid valve A
–Shift solenoid valve B
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
8. SYMPTOM CHECK
Check again. Refer to AT- 5 0 , "
Cruise Test — Part 1" and AT- 5 1 , "Cruise Test — Part 2" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 9.
9. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.

AT-186
TROUBLE DIAGNOSIS FOR SYMPTOMS

A/T Does Not Shift: D2 → D3BCS0014I
SYMPTOM:
A/T does not shift from D2 to D3 at the specified speed on “Cruise Test — Part 1” and “Cruise Test —
Part 2”.
DIAGNOSTIC PROCEDURE
1. SYMPTOM CHECK
Check symptom. Refer to AT- 4 8 , "
Check at Idle" and AT- 5 0 , "Cruise Test — Part 1" .
Does vehicle creep forward in
“D”, “3”, “2” or “1” position, and start from D1 ?
YES >> GO TO 2.
NO >> Go to AT- 1 8 1 , "
Vehicle Does Not Creep Forward in “D”, “3”, “2” or “1” Position" and AT- 1 8 2 , "Ve h i -
cle Cannot Be Started From D1" .
2. CHECK A/T POSITION
Check A/T position. Refer to AT- 2 1 5 , "
Checking of A/T Position" .
OK or NG
OK >> GO TO 3.
NG >> Adjust A/T position. Refer to AT- 2 1 5 , "
Adjustment of A/T Position" .
3. CHECK VEHICLE SPEED SENSOR·A/T AND VEHICLE SPEED SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 8 0 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 8 6 , "VEHICLE SPEED SENSOR MTR"
.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and/or vehicle speed sensor·MTR
circuits.
4. CHECK ACCELERATOR PEDAL POSITION SENSOR
Check accelerator pedal position sensor. Refer to EC-272, "
DTC P2138 APP SENSOR" (QR engine) or EC-
652, "DTC P2138 APP SENSOR" (VQ engine).
OK or NG
OK >> GO TO 5.
NG >> Repair or replace accelerator pedal position sensor.
5. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 4 6 , "
Components" .
2. Check A/T fluid condition. Refer to AT- 4 3 , "
A/T Fluid Condition Check" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-187
D
E
F
G
H
I
J
K
L
MA
B
AT

6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve B
–Shift solenoid valve B
–Pilot valve
–Pilot filter
3. Disassemble A/T. Refer to AT- 2 5 5 , "
Disassembly" .
4. Check the following items:
–Servo piston assembly
–High clutch assembly. Refer to AT- 3 0 1 , "High Clutch" .
–Oil pump assembly. Refer to AT- 2 7 5 , "Oil Pump" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
7. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve B
–Shift solenoid valve B
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
8. SYMPTOM CHECK
Check again. Refer to AT- 5 0 , "
Cruise Test — Part 1" and AT- 5 1 , "Cruise Test — Part 2" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 9.
9. CHECK TCM
1. Check TCM input/output signal. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.

AT-188
TROUBLE DIAGNOSIS FOR SYMPTOMS

A/T Does Not Shift: D3 → D4BCS0014J
SYMPTOM:

A/T does not shift from D3 to D4 at the specified speed on “Cruise Test — Part 1” and “Cruise Test
— Part 2”.

A/T must be warm before D3 to D4 shift will occur.
DIAGNOSTIC PROCEDURE
1. SYMPTOM CHECK
Check symptom. Refer to AT- 4 8 , "
Check at Idle" and AT- 5 0 , "Cruise Test — Part 1" .
Does vehicle creep forward in
“D”, “3”, “2” or “1” position, and start from D1 ?
YES >> GO TO 2.
NO >> Go to AT- 1 8 1 , "
Vehicle Does Not Creep Forward in “D”, “3”, “2” or “1” Position" and AT- 1 8 2 , "Ve h i -
cle Cannot Be Started From D1" .
2. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 6 9 , "
SELF-DIAGNOSTIC RESULT MODE" or AT- 7 6 , "Diagnostic Proce-
dure Without CONSULT-II" .
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning systems. Refer to AT- 6 9 , "SELF-DIAGNOSTIC RESULT MODE" or AT-
77, "Judgement of Self-Diagnosis Code" .
NO (With CONSULT-II) >>GO TO 3.
NO (Without CONSULT-II) >>GO TO 5

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-189
D
E
F
G
H
I
J
K
L
MA
B
AT

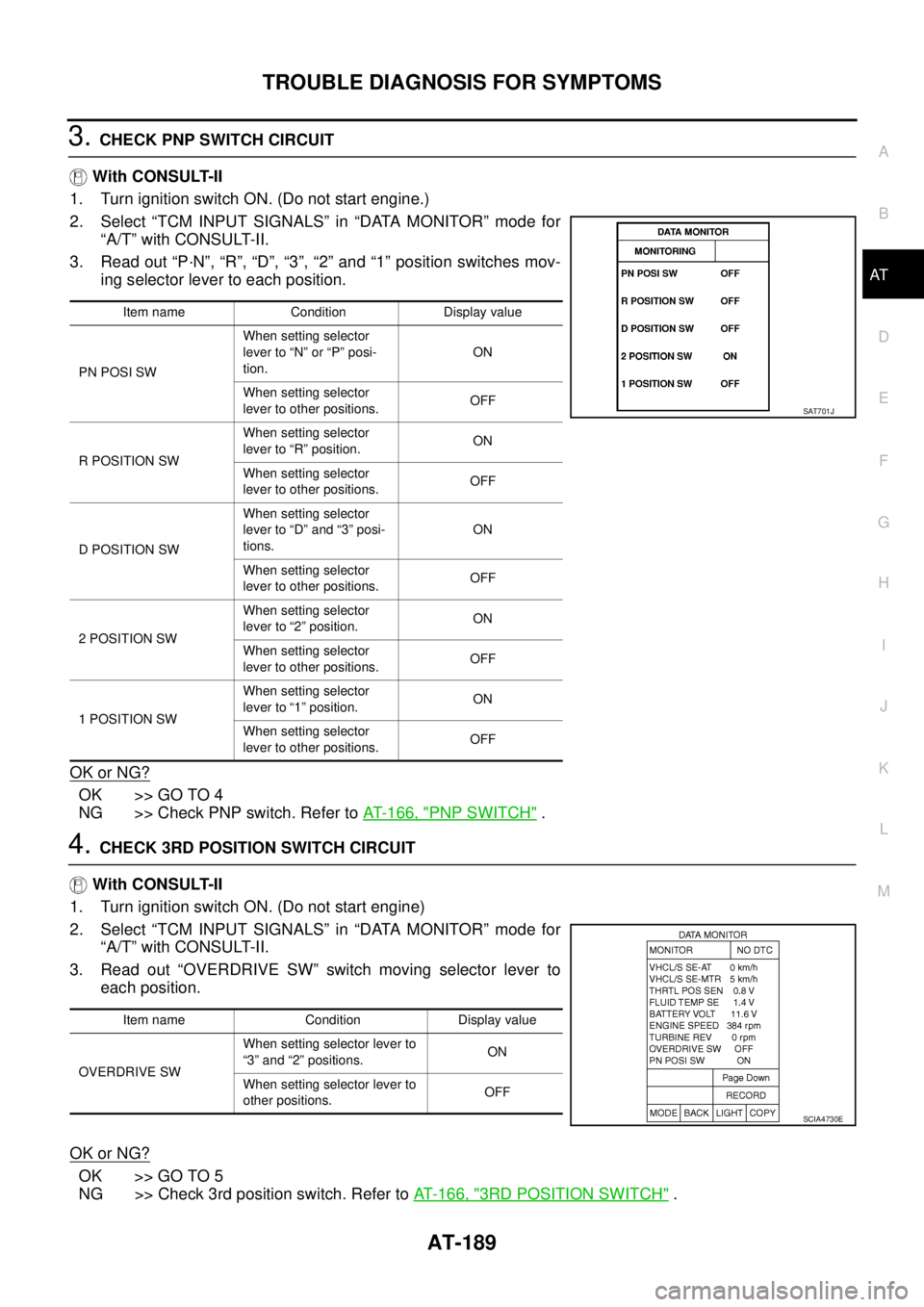

3. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P·N”, “R”, “D”, “3”, “2” and “1” position switches mov-
ing selector lever to each position.
OK or NG?
OK >> GO TO 4
NG >> Check PNP switch. Refer to AT- 1 6 6 , "
PNP SWITCH" .
4. CHECK 3RD POSITION SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “OVERDRIVE SW” switch moving selector lever to
each position.
OK or NG?
OK >> GO TO 5
NG >> Check 3rd position switch. Refer to AT- 1 6 6 , "
3RD POSITION SWITCH" .
Item name Condition Display value
PN POSI SWWhen setting selector
lever to “N” or “P” posi-
tion.ON
When setting selector
lever to other positions.OFF
R POSITION SWWhen setting selector
lever to “R” position.ON
When setting selector
lever to other positions.OFF
D POSITION SWWhen setting selector
lever to “D” and “3” posi-
tions.ON
When setting selector
lever to other positions.OFF
2 POSITION SWWhen setting selector
lever to “2” position.ON
When setting selector
lever to other positions.OFF
1 POSITION SWWhen setting selector
lever to “1” position.ON
When setting selector
lever to other positions.OFF
SAT701J
Item name Condition Display value
OVERDRIVE SWWhen setting selector lever to
“3” and “2” positions.ON
When setting selector lever to
other positions.OFF
SCIA4730E

AT-190
TROUBLE DIAGNOSIS FOR SYMPTOMS

5. CHECK ACCELERATOR PEDAL POSITION SENSOR
Check accelerator pedal position sensor. Refer to EC-272, "
DTC P2138 APP SENSOR" (QR engine) or EC-
652, "DTC P2138 APP SENSOR" (VQ engine).
OK or NG
OK >> GO TO 6.
NG >> Repair or replace accelerator pedal position sensor.
6. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 4 6 , "
Components" .
2. Check A/T fluid condition. Refer to AT- 4 3 , "
A/T Fluid Condition Check" .
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Overrun clutch control valve
–Shift solenoid valve A
–Overrun clutch solenoid valve
–Pilot valve
–Pilot filter
3. Disassemble A/T. Refer to AT- 2 5 5 , "
Disassembly" .
4. Check the following items:
–Servo piston assembly
–Brake band
–Torque converter. Refer to AT- 2 5 5 , "Disassembly" .
–Oil pump assembly. Refer to AT- 2 7 5 , "Oil Pump" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
8. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 2 2 5 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Shift valve A
–Overrun clutch control valve
– Shift solenoid valve A
–Pilot valve
–Pilot filter
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.

TROUBLE DIAGNOSIS FOR SYMPTOMS
AT-191
D
E
F
G
H
I
J
K
L
MA
B
AT

9. SYMPTOM CHECK
Check again. Refer to AT- 5 0 , "
Cruise Test — Part 1" and AT- 5 1 , "Cruise Test — Part 2" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 10.
10. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 6 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
A/T Does Not Perform Lock-upBCS0014K
SYMPTOM:
A/T does not perform lock-up at the specified speed on “Cruise Test — Part 1”.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 6 9 , "
SELF-DIAGNOSTIC RESULT MODE" or AT- 7 6 , "Diagnostic Proce-
dure Without CONSULT-II" .
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning systems. Refer to AT- 6 9 , "SELF-DIAGNOSTIC RESULT MODE" or AT-
77, "Judgement of Self-Diagnosis Code" .
NO (With CONSULT-II) >>GO TO 2.
NO (Without CONSULT-II) >>GO TO 3.

AT-192
TROUBLE DIAGNOSIS FOR SYMPTOMS

2. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P·N”, “R”, “D”, “3”, “2” and “1” position switches mov-
ing selector lever to each position.
OK or NG?
OK >> GO TO 3
NG >> Check PNP switch. Refer to AT- 1 6 6 , "
PNP SWITCH" .
3. CHECK ACCELERATOR PEDAL POSITION SENSOR
Check accelerator pedal position sensor. Refer to EC-272, "
DTC P2138 APP SENSOR" (QR engine) or EC-
652, "DTC P2138 APP SENSOR" (VQ engine).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace accelerator pedal position sensor.
Item name Condition Display value
PN POSI SWWhen setting selector
lever to “N” or “P” posi-
tion.ON
When setting selector
lever to other positions.OFF
R POSITION SWWhen setting selector
lever to “R” position.ON
When setting selector
lever to other positions.OFF
D POSITION SWWhen setting selector
lever to “D” and “3” posi-
tions.ON
When setting selector
lever to other positions.OFF
2 POSITION SWWhen setting selector
lever to “2” position.ON
When setting selector
lever to other positions.OFF
1 POSITION SWWhen setting selector
lever to “1” position.ON
When setting selector
lever to other positions.OFF
SAT701J
