DTC P2127, P2128 APP SENSOR
EC-639
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC Confirmation ProcedureBBS0054M
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-641, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for 1 second.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-641, "
Diagnostic Procedure" .
SEF058Y

EC-640
[VQ]
DTC P2127, P2128 APP SENSOR

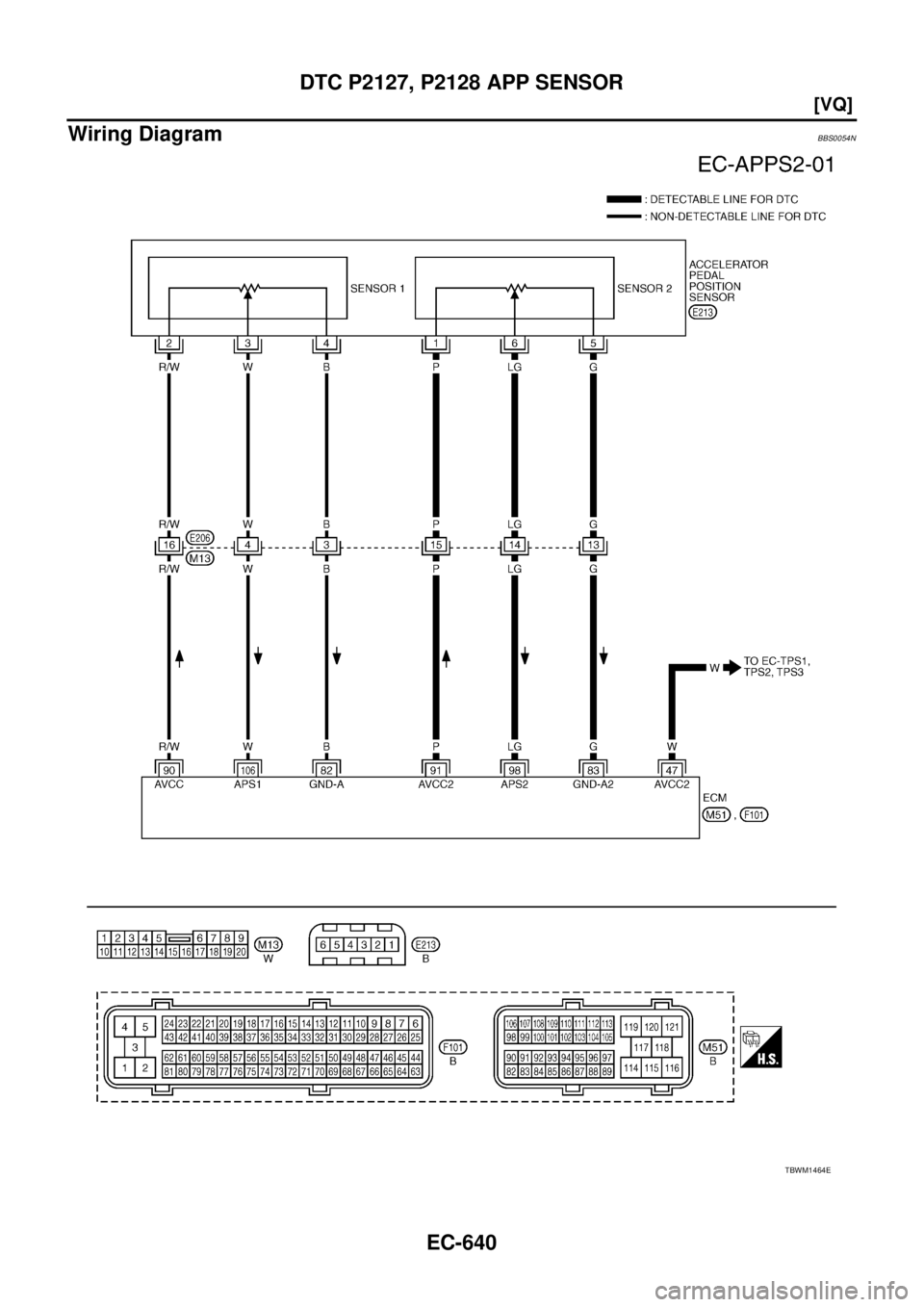

Wiring DiagramBBS0054N
TBWM1464E

DTC P2127, P2128 APP SENSOR
EC-641
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureBBS0054O
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-457, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
47 WSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V
82 BSensor ground
(APP sensor 1)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
83 GSensor ground
(APP sensor 2)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
90 R/WSensor power supply
(APP sensor 1)[Ignition switch: ON]Approximately 5V
91 PSensor power supply
(APP sensor 2)[Ignition switch: ON]Approximately 5V
98 LGAccelerator pedal position
sensor 2[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Released0.28 - 0.48V
[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully depressedMore than 2.0V
106 WAccelerator pedal position
sensor 1[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Released0.65 - 0.87V
[Ignition switch: ON]

Engine: Stopped

Accelerator pedal: Fully depressedMore than 4.3V
PBIB2160E

EC-642
[VQ]
DTC P2127, P2128 APP SENSOR

2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 1 and ECM terminal 91.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E206, M13

Harness for open between ECM and accelerator pedal position sensor
>> Repair open circuit in harness or connectors.
5. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 6.
NG >> Repair short to ground or short to power in harness or connectors.
PBIB2467E
Voltage: Approximately 5V
PBIB2477E
Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
91 APP sensor terminal 1EC-640
47 Electric throttle control actuator terminal 1EC-647

DTC P2127, P2128 APP SENSOR
EC-643
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. CHECK THROTTLE POSITION SENSOR
Refer to EC-651, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> GO TO 7.
7. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-389, "
Throttle Valve Closed Position Learning" .
3. Perform EC-389, "
Idle Air Volume Learning" .
>>INSPECTION END
8. CHECK APP SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 5 and ECM terminal 83.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E206, M13

Harness for open or short between APP sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between APP sensor terminal 6 and ECM terminal 98.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E206, M13

Harness for open or short between APP sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors. Continuity should exist.
Continuity should exist.

EC-644
[VQ]
DTC P2127, P2128 APP SENSOR

12. CHECK APP SENSOR
Refer to EC-644, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. REPLACE ACCELERATOR ASSEMBLY
1. Replace the accelerator pedal assembly.
2. Perform EC-389, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-389, "
Throttle Valve Closed Position Learning" .
4. Perform EC-389, "
Idle Air Volume Learning" .
>>INSPECTION END
14. CHECK INTERMITTENT INCIDENT
Refer to EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionBBS0054P
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly and go to next step.
5. Perform EC-389, "
Accelerator Pedal Released Position Learning" .
6. Perform EC-389, "
Throttle Valve Closed Position Learning" .
7. Perform EC-389, "
Idle Air Volume Learning" .
Removal and InstallationBBS0054Q
ACCELERATOR PEDAL
Refer to ACC-3, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
106
(Accelerator pedal position
sensor 1)Fully released 0.65 - 0.87V
Fully depressed More than 4.3V
98
(Accelerator pedal position
sensor 2)Fully released 0.28 - 0.48V
Fully depressed More than 2.0V
MBIB0023E

DTC P2135 TP SENSOR
EC-645
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P2135 TP SENSORPFP:16119
Component DescriptionBBS0054R
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeBBS0054S
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicBBS0054T
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN 1
THRTL SEN 2*

Ignition switch: ON
(Engine stopped)

Shift lever: DAccelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2135
2135Throttle position sensor
circuit range/perfor-
manceRationally incorrect voltage is sent to ECM
compared with the signals from TP sensor 1
and TP sensor 2.

Harness or connector
(TP sensor 1 and 2 circuit is open or
shorted.)
(APP sensor 2 circuit is shorted.)

Electric throttle control actuator
(TP sensor 1 and 2)

Accelerator pedal position sensor
(APP sensor 2)
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

EC-646
[VQ]
DTC P2135 TP SENSOR

DTC Confirmation ProcedureBBS0054U
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-648, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for 1 second.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Perform Diagnostic Test Mode II (Self-diagnostic results) with ECM.
4. If DTC is detected, go to EC-648, "
Diagnostic Procedure" .
SEF058Y

DTC P2135 TP SENSOR
EC-647
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

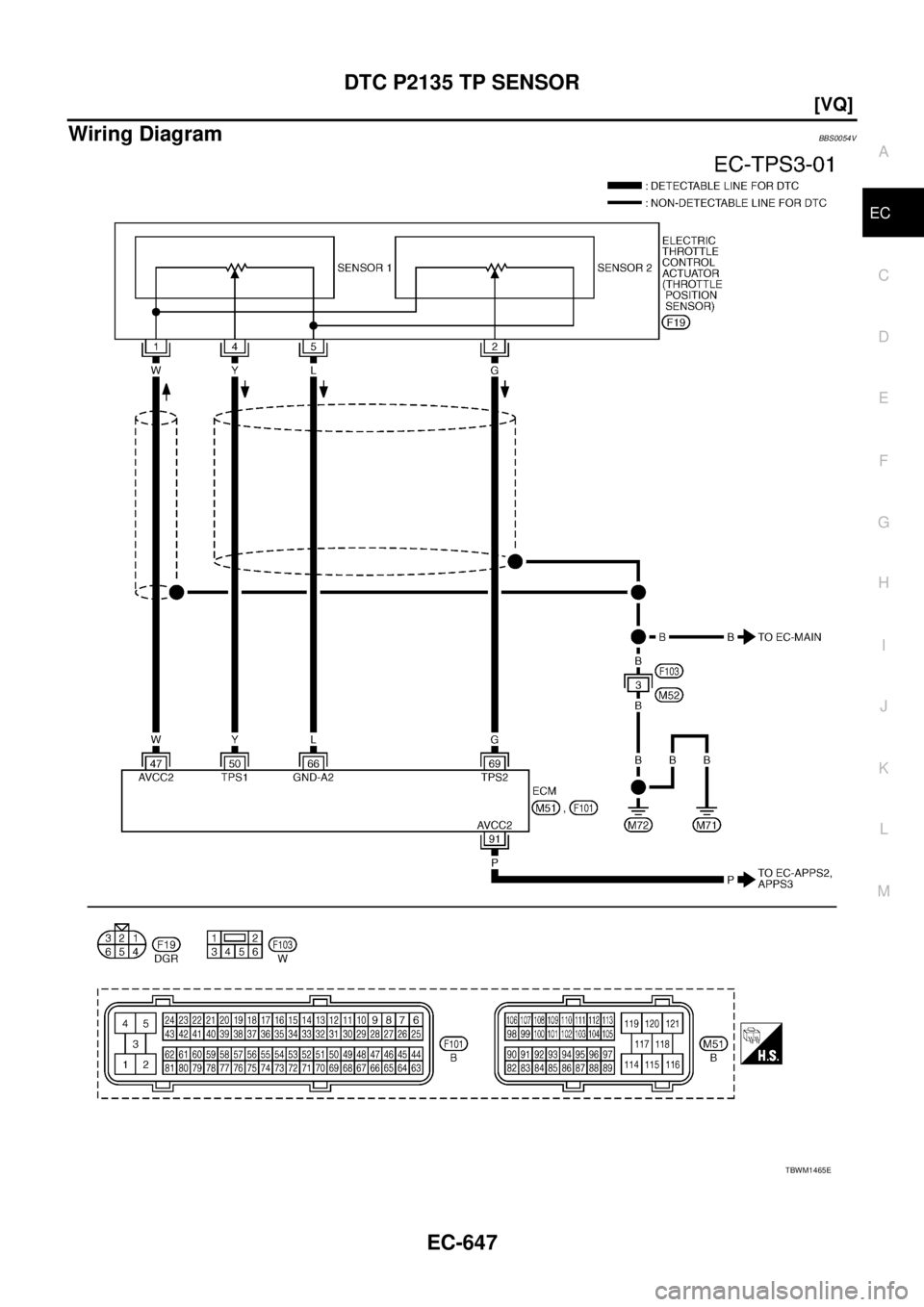

Wiring DiagramBBS0054V
TBWM1465E

EC-648
[VQ]
DTC P2135 TP SENSOR

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureBBS0054W
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-457, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
47 WSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V
50 Y Throttle position sensor 1[Ignition switch: ON]

Engine: Stopped

Shift lever: D

Accelerator pedal: ReleasedMore than 0.36V
[Ignition switch: ON]

Engine: Stopped

Shift lever: D

Accelerator pedal: Fully depressedLess than 4.75V
66 LSensor ground
(Throttle position sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
69 G Throttle position sensor 2[Ignition switch: ON]

Engine: Stopped

Shift lever: D

Accelerator pedal: ReleasedLess than 4.75V
[Ignition switch: ON]

Engine: Stopped

Shift lever: D

Accelerator pedal: Fully depressedMore than 0.36V
91 PSensor power supply
(Accelerator pedal position
sensor 2)[Ignition switch: ON]Approximately 5V
PBIB2160E
