EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-679
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

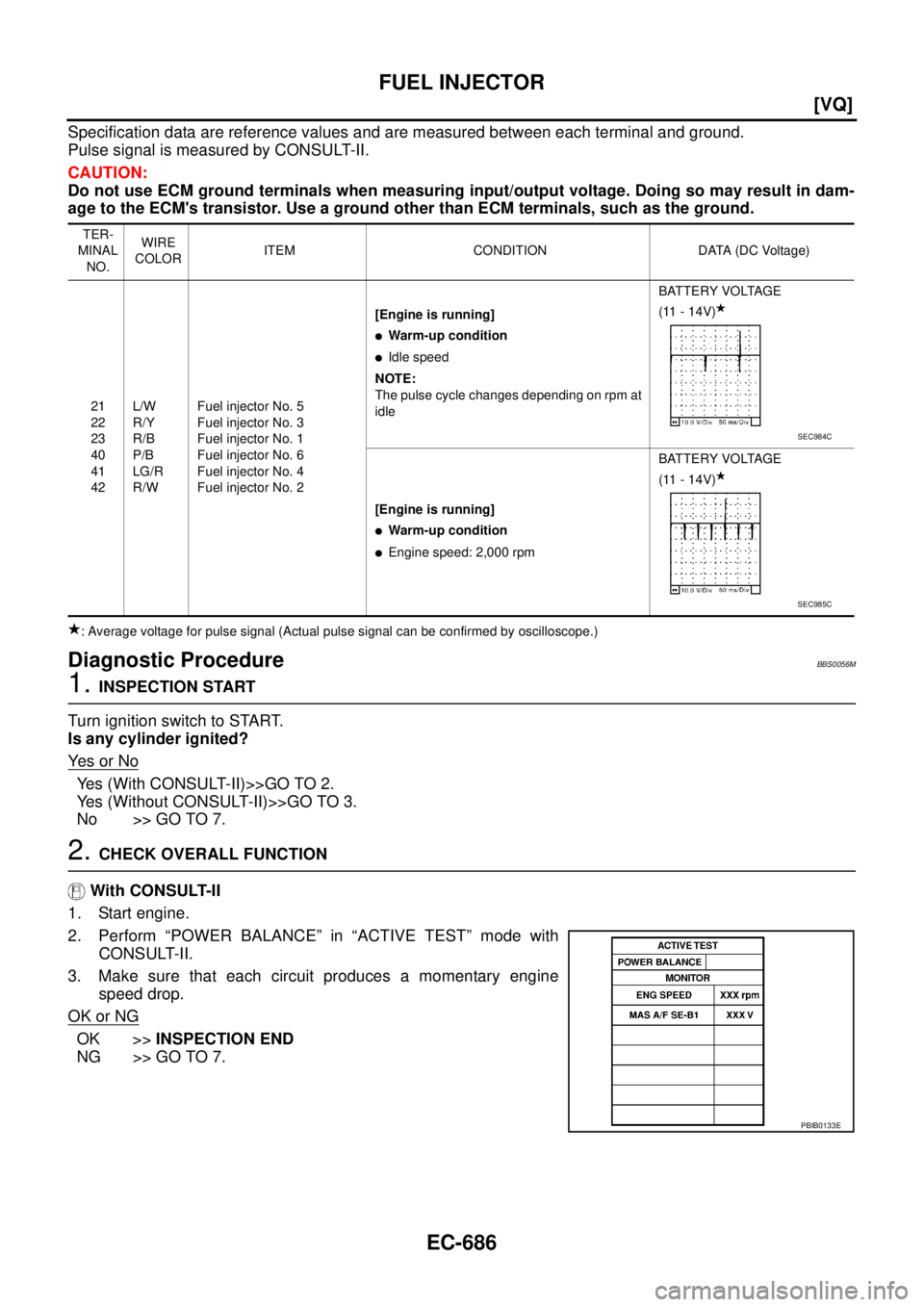

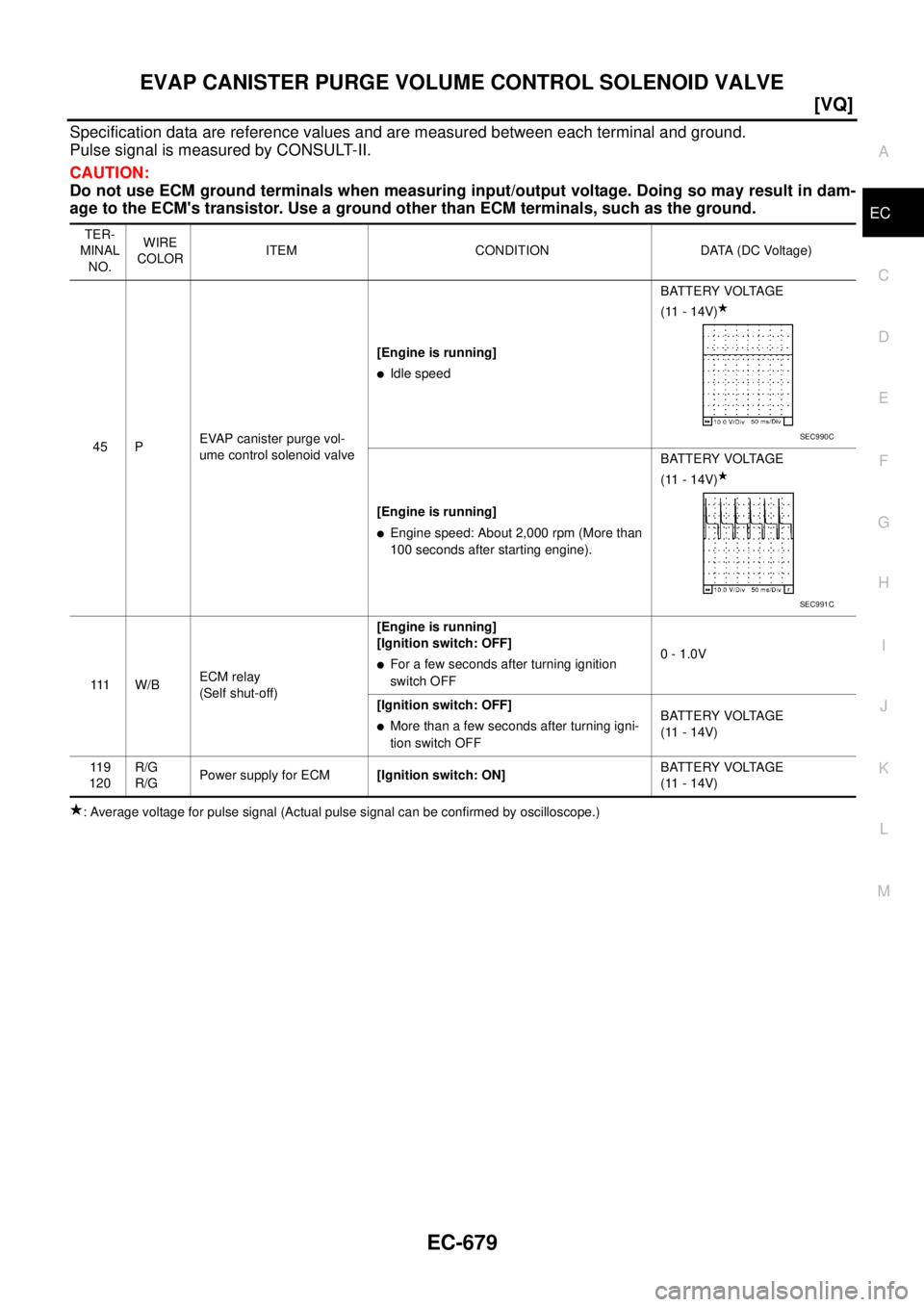

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
45 PEVAP canister purge vol-
ume control solenoid valve[Engine is running]

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Engine speed: About 2,000 rpm (More than
100 seconds after starting engine).BATTERY VOLTAGE
(11 - 14V)
111 W / BECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.0V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
11 9
120R/G
R/GPower supply for ECM[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
SEC990C
SEC991C

EC-680
[VQ]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Diagnostic ProcedureBBS0056E
1. CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect the EVAP purge hose connected to the EVAP canister.
3. Turn ignition switch ON.
4. Select “PURG VOL CONT/V” in “ACTIVE TEST” mode with
CONSULT-II.
5. Start engine and let it idle.
6. Change the valve opening percentage with touching “Qu” or
“Qd” on CONSULT-II screen, and check for vacuum existence at
the EVAP purge hose under the following conditions.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect the EVAP purge hose connected to the EVAP canister.
3. Start engine and let it idle for at least 100 seconds.
4. Check for vacuum existence at the EVAP purge hose under the
following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK EVAP CANISTER
Refer to EC-369, "
Component Inspection" .
OK or NG
OK >>INSPECTION END
NG >> Replace EVAP canister.
PBIB0569E
Conditions
(PURG VOL CONT/V)Vacuum
0% Should not exist
100% Should exist
PBIB2124E
Conditions Vacuum
At idle Should not exist
Engine speed: About 2,000 rpm Should exist
PBIB2124E

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-681
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK EVAP PURGE LINE
Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks or improper connection.
Refer to EC-367, "
EVAPORATIVE EMISSION LINE DRAWING" .
OK or NG
OK >> GO TO 4.
NG >> Repair or reconnect the hose.
4. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIR-
CUIT
1. Turn ignition switch OFF.

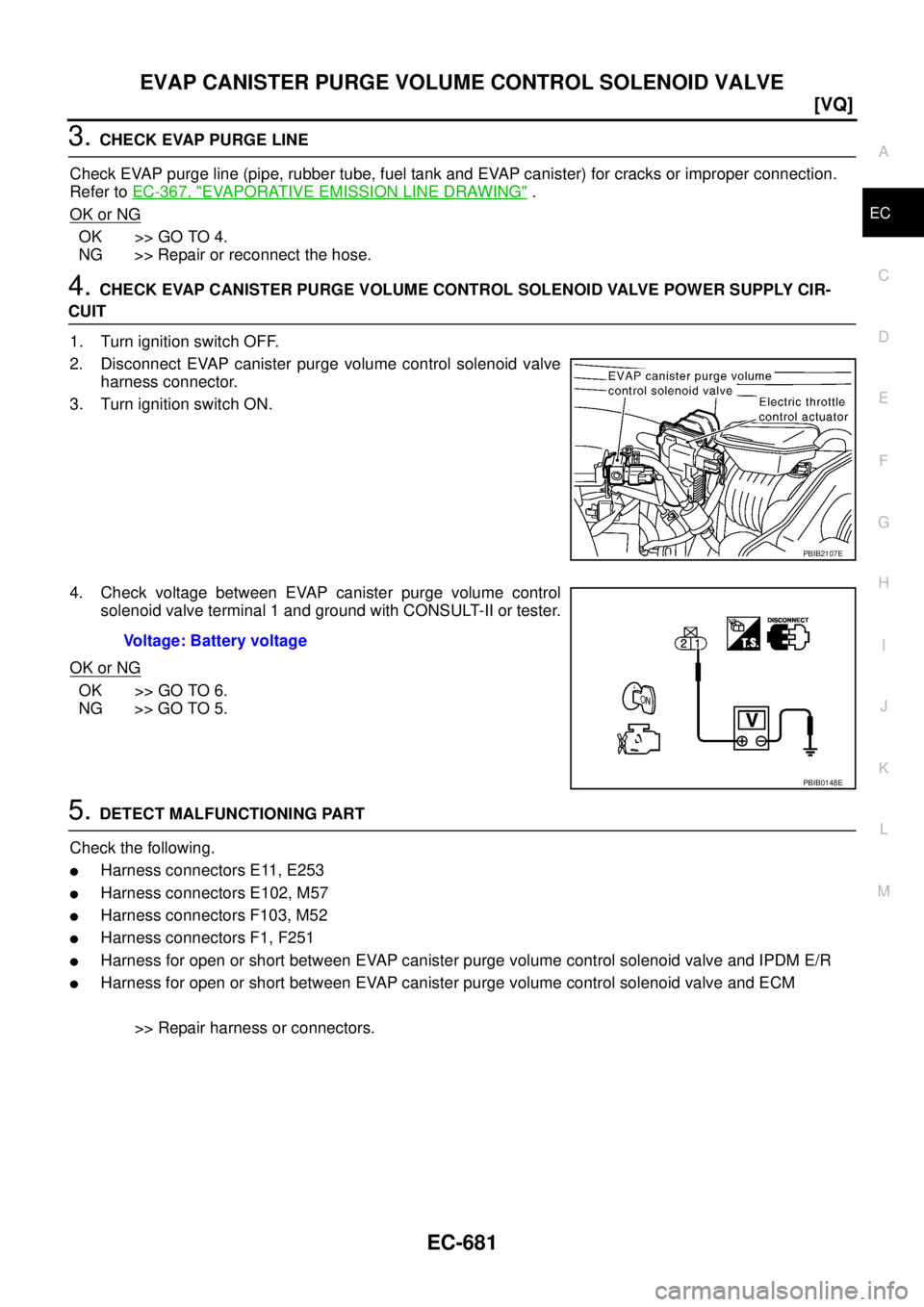

2. Disconnect EVAP canister purge volume control solenoid valve
harness connector.
3. Turn ignition switch ON.
4. Check voltage between EVAP canister purge volume control
solenoid valve terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E11, E253

Harness connectors E102, M57

Harness connectors F103, M52

Harness connectors F1, F251

Harness for open or short between EVAP canister purge volume control solenoid valve and IPDM E/R

Harness for open or short between EVAP canister purge volume control solenoid valve and ECM
>> Repair harness or connectors.
PBIB2107E
Voltage: Battery voltage
PBIB0148E

EC-682
[VQ]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

6. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIR-
CUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 45 and EVAP canister purge volume control solenoid
valve terminal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK (With CONSULT-II)>>GO TO 8.
OK (Without CONSULT-II)>>GO TO 9.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F1, F251

Harness for open or short between EVAP canister purge volume control solenoid valve and ECM.
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
With CONSULT-II
1. Reconnect all harness connectors disconnected.
2. Start engine.

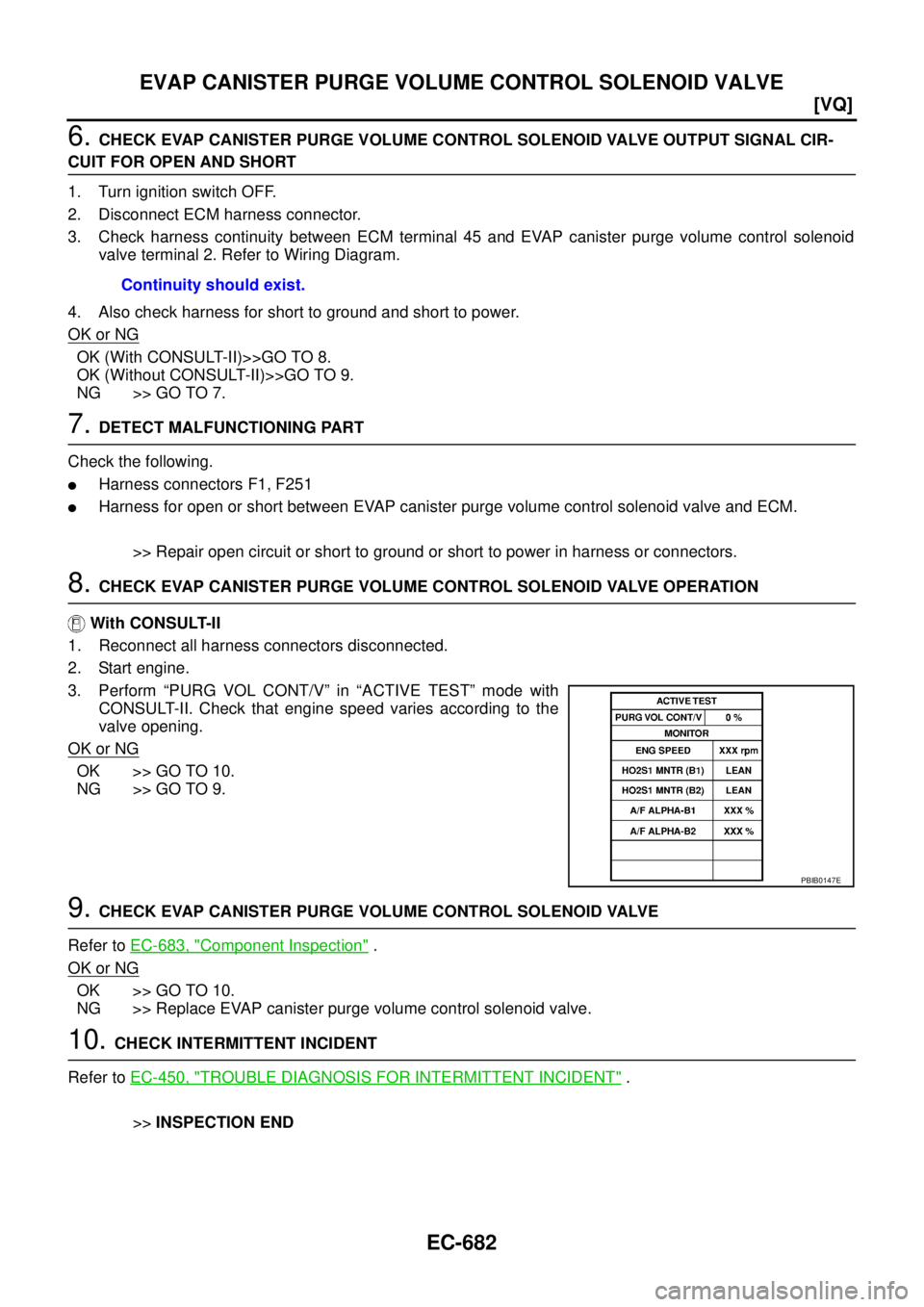

3. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode with
CONSULT-II. Check that engine speed varies according to the
valve opening.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-683, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace EVAP canister purge volume control solenoid valve.
10. CHECK INTERMITTENT INCIDENT
Refer to EC-450, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
PBIB0147E

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-683
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

Component InspectionBBS0056F
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
With CONSULT-II

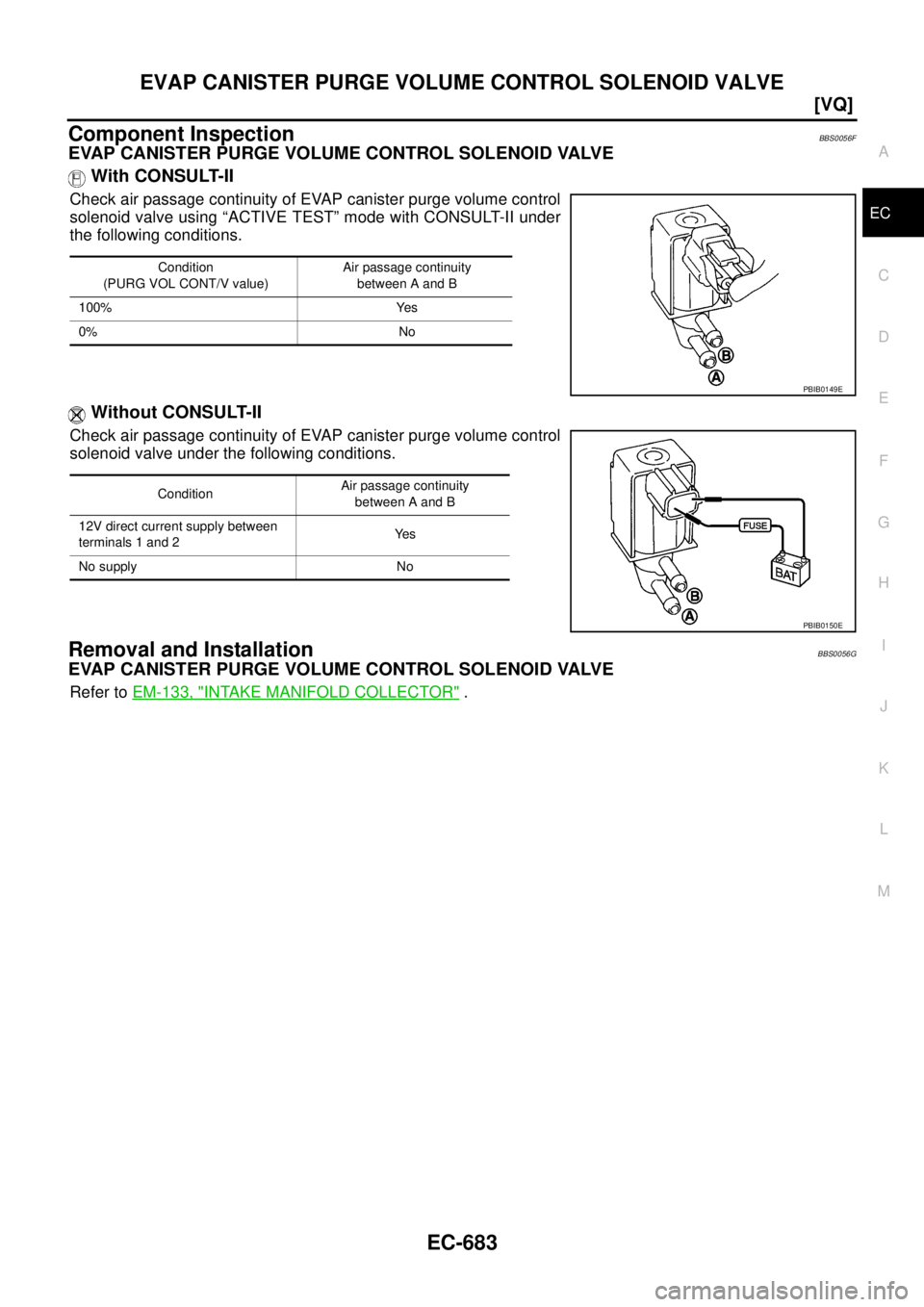

Check air passage continuity of EVAP canister purge volume control
solenoid valve using “ACTIVE TEST” mode with CONSULT-II under
the following conditions.
Without CONSULT-II
Check air passage continuity of EVAP canister purge volume control
solenoid valve under the following conditions.
Removal and InstallationBBS0056G
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EM-133, "INTAKE MANIFOLD COLLECTOR" .
Condition
(PURG VOL CONT/V value)Air passage continuity
between A and B
100% Yes
0% No
PBIB0149E
ConditionAir passage continuity
between A and B
12V direct current supply between
terminals 1 and 2Ye s
No supply No
PBIB0150E

EC-684
[VQ]
FUEL INJECTOR

FUEL INJECTORPFP:16600
Component DescriptionBBS0056J

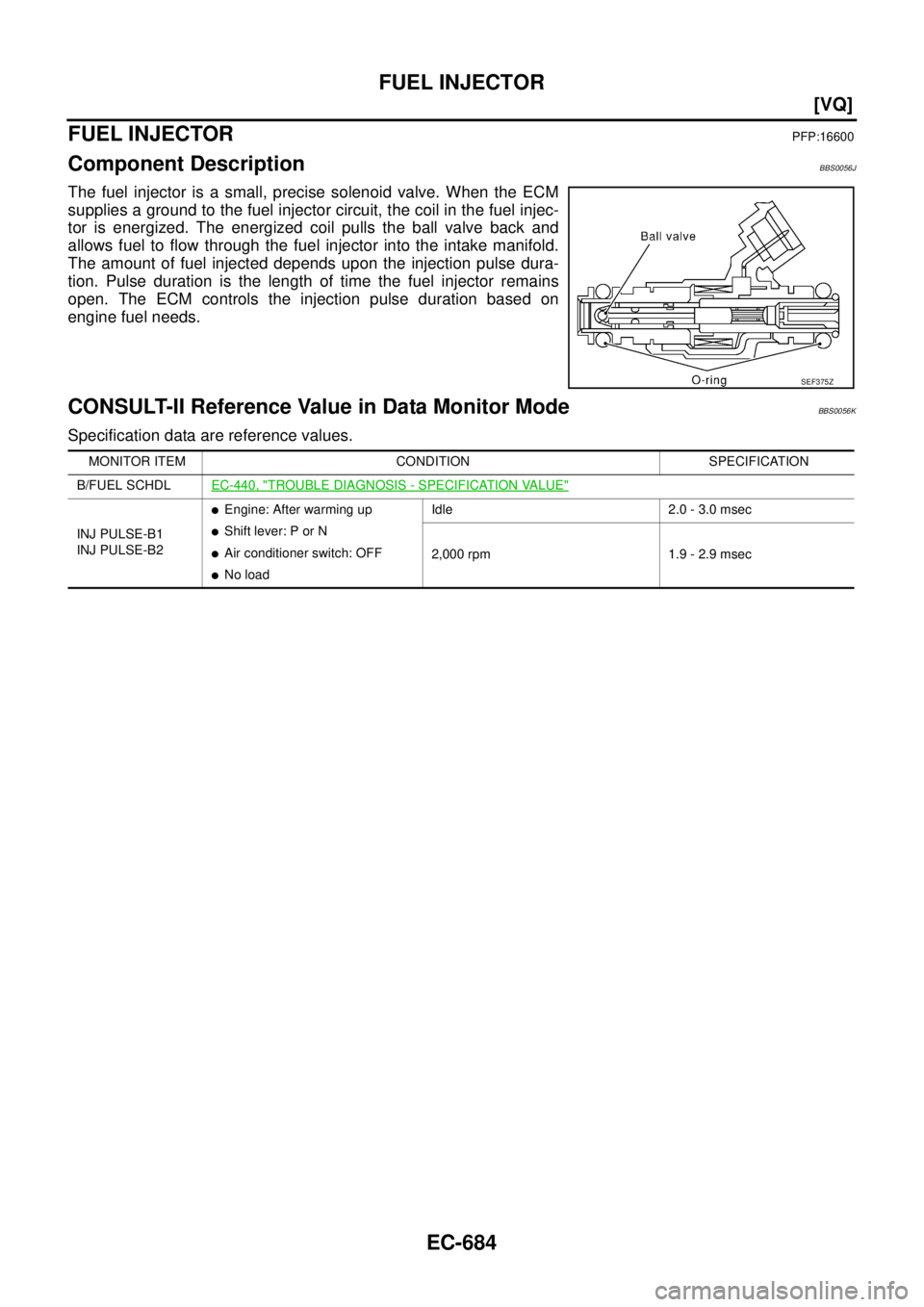

The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the ball valve back and
allows fuel to flow through the fuel injector into the intake manifold.
The amount of fuel injected depends upon the injection pulse dura-
tion. Pulse duration is the length of time the fuel injector remains
open. The ECM controls the injection pulse duration based on
engine fuel needs.
CONSULT-II Reference Value in Data Monitor ModeBBS0056K
Specification data are reference values.
SEF375Z
MONITOR ITEM CONDITION SPECIFICATION
B/FUEL SCHDLEC-440, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE"
INJ PULSE-B1
INJ PULSE-B2

Engine: After warming up

Shift lever: P or N

Air conditioner switch: OFF

No loadIdle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec

FUEL INJECTOR
EC-685
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

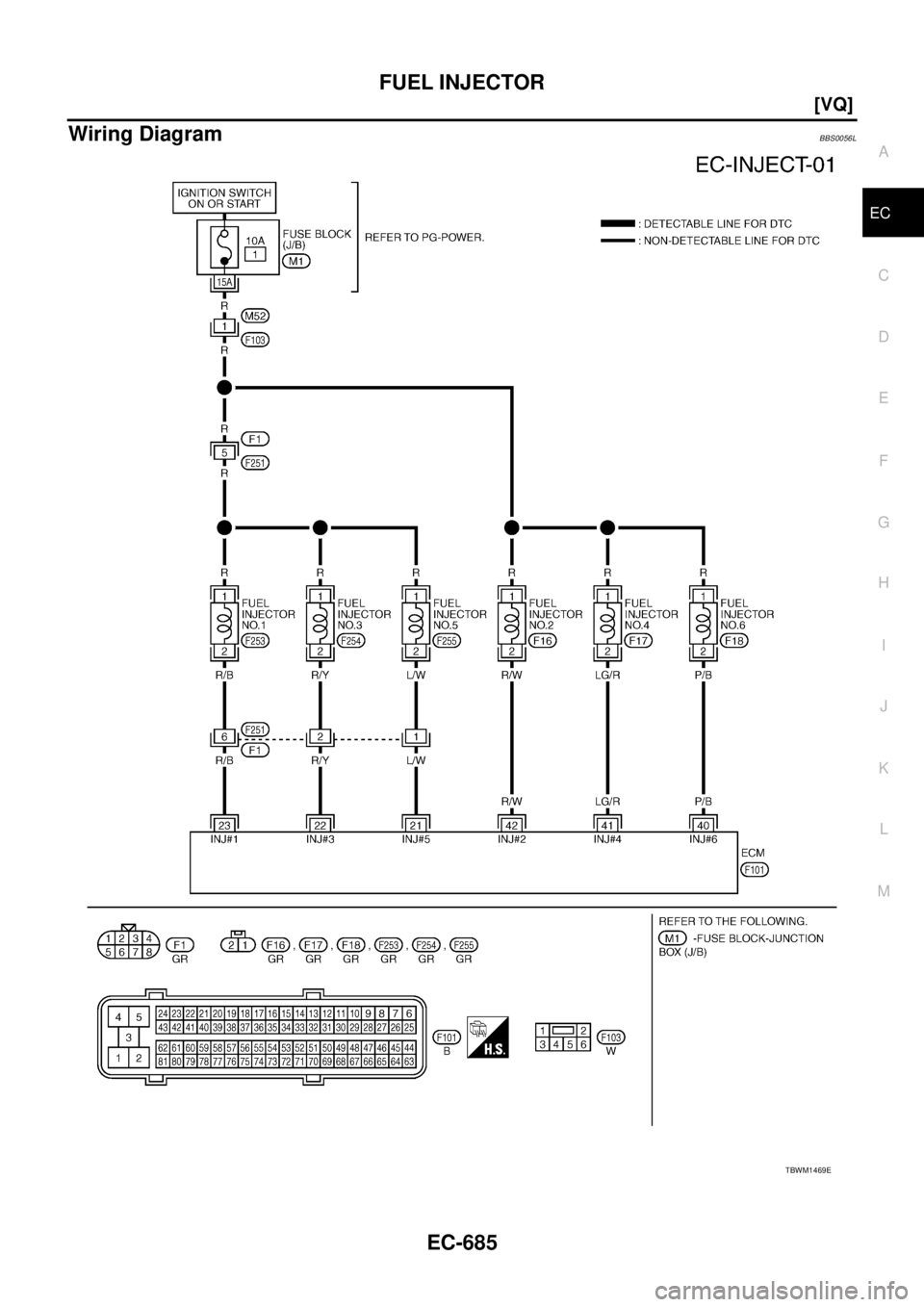

Wiring DiagramBBS0056L
TBWM1469E

EC-686
[VQ]
FUEL INJECTOR

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureBBS0056M
1. INSPECTION START
Turn ignition switch to START.
Is any cylinder ignited?
Ye s o r N o
Yes (With CONSULT-II)>>GO TO 2.
Yes (Without CONSULT-II)>>GO TO 3.
No >> GO TO 7.
2. CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.
3. Make sure that each circuit produces a momentary engine
speed drop.
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
21
22
23
40
41
42L/W
R/Y
R/B
P/B
LG/R
R/WFuel injector No. 5
Fuel injector No. 3
Fuel injector No. 1
Fuel injector No. 6
Fuel injector No. 4
Fuel injector No. 2[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idleBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
SEC984C
SEC985C
PBIB0133E

FUEL INJECTOR
EC-687
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK FUNCTION OF FUEL INJECTOR-I
Without CONSULT-II
1. Stop engine.
2. Disconnect harness connector F1, F251.
3. Turn ignition switch ON.

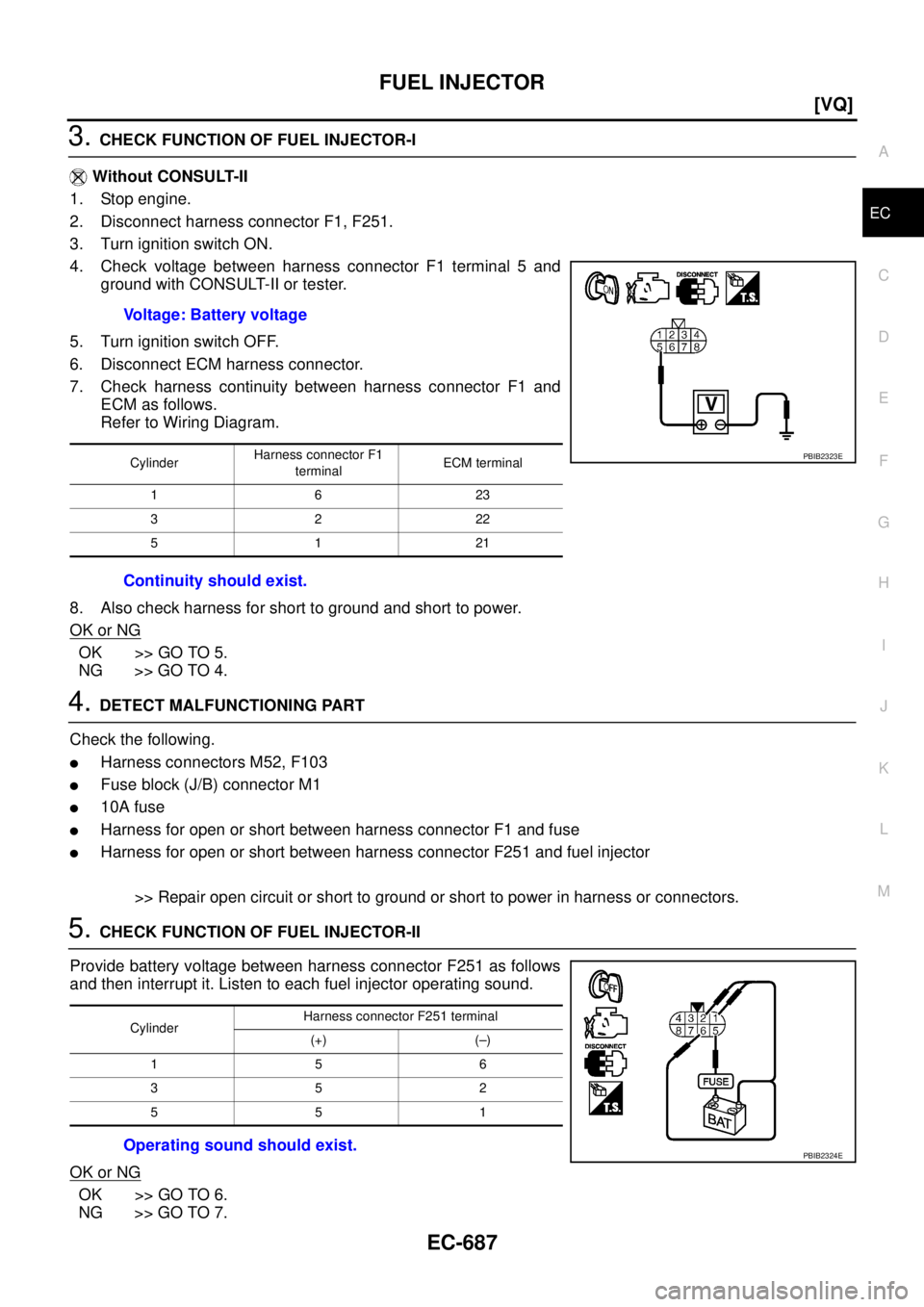

4. Check voltage between harness connector F1 terminal 5 and
ground with CONSULT-II or tester.
5. Turn ignition switch OFF.
6. Disconnect ECM harness connector.
7. Check harness continuity between harness connector F1 and
ECM as follows.
Refer to Wiring Diagram.
8. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors M52, F103

Fuse block (J/B) connector M1

10A fuse

Harness for open or short between harness connector F1 and fuse

Harness for open or short between harness connector F251 and fuel injector
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK FUNCTION OF FUEL INJECTOR-II
Provide battery voltage between harness connector F251 as follows
and then interrupt it. Listen to each fuel injector operating sound.
OK or NG
OK >> GO TO 6.
NG >> GO TO 7.Voltage: Battery voltage
CylinderHarness connector F1
terminalECM terminal
1623
3222
5121
Continuity should exist.
PBIB2323E
CylinderHarness connector F251 terminal
(+) (–)
156
352
551
Operating sound should exist.PBIB2324E

EC-688
[VQ]
FUEL INJECTOR

6. CHECK FUNCTION OF FUEL INJECTOR-III
1. Reconnect all harness connector disconnected.
2. Start engine.
3. Listen to fuel injectors No. 2, No. 4, No.6 operating sound.
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
7. CHECK FUEL INJECTOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect fuel injector harness connector.
3. Turn ignition switch ON.
4. Check voltage between fuel injector terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors M52, F103

Harness connectors F1, F251

Fuse block (J/B) connector M1

10A fuse

Harness for open or short between fuel injector and fuse

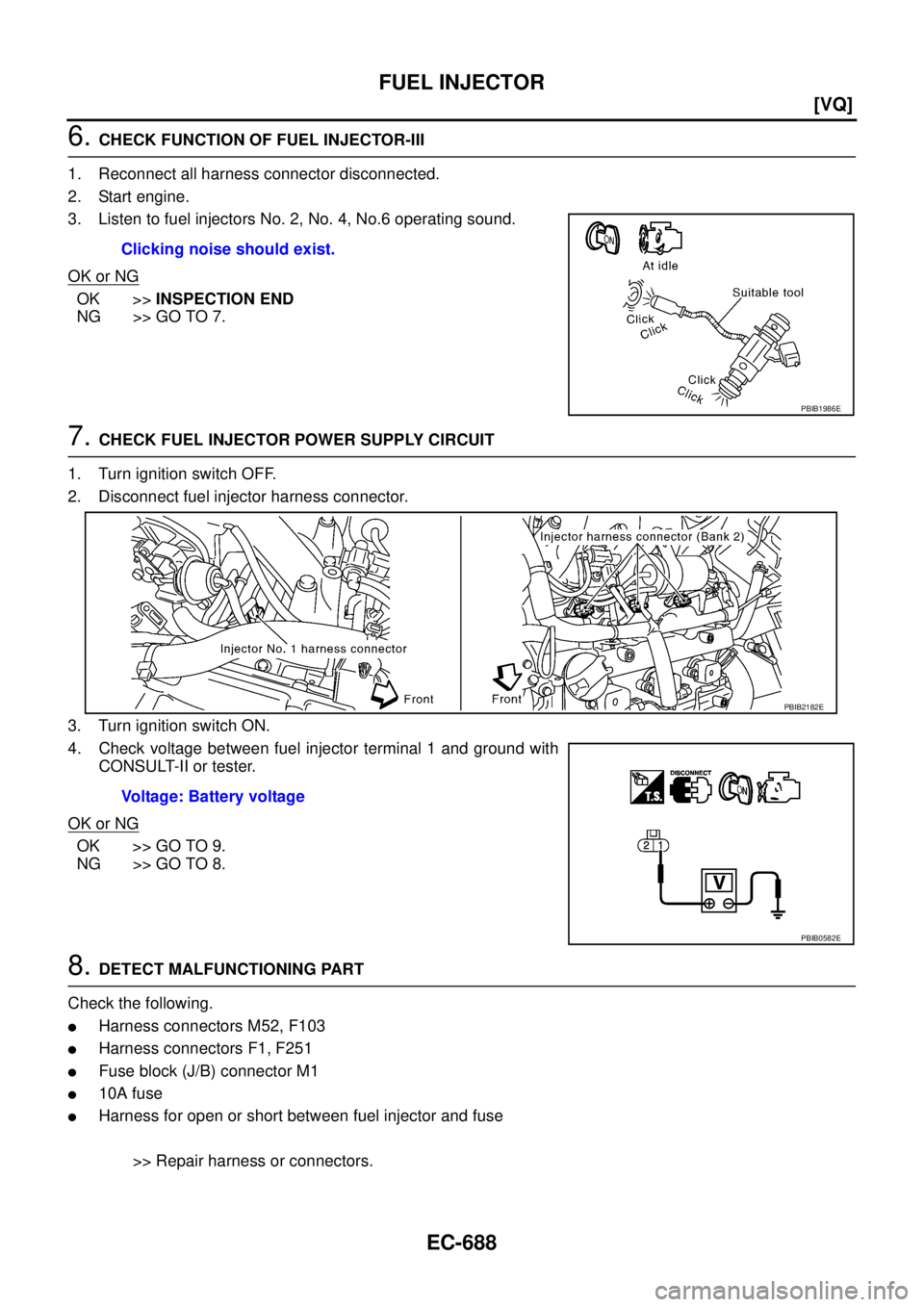

>> Repair harness or connectors. Clicking noise should exist.
PBIB1986E
Voltage: Battery voltage
PBIB2182E
PBIB0582E
