NISSAN TEANA 2003 Service Manual

ILLUMINATION

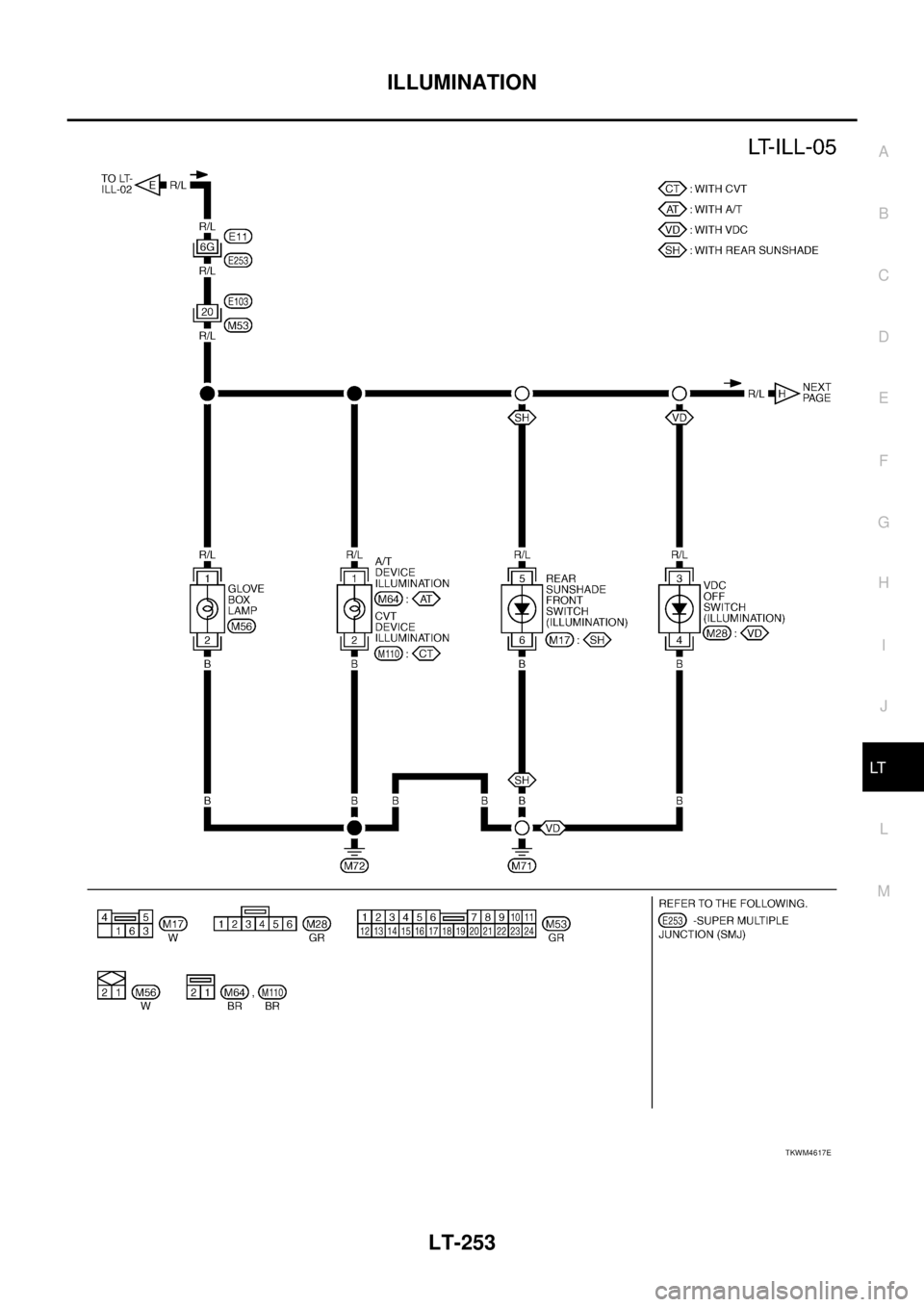

LT-253
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWM4617E

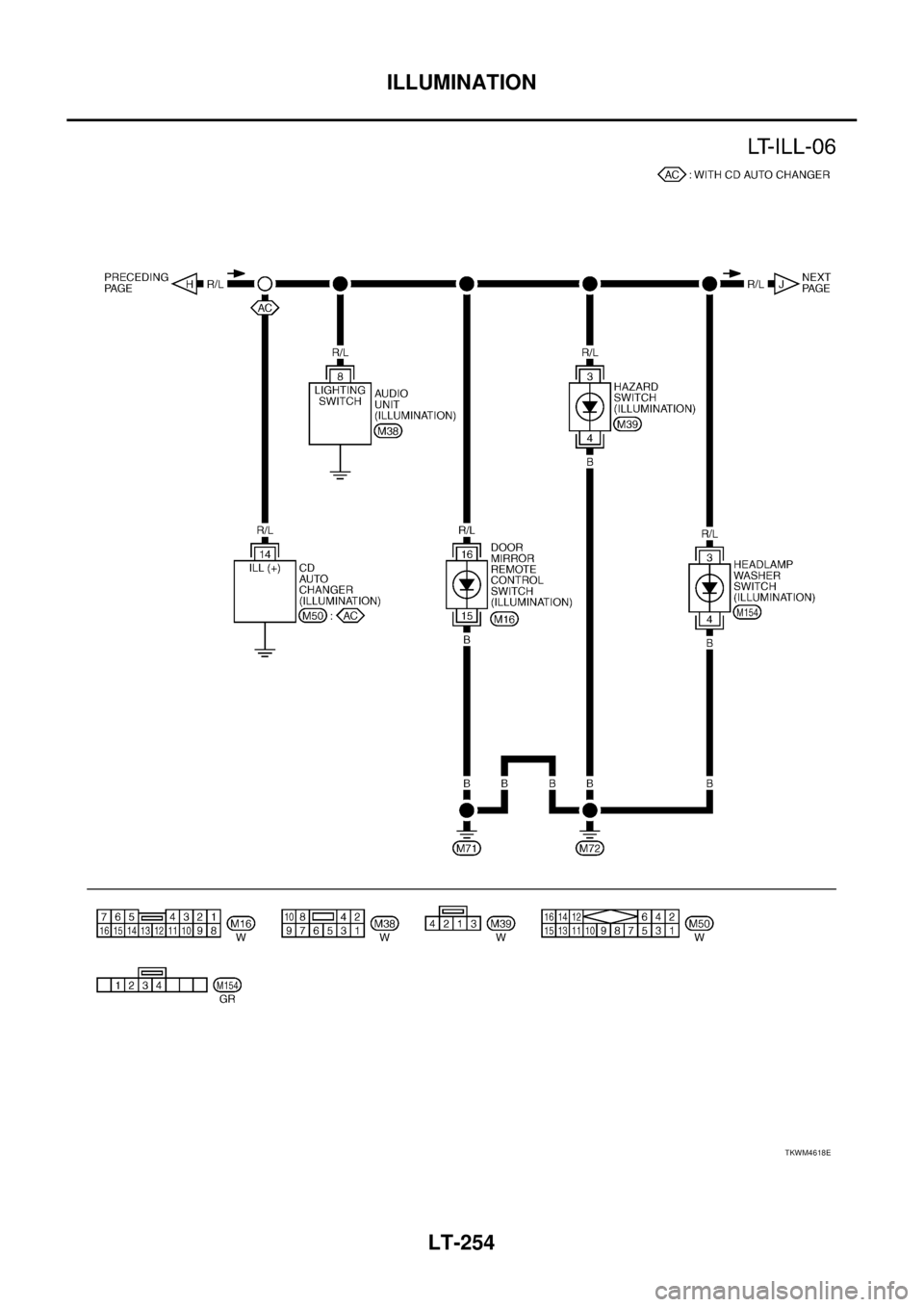

LT-254
ILLUMINATION

TKWM4618E

ILLUMINATION

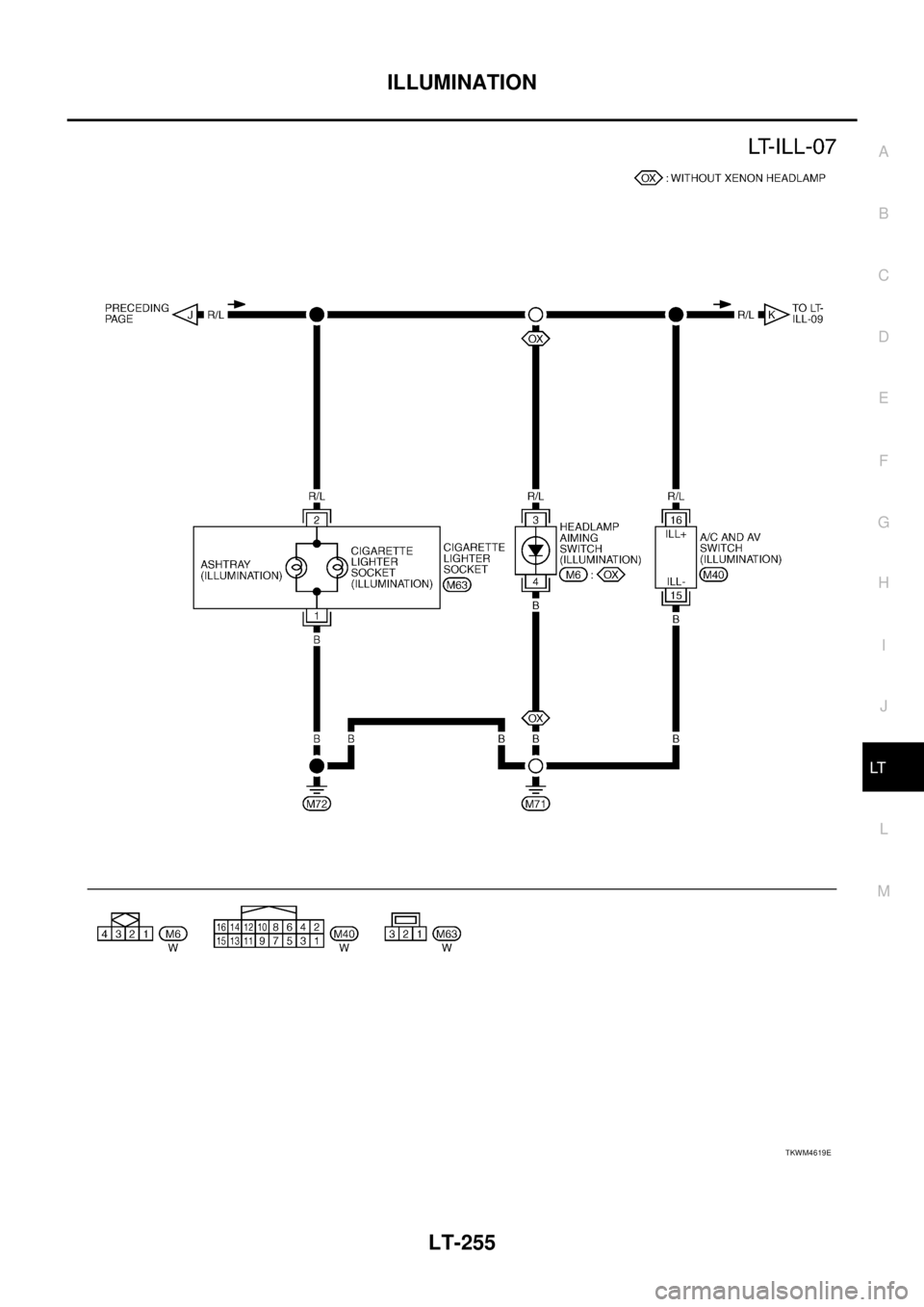

LT-255
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWM4619E

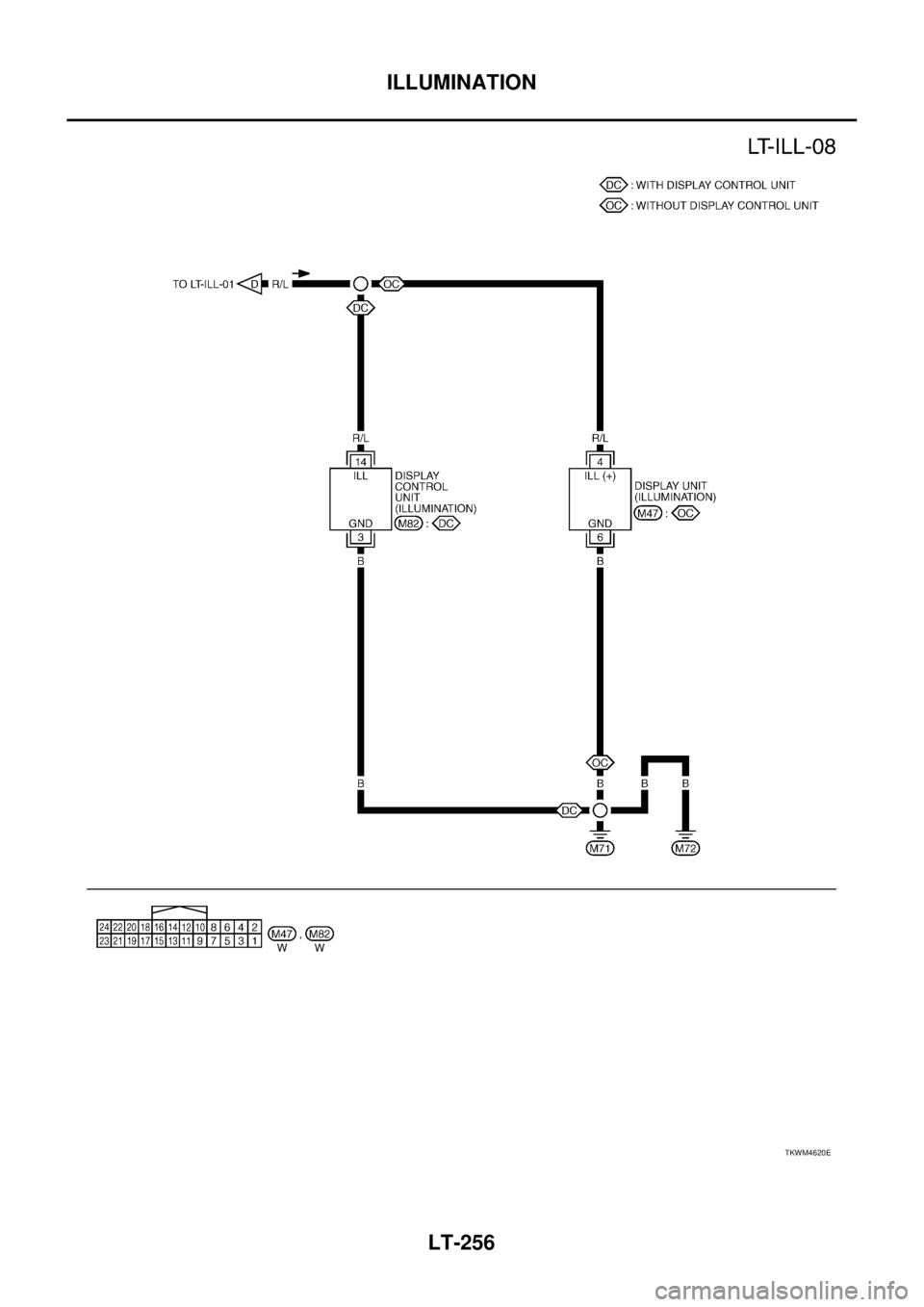

LT-256
ILLUMINATION

TKWM4620E

ILLUMINATION

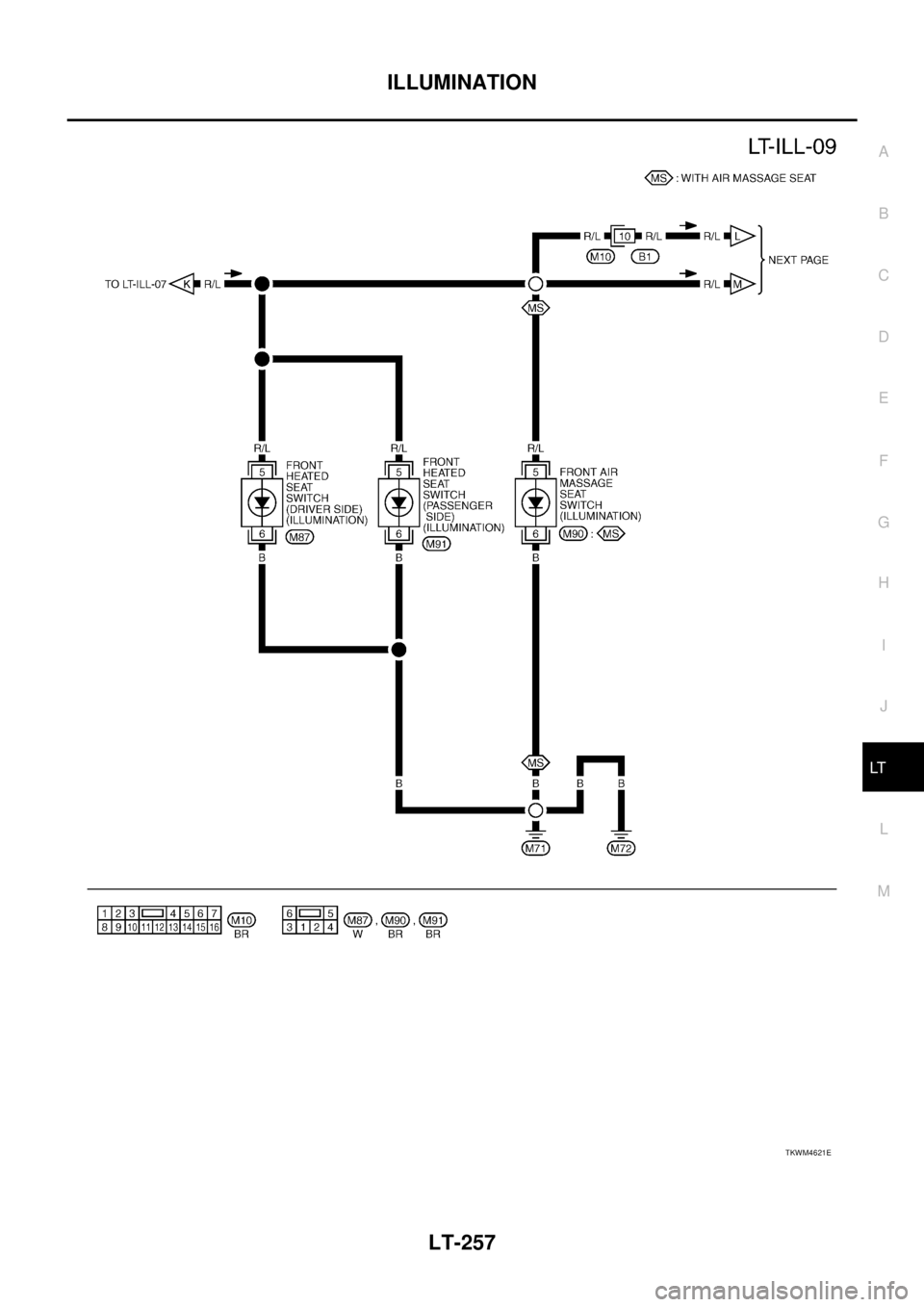

LT-257
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWM4621E

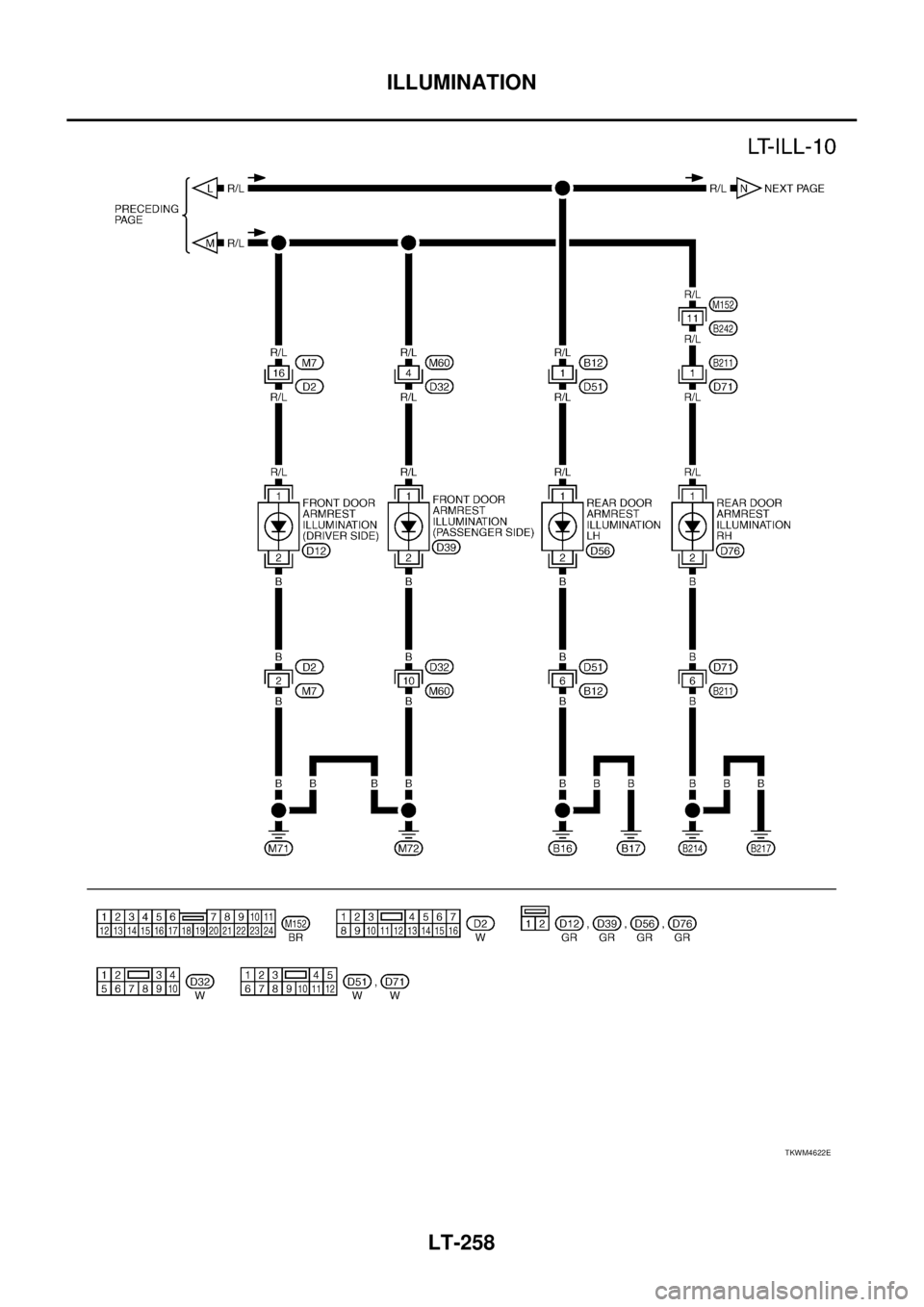

LT-258
ILLUMINATION

TKWM4622E

ILLUMINATION

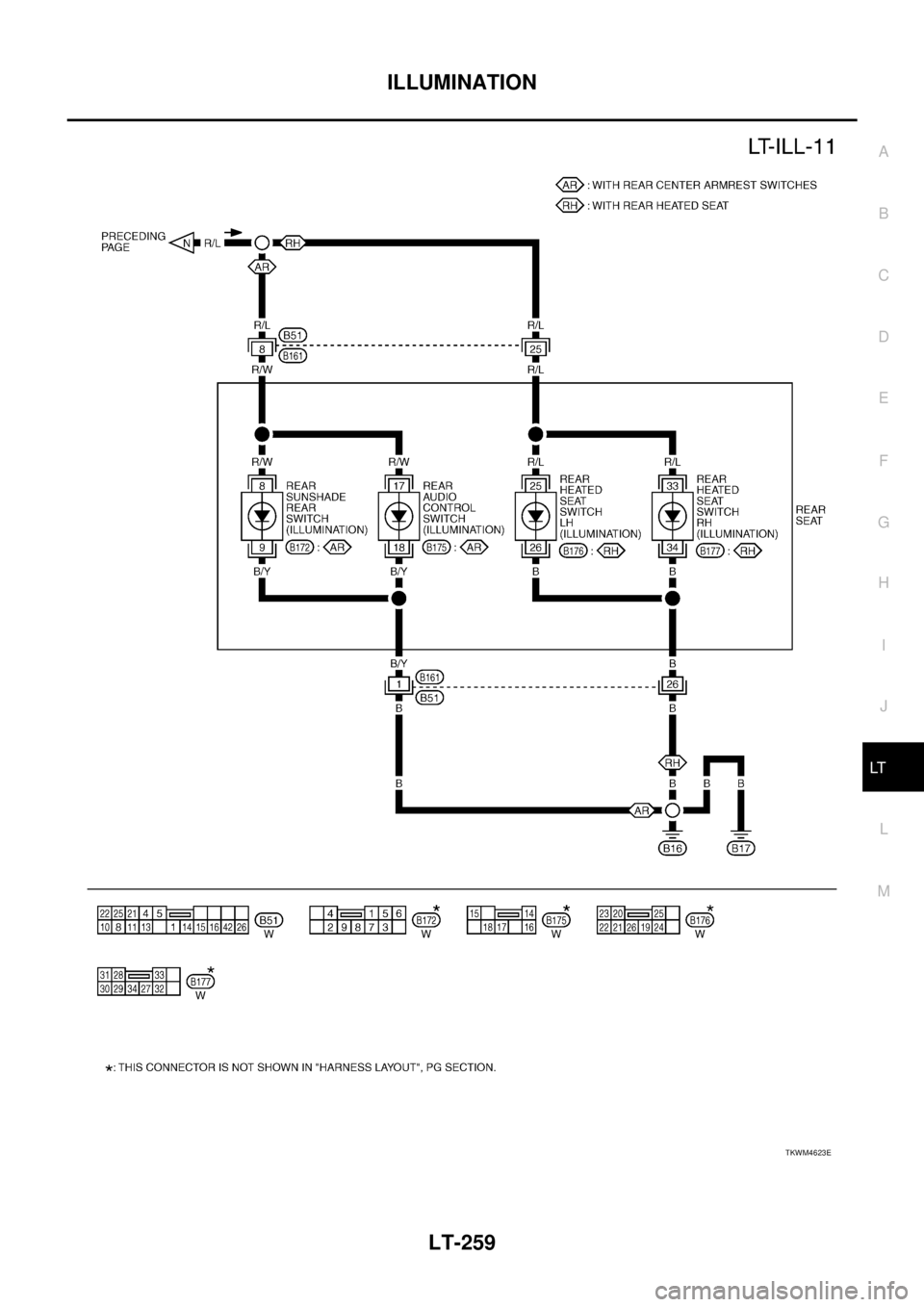

LT-259
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWM4623E

LT-260
ILLUMINATION

Bulb ReplacementBKS001RO
ASHTRAY ILLUMINATION
1. Remove front side ashtray. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Turn bulb socket left to release lock and remove it.
GLOVE BOX LAMP
1. Remove instrument passenger lower panel. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Turn bulb socket left to release lock and remove it.
CIGARETTE LIGHTER ILLUMINATION
1. Remove ashtray. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove screws from rearward of cigarette lighter socket.
3. Open hooks and remove bulb socket.
CAUTION:
When replacing bulb, replace assembly together with illumination ring.Ashtray illumination : 13.5V - 1.2W
Glove box lamp : 14V - 1.4W
Cigarette lighter illumination : 12V - 1.4W

BULB SPECIFICATIONS
LT-261
C
D
E
F
G
H
I
J
L
MA
B
LT

BULB SPECIFICATIONSPFP:26297
HeadlampBKS001RS
Exterior LampBKS001RT
Interior Lamp/IlluminationBKS001RU
Item Wattage (W)
Low/High (Xenon type)35 (D2S)
Low (Halogen type)55 (H11)
High (Halogen type)55 (H7)
Item Wattage (W)
Front combination lamp (Xenon type)Front turn signal lamp 21 (amber)
Parking lamp 5
Bending lamp 55 (H7)
Front combination lamp (Halogen type)Front turn signal lamp 21 (amber)
Parking lamp 5
Rear combination lampStop lamp LED
Tail lamp 5
Rear turn signal lamp 21
Back-up lamp 21
Rear fog lamp 21
Side turn signal lamp5
Front fog lamp35 (H8)
License plate lamp5
High-mounted stop lampLED
Item Wattage (W)
Map lamp8
Personal lamp8
Trunk room lamp3.4
Ashtray illumination1.4
Step lamp2.7
Vanity mirror lamp1.8
Ignition key hole illumination1.4
Glove box lamp1.4
Cigarette lighter illumination1.4

LT-262
BULB SPECIFICATIONS
