INTERIOR ROOM LAMP
LT-243
C
D
E
F
G
H
I
J
L
MA
B
LT
PERSONAL LAMP
Removal
1. Use a clip driver or similar tool to press metal clip, and remove
personal lamp.
2. Disconnect personal lamp connector.
Installation
Installation is the reverse order of removal.
TRUNK ROOM LAMP
Removal
1. Remove rear parcel shelf finisher assembly. Refer to EI-43, "REAR PARCEL SHELF FINISHER" .
2. Disconnect trunk room lamp connector.
3. Press pawl and remove trunk room lamp.
Installation
Installation is the reverse order of removal.
SKIA6360E
SKIA6366E
LT-244
ILLUMINATION
ILLUMINATIONPFP:27545

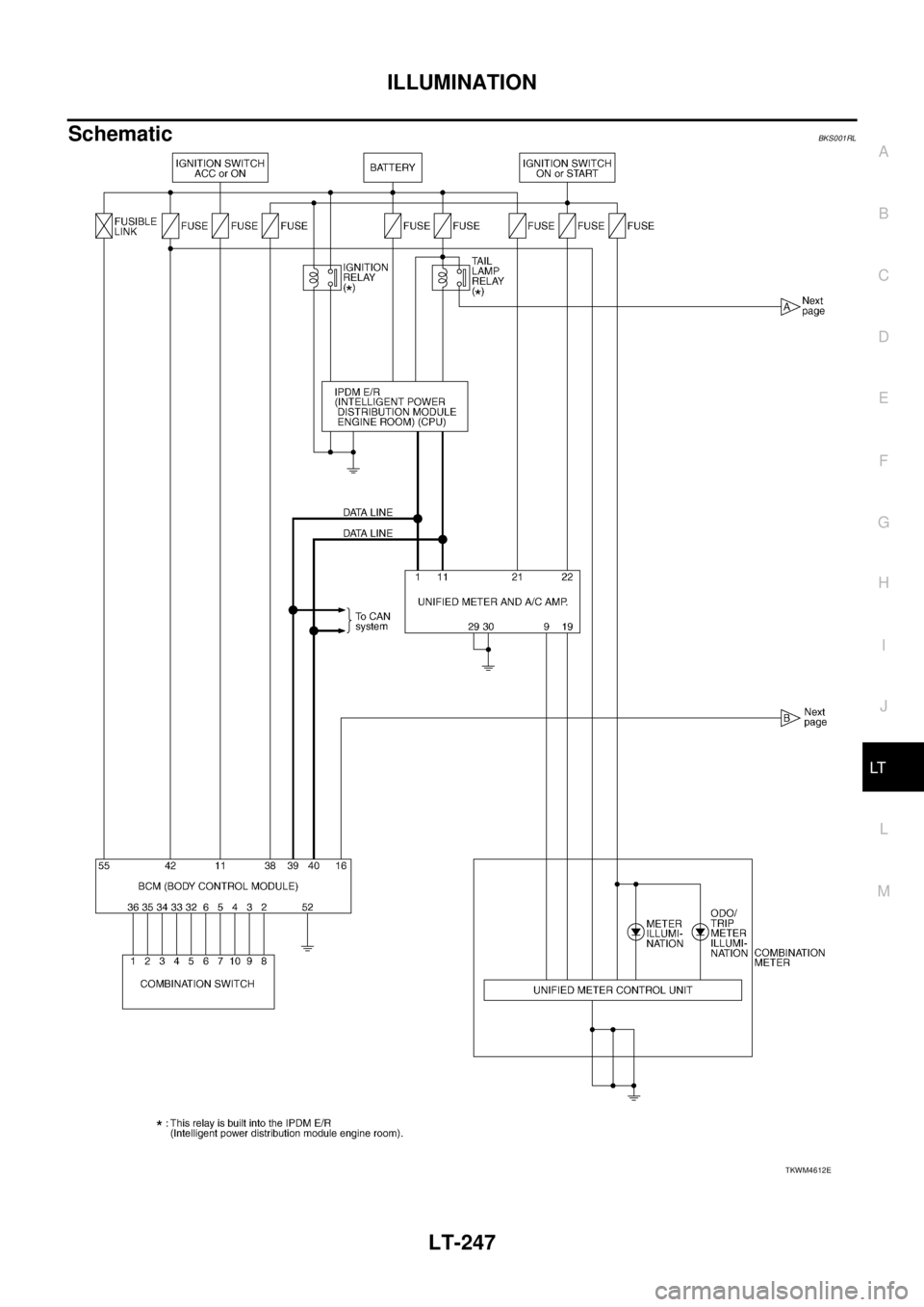

System DescriptionBKS001RI
BCM (Body Control Module) controls illumination lamp operation.
IPDM E/R (Intelligent Power Distribution Module Engine Room) operates illumination lamps according to
CAN communication signals from BCM.
OUTLINE
Power is supplied at all times
to ignition relay (located in IPDM E/R), from battery direct,
through 50A fusible link (letter M, located in fuse and fusible link box)
to BCM terminal 55,
through 15A fuse [No. 17, located in fuse block (J/B)]
to BCM terminal 42 and
to combination meter terminal 7,
through 15A fuse (No. 71, located in IPDM E/R)
to tail lamp relay (located in IPDM E/R) and
to CPU (central processing unit) in IPDM E/R
through 15A fuse (No. 78, located in IPDM E/R)
to CPU in IPDM E/R,
through 10A fuse [No. 19, located in fuse block (J/B)]
to unified meter and A/C amp. terminal 21.
With the ignition switch in the ON or START position, power is supplied
to ignition relay (located in IPDM E/R),
through 10A fuse [No. 1, located in fuse block (J/B)]
to BCM terminal 38,
through 10A fuse [No. 12, located in fuse block (J/B)]
to unified meter and A/C amp. terminal 22,
through 10A fuse [No. 14, located in fuse block (J/B)]
to combination meter terminal 8.
With the ignition switch in the ACC or ON position, power is supplied
through 10A fuse [No. 6, located in fuse block (J/B)]
to BCM terminal 11.
Ground is supplied
to BCM terminal 52
to unified meter and A/C amp. terminals 29 and 30, and
to combination meter terminals 10, 11, and 12
through grounds M71 and M72,
to IPDM E/R terminals 38 and 60
through grounds E1 and E31.

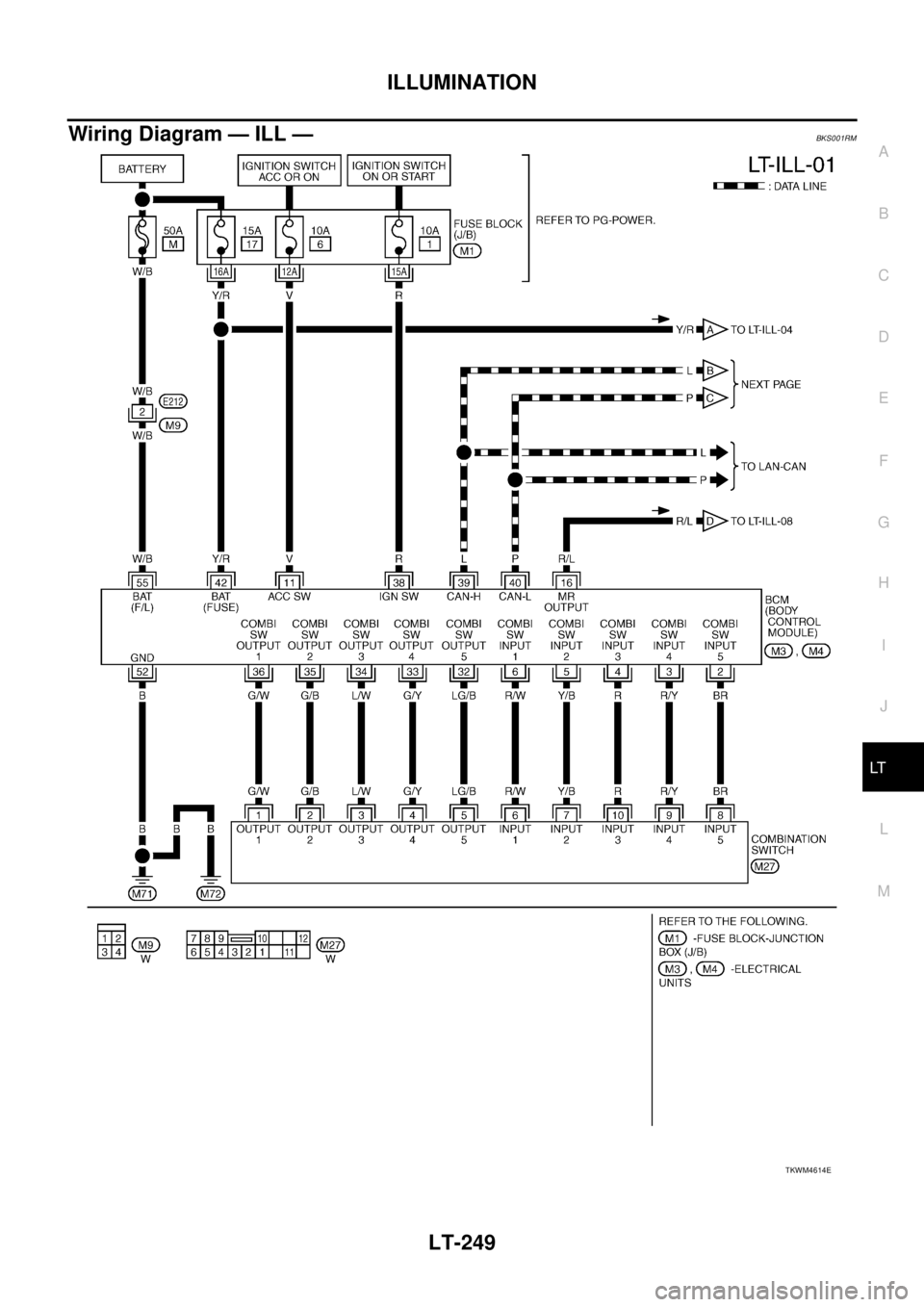

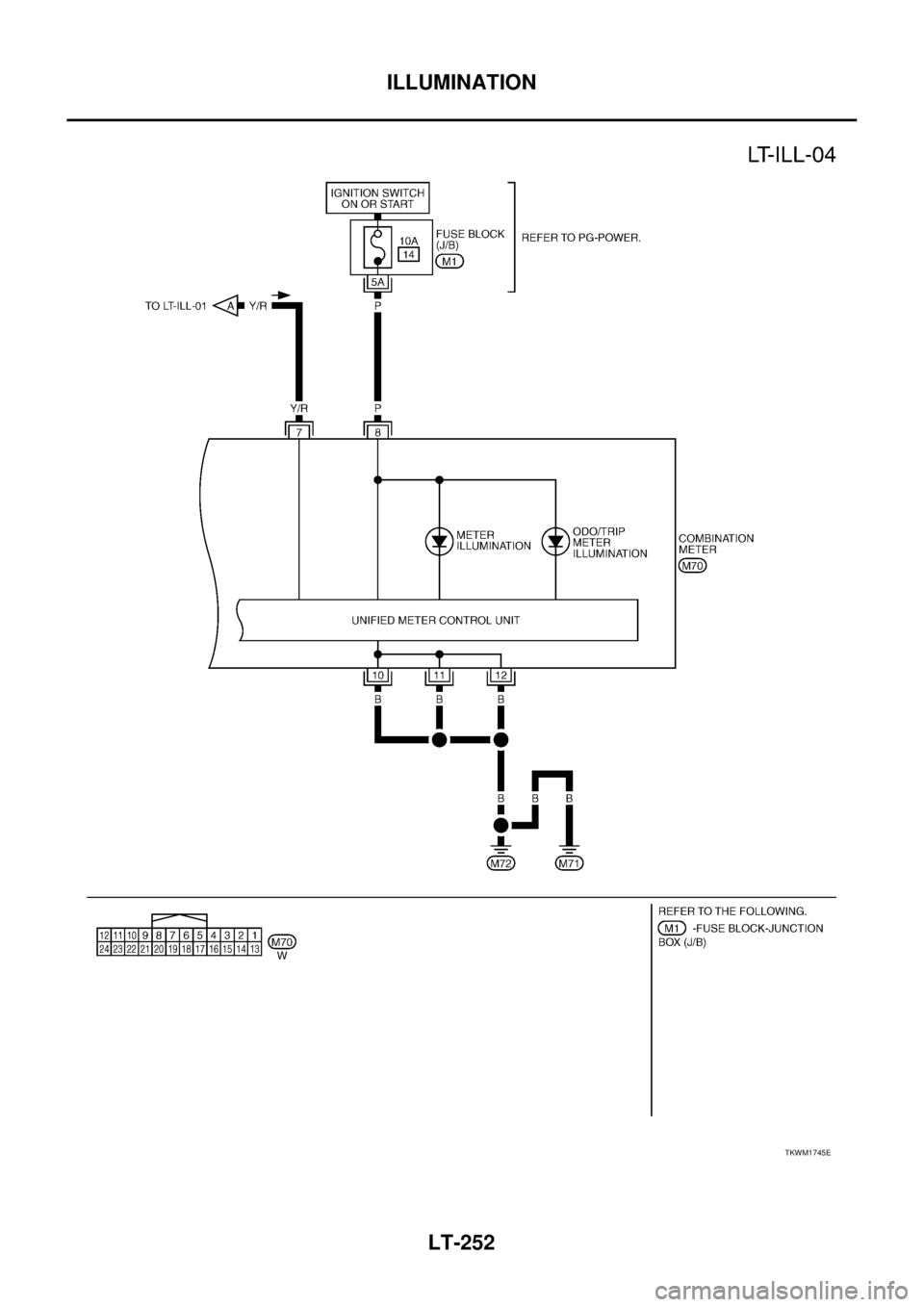

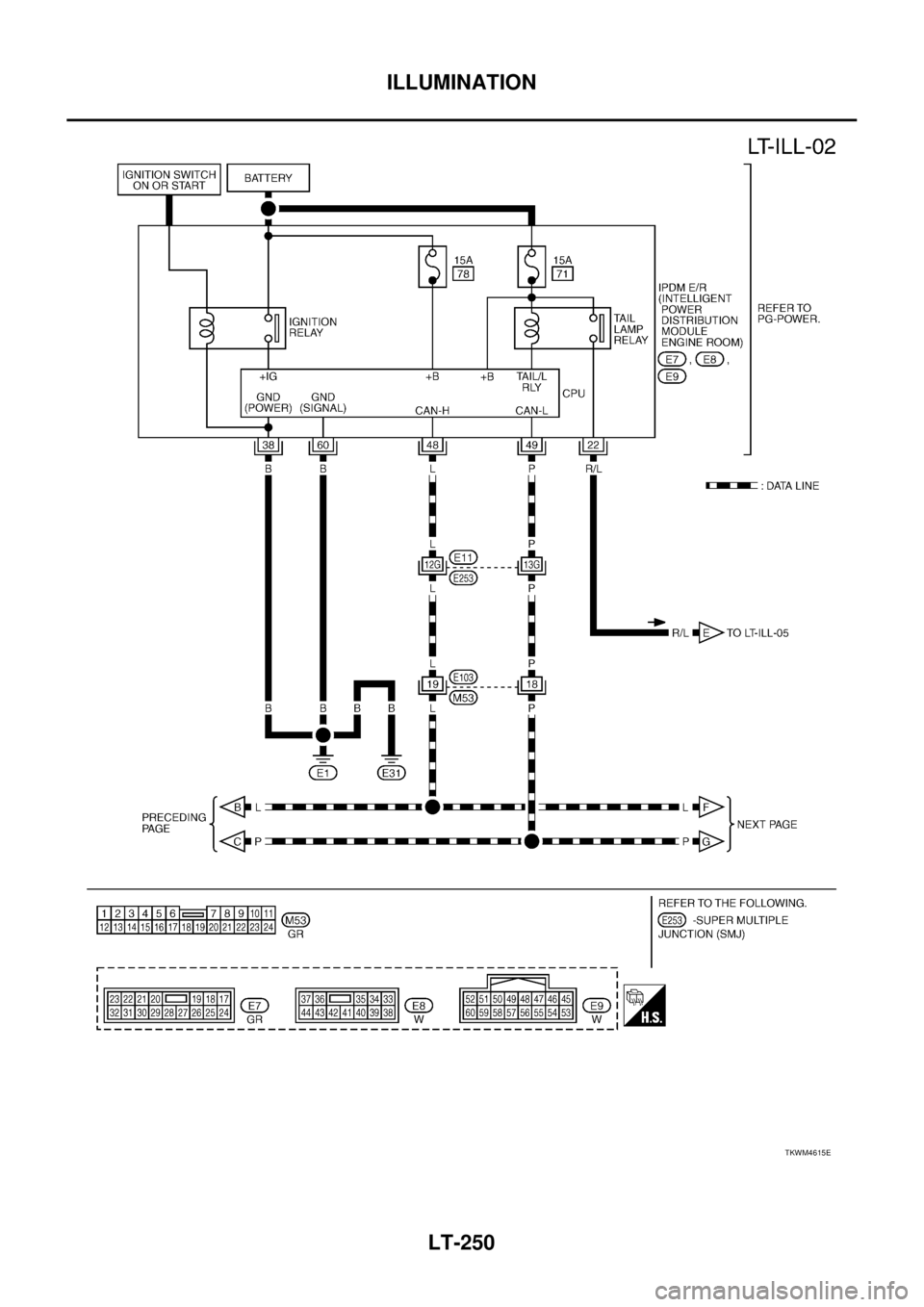

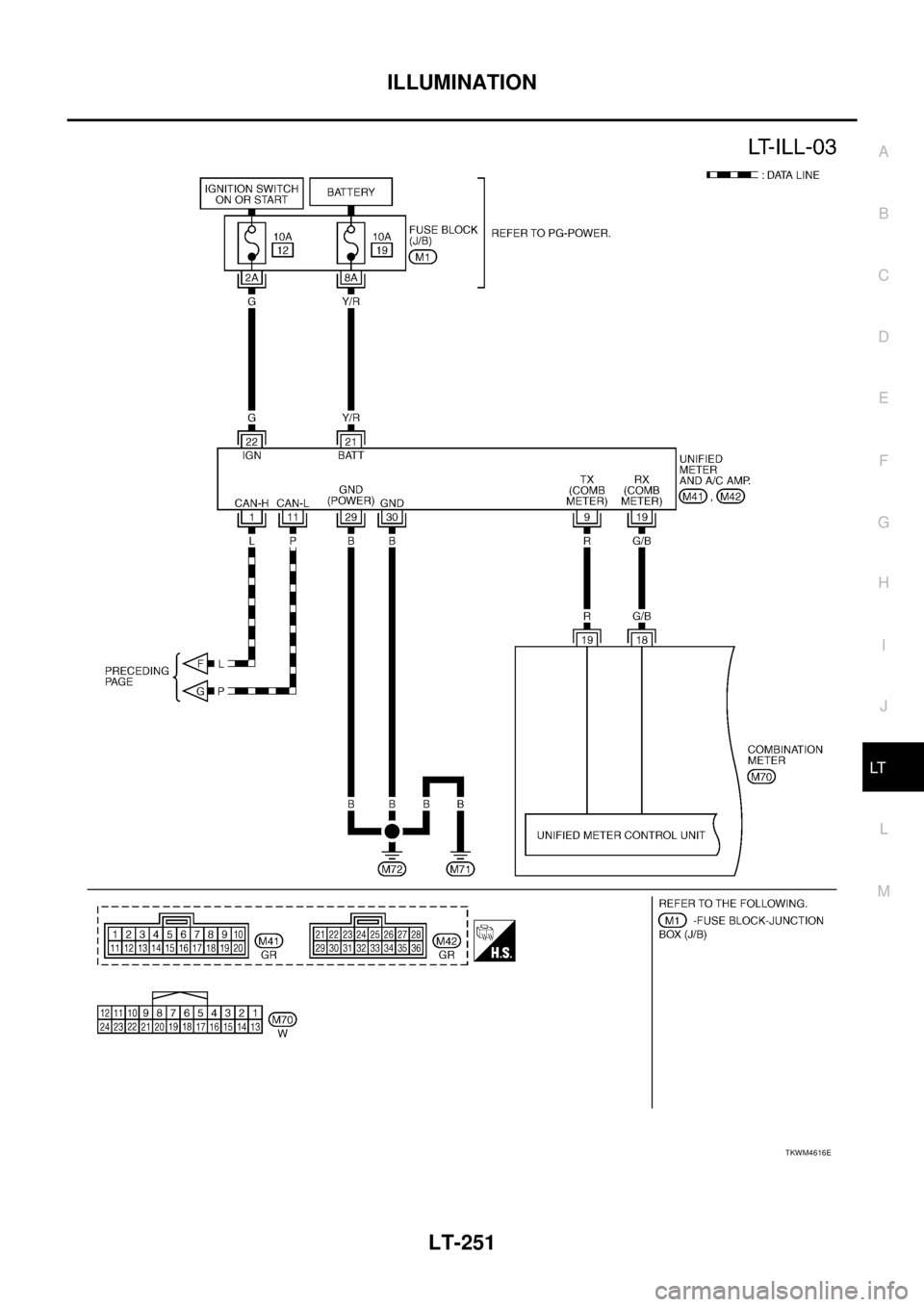

ILLUMINATION OPERATION BY LIGHTING SWITCH
When the lighting switch is in 1ST position, BCM detects the LIGHTING SWITCH 1ST POSITION (ON) by
BCM combination switch reading function. And then, BCM sends position light request signal (ON) through
CAN communication and MR output signal.
When receiving position light request signal (ON), IPDM E/R turns ON tail lamp relay in IPDM E/R. And then

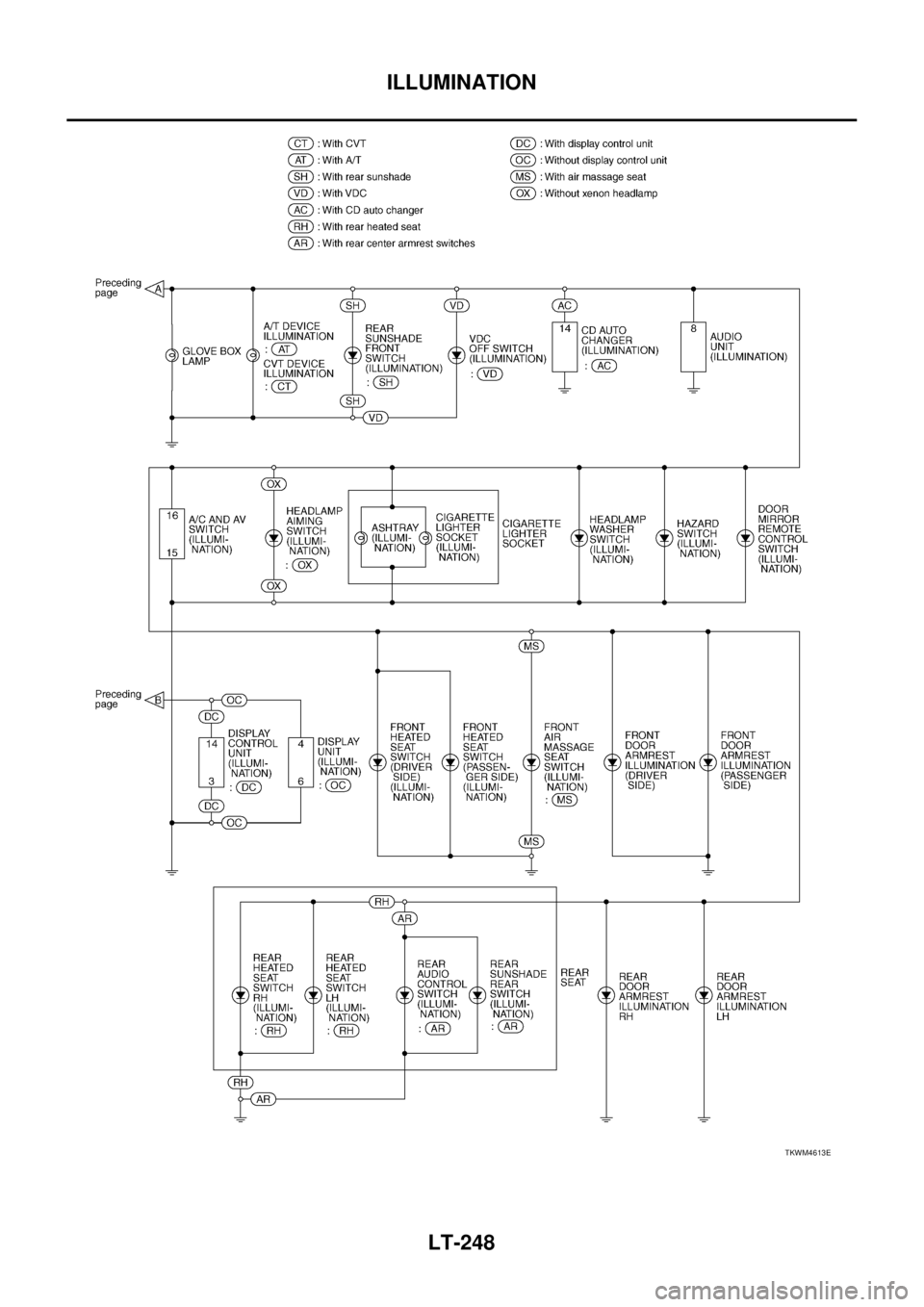

supplies power
through IPDM E/R terminal 22
to glove box lamp terminal 1
to A/T device illumination terminal 1 (with A/T)
to CVT device illumination terminal 1 (with CVT)
to rear sunshade front switch (illumination) terminal 5 (with rear sunshade)
ILLUMINATION
LT-245
C
D
E
F
G
H
I
J
L
MA
B
LT
to VDC off switch (illumination) terminal 3 (with VDC)
to CD auto changer (illumination) terminal 14 (with CD auto changer)
to audio unit (illumination) terminal 8
to door mirror remote control switch (illumination) terminal 16
to hazard switch (illumination) terminal 3
to headlamp washer switch (illumination) terminal 3
to cigarette lighter socket terminal 2
to headlamp aiming switch (illumination) terminal 3 (without xenon headlamp)
to A/C and AV switch (illumination) terminal 16
to front heated seat switch (driver side) (illumination) terminal 5
to front heated seat switch (passenger side) (illumination) terminal 5
to front air massage seat switch (illumination) terminal 5 (with air massage seat)
to front door armrest illumination (driver side) terminal 1
to front door armrest illumination (passenger side) terminal 1
to rear door armrest illumination LH terminal 1
to rear door armrest illumination RH terminal 1
to rear sunshade rear switch (illumination) terminal 8 (with rear center armrest switches)
to rear audio control switch (illumination) terminal 17 (with rear center armrest switches)
to rear heated seat switch LH (illumination) terminal 25 (with rear heated seat) and
to rear heated seat switch RH (illumination) terminal 33 (with rear heated seat),
through BCM terminal 16
to display control unit (illumination) terminal 14 (with display control unit)
to display unit (illumination) terminal 4 (without display control unit).
Ground is supplied
to glove box lamp terminal 2
to A/T device illumination terminal 2 (with A/T)
to CVT device illumination terminal 2 (with CVT)
to rear sunshade front switch (illumination) terminal 6 (with rear sunshade)
to VDC off switch (illumination) terminal 4 (with VDC)
to door mirror remote control switch (illumination) terminal 15
to hazard switch (illumination) terminal 4
to headlamp washer switch (illumination) terminal 4
to cigarette lighter socket terminal 1
to headlamp aiming switch (illumination) terminal 4 (without xenon headlamp)
to A/C and AV switch (illumination) terminal 15
to display control unit (illumination) terminal 3 (with display control unit)
to display unit (illumination) terminal 6 (without display control unit)
to front heated seat switch (driver side) (illumination) terminal 6
to front heated seat switch (passenger side) (illumination) terminal 6
to front air massage seat switch (illumination) terminal 6 (with air massage seat)
to front door armrest illumination (driver side) terminal 2 and
to front door armrest illumination (passenger side) terminal 2
through grounds M71 and M72,
to CD auto changer (illumination) (with CD auto changer) and
to Audio unit (illumination)
through case ground,
to rear door armrest illumination LH terminal 2
to rear sunshade rear switch (illumination) terminal 9 (with rear center armrest switches)
to rear audio control switch (illumination) terminal 18 (with rear center armrest switches)
LT-246
ILLUMINATION
to rear heated seat switch LH (illumination) terminal 26 (with rear heated seat) and
to rear heated seat switch RH (illumination) terminal 34 (with rear heated seat)
through grounds B16 and B17,
to rear door armrest illumination RH terminal 2
through grounds B214 and B217.
With power and ground supplied, illumination lamps illuminate.
EXTERIOR LAMP BATTERY SAVER CONTROL
Refer to LT- 1 9 7 , "EXTERIOR LAMP BATTERY SAVER CONTROL" .
CAN Communication System DescriptionBKS001RJ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitBKS001RK
Refer to LAN-49, "CAN System Specification Chart" .
