Page 401 of 3502

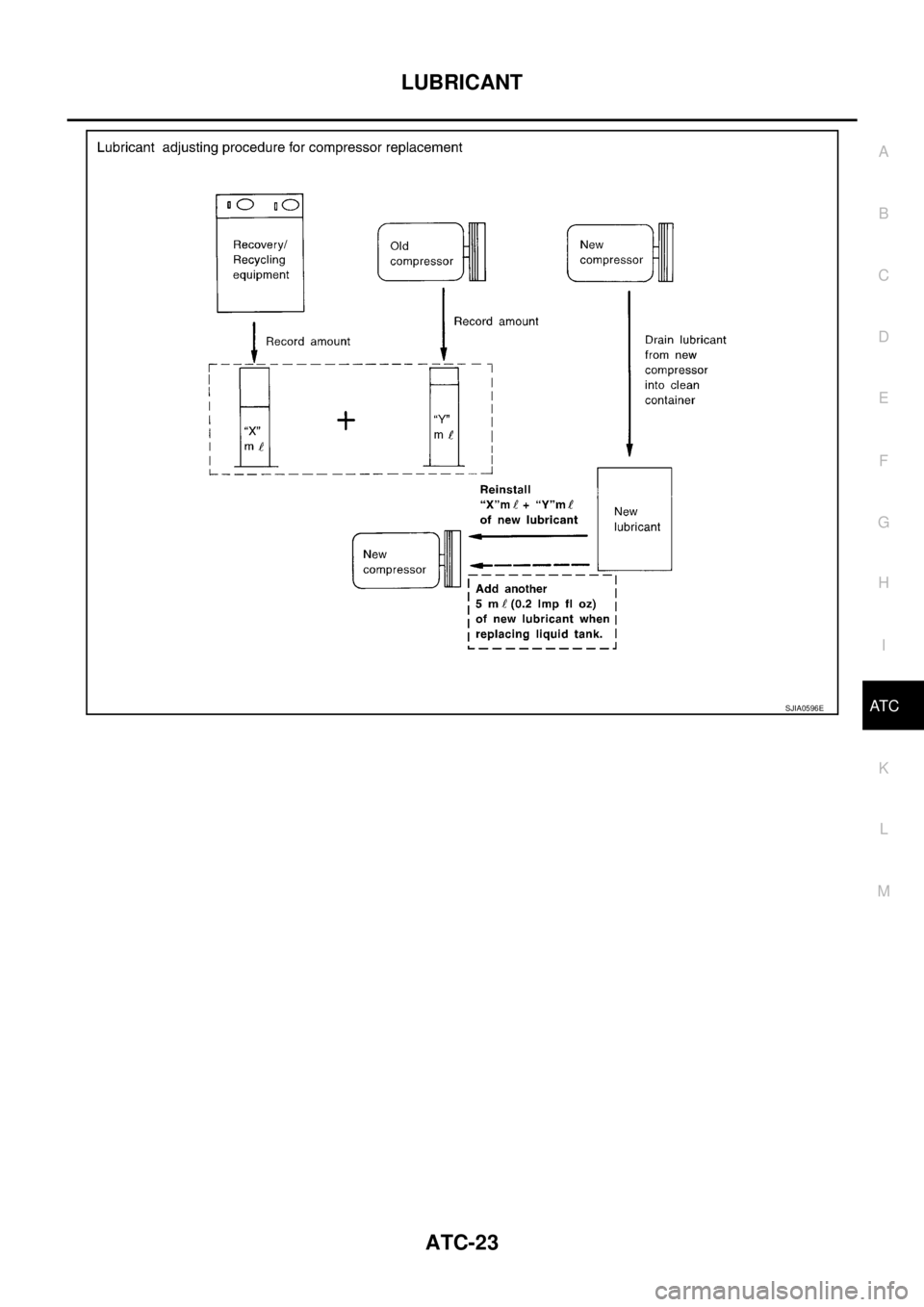

NISSAN TEANA 2003  Service Manual LUBRICANT
ATC-23
C
D
E
F
G
H
I
K
L
MA
B
AT C
 SJIA0596E

Page 402 of 3502

NISSAN TEANA 2003  Service Manual ATC-24
AIR CONDITIONER CONTROL

AIR CONDITIONER CONTROLPFP:27500

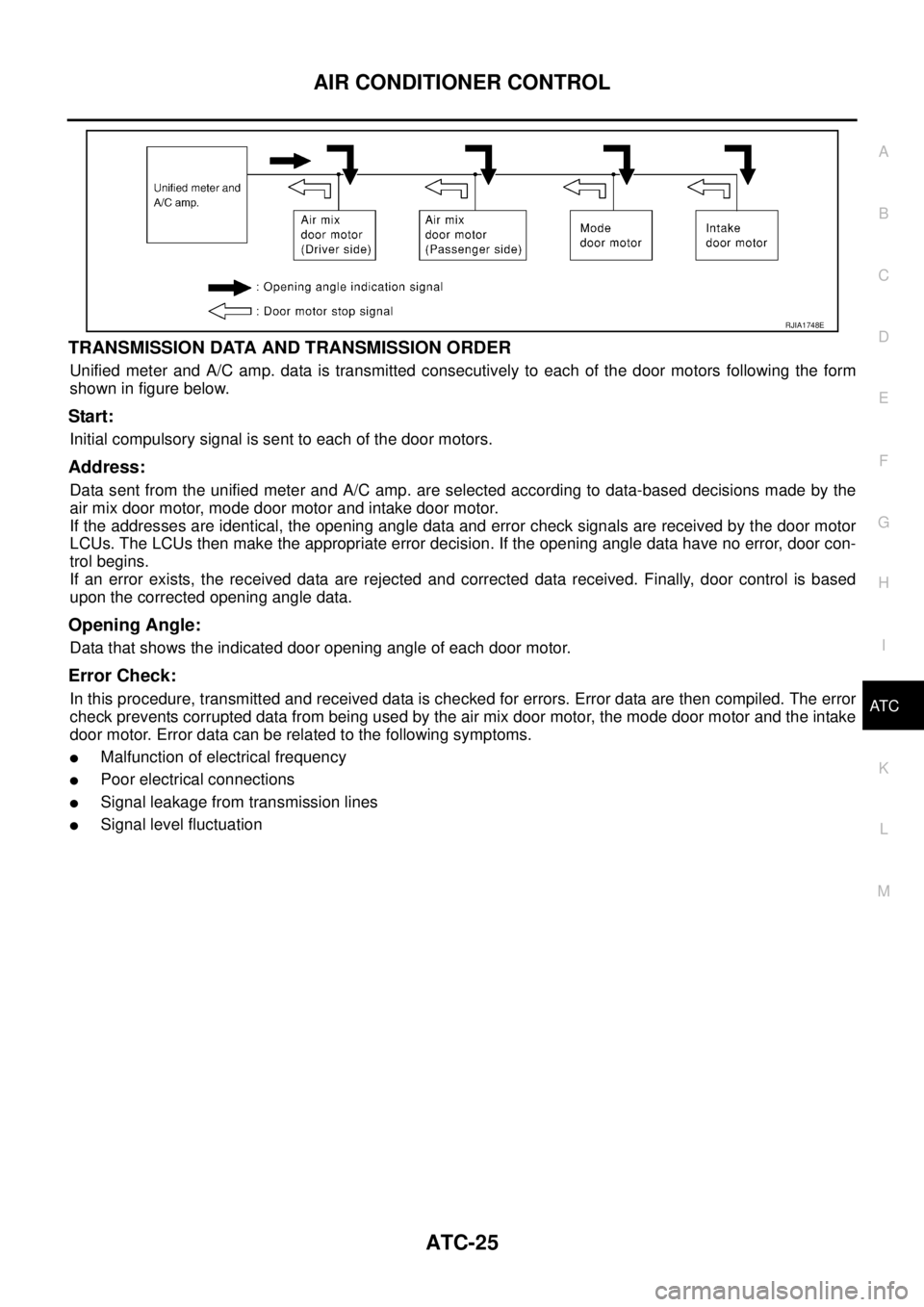

Description of Air Conditioner LAN Control SystemBJS000FJ
The LAN (Local Area Network) system consists of unified meter and A/C amp.,

Page 403 of 3502

NISSAN TEANA 2003  Service Manual AIR CONDITIONER CONTROL
ATC-25
C
D
E
F
G
H
I
K
L
MA
B
AT C

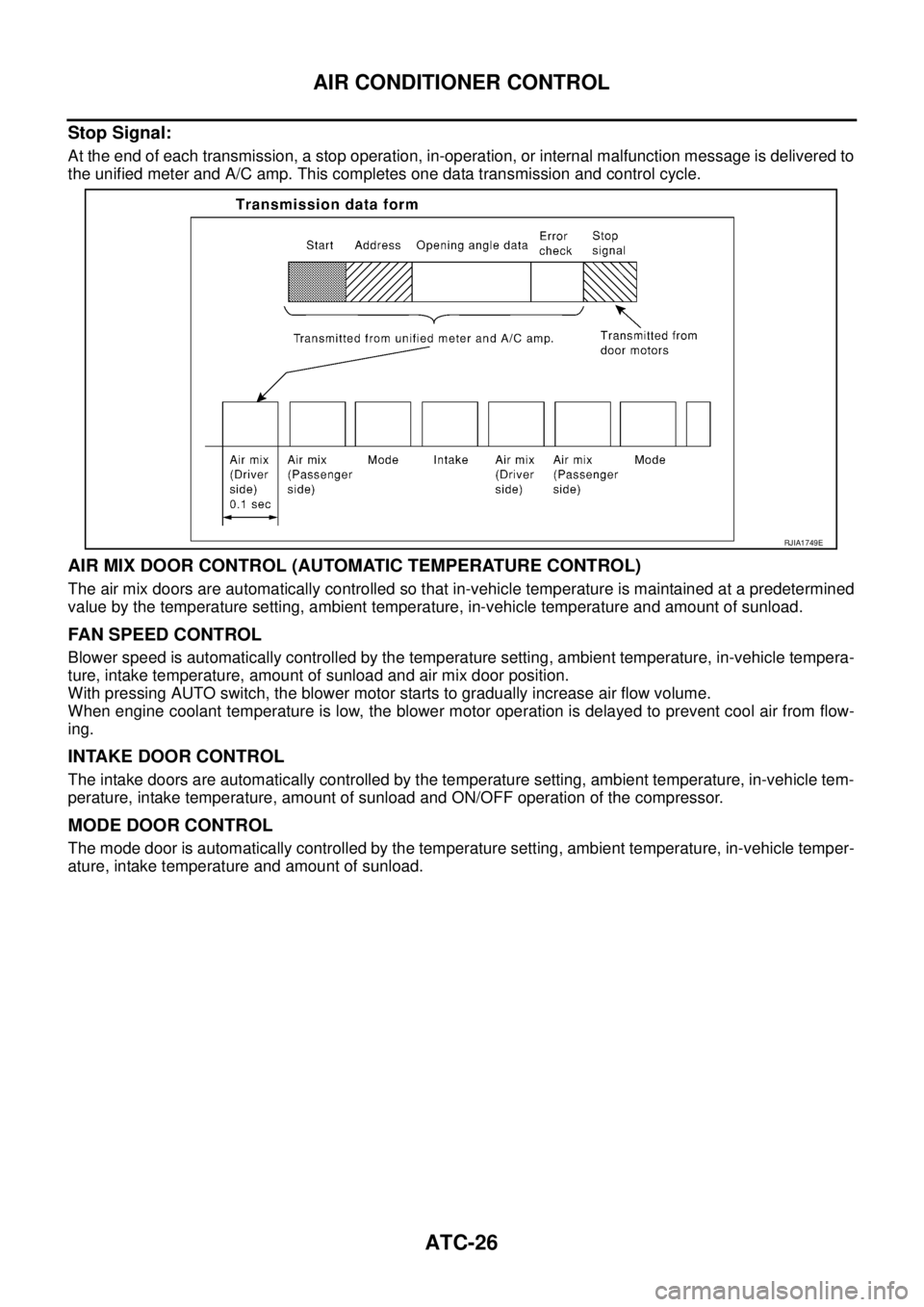

TRANSMISSION DATA AND TRANSMISSION ORDER
Unified meter and A/C amp. data is transmitted consecutively to each of the door motors following

Page 404 of 3502

NISSAN TEANA 2003  Service Manual ATC-26
AIR CONDITIONER CONTROL

Stop Signal:
At the end of each transmission, a stop operation, in-operation, or internal malfunction message is delivered to
the unified meter and A/C amp. This compl

Page 405 of 3502

NISSAN TEANA 2003  Service Manual AIR CONDITIONER CONTROL
ATC-27
C
D
E
F
G
H
I
K
L
MA
B
AT C

MAGNET CLUTCH CONTROL
When A/C switch is pressed (with FAN ON), press DEF switch, unified meter and A/C amp. transmits com-
pressor ON sign

Page 406 of 3502

NISSAN TEANA 2003  Service Manual ATC-28
AIR CONDITIONER CONTROL

Description of Control SystemBJS000FL
The control system consists of input sensors, switches, the unified meter and A/C amp. (microcomputer) and
outputs. The relations

Page 407 of 3502

NISSAN TEANA 2003  Service Manual AIR CONDITIONER CONTROL
ATC-29
C
D
E
F
G
H
I
K
L
MA
B
AT C

Control OperationBJS000FM

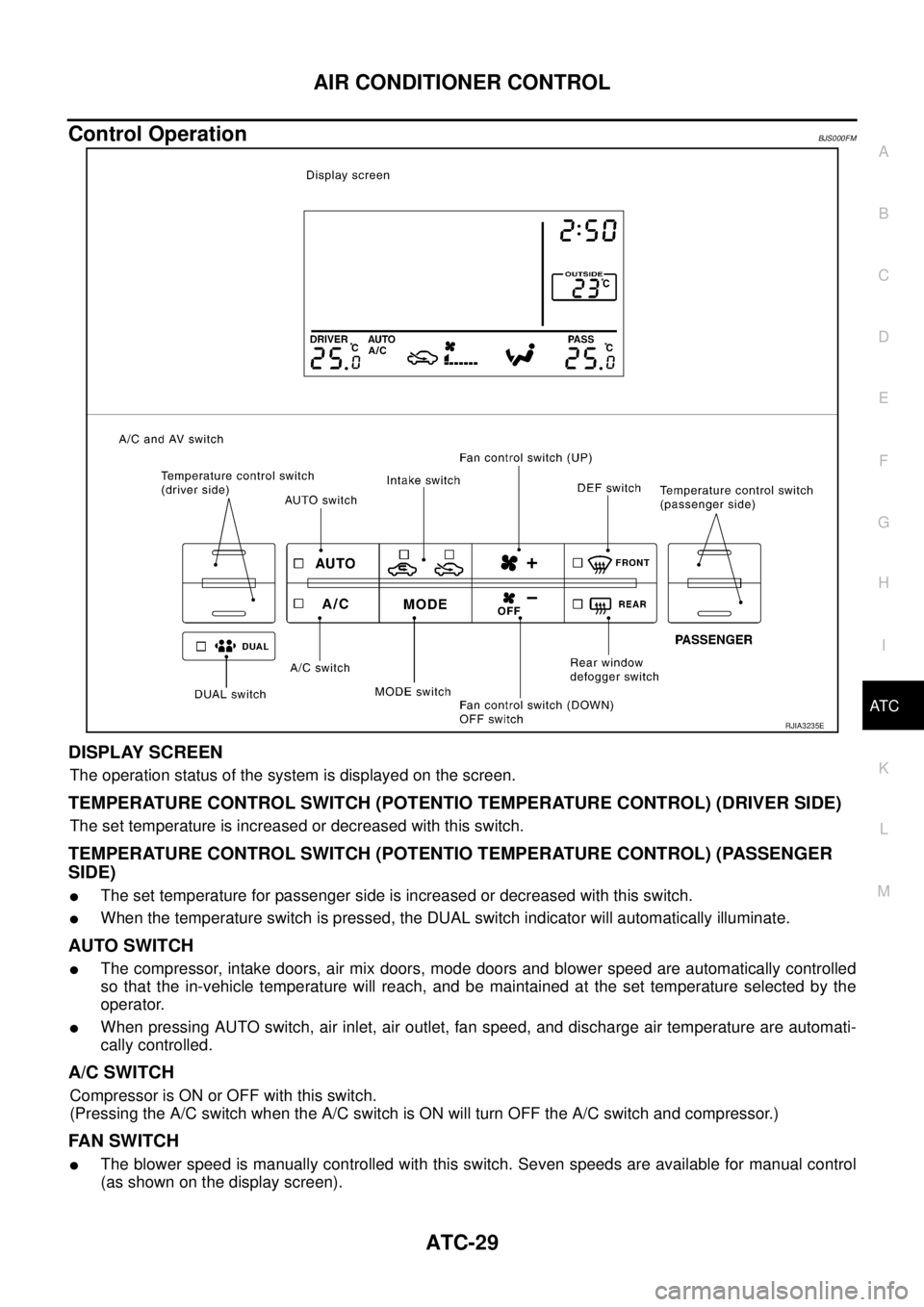

DISPLAY SCREEN
The operation status of the system is displayed on the screen.
TEMPERATURE CONTROL SWITCH (POTENTI

Page 408 of 3502

NISSAN TEANA 2003  Service Manual ATC-30
AIR CONDITIONER CONTROL

When fan control switch (DOWN) is pressed for approximately 2 seconds or longer or press fan control
switch when blower fan motor operates at 1st speed, A/C system wi

Page 409 of 3502

NISSAN TEANA 2003  Service Manual AIR CONDITIONER CONTROL
ATC-31
C
D
E
F
G
H
I
K
L
MA
B
AT C

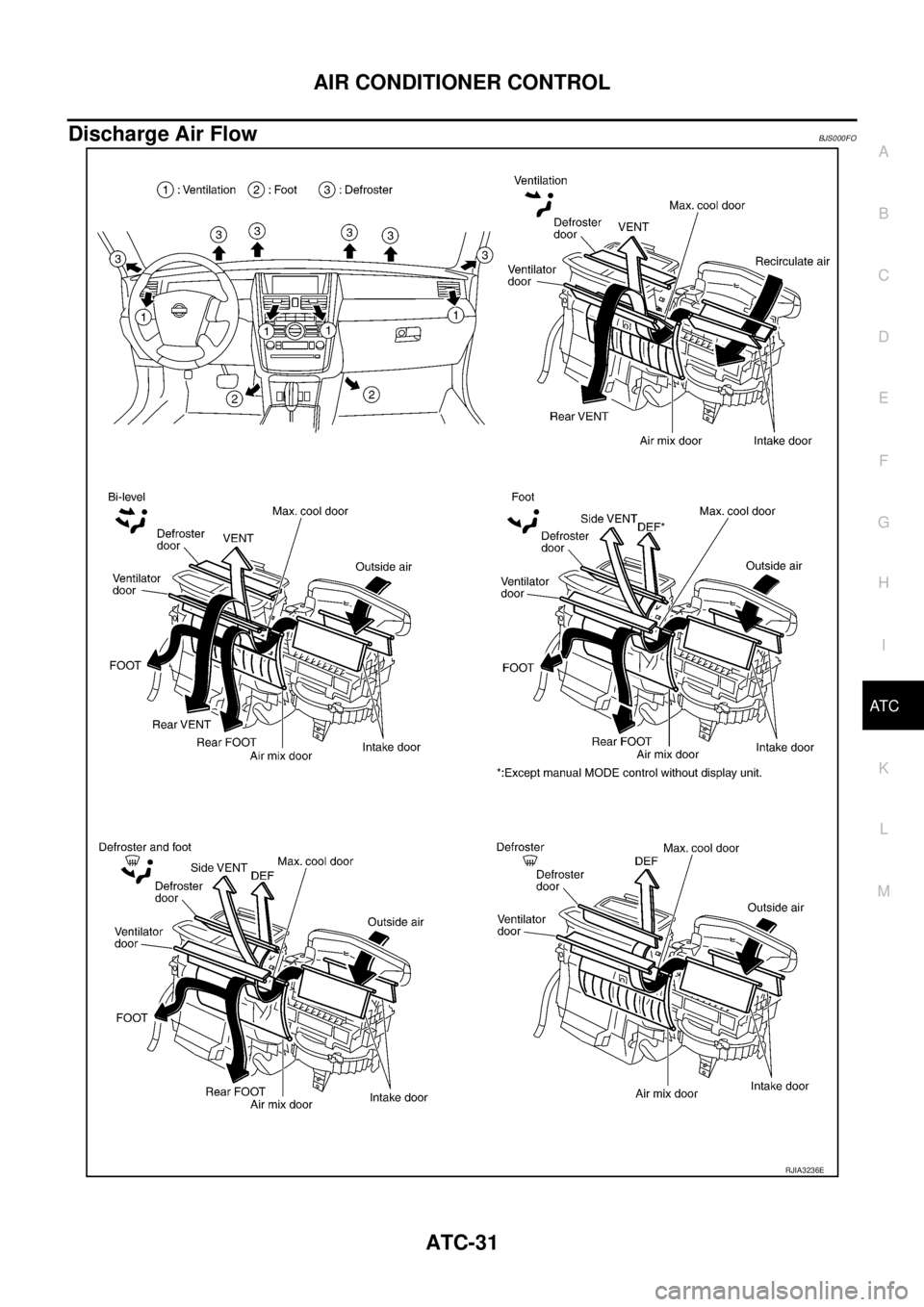

Discharge Air FlowBJS000FO
RJIA3236E

Page 410 of 3502

NISSAN TEANA 2003  Service Manual ATC-32
AIR CONDITIONER CONTROL

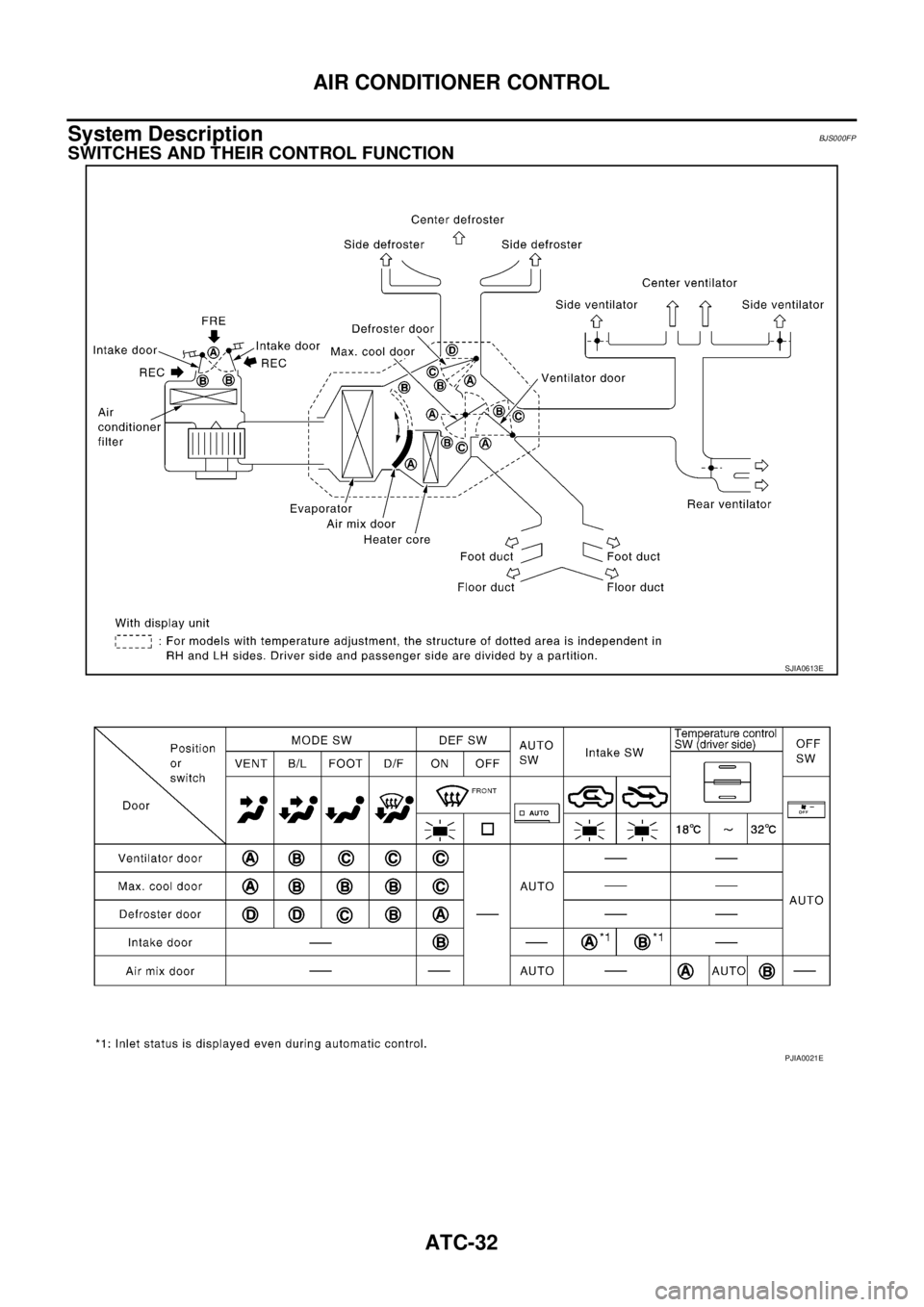

System DescriptionBJS000FP
SWITCHES AND THEIR CONTROL FUNCTION
SJIA0613E
PJIA0021E
