NISSAN TEANA 2003  Service Manual ASSEMBLY
AT-353
D
E
F
G
H
I
J
K
L
MA
B
AT

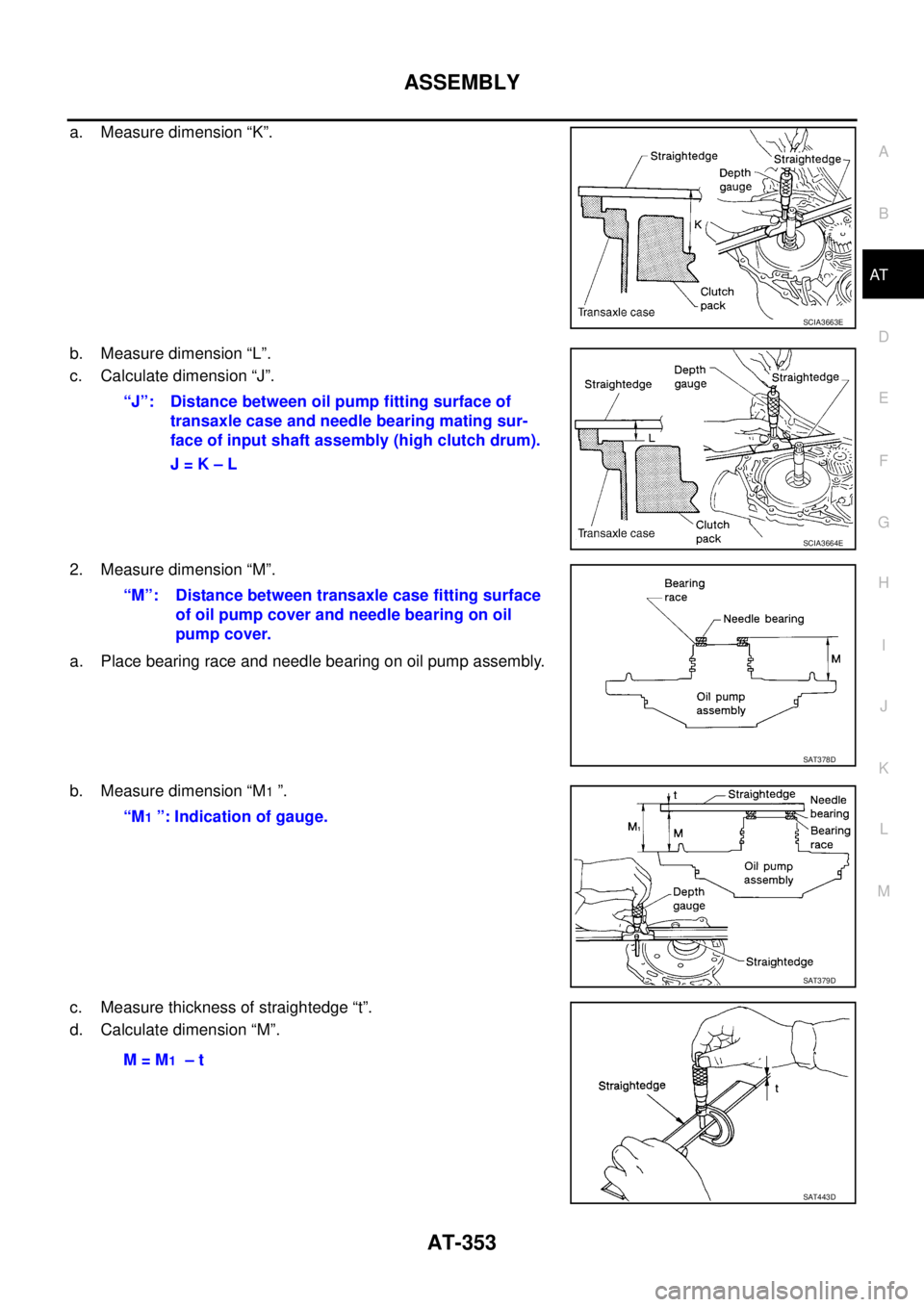

a. Measure dimension “K”.
b. Measure dimension “L”.
c. Calculate dimension “J”.
2. Measure dimension “M”.
a. Place bearing race and needle b

Page 362 of 3502

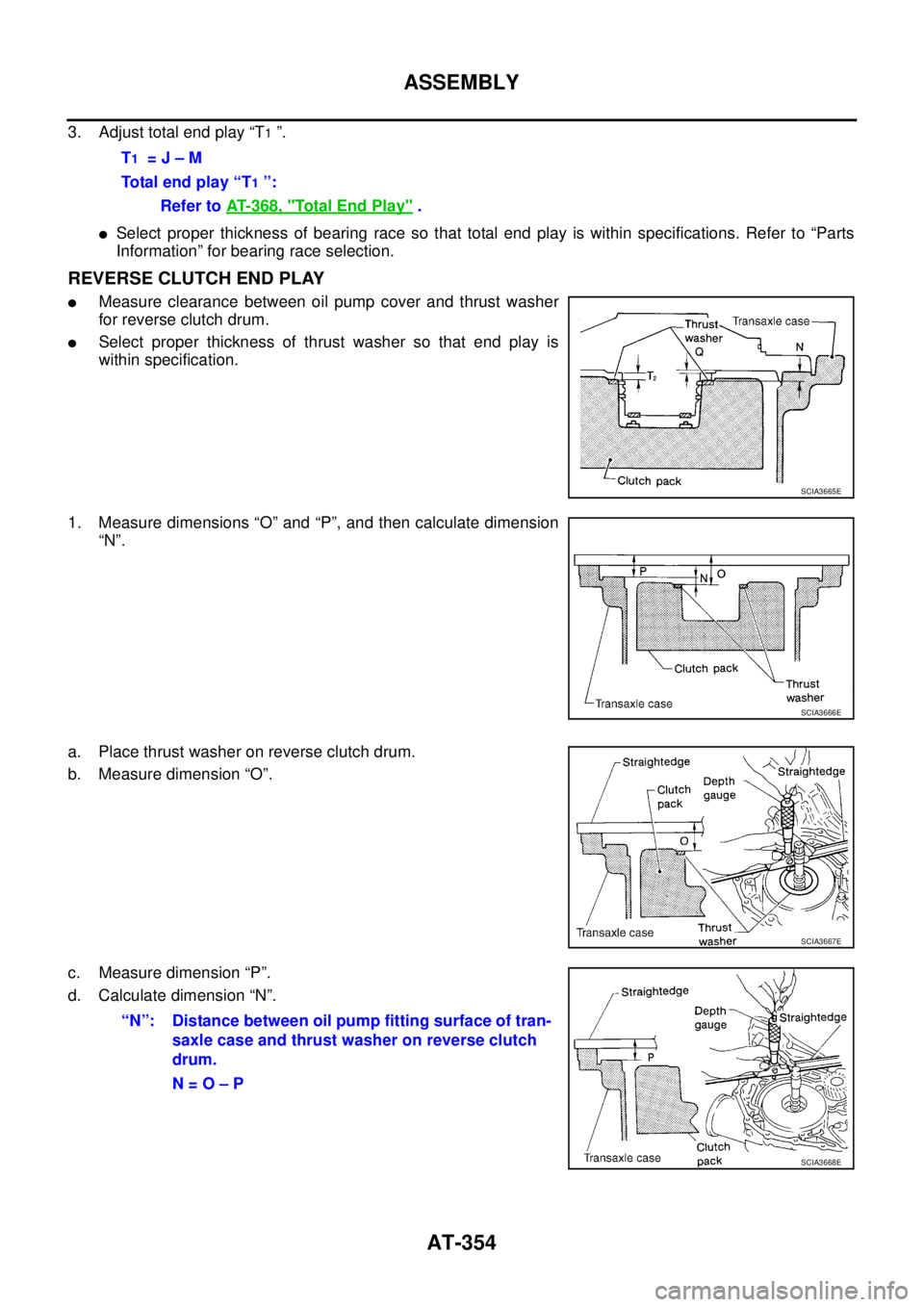

NISSAN TEANA 2003  Service Manual AT-354
ASSEMBLY

3. Adjust total end play “T1 ”.
Select proper thickness of bearing race so that total end play is within specifications. Refer to “Parts
Information” for bearing race select

Page 363 of 3502

NISSAN TEANA 2003  Service Manual ASSEMBLY
AT-355
D
E
F
G
H
I
J
K
L
MA
B
AT

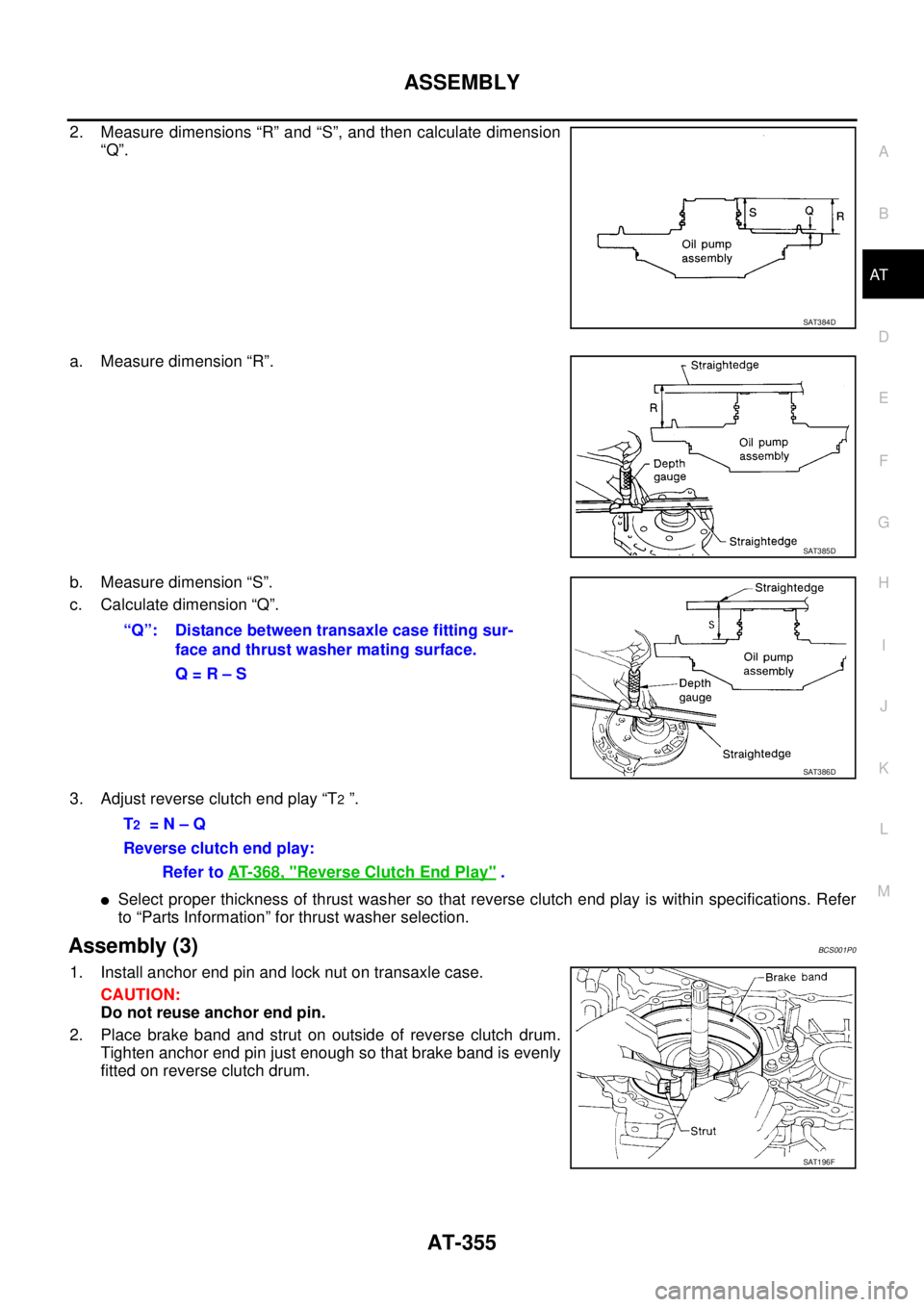

2. Measure dimensions “R” and “S”, and then calculate dimension
“Q”.
a. Measure dimension “R”.
b. Measure dimension “S”.
c. Calculate di

Page 364 of 3502

NISSAN TEANA 2003  Service Manual AT-356
ASSEMBLY

3. Place bearing race selected in total end play adjustment step on
oil pump cover.
4. Place thrust washer selected in reverse clutch end play step on
reverse clutch drum.
5. Install

Page 365 of 3502

NISSAN TEANA 2003  Service Manual ASSEMBLY
AT-357
D
E
F
G
H
I
J
K
L
MA
B
AT

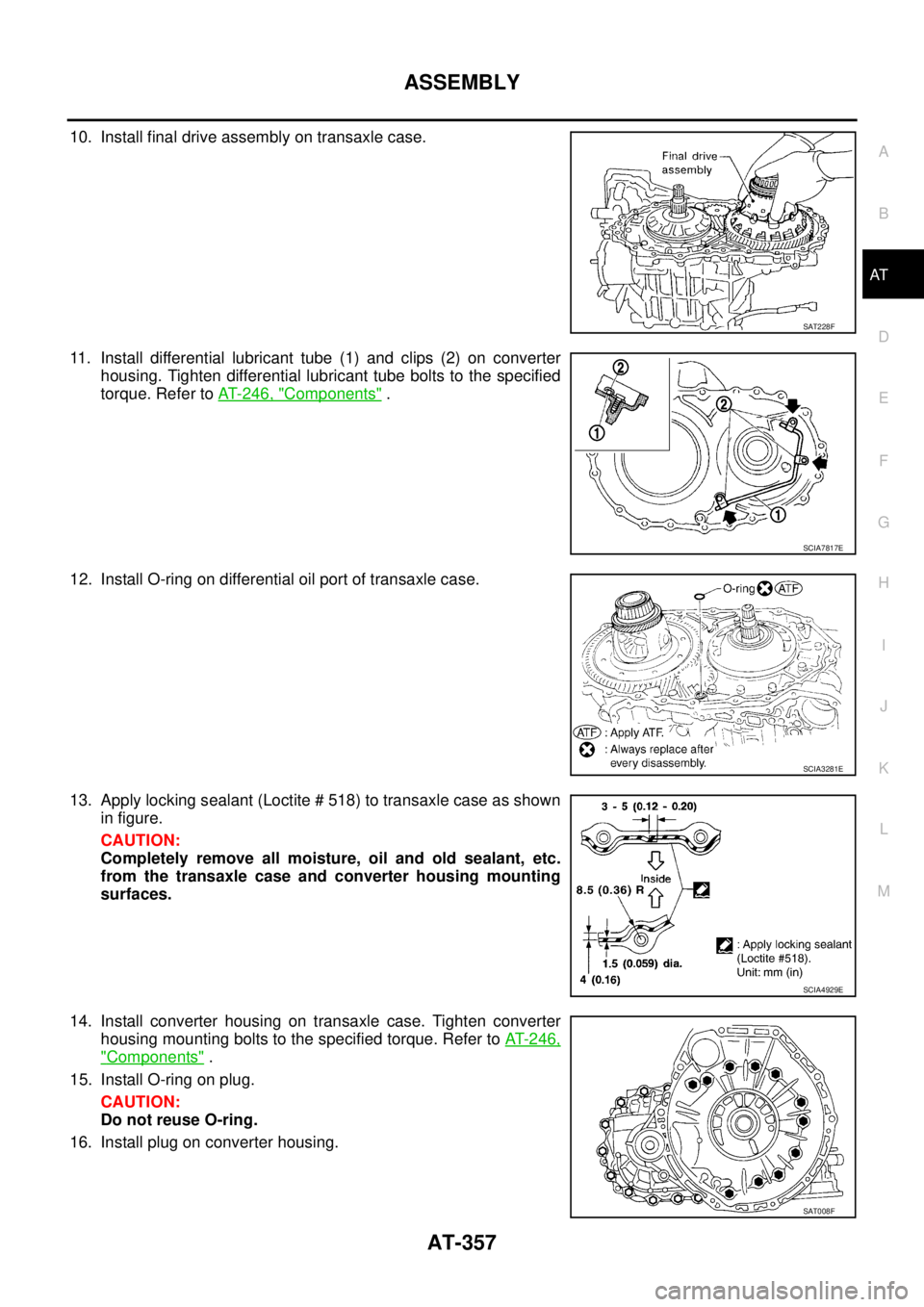

10. Install final drive assembly on transaxle case.
11. Install differential lubricant tube (1) and clips (2) on converter
housing. Tighten differential lub

Page 366 of 3502

NISSAN TEANA 2003  Service Manual AT-358
ASSEMBLY

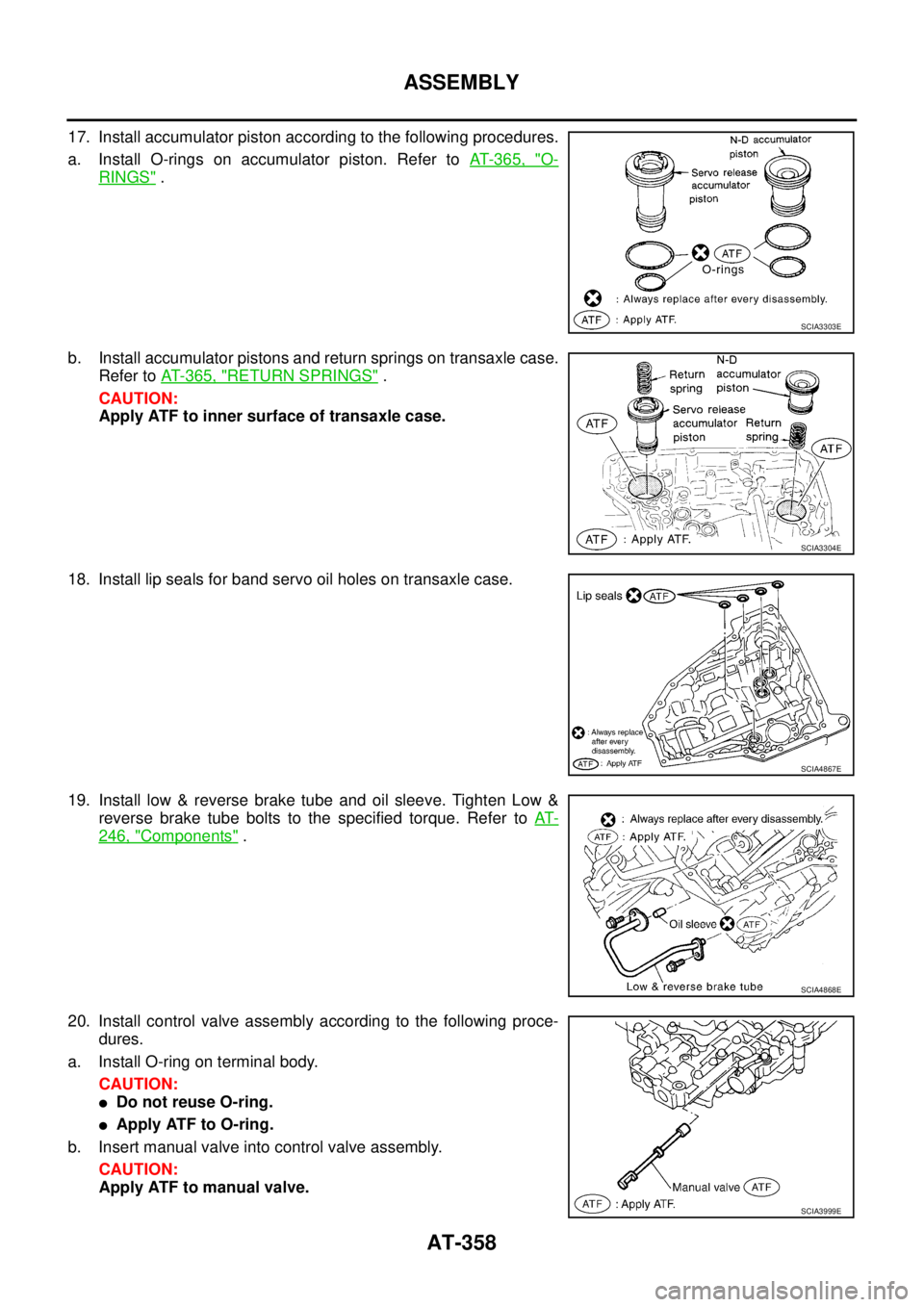

17. Install accumulator piston according to the following procedures.
a. Install O-rings on accumulator piston. Refer to AT- 3 6 5 ,  "
O-
RINGS" .
b. Install accumulator pistons and

Page 367 of 3502

NISSAN TEANA 2003  Service Manual ASSEMBLY
AT-359
D
E
F
G
H
I
J
K
L
MA
B
AT

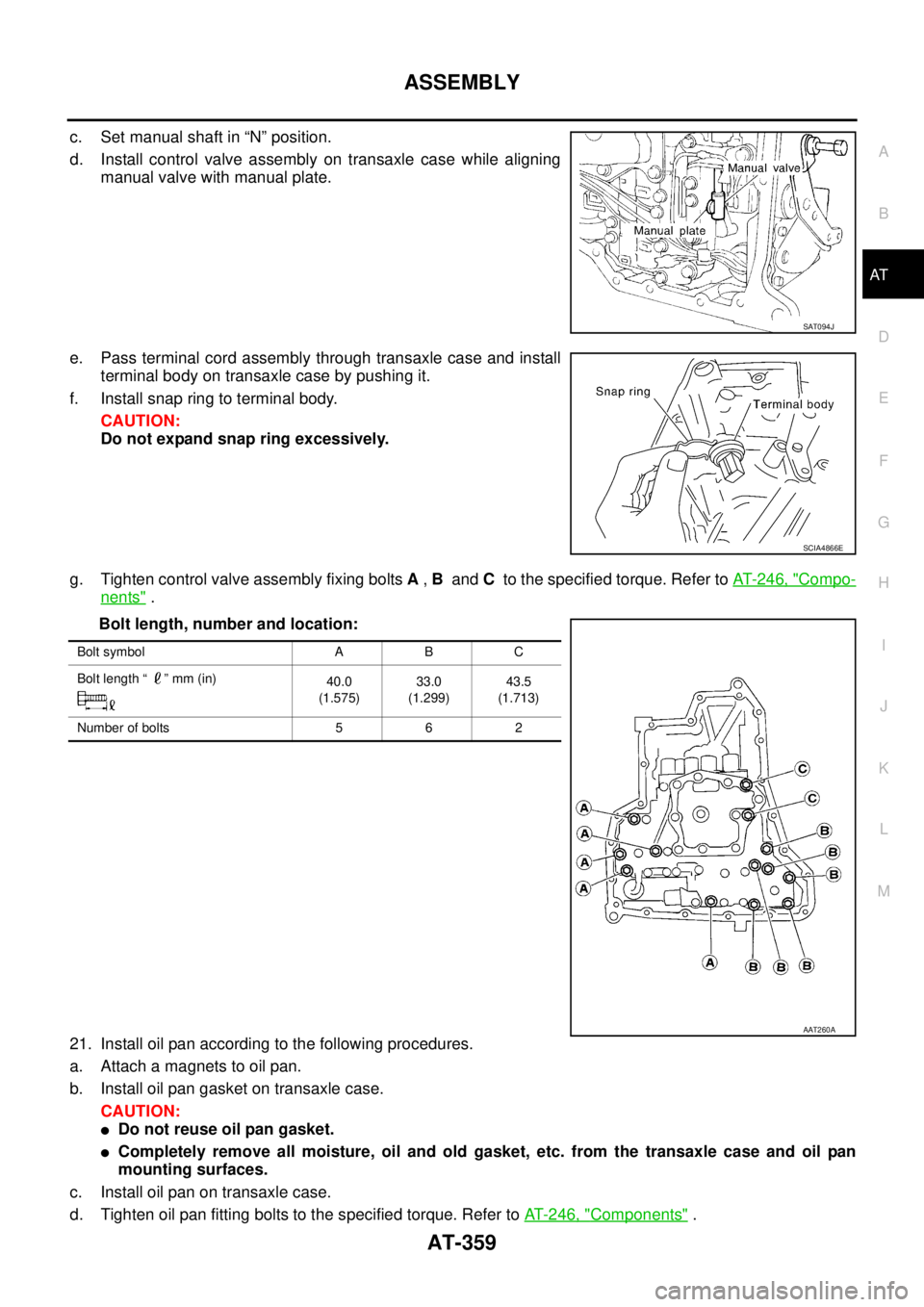

c. Set manual shaft in “N” position.
d. Install control valve assembly on transaxle case while aligning
manual valve with manual plate.
e. Pass terminal

Page 368 of 3502

NISSAN TEANA 2003  Service Manual AT-360
ASSEMBLY

CAUTION:
Always replace oil pan fitting bolts as they are self-sealing bolts.
Tighten four bolts in a crisscross pattern to prevent dislocation of gasket.
e. Install drain plug gas

Page 369 of 3502

NISSAN TEANA 2003  Service Manual ASSEMBLY
AT-361
D
E
F
G
H
I
J
K
L
MA
B
AT

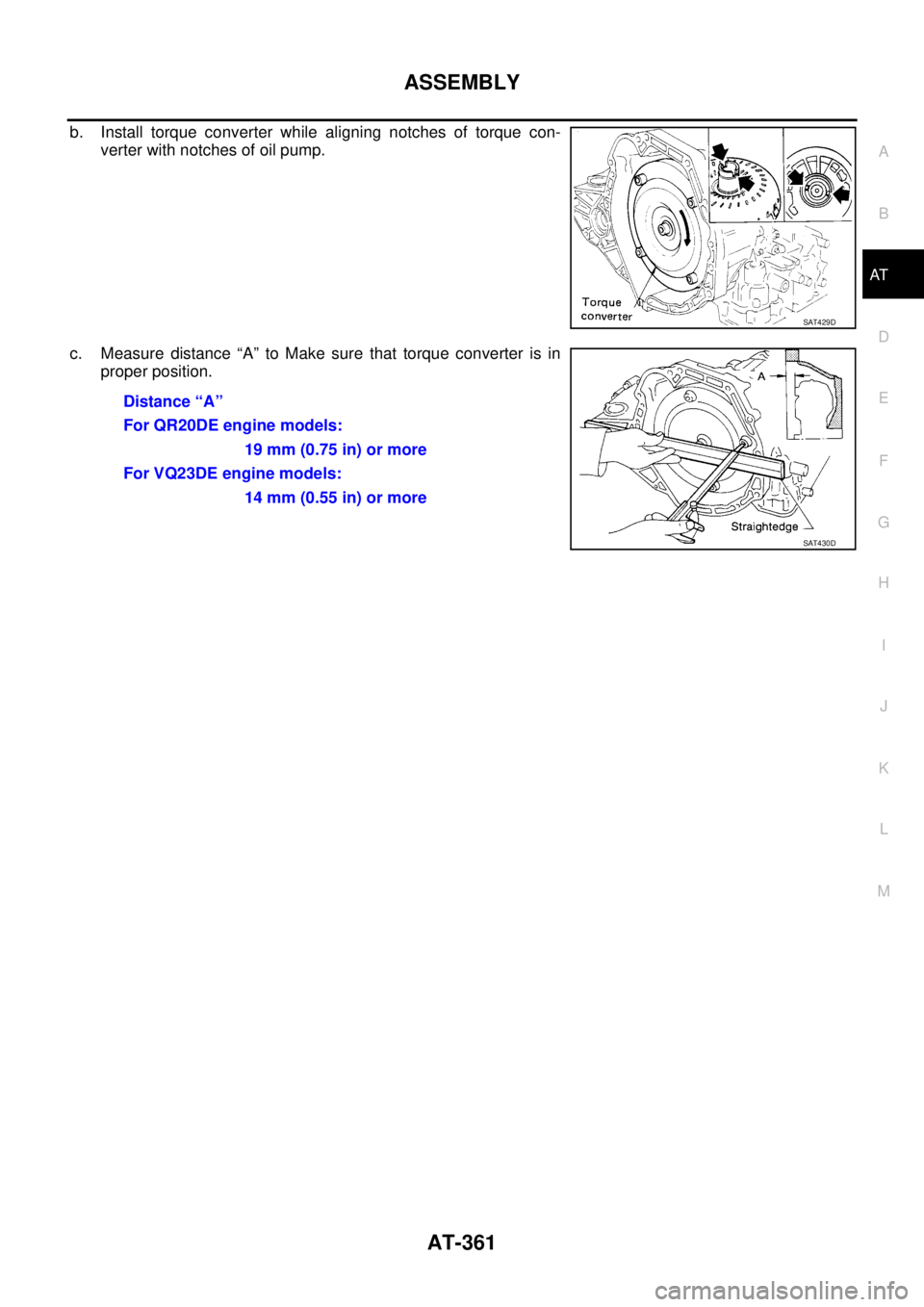

b. Install torque converter while aligning notches of torque con-
verter with notches of oil pump.
c. Measure distance “A” to Make sure that torque conv

Page 370 of 3502

NISSAN TEANA 2003  Service Manual AT-362
SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsBCS001PF
*: Refer to MA-14, "RECOMMENDED FLUIDS AND LUBRICANTS" .
Vehicle Speed Whic
