Page 591 of 3502

NISSAN TEANA 2003 Service Manual INTEGRATED COLOR DISPLAY SYSTEM AV-63 C D E F G H I J L MA B AV REAR VIEW CAMERA CONTROL UNIT Rear view camera control unit supplies power to the rear view camera, and then transmits the rear view

Page 592 of 3502

NISSAN TEANA 2003 Service Manual AV-64 INTEGRATED COLOR DISPLAY SYSTEM Schematic — INF/D —BKS0027N TKWM4671E

Page 593 of 3502

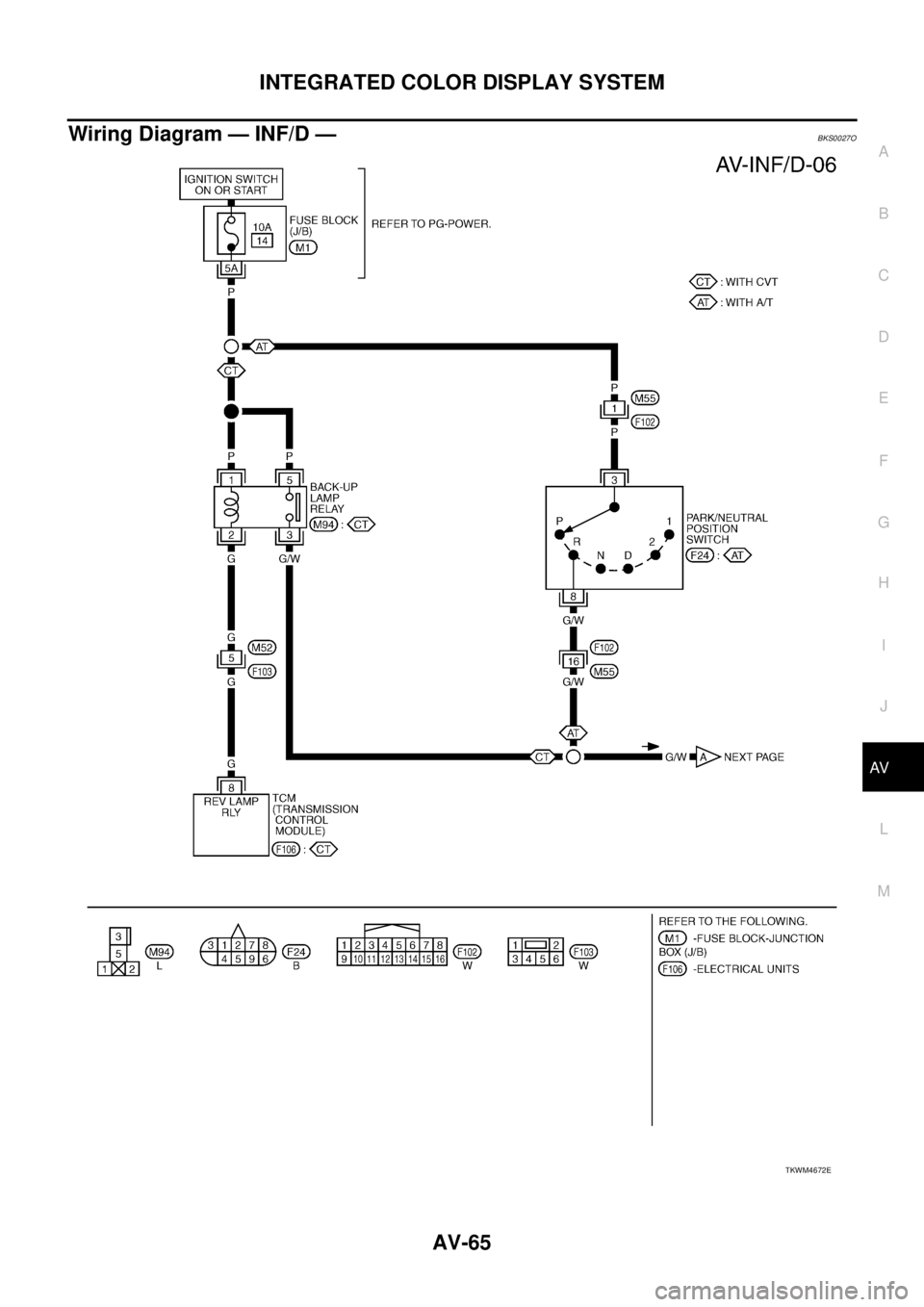

NISSAN TEANA 2003 Service Manual INTEGRATED COLOR DISPLAY SYSTEM AV-65 C D E F G H I J L MA B AV Wiring Diagram — INF/D — BKS0027O TKWM4672E

Page 594 of 3502

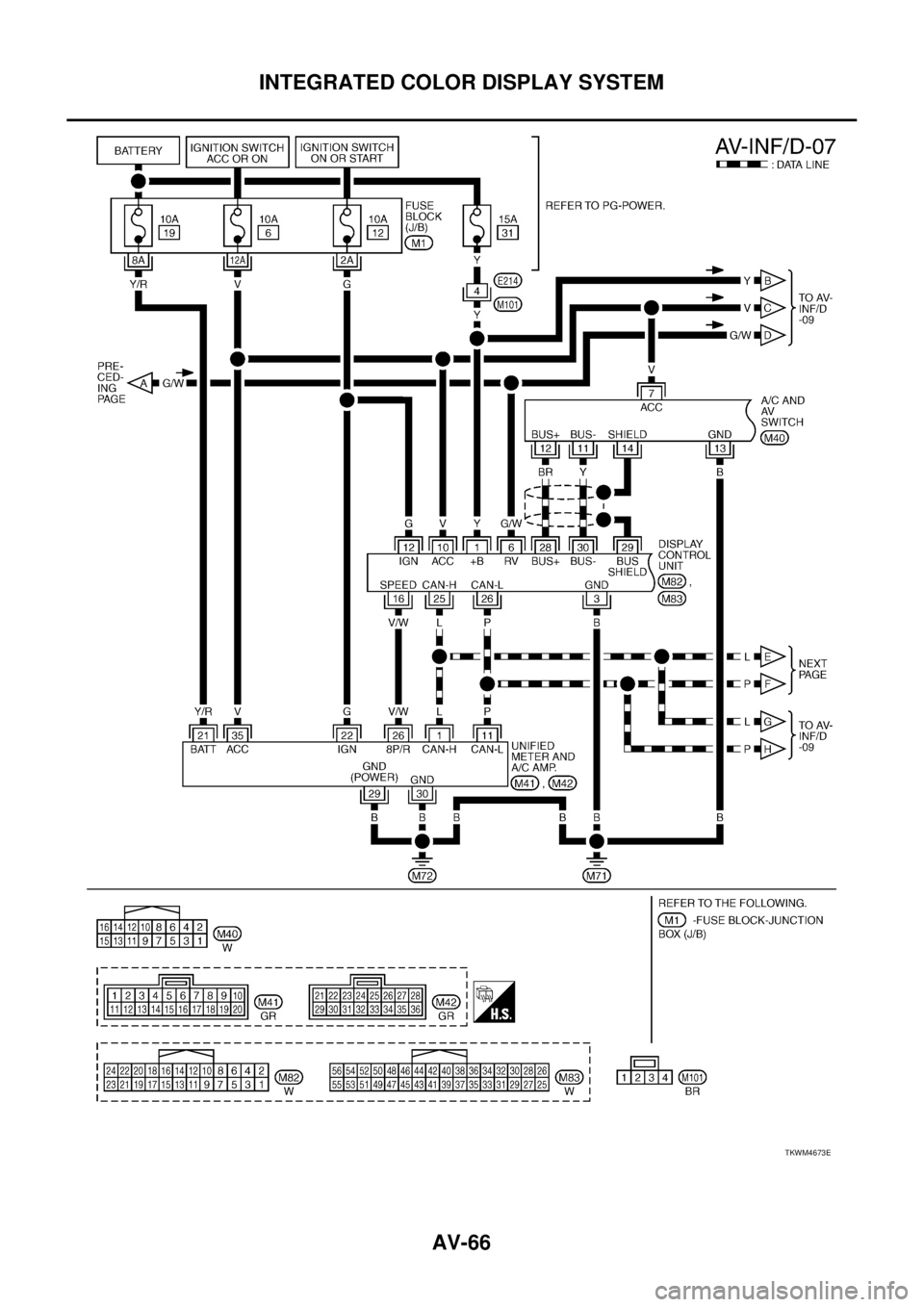

NISSAN TEANA 2003 Service Manual AV-66 INTEGRATED COLOR DISPLAY SYSTEM TKWM4673E

Page 595 of 3502

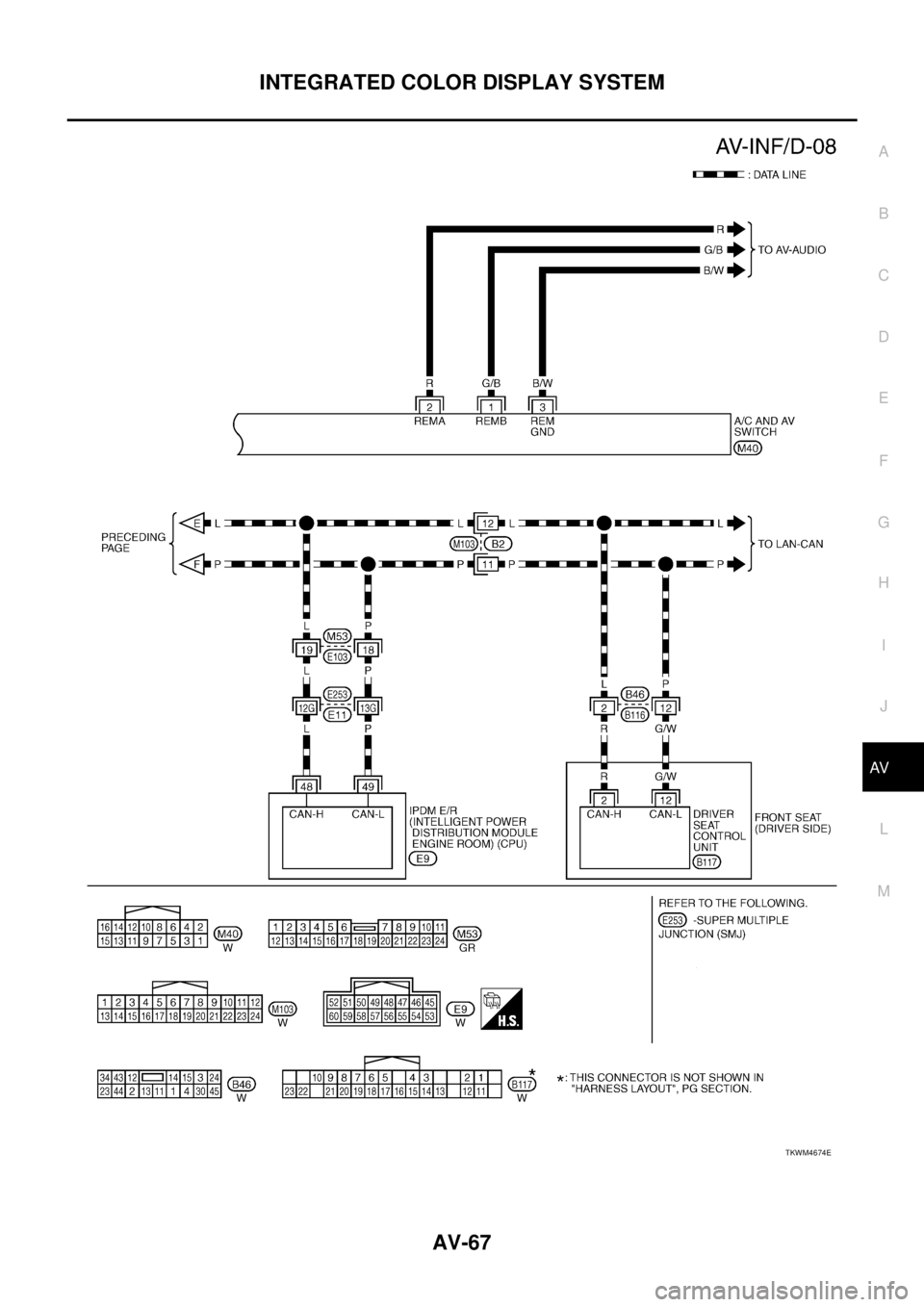

NISSAN TEANA 2003 Service Manual INTEGRATED COLOR DISPLAY SYSTEM AV-67 C D E F G H I J L MA B AV TKWM4674E

Page 596 of 3502

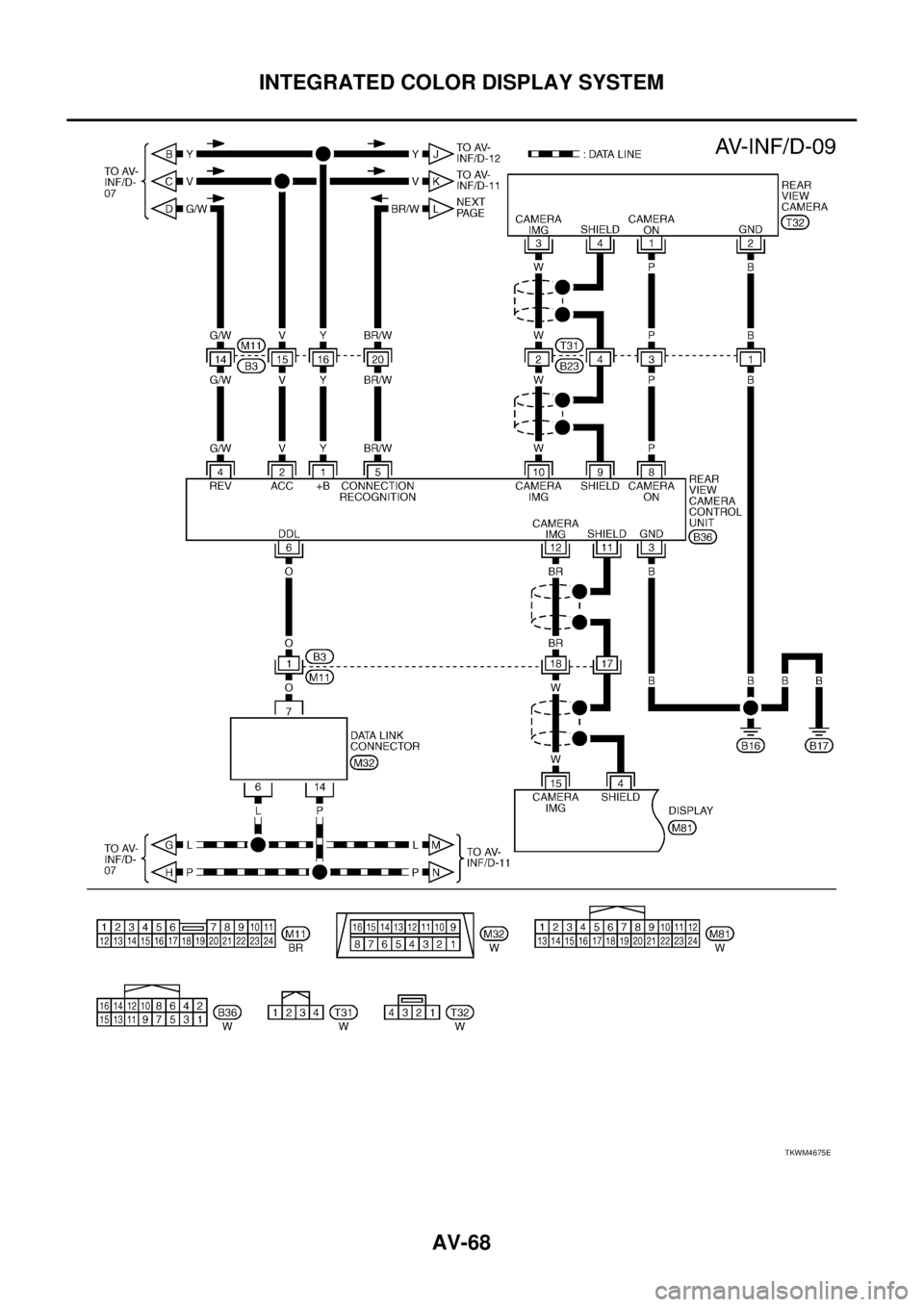

NISSAN TEANA 2003 Service Manual AV-68 INTEGRATED COLOR DISPLAY SYSTEM TKWM4675E

Page 597 of 3502

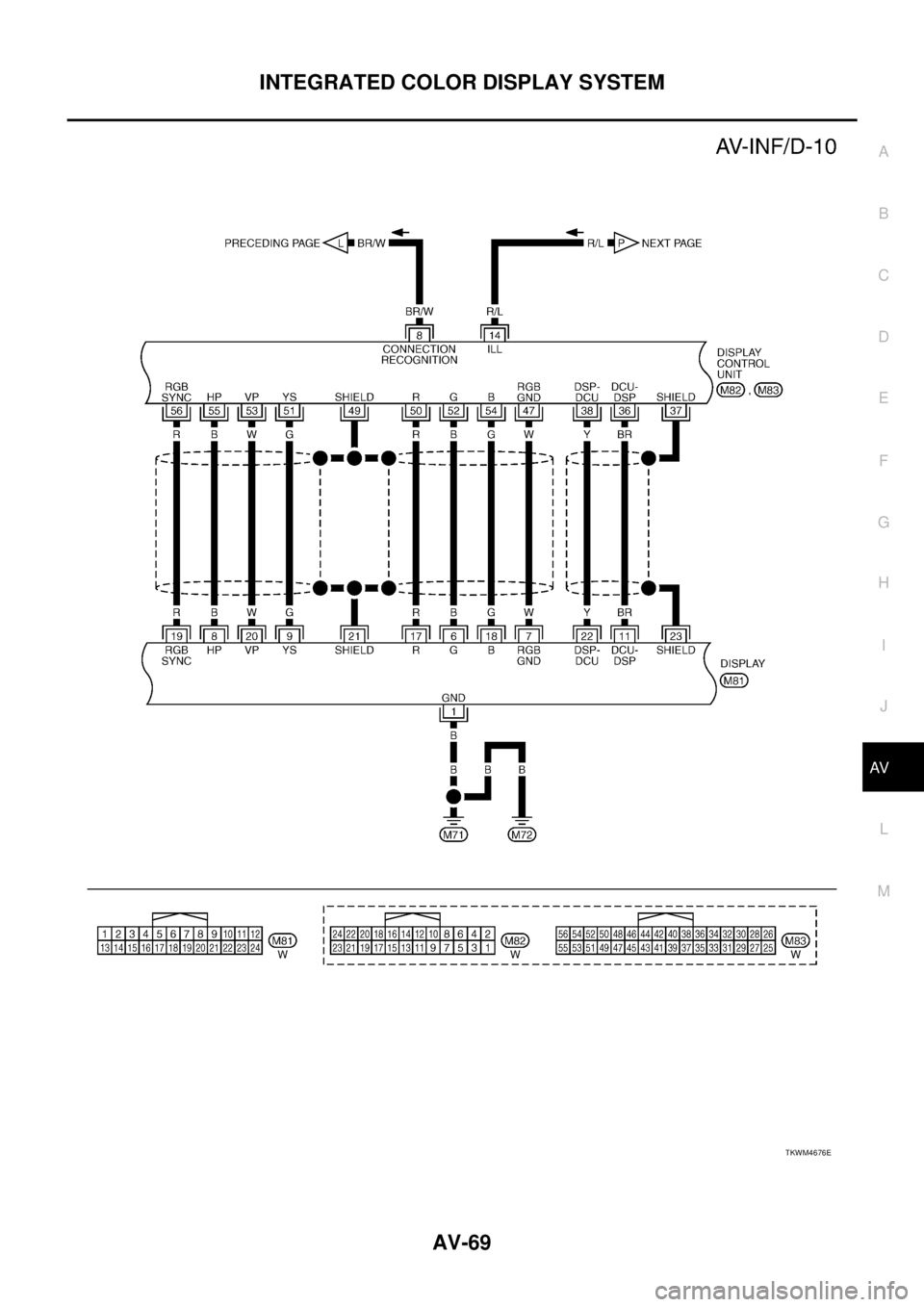

NISSAN TEANA 2003 Service Manual INTEGRATED COLOR DISPLAY SYSTEM AV-69 C D E F G H I J L MA B AV TKWM4676E

Page 598 of 3502

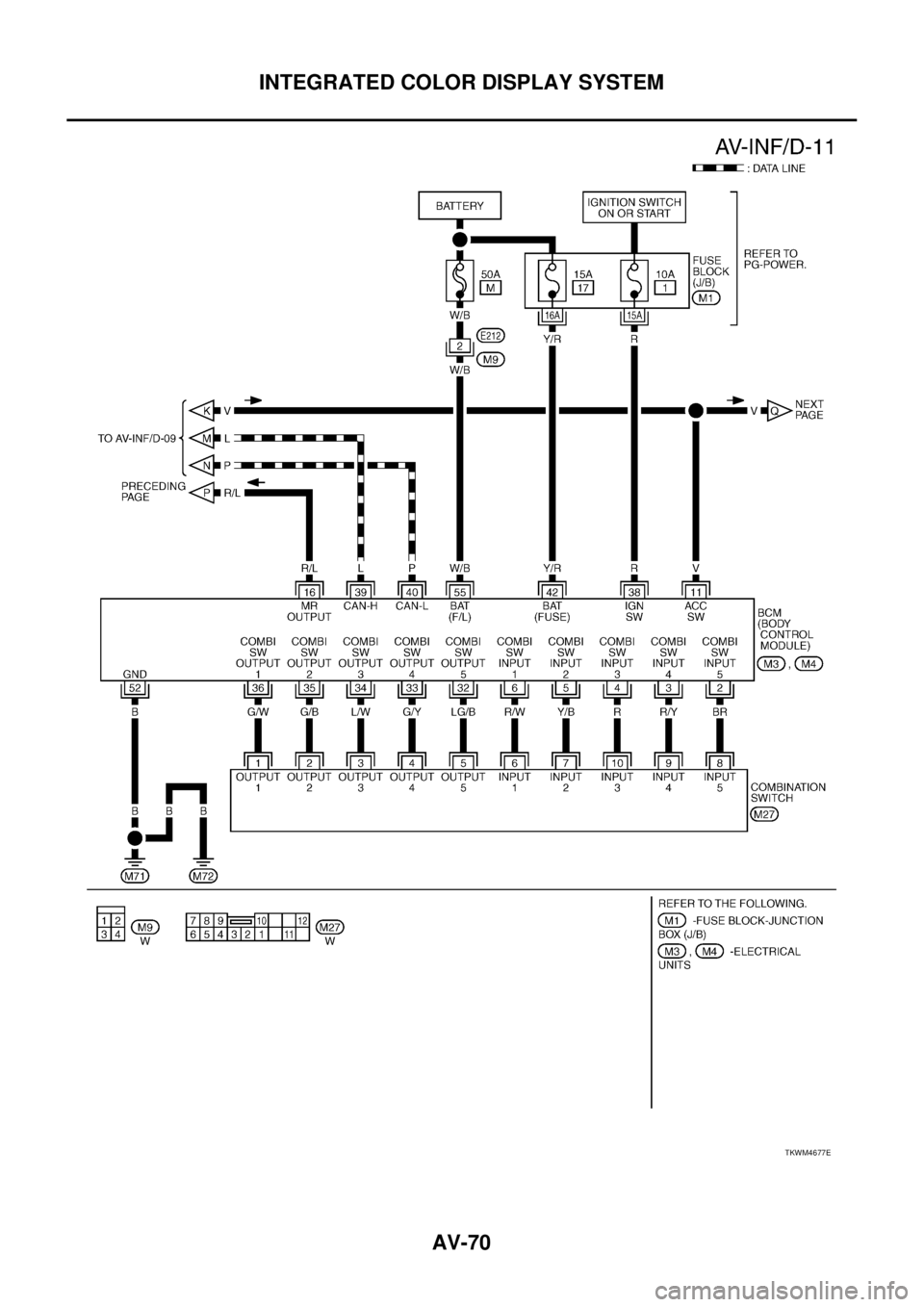

NISSAN TEANA 2003 Service Manual AV-70 INTEGRATED COLOR DISPLAY SYSTEM TKWM4677E

Page 599 of 3502

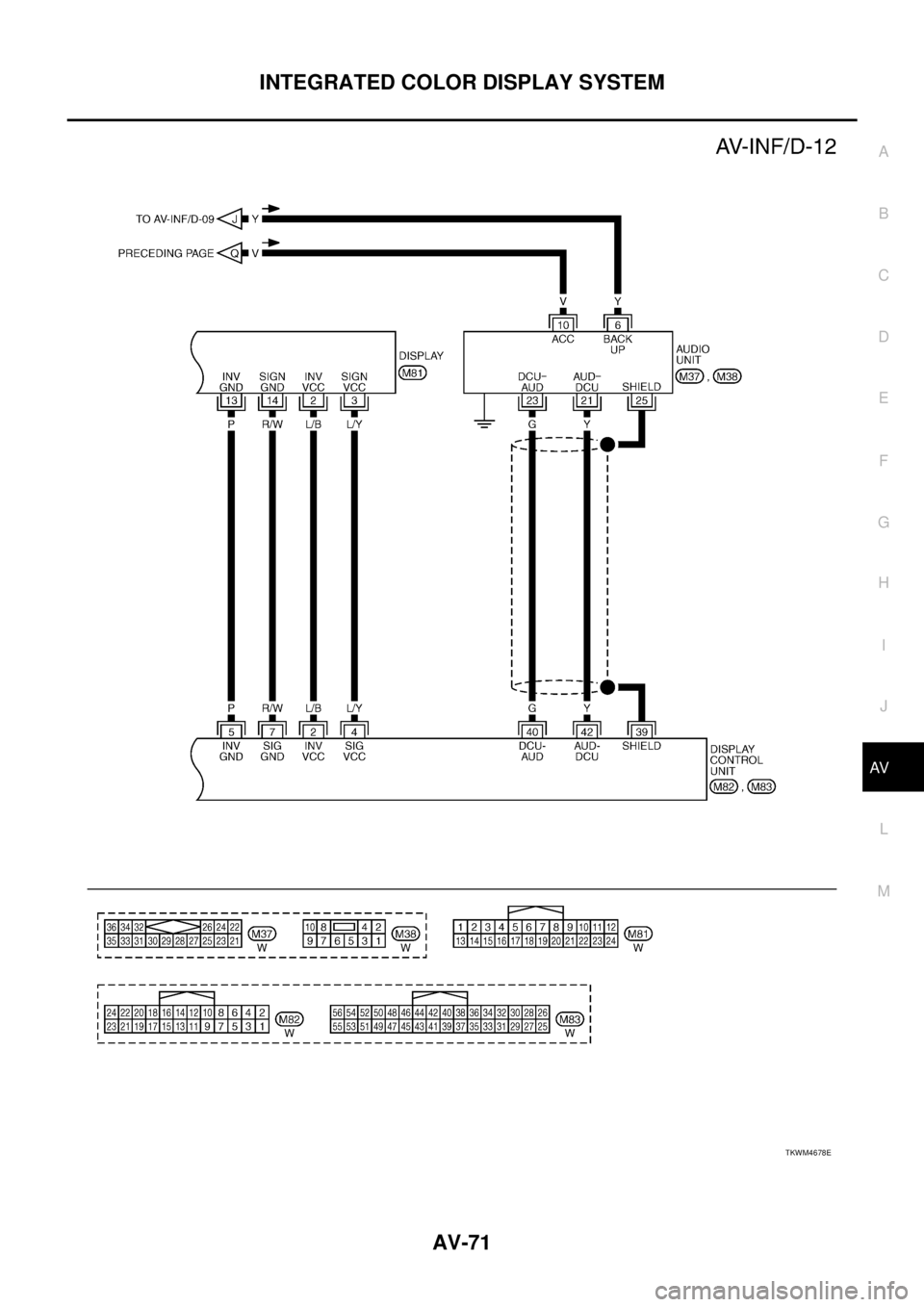

NISSAN TEANA 2003 Service Manual INTEGRATED COLOR DISPLAY SYSTEM AV-71 C D E F G H I J L MA B AV TKWM4678E

Page 600 of 3502

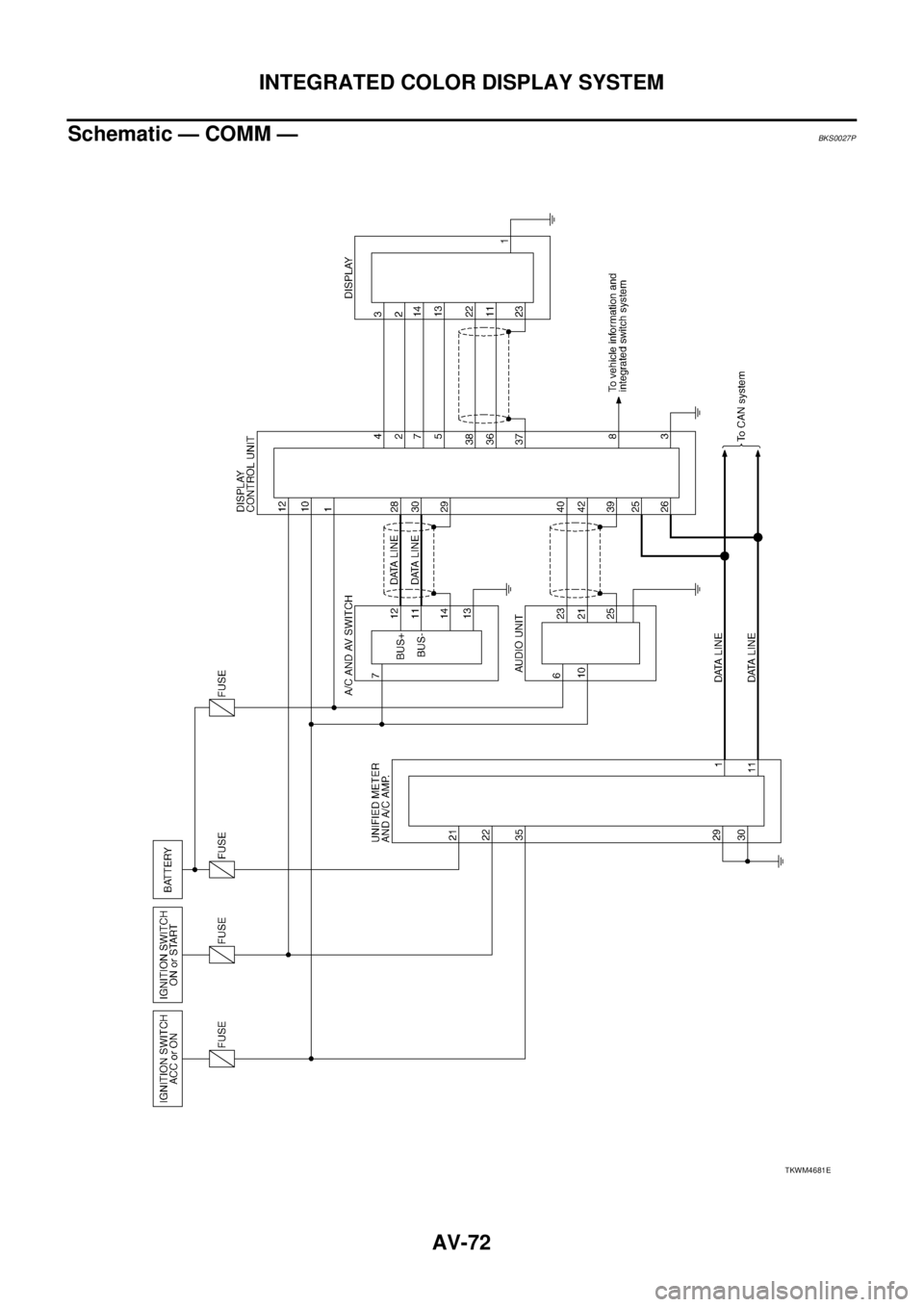

NISSAN TEANA 2003 Service Manual AV-72 INTEGRATED COLOR DISPLAY SYSTEM Schematic — COMM —BKS0027P TKWM4681E
