NISSAN TEANA 2003  Service Manual BRC-1
BRAKE CONTROL SYSTEM
F  BRAKES
CONTENTS
C
D
E
G
H
I
J
K
L
M
SECTION BRC
A
B
BRC

BRAKE CONTROL SYSTEM
ABS
PRECAUTIONS .......................................................... 3
Precautions fo

Page 862 of 3502

NISSAN TEANA 2003  Service Manual BRC-2  ACTUATOR AND ELECTRIC UNIT (ASSEMBLY) ... 35
Removal and Installation  ........................................ 35
COMPONENTS ................................................... 35
REMOVAL ....

Page 863 of 3502

NISSAN TEANA 2003  Service Manual PRECAUTIONS
BRC-3
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

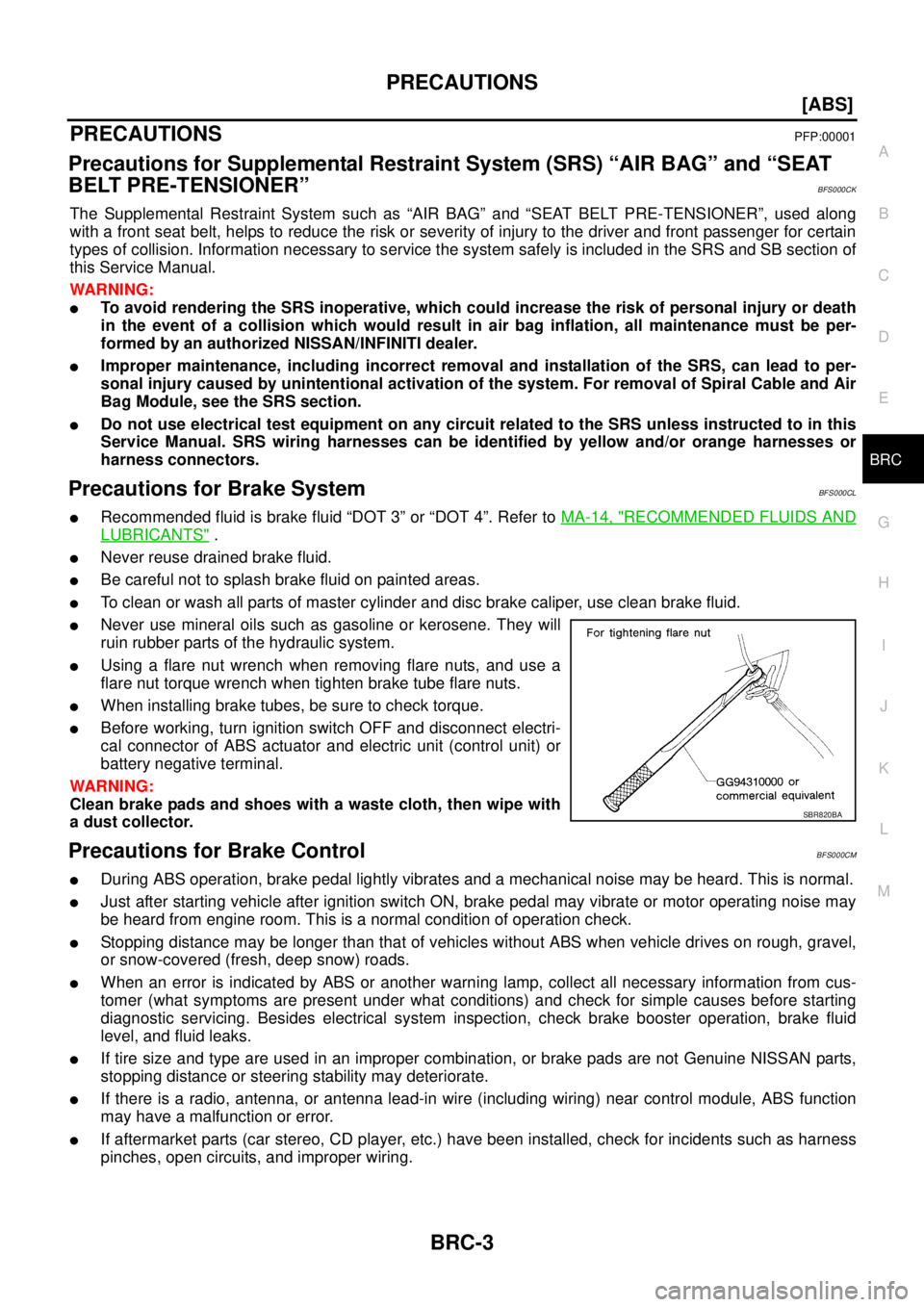

[ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BFS000CK
The Supplem

Page 864 of 3502

NISSAN TEANA 2003  Service Manual BRC-4
[ABS]
PREPARATION

PREPARATIONPFP:00002
Special Service ToolsBFS000CN
Tool number
Tool nameDescription
GG94310000
Flare nut torque wrench
a:10 mm (0.39 in)Installing brake tube
NT406

Page 865 of 3502

NISSAN TEANA 2003  Service Manual SYSTEM DESCRIPTION
BRC-5
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

SYSTEM DESCRIPTIONPFP:00000

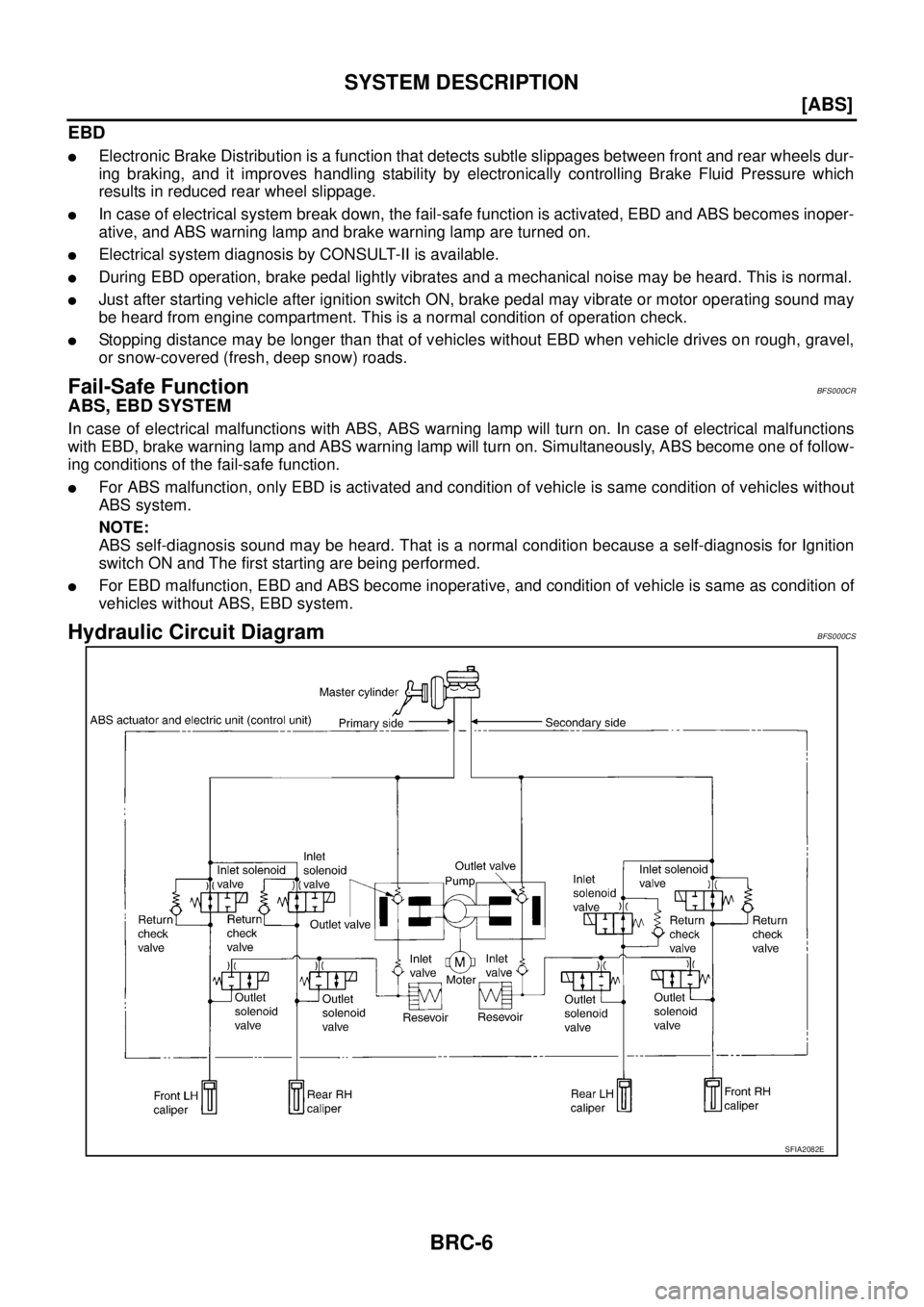

System DiagramBFS000CO
FunctionsBFS000CP
ABS
The Anti-Lock Brake System is a function that detects wheel revolu

Page 866 of 3502

NISSAN TEANA 2003  Service Manual BRC-6
[ABS]
SYSTEM DESCRIPTION

EBD
Electronic Brake Distribution is a function that detects subtle slippages between front and rear wheels dur-
ing braking, and it improves handling stability by el

Page 867 of 3502

NISSAN TEANA 2003  Service Manual SYSTEM DESCRIPTION
BRC-7
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

CAN CommunicationBFS000G4
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is a

Page 868 of 3502

NISSAN TEANA 2003  Service Manual BRC-8
[ABS]
TROUBLE DIAGNOSIS

TROUBLE DIAGNOSISPFP:00004
How to Perform Trouble Diagnosis For Quick and Accurate RepairBFS000CU
INTRODUCTION
Most important point to perform diagnosis is to understa

Page 869 of 3502

NISSAN TEANA 2003  Service Manual TROUBLE DIAGNOSIS
BRC-9
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

DIAGNOSIS FLOW CHART
SFIA3270E

Page 870 of 3502

NISSAN TEANA 2003  Service Manual BRC-10
[ABS]
TROUBLE DIAGNOSIS

ASKING COMPLAINTS
Complaints vary depending on the person. It is important to clar-
ify the customers actual remarks.
Ask the customer about what symptoms are prese
