NISSAN TEANA 2008  Service Manual GI-8
< HOW TO USE THIS MANUAL >

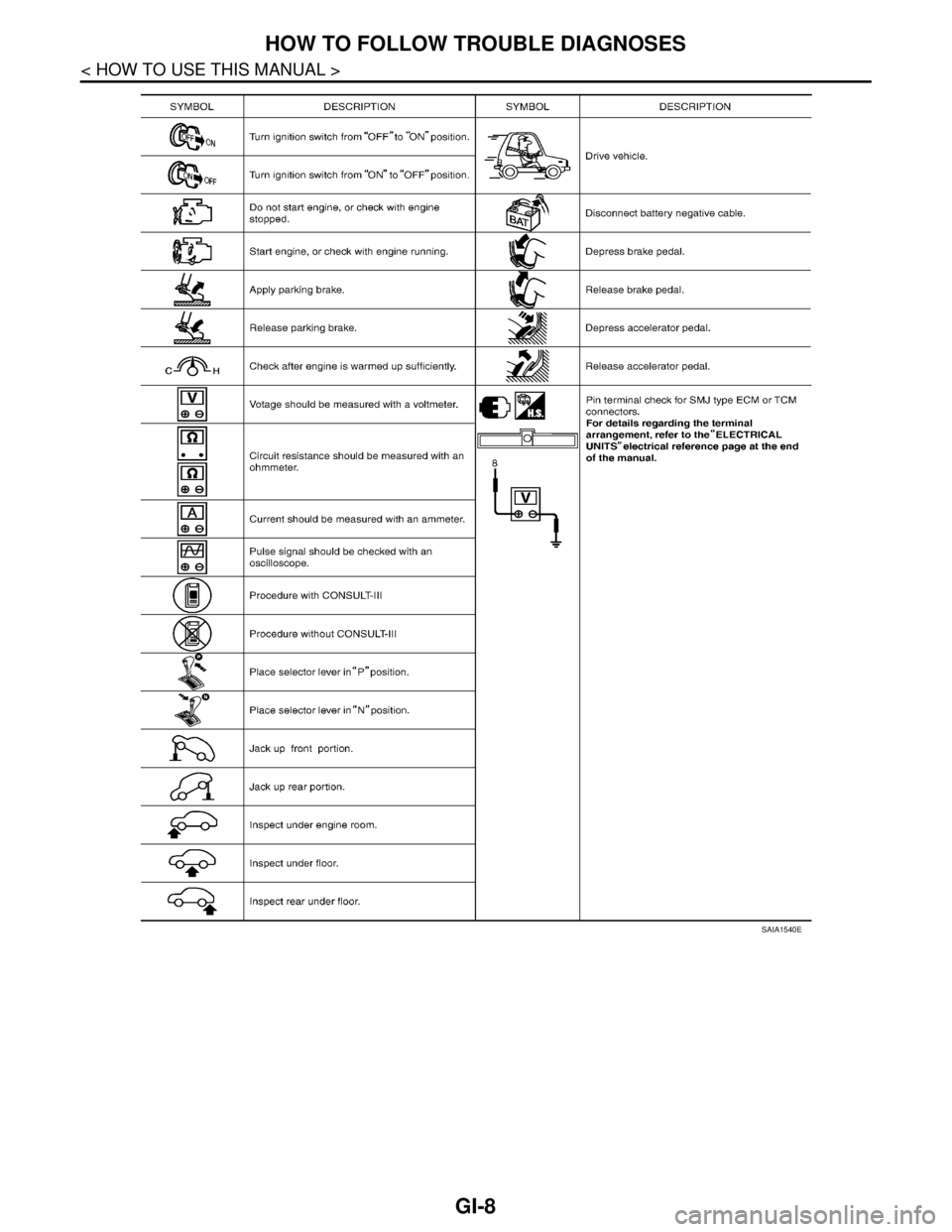

HOW TO FOLLOW TROUBLE DIAGNOSES
SAIA1540E

Page 2502 of 5121

NISSAN TEANA 2008  Service Manual HOW TO READ WIRING DIAGRAMS
GI-9
< HOW TO USE THIS MANUAL >
C
D
E
F
G
H
I
J
K
L
MB
GI
N
O
PHOW TO READ WIRING DIAGRAMS

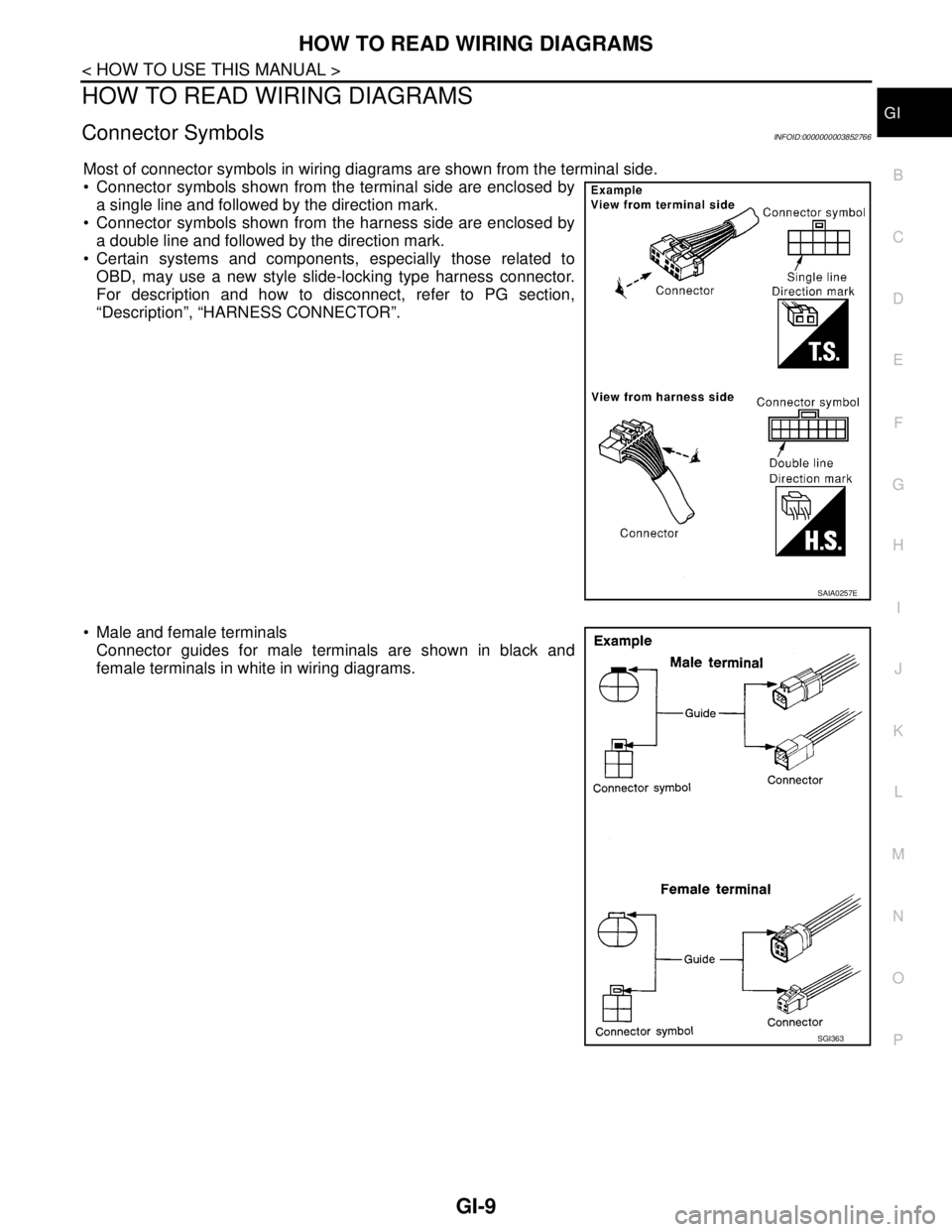

Connector SymbolsINFOID:0000000003852766
Most of connector symbols in wiring diag

Page 2503 of 5121

NISSAN TEANA 2008  Service Manual GI-10
< HOW TO USE THIS MANUAL >
HOW TO READ WIRING DIAGRAMS

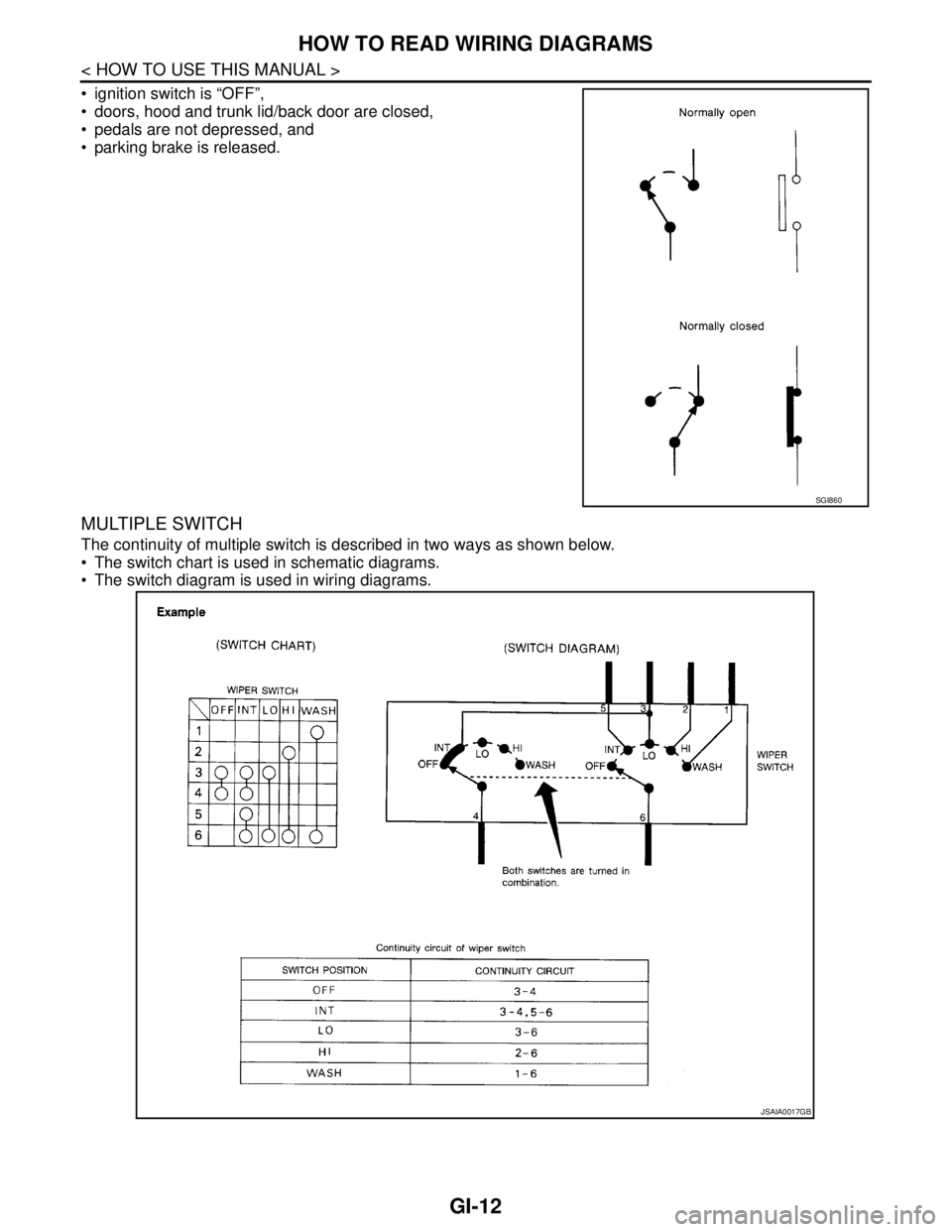

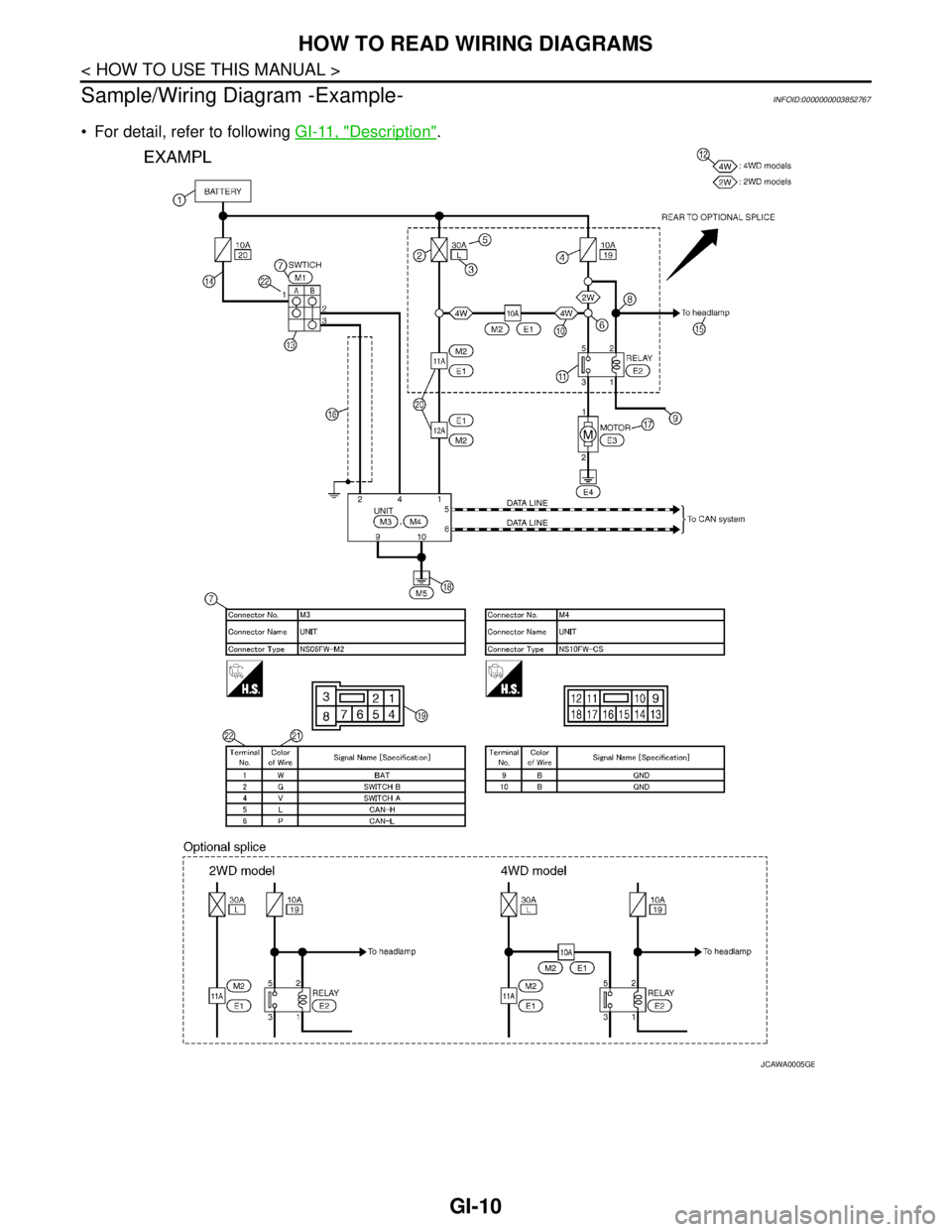

Sample/Wiring Diagram -Example-
INFOID:0000000003852767
 For detail, refer to following GI-11, "Description".
JCAWA0005GB

Page 2504 of 5121

NISSAN TEANA 2008  Service Manual HOW TO READ WIRING DIAGRAMS
GI-11
< HOW TO USE THIS MANUAL >
C
D
E
F
G
H
I
J
K
L
MB
GI
N
O
P
DescriptionINFOID:0000000003852768
SWITCH POSITIONS
Switches are shown in wiring diagrams as if the vehicl

Page 2505 of 5121

NISSAN TEANA 2008  Service Manual GI-12
< HOW TO USE THIS MANUAL >
HOW TO READ WIRING DIAGRAMS
 ignition switch is “OFF”,
 doors, hood and trunk lid/back door are closed,
 pedals are not depressed, and
 parking brake is releas

Page 2506 of 5121

NISSAN TEANA 2008  Service Manual ABBREVIATIONS
GI-13
< HOW TO USE THIS MANUAL >
C
D
E
F
G
H
I
J
K
L
MB
GI
N
O
PABBREVIATIONS
Abbreviation ListINFOID:0000000003852769
The following ABBREVIATIONS are used:
ABBREVIATION DESCRIPTION
A/C

Page 2507 of 5121

NISSAN TEANA 2008  Service Manual GI-14
< HOW TO USE THIS MANUAL >
TIGHTENING TORQUE OF STANDARD BOLTS
TIGHTENING TORQUE OF STANDARD BOLTS
DescriptionINFOID:0000000003852910
This vehicle has both new standard based on ISO* and previou

Page 2508 of 5121

NISSAN TEANA 2008  Service Manual TIGHTENING TORQUE OF STANDARD BOLTS
GI-15
< HOW TO USE THIS MANUAL >
C
D
E
F
G
H
I
J
K
L
MB
GI
N
O
P
The parts with aluminum or the cast iron washer surface/thread surface are excluded.
NEW STANDARD B

Page 2509 of 5121

NISSAN TEANA 2008  Service Manual GI-16
< HOW TO USE THIS MANUAL >
TIGHTENING TORQUE OF STANDARD BOLTS

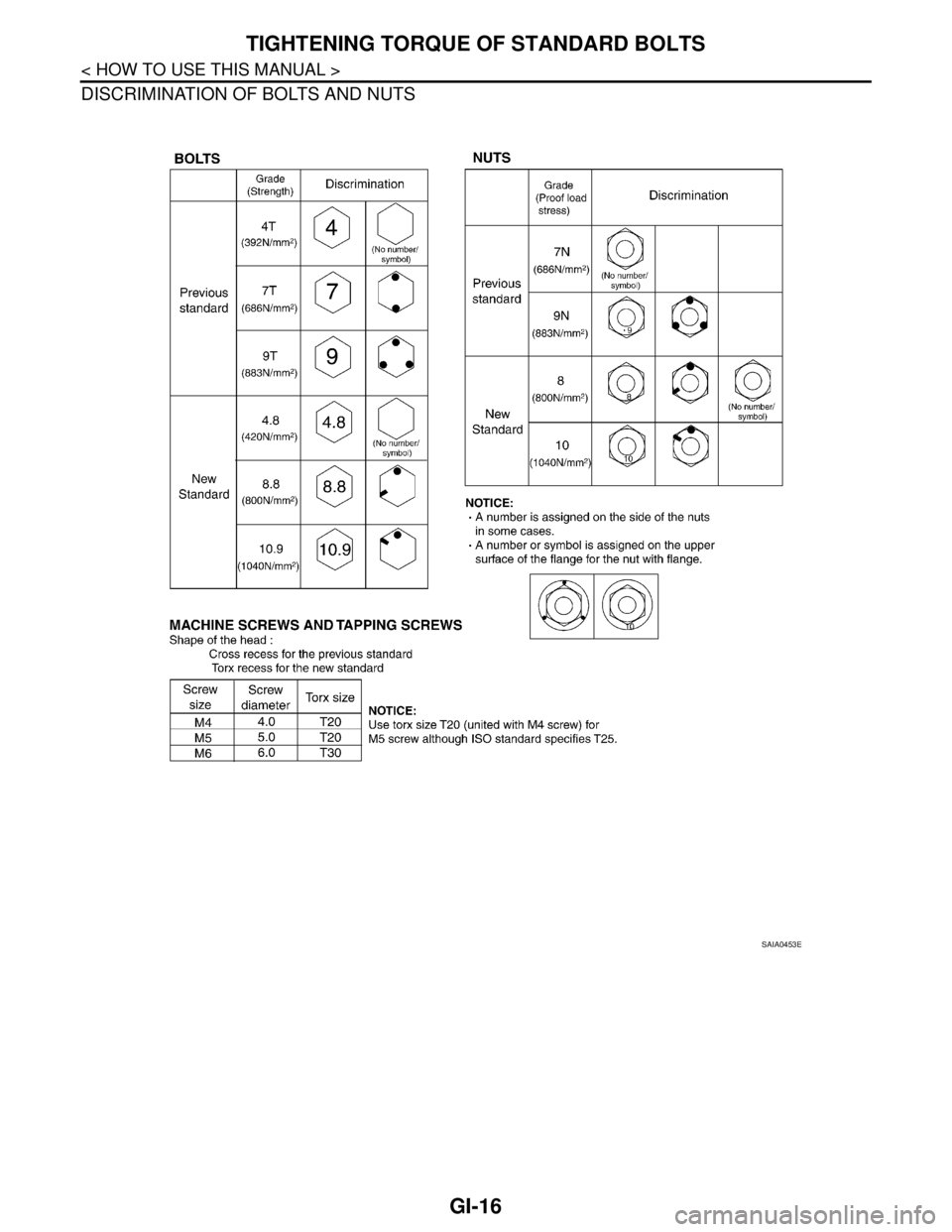

DISCRIMINATION OF BOLTS AND NUTS
SAIA0453E

Page 2510 of 5121

NISSAN TEANA 2008  Service Manual TERMINOLOGY
GI-17
< HOW TO USE THIS MANUAL >
C
D
E
F
G
H
I
J
K
L
MB
GI
N
O
PTERMINOLOGY
SAE J1930 Terminology ListINFOID:0000000003852771
All emission related terms used in this publication in accorda
