NOTE:
This operation status can be confirmed on the IPDM E/R “Data Monitor” that displays “BLOCK” for the item
“WIP PROT” while the wiper is stopped.
STARTER MOTOR PROTECTION FUNCTION
IPDM E/R turns OFF the starter control relay to protect the starter motor when the starter control relay remains
active for 90 seconds.
DTC IndexINFOID:0000000003941305
NOTE:
 The details of time display are as follows.
- CRNT: A malfunction is detected now
- PAST: A malfunction was detected in the past.
 IGN counter is displayed on FFD (Freeze Frame data).
- The number is 0 when is detected now
- The number increases like 1 → 2 ··· 38 → 39 after returning to the normal condition whenever IGN OFF →
ON.
- The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.
×: Applicable
Ignition switch Front wiper switch Front wiper auto stop signal
ONOFFThe front wiper auto stop signal (stop posi-
tion) cannot be input for 10 seconds.
ONThe front wiper auto stop signal does not
change for 10 seconds.
CONSULT display Fail-safe Refer to
No DTC is detected.
further testing
may be required.——
U1000: CAN COMM CIRCUIT×PCS-16
B2098: IGN RELAY ON×PCS-17
B2099: IGN RELAY OFF —PCS-18
B2108: STRG LCK RELAY ON —SEC-96
B2109: STRG LCK RELAY OFF —SEC-97
B210A: STRG LCK STATE SW —SEC-98
B210B: START CONT RLY ON —SEC-102
B210C: START CONT RLY OFF —SEC-103
B210D: STARTER RELAY ON —SEC-104
B210E: STARTER RELAY OFF —SEC-105
B210F: INTRLCK/PNP SW ON —SEC-107
B2110: INTRLCK/PNP SW OFF —SEC-109

WW-90
< SYMPTOM DIAGNOSIS >
FRONT WIPER AND WASHER SYSTEM SYMPTOMS
SYMPTOM DIAGNOSIS
FRONT WIPER AND WASHER SYSTEM SYMPTOMS
Symptom TableINFOID:0000000003774629
CAUTION:
Perform the self-diagnosis with CONSULT-III before performing the diagnosis by symptom. Perform
the diagnosis by DTC if DTC is detected.
Symptom Probable malfunction location Inspection item
Front wiper does not
operate.HI only Combination switch
 Harness between combination switch and BCM
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
 IPDM E/R
 Harness between IPDM E/R and front wiper
motor
 Front wiper motorFront wiper motor (HI) circuit
Refer to WW-25, "
Compo-
nent Function Check".
Front wiper request signal
BCM
 IPDM E/RIPDM E/R DATA MONITOR
“FR WIP REQ”
LO and INT Combination switch
 Harness between combination switch and BCM
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
 IPDM E/R
 Harness between IPDM E/R and front wiper
motor
 Front wiper motorFront wiper motor (LO) circuit
Refer to WW-23, "
Compo-
nent Function Check".
Front wiper request signal
BCM
 IPDM E/RIPDM E/R DATA MONITOR
“FR WIP REQ”
INT only Combination switch
 Harness between combination switch and BCM
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
Front wiper request signal
BCM
 IPDM E/RIPDM E/R DATA MONITOR
“FR WIP REQ”
HI, LO and INTSYMPTOM DIAGNOSIS
“FRONT WIPER DOES NOT OPERATE”
Refer to WW-93, "
Diagnosis Procedure".

FRONT WIPER AND WASHER SYSTEM SYMPTOMS
WW-91
< SYMPTOM DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
Front wiper does not
stop.HI only Combination switch
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
Front wiper request signal
BCM
 IPDM E/RIPDM E/R DATA MONITOR
“FR WIP REQ”
IPDM E/R —
LO only Combination switch
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
Front wiper request signal
BCM
 IPDM E/RIPDM E/R DATA MONITOR
“FR WIP REQ”
IPDM E/R —
INT only Combination switch
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
Front wiper request signal
BCM
 IPDM E/RIPDM E/R DATA MONITOR
“FR WIP REQ”
Front wiper does not
operate normally.Intermittent adjustment
cannot be performed. Combination switch
 Harness between combination switch and BCM
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
BCM —
Intermittent control
linked with vehicle
speed cannot be per-
formed.Check the vehicle speed detection wiper setting.
Refer to WW-13, "
WIPER : CONSULT-III Function (BCM - WIPER)".
NOTE:
Factory setting of the front wiper intermittent operation is the operation without ve-
hicle speed.
Wiper is not linked to
the washer operation. Combination switch
 Harness between combination switch and BCM
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
BCM —
Does not return to stop
position [Repeatedly
operates for 10 sec-
onds and then stops
for 20 seconds. After
that, it stops the opera-
tion. (Fail-safe)] IPDM E/R
 Harness between IPDM E/R and front wiper
motor
 Front wiper motorFront wiper auto stop signal
circuit
Refer to WW-27, "
Compo-
nent Function Check".
Headlamp washer
does not operate.Headlamp washer
does not operate with
the front washer when
headlamps are turned
ON. Combination switch
 Harness between combination switch and BCM
BCM
 Headlamp washer pumpCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
 Fusible link
 Harness between fusible link and headlamp
washer relay
 Headlamp washer relay
 Harness between headlamp washer relay and
IPDM E/R
 IPDM E/R
 Harness between headlamp washer relay and
headlamp washer pump
 Harness between headlamp washer pump and
ground
 Headlamp washer pumpHeadlamp washer circuit
Refer to WW-32, "
Compo-
nent Function Check".
BCM — Symptom Probable malfunction location Inspection item

WW-92
< SYMPTOM DIAGNOSIS >
NORMAL OPERATING CONDITION
NORMAL OPERATING CONDITION
DescriptionINFOID:0000000003761617
FRONT WIPER MOTOR PROTECTION FUNCTION
 IPDM E/R may stop the front wiper to protect the front wiper motor if any obstruction (operation resistance)
such as a large amount of snow is detected during the front wiper operation.
 At that time turn OFF the front wiper and remove the foreign object. Then wait for approximately 20 seconds
or more and reactivate the front wiper. The wiper will operate normally.

FRONT WIPER DOES NOT OPERATE
WW-93
< SYMPTOM DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
FRONT WIPER DOES NOT OPERATE
DescriptionINFOID:0000000003761613
The front wiper does not operate under any operating conditions.
Diagnosis ProcedureINFOID:0000000003761614
1.CHECK WIPER RELAY OPERATION
IPDM E/R AUTO ACTIVE TEST
1. Start IPDM E/R auto active test. Refer to PCS-11, "
Diagnosis Description".
2. Check that the front wiper operates at the LO/HI operation.
CONSULT-III ACTIVE TEST
1. Select“FRONT WIPER” of IPDM E/R active test item.
2. With operating the test item, check front wiper operation.
Is front wiper operation normally?
YES >> GO TO 5.
NO >> GO TO 2.
2.CHECK FRONT WIPER MOTOR FUSE
1. Turn the ignition switch OFF.
2. Check that the front wiper motor 30A (#60) fuse is not fusing.
Is the fuse fusing?
YES >> Replace the fuse after repairing the applicable circuit.
NO >> GO TO 3.
3.CHECK FRONT WIPER MOTOR (GND) OPEN CIRCUIT
1. Disconnect front wiper motor connector.
2. Check continuity between front wiper motor harness connector and ground.
Does continuity exist?
YES >> GO TO 4.
NO >> Repair the harness or connector.
4.CHECK FRONT WIPER MOTOR OUTPUT VOLTAGE
CONSULT-III ACTIVE TEST
1. Disconnect front wiper motor connector.
2. Turn the ignition switch ON.
3. Select “FRONT WIPER” of IPDM E/R active test item.
4. With operating the test item, check voltage between IPDM E/R harness connector and ground. Lo : Front wiper LO operation
Hi : Front wiper HI operation
Off : Stop the front wiper.
Front wiper motor
GroundContinuity
Connector Terminal
E12 2 Existed

WW-94
< SYMPTOM DIAGNOSIS >
FRONT WIPER DOES NOT OPERATE
Is the measurement normal?
YES >> Replace front wiper motor.
NO >> Replace IPDM E/R.
5.CHECK FRONT WIPER REQUEST SIGNAL INPUT
CONSULT-III DATA MONITOR
1. Select “FR WIP REQ” of IPDM E/R data monitor item.
2. Switch the front wiper switch to HI and LO.
3. With operating the front wiper switch, check the monitor status.
Is the status of item normal?
YES >> Replace IPDM E/R.
NO >> GO TO 6.
6.CHECK COMBINATION SWITCH
Perform the inspection of the combination switch. Refer to BCS-76, "
Symptom Table".
Is combination switch normal?
YES >> Replace BCM. Refer to BCS-78, "Exploded View".
NO >> Repair or replace the applicable parts.
Te r m i n a l s
Te s t i t e m
Voltage (Approx.) (+) (−)
IPDM E/R
GroundFRONT WIPER
Connector Terminal
E104Lo Battery voltage
Off 0 V
5Hi Battery voltage
Off 0 V
Monitor item Condition Monitor status
FR WIPER REQFront wiper switch HION Hi
OFF Stop
Front wiper switch LOON Low
OFF Stop

HEADLAMP WASHER DOES NOT OPERATE
WW-95
< SYMPTOM DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
HEADLAMP WASHER DOES NOT OPERATE
DescriptionINFOID:0000000003774630
Headlamp washer does not operate linked to front washer operation.
Diagnosis ProcedureINFOID:0000000003774631
1.CHECK IPDM E/R
CONSULT-III DATA MONITOR
1. Turn the lighting switch 2ND.
2. Select “HL WASHER REQ” of IPDM E/R data monitor item.
3. Operate the headlamp washer.
4. Check the status of “HL WASHER REQ”.
Is the status of item normal?
YES >> Refer to WW-32, "Component Function Check".
NO >> GO TO 2.
2.CHECK COMBINATION SWITCH
Perform the inspection of the combination switch. Refer to BCS-76, "
Symptom Table".
Is combination switch normal?
YES >> Replace BCM. Refer to BCS-78, "Exploded View".
NO >> Repair or replace the applicable parts.
Monitor item Condition Monitor status
HL WASHER REQ Headlamp washer Operating On
Stopped Off

WW-96
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000003761618
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.
WARNING:
 To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
 Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.
 Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-
vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.
Precaution for Procedure without Cowl Top CoverINFOID:0000000003761619

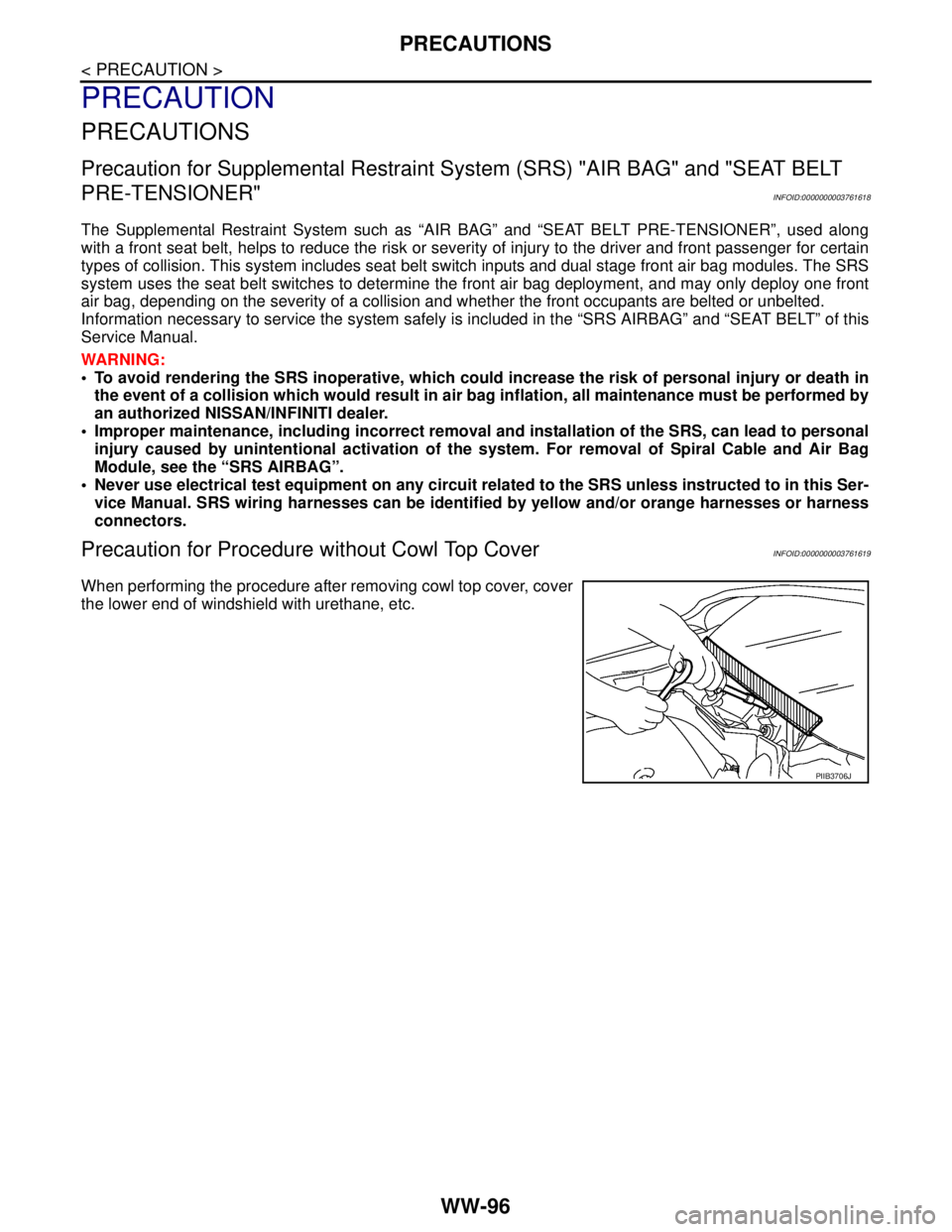

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
PIIB3706J

HEADLAMP WASHER NOZZLE AND TUBE
WW-97
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
ON-VEHICLE REPAIR
HEADLAMP WASHER NOZZLE AND TUBE
Exploded ViewINFOID:0000000003761621
Hydraulic LayoutINFOID:0000000003761622
Removal and InstallationINFOID:0000000003761623
REMOVAL
1. Headlamp washer nozzle cover 2. Headlamp washer nozzle assembly
JPLIA1130ZZ
1. Headlamp washer nozzle assembly
(LH)2. Headlamp washer tube 3. Headlamp washer nozzle assembly
(RH)
A. Headlamp washer tube joint
: Clip
JPLIA1131ZZ

WW-98
< ON-VEHICLE REPAIR >
HEADLAMP WASHER NOZZLE AND TUBE
1. Push pawl (A), and remove the headlamp washer nozzle cover
(1).
2. Remove the front bumper fascia. Refer to EXT-11, "
Exploded
View".
3. Disconnect the headlamp washer tube from the headlamp
washer nozzle assembly.
4. Remove the headlamp washer nozzle mounting bolt.
5. Remove the headlamp washer nozzle assembly from the front
bumper fascia.
INSTALLATION
Install in the reverse order of removal.
InspectionINFOID:0000000003761624
HEADLAMP WASHER NOZZLE SPRAY POSITION INSPECTION
Check that the headlamp washer injection is certainly on the head-
lamp illuminating area. If the injection is out of the area, check the
headlamp washer tube and headlamp washer nozzle leakages.
JPLIA1132ZZ
JPLIA1133ZZ
